MongoDB 提供两种方式创建集合：隐式创建 和 显式创建。
方式 1：隐式创建（推荐）
当你向不存在的集合中插入文档时，MongoDB 会自动创建该集合。
示例
在 db中隐式创建 users 集合：
javascript
db.users.insertOne({ name: "Alice", age: 30 })方式 2：显式创建（自定义配置）
使用 createCollection() 方法手动创建集合，并可指定配置选项（如文档大小限制、索引等）。
命令语法
javascript
cpp
db.createCollection(<集合名>, { <选项> })常用选项
capped: 是否为固定大小集合（默认false）。size: 固定大小集合的最大字节数。max: 固定大小集合的最大文档数量。
mongo/db/commands/dbcommands.cpp中CmdCreate对象执行创建集合动作
cpp
/* create collection */
class CmdCreate : public BasicCommand {
public:
CmdCreate() : BasicCommand("create") {}
AllowedOnSecondary secondaryAllowed(ServiceContext*) const override {
return AllowedOnSecondary::kNever;
}
virtual bool adminOnly() const {
return false;
}
virtual bool supportsWriteConcern(const BSONObj& cmd) const override {
return true;
}
std::string help() const override {
return str::stream()
<< "explicitly creates a collection or view\n"
<< "{\n"
<< " create: <string: collection or view name> [,\n"
<< " capped: <bool: capped collection>,\n"
<< " autoIndexId: <bool: automatic creation of _id index>,\n"
<< " idIndex: <document: _id index specification>,\n"
<< " size: <int: size in bytes of the capped collection>,\n"
<< " max: <int: max number of documents in the capped collection>,\n"
<< " storageEngine: <document: storage engine configuration>,\n"
<< " validator: <document: validation rules>,\n"
<< " validationLevel: <string: validation level>,\n"
<< " validationAction: <string: validation action>,\n"
<< " indexOptionDefaults: <document: default configuration for indexes>,\n"
<< " viewOn: <string: name of source collection or view>,\n"
<< " pipeline: <array<object>: aggregation pipeline stage>,\n"
<< " collation: <document: default collation for the collection or view>,\n"
<< " writeConcern: <document: write concern expression for the operation>]\n"
<< "}";
}
virtual Status checkAuthForCommand(Client* client,
const std::string& dbname,
const BSONObj& cmdObj) const {
const NamespaceString nss(parseNs(dbname, cmdObj));
return AuthorizationSession::get(client)->checkAuthForCreate(nss, cmdObj, false);
}
virtual bool run(OperationContext* opCtx,
const string& dbname,
const BSONObj& cmdObj,
BSONObjBuilder& result) {
IDLParserErrorContext ctx("create");
CreateCommand cmd = CreateCommand::parse(ctx, cmdObj);
const NamespaceString ns = cmd.getNamespace();
if (cmd.getAutoIndexId()) {
const char* deprecationWarning =
"the autoIndexId option is deprecated and will be removed in a future release";
warning() << deprecationWarning;
result.append("note", deprecationWarning);
}
// Ensure that the 'size' field is present if 'capped' is set to true.
if (cmd.getCapped()) {
uassert(ErrorCodes::InvalidOptions,
str::stream() << "the 'size' field is required when 'capped' is true",
cmd.getSize());
}
// If the 'size' or 'max' fields are present, then 'capped' must be set to true.
if (cmd.getSize() || cmd.getMax()) {
uassert(ErrorCodes::InvalidOptions,
str::stream() << "the 'capped' field needs to be true when either the 'size'"
<< " or 'max' fields are present",
cmd.getCapped());
}
// The 'temp' field is only allowed to be used internally and isn't available to clients.
if (cmd.getTemp()) {
uassert(ErrorCodes::InvalidOptions,
str::stream() << "the 'temp' field is an invalid option",
opCtx->getClient()->isInDirectClient() ||
(opCtx->getClient()->session()->getTags() |
transport::Session::kInternalClient));
}
// Validate _id index spec and fill in missing fields.
if (cmd.getIdIndex()) {
auto idIndexSpec = *cmd.getIdIndex();
uassert(ErrorCodes::InvalidOptions,
str::stream() << "'idIndex' is not allowed with 'viewOn': " << idIndexSpec,
!cmd.getViewOn());
uassert(ErrorCodes::InvalidOptions,
str::stream() << "'idIndex' is not allowed with 'autoIndexId': " << idIndexSpec,
!cmd.getAutoIndexId());
// Perform index spec validation.
idIndexSpec = uassertStatusOK(index_key_validate::validateIndexSpec(
opCtx, idIndexSpec, serverGlobalParams.featureCompatibility));
uassertStatusOK(index_key_validate::validateIdIndexSpec(idIndexSpec));
// Validate or fill in _id index collation.
std::unique_ptr<CollatorInterface> defaultCollator;
if (cmd.getCollation()) {
auto collatorStatus = CollatorFactoryInterface::get(opCtx->getServiceContext())
->makeFromBSON(*cmd.getCollation());
uassertStatusOK(collatorStatus.getStatus());
defaultCollator = std::move(collatorStatus.getValue());
}
idIndexSpec = uassertStatusOK(index_key_validate::validateIndexSpecCollation(
opCtx, idIndexSpec, defaultCollator.get()));
std::unique_ptr<CollatorInterface> idIndexCollator;
if (auto collationElem = idIndexSpec["collation"]) {
auto collatorStatus = CollatorFactoryInterface::get(opCtx->getServiceContext())
->makeFromBSON(collationElem.Obj());
// validateIndexSpecCollation() should have checked that the _id index collation
// spec is valid.
invariant(collatorStatus.isOK());
idIndexCollator = std::move(collatorStatus.getValue());
}
if (!CollatorInterface::collatorsMatch(defaultCollator.get(), idIndexCollator.get())) {
uasserted(ErrorCodes::BadValue,
"'idIndex' must have the same collation as the collection.");
}
// Remove "idIndex" field from command.
auto resolvedCmdObj = cmdObj.removeField("idIndex");
uassertStatusOK(createCollection(opCtx, dbname, resolvedCmdObj, idIndexSpec));
return true;
}
BSONObj idIndexSpec;
uassertStatusOK(createCollection(opCtx, dbname, cmdObj, idIndexSpec));
return true;
}
} cmdCreate;CmdCreate核心方法是run，run方法先解析CreateCommand::parse命令；参数验证；createCollection创建Collection；
mongo/db/catalog/create_collection.cpp中createCollection（4个参数）方法：
cpp
Status createCollection(OperationContext* opCtx,
const std::string& dbName,
const BSONObj& cmdObj,
const BSONObj& idIndex) {
return createCollection(opCtx,
CommandHelpers::parseNsCollectionRequired(dbName, cmdObj),
cmdObj,
idIndex,
CollectionOptions::parseForCommand);
}mongo/db/catalog/create_collection.cpp中createCollection（5个参数）方法：
cpp
/**
* Shared part of the implementation of the createCollection versions for replicated and regular
* collection creation.
*/
Status createCollection(OperationContext* opCtx,
const NamespaceString& nss,
const BSONObj& cmdObj,
const BSONObj& idIndex,
CollectionOptions::ParseKind kind) {
BSONObjIterator it(cmdObj);
// Skip the first cmdObj element.
BSONElement firstElt = it.next();
invariant(firstElt.fieldNameStringData() == "create");
Status status = userAllowedCreateNS(nss.db(), nss.coll());
if (!status.isOK()) {
return status;
}
// Build options object from remaining cmdObj elements.
BSONObjBuilder optionsBuilder;
while (it.more()) {
const auto elem = it.next();
if (!isGenericArgument(elem.fieldNameStringData()))
optionsBuilder.append(elem);
if (elem.fieldNameStringData() == "viewOn") {
// Views don't have UUIDs so it should always be parsed for command.
kind = CollectionOptions::parseForCommand;
}
}
BSONObj options = optionsBuilder.obj();
uassert(14832,
"specify size:<n> when capped is true",
!options["capped"].trueValue() || options["size"].isNumber());
CollectionOptions collectionOptions;
{
StatusWith<CollectionOptions> statusWith = CollectionOptions::parse(options, kind);
if (!statusWith.isOK()) {
return statusWith.getStatus();
}
collectionOptions = statusWith.getValue();
}
if (collectionOptions.isView()) {
return _createView(opCtx, nss, collectionOptions, idIndex);
} else {
return _createCollection(opCtx, nss, collectionOptions, idIndex);
}
}mongo/db/catalog/create_collection.cpp中userAllowedCreateNS(nss.db(), nss.coll())验证数据库名字和集合的名字是否合法，判断是否和系统名字冲突。比如system.users；system.version；system.role等；
cpp
Status userAllowedCreateNS(StringData db, StringData coll) {
// validity checking
if (db.size() == 0)
return Status(ErrorCodes::InvalidNamespace, "db cannot be blank");
if (!NamespaceString::validDBName(db, NamespaceString::DollarInDbNameBehavior::Allow))
return Status(ErrorCodes::InvalidNamespace, "invalid db name");
if (coll.size() == 0)
return Status(ErrorCodes::InvalidNamespace, "collection cannot be blank");
if (!NamespaceString::validCollectionName(coll))
return Status(ErrorCodes::InvalidNamespace, "invalid collection name");
if (!NamespaceString(db, coll).checkLengthForFCV())
return Status(ErrorCodes::IncompatibleServerVersion,
str::stream() << "Cannot create collection with a long name " << db << "."
<< coll << " - upgrade to feature compatibility version "
<< FeatureCompatibilityVersionParser::kVersion44
<< " to be able to do so.");
// check special areas
if (db == "system")
return Status(ErrorCodes::InvalidNamespace, "cannot use 'system' database");
if (coll.startsWith("system.")) {
if (coll == "system.js")
return Status::OK();
if (coll == "system.profile")
return Status::OK();
if (coll == "system.users")
return Status::OK();
if (coll == DurableViewCatalog::viewsCollectionName())
return Status::OK();
if (db == "admin") {
if (coll == "system.version")
return Status::OK();
if (coll == "system.roles")
return Status::OK();
if (coll == "system.new_users")
return Status::OK();
if (coll == "system.backup_users")
return Status::OK();
if (coll == "system.keys")
return Status::OK();
}
if (db == "config") {
if (coll == "system.sessions")
return Status::OK();
if (coll == "system.indexBuilds")
return Status::OK();
}
if (db == "local") {
if (coll == "system.replset")
return Status::OK();
if (coll == "system.healthlog")
return Status::OK();
}
return Status(ErrorCodes::InvalidNamespace,
str::stream() << "cannot write to '" << db << "." << coll << "'");
}CollectionOptions::parse(options, kind）解析集合参数；
_createView创建视图代码：
_createCollection创建集合代码；
cpp
Status _createCollection(OperationContext* opCtx,
const NamespaceString& nss,
const CollectionOptions& collectionOptions,
const BSONObj& idIndex) {
return writeConflictRetry(opCtx, "create", nss.ns(), [&] {
AutoGetOrCreateDb autoDb(opCtx, nss.db(), MODE_IX);
Lock::CollectionLock collLock(opCtx, nss, MODE_X);
AutoStatsTracker statsTracker(opCtx,
nss,
Top::LockType::NotLocked,
AutoStatsTracker::LogMode::kUpdateTopAndCurop,
autoDb.getDb()->getProfilingLevel());
if (opCtx->writesAreReplicated() &&
!repl::ReplicationCoordinator::get(opCtx)->canAcceptWritesFor(opCtx, nss)) {
return Status(ErrorCodes::NotMaster,
str::stream() << "Not primary while creating collection " << nss);
}
WriteUnitOfWork wunit(opCtx);
Status status = autoDb.getDb()->userCreateNS(opCtx, nss, collectionOptions, true, idIndex);
if (!status.isOK()) {
return status;
}
wunit.commit();
return Status::OK();
});
}使用 writeConflictRetry 模板处理写冲突自动重试；
AutoGetOrCreateDb autoDb获取db数据库，如果没有就创建，有就直接返回；
使用 CollectionLock 获取集合的排它锁 (MODE_X)；
数据库对象调用mongo/db/catalog/database_impl.cpp中userCreateNS执行实际创建逻辑;
cpp
Status DatabaseImpl::userCreateNS(OperationContext* opCtx,
const NamespaceString& nss,
CollectionOptions collectionOptions,
bool createDefaultIndexes,
const BSONObj& idIndex) const {
// 记录创建集合的日志
LOG(1) << "create collection " << nss << ' ' << collectionOptions.toBSON();
// 验证命名空间合法性
if (!NamespaceString::validCollectionComponent(nss.ns()))
return Status(ErrorCodes::InvalidNamespace, str::stream() << "invalid ns: " << nss);
// 检查集合是否已存在
Collection* collection = CollectionCatalog::get(opCtx).lookupCollectionByNamespace(nss);
if (collection)
return Status(ErrorCodes::NamespaceExists,
str::stream() << "a collection '" << nss << "' already exists");
// 检查视图是否已存在
if (ViewCatalog::get(this)->lookup(opCtx, nss.ns()))
return Status(ErrorCodes::NamespaceExists,
str::stream() << "a view '" << nss << "' already exists");
// 处理排序规则(collation)
std::unique_ptr<CollatorInterface> collator;
if (!collectionOptions.collation.isEmpty()) {
auto collatorWithStatus = CollatorFactoryInterface::get(opCtx->getServiceContext())
->makeFromBSON(collectionOptions.collation);
if (!collatorWithStatus.isOK()) {
return collatorWithStatus.getStatus();
}
collator = std::move(collatorWithStatus.getValue());
collectionOptions.collation = collator ? collator->getSpec().toBSON() : BSONObj();
}
// 验证文档验证器(validator)表达式
if (!collectionOptions.validator.isEmpty()) {
boost::intrusive_ptr<ExpressionContext> expCtx(
new ExpressionContext(opCtx, collator.get()));
const auto currentFCV = serverGlobalParams.featureCompatibility.getVersion();
if (serverGlobalParams.validateFeaturesAsMaster.load() &&
currentFCV != ServerGlobalParams::FeatureCompatibility::Version::kFullyUpgradedTo44) {
expCtx->maxFeatureCompatibilityVersion = currentFCV;
}
expCtx->isParsingCollectionValidator = true;
auto statusWithMatcher =
MatchExpressionParser::parse(collectionOptions.validator, std::move(expCtx));
if (!statusWithMatcher.isOK()) {
return statusWithMatcher.getStatus();
}
}
// 验证集合存储引擎选项
Status status = validateStorageOptions(
opCtx->getServiceContext(),
collectionOptions.storageEngine,
[](const auto& x, const auto& y) { return x->validateCollectionStorageOptions(y); });
if (!status.isOK())
return status;
// 验证索引存储引擎选项
if (auto indexOptions = collectionOptions.indexOptionDefaults["storageEngine"]) {
status = validateStorageOptions(
opCtx->getServiceContext(), indexOptions.Obj(), [](const auto& x, const auto& y) {
return x->validateIndexStorageOptions(y);
});
if (!status.isOK()) {
return status;
}
}
// 根据类型创建集合或视图
if (collectionOptions.isView()) {
uassertStatusOK(createView(opCtx, nss, collectionOptions));
} else {
invariant(createCollection(opCtx, nss, collectionOptions, createDefaultIndexes, idIndex),
str::stream() << "Collection creation failed after validating options: " << nss
<< ". Options: " << collectionOptions.toBSON());
}
return Status::OK();
}CollectionCatalog::get(opCtx).lookupCollectionByNamespace(nss）根据集合名字查找是否存在对应的集合对象Collection；
mongo/db/catalog/database_impl.cpp中createCollection继续创建集合
cpp
Collection* DatabaseImpl::createCollection(OperationContext* opCtx,
const NamespaceString& nss,
const CollectionOptions& options,
bool createIdIndex,
const BSONObj& idIndex) const {
// 前置条件检查
invariant(!options.isView());
invariant(opCtx->lockState()->isDbLockedForMode(name(), MODE_IX));
// 检查是否允许隐式创建集合
uassert(CannotImplicitlyCreateCollectionInfo(nss),
"request doesn't allow collection to be created implicitly",
serverGlobalParams.clusterRole != ClusterRole::ShardServer ||
OperationShardingState::get(opCtx).allowImplicitCollectionCreation() ||
options.temp);
// 检查是否可以接受写操作
auto coordinator = repl::ReplicationCoordinator::get(opCtx);
bool canAcceptWrites =
(coordinator->getReplicationMode() != repl::ReplicationCoordinator::modeReplSet) ||
coordinator->canAcceptWritesForDatabase(opCtx, nss.db()) || nss.isSystemDotProfile();
// 处理集合UUID
CollectionOptions optionsWithUUID = options;
bool generatedUUID = false;
if (!optionsWithUUID.uuid) {
if (!canAcceptWrites) {
uasserted(ErrorCodes::InvalidOptions, "Attempted to create a new collection without a UUID");
} else {
optionsWithUUID.uuid.emplace(CollectionUUID::gen());
generatedUUID = true;
}
}
// 预留oplog槽位，用于保证复制一致性
OplogSlot createOplogSlot;
if (canAcceptWrites && supportsDocLocking() && !coordinator->isOplogDisabledFor(opCtx, nss)) {
createOplogSlot = repl::getNextOpTime(opCtx);
}
// 内部故障注入点（用于测试）
if (MONGO_unlikely(hangAndFailAfterCreateCollectionReservesOpTime.shouldFail())) {
hangAndFailAfterCreateCollectionReservesOpTime.pauseWhileSet(opCtx);
uasserted(51267, "hangAndFailAfterCreateCollectionReservesOpTime fail point enabled");
}
// 检查是否可以创建集合
_checkCanCreateCollection(opCtx, nss, optionsWithUUID);
audit::logCreateCollection(&cc(), nss.ns());
// 记录创建集合日志
log() << "createCollection: " << nss << " with " << (generatedUUID ? "generated" : "provided")
<< " UUID: " << optionsWithUUID.uuid.get() << " and options: " << options.toBSON();
// 创建底层存储结构
auto storageEngine = opCtx->getServiceContext()->getStorageEngine();
std::pair<RecordId, std::unique_ptr<RecordStore>> catalogIdRecordStorePair =
uassertStatusOK(storageEngine->getCatalog()->createCollection(
opCtx, nss, optionsWithUUID, true /*allocateDefaultSpace*/));
// 创建集合对象
auto catalogId = catalogIdRecordStorePair.first;
std::unique_ptr<Collection> ownedCollection =
Collection::Factory::get(opCtx)->make(opCtx,
nss,
catalogId,
optionsWithUUID.uuid.get(),
std::move(catalogIdRecordStorePair.second));
auto collection = ownedCollection.get();
ownedCollection->init(opCtx);
// 设置提交回调，确保集合可见性
opCtx->recoveryUnit()->onCommit([collection](auto commitTime) {
if (commitTime)
collection->setMinimumVisibleSnapshot(commitTime.get());
});
// 注册集合到Catalog
auto& catalog = CollectionCatalog::get(opCtx);
auto uuid = ownedCollection->uuid();
catalog.registerCollection(uuid, std::move(ownedCollection));
opCtx->recoveryUnit()->onRollback([uuid, &catalog] { catalog.deregisterCollection(uuid); });
// 创建_id索引
BSONObj fullIdIndexSpec;
if (createIdIndex && collection->requiresIdIndex()) {
if (optionsWithUUID.autoIndexId == CollectionOptions::YES ||
optionsWithUUID.autoIndexId == CollectionOptions::DEFAULT) {
IndexCatalog* ic = collection->getIndexCatalog();
fullIdIndexSpec = uassertStatusOK(ic->createIndexOnEmptyCollection(
opCtx, !idIndex.isEmpty() ? idIndex : ic->getDefaultIdIndexSpec()));
} else {
uassert(50001,
"autoIndexId:false is not allowed for replicated collections",
!nss.isReplicated());
}
}
// 内部测试故障注入点
hangBeforeLoggingCreateCollection.pauseWhileSet();
// 触发创建集合的观察者事件
opCtx->getServiceContext()->getOpObserver()->onCreateCollection(
opCtx, collection, nss, optionsWithUUID, fullIdIndexSpec, createOplogSlot);
// 为系统集合创建额外索引
if (canAcceptWrites && createIdIndex && nss.isSystem()) {
createSystemIndexes(opCtx, collection);
}
return collection;
}auto storageEngine = opCtx->getServiceContext()->getStorageEngine();获取存储引擎；
storageEngine->getCatalog()->createCollection继续创建集合，storage是与底层存储引擎打交道的一层，MongoDB在设计上也是支持不同的存储引擎的，不同的引擎都需要在storage进行实现（讲道理完全可以做一个内存数据库），而MongoDB默认支持的就是Wiredtiger存储引擎。
ownedCollection->init(opCtx)集合对象进行初始化；
catalog.registerCollection(uuid, std::move(ownedCollection))注册集合到Catalog；
ic->createIndexOnEmptyCollection(opCtx, !idIndex.isEmpty() ? idIndex : ic->getDefaultIdIndexSpec()常见默认索引_id;
在catalog可以只管创建collection需要做什么，而到了storage就需要管如何创建collection了。接下来需要看看storage是如何与Wiredtiger打交道，完成创建Collection的。
mongo/db/storage/durable_catalog_impl.cpp
cpp
StatusWith<std::pair<RecordId, std::unique_ptr<RecordStore>>> DurableCatalogImpl::createCollection(
OperationContext* opCtx,
const NamespaceString& nss,
const CollectionOptions& options,
bool allocateDefaultSpace) {
// 前置条件检查：确保数据库已获取意向排它锁（MODE_IX）
invariant(opCtx->lockState()->isDbLockedForMode(nss.db(), MODE_IX));
invariant(nss.coll().size() > 0); // 集合名非空
// 检查集合是否已存在（通过内存Catalog快速校验）
if (CollectionCatalog::get(opCtx).lookupCollectionByNamespace(nss)) {
return Status(ErrorCodes::NamespaceExists, "collection already exists " + nss);
}
// 分配键值存储前缀（KVPrefix），用于底层KV存储的键空间隔离
KVPrefix prefix = KVPrefix::getNextPrefix(nss);
// 持久化集合元数据到存储引擎
StatusWith<Entry> swEntry = _addEntry(opCtx, nss, options, prefix);
if (!swEntry.isOK()) return swEntry.getStatus();
Entry& entry = swEntry.getValue(); // Entry包含UUID、prefix、catalogId等元数据
// 调用存储引擎创建数据存储实体（RecordStore）
Status status = _engine->getEngine()->createGroupedRecordStore(
opCtx, nss.ns(), entry.ident, options, prefix);
if (!status.isOK()) return status;
// 标记 collation 特性已使用（用于存储引擎特性追踪）
if (!options.collation.isEmpty()) {
const auto feature = DurableCatalogImpl::FeatureTracker::NonRepairableFeature::kCollation;
if (getFeatureTracker()->isNonRepairableFeatureInUse(opCtx, feature)) {
getFeatureTracker()->markNonRepairableFeatureAsInUse(opCtx, feature);
}
}
// 注册回滚钩子：若事务回滚，删除已创建的存储实体
opCtx->recoveryUnit()->onRollback([opCtx, catalog = this, nss, ident = entry.ident, uuid = options.uuid.get()]() {
catalog->_engine->getEngine()->dropIdent(opCtx, ident).ignore(); // 忽略删除失败
});
// 获取刚创建的 RecordStore（存储引擎中的数据容器）
auto rs = _engine->getEngine()->getGroupedRecordStore(opCtx, nss.ns(), entry.ident, options, prefix);
invariant(rs); // 确保存储实例不为空
// 返回目录ID（RecordId）和存储实例
return std::make_pair(entry.catalogId, std::move(rs));
}持久化集合元数据到存储引擎StatusWith<Entry> swEntry = _addEntry(opCtx, nss, options, prefix); 记录collection的meta到系统集合中（这样MongoDB才能通过show collections命令查看所有collection）
调用存储引擎创建数据存储实体（RecordStore） Status status = _engine->getEngine()->createGroupedRecordStore( opCtx, nss.ns(), entry.ident, options, prefix);
mongo/db/storage/durable_catalog_impl.cpp中_addEntry(opCtx, nss, options, prefix)代码：
cpp
StatusWith<DurableCatalog::Entry> DurableCatalogImpl::_addEntry(
OperationContext* opCtx,
NamespaceString nss,
const CollectionOptions& options,
KVPrefix prefix) {
// 前置条件：持有数据库意向排它锁（MODE_IX）
invariant(opCtx->lockState()->isDbLockedForMode(nss.db(), MODE_IX));
// 生成唯一的存储标识（ident），例如："5.1" 对应 "db.coll"
const string ident = _newUniqueIdent(nss, "collection");
// 构建元数据BSON文档
BSONObj obj;
{
BSONObjBuilder b;
b.append("ns", nss.ns()); // 命名空间（如 "db.coll"）
b.append("ident", ident); // 存储引擎中的唯一标识
BSONCollectionCatalogEntry::MetaData md;
md.ns = nss.ns();
md.options = options;
md.prefix = prefix; // 键前缀（用于KV存储的键隔离）
b.append("md", md.toBSON()); // 序列化元数据
obj = b.obj();
}
// 将元数据写入Catalog的RecordStore（底层存储）
StatusWith<RecordId> res = _rs->insertRecord(
opCtx,
obj.objdata(),
obj.objsize(),
Timestamp() // 时间戳，可选，此处可能为默认值
);
if (!res.isOK()) return res.getStatus(); // 写入失败，返回错误
// 维护内存中的目录映射（线程安全：通过Latch加锁）
stdx::lock_guard<Latch> lk(_catalogIdToEntryMapLock);
RecordId catalogId = res.getValue(); // RecordId是元数据在存储中的唯一ID
// 确保目录ID未被占用
invariant(_catalogIdToEntryMap.find(catalogId) == _catalogIdToEntryMap.end());
// 存储映射关系：catalogId → {catalogId, ident, nss}
_catalogIdToEntryMap[catalogId] = {catalogId, ident, nss};
// 注册事务变更：若回滚，需从内存映射中移除该条目
opCtx->recoveryUnit()->registerChange(
std::make_unique<AddIdentChange>(this, catalogId)
);
// 日志记录
LOG(1) << "stored meta data for " << nss.ns() << " @ " << catalogId;
// 返回包含元数据的Entry结构体
return {{catalogId, ident, nss}};
}DurableCatalogImpl::_addEntry 是createCollection的关键子函数，主要流程包括：

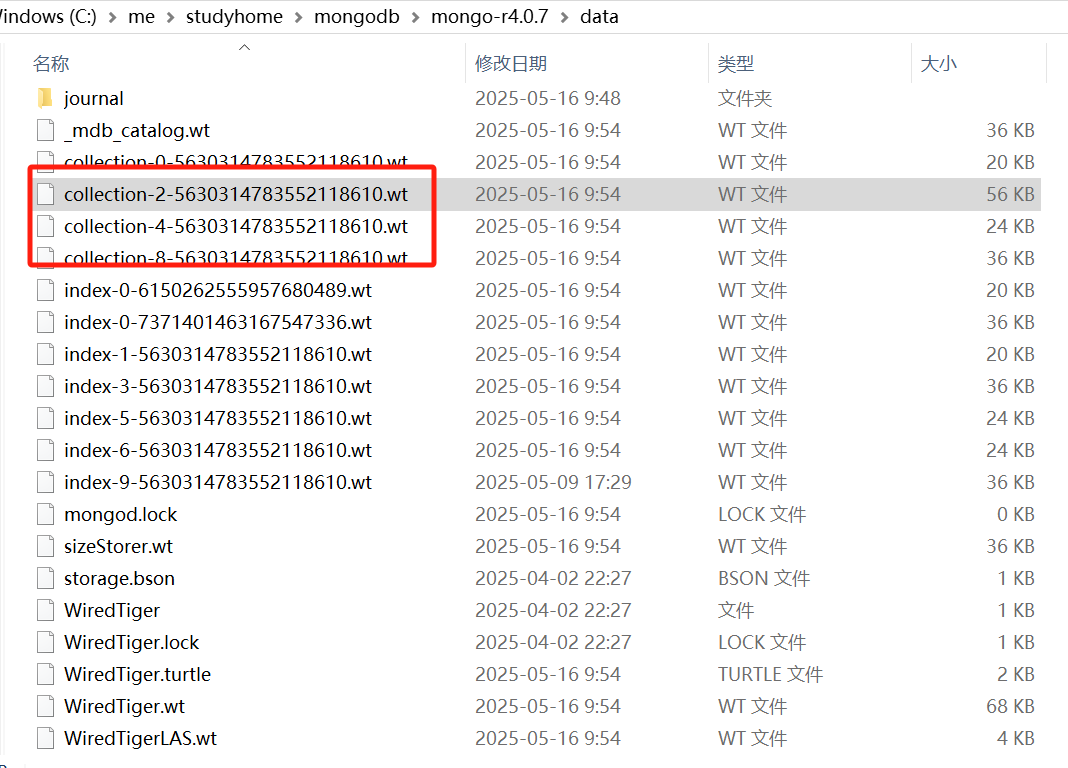

生成唯一存储标识（ident）：为集合在存储引擎中分配唯一名称（如 WiredTiger 的表名collection-0--9135487495984222338），例如下面的截图
构建元数据文档：将集合信息（命名空间、选项、键前缀等）序列化为 BSON 格式，{ ns: "db.conca", ident: "collection-0--8262702921578327518", md: }
写入底层存储： _rs->insertRecord将元数据文档插入到 Catalog 的记录存储（RecordStore）中，写入到系统表_uri:table:_mdb_catalog中。
cpp
/**
* A thin wrapper around insertRecords() to simplify handling of single document inserts.
*/
StatusWith<RecordId> insertRecord(OperationContext* opCtx,
const char* data,
int len,
Timestamp timestamp) {
std::vector<Record> inOutRecords{Record{RecordId(), RecordData(data, len)}};
Status status = insertRecords(opCtx, &inOutRecords, std::vector<Timestamp>{timestamp});
if (!status.isOK())
return status;
return inOutRecords.front().id;
}mongo/db/storage/wiredtiger/wiredtiger_record_store.cpp的_insertRecords将集合信息 JSON对象{ ns: "db2.conca", ident: "collection-0--9135487495984222338", md: {...}}写入到系统表_mdb_catalog中，_mdb_catalog存储的是表和索引的元数据信息。
cpp
Status WiredTigerRecordStore::insertRecords(OperationContext* opCtx,
std::vector<Record>* records,
const std::vector<Timestamp>& timestamps) {
return _insertRecords(opCtx, records->data(), timestamps.data(), records->size());
}
Status WiredTigerRecordStore::_insertRecords(OperationContext* opCtx,
Record* records,
const Timestamp* timestamps,
size_t nRecords) {
dassert(opCtx->lockState()->isWriteLocked());
// We are kind of cheating on capped collections since we write all of them at once ....
// Simplest way out would be to just block vector writes for everything except oplog ?
int64_t totalLength = 0;
for (size_t i = 0; i < nRecords; i++)
totalLength += records[i].data.size();
// caller will retry one element at a time
if (_isCapped && totalLength > _cappedMaxSize)
return Status(ErrorCodes::BadValue, "object to insert exceeds cappedMaxSize");
LOG(1) << "conca WiredTigerRecordStore::insertRecords _uri:" << _uri;
LOG(1) << "conca WiredTigerRecordStore::insertRecords _tableId:" << _tableId;
WiredTigerCursor curwrap(_uri, _tableId, true, opCtx);
curwrap.assertInActiveTxn();
WT_CURSOR* c = curwrap.get();
invariant(c);
RecordId highestId = RecordId();
dassert(nRecords != 0);
for (size_t i = 0; i < nRecords; i++) {
auto& record = records[i];
if (_isOplog) {
StatusWith<RecordId> status =
oploghack::extractKey(record.data.data(), record.data.size());
if (!status.isOK())
return status.getStatus();
record.id = status.getValue();
} else {
record.id = _nextId(opCtx);
}
dassert(record.id > highestId);
highestId = record.id;
}
for (size_t i = 0; i < nRecords; i++) {
auto& record = records[i];
Timestamp ts;
if (timestamps[i].isNull() && _isOplog) {
// If the timestamp is 0, that probably means someone inserted a document directly
// into the oplog. In this case, use the RecordId as the timestamp, since they are
// one and the same. Setting this transaction to be unordered will trigger a journal
// flush. Because these are direct writes into the oplog, the machinery to trigger a
// journal flush is bypassed. A followup oplog read will require a fresh visibility
// value to make progress.
ts = Timestamp(record.id.repr());
opCtx->recoveryUnit()->setOrderedCommit(false);
} else {
ts = timestamps[i];
}
if (!ts.isNull()) {
LOG(4) << "inserting record with timestamp " << ts;
fassert(39001, opCtx->recoveryUnit()->setTimestamp(ts));
}
setKey(c, record.id);
WiredTigerItem value(record.data.data(), record.data.size());
c->set_value(c, value.Get());
int ret = WT_OP_CHECK(c->insert(c));
if (ret)
return wtRCToStatus(ret, "WiredTigerRecordStore::insertRecord");
}
_changeNumRecords(opCtx, nRecords);
_increaseDataSize(opCtx, totalLength);
if (_oplogStones) {
_oplogStones->updateCurrentStoneAfterInsertOnCommit(
opCtx, totalLength, highestId, nRecords);
} else {
_cappedDeleteAsNeeded(opCtx, highestId);
}
return Status::OK();
}维护内存映射：在内存中建立 "目录 ID（RecordId）→ 集合元数据" 的映射关系，加速后续查询。
注册事务变更：确保元数据写入可参与事务回滚，保证原子性。
mongo/db/storage/wiredtiger/wiredtiger_kv_engine.h
cpp
Status createRecordStore(OperationContext* opCtx,
StringData ns,
StringData ident,
const CollectionOptions& options) override {
return createGroupedRecordStore(opCtx, ns, ident, options, KVPrefix::kNotPrefixed);
}mongo/db/storage/wiredtiger/wiredtiger_kv_engine.cpp
cpp
Status WiredTigerKVEngine::createGroupedRecordStore(OperationContext* opCtx,
StringData ns,
StringData ident,
const CollectionOptions& options,
KVPrefix prefix) {
_ensureIdentPath(ident);
WiredTigerSession session(_conn);
const bool prefixed = prefix.isPrefixed();
StatusWith<std::string> result = WiredTigerRecordStore::generateCreateString(
_canonicalName, ns, options, _rsOptions, prefixed);
if (!result.isOK()) {
return result.getStatus();
}
std::string config = result.getValue();
string uri = _uri(ident);
WT_SESSION* s = session.getSession();
LOG(2) << "WiredTigerKVEngine::createRecordStore ns: " << ns << " uri: " << uri
<< " config: " << config;
return wtRCToStatus(s->create(s, uri.c_str(), config.c_str()));
}_ensureIdentPath(ident);确保存储标识（ident）对应的物理路径存在。若 ident 为 collection-0--9135487495984222338，对应文件路径为 /data/collection-0--9135487495984222338.wt，需确保 /data存在。string uri = _uri(ident); // 转换为 "table:collection-0--9135487495984222338" WT_SESSION* s = session.getSession(); s->create(s, uri.c_str(), config.c_str());
URI 格式：_uri 将 ident 转换为 WiredTiger 资源标识符，如 table:collection-0--9135487495984222338。
WiredTiger API 调用：通过 WT_SESSION::create 执行底层表创建，参数为 URI 和配置字符串。
错误处理：wtRCToStatus 将 WiredTiger 返回码转换为 MongoDB 的 Status 对象。
> db.createCollection('conca', {})创建conca集合，mongo打印日志如下：
cpp
2025-05-21T11:59:39.452+0800 D1 COMMAND [conn1] conca findCommand create|
2025-05-21T11:59:39.452+0800 D1 COMMAND [conn1] run command db2.$cmd { create: "conca", lsid: { id: UUID("e50ec2ba-3fe4-4d2f-990c-291ce2a25bdd") }, $db: "db2" }
2025-05-21T11:59:39.453+0800 D1 COMMAND [conn1] conca runCommandImpl
2025-05-21T11:59:39.453+0800 D1 COMMAND [conn1] conca invocation->run 1
2025-05-21T11:59:39.455+0800 D1 - [conn1] reloading view catalog for database db2
2025-05-21T11:59:39.455+0800 D1 STORAGE [conn1] create collection db2.conca {}
2025-05-21T11:59:39.456+0800 I STORAGE [conn1] createCollection: db2.conca with generated UUID: 4ce9d174-a254-442b-9d24-90fa114fa669 and options: {}
2025-05-21T11:59:39.456+0800 D1 STORAGE [conn1] conca _addEntry ident:collection-0--9135487495984222338
2025-05-21T11:59:39.459+0800 D3 STORAGE [conn1] WT begin_transaction for snapshot id 1678
2025-05-21T11:59:39.460+0800 D2 STORAGE [conn1] WiredTigerSizeStorer::store Marking table:_mdb_catalog dirty, numRecords: 6, dataSize: 2801, use_count: 3
2025-05-21T11:59:39.460+0800 D1 STORAGE [conn1] conca _addEntry res.getValue():RecordId(6)
2025-05-21T11:59:39.460+0800 D1 STORAGE [conn1] stored meta data for db2.conca @ RecordId(6)
2025-05-21T11:59:39.461+0800 D2 STORAGE [conn1] WiredTigerKVEngine::createRecordStore ns: db2.conca uri: table:collection-0--9135487495984222338 config: type=file,memory_page_max=10m,split_pct=90,leaf_value_max=64MB,checksum=on,block_compressor=snappy,,key_format=q,value_format=u,app_metadata=(formatVersion=1),log=(enabled=true)
2025-05-21T11:59:39.466+0800 D2 STORAGE [conn1] WiredTigerUtil::checkApplicationMetadataFormatVersion uri: table:collection-0--9135487495984222338 ok range 1 -> 1 current: 1
2025-05-21T11:59:39.467+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.467+0800 D3 STORAGE [conn1] fetched CCE metadata: { ns: "db2.conca", ident: "collection-0--9135487495984222338", md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [], prefix: -1 } }
2025-05-21T11:59:39.468+0800 D3 STORAGE [conn1] returning metadata: md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [], prefix: -1 }
2025-05-21T11:59:39.468+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.469+0800 D3 STORAGE [conn1] fetched CCE metadata: { ns: "db2.conca", ident: "collection-0--9135487495984222338", md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [], prefix: -1 } }
2025-05-21T11:59:39.469+0800 D3 STORAGE [conn1] returning metadata: md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [], prefix: -1 }
2025-05-21T11:59:39.470+0800 D1 STORAGE [conn1] db2.conca: clearing plan cache - collection info cache reset
2025-05-21T11:59:39.470+0800 D1 STORAGE [conn1] Registering collection db2.conca with UUID 4ce9d174-a254-442b-9d24-90fa114fa669
2025-05-21T11:59:39.471+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.471+0800 D3 STORAGE [conn1] fetched CCE metadata: { ns: "db2.conca", ident: "collection-0--9135487495984222338", md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [], prefix: -1 } }
2025-05-21T11:59:39.472+0800 D3 STORAGE [conn1] returning metadata: md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [], prefix: -1 }
2025-05-21T11:59:39.473+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.475+0800 D3 STORAGE [conn1] recording new metadata: { md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: false, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }, idxIdent: { _id_: "index-1--9135487495984222338" }, ns: "db2.conca", ident: "collection-0--9135487495984222338" }
2025-05-21T11:59:39.476+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.477+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.477+0800 D3 STORAGE [conn1] fetched CCE metadata: { md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: false, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }, idxIdent: { _id_: "index-1--9135487495984222338" }, ns: "db2.conca", ident: "collection-0--9135487495984222338" }
2025-05-21T11:59:39.478+0800 D3 STORAGE [conn1] returning metadata: md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: false, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }
2025-05-21T11:59:39.479+0800 D3 STORAGE [conn1] index create string: type=file,internal_page_max=16k,leaf_page_max=16k,checksum=on,prefix_compression=true,block_compressor=,,,,key_format=u,value_format=u,app_metadata=(formatVersion=8),log=(enabled=true)
2025-05-21T11:59:39.479+0800 D2 STORAGE [conn1] WiredTigerKVEngine::createSortedDataInterface ns: db2.conca ident: index-1--9135487495984222338 config: type=file,internal_page_max=16k,leaf_page_max=16k,checksum=on,prefix_compression=true,block_compressor=,,,,key_format=u,value_format=u,app_metadata=(formatVersion=8),log=(enabled=true)
2025-05-21T11:59:39.480+0800 D1 STORAGE [conn1] create uri: table:index-1--9135487495984222338 config: type=file,internal_page_max=16k,leaf_page_max=16k,checksum=on,prefix_compression=true,block_compressor=,,,,key_format=u,value_format=u,app_metadata=(formatVersion=8),log=(enabled=true)
2025-05-21T11:59:39.484+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.484+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.484+0800 D3 STORAGE [conn1] fetched CCE metadata: { md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: false, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }, idxIdent: { _id_: "index-1--9135487495984222338" }, ns: "db2.conca", ident: "collection-0--9135487495984222338" }
2025-05-21T11:59:39.485+0800 D3 STORAGE [conn1] returning metadata: md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: false, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }
2025-05-21T11:59:39.486+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.486+0800 D3 STORAGE [conn1] fetched CCE metadata: { md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: false, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }, idxIdent: { _id_: "index-1--9135487495984222338" }, ns: "db2.conca", ident: "collection-0--9135487495984222338" }
2025-05-21T11:59:39.487+0800 D3 STORAGE [conn1] returning metadata: md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: false, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }
2025-05-21T11:59:39.490+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.491+0800 D3 STORAGE [conn1] fetched CCE metadata: { md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: false, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }, idxIdent: { _id_: "index-1--9135487495984222338" }, ns: "db2.conca", ident: "collection-0--9135487495984222338" }
2025-05-21T11:59:39.492+0800 D3 STORAGE [conn1] returning metadata: md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: false, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }
2025-05-21T11:59:39.493+0800 D2 STORAGE [conn1] WiredTigerUtil::checkApplicationMetadataFormatVersion uri: table:index-1--9135487495984222338 ok range 6 -> 12 current: 8
2025-05-21T11:59:39.493+0800 D1 STORAGE [conn1] db2.conca: clearing plan cache - collection info cache reset
2025-05-21T11:59:39.494+0800 I INDEX [conn1] index build: done building index _id_ on ns db2.conca
2025-05-21T11:59:39.494+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.494+0800 D3 STORAGE [conn1] fetched CCE metadata: { md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: false, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }, idxIdent: { _id_: "index-1--9135487495984222338" }, ns: "db2.conca", ident: "collection-0--9135487495984222338" }
2025-05-21T11:59:39.495+0800 D3 STORAGE [conn1] returning metadata: md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: false, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }
2025-05-21T11:59:39.496+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.496+0800 D3 STORAGE [conn1] recording new metadata: { md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: true, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }, idxIdent: { _id_: "index-1--9135487495984222338" }, ns: "db2.conca", ident: "collection-0--9135487495984222338" }
2025-05-21T11:59:39.497+0800 D3 STORAGE [conn1] looking up metadata for: RecordId(6)
2025-05-21T11:59:39.497+0800 D3 STORAGE [conn1] fetched CCE metadata: { md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: true, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }, idxIdent: { _id_: "index-1--9135487495984222338" }, ns: "db2.conca", ident: "collection-0--9135487495984222338" }
2025-05-21T11:59:39.498+0800 D3 STORAGE [conn1] returning metadata: md: { ns: "db2.conca", options: { uuid: UUID("4ce9d174-a254-442b-9d24-90fa114fa669") }, indexes: [ { spec: { v: 2, key: { _id: 1 }, name: "_id_" }, ready: true, multikey: false, multikeyPaths: { _id: BinData(0, 00) }, head: 0, prefix: -1, backgroundSecondary: false, runTwoPhaseBuild: false, versionOfBuild: 1 } ], prefix: -1 }
2025-05-21T11:59:39.499+0800 D3 STORAGE [conn1] WT commit_transaction for snapshot id 1679
2025-05-21T11:59:39.499+0800 D2 STORAGE [conn1] CUSTOM COMMIT class mongo::WiredTigerRecordStore::NumRecordsChange
2025-05-21T11:59:39.499+0800 D2 STORAGE [conn1] CUSTOM COMMIT class mongo::WiredTigerRecordStore::DataSizeChange
2025-05-21T11:59:39.500+0800 D2 STORAGE [conn1] CUSTOM COMMIT class mongo::DurableCatalogImpl::AddIdentChange
