深度学习-ResNet50V2训练

一、导入数据

import torch
import torch.nn as nn
from torchvision import transforms, datasets
import os,PIL,pathlib,warnings
warnings .filterwarnings("ignore")

data_dir=r"D:\xiangkeyi\Downloads\data"
train_transforms=transforms.Compose([
    transforms.Resize([224,224]),
    transforms.ToTensor(),
    transforms.Normalize(
        mean=[0.485,0.456,0.406],
        std=[0.229,0.224,0.225])
])

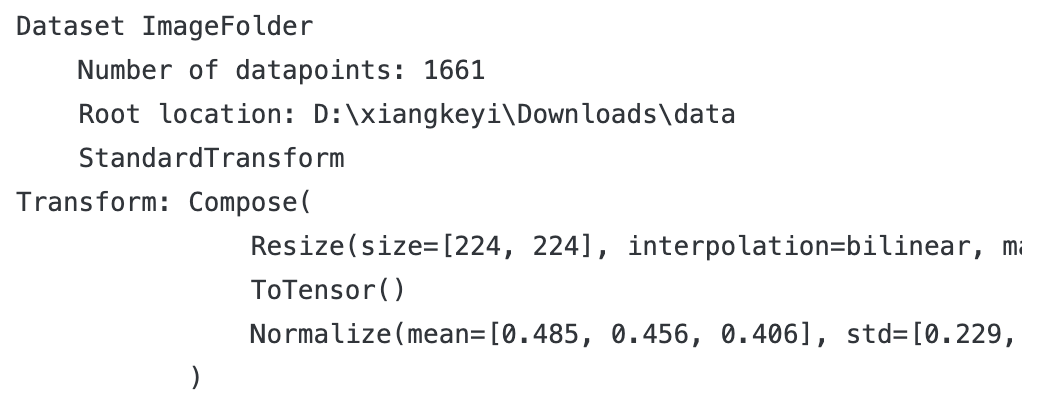

total_data =datasets.ImageFolder(data_dir, transform=train_transforms)
total_data

1train_size = int(len(total_data) * 0.8)
test_size = len(total_data)- train_size
train_dataset,test_dataset = torch.utils.data.random_split(total_data,[train_size,test_size])
train_dataset,test_dataset

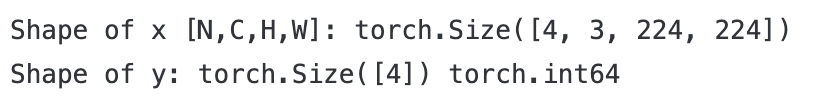

for x,y in train_dl:
    print("Shape of x [N,C,H,W]:",x.shape)
    print("Shape of y:",y.shape,y.dtype)
    break

二、构建模型

1.搭建ResNet50V2模型

1import torch
import torch.nn as nn
import torchvision.models as models
def identity_block_v2(input_tensor, kernel_size, filters, stage, block):
    """ResNetV2恒等映射块（预激活结构）"""
    filters1, filters2, filters3 = filters

    # 预激活：BN -> ReLU
    x = nn.BatchNorm2d(input_tensor.size(1))(input_tensor)
    x = nn.ReLU(inplace=True)(x)

    # 1x1卷积
    x = nn.Conv2d(input_tensor.size(1), filters1, 1, bias=False)(x)
    x = nn.BatchNorm2d(filters1)(x)
    x = nn.ReLU(inplace=True)(x)

    # 3x3卷积
    x = nn.Conv2d(filters1, filters2, kernel_size, padding=kernel_size//2, bias=False)(x)
    x = nn.BatchNorm2d(filters2)(x)
    x = nn.ReLU(inplace=True)(x)

    # 1x1卷积（无激活）
    x = nn.Conv2d(filters2, filters3, 1, bias=False)(x)

    # 残差连接（无额外激活）
    x = x + input_tensor
    return x

def conv_block_v2(input_tensor, kernel_size, filters, stage, block, strides=(2,2)):
    """ResNetV2卷积块（预激活结构，用于维度调整）"""
    filters1, filters2, filters3 = filters

    # 主路径预激活
    x = nn.BatchNorm2d(input_tensor.size(1))(input_tensor)
    x = nn.ReLU(inplace=True)(x)

    # 1x1卷积（带步长）
    x = nn.Conv2d(input_tensor.size(1), filters1, 1, stride=strides, bias=False)(x)
    x = nn.BatchNorm2d(filters1)(x)
    x = nn.ReLU(inplace=True)(x)

    # 3x3卷积
    x = nn.Conv2d(filters1, filters2, kernel_size, padding=kernel_size//2, bias=False)(x)
    x = nn.BatchNorm2d(filters2)(x)
    x = nn.ReLU(inplace=True)(x)

    # 1x1卷积
    x = nn.Conv2d(filters2, filters3, 1, bias=False)(x)

    # 投影路径（shortcut）
    shortcut = nn.BatchNorm2d(input_tensor.size(1))(input_tensor)
    shortcut = nn.ReLU(inplace=True)(shortcut)
    shortcut = nn.Conv2d(input_tensor.size(1), filters3, 1, stride=strides, bias=False)(shortcut)

    # 残差连接
    x = x + shortcut
    return x

def ResNet50V2(input_shape=[224,224,3], num_classes=1000):
    """构建ResNet50V2模型（预激活结构）"""
    class ResNetV2(nn.Module):
        def __init__(self, input_channels, num_classes):
            super(ResNetV2, self).__init__()

            # 初始卷积层
            self.init_conv = nn.Conv2d(input_channels, 64, 7, stride=2, padding=3, bias=False)
            self.init_bn = nn.BatchNorm2d(64)
            self.init_relu = nn.ReLU(inplace=True)
            self.max_pool = nn.MaxPool2d(3, stride=2, padding=1)

            # 分类层
            self.final_bn = nn.BatchNorm2d(2048)
            self.final_relu = nn.ReLU(inplace=True)
            self.avg_pool = nn.AdaptiveAvgPool2d((1,1))
            self.fc = nn.Linear(2048, num_classes)

        def forward(self, x):
            # 初始层
            x = self.init_conv(x)
            x = self.init_bn(x)
            x = self.init_relu(x)
            x = self.max_pool(x)

            # Stage 2
            x = conv_block_v2(x, 3, [64, 64, 256], stage=2, block='a', strides=(1,1))
            x = identity_block_v2(x, 3, [64, 64, 256], stage=2, block='b')
            x = identity_block_v2(x, 3, [64, 64, 256], stage=2, block='c')

            # Stage 3
            x = conv_block_v2(x, 3, [128, 128, 512], stage=3, block='a')
            x = identity_block_v2(x, 3, [128, 128, 512], stage=3, block='b')
            x = identity_block_v2(x, 3, [128, 128, 512], stage=3, block='c')
            x = identity_block_v2(x, 3, [128, 128, 512], stage=3, block='d')

            # Stage 4
            x = conv_block_v2(x, 3, [256, 256, 1024], stage=4, block='a')
            x = identity_block_v2(x, 3, [256, 256, 1024], stage=4, block='b')
            x = identity_block_v2(x, 3, [256, 256, 1024], stage=4, block='c')
            x = identity_block_v2(x, 3, [256, 256, 1024], stage=4, block='d')
            x = identity_block_v2(x, 3, [256, 256, 1024], stage=4, block='e')
            x = identity_block_v2(x, 3, [256, 256, 1024], stage=4, block='f')

            # Stage 5
            x = conv_block_v2(x, 3, [512, 512, 2048], stage=5, block='a')
            x = identity_block_v2(x, 3, [512, 512, 2048], stage=5, block='b')
            x = identity_block_v2(x, 3, [512, 512, 2048], stage=5, block='c')

            # 最终分类
            x = self.final_bn(x)
            x = self.final_relu(x)
            x = self.avg_pool(x)
            x = torch.flatten(x, 1)
            x = self.fc(x)

            return x

    input_channels = input_shape[2]
    model = ResNetV2(input_channels, num_classes)
    return model

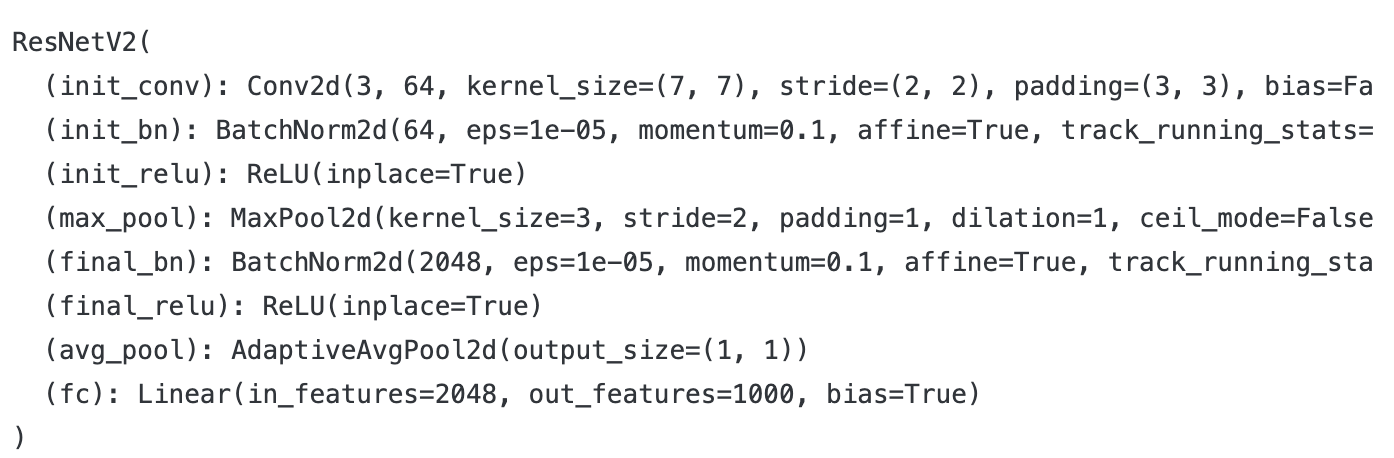

model = ResNet50V2()
model

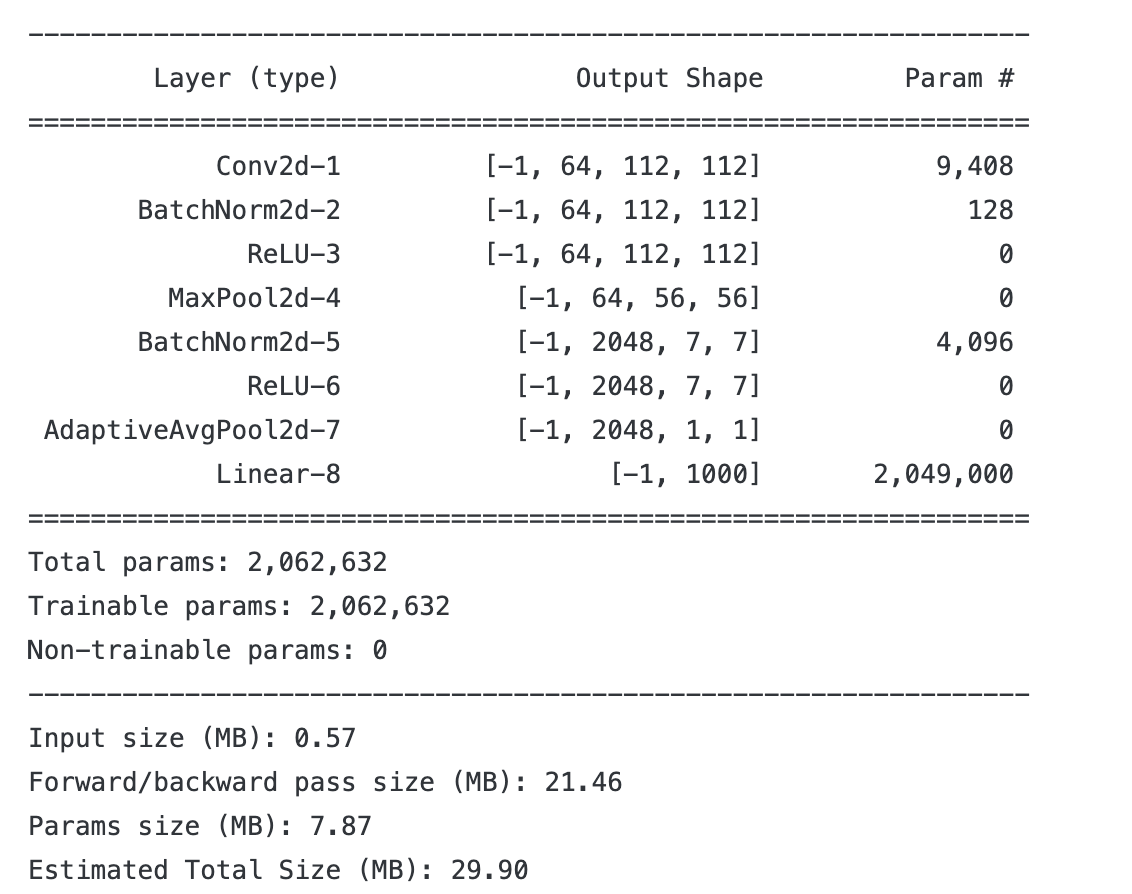

#统计模型参数量以及其他指标
import torchsummary as summary
summary.summary(model,(3,224,224))

2.构建训练函数

def train(dataloader,model,optimizer,loss_fn):
    size = len(dataloader.dataset)
    num_batches = len(dataloader)

    train_acc,train_loss = 0,0

    for X,y in dataloader:
        pred = model(X)
        loss = loss_fn(pred,y)
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        train_loss += loss.item()
        train_acc += (pred.argmax(1) == y).type(torch.float).sum().item()
    train_loss /= num_batches
    train_acc /= size

    return train_acc,train_loss

3.构建测试函数

def test (dataloader, model, loss_fn):
    size= len(dataloader.dataset)#测试集的大小
    num_batches = len(dataloader)#批次数目，（size/batch_size，向上取整）
    test_loss, test_acc = 0,0
    #当不进行训练时，停止梯度更新，节省计算内存消耗
    with torch.no_grad():
        for imgs, target in dataloader:
            #计算loss
            target_pred = model(imgs)
            loss=loss_fn(target_pred, target)

            test_loss += loss.item()
            test_acc+= (target_pred.argmax(1) == target).type(torch.float).sum().item()
    test_acc/=size
    test_loss /= num_batches

    return test_acc, test_loss

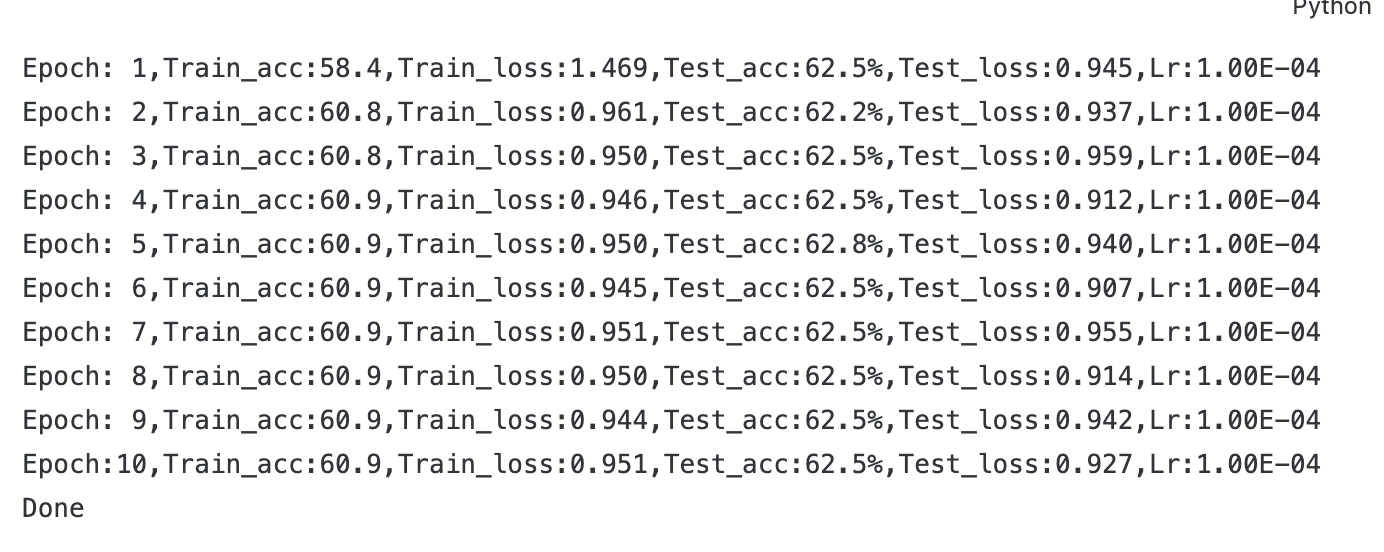

4.正式训练

import copy
optimizer= torch.optim.AdamW(model.parameters(), lr= 1e-4)
loss_fn= nn.CrossEntropyLoss()#创建损失函数
epochs=10
train_loss =[]
train_acc=[]
test_loss=[]
test_acc=[]
best_acc =0 #设置一个最佳准确率，作为最佳模型的判别指标
for epoch in range(epochs):
    model.train()
    epoch_train_acc, epoch_train_loss = train(train_dl, model,optimizer,loss_fn)
    model.eval()
    epoch_test_acc, epoch_test_loss = test(test_dl, model, loss_fn)
    #保存最佳模型到best_model
    if epoch_test_acc > best_acc:
        best_acc= epoch_test_acc
        best_model = copy.deepcopy(model)
    train_acc.append(epoch_train_acc)
    train_loss.append(epoch_train_loss)
    test_acc.append(epoch_test_acc)
    test_loss.append(epoch_test_loss)
    #获取当前的学习率
    lr = optimizer.state_dict()['param_groups'][0]['lr']
    template=('Epoch:{:2d},Train_acc:{:.1f},Train_loss:{:.3f},Test_acc:{:.1f}%,Test_loss:{:.3f},Lr:{:.2E}')
    print(template.format(epoch+1, epoch_train_acc*100, epoch_train_loss,epoch_test_acc*100, epoch_test_loss, lr))
#保存最佳模型到文件中
PATH='./best_model.pth'#保存的参数文件名
torch.save(best_model.state_dict(), PATH)
print('Done')

三、模型评估

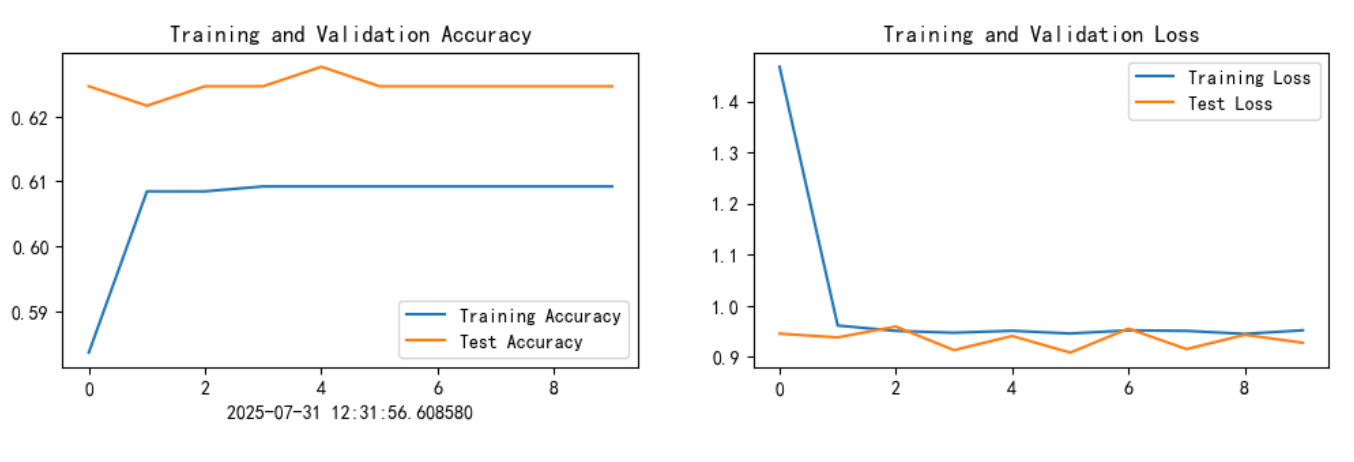

1.Loss 和Accuracy图

import matplotlib.pyplot as plt
from datetime import datetime
warnings.filterwarnings("ignore") #忽略警告信息
plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签
plt.rcParams['axes.unicode_minus'] = False #用来正常显示负号
plt.rcParams['figure.dpi']= 100 #分辩率
current_time=datetime.now()#获取当前时间

epochs_range = range(epochs)

plt.figure(figsize=(12, 3))
plt.subplot(1,2,1)

plt.plot(epochs_range, train_acc, label='Training Accuracy')
plt.plot(epochs_range, test_acc, label='Test Accuracy')
plt.legend(loc='lower right')
plt.title('Training and Validation Accuracy')
plt.xlabel(current_time)#打卡请带上时间戳，否则代码截图无效
plt.subplot(1, 2,2)
plt.plot(epochs_range, train_loss, label='Training Loss')
plt.plot(epochs_range, test_loss, label='Test Loss')
plt.legend(loc='upper right')
plt.title('Training and Validation Loss')
plt.show()

#将参数加载到model当中
best_model.load_state_dict(torch.load(PATH))
epoch_test_acc, epoch_test_loss = test(test_dl, best_model, loss_fn)
epoch_test_acc, epoch_test_loss

四、总结

1. 激活函数与批归一化的位置（核心差异）

• 原始 ResNet：采用 "卷积→批归一化（BN）→激活函数（ReLU）" 的顺序，激活函数位于卷积操作之后。
• ResNetV2 ：采用 "预激活" 设计，顺序为 "批归一化（BN）→激活函数（ReLU）→卷积"，激活函数位于卷积操作之前。
  这一设计能缓解深层网络的梯度消失问题，使模型在训练时更稳定，尤其适合更深的网络结构。

2. 残差连接的处理方式

• 原始 ResNet ：残差块的输入直接与卷积序列的输出相加（即 "卷积序列输出 + 原始输入"），相加后再经过激活函数。
• ResNetV2 ：残差块的输入先经过 BN 和 ReLU 处理（预激活），再与主路径的卷积输出相加，且相加后不额外添加激活函数 ，激活仅在每个卷积阶段的开头进行。
  这种方式使梯度传播更直接，提升了特征融合效率。

3. 卷积块的 shortcut 设计

• 原始 ResNet：当需要调整特征图尺寸或通道数时，shortcut 路径通过 1x1 卷积 + BN 实现维度匹配，且卷积操作在激活函数之前。
• ResNetV2：shortcut 路径同样使用 1x1 卷积，但卷积前会对输入进行 BN 和 ReLU 处理（与主路径保持一致的预激活逻辑），确保主路径与 shortcut 的特征分布更一致。

4. 训练与性能特性

• ResNetV2 的预激活结构使网络在反向传播时梯度流动更顺畅，训练更深的网络（如 1000 层以上）时收敛性更好。
• 在相同深度下，ResNetV2 通常比原始 ResNet 具有更高的特征表达能力，尤其在 ImageNet 等大规模数据集上表现更优。

简言之，ResNetV2 是对原始 ResNet 的结构性优化，通过调整激活和 BN 的位置，解决了深层网络训练中的稳定性问题，同时保持了残差网络 "跳过连接" 的核心优势。
