Flash Attention学习笔记

文章目录

- 一、寻找切入点
- 二、libtorch环境搭建
- 三、三个矩阵相乘合并
- [四、naive&safe softmax](#四、naive&safe softmax)
- - [1）naive softmax](#1）naive softmax)
  - [2）safe softmax](#2）safe softmax)
- [五、online softmax（重置版本）](#五、online softmax（重置版本）)
- [六、online softmax与value的点积优化](#六、online softmax与value的点积优化)
- 七、cuda算子解析

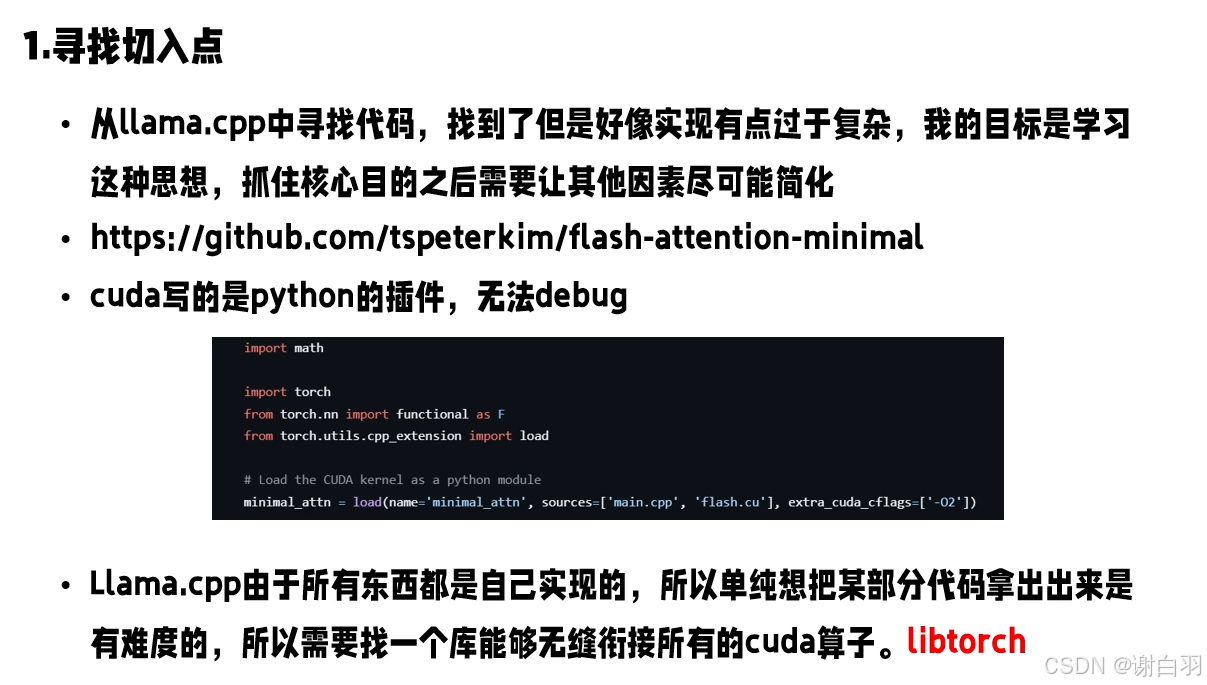

一、寻找切入点

背景
对于attention的操作，有QK的转置相乘，走一个softmax，再走一个V。很多人觉得因为有访存的操作所以很耗费时间（比如Q和K乘完要写回显存里面，然后再读取做softmax，再写回去显存，再读取乘个V）
出现原因
flash attention就想解决这个多次访存的问题，只读取一次和只写回一次，就可以完成1次相乘+1次softmax+1次相乘
源码
llama.cpp里面有flash attention的源码

二、libtorch环境搭建

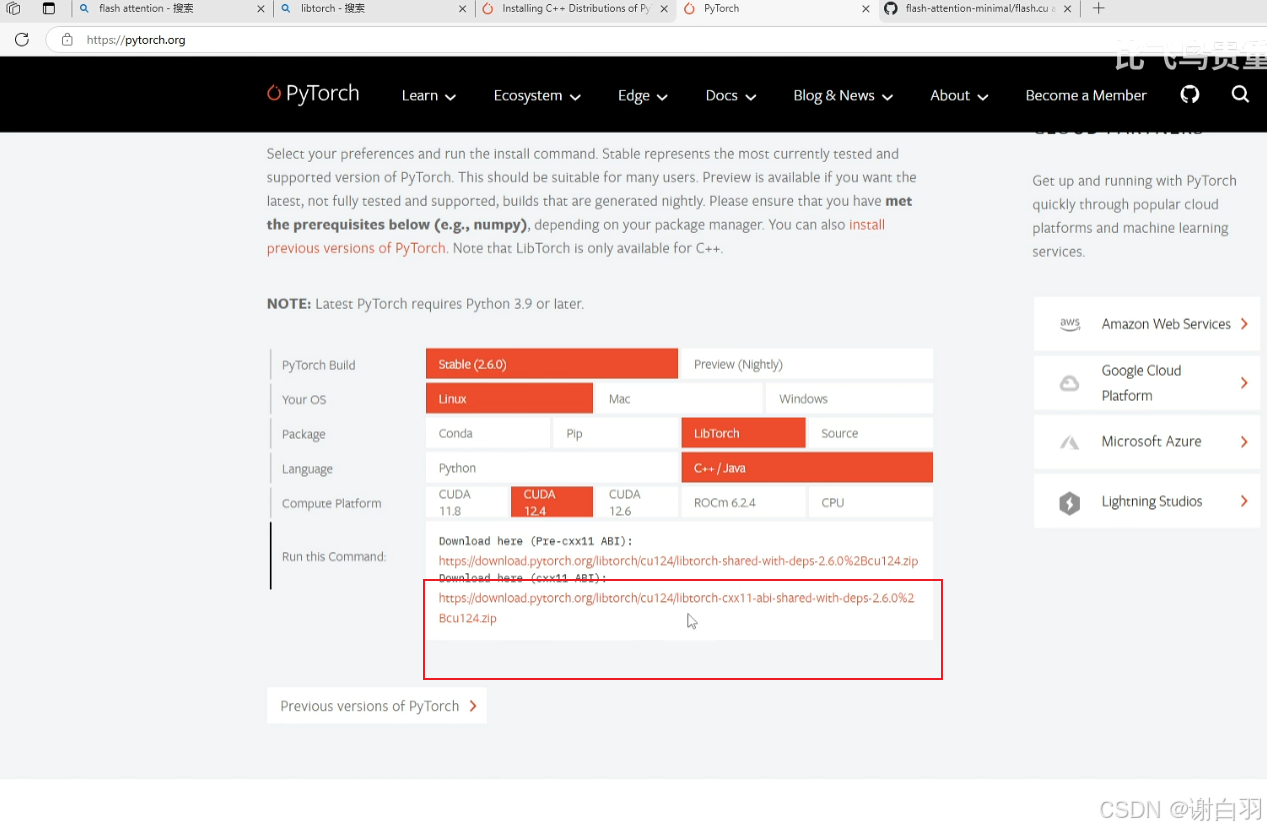

下载链接

pytorch官网

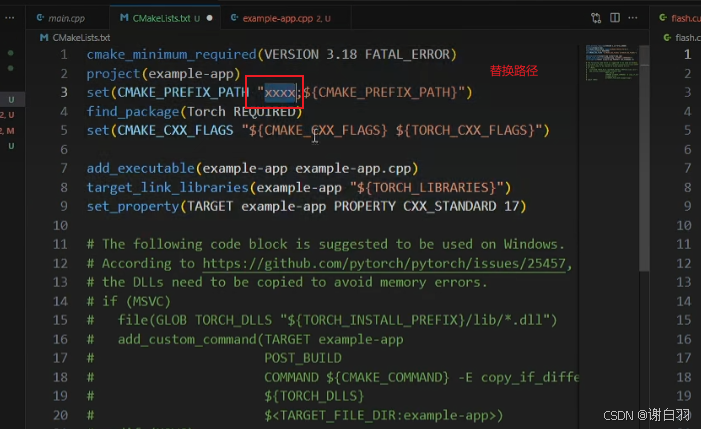

cmake找到torch库的位置，拷贝对应cmake路径

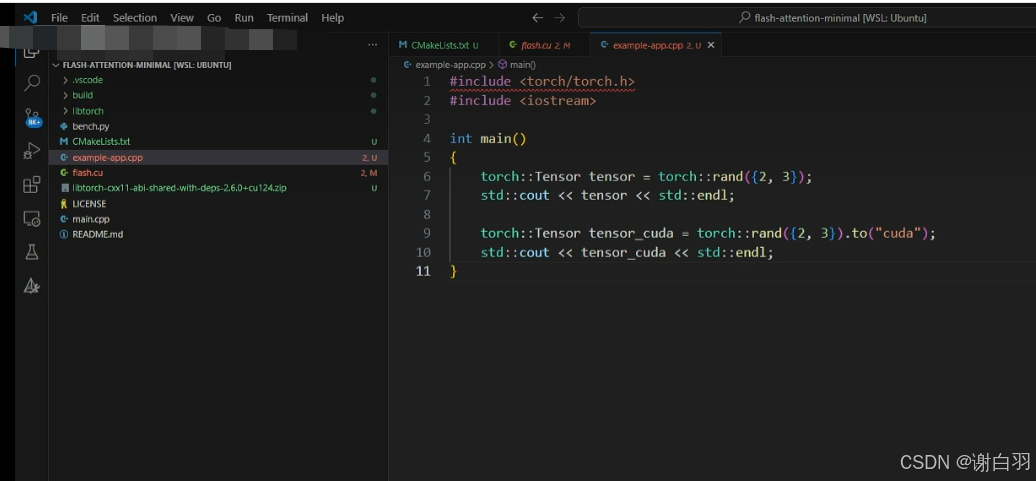

编译代码展示

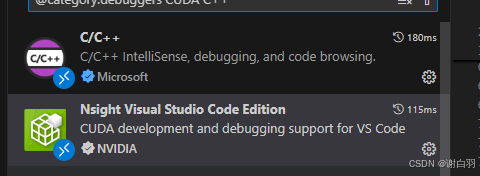

插件安装
cmake

CMakeLists.txt 复制代码

cmake_minimum_required(VERSION 3.18 FATAL_ERROR)
project(example-app LANGUAGES CXX CUDA)

# 设置调试模式
set(CMAKE_BUILD_TYPE Debug)

# 添加调试标志
set(CMAKE_CXX_FLAGS_DEBUG "-g -O0")
set(CMAKE_CUDA_FLAGS_DEBUG "-g -G -O0")

set(CMAKE_PREFIX_PATH "/home/kuanglixiang/learn_flashtn/libtorch_w/libtorch/share/cmake/Torch;${CMAKE_PREFIX_PATH}")
find_package(Torch REQUIRED)
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} ${TORCH_CXX_FLAGS}")
set(CMAKE_PREFIX_PATH "/home/kuanglixiang/learn_flashtn/libtorch_w/libtorch/share/cmake/Torch;${CMAKE_PREFIX_PATH}")
#add_executable(example-app example-app.cpp)
add_executable(flash_attn_main flash_atten_main.cpp flash.cu)
target_link_libraries(flash_attn_main "${TORCH_LIBRARIES}")
set_property(TARGET flash_attn_main PROPERTY CXX_STANDARD 17)
set_property(TARGET flash_attn_main PROPERTY CUDA_STANDARD 17)

# The following code block is suggested to be used on Windows.
# According to https://github.com/pytorch/pytorch/issues/25457,
# the DLLs need to be copied to avoid memory errors.
# if (MSVC)
#   file(GLOB TORCH_DLLS "${TORCH_INSTALL_PREFIX}/lib/*.dll")
#   add_custom_command(TARGET example-app
#                      POST_BUILD
#                      COMMAND ${CMAKE_COMMAND} -E copy_if_different
#                      ${TORCH_DLLS}
#                      $<TARGET_FILE_DIR:example-app>)
# endif (MSVC)

三、三个矩阵相乘合并

流程讲解
Q*K做完乘法没写回而是放到shared memory，再读取V做乘法最终再写回
难点
softmax得到结果才乘上V

四、naive&safe softmax

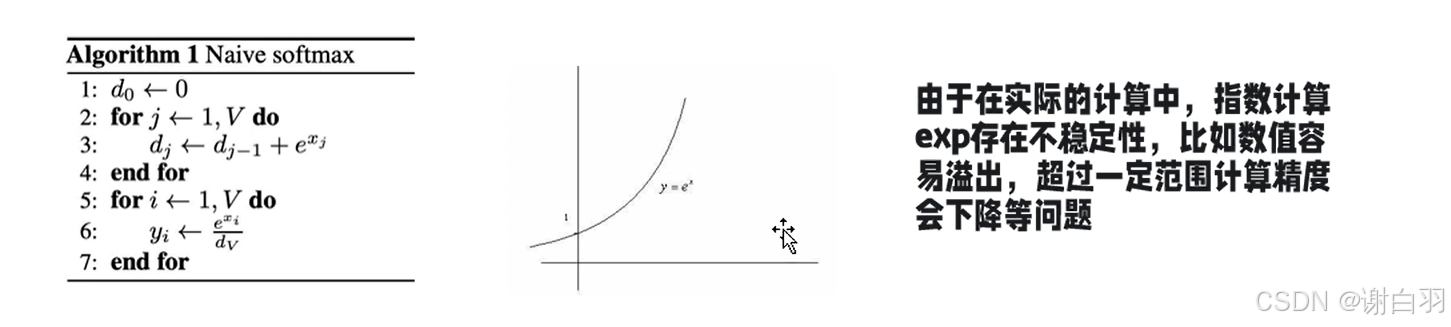

1）naive softmax

缺点：exp存在不稳定性，数值容易溢出，超过一定范围计算精度会下降

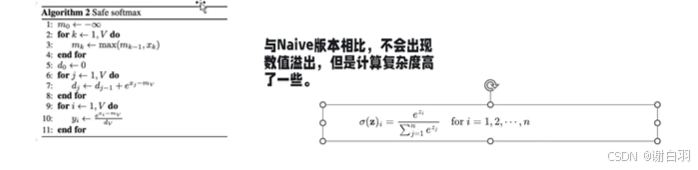

2）safe softmax

遍历了三遍数组，时间复杂度更高

两者代码

c 复制代码

//naive softmax
#include <vector>
#include <cmath>
#include <iostream>
#include <algorithm>

std::vector<float> naive_softmax(const std::vector<float>& input) {
    std::vector<float> output;
    output.reserve(input.size());

    float sum_exp = 0.0f;

    // Calculate the sum of exponentials
    for (float val : input) {
        sum_exp += std::exp(val); // Subtract max_val for numerical stability
    }


    // Calculate the softmax values
    for (float val : input) {
        output.push_back(std::exp(val) / sum_exp);
    }

    return output;
}


std::vector<float> safe_softmax(const std::vector<float>& input) {
    std::vector<float> output;
    output.reserve(input.size());

    // Find the maximum value for numerical stability
    float max_val = *std::max_element(input.begin(), input.end());
    float sum_exp = 0.0f;

    // Calculate the sum of exponentials with numerical stability
    for (float val : input) {
        sum_exp += std::exp(val - max_val); // Subtract max_val for numerical stability
    }
    // Calculate the softmax values
    for (float val : input) {
        output.push_back(std::exp(val - max_val) / sum_exp);
    }

    return output;
}


int main() {



}

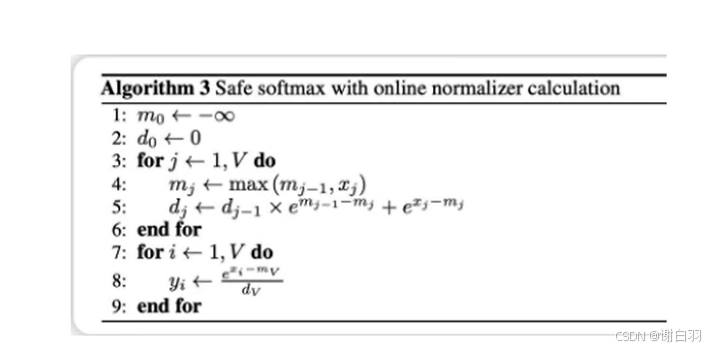

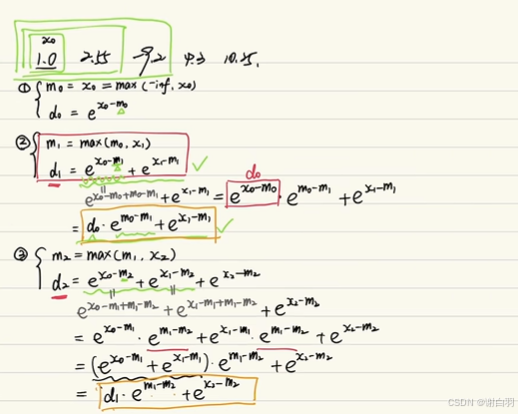

五、online softmax（重置版本）

c 复制代码

std::vector<float> online_softmax(const std::vector<float>& input) {
    std::vector<float> output;
    output.reserve(input.size());

    float max_val = -999.0f; // Initialize to a very small value
    float prev_max_value = 0.0f;
    float sum_exp = 0.0f;

    for (size_t i = 0; i < input.size(); ++i) {
        max_val = std::max(max_val, input[i]);
        sum_exp = sum_exp*std::exp(prev_max_value-max_val) + std::exp(input[i] - max_val);
        prev_max_value = max_val;
    }

    for (size_t i = 0; i < input.size(); i++)
    {
        output.push_back(std::exp(input[i] - max_val) / sum_exp);
    }

    return output;

}

三者输出结果对比

shell 复制代码

(base) k@Skynet:~/learn_flashtn/flash-attention-minimal/build$ ./naive_softmax
9.58094e-05 0.000451403 3.56126e-09 0.00259765 0.996855
9.58094e-05 0.000451403 3.56127e-09 0.00259765 0.996855
9.58094e-05 0.000451403 3.56126e-09 0.00259765 0.996855

对比函数

c 复制代码

void print_vector(const std::vector<float>& vec) {
    for (const auto& val : vec) {
        std::cout << val << " ";
    }
    std::cout << std::endl;
}


int main() {
    std::vector<float> input = {1.0f, 2.55f, -9.2f, 4.3f,10.25f};
    std::vector<float> result = safe_softmax(input);
    print_vector(result);

    std::vector<float> result2 = naive_softmax(input);
    print_vector(result2);

    std::vector<float> result3 = online_softmax(input);
    print_vector(result3);

    return 0;
}

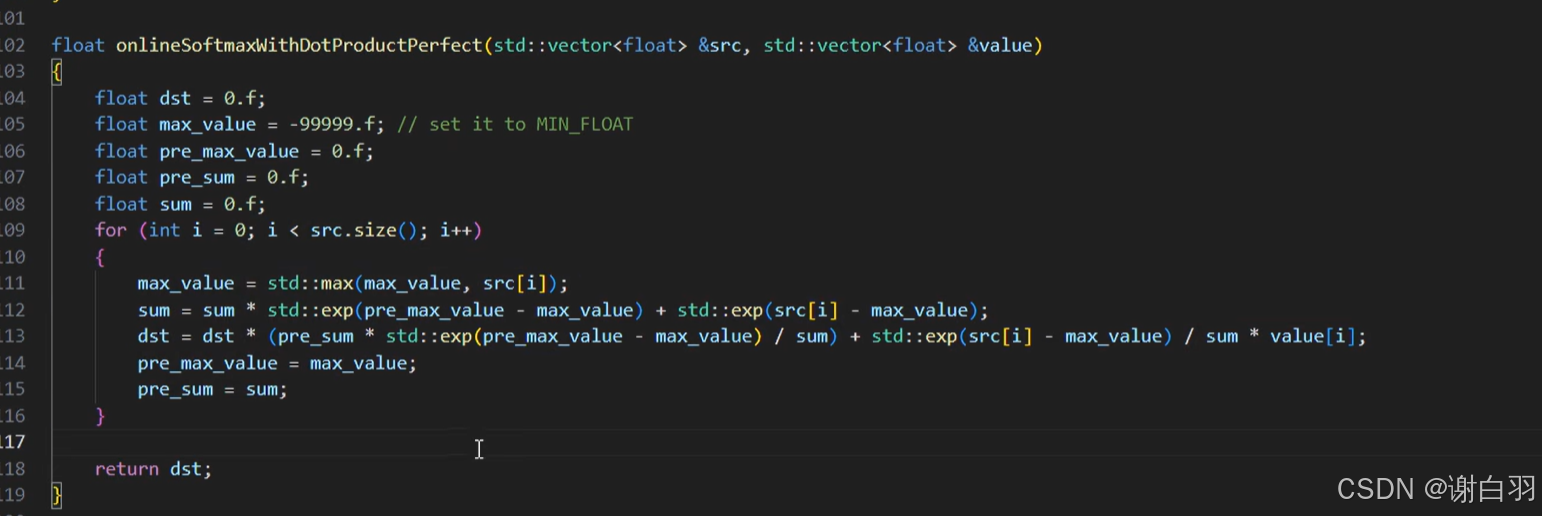

六、online softmax与value的点积优化

七、cuda算子解析

路径
