高颜值测试报告 pytest-xhtml

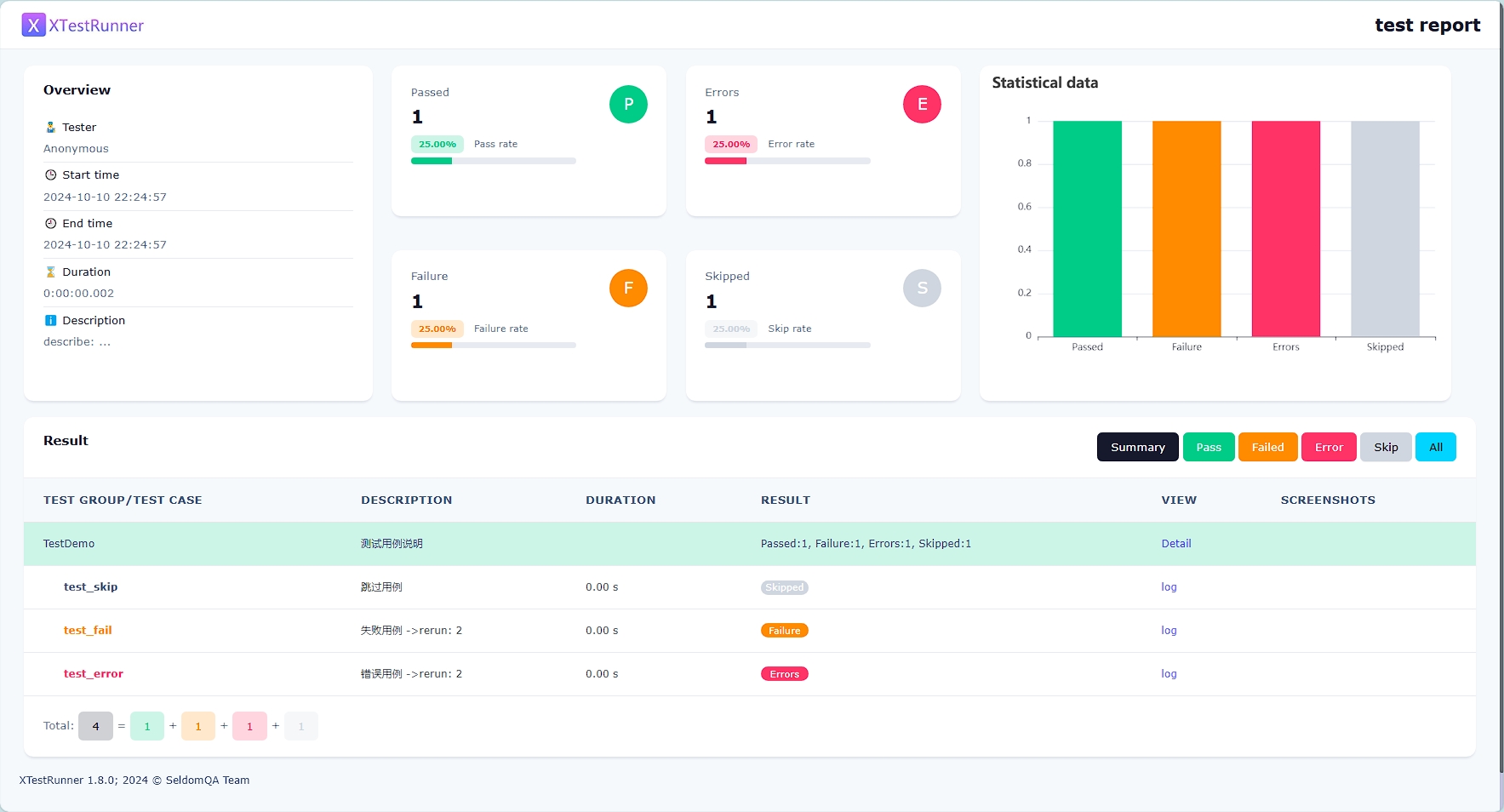

大概是三年前我自己设计了 XTestRunner 测试报告,主要是针对unittest 单元测试框架而设计。

记得当时主要是被一个网友安利说 UnitTestReport 好看,这我就非常不服气了,你可以质疑我的技术能力,但是不能质疑我的审美,于是重新设计了XTestRunner并发布了 1.0 版本。至今为止,XTestRunner仍然是 unittest 最漂亮的第三方测试报告。

然而, 网友墙裂建议针对 pytest 单元测试框架支持一波,我当时专心搞seldom框架,才没心情支持。现在,终于乘上了了 XTestRunner 的 pytest 版本。

为什么要选择 pytest-xhtml?

  • Allure报告:需要额外安装Allure命令行工具,启动服务过于重量级,看个报告还要每台电脑都安装Allure命令。
  • pytest-html:界面太丑,这个看脸的世界,丑就是原罪。

pytest-xhtml特点

  • pytest-xhtml 基于 XTestRunner 的设计风格,将现代Web UI设计理念引入测试报告领域,实现了功能与美学的完美平衡。 - 这句是AI生成的。

  • pytest-xhtml 基于 pytest-html 魔改UI, 功能使用上与 pytest-html 保持一致,除了命名上有差异。使用 pytest-xhtml的时候,请卸载 pytest-html

安装方式

  • pip命令安装
bash 复制代码
# 安装
pip install pytest-xhtml

#下面的示例会用到
pip install pytest-req
pip install selenium

使用方式

  • 核心使用 - 与 pytest-html 完全一致
bash 复制代码
pytest --html=report.html

简单的单元测试

首先,配置 conftest.py文件,配置只是为了多显示两列内容,不配置也行。

py 复制代码
import pytest
from datetime import datetime, timezone


def pytest_xhtml_results_table_header(cells):
    cells.insert(2, "<th>Description</th>")
    cells.insert(1, '<th class="sortable time" data-column-type="time">Time</th>')


def pytest_xhtml_results_table_row(report, cells):
    cells.insert(2, f"<td>{report.description}</td>")
    cells.insert(1, f'<td class="col-time">{datetime.now(timezone.utc)}</td>')


@pytest.hookimpl(hookwrapper=True)
def pytest_runtest_makereport(item, call):
    outcome = yield
    report = outcome.get_result()
    if hasattr(report, 'nodeid') and '::' in report.nodeid:
        report.description = str(item.function.__doc__ or "No description")

然后,编写测试用例 test_sample.py

py 复制代码
import pytest

# 简单的测试用例
def test_pass():
    assert 1 + 1 == 2

def test_fail():
    assert 1 + 1 == 3

def test_skip():
    pytest.skip("这个测试被跳过")

@pytest.mark.xfail
def test_xfail():
    assert 1 + 1 == 3

@pytest.mark.xfail(reason="预期失败,但实际会通过")
def test_xpass():
    """这是一个 Unexpected passes 用例 - 预期失败但实际通过"""
    assert 1 + 1 == 2

def test_error():
    """这是一个 Error 用例 - 测试执行时发生异常"""
    # 故意引发一个异常来模拟错误
    raise ValueError("模拟测试执行错误")

@pytest.fixture
def error_fixture():
    # 在fixture中引发异常,也会导致测试错误
    raise RuntimeError("fixture中的错误")

def test_error_with_fixture(error_fixture):
    """使用会出错的fixture的测试用例"""
    assert True

if __name__ == '__main__':
    pytest.main(["-v", "--html=report.html", "test_sample.py"])

最后,运行测试用例。

bash 复制代码
pytest -v --html=report.html test_sample.py

HTTP接口测试

首先,配置 conftest.py文件,主要是为了显示接口调用日志信息。

py 复制代码
import pytest
from datetime import datetime, timezone
from datetime import datetime, timezone
from pytest_req.log import log_cfg


@pytest.fixture(scope="session", autouse=True)
def setup_log():
    """
    setup log
    """
    log_format = "<green>{time:YYYY-MM-DD HH:mm:ss}</> |<level> {level} | {message}</level>"
    log_cfg.set_level(format=log_format)


def pytest_xhtml_results_table_header(cells):
    cells.insert(2, "<th>Description</th>")
    cells.insert(1, '<th class="sortable time" data-column-type="time">Time</th>')


def pytest_xhtml_results_table_row(report, cells):
    cells.insert(2, f"<td>{report.description}</td>")
    cells.insert(1, f'<td class="col-time">{datetime.now(timezone.utc)}</td>')


@pytest.hookimpl(hookwrapper=True)
def pytest_runtest_makereport(item, call):
    outcome = yield
    report = outcome.get_result()
    if hasattr(report, 'nodeid') and '::' in report.nodeid:
        report.description = str(item.function.__doc__ or "No description")

然后,编写测试用例test_req.py

py 复制代码
def test_post_method(post):
    """
    test post request
    """
    s = post('https://httpbin.org/post', data={'key': 'value'})
    assert s.status_code == 200


def test_get_method(get):
    """
    test get request
    """
    payload = {'key1': 'value1', 'key2': 'value2'}
    s = get("https://httpbin.org/get", params=payload)
    assert s.status_code == 200

...

最后,运行测试用例。

bash 复制代码
pytest -v --html=report.html test_sample.py

Selenium UI测试

首先,配置 conftest.py文件, 主要是为了实现截图展示。

py 复制代码
import pytest
from datetime import datetime, timezone
from selenium import webdriver


@pytest.fixture
def driver():
    """提供 WebDriver 实例用于测试"""
    driver = webdriver.Edge()
    yield driver
    driver.quit()


def pytest_xhtml_results_table_header(cells):
    cells.insert(2, "<th>Description</th>")
    cells.insert(1, '<th class="sortable time" data-column-type="time">Time</th>')


def pytest_xhtml_results_table_row(report, cells):
    cells.insert(2, f"<td>{report.description}</td>")
    cells.insert(1, f'<td class="col-time">{datetime.now(timezone.utc)}</td>')


@pytest.hookimpl(hookwrapper=True)
def pytest_runtest_makereport(item, call):
    outcome = yield
    report = outcome.get_result()

    # 只为测试用例添加描述,不处理收集阶段的报告
    if hasattr(report, 'nodeid') and '::' in report.nodeid:
        report.description = str(item.function.__doc__ or "No description")

    # 当测试失败时添加截图
    if report.when == "call" and report.failed:
        # 获取当前测试的 driver fixture
        driver = item.funcargs.get('driver')
        if driver:
            # 使用 base64 编码获取截图
            screenshot_base64 = driver.get_screenshot_as_base64()

            # 将截图添加到报告额外信息中 - 使用 pytest-xhtml 期望的格式
            if not hasattr(report, 'extras'):
                report.extras = []

            # 使用 pytest-xhtml 支持的格式
            report.extras.append({
                'name': 'Screenshot',
                'format_type': 'image',  # 必需字段
                'content': screenshot_base64,  # base64 内容
                'mime_type': 'image/png',  # 必需字段
                'extension': 'png'  # 必需字段
            })

然后,编写测试用例test_req.py

py 复制代码
from time import sleep
from selenium.webdriver.common.by import By


def test_bing_search_fail(driver):
    """测试 Bing 搜索功能"""
    # 访问 Bing 搜索页面
    driver.get("https://www.bing.com")
    sleep(2)
    assert driver.title == "pytest-xhtml - 搜索11"

...

最后,运行测试用例。

bash 复制代码
pytest -v --html=report.html test_selenium.py

最后说明

pytest-xhtml 调样式前后花费了一周(晚上)时间,相比较 XTestRunner 缺失一些统计图表。后面再慢慢增加吧!功能上可以完全替代 pytest-html 了,快去体验一下吧!
