React 源码 - Commit Phase 的工作细节
上一篇讲解了 React 运行时两个关键阶段中的 Render Phase ,所以这篇我们将来介绍 Commit Phase。
概览
在 Render Phase ,针对不同种类的更新,会给 fiber 打上不同的 flags
,例如:插入、替换、删除元素等。 而 Commit Phase 的主要任务就是处理这些 flags
,并通过操作DOM提交到宿主环境的UI中。
注意: Render Phase 流程可以中断;而 Commit Phase 一旦开始,就会同步执行直到完成。 这是因为 commit 阶段会对DOM进行操作,如果中断DOM 可能处于"半新半旧"的状态:有的节点已插入,有的还没删除、事件有的已换新有的仍旧。这会导致浏览器可能在中断期间绘制出不一致的界面(撕裂)。 而Render 阶段 并不会操作DOM,所有可以中断。
执行 Commit Phase 的函数是 CommitRoot
。
ts
// facebook/react/packages/react-reconciler/src/ReactFiberWorkLoop.js
function commitRoot(root: FiberRoot, finishedWork: null | Fiber, lanes: Lanes){
if (subtreeHasBeforeMutationEffects || rootHasBeforeMutationEffect) {
const prevExecutionContext = executionContext;
executionContext |= CommitContext;
// The first phase a "before mutation" phase. We use this phase to read the
// state of the host tree right before we mutate it. This is where
// getSnapshotBeforeUpdate is called.
commitBeforeMutationEffects(root, finishedWork, lanes);
}
if (enableViewTransition && willStartViewTransition) {
// 省略
} else {
// Flush synchronously.
flushMutationEffects();
flushLayoutEffects();
// Skip flushAfterMutationEffects
flushSpawnedWork();
}
}

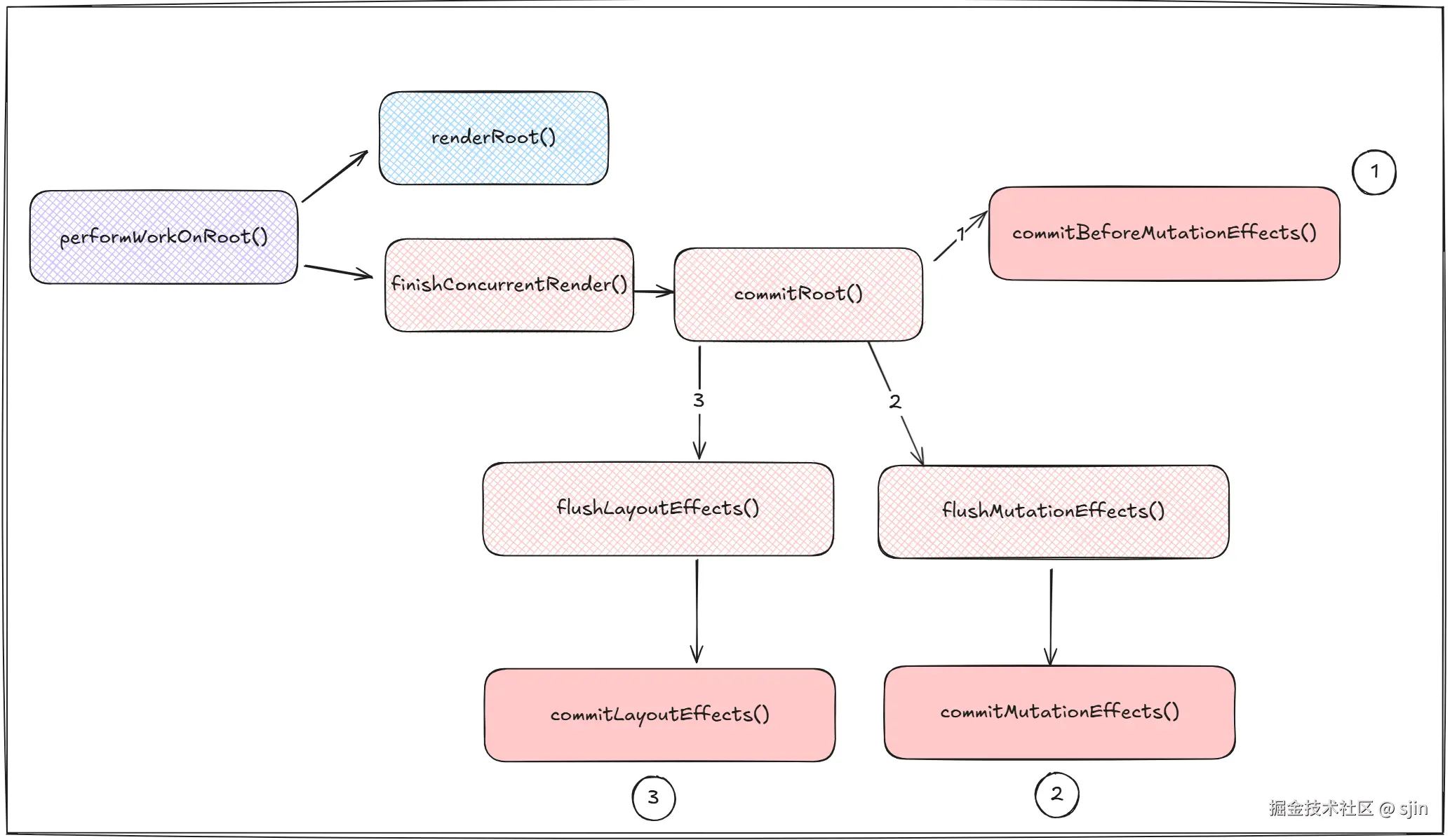

整个执行栈为下图:
Commit phase 可以分为三个阶段,对应上图中的方法 1、2、3:
- BeforeMutation
- Mutation
- Layout
上图为我根据React19源码绘制的调用栈, 与React18略有不同
更新标志
既然 Render Phase 中给 fiber 打的标志的处理会在 Commit Phase 执行, 那么我们有必要了解一下都有哪些标志:
- 更新:Update、Ref
- 元素:Placement、Update、ChildDeletion、Snapshot、Visibility、ContentReset
- 更新回调,执行effect: Callback-root、类组件回调、Passive、Layout、Insertion
1. 第一阶段: beforeMutation
beforeMutation
阶段做的事可以用一句话来概括:
在真正改动 DOM 之前,深度优先地扫描 Fiber 树,把所有和「删除、getSnapshotBeforeUpdate、视图过渡 (View Transition)」有关的副作用都提前处理好。
所以,这个阶段的目的是在旧的 DOM 被真正的修改之前,完成那些依赖于旧的 DOM 的任务。
1.1 - beforeMutation入口: commitBeforeMutationEffects
js
//facebook/react/packages/react-reconciler/src/ReactFiberCommitWork.js
export function commitBeforeMutationEffects(
root: FiberRoot,
firstChild: Fiber,
committedLanes: Lanes,
): void {
focusedInstanceHandle = prepareForCommit(root.containerInfo); //记录当前获得焦点的宿主节点(为了后面做 `blur / focus` 修复)
shouldFireAfterActiveInstanceBlur = false;
//React 19 加入 View Transition API 集成;只有满足所有更新都在 transition 车道时才会走相关逻辑
const isViewTransitionEligible =
enableViewTransition &&
includesOnlyViewTransitionEligibleLanes(committedLanes);
// 把深度优先遍历的游标指向整颗 finishedWork 树的根
nextEffect = firstChild;
commitBeforeMutationEffects_begin(isViewTransitionEligible); // 真正的 DFS 循环(下面详解)。
// We no longer need to track the active instance fiber
focusedInstanceHandle = null;
// We've found any matched pairs and can now reset.
resetAppearingViewTransitions();
}
commitBeforeMutationEffects
为 beforeMutation 阶段的入口函数,调用了commitBeforeMutationEffects_begin
函数。
nextEffect
用来追踪 commit Phase 中下一个需要处理的fiber,类似于 Render Phase 中的 workInProgress
。
1.2 - beforeMutation向下递: commitBeforeMutationEffects_begin
js
//facebook/react/packages/react-reconciler/src/ReactFiberCommitWork.js
function commitBeforeMutationEffects_begin(isViewTransitionEligible: boolean) {
// If this commit is eligible for a View Transition we look into all mutated subtrees.
// TODO: We could optimize this by marking these with the Snapshot subtree flag in the render phase.
const subtreeMask = isViewTransitionEligible
? BeforeAndAfterMutationTransitionMask
: BeforeMutationMask;
while (nextEffect !== null) {
const fiber = nextEffect;
const child = fiber.child;
// 按需剪枝
if ((fiber.subtreeFlags & subtreeMask) !== NoFlags && child !== null) {
child.return = fiber;
nextEffect = child;
} else {
commitBeforeMutationEffects_complete(isViewTransitionEligible);
}
}
}
熟悉 React 的同学应该知道, React 的生命周期 和effect钩子 的执行顺序是先子后父 。 这样做的原因归结于 DOM 操作的顺序。
- React 需要先完成子组件的 DOM 插入/更新,再处理父组件的 DOM。
- 父组件的 DOM 依赖于子组件的 DOM。例如,父组件挂载时需要确保子组件的 DOM 已经插入到父组件的 DOM 节点中。
- 如果父组件的
componentDidMount
先执行,此时子组件的 DOM 可能尚未就绪,导致父组件无法正确操作子组件的 DOM。
commitBeforeMutationEffects_begin
为了实现这一原则,做了两件事情:
- 如果子代 fiber 树有
buforeMutation
的标志,那么将nextEffect
指向 child fiber。等同于向下递归,直至找到最底部且有该标志的fiber。 - 执行
commitBeforeMutationEffects_complete
,并向上归并。
1.3 - beforeMutationd向上归: commitBeforeMutationEffects_complete
js
// facebook/react/packages/react-reconciler/src/ReactFiberCommitWork.js
function commitBeforeMutationEffects_complete(
isViewTransitionEligible: boolean,
) {
while (nextEffect !== null) {
const fiber = nextEffect;
commitBeforeMutationEffectsOnFiber(fiber, isViewTransitionEligible);
const sibling = fiber.sibling;
if (sibling !== null) {
sibling.return = fiber.return;
nextEffect = sibling;
return;
}
nextEffect = fiber.return;
}
}
从上面代码可以看出,commitBeforeMutationEffects_complete
函数非常简单, 就是一个向上循环归并的流程。 过程中,会先执行commitBeforeMutationEffectsOnFiber
,该方法也是 BeforeMutation
阶段真正要做的事情。 如果有兄弟节点,则会先将 nextEffect
指向兄弟节点并处理兄弟节点上的 BeforeMutation 相关 flag, 如果没有则指向父节点。
接下来看一下核心方法 commitBeforeMutationEffectsOnFiber
的流程是什么:
1.4 - 每个节点如何执行: commitBeforeMutationEffectsOnFiber
js
// facebook/react/packages/react-reconciler/src/ReactFiberCommitWork.js
function commitBeforeMutationEffectsOnFiber(
finishedWork: Fiber,
isViewTransitionEligible: boolean,
) {
const current = finishedWork.alternate;
const flags = finishedWork.flags;
// 根据不同类型的 Fiber 执行不同的操作
switch (finishedWork.tag) {
case FunctionComponent: {
if (enableUseEffectEventHook) {
if ((flags & Update) !== NoFlags) {
const updateQueue: FunctionComponentUpdateQueue | null =
(finishedWork.updateQueue: any);
const eventPayloads =
updateQueue !== null ? updateQueue.events : null;
if (eventPayloads !== null) {
for (let ii = 0; ii < eventPayloads.length; ii++) {
const {ref, nextImpl} = eventPayloads[ii];
ref.impl = nextImpl;
}
}
}
}
break;
}
case ClassComponent: {
if ((flags & Snapshot) !== NoFlags) {
if (current !== null) {
commitClassSnapshot(finishedWork, current);
}
}
break;
}
case HostRoot: {
if ((flags & Snapshot) !== NoFlags) {
if (supportsMutation) {
const root = finishedWork.stateNode;
clearContainer(root.containerInfo);
}
}
break;
}
case HostComponent:
case HostHoistable:
case HostSingleton:
case HostText:
case HostPortal:
case IncompleteClassComponent:
// Nothing to do for these component types
break;
case ViewTransitionComponent:
if (enableViewTransition) {
if (isViewTransitionEligible) {
if (current === null) {
// This is a new mount. We should have handled this as part of the
// Placement effect or it is deeper inside a entering transition.
} else {
// Something may have mutated within this subtree. This might need to cause
// a cross-fade of this parent. We first assign old names to the
// previous tree in the before mutation phase in case we need to.
// TODO: This walks the tree that we might continue walking anyway.
// We should just stash the parent ViewTransitionComponent and continue
// walking the tree until we find HostComponent but to do that we need
// to use a stack which requires refactoring this phase.
commitBeforeUpdateViewTransition(current, finishedWork);
}
}
break;
}
// Fallthrough
default: {
if ((flags & Snapshot) !== NoFlags) {
throw new Error(
'This unit of work tag should not have side-effects. This error is ' +
'likely caused by a bug in React. Please file an issue.',
);
}
}
}
}
commitBeforeMutationEffectsOnFiber
的目的是在 DOM 还没被真正改写之前 完成所有需要旧 DOM 状态的工作(典型例子就是 getSnapshotBeforeUpdate
)。 具体会根据不同 tag 的 fiber,执行不同的处理。
-
FunctionComponent :当启用了
useEffectEvent
实验特性,并且此 fiber 有Update
标记时, React 把事件 ref 上保存的实现函数替换为这次 render 派生出的最新闭包, 这样事件系统在后续阶段就能拿到"最新版本"的回调,而不必等到 Layout。 -
ClassComponent : 如果旧树 (
current
) 存在并且打了Snapshot
标记, 调用commitClassSnapshot
,这会触发getSnapshotBeforeUpdate
, 将其返回值暂存到实例上,供稍后执行componentDidUpdate
时使用。 -
HostRoot :
HostRoot
即根容器。如果它携带Snapshot
标记且当前渲染器支持 DOM Mutation,clearContainer
会把根节点 DOM 子树清空(通常发生在离线树 / hydration 失败回退)。 -
其他Host类型:直接跳过
总结 : beforeMutation
的作用是在 DOM 还没被真正改写之前 完成所有需要旧 DOM 状态的工作, 主要处理取快照、事件刷新等
2. 第二阶段:mutation
Mutation 阶段 = 深度优先 + 先删后子树再本节点;在这个阶段,React 用 flags/subtreeFlags
精准定位变更,删节点/解绑旧 ref/安插或移动 DOM/打补丁文本与属性,且执行 useInsertionEffect
; 为随后的 layout 阶段(生命周期与 layout effects、新 ref 绑定)铺平道路。
2.1 - Mutation入口: commitMutationEffects
在 commitMutationEffects
方法中,调用了 commitMutationEffectsOnFiber
函数, 来处理每一个有 mutationEffect flag 的 fiber。
ts
// facebook/react/packages/react-reconciler/src/ReactFiberCommitWork.js
export function commitMutationEffects(
root: FiberRoot,
finishedWork: Fiber,
committedLanes: Lanes,
) {
inProgressLanes = committedLanes;
inProgressRoot = root;
rootViewTransitionAffected = false;
inUpdateViewTransition = false;
resetComponentEffectTimers();
commitMutationEffectsOnFiber(finishedWork, root, committedLanes);
inProgressLanes = null;
inProgressRoot = null;
}
值得注意的是:Mutation 的DFS实现并没有像BeforeMutation用
nextEffect
游标 +begin/complete
这种非递归 DFS 。 而是采用了直接递归 ,顺便就把"先删→子→父"的时序写清楚了;因此没有必要再显式拆begin/complete
。

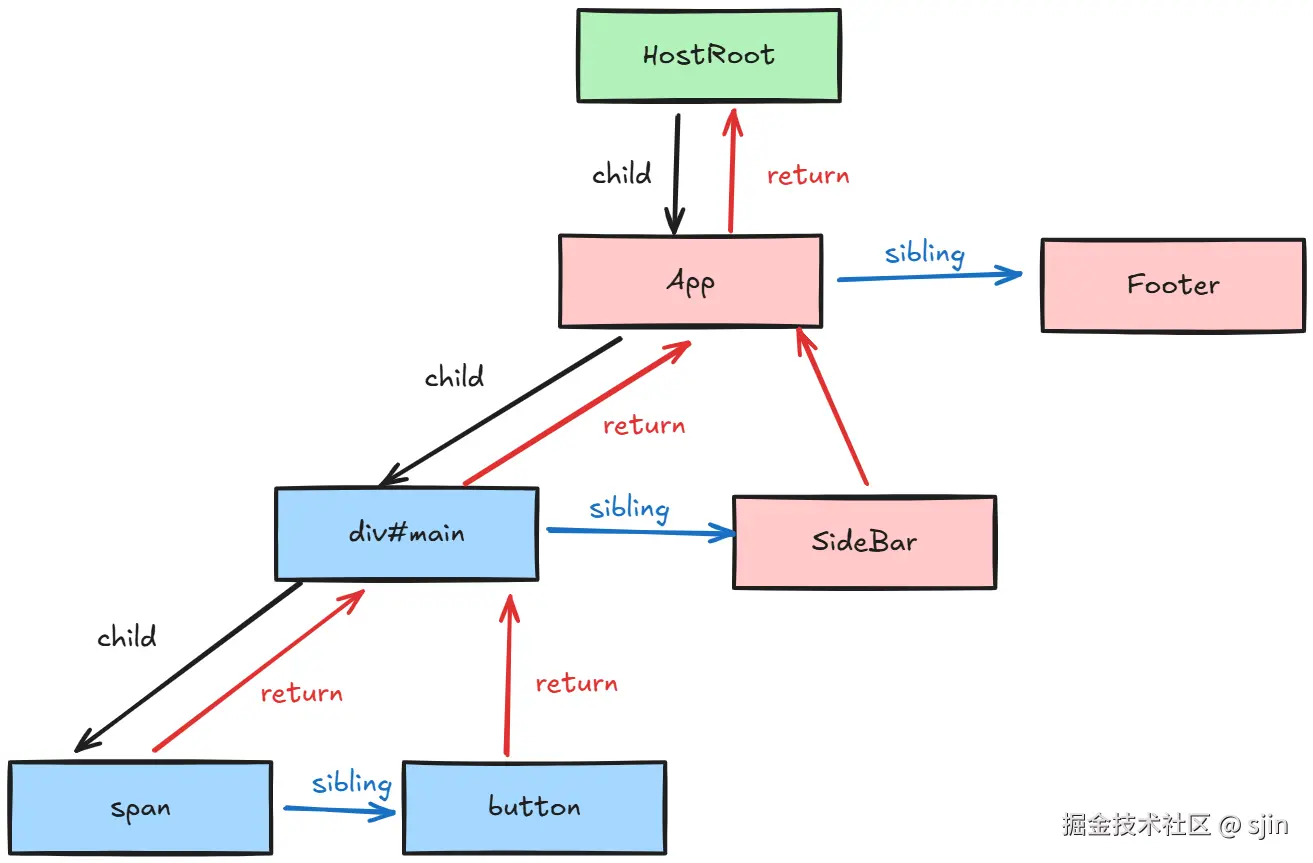

为了更直观地展示这一过程,下面用一个简单的例子来说明一下:
总体流程:
- 先沿着根节点的child指针一直遍历,直到某个fiber 的 child 指针为空。
- 如果有 sibling,回到处理 sibling, 重复 step1
- 如果没有 sibling 返回父节点,检查父节点sibling
2.2 - 每个节点如何执行: commitMutationEffectsOnFiber
commitMutationEffectsOnFiber
在递归之后立刻完成本节点所有 mutation 工作(包括 Reconciliation、副作用以及 Ref 的 attach/detach
js
// facebook/react/packages/react-reconciler/src/ReactFiberCommitWork.js
function commitMutationEffectsOnFiber(
finishedWork: Fiber,
root: FiberRoot,
lanes: Lanes,
){
switch (finishedWork.tag) {
case FunctionComponent:
case ForwardRef:
case MemoComponent:
case SimpleMemoComponent: {
/** DFS */
recursivelyTraverseMutationEffects(root, finishedWork, lanes);
/** handle REPLACEMENT effect */
commitReconciliationEffects(finishedWork, lanes);
if (flags & Update) {
/** unmount useInsertionEffect */
commitHookEffectListUnmount(
HookInsertion | HookHasEffect,
finishedWork,
finishedWork.return,
);
// TODO: Use a commitHookInsertionUnmountEffects wrapper to record timings.
/** mount userInsertionEffect */
commitHookEffectListMount(HookInsertion | HookHasEffect, finishedWork);
/** unmount useLayoutEffect, and mount in layoutEffect phase */
commitHookLayoutUnmountEffects(
finishedWork,
finishedWork.return,
HookLayout | HookHasEffect,
);
}
break;
}
case ClassComponent: {
recursivelyTraverseMutationEffects(root, finishedWork, lanes);
commitReconciliationEffects(finishedWork, lanes);
if (flags & Ref) {
if (!offscreenSubtreeWasHidden && current !== null) {
/** Detatch Ref */
safelyDetachRef(current, current.return);
}
}
if (flags & Callback && offscreenSubtreeIsHidden) {
const updateQueue: UpdateQueue<mixed> | null =
(finishedWork.updateQueue: any);
if (updateQueue !== null) {
deferHiddenCallbacks(updateQueue);
}
}
break;
}
}
}
- 该方法首先会调用
recursivelyTraverseMutationEffects
, 对每个含变更的子树都进行 DFS;在进入父 fiber 之前先处理其 deletions,然后递归处理子,回到当前 fiber 时再处理它自己的效果。关于recursivelyTraverseMutationEffects
函数的具体操作,在下面会详细讲解。 - 然后调用
commitReconciliationEffects
方法来处理 flag 包含 PLACEMENT 的节点。PLACEMENT 可以包括节点的移动以及插入。 - 卸载旧的useInsertionEffect,并执行新的useInsertionEffect。
- 卸载旧的useLayoutEffect,为在Commit 的 Layout阶段执行新的 useLayoutEffect 做准备。
例子1:
以上面的fiber tree 为例:
- 到
P
:P.deletions
无 → 递归子树 - 到
Q
:- 先处理
Q.deletions
:删除X
(cleanup → detach ref → removeChild) - 递归子树:进入
Y
(无事)→ 返回Q
- 处理
Q
自己(无 Placement/Update)
- 先处理
- 回到
P
走R
:R
无子树 → 回到R
自己:Placement → 插入R
的 DOM
- 回到
P
自己(若有再处理)\
2.3 - 深度优先遍历策略: recursivelyTraverseMutationEffects
recursivelyTraverseMutationEffects
会先统一处理所有删除,再递归进入子树。这样做是是为了保证 顺序、可见性一致性、锚点稳定性、以及正确的卸载清理。
在Render Phase 的reconcileChildren方法中,删除信息记录在父 Fiber 的字段 deletions: Fiber[] | null
里,同时父 Fiber 的 flags
会打上 ChildDeletion
用来提示提交阶段去处理这批删除。
所以,recursivelyTraverseMutationEffects
中可以通过遍历 fiber 的 deletions
,调用 commitDeletionEffects
删除它的子节点。
js
// facebook/react/packages/react-reconciler/src/ReactFiberCommitWork.js
function recursivelyTraverseMutationEffects(
root: FiberRoot,
parentFiber: Fiber,
lanes: Lanes,
) {
// Deletions effects can be scheduled on any fiber type. They need to happen
// before the children effects have fired.
const deletions = parentFiber.deletions;
if (deletions !== null) {
for (let i = 0; i < deletions.length; i++) {
const childToDelete = deletions[i];
commitDeletionEffects(root, parentFiber, childToDelete);
}
}
// check if subtree has a Mutation related flag,
// if false, means already reach the final fiber with mutation flag
// then return to commitMutationEffectsOnFiber to proccess the fiber
if (
parentFiber.subtreeFlags &
(enablePersistedModeClonedFlag ? MutationMask | Cloned : MutationMask)
) {
let child = parentFiber.child;
while (child !== null) {
commitMutationEffectsOnFiber(child, root, lanes);
child = child.sibling;
}
}
}
3. 第三阶段:Layout
在执行完 Mutation 阶段,接下来就来到了 Layout 阶段。Layout 阶段的入口函数为 commitLayoutEffects
。
3.1 - Layout入口函数:commitLayoutEffects
js
// facebook/react/blob/main/packages/react-reconciler/src/ReactFiberCommitWork.js
export function commitLayoutEffects(
finishedWork: Fiber,
root: FiberRoot,
committedLanes: Lanes,
): void {
inProgressLanes = committedLanes;
inProgressRoot = root;
resetComponentEffectTimers();
const current = finishedWork.alternate;
commitLayoutEffectOnFiber(root, current, finishedWork, committedLanes);
inProgressLanes = null;
inProgressRoot = null;
}
Layout 阶段的流程和 Mutation 阶段差不多,都会调用 commitXxxEffectOnFiber
和 recursivelyTraverseXxxEffects
。
3.2 - 每个节点如何执行: commitLayoutEffectOnFiber
js
// facebook/react/blob/main/packages/react-reconciler/src/ReactFiberCommitWork.js
function commitLayoutEffectOnFiber(
finishedRoot: FiberRoot,
current: Fiber | null,
finishedWork: Fiber,
committedLanes: Lanes,
): void {
const prevEffectStart = pushComponentEffectStart();
const prevEffectDuration = pushComponentEffectDuration();
const prevEffectErrors = pushComponentEffectErrors();
// When updating this function, also update reappearLayoutEffects, which does
// most of the same things when an offscreen tree goes from hidden -> visible.
const flags = finishedWork.flags;
switch (finishedWork.tag) {
case FunctionComponent:
case ForwardRef:
case SimpleMemoComponent: {
recursivelyTraverseLayoutEffects(
finishedRoot,
finishedWork,
committedLanes,
);
if (flags & Update) {
commitHookLayoutEffects(finishedWork, HookLayout | HookHasEffect);
}
break;
}
case ClassComponent: {
recursivelyTraverseLayoutEffects(
finishedRoot,
finishedWork,
committedLanes,
);
if (flags & Update) {
commitClassLayoutLifecycles(finishedWork, current);
}
if (flags & Callback) {
commitClassCallbacks(finishedWork);
}
if (flags & Ref) {
safelyAttachRef(finishedWork, finishedWork.return);
}
break;
}
case HostRoot: {
const prevProfilerEffectDuration = pushNestedEffectDurations();
recursivelyTraverseLayoutEffects(
finishedRoot,
finishedWork,
committedLanes,
);
if (flags & Callback) {
commitRootCallbacks(finishedWork);
}
if (enableProfilerTimer && enableProfilerCommitHooks) {
finishedRoot.effectDuration += popNestedEffectDurations(
prevProfilerEffectDuration,
);
}
break;
}
}
该方法会调用recursivelyTraverseLayoutEffects
执行深度优先遍历,确保找到 fiber tree 中最后一个带有 LayoutMask flag 的fiber,并自底向上开始处理。 如果已抵达最后一个LayoutMask flag 的fiber, 则会根据不同 fiber 的类型(tag),来执行对应的操作:
- 函数组件 :
-
挂载useLayoutEffect :
jscommitHookLayoutEffects(finishedWork, HookLayout | HookHasEffect);
- 调用
commitHookLayoutEffects
,重新挂载在 Mutation 阶段清理掉的useLayoutEffect
- 调用
-
- 类组件 :
-
布局生命周期 :
jscommitClassLayoutLifecycles(finishedWork, current)
- 首挂载 :
componentDidMount()
- 更新 :
componentDidUpdate(prevProps, prevState, snapshot)
其中snapshot
来源于 before-mutation 阶段的getSnapshotBeforeUpdate
。
- 首挂载 :
-
setState 回调 :
jscommitClassCallbacks(finishedWork);
- 调用通过
setState(updater, callback)
注册的 callback。
- 调用通过
-
挂载/更新 ref(attach) :** **
jssafelyAttachRef(finishedWork, finishedWork.return);
- 在 mutation 阶段 旧 ref 已 detach ;此处把
ref
指向 类实例
- 在 mutation 阶段 旧 ref 已 detach ;此处把
-
3.3 - recursivelyTraverseLayoutEffects
js
// facebook/react/blob/main/packages/react-reconciler/src/ReactFiberCommitWork.js
function recursivelyTraverseLayoutEffects(
root: FiberRoot,
parentFiber: Fiber,
lanes: Lanes,
) {
if (parentFiber.subtreeFlags & LayoutMask) {
let child = parentFiber.child;
while (child !== null) {
const current = child.alternate;
commitLayoutEffectOnFiber(root, current, child, lanes);
child = child.sibling;
}
}
}
recursivelyTraverseLayoutEffects
函数逻辑很简单。 和 Mutation 阶段的 recursivelyTraverseMutationEffects
操作相近。 通过 DFS 找到最后一个包含 Layout 相关操作 flag 的fiber,并从该 fiber 开始处理。
到这,Commit 的三个阶段的工作就完成。那么问题来了,useInsertionEffect
会在 Mutation 阶段执行, useLayoutEffect
会在 Layout 阶段执行, 那么 useUffect
什么时候执行呢。
其实,layout 子阶段之后,React 会异步安排一次被动副作用刷新(flush);在这次刷新里,先执行 cleanup(旧的 useEffect) ,再执行create(新的 useEffect)这些都发生在 浏览器绘制(paint)之后,不阻塞页面更新。
总结
Commit Phase 的主要任务就是处理在 Render Phase 标记的这些 flags,并提交到宿主环境的UI中。
BeforeMutation
- begin: 向下递,找到最底部的包含 在 Before Mutation 阶段需要处理的标记
- complete:
- 向上归,调用 commitEffectBeforeMutationOnFiber 来获取 DOM 更新前的快照。
- 如果有 sibling,将 nextEffect 指向 sibling。
Mutation
- recursivelyTraverseMutationEffects:
- 向下递,找到最底部的包含 在 Mutation 阶段需要处理的标记
- 调用 commitDeletion 执行删除元素操作。
- commitMutationEffectsOnFiber:
- 置空文本节点和ref
- 插入元素节点
- 执行 hook useInsertionEffect
- 更新文本节点
- 更新元素节点
Layout
- recursivelyTraverseLayoutEffects:
- 向下递,找到最底部的包含 在 Layout 阶段需要处理的标记
- commitLayoutEffectOnFiber:
- 执行回调函数
- setState的callBack
- 生命周期函数 componentDidMount/componentDidUpdate
- useLayoutEffect
