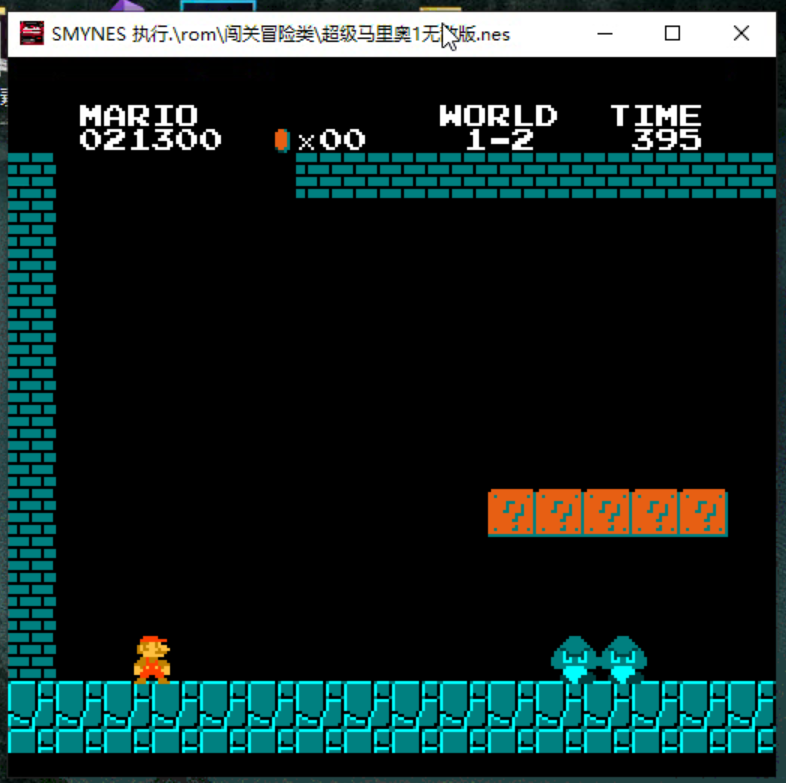

在超级玛丽中 有带问号的箱子 还有会运动的蘑菇 还有金币
这显然是不普通的 障碍物
今天我们实现一个 顶箱子 然后出现 会自动移动的蘑菇功能
直接放代码 这玩意写了我两天 实现了能走的蘑菇 还有顶出金币的箱子 还有吃金币。
过程懒得写了，不过说实话 这9个demo之后，写了几千行 应该差不多1万行代码 前前后后
项目工程能力 有了提升。
对游戏开发 卷轴 敌人 碰撞 等等的基础开发框架 开发模式 有了初步了解。
说实话最大的体会就是之前玩了一款游戏使用汇编语言编程，现在用一个c++这样的底层语言之后，能完成这种规模的项目，如果用汇编语言是完全没有可能去实现的。
汇编语言 要一行一行的完成 到处都是goto语句 阅读起来也很困难 哪怕是个for循环都要写10行。
后面这个项目我看找机会录个视频发b站讲解一下吧。

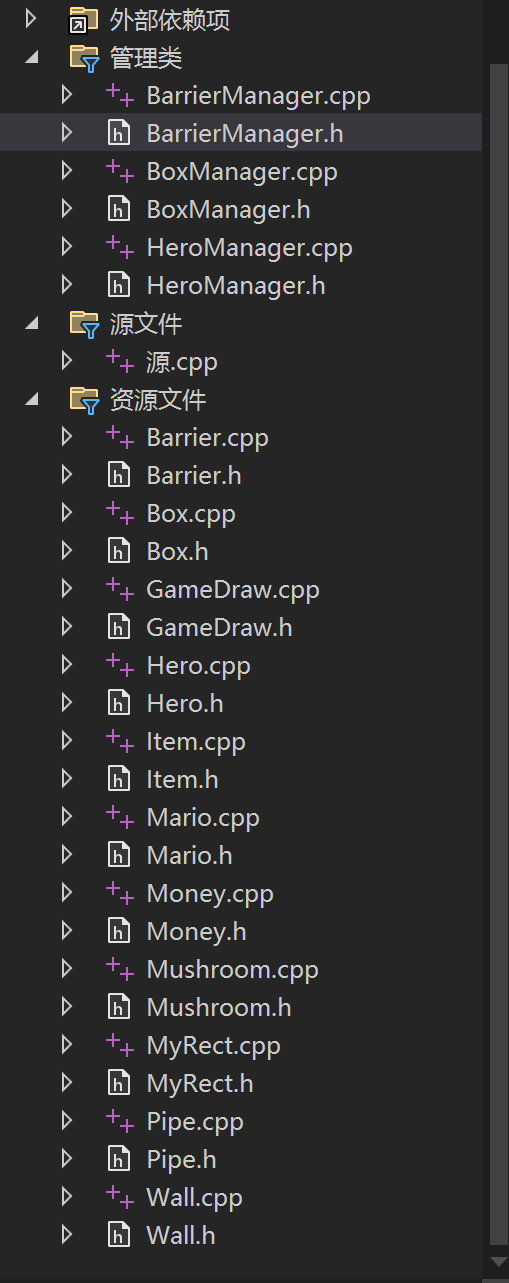

目录
超级玛丽demo9
管理类
BarrierManager.h
cpp
#pragma once
#include<list>
#include"BarrierManager.h"
using namespace std;
class CBarrier;
class CHero;
class CBarrierManager {
public:
list<CBarrier*> m_BarrierList;
public:
bool AddBarrier(CBarrier* pBarrier);
bool HeroBarCld(CHero* pHero, int fx);
void Run();
};
extern CBarrierManager g_BarrierManager;BarrierManager.cpp
cpp
#include "BarrierManager.h"
#include"Hero.h"
#include"Barrier.h"
CBarrierManager g_BarrierManager;
bool CBarrierManager::AddBarrier(CBarrier* pBarrier)
{
if (pBarrier == nullptr)
return false;
m_BarrierList.push_back(pBarrier);
return true;
}
bool CBarrierManager::HeroBarCld(CHero* pHero, int fx)
{
if (pHero == nullptr)
return false;
//把英雄构造成矩形
//属性结构体是封装了的 用get函数 访问私有变量 SX* GetSx();
//CMyrect 里面的东西没有封装 是public 直接用
CMyRect heroRect;
heroRect.left = pHero->GetSx()->x;
heroRect.top = pHero->GetSx()->y;
heroRect.right = pHero->GetSx()->x + pHero->GetSx()->w - 1;
heroRect.bottom = pHero->GetSx()->y + pHero->GetSx()->h - 1;
//还是该写个中间量 写了一大堆pHero->GetSx() 耽误时间了 不过也是复制粘贴
for (auto pBarrier : m_BarrierList) {
if (pBarrier->getRect().collider(&heroRect)) {
//pBarrier->ColliderFun(*pHero, fx);
return true;
}
}
return false;
}
void CBarrierManager::Run() {
for (auto pBarrier : m_BarrierList) {
pBarrier->Run();
}
}BoxManager.h
cpp
#pragma once
#include<list>
#include"Box.h"
using namespace std;
class CBox;
class CBoxManager {
public:
list<CBox*> m_boxList;
public:
bool AddBox(CBox* pBox);
void Run();
};
extern CBoxManager g_CBoxManager;BoxManager.cpp
cpp
#include "BoxManager.h"
CBoxManager g_CBoxManager;
bool CBoxManager::AddBox(CBox* pBox) {
if(pBox == nullptr)
return false;
m_boxList.push_back(pBox);
return true;
}
void CBoxManager::Run() {
for (auto pBox : m_boxList) {
pBox->Run();
}
}HeroManager.h
cpp
#pragma once
#include<vector>
#include<iostream>
using namespace std;
class CHero;
class CHeroManager {
public:
vector<CHero*> m_HeroList;
public:
bool AddHero(CHero* pHero);
void Run();//用管理类 遍历更新所有英雄（调用所有英雄的run()） 虽然目前只有一个
};
extern CHeroManager g_CHeroManager;HeroManager.cpp
cpp
#include "HeroManager.h"
#include "Hero.h"
//在cpp文件里定义全局变量，在头文件里extern 这样其他文件包含头文件时，就能使用全局变量了
CHeroManager g_CHeroManager;
bool CHeroManager::AddHero(CHero* pHero)
{
if(pHero == nullptr)
return false;
m_HeroList.push_back(pHero);
return true;
}
void CHeroManager::Run()
{
//遍历所有英雄 因为用不到下标 直接用auto了
//c++ 11 新特性 自动推导类型
for(auto pHero : m_HeroList)
{
pHero->Run();
}
}源文件.cpp
cpp
#include <iostream>
#include"GameDraw.h"
#include"Hero.h"
#include"Mario.h"
#include"MyRect.h"
#include"Barrier.h"
#include"BarrierManager.h"
#include"HeroManager.h"
#include"wall.h"
#include"windows.h"
#include"pipe.h"
#include"Mushroom.h"
#include"Item.h"
#include"Box.h"
#include"BoxManager.h"
using namespace std;
void main() {
g_gd.Init();
// 1 2 3 4 5 6 7
g_gd.SetTs("▲★●■▽□○");
//创建地面障碍物
char* map = (char*) malloc(sizeof(char) * 70);
for (int i = 0; i < 70; i++) {
map[i] = 4;
}
Cwall ground;
ground.setPos(0, 15);
ground.setWH(70, 1);
ground.SetBmp("ground",map);
g_BarrierManager.AddBarrier(&ground);
//?Box
char* map_box1 = (char*)malloc(sizeof(char) * 1);
for (int i = 0; i < 1; i++) {
map_box1[i] = 6;
}
char* map_box2 = (char*)malloc(sizeof(char) * 1);
map_box2[0] = 4;
CBox box;
box.Init();
box.setPos(11, 7);
box.setWH(1, 1);
box.SetBmp(box.m_bmpKey[0], map_box1);
box.SetBmp(box.m_bmpKey[1], map_box2);
g_BarrierManager.AddBarrier(&box);
g_CBoxManager.AddBox(&box);
CBox boxes[20];
for (int j = 0; j < 4; j++) {
for (int i = 0; i < 5; i++) {
int index = j * 5 + i;
boxes[index].Init();
boxes[index].setPos(22+i+j*10, 7);
boxes[index].setWH(1, 1);
boxes[index].SetBmp(boxes[index].m_bmpKey[0], map_box1);
boxes[index].SetBmp(boxes[index].m_bmpKey[1], map_box2);
g_BarrierManager.AddBarrier(&boxes[index]);
g_CBoxManager.AddBox(&boxes[index]);
}
}
int temp_map[20] = {
4,4,4,4,
4,4,4,4,
0,4,4,0,
0,4,4,0,
0,4,4,0,
};
char* map_pipe = (char*)malloc(sizeof(char) * 20);
for (int i = 0; i < 20; i++) {
map_pipe[i] = temp_map[i];
}
Cpipe pipe[5];
for (int i = 0; i < 5; i++) {
pipe[i].setPos(1+i*10, 10);
pipe[i].setWH(4, 5);
pipe[i].SetBmp("pipe", map_pipe);
g_BarrierManager.AddBarrier(&pipe[i]);
}
CMario mario;
mario.Init();
g_CHeroManager.AddHero(&mario);
char* map_craft3 = (char*)malloc(sizeof(char) * 3);
for (int i = 0; i < 3; i++) {
map[i] = 4;
}
Cwall craft3;
craft3.setPos(12, 7);
craft3.setWH(3, 1);
craft3.SetBmp("craft", map);
g_BarrierManager.AddBarrier(&craft3);
CMushroom mushroom;
char* map_mushroom = (char*)malloc(sizeof(char) * 1);
map_mushroom[0] = 7;
mushroom.Init();
mushroom.SetPos(14, 8);
mushroom.SetWH(1, 1);
mushroom.SetBmp("mushroom", map_mushroom);
while (1) {
g_gd.Begin();
g_BarrierManager.Run();
g_CHeroManager.Run();
mushroom.Run();
g_gd.cx = mario.m_sx.x - g_gd.cw / 2;
if (g_gd.cx < 0) g_gd.cx = 0;
if (g_gd.cx > 70 - g_gd.cw) g_gd.cx = 70 - g_gd.cw;
g_gd.End();
cout << "金币数量为" << g_gd.money << endl;
Sleep(100);
if (mario.m_sx.x == 69) {
g_gd.Begin();
g_gd.End();
cout << "恭喜通关！" << endl<<endl;
cout << "金币数量为" << g_gd.money << endl << endl;
system("pause");
}
}
}GameDraw类
GameDraw.h
cpp
#pragma once
#include <map>
// 纹理集符号索引枚举（对应纹理集中的字符顺序）
enum TextureIndex {
Space = 0, // 空格（索引0）
TriangleUp = 1, // ▲（三角形，索引1）
Star = 2, // ★（五角星，索引2）
Circle = 3, // ●（圆形，索引3）
Square = 4, // ■（正方形，索引4）
TriangleDown = 5 // ▽（倒三角形，索引5）
};
struct BMP {
int w, h;
char* _map;//存放堆的首地址 这里用char 后面使用char来存放整数 节约内存
};
class CGameDraw {
public:
//这里我们用 int ww = 70, wh = 16; 代表当前世界的宽高
//int _max_w, _max_h; 这个游戏 最大支持 的宽高 这里暂时不用 (在游戏分辨率的调整中会有用)
//int _w, _h; 这是当前屏幕的宽高
int _max_w = 256, _max_h = 32;
int _w=15, _h=16;
int ww=70, wh=16;
int cx = 0, cy = 0, cw = 15, ch = 16;
int client[70 * 16];
int money = 0;
std::map<const char*, BMP> bmp_map;
public:
char _ts[128];
int _tslen;
char print[(15 * 2 + 1) * 16 + 1];//窗口大小 宽15 高16
public:
~CGameDraw();
void Init();
void Begin();//把窗口中的client清零
void End();//把client中的内容显示到窗口上
bool SetTs(const char* ts);
void Draw(const char* key,int x,int y);//给client 赋值,必须是已经存在的bmp
bool AddBmp(const char* key, int w,int h, const char* map);
};
extern CGameDraw g_gd;GameDraw.cpp
cpp
#include "GameDraw.h"
#include <iostream>
#include "Hero.h"
#include <map>
using namespace std;
CGameDraw g_gd;
CGameDraw::~CGameDraw()
{
map<const char*, BMP>::iterator it;
for (it = bmp_map.begin(); it != bmp_map.end(); it++) {
free(it->second._map);
}
}
bool CGameDraw::SetTs(const char* ts)
{
if (ts == nullptr) {
return false;
}
int i = 0;
while (1) {
if (ts[i] == '\0' || ts[i + 1] == '\0') {
break;
}
_tslen++;
_ts[_tslen * 2] = ts[i++];
_ts[_tslen * 2 + 1] = ts[i++];
}
return true;
}
void CGameDraw::Init()
{
ww = 70;
wh = 16;
_ts[0] = " "[0];
_ts[1] = " "[1];
_tslen = 0;
}
void CGameDraw::Begin()
{
for (int i = 0; i < wh; i++) {
for (int j = 0; j < ww; j++) {
client[i * ww + j] = 0;
}
}
}
void CGameDraw::Draw(const char* key, int x, int y)
{
////第一个 左上角的定位点在地图中就行，其他的出界就不画
if (key == nullptr)
return;
map<const char*, BMP>::iterator it;
it = bmp_map.find(key);
if (it == bmp_map.end())
return;
BMP bmp = it->second;
for (int i = 0; i < bmp.h; i++) {
for (int j = 0; j < bmp.w; j++) {
if (bmp._map[j + i * bmp.w] != 0)
client[y * ww + x] = bmp._map[j + i * bmp.w];
x++;
}
y++;
x -= bmp.w;
}
}
void CGameDraw::End()
{
int pos = cx + cy * ww;
int size = 0;
for (int i = 0; i < ch; i++) {
for (int j = 0; j < cw; j++) {
if (client[pos + i * ww + j] == 0) {
print[size++] = _ts[client[pos + i * ww + j]];
}
else {
print[size++] = _ts[client[pos + i * ww + j] * 2];
print[size++] = _ts[client[pos + i * ww + j] * 2 + 1];
}
}
print[size++] = '\n';
}
print[size] = 0;
system("cls");
std::cout << print;
}
bool CGameDraw::AddBmp(const char* key, int w, int h, const char* map)
{
if (key == nullptr)
return false;
BMP bmp;
bmp.w = w;
bmp.h = h;
bmp._map = (char*)malloc(w * h);
for (int i = 0; i < w * h; i++) {
bmp._map[i] = map[i];
}
std::map<const char*, BMP>::iterator it;
it = bmp_map.find(key);
if (it == bmp_map.end()) {
bmp_map.insert(pair<const char*, BMP>(key, bmp));
return true;
}
else
return false;
}抽象类
Barrier.h
cpp
#pragma once
#include"MyRect.h"
#include"GameDraw.h"
class CHero;
class CBarrier {
public:
const char* m_key;//名字
int m_x, m_y, m_w, m_h;
char* m_map;
public:
virtual ~CBarrier();
//要先设置了w h 再设置bmp 里面会往gd里构造好一个BMP
void SetBmp(const char* key, char* map);
void setPos(int x, int y);
void setWH(int w, int h);
int getX();
int getY();
CMyRect getRect();//这里我没用虚函数 我认为障碍物的碰撞体积和实际体积一直 不需要子类来实现
//这三个函数 我一直觉得抽象 init run 好理解 这里end 拿来干什么？ 总感觉和构函数功能重复了
//个人理解是 可能有的障碍物 需被吃掉 变身第二阶段 吃道具改皮肤？
virtual void Run();
virtual void Init();
virtual void End();
virtual void ColliderFun(CHero* hero, int fx);
};Barrier.cpp
cpp
#include "Barrier.h"
#include "Hero.h"
#include<iostream>
using namespace std;
CBarrier::~CBarrier()//虚析构函数 子类去实现
{
}
void CBarrier::SetBmp(const char* key,char* map)
{
m_key = key;
m_map = map;
g_gd.AddBmp(key, m_w, m_h, map);
}
void CBarrier::setPos(int x, int y)
{
m_x = x;
m_y = y;
}
void CBarrier::setWH(int w, int h)
{
m_w = w;
m_h = h;
}
int CBarrier::getX()
{
return m_x;
}
int CBarrier::getY()
{
return m_y;
}
CMyRect CBarrier::getRect()
{
//我们的碰撞函数都是基于矩形实现的 无论是英雄还是障碍物都要先构造矩形
//然后再调用碰撞函数
CMyRect barRect;
barRect.left = m_x;
barRect.right = m_x + m_w - 1;
barRect.top = m_y;
barRect.bottom = m_y + m_h - 1;
return barRect;
}
//这四个都是虚函数
void CBarrier::ColliderFun(CHero* hero, int fx)//碰撞的对象不同 子类去实现
{
}
void CBarrier::Run() {
}
void CBarrier::Init() {
}
void CBarrier::End() {
}Hero.h
cpp
#pragma once
#include "MyRect.h"
enum EHeroAction {
H_IDLE = 0,
H_MOVE = 1,
H_UP = 2,
H_DOWN = 3,
};
struct SX {
int x, y;
int w, h;
int jumpPower;
int curJumpPower;
int toward; //朝向
int physicsState;//2 5 8
int curAction;
};
class CHero {
public:
SX m_sx;
const char* m_BMP_nameKey;
virtual void Idle();
virtual void Move();
virtual void Up();
virtual void Down();
public:
~CHero();
virtual void Init();
virtual void Run();
virtual void End();//暂时不用 没写英雄死亡
SX* GetSx();
CMyRect getRect();
void SetNameBMP(const char* BMP_nameKey);
};Hero.cpp
cpp
#include "Hero.h"
//只有 设置图片索引名称 get属性 其他都在子类中实现
void CHero::Idle()
{
}
void CHero::Move()
{
}
void CHero::Up()
{
}
void CHero::Down()
{
}
void CHero::Run()
{
}
void CHero::Init()
{
}
void CHero::End()
{
}
SX* CHero::GetSx()
{
return &m_sx;
}
void CHero::SetNameBMP(const char* BMP_nameKey)
{
m_BMP_nameKey = BMP_nameKey;
}
CMyRect CHero::getRect()
{
//我们的碰撞函数都是基于矩形实现的 无论是英雄还是障碍物都要先构造矩形
//然后再调用碰撞函数
CMyRect barRect;
barRect.left = m_sx.x;
barRect.right = m_sx.x;
barRect.top = m_sx.y;
barRect.bottom = m_sx.y;
return barRect;
}
CHero::~CHero()
{
//子类来释放，如果子类没有开堆 子类可以不写这个函数
}Item.h
cpp
#pragma once
#include"MyRect.h"
#include"GameDraw.h"
class CHero;
class CItem {
protected:
const char* m_key;
int m_x, m_y;
int m_w, m_h;
bool m_act;
public:
void SetBmp(const char* key, char* map);//设置好大小 map 之后再调用
void SetPos(int x, int y);
void SetWH(int w, int h);
int GrtX();
int GrtY();
void SetActive(bool act);//true 存在 calse消失
virtual void Run();
virtual ~CItem();
virtual void ColliderFun();
virtual CMyRect GetRect();
};
cpp
#include "Item.h"
CMyRect CItem::GetRect()
{
CMyRect rect;
rect.left = m_x;
rect.top = m_y;
rect.right = m_x + m_w -1;
rect.bottom = m_y + m_h -1;
return rect;
}
void CItem::SetBmp(const char* key,char* map)
{
m_key = key;
g_gd.AddBmp(key, m_w, m_h, map);
}
void CItem::SetPos(int x, int y)
{
m_x = x;
m_y = y;
}
void CItem::SetWH(int w, int h)
{
m_w = w;
m_h = h;
}
int CItem::GrtX()
{
return m_x;
}
int CItem::GrtY()
{
return m_y;
}
void CItem::SetActive(bool act)
{
m_act = act;
}
void CItem::Run()
{
}
CItem::~CItem()
{
}
void CItem::ColliderFun()
{
}Item.cpp
cpp
#include "Item.h"
CMyRect CItem::GetRect()
{
CMyRect rect;
rect.left = m_x;
rect.top = m_y;
rect.right = m_x + m_w -1;
rect.bottom = m_y + m_h -1;
return rect;
}
void CItem::SetBmp(const char* key,char* map)
{
m_key = key;
g_gd.AddBmp(key, m_w, m_h, map);
}
void CItem::SetPos(int x, int y)
{
m_x = x;
m_y = y;
}
void CItem::SetWH(int w, int h)
{
m_w = w;
m_h = h;
}
int CItem::GrtX()
{
return m_x;
}
int CItem::GrtY()
{
return m_y;
}
void CItem::SetActive(bool act)
{
m_act = act;
}
void CItem::Run()
{
}
CItem::~CItem()
{
}
void CItem::ColliderFun()
{
}工具类
MyRect.h
cpp
#pragma once
class CMyRect {
public:
int left, top, right, bottom;
bool collider(CMyRect* other);
bool setRect(int x, int y, int w, int h);
};MyRect.cpp
cpp
#include "MyRect.h"
bool CMyRect::collider(CMyRect* other)
{
if(right < other->left || left > other->right || bottom < other->top || top > other->bottom)
return false;
return true;
}
bool CMyRect::setRect(int x, int y, int w, int h)
{
left = x;
top = y;
right = x + w - 1;
bottom = y + h - 1;
return true;
}派生类
Box.h
cpp
class CBox : public CBarrier {
public:
const char* m_bmpKey[2];
int m_state;
CMoney* m_money;
public:
virtual void Run();
virtual void Init();
virtual void End();
virtual void ColliderFun();
bool Collider(CHero* hero);
};Box.cpp
cpp
#include "Box.h"
#include"Hero.h"
#include"GameDraw.h"
#include "Mario.h"
#include "Money.h"
void CBox::Init()
{
m_bmpKey[0] = "?box";
m_bmpKey[1] = "metelBox";
m_state = 0;
m_w = 1;
m_h = 1;
}
void CBox::Run(){
if (m_state == 0) {
g_gd.Draw(m_bmpKey[0], m_x, m_y);
}
else if (m_state == 1) {
g_gd.Draw(m_bmpKey[1], m_x, m_y);
m_money->Run();
}
}
void CBox::End(){}
void CBox::ColliderFun(){
//爆金币
if(m_state == 1)
return;
m_state = 1;
//创建金币类 然后出现在游戏中
m_money = new CMoney();
m_money->Init();
m_money->SetPos(m_x, m_y-1);
}
bool CBox::Collider(CHero* hero) {
CMyRect rect = hero->getRect();
if (this->getRect().collider(&rect)) {
ColliderFun();
return true;
}
return false;
}Mario.h
cpp
#pragma once
#include "Hero.h"
#include"GameDraw.h"
#include"Hero.h"
#include"HeroManager.h"
#include"BarrierManager.h"
#include"MyRect.h"
#include"Wall.h"
class CMario : public CHero {
const char* m_BMPkey[3];//用于存放3个状态的 的英雄图片
//相当于父类提供的 是静止的图片
int jumpTemp;//跳跃时每帧会衰减
//char m_map_empty[1] = { 0 };
//重写父类的虚函数 没用用堆 自动重写空虚构
virtual void Idle();
virtual void Move();
virtual void Up();
virtual void Down();
public:
CMyRect m_rect;
virtual void Init();
virtual void Run();
virtual void End();//空的 没写死亡
};Mario.cpp
cpp
#include "Mario.h"
#include <windows.h>
#include "GameDraw.h"
#include "BarrierManager.h"
#include"BoxManager.h"
//管理类的碰撞函数 只判断是否碰撞 墙的碰撞函数 会让英雄归位
void CMario:: Idle(){
//左右移动 跳跃 重力下落四种方式可以切换状态
//先左右移动打断 重力写在最后 可以移动后 自动切换为下落
m_sx.toward = 5;
if (GetAsyncKeyState('A') ){
m_sx.toward = 4;
m_sx.curAction = H_MOVE;
}
if (GetAsyncKeyState('D') ){
m_sx.toward = 6;
m_sx.curAction = H_MOVE;
}
//重力 切换为下落
//因为碰撞判断 要遍历所有障碍物 所以要写完 障碍管理类 再写
m_sx.y += 1;
//碰撞函数
if (g_BarrierManager.HeroBarCld(this, 2) == false) {
m_sx.curAction = H_DOWN;
m_sx.physicsState = 2;
return;//直接返回 不能跳跃
}
else { m_sx.y -= 1; }
//跳跃
if (GetAsyncKeyState('J')) {
//必须在静止和移动状态才能跳跃
m_sx.curAction = H_UP;
m_sx.physicsState = 8;
//跳跃力更新
m_sx.curJumpPower = m_sx.jumpPower;
}
}
void CMario::Move() {
//切换朝向 移动位置左右平移
m_sx.toward = 5;
if (GetAsyncKeyState('A')) {
m_sx.toward = 4;
m_sx.x -= 1;
if (g_BarrierManager.HeroBarCld(this, m_sx.toward)) {
m_sx.curAction = H_IDLE;
m_sx.x += 1;
}
}
if (GetAsyncKeyState('D')) {
m_sx.toward = 6;
m_sx.x += 1;
if (g_BarrierManager.HeroBarCld(this, m_sx.toward)) {
m_sx.curAction = H_IDLE;
m_sx.x -= 1;
}
}
//左右碰撞检测
/*if (g_BarrierManager.HeroBarCld(this, m_sx.toward)) {
m_sx.curAction = H_IDLE;
}*/
//重力下落碰到东西 就切换为静止
m_sx.y += 1;
if (g_BarrierManager.HeroBarCld(this, 2) == false) {
m_sx.curAction = H_DOWN;
m_sx.physicsState = 2;
return;//直接返回 不能跳跃
}
else { m_sx.y -= 1; }
//跳跃切换空中
if (GetAsyncKeyState('J')) {
m_sx.curAction = H_UP;
m_sx.physicsState = 8;
m_sx.curJumpPower = m_sx.jumpPower;
}
}
void CMario::Up() {
//跳跃力用完 边下落 空中也可以切换方向 向上碰撞检测、
//这个状态 不受重力
m_sx.toward = 5;
if (GetAsyncKeyState('A')) {
m_sx.toward = 4;
m_sx.x -= 1;
if (g_BarrierManager.HeroBarCld(this, m_sx.toward)) {
m_sx.curAction = H_IDLE;
m_sx.x += 1;
}
}
if (GetAsyncKeyState('D')) {
m_sx.toward = 6;
m_sx.x += 1;
if (g_BarrierManager.HeroBarCld(this, m_sx.toward)) {
m_sx.curAction = H_IDLE;
m_sx.x -= 1;
}
}
//g_BarrierManager.HeroBarCld(this, m_sx.toward);
//左右碰撞检测
//上升 每帧 上升当前跳跃力格
for (int i = 0; i < m_sx.curJumpPower; i++) {
m_sx.y -= 1;
//碰撞检测 如果碰撞 就开始下落 当前跳跃力为0
if (g_BarrierManager.HeroBarCld(this, 8)) {
m_sx.curAction = H_DOWN;
m_sx.physicsState = 2;
m_sx.curJumpPower = 0;
//金币箱子
for (auto pBox : g_CBoxManager.m_boxList) {
pBox->Collider(this);
}
m_sx.y += 1;
}
}
//跳跃力为0 就开始下落
m_sx.curJumpPower--;
if (m_sx.curJumpPower == 0) {
m_sx.curAction = H_DOWN;
m_sx.physicsState = 2;
}
}
void CMario::Down() {
// 左右碰撞 重力碰撞
m_sx.toward = 5;
if (GetAsyncKeyState('A')) {
m_sx.toward = 4;
m_sx.x -= 1;
if (g_BarrierManager.HeroBarCld(this, m_sx.toward)) {
m_sx.curAction = H_IDLE;
m_sx.x += 1;
}
}
if (GetAsyncKeyState('D')) {
m_sx.toward = 6;
m_sx.x += 1;
if (g_BarrierManager.HeroBarCld(this, m_sx.toward)) {
m_sx.curAction = H_IDLE;
m_sx.x -= 1;
}
}
//左右碰撞
//g_BarrierManager.HeroBarCld(this, m_sx.toward);
//重力下落 碰撞检测
m_sx.y += 1;
if (g_BarrierManager.HeroBarCld(this, 2)) {
if (m_sx.toward == 4 || m_sx.toward == 6){
m_sx.curAction = H_MOVE;
m_sx.y -= 1;
}
else {
m_sx.curAction = H_IDLE;
m_sx.y -= 1;
}
m_sx.physicsState = 5;
return;
}
}
extern CGameDraw g_gd;
void CMario::Init() {
//字体库的原因 这里只搞三种图片 根据物理状态来的，上升 下降 水平
//设置好 main函数里的图素 再来写
//int x, y;
//int w, h;
//int jumpPower;
//int curJumpPower;
//int toward; //朝向
//int physicsState;
//int curAction;
m_sx.x = 0;
m_sx.y = 0;
m_sx.w = 1;
m_sx.h = 1;
m_sx.jumpPower = 3;
m_sx.curJumpPower = 0;
m_sx.toward = 5;
m_sx.physicsState = 2;
m_sx.curAction = H_DOWN;
{
/*BMP bmptemp;
bmptemp._map = (char*)malloc(sizeof(char) * 1);
*bmptemp._map = Star;
bmptemp.h = 1;
bmptemp.w = 1;*/
char map[1] = { Star };
g_gd.AddBmp("groundHero",1,1,map);
}
{
/*BMP bmptemp;
bmptemp._map = (char*)malloc(sizeof(char) * 1);
*bmptemp._map = TriangleUp;
bmptemp.h = 1;
bmptemp.w = 1;*/
char map[1] = { TriangleUp };
g_gd.AddBmp("upHero",1,1, map);
}
{
/*BMP bmptemp;
bmptemp._map = (char*)malloc(sizeof(char) * 1);
*bmptemp._map = TriangleDown;
bmptemp.h = 1;
bmptemp.w = 1;*/
char map[1] = { TriangleDown };
g_gd.AddBmp("downHero", 1,1,map);
}
//这里不要释放 AddBmp函数中的 map 创建的时候 是浅拷贝，释放了资源加载不出来。
}
void CMario::Run() {
//根据当前状态来运行
switch (m_sx.curAction) {
case H_IDLE:Idle(); break;
case H_MOVE:Move(); break;
case H_UP:Up(); break;
case H_DOWN:Down(); break;
}
//根据物理状态来切换图片
if (m_sx.physicsState == 2) {
m_BMP_nameKey = "downHero";
}
else if (m_sx.physicsState == 8) {
m_BMP_nameKey = "upHero";
}
else {
m_BMP_nameKey = "groundHero";
}
//给client赋值
g_gd.Draw(m_BMP_nameKey, m_sx.x, m_sx.y);
}
void CMario::End() {//
}
Money.h
cpp
#pragma once
#include"Item.h"
class CMoney : public CItem {
public:
void Run();
void Init();
void ColliderFun(CHero* hero, int toward);
};
cpp
#include"Money.h"
#include"HeroManager.h"
#include"Hero.h"
class CHero;
class HeroManager;
void CMoney::Run() {
if (m_act == false)
return;
g_gd.Draw(m_key, m_x, m_y);
//吃蘑菇判断
for (auto pHero : g_CHeroManager.m_HeroList) {
CMyRect rect = pHero->getRect();
if (this->GetRect().collider(&rect)) {
m_act = false;
g_gd.money++;
}
}
}Mushroom.h
cpp
#pragma once
#include"Item.h"
class CMushroom : public CItem {
int m_toward;
public:
void Run();
void Init();
void ColliderFun(CHero* hero, int toward);
};Mushroom.cpp
cpp
#include "Mushroom.h"
#include "BarrierManager.h"
#include "HeroManager.h"
#include"Barrier.h"
#include"Hero.h"
class HeroManager;
void CMushroom::Run() {
if(m_act == false)
return;
g_gd.Draw(m_key, m_x, m_y);
//吃蘑菇判断
for (auto pHero : g_CHeroManager.m_HeroList) {
CMyRect rect = pHero->getRect();
if (this->GetRect().collider(&rect)) {
m_act = false;
pHero->m_sx.jumpPower += 1;
}
}
if (m_toward == 4) {
m_x -= 1;
for (auto pBar : g_BarrierManager.m_BarrierList) {
CMyRect Rect = pBar->getRect();
if (this->GetRect().collider(&Rect)){
m_toward = 6;
m_x += 1;
}
}
}
else if (m_toward == 6) {
m_x += 1;
for (auto pBar : g_BarrierManager.m_BarrierList) {
CMyRect Rect = pBar->getRect();
if (this->GetRect().collider(&Rect)) {
m_toward = 4;
m_x -= 1;
}
}
}
m_y += 1;//重力
for (auto pBar : g_BarrierManager.m_BarrierList) {
CMyRect Rect = pBar->getRect();
if (this->GetRect().collider(&Rect)) {
m_y -= 1;
}
}
//吃蘑菇判断
for (auto pHero : g_CHeroManager.m_HeroList) {
CMyRect rect = pHero->getRect();
if (this->GetRect().collider(&rect)) {
m_act = false;
pHero->m_sx.jumpPower += 1;
}
}
}
void CMushroom::Init() {
m_act = true;
m_toward = 4;
}
//感觉不好用 直接在run里判断就好
// 以防万一 蘑菇动之前判断一次吃掉没 动之后判断一次吃掉没
void CMushroom::ColliderFun(CHero* hero, int toward)
{
SX* sx = hero->GetSx();
sx->jumpPower += 1;
m_act = false;
}Pipe.h
cpp
#pragma once
#include"Barrier.h"
#include"Hero.h"
#include"GameDraw.h"
#include "Mario.h"
#include "BarrierManager.h"
#include"Wall.h"
class Cpipe : public CBarrier {
public:
//这里感觉 init 和 构造函数又没啥区别 写一个就行
//感觉老师喜欢写 init 函数
void Run();//调用 gd 绘制图片
void Init();//没用
void End();//没用
void CollierFun(CHero* hero, int fx);
};Pipe.cpp
cpp
#include "Pipe.h"
#include"Hero.h"
#include"GameDraw.h"
#include "Mario.h"
#include"Wall.h"
#include"BarrierManager.h"
void Cpipe::Init()
{
m_key = 0;
}
void Cpipe::End() {
}
void Cpipe::Run() {
g_gd.Draw(m_key, m_x, m_y);
}
void Cpipe::CollierFun(CHero* hero, int fx)
{
SX* sx = hero->GetSx();
int left = m_x;
int right = m_x + m_w - 1;
int top = m_y;
int bottom = m_y + m_h - 1;
//这里 因为我们英雄 只有1*1的大小 所以直接用1代替了w h，如果英雄有体积的话，就要用w h来代替
if (fx == 4) {
sx->x = right + 1;
}
else if (fx == 6) {
sx->x = left - 1;
}
else if (fx == 8) {
sx->y = bottom + 1;
}
else if (fx == 2) {
sx->y = top - 1;
}
}Wall.h
cpp
#pragma once
#include"Barrier.h"
class Cwall : public CBarrier {
public:
//这里感觉 init 和 构造函数又没啥区别 写一个就行
//感觉老师喜欢写 init 函数
void Run();//调用 gd 绘制图片
void Init();//没用
void End();//没用
void CollierFun(CHero* hero,int fx);
};Wall.cpp
cpp
#include "Wall.h"
#include"Hero.h"
#include"GameDraw.h"
#include "Mario.h"
void Cwall::Init()
{
m_key = 0;
}
void Cwall::End() {
}
void Cwall::Run() {
g_gd.Draw(m_key, m_x, m_y);
}
void Cwall::CollierFun(CHero* hero, int fx)
{
SX* sx = hero->GetSx();
int left = m_x;
int right = m_x + m_w - 1;
int top = m_y;
int bottom = m_y + m_h - 1;
//这里 因为我们英雄 只有1*1的大小 所以直接用1代替了w h，如果英雄有体积的话，就要用w h来代替
if (fx == 4) {
sx->x = right + 1;
}
else if (fx == 6) {
sx->x = left - 1;
}
else if (fx == 8) {
sx->y = bottom + 1;
}
else if (fx == 2) {
sx->y = top - 1;
}
}
