vxe-table 按多个列进行分组和按多个字段进行分组的使用方式
查看官网：https://vxetable.cn
gitbub：https://github.com/x-extends/vxe-table
gitee：https://gitee.com/x-extends/vxe-table

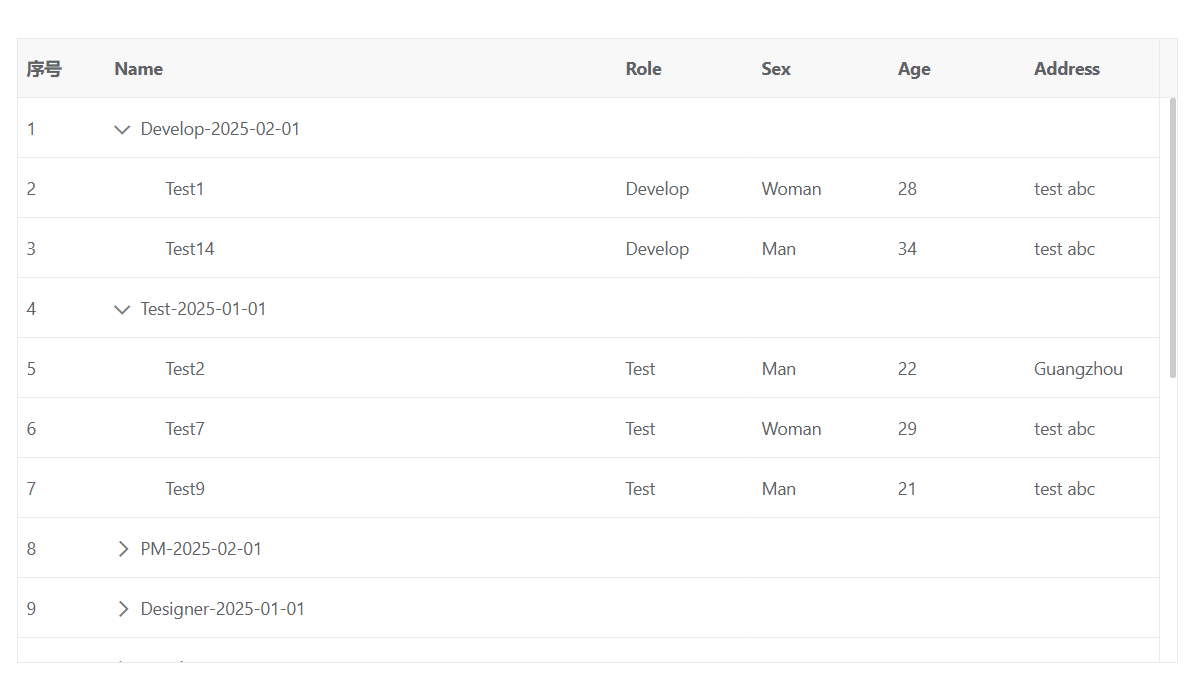

合并多个字段进行分组
将多个字段的汇集到指定字段，再按照指定字段进行分组即可轻松实现对多个字段分组；实现后跟单列分组效果一样，区别是只在一层显示分组内容
html
<template>
<div>
<vxe-grid v-bind="gridOptions"></vxe-grid>
</div>
</template>
<script setup>
import { reactive } from 'vue'
const gridOptions = reactive({
height: 500,
aggregateConfig: {
groupFields: ['complexField']
},
columns: [
{ type: 'seq', width: 70 },
{ field: 'name', title: 'Name', minWidth: 300, rowGroupNode: true },
{ field: 'role', title: 'Role' },
{ field: 'sex', title: 'Sex' },
{ field: 'age', title: 'Age' },
{ field: 'address', title: 'Address' }
],
data: []
})
const tableData = [
{ id: 10001, name: 'Test1', role: 'Develop', sex: 'Woman', age: 28, date: '2025-02-01', address: 'test abc' },
{ id: 10002, name: 'Test2', role: 'Test', sex: 'Man', age: 22, date: '2025-01-01', address: 'Guangzhou' },
{ id: 10003, name: 'Test3', role: 'PM', sex: 'Woman', age: 32, date: '2025-02-01', address: 'Shanghai' },
{ id: 10004, name: 'Test4', role: 'Designer', sex: 'Man', age: 32, date: '2025-01-01', address: 'test abc' },
{ id: 10005, name: 'Test5', role: 'Develop', sex: 'Man', age: 30, date: '2025-01-01', address: 'Shanghai' },
{ id: 10006, name: 'Test6', role: 'Designer', sex: 'Man', age: 30, date: '2025-03-01', address: 'test abc' },
{ id: 10007, name: 'Test7', role: 'Test', sex: 'Woman', age: 29, date: '2025-01-01', address: 'test abc' },
{ id: 10008, name: 'Test8', role: 'PM', sex: 'Woman', age: 35, date: '2025-01-01', address: 'test abc' },
{ id: 10009, name: 'Test9', role: 'Test', sex: 'Man', age: 21, date: '2025-01-01', address: 'test abc' },
{ id: 10010, name: 'Test10', role: 'PM', sex: 'Woman', age: 28, date: '2025-03-01', address: 'test abc' },
{ id: 10011, name: 'Test11', role: 'Test', sex: 'Woman', age: 29, date: '2025-03-01', address: 'test abc' },
{ id: 10012, name: 'Test12', role: 'Develop', sex: 'Man', age: 37, date: '2025-10-01', address: 'test abc' },
{ id: 10013, name: 'Test13', role: 'Test', sex: 'Woman', age: 24, date: '2025-02-01', address: 'test abc' },
{ id: 10014, name: 'Test14', role: 'Develop', sex: 'Man', age: 34, date: '2025-02-01', address: 'test abc' },
{ id: 10015, name: 'Test15', role: 'Designer', sex: 'Man', age: 21, date: '2025-01-01', address: 'test abc' },
{ id: 10016, name: 'Test16', role: 'Designer', sex: 'Woman', age: 21, date: '2025-10-01', address: 'test abc' },
{ id: 10017, name: 'Test17', role: 'Test', sex: 'Man', age: 31, date: '2025-12-01', address: 'test abc' },
{ id: 10018, name: 'Test18', role: 'Develop', sex: 'Woman', age: 32, date: '2025-10-01', address: 'test abc' },
{ id: 10019, name: 'Test19', role: 'Test', sex: 'Man', age: 37, date: '2025-02-01', address: 'test abc' },
{ id: 10020, name: 'Test20', role: 'Develop', sex: 'Man', age: 41, date: '2025-03-01', address: 'test abc' }
]
tableData.forEach(row => {
row.complexField = `${row.role}-${row.date}`
})
gridOptions.data = tableData

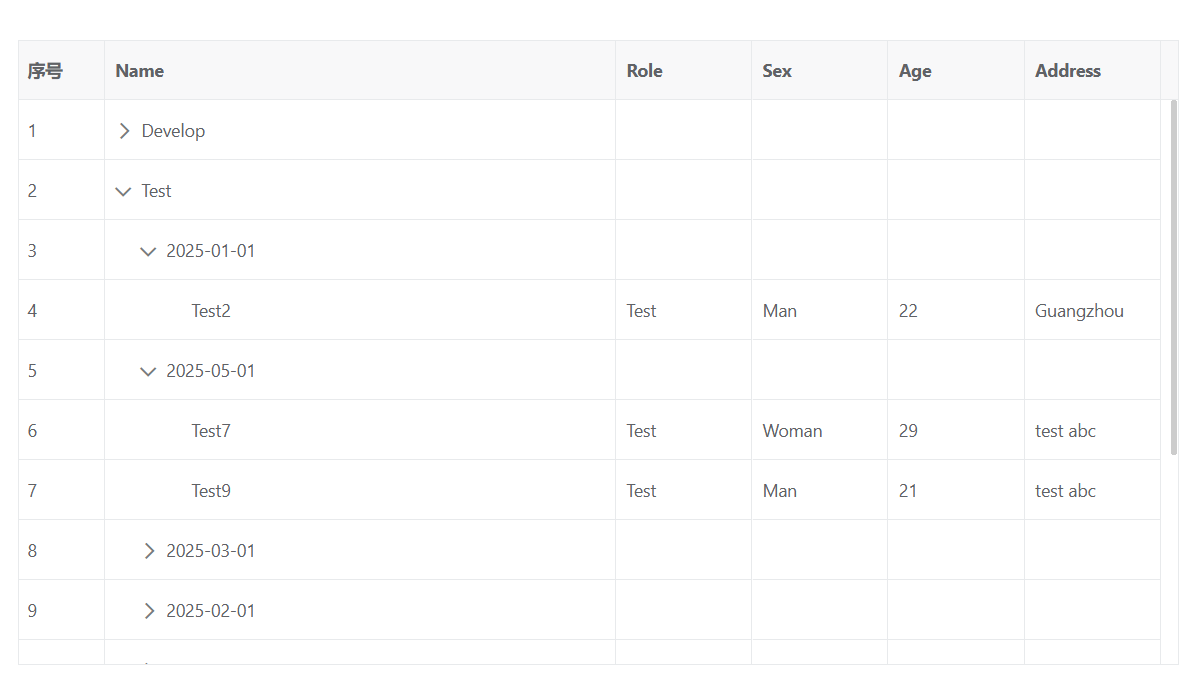

</script>按多字个列进行分组
使用非常简单，配置一下就可以启用，通过配置 aggregate-config.groupFields 指定按多个字段分组，会对自动对多个列进行分组，并多列按树结构进行渲染
html
<template>
<div>
<vxe-grid v-bind="gridOptions"></vxe-grid>
</div>
</template>
<script setup>
import { reactive } from 'vue'
const gridOptions = reactive({
height: 500,
border: true,
aggregateConfig: {
groupFields: ['role', 'date']
},
columns: [
{ type: 'seq', width: 70 },
{ field: 'name', title: 'Name', minWidth: 300, rowGroupNode: true },
{ field: 'role', title: 'Role' },
{ field: 'sex', title: 'Sex' },
{ field: 'age', title: 'Age' },
{ field: 'address', title: 'Address' }
],
data: [
{ id: 10001, name: 'Test1', role: 'Develop', sex: 'Woman', age: 28, date: '2025-02-01', address: 'test abc' },
{ id: 10002, name: 'Test2', role: 'Test', sex: 'Man', age: 22, date: '2025-01-01', address: 'Guangzhou' },
{ id: 10003, name: 'Test3', role: 'PM', sex: 'Woman', age: 32, date: '2025-05-01', address: 'Shanghai' },
{ id: 10004, name: 'Test4', role: 'Designer', sex: 'Man', age: 32, date: '2025-01-01', address: 'test abc' },
{ id: 10005, name: 'Test5', role: 'Develop', sex: 'Man', age: 30, date: '2025-01-01', address: 'Shanghai' },
{ id: 10006, name: 'Test6', role: 'Designer', sex: 'Man', age: 30, date: '2025-03-01', address: 'test abc' },
{ id: 10007, name: 'Test7', role: 'Test', sex: 'Woman', age: 29, date: '2025-05-01', address: 'test abc' },
{ id: 10008, name: 'Test8', role: 'PM', sex: 'Woman', age: 35, date: '2025-11-01', address: 'test abc' },
{ id: 10009, name: 'Test9', role: 'Test', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
{ id: 10010, name: 'Test10', role: 'PM', sex: 'Woman', age: 28, date: '2025-03-01', address: 'test abc' },
{ id: 10011, name: 'Test11', role: 'Test', sex: 'Woman', age: 29, date: '2025-03-01', address: 'test abc' },
{ id: 10012, name: 'Test12', role: 'Develop', sex: 'Man', age: 37, date: '2025-10-01', address: 'test abc' },
{ id: 10013, name: 'Test13', role: 'Test', sex: 'Woman', age: 24, date: '2025-02-01', address: 'test abc' },
{ id: 10014, name: 'Test14', role: 'Develop', sex: 'Man', age: 34, date: '2025-08-01', address: 'test abc' },
{ id: 10015, name: 'Test15', role: 'Designer', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
{ id: 10016, name: 'Test16', role: 'Designer', sex: 'Woman', age: 21, date: '2025-10-01', address: 'test abc' },
{ id: 10017, name: 'Test17', role: 'Test', sex: 'Man', age: 31, date: '2025-12-01', address: 'test abc' },
{ id: 10018, name: 'Test18', role: 'Develop', sex: 'Woman', age: 32, date: '2025-10-01', address: 'test abc' },
{ id: 10019, name: 'Test19', role: 'Test', sex: 'Man', age: 37, date: '2025-02-01', address: 'test abc' },
{ id: 10020, name: 'Test20', role: 'Develop', sex: 'Man', age: 41, date: '2025-03-01', address: 'test abc' }
]
})
</script>
