产品涉及到一些电话相关项目，用到 系统 电话 Dialer, 需要定制化UI实现。
文章目录
- 前言
- [一、 需求](#一、 需求)
- 二、参考资料
- 三、涉及到修改的文件
- 四、实现方案
-
- 1、拨打界面-待接听界面-拨打界面-UI隐藏-InCallFragment

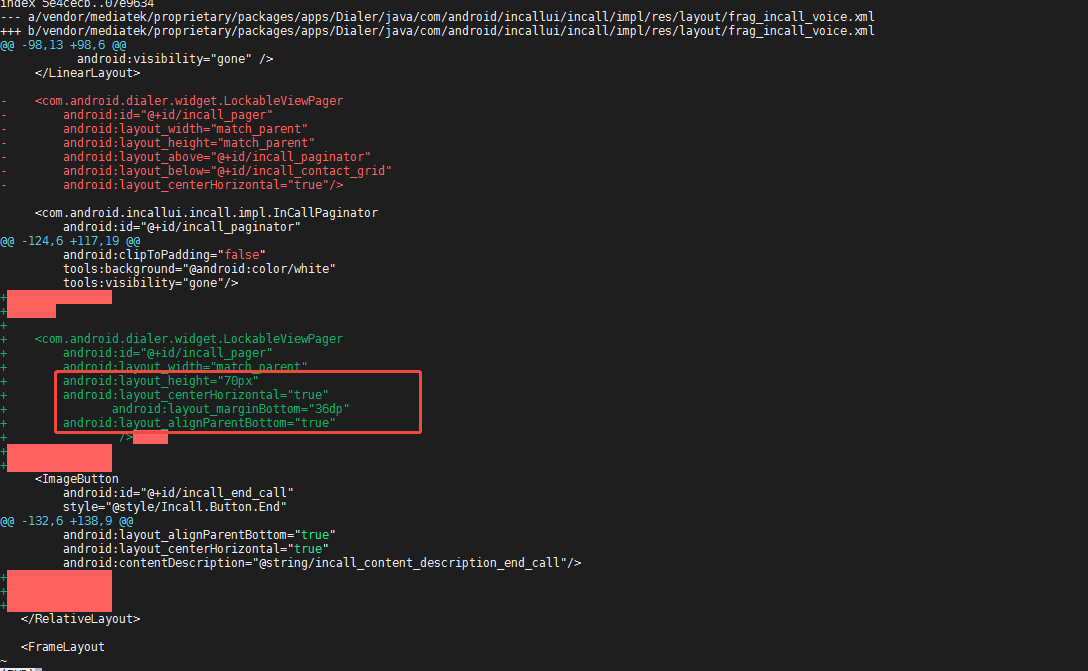

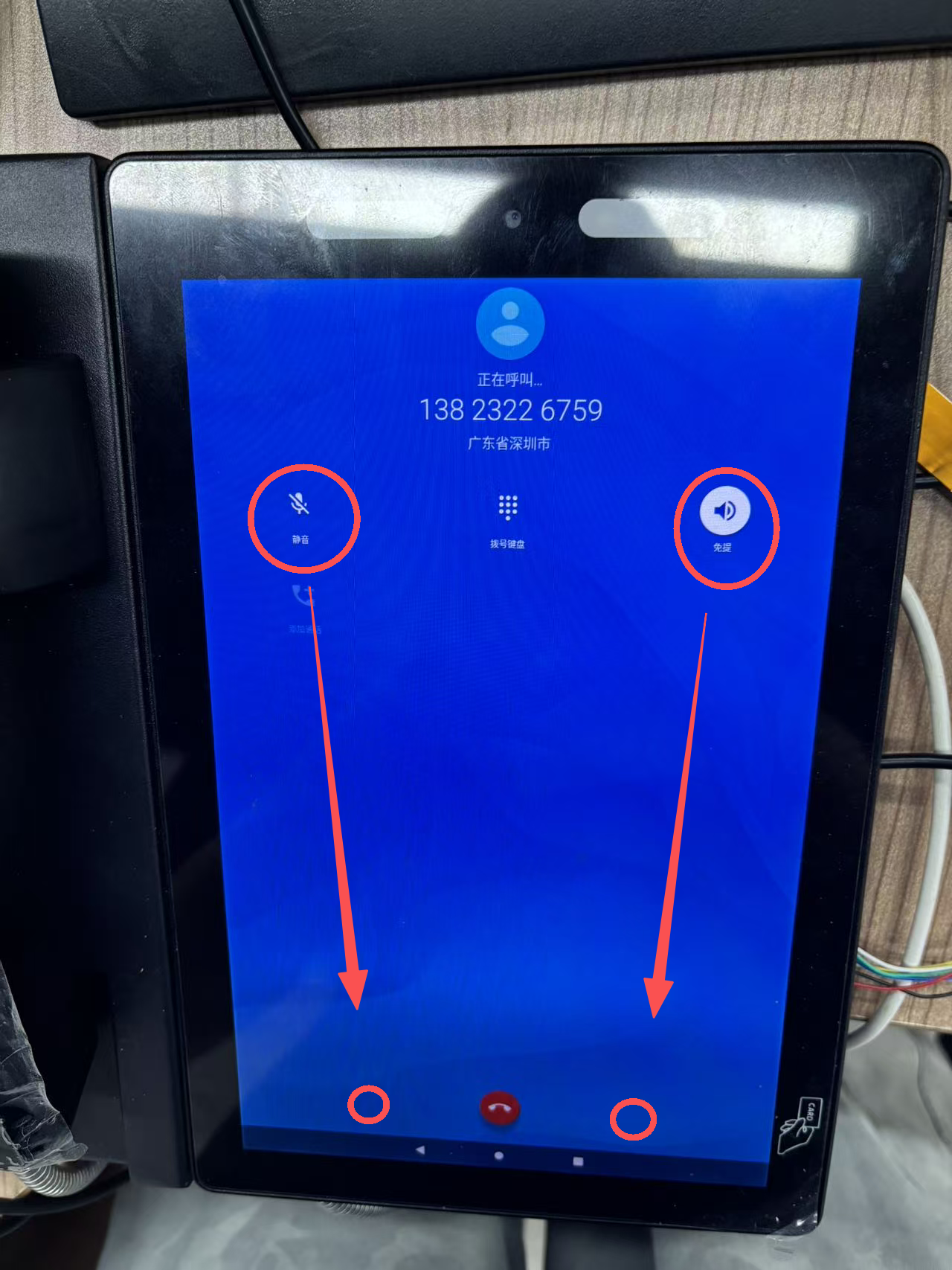

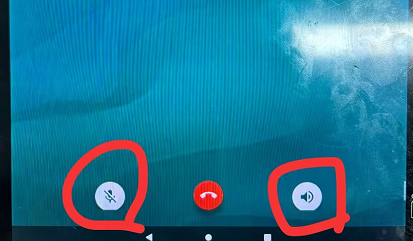

- 2、移动功能面板位置-底部对其-frag_incall_voice
- [3、 通话界面-UI隐藏-位置定义-VideoCallFragment](#3、 通话界面-UI隐藏-位置定义-VideoCallFragment)
- 4、通话界面-UI布局修改-用户预览-图像显示左下角移动到右上角
- 5、通话界面-UI布局修改-功能菜单控制条左侧垂直显示改为-底部横向展示-隐藏部分UI
- 五、经验之谈-坑点
- 总结
前言
- 部分产品涉及到Dialer 定制化，需要对UI进行修改。 大家常用的手机电话都是各大手机厂商进行了魔改，对于平板类型产品或者工业化产品（校话机-电话机）需要自己定制UI。或者说部分功能界面 该隐藏隐藏、该 仿电话就仿一下。
- 其实之前有一篇总结已经修改了相关内容，参考也可修改。这里还是简单说明，相关的一些坑点进行简单说明、总结，方便后续开发提高效率。
一、 需求
如下，基本需求：

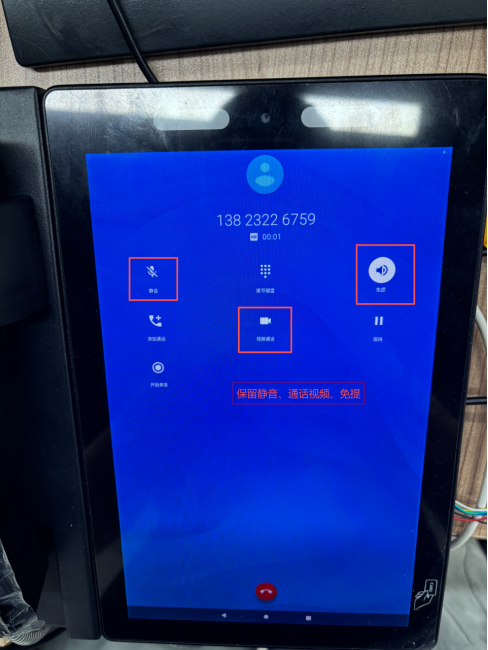

1、电话APP里通话界面保留"静音"、"视频通话"、"免提"按钮，其他按钮隐藏

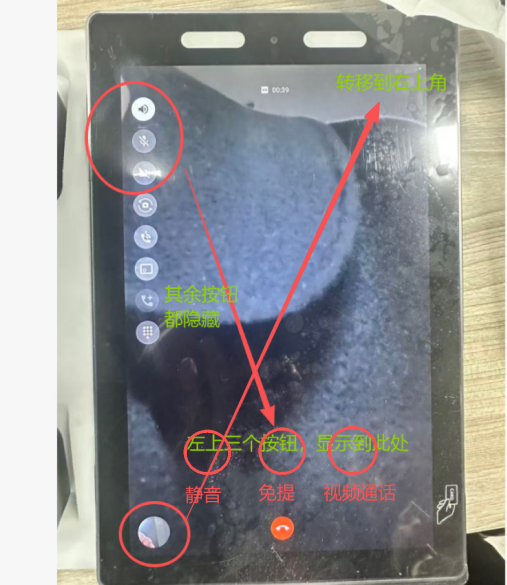

2、电话APP里的视频通话界面左侧的免提、静音、视频通话按钮移到正下方，按下图布局，并放大图标按钮，左边其余四个按钮隐藏
3、左下角的镜头图标移到右上角
二、参考资料

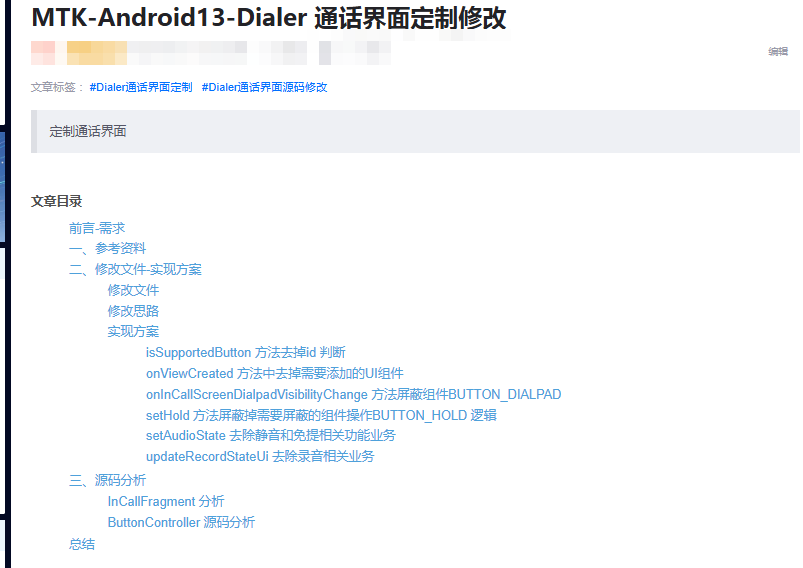

强烈建议参考之前的总结知识点：MTK-Android13-Dialer 通话界面定制修改 有相关的源码阅读、理解。 方便自己熟悉源码 或者 借用AI 直接熟悉源码，针对性理解源码、理解相关模块。 针对性修改相关需求问题。

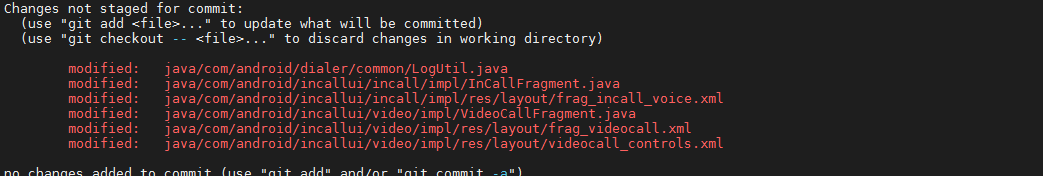

三、涉及到修改的文件
java
modified: java/com/android/incallui/incall/impl/InCallFragment.java
modified: java/com/android/incallui/incall/impl/res/layout/frag_incall_voice.xml
modified: java/com/android/incallui/video/impl/VideoCallFragment.java
modified: java/com/android/incallui/video/impl/res/layout/frag_videocall.xml
modified: java/com/android/incallui/video/impl/res/layout/videocall_controls.xml
四、实现方案
1、拨打界面-待接听界面-拨打界面-UI隐藏-InCallFragment
这个主要做部分UI隐藏工作的。
路径：/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/incall/impl/InCallFragment.java
java
--- a/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/incall/impl/InCallFragment.java
+++ b/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/incall/impl/InCallFragment.java
@@ -78,7 +78,7 @@ import java.util.List;
/** Fragment that shows UI for an ongoing voice call. */
public class InCallFragment extends Fragment
- implements InCallScreen,
+ implements InCallScreen,
InCallButtonUi,
OnClickListener,
AudioRouteSelectorPresenter,
@@ -107,27 +107,38 @@ public class InCallFragment extends Fragment
// initially show the attachment page. After a delay seconds we'll animate to the button grid.
private final Handler handler = new Handler();
private final Runnable pagerRunnable =
- new Runnable() {
- @Override
- public void run() {
- pager.setCurrentItem(adapter.getButtonGridPosition());
- }
- };
+ new Runnable() {
+ @Override
+ public void run() {
+ pager.setCurrentItem(adapter.getButtonGridPosition());
+ }
+ };
private static boolean isSupportedButton(@InCallButtonIds int id) {
- return id == InCallButtonIds.BUTTON_AUDIO
- || id == InCallButtonIds.BUTTON_MUTE
- || id == InCallButtonIds.BUTTON_DIALPAD
- || id == InCallButtonIds.BUTTON_HOLD
+
+
+ return
+ id == InCallButtonIds.BUTTON_AUDIO
+ || id == InCallButtonIds.BUTTON_MUTE;
+ //|| id == InCallButtonIds.BUTTON_UPGRADE_TO_VIDEO;
+ /*return
+ // modify by fangchen start
+ id == InCallButtonIds.BUTTON_AUDIO
+ || id == InCallButtonIds.BUTTON_MUTE
+ // || id == InCallButtonIds.BUTTON_DIALPAD
+ // ||
+ // id == InCallButtonIds.BUTTON_HOLD
|| id == InCallButtonIds.BUTTON_SWAP
- || id == InCallButtonIds.BUTTON_UPGRADE_TO_VIDEO
- || id == InCallButtonIds.BUTTON_ADD_CALL
+ || id == InCallButtonIds.BUTTON_UPGRADE_TO_VIDEO
+ // || id == InCallButtonIds.BUTTON_ADD_CALL
|| id == InCallButtonIds.BUTTON_MERGE
|| id == InCallButtonIds.BUTTON_MANAGE_VOICE_CONFERENCE
- || id == InCallButtonIds.BUTTON_SWAP_SIM
+ //|| id == InCallButtonIds.BUTTON_SWAP_SIM
|| id == InCallButtonIds.BUTTON_UPGRADE_TO_RTT
/// M: [Voice Record]
- || id == InCallButtonIds.BUTTON_SWITCH_VOICE_RECORD
+ // || id == InCallButtonIds.BUTTON_SWITCH_VOICE_RECORD
+
+ // modify by fangchen end
/// M: [Hang Up]
|| id == InCallButtonIds.BUTTON_HANG_UP_ALL
|| id == InCallButtonIds.BUTTON_HANG_UP_HOLD
@@ -137,7 +148,7 @@ public class InCallFragment extends Fragment
/// M: [One way video]
|| id == InCallButtonIds.BUTTON_ONE_WAY_VIDEO
/// M: ALPS03949921, add switch_to_secondary to enable and disable.
- || id == InCallButtonIds.BUTTON_SWITCH_TO_SECONDARY;
+ || id == InCallButtonIds.BUTTON_SWITCH_TO_SECONDARY;*/
}
@Override
@@ -152,8 +163,8 @@ public class InCallFragment extends Fragment
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
inCallButtonUiDelegate =
- FragmentUtils.getParent(this, InCallButtonUiDelegateFactory.class)
- .newInCallButtonUiDelegate();
+ FragmentUtils.getParent(this, InCallButtonUiDelegateFactory.class)
+ .newInCallButtonUiDelegate();
if (savedInstanceState != null) {
inCallButtonUiDelegate.onRestoreInstanceState(savedInstanceState);
stateRestored = true;
@@ -164,41 +175,41 @@ public class InCallFragment extends Fragment
@Override
@SuppressLint("MissingPermission")
public View onCreateView(
- @NonNull LayoutInflater layoutInflater,
- @Nullable ViewGroup viewGroup,
- @Nullable Bundle bundle) {
+ @NonNull LayoutInflater layoutInflater,
+ @Nullable ViewGroup viewGroup,
+ @Nullable Bundle bundle) {
LogUtil.i("InCallFragment.onCreateView", null);
getActivity().setTheme(R.style.Theme_InCallScreen);
// Bypass to avoid StrictModeResourceMismatchViolation
final View view =
- StrictModeUtils.bypass(
- () -> layoutInflater.inflate(R.layout.frag_incall_voice, viewGroup, false));
+ StrictModeUtils.bypass(
+ () -> layoutInflater.inflate(R.layout.frag_incall_voice, viewGroup, false));
contactGridManager =
- new ContactGridManager(
- view,
- (ImageView) view.findViewById(R.id.contactgrid_avatar),
- getResources().getDimensionPixelSize(R.dimen.incall_avatar_size),
- true /* showAnonymousAvatar */);
+ new ContactGridManager(
+ view,
+ (ImageView) view.findViewById(R.id.contactgrid_avatar),
+ getResources().getDimensionPixelSize(R.dimen.incall_avatar_size),
+ true /* showAnonymousAvatar */);
contactGridManager.onMultiWindowModeChanged(getActivity().isInMultiWindowMode());
paginator = (InCallPaginator) view.findViewById(R.id.incall_paginator);
pager = (LockableViewPager) view.findViewById(R.id.incall_pager);
pager.setOnTouchListener(
- (v, event) -> {
- handler.removeCallbacks(pagerRunnable);
- return false;
- });
+ (v, event) -> {
+ handler.removeCallbacks(pagerRunnable);
+ return false;
+ });
endCallButton = view.findViewById(R.id.incall_end_call);
endCallButton.setOnClickListener(this);
if (ContextCompat.checkSelfPermission(getContext(), permission.READ_PHONE_STATE)
- != PackageManager.PERMISSION_GRANTED) {
+ != PackageManager.PERMISSION_GRANTED) {
voiceNetworkType = TelephonyManager.NETWORK_TYPE_UNKNOWN;
} else {
LogUtil.d("InCallFragment.onCreateView", "getVoiceNetworkType");
voiceNetworkType =
- getContext().getSystemService(TelephonyManager.class).getVoiceNetworkType();
+ getContext().getSystemService(TelephonyManager.class).getVoiceNetworkType();
}
// TODO(a bug): Change to use corresponding phone type used for current call.
/// M: Performance. @{
@@ -210,21 +221,21 @@ public class InCallFragment extends Fragment
// Workaround to adjust padding for status bar and navigation bar since fitsSystemWindows
// doesn't work well when switching with other fragments.
view.addOnAttachStateChangeListener(
- new OnAttachStateChangeListener() {
- @Override
- public void onViewAttachedToWindow(View v) {
- View container = v.findViewById(R.id.incall_ui_container);
- int topInset = v.getRootWindowInsets().getSystemWindowInsetTop();
- int bottomInset = v.getRootWindowInsets().getSystemWindowInsetBottom();
- if (topInset != container.getPaddingTop()) {
- TransitionManager.beginDelayedTransition(((ViewGroup) container.getParent()));
- container.setPadding(0, topInset, 0, bottomInset);
- }
- }
-
- @Override
- public void onViewDetachedFromWindow(View v) {}
- });
+ new OnAttachStateChangeListener() {
+ @Override
+ public void onViewAttachedToWindow(View v) {
+ View container = v.findViewById(R.id.incall_ui_container);
+ int topInset = v.getRootWindowInsets().getSystemWindowInsetTop();
+ int bottomInset = v.getRootWindowInsets().getSystemWindowInsetBottom();
+ if (topInset != container.getPaddingTop()) {
+ TransitionManager.beginDelayedTransition(((ViewGroup) container.getParent()));
+ container.setPadding(0, topInset, 0, bottomInset);
+ }
+ }
+
+ @Override
+ public void onViewDetachedFromWindow(View v) {}
+ });
return view;
}
@@ -242,44 +253,51 @@ public class InCallFragment extends Fragment
initVoiceRecorderIcon(view);
/// @}
inCallScreenDelegate =
- FragmentUtils.getParent(this, InCallScreenDelegateFactory.class).newInCallScreenDelegate();
+ FragmentUtils.getParent(this, InCallScreenDelegateFactory.class).newInCallScreenDelegate();
Assert.isNotNull(inCallScreenDelegate);
+ // modify by fangchen start
buttonControllers.add(new ButtonController.MuteButtonController(inCallButtonUiDelegate));
buttonControllers.add(new ButtonController.SpeakerButtonController(inCallButtonUiDelegate));
- buttonControllers.add(new ButtonController.DialpadButtonController(inCallButtonUiDelegate));
- buttonControllers.add(new ButtonController.HoldButtonController(inCallButtonUiDelegate));
- buttonControllers.add(new ButtonController.AddCallButtonController(inCallButtonUiDelegate));
+ // buttonControllers.add(new ButtonController.DialpadButtonController(inCallButtonUiDelegate));
+ // buttonControllers.add(new ButtonController.HoldButtonController(inCallButtonUiDelegate));
+ // buttonControllers.add(new ButtonController.AddCallButtonController(inCallButtonUiDelegate));
+ // modify by fangchen end
buttonControllers.add(new ButtonController.SwapButtonController(inCallButtonUiDelegate));
buttonControllers.add(new ButtonController.MergeButtonController(inCallButtonUiDelegate));
- buttonControllers.add(new ButtonController.SwapSimButtonController(inCallButtonUiDelegate));
- buttonControllers.add(
- new ButtonController.UpgradeToVideoButtonController(inCallButtonUiDelegate));
+ //buttonControllers.add(new ButtonController.SwapSimButtonController(inCallButtonUiDelegate));
+ // modify by fangchen start
+ /* buttonControllers.add(
+ new ButtonController.UpgradeToVideoButtonController(inCallButtonUiDelegate));*/
+ // modify by fangchen end
buttonControllers.add(new UpgradeToRttButtonController(inCallButtonUiDelegate));
buttonControllers.add(
- new ButtonController.ManageConferenceButtonController(inCallScreenDelegate));
+ new ButtonController.ManageConferenceButtonController(inCallScreenDelegate));
buttonControllers.add(
- new ButtonController.SwitchToSecondaryButtonController(inCallScreenDelegate));
+ new ButtonController.SwitchToSecondaryButtonController(inCallScreenDelegate));
/// M: [Voice Record] @{
- buttonControllers.add(
- new ButtonController.SwitchVoiceRecordButtonController(inCallButtonUiDelegate));
+ // modify by fangchen start
+ /* buttonControllers.add(
+ new ButtonController.SwitchVoiceRecordButtonController(inCallButtonUiDelegate));*/
+ // modify by fangchen end
/// @}
/// M: [Hang Up] @{
buttonControllers.add(
- new ButtonController.HangupAllButtonController(inCallScreenDelegate));
+ new ButtonController.HangupAllButtonController(inCallScreenDelegate));
buttonControllers.add(
- new ButtonController.HangupHoldButtonController(inCallScreenDelegate));
+ new ButtonController.HangupHoldButtonController(inCallScreenDelegate));
/// @}
/// M: [ECT(blind)] @{
buttonControllers.add(
- new ButtonController.ECTButtonController(inCallButtonUiDelegate));
+ new ButtonController.ECTButtonController(inCallButtonUiDelegate));
buttonControllers.add(
- new ButtonController.BlindECTButtonController(inCallButtonUiDelegate));
+ new ButtonController.BlindECTButtonController(inCallButtonUiDelegate));
/// @}
/// M: [One way video] @{
- buttonControllers.add(
- new ButtonController.UpgradeToOneWayVideoButtonController(inCallButtonUiDelegate));
+ /*buttonControllers.add(
+ new ButtonController.UpgradeToOneWayVideoButtonController(inCallButtonUiDelegate));
+ */
/// @}
inCallScreenDelegate.onInCallScreenDelegateInit(this);
@@ -309,7 +327,7 @@ public class InCallFragment extends Fragment
if (view == endCallButton) {
LogUtil.i("InCallFragment.onClick", "end call button clicked");
Logger.get(getContext())
- .logImpression(DialerImpression.Type.IN_CALL_DIALPAD_HANG_UP_BUTTON_PRESSED);
+ .logImpression(DialerImpression.Type.IN_CALL_DIALPAD_HANG_UP_BUTTON_PRESSED);
inCallScreenDelegate.onEndCallClicked();
} else {
LogUtil.e("InCallFragment.onClick", "unknown view: " + view);
@@ -340,7 +358,7 @@ public class InCallFragment extends Fragment
private void setAdapterMedia(MultimediaData multimediaData, boolean showInCallButtonGrid) {
if (adapter == null) {
adapter =
- new InCallPagerAdapter(getChildFragmentManager(), multimediaData, showInCallButtonGrid);
+ new InCallPagerAdapter(getChildFragmentManager(), multimediaData, showInCallButtonGrid);
pager.setAdapter(adapter);
} else {
adapter.setAttachments(multimediaData);
@@ -400,18 +418,18 @@ public class InCallFragment extends Fragment
@Override
public void setCallState(@NonNull PrimaryCallState primaryCallState) {
LogUtil.i("InCallFragment.setCallState", primaryCallState.toString() +
- ", Phonetype:" + phoneType);
+ ", Phonetype:" + phoneType);
contactGridManager.setCallState(primaryCallState);
getButtonController(InCallButtonIds.BUTTON_SWITCH_TO_SECONDARY)
- .setAllowed(primaryCallState.swapToSecondaryButtonState() != ButtonState.NOT_SUPPORT);
+ .setAllowed(primaryCallState.swapToSecondaryButtonState() != ButtonState.NOT_SUPPORT);
getButtonController(InCallButtonIds.BUTTON_SWITCH_TO_SECONDARY)
- .setEnabled(primaryCallState.swapToSecondaryButtonState() == ButtonState.ENABLED);
+ .setEnabled(primaryCallState.swapToSecondaryButtonState() == ButtonState.ENABLED);
/// M: Get voice network type and phone type according to call account @{
updateInfoForButtonChooser(primaryCallState.state());
/// @}
buttonChooser =
- ButtonChooserFactory.newButtonChooser(
- voiceNetworkType, primaryCallState.isWifi(), phoneType);
+ ButtonChooserFactory.newButtonChooser(
+ voiceNetworkType, primaryCallState.isWifi(), phoneType);
updateButtonStates();
}
@@ -457,7 +475,9 @@ public class InCallFragment extends Fragment
public void onInCallScreenDialpadVisibilityChange(boolean isShowing) {
LogUtil.i("InCallFragment.onInCallScreenDialpadVisibilityChange", "isShowing: " + isShowing);
// Take note that the dialpad button isShowing
+ // modify by fangchen start
getButtonController(InCallButtonIds.BUTTON_DIALPAD).setChecked(isShowing);
+ // modify by fangchen end
// This check is needed because there is a race condition where we attempt to update
// ButtonGridFragment before it is ready, so we check whether it is ready first and once it is
@@ -469,8 +489,8 @@ public class InCallFragment extends Fragment
Activity activity = getActivity();
Window window = activity.getWindow();
window.setNavigationBarColor(
- activity.getColor(
- isShowing ? android.R.color.background_dark : android.R.color.transparent));
+ activity.getColor(
+ isShowing ? android.R.color.background_dark : android.R.color.transparent));
}
@Override
@@ -486,26 +506,28 @@ public class InCallFragment extends Fragment
@Override
public void showButton(@InCallButtonIds int buttonId, boolean show) {
LogUtil.v(
- "InCallFragment.showButton",
- "buttionId: %s, show: %b",
- InCallButtonIdsExtension.toString(buttonId),
- show);
+ "InCallFragment.showButton",
+ "buttionId: %s, show: %b",
+ InCallButtonIdsExtension.toString(buttonId),
+ show);
if (isSupportedButton(buttonId)) {
getButtonController(buttonId).setAllowed(show);
- if (buttonId == InCallButtonIds.BUTTON_UPGRADE_TO_VIDEO && show) {
+ // modify by fangchen start
+ /*if (buttonId == InCallButtonIds.BUTTON_UPGRADE_TO_VIDEO && show) {
Logger.get(getContext())
- .logImpression(DialerImpression.Type.UPGRADE_TO_VIDEO_CALL_BUTTON_SHOWN);
- }
+ .logImpression(DialerImpression.Type.UPGRADE_TO_VIDEO_CALL_BUTTON_SHOWN);
+ }*/
+ // modify by fangchen end
}
}
@Override
public void enableButton(@InCallButtonIds int buttonId, boolean enable) {
LogUtil.v(
- "InCallFragment.enableButton",
- "buttonId: %s, enable: %b",
- InCallButtonIdsExtension.toString(buttonId),
- enable);
+ "InCallFragment.enableButton",
+ "buttonId: %s, enable: %b",
+ InCallButtonIdsExtension.toString(buttonId),
+ enable);
if (isSupportedButton(buttonId)) {
getButtonController(buttonId).setEnabled(enable);
}
@@ -521,7 +543,9 @@ public class InCallFragment extends Fragment
@Override
public void setHold(boolean value) {
- getButtonController(InCallButtonIds.BUTTON_HOLD).setChecked(value);
+ // modify by fangchen start
+ // getButtonController(InCallButtonIds.BUTTON_HOLD).setChecked(value);
+ // modify by fangchen end
}
@Override
@@ -535,24 +559,26 @@ public class InCallFragment extends Fragment
/// M: do not show bluetooth device information. @{
/// Google code: LogUtil.i("InCallFragment.setAudioState", "audioState: " + audioState);
LogUtil.i("InCallFragment.setAudioState", "isMuted: " + audioState.isMuted() + ", route: "
- + CallAudioState.audioRouteToString(audioState.getRoute()) + ", supportMask: "
- + CallAudioState.audioRouteToString(audioState.getSupportedRouteMask()));
+ + CallAudioState.audioRouteToString(audioState.getRoute()) + ", supportMask: "
+ + CallAudioState.audioRouteToString(audioState.getSupportedRouteMask()));
/// @}
/// M: ALPS05941240 AudioRouteSelectorDialogFragment would not dismiss when call
/// audio state changed. @{
AudioRouteSelectorDialogFragment audioRouteSelectorDialog =
- (AudioRouteSelectorDialogFragment) this.getChildFragmentManager().
- findFragmentByTag(TAG_AUDIOROUTE_SELECTOR_FRAGMENT);
+ (AudioRouteSelectorDialogFragment) this.getChildFragmentManager().
+ findFragmentByTag(TAG_AUDIOROUTE_SELECTOR_FRAGMENT);
if (audioRouteSelectorDialog != null) {
- audioRouteSelectorDialog.dismissAllowingStateLoss();
- audioRouteSelectorDialog = null;
+ audioRouteSelectorDialog.dismissAllowingStateLoss();
+ audioRouteSelectorDialog = null;
}
/// @}
+// modify by fangchen start
((SpeakerButtonController) getButtonController(InCallButtonIds.BUTTON_AUDIO))
- .setAudioState(audioState);
+ .setAudioState(audioState);
getButtonController(InCallButtonIds.BUTTON_MUTE).setChecked(audioState.isMuted());
+ // modify by fangchen end
}
@Override
@@ -564,14 +590,14 @@ public class InCallFragment extends Fragment
return;
}
int numVisibleButtons =
- inCallButtonGridFragment.updateButtonStates(
- buttonControllers, buttonChooser, voiceNetworkType, phoneType);
+ inCallButtonGridFragment.updateButtonStates(
+ buttonControllers, buttonChooser, voiceNetworkType, phoneType);
int visibility = numVisibleButtons == 0 ? View.GONE : View.VISIBLE;
pager.setVisibility(visibility);
if (adapter != null
- && adapter.getCount() > 1
- && getResources().getInteger(R.integer.incall_num_rows) > 1) {
+ && adapter.getCount() > 1
+ && getResources().getInteger(R.integer.incall_num_rows) > 1) {
paginator.setVisibility(View.VISIBLE);
pager.setSwipingLocked(false);
} else {
@@ -598,7 +624,7 @@ public class InCallFragment extends Fragment
/// M: ALPS05941240 AudioRouteSelectorDialogFragment would not dismiss when call
/// audio state changed. @{
AudioRouteSelectorDialogFragment.newInstance(inCallButtonUiDelegate.getCurrentAudioState())
- .show(getChildFragmentManager(), TAG_AUDIOROUTE_SELECTOR_FRAGMENT);
+ .show(getChildFragmentManager(), TAG_AUDIOROUTE_SELECTOR_FRAGMENT);
/// @}
}
@@ -651,15 +677,15 @@ public class InCallFragment extends Fragment
if (locationUi != null && !isVisible) {
// Show the location fragment.
getChildFragmentManager()
- .beginTransaction()
- .replace(R.id.incall_location_holder, locationUi)
- .commitAllowingStateLoss();
+ .beginTransaction()
+ .replace(R.id.incall_location_holder, locationUi)
+ .commitAllowingStateLoss();
} else if (locationUi == null && isVisible) {
// Hide the location fragment
getChildFragmentManager()
- .beginTransaction()
- .remove(getLocationFragment())
- .commitAllowingStateLoss();
+ .beginTransaction()
+ .remove(getLocationFragment())
+ .commitAllowingStateLoss();
}
}
@@ -715,7 +741,9 @@ public class InCallFragment extends Fragment
} else {
updateVoiceRecordIcon(false);
}
- getButtonController(InCallButtonIds.BUTTON_SWITCH_VOICE_RECORD).setChecked(isRecording);
+ // modify by fangchen start
+ // getButtonController(InCallButtonIds.BUTTON_SWITCH_VOICE_RECORD).setChecked(isRecording);
+ // modify by fangchen end
}
/// M: [Voice Record] recording indication icon2、移动功能面板位置-底部对其-frag_incall_voice
更改位置，控制高度，路径：/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/incall/impl/res/layout/frag_incall_voice.xml
就是如下效果：
3、 通话界面-UI隐藏-位置定义-VideoCallFragment
路径：/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/video/impl/VideoCallFragment.java
也是控制通话界面中UI的隐藏与展示效果：
java
--- a/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/video/impl/VideoCallFragment.java
+++ b/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/video/impl/VideoCallFragment.java
@@ -105,6 +105,7 @@ public class VideoCallFragment extends Fragment
OnCheckedChangeListener,
AudioRouteSelectorPresenter,
OnSystemUiVisibilityChangeListener {
+ private static final String TAG = "VideoCallFragment";
@VisibleForTesting(otherwise = VisibleForTesting.PRIVATE)
static final String ARG_CALL_ID = "call_id";
@@ -318,6 +319,10 @@ public class VideoCallFragment extends Fragment
endCallButton.setOnClickListener(this);
previewTextureView = (TextureView) view.findViewById(R.id.videocall_video_preview);
previewTextureView.setClipToOutline(true);
+
+
+
+
previewOffOverlay.setOnClickListener(
new OnClickListener() {
@Override
@@ -1452,7 +1457,10 @@ public class VideoCallFragment extends Fragment
RelativeLayout.LayoutParams.MATCH_PARENT, RelativeLayout.LayoutParams.MATCH_PARENT);
params.addRule(RelativeLayout.ALIGN_PARENT_START);
params.addRule(RelativeLayout.ALIGN_PARENT_TOP);
- previewTextureView.setLayoutParams(params);
+ // params.topMargin = 100;
+ // params.rightMargin = 100;
+ params.setMargins(0, 100, 100, 0);
+ previewTextureView.setLayoutParams(params);
previewTextureView.setOutlineProvider(null);
updateOverlayBackground();
contactGridManager.setIsMiddleRowVisible(true);
@@ -1463,8 +1471,8 @@ public class VideoCallFragment extends Fragment
previewOffBlurredImageView.setClipToOutline(false);
/// M: ALPS03659894, update screen after request fail @{
- previewTextureView.setTranslationY(0);
- previewOffOverlay.setTranslationY(0);
+ // previewTextureView.setTranslationY(0);
+ // previewOffOverlay.setTranslationY(0);
previewOffBlurredImageView.setTranslationY(0);
/// @}
}
@@ -1474,18 +1482,25 @@ public class VideoCallFragment extends Fragment
Resources resources = getResources();
RelativeLayout.LayoutParams params =
new RelativeLayout.LayoutParams(
- (int) resources.getDimension(R.dimen.videocall_preview_width),
- (int) resources.getDimension(R.dimen.videocall_preview_height));
+ 180,180);
+ /*(int) resources.getDimension(R.dimen.videocall_preview_width),
+ (int) resources.getDimension(R.dimen.videocall_preview_height));*/
params.setMargins(
0, 0, 0, (int) resources.getDimension(R.dimen.videocall_preview_margin_bottom));
if (isLandscape()) {
params.addRule(RelativeLayout.ALIGN_PARENT_END);
params.setMarginEnd((int) resources.getDimension(R.dimen.videocall_preview_margin_end));
} else {
- params.addRule(RelativeLayout.ALIGN_PARENT_START);
+ // modify by fangchen params.addRule(RelativeLayout.ALIGN_PARENT_START);
+ params.addRule(RelativeLayout.ALIGN_PARENT_RIGHT);
params.setMarginStart((int) resources.getDimension(R.dimen.videocall_preview_margin_start));
}
- params.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM);
+// modify by fangchen params.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM);
+ params.addRule(RelativeLayout.ALIGN_PARENT_TOP);
+
+ // params.topMargin = 100;
+ //params.rightMargin = 100;
+ params.setMargins(0, 100, 100, 0);
previewTextureView.setLayoutParams(params);
previewTextureView.setOutlineProvider(circleOutlineProvider);
updateOverlayBackground();
@@ -2002,36 +2017,45 @@ public class VideoCallFragment extends Fragment
private void showExtButtons(@InCallButtonIds int buttonId, boolean show) {
if (buttonId == InCallButtonIds.BUTTON_DOWNGRADE_TO_AUDIO) {
- downgradeAudioButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen downgradeAudioButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ downgradeAudioButton.setVisibility(View.GONE);
} else if (buttonId == InCallButtonIds.BUTTON_HIDE_PREVIEW) {
- hidePrviewButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen hidePrviewButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ hidePrviewButton.setVisibility(View.GONE);
} else if (buttonId == InCallButtonIds.BUTTON_ECT) {
- ectButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen ectButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ ectButton.setVisibility(View.GONE);
} else if (buttonId == InCallButtonIds.BUTTON_BLIND_ECT) {
- blindEctButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen blindEctButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ blindEctButton.setVisibility( View.GONE);
/// [CMCC video ringtone] @{
} else if (buttonId == InCallButtonIds.BUTTON_DIALPAD) {
- dialpadButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen dialpadButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ dialpadButton.setVisibility( View.GONE);
/// [Video Conference] @{
} else if (buttonId == InCallButtonIds.BUTTON_ADD_CALL) {
- addCallButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen addCallButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ addCallButton.setVisibility( View.GONE);
} else if (buttonId == InCallButtonIds.BUTTON_MERGE) {
- mergeCallButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen mergeCallButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ mergeCallButton.setVisibility( View.GONE);
} else if (buttonId == InCallButtonIds.BUTTON_MANAGE_VIDEO_CONFERENCE) {
- videoConferenceButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen videoConferenceButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ videoConferenceButton.setVisibility( View.GONE);
/// @}
/// [Cancel upgrade] @{
/// @}
/// [Cancel upgrade] @{
@@ -1463,8 +1471,8 @@ public class VideoCallFragment extends Fragment
previewOffBlurredImageView.setClipToOutline(false);
/// M: ALPS03659894, update screen after request fail @{
- previewTextureView.setTranslationY(0);
- previewOffOverlay.setTranslationY(0);
+ // previewTextureView.setTranslationY(0);
+ // previewOffOverlay.setTranslationY(0);
previewOffBlurredImageView.setTranslationY(0);
/// @}
}
@@ -1474,18 +1482,25 @@ public class VideoCallFragment extends Fragment
Resources resources = getResources();
RelativeLayout.LayoutParams params =
new RelativeLayout.LayoutParams(
- (int) resources.getDimension(R.dimen.videocall_preview_width),
- (int) resources.getDimension(R.dimen.videocall_preview_height));
+ 180,180);
+ /*(int) resources.getDimension(R.dimen.videocall_preview_width),
+ (int) resources.getDimension(R.dimen.videocall_preview_height));*/
params.setMargins(
0, 0, 0, (int) resources.getDimension(R.dimen.videocall_preview_margin_bottom));
if (isLandscape()) {
params.addRule(RelativeLayout.ALIGN_PARENT_END);
params.setMarginEnd((int) resources.getDimension(R.dimen.videocall_preview_margin_end));
} else {
- params.addRule(RelativeLayout.ALIGN_PARENT_START);
+ // modify by fangchen params.addRule(RelativeLayout.ALIGN_PARENT_START);
+ params.addRule(RelativeLayout.ALIGN_PARENT_RIGHT);
params.setMarginStart((int) resources.getDimension(R.dimen.videocall_preview_margin_start));
}
- params.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM);
+// modify by fangchen params.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM);
+ params.addRule(RelativeLayout.ALIGN_PARENT_TOP);
+
+ // params.topMargin = 100;
+ //params.rightMargin = 100;
+ params.setMargins(0, 100, 100, 0);
previewTextureView.setLayoutParams(params);
previewTextureView.setOutlineProvider(circleOutlineProvider);
updateOverlayBackground();
@@ -2002,36 +2017,45 @@ public class VideoCallFragment extends Fragment
private void showExtButtons(@InCallButtonIds int buttonId, boolean show) {
if (buttonId == InCallButtonIds.BUTTON_DOWNGRADE_TO_AUDIO) {
- downgradeAudioButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen downgradeAudioButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ downgradeAudioButton.setVisibility(View.GONE);
} else if (buttonId == InCallButtonIds.BUTTON_HIDE_PREVIEW) {
- hidePrviewButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen hidePrviewButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ hidePrviewButton.setVisibility(View.GONE);
} else if (buttonId == InCallButtonIds.BUTTON_ECT) {
- ectButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen ectButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ ectButton.setVisibility(View.GONE);
} else if (buttonId == InCallButtonIds.BUTTON_BLIND_ECT) {
- blindEctButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen blindEctButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ blindEctButton.setVisibility( View.GONE);
/// [CMCC video ringtone] @{
} else if (buttonId == InCallButtonIds.BUTTON_DIALPAD) {
- dialpadButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen dialpadButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ dialpadButton.setVisibility( View.GONE);
/// [Video Conference] @{
} else if (buttonId == InCallButtonIds.BUTTON_ADD_CALL) {
- addCallButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen addCallButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ addCallButton.setVisibility( View.GONE);
} else if (buttonId == InCallButtonIds.BUTTON_MERGE) {
- mergeCallButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen mergeCallButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ mergeCallButton.setVisibility( View.GONE);
} else if (buttonId == InCallButtonIds.BUTTON_MANAGE_VIDEO_CONFERENCE) {
- videoConferenceButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen videoConferenceButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ videoConferenceButton.setVisibility( View.GONE);
/// @}
/// [Cancel upgrade] @{
} else if (buttonId == InCallButtonIds.BUTTON_CANCEL_UPGRADE) {
- cancelUpgradeButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen cancelUpgradeButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ cancelUpgradeButton.setVisibility( View.GONE);
/// @}
/// [Video hold] @{
} else if (buttonId == InCallButtonIds.BUTTON_HOLD) {
- holdCallButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ // modify by fangchen holdCallButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ holdCallButton.setVisibility( View.GONE);
/// @}
/// [Oneway Video] @{
- } else if (buttonId == InCallButtonIds.BUTTON_UPGRADE_TO_VIDEO
- && ExtensionManager.getInCallButtonExt().isOneWayVideoSupported()) {
- upgradeCallButton.setVisibility(show ? View.VISIBLE : View.GONE);
+ } else if (buttonId == InCallButtonIds.BUTTON_UPGRADE_TO_VIDEO && ExtensionManager.getInCallButtonExt().isOneWayVideoSupported()) {
+ upgradeCallButton.setVisibility( View.VISIBLE );
}
/// @}
}
@@ -2139,9 +2163,13 @@ public class VideoCallFragment extends Fragment
RelativeLayout.LayoutParams.MATCH_PARENT, RelativeLayout.LayoutParams.MATCH_PARENT);
params.addRule(RelativeLayout.ALIGN_PARENT_START);
params.addRule(RelativeLayout.ALIGN_PARENT_TOP);
+
+ // params.topMargin = 100;
+ //params.rightMargin = 100;
+ params.setMargins(0, 100, 100, 0);
previewTextureView.setLayoutParams(params);
- previewTextureView.setTranslationX(0);
- previewTextureView.setTranslationY(0);
+ // previewTextureView.setTranslationX(0);
+ // previewTextureView.setTranslationY(0);
previewTextureView.setOutlineProvider(null);
previewOffBlurredImageView.setLayoutParams(params);
@@ -2173,10 +2201,12 @@ public class VideoCallFragment extends Fragment
params.addRule(RelativeLayout.ALIGN_PARENT_END);
params.setMarginEnd((int) resources.getDimension(R.dimen.videocall_preview_margin_end));
} else {
- params.addRule(RelativeLayout.ALIGN_PARENT_START);
+ // modify by fangchen params.addRule(RelativeLayout.ALIGN_PARENT_START);
+ params.addRule(RelativeLayout.ALIGN_PARENT_RIGHT);
params.setMarginStart((int) resources.getDimension(R.dimen.videocall_preview_margin_start));
}
- params.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM);
+ // modify by fangchen start params.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM);
+ params.addRule(RelativeLayout.ALIGN_PARENT_TOP);
remoteTextureView.setLayoutParams(params);
remoteTextureView.setOutlineProvider(circleOutlineProvider);
remoteTextureView.setClipToOutline(true);4、通话界面-UI布局修改-用户预览-图像显示左下角移动到右上角
路径：/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/video/impl/res/layout/frag_videocall.xml
修改如下：
java
--- a/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/video/impl/res/layout/frag_videocall.xml
+++ b/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/video/impl/res/layout/frag_videocall.xml
@@ -62,6 +62,7 @@
android:background="@color/videocall_overlay_background_color"
tools:visibility="gone"/>
+ <!--
<TextureView
android:id="@+id/videocall_video_preview"
android:layout_width="@dimen/videocall_preview_width"
@@ -71,6 +72,20 @@
android:layout_alignParentBottom="true"
android:layout_alignParentStart="true"
android:importantForAccessibility="no"/>
+ -->
+
+
+ <TextureView
+ android:id="@+id/videocall_video_preview"
+ android:layout_width="180px"
+ android:layout_height="180px"
+ android:layout_marginTop="@dimen/videocall_preview_margin_bottom"
+ android:layout_marginEnd="@dimen/videocall_preview_margin_start"
+ android:layout_alignParentTop="true"
+ android:layout_alignParentRight="true"
+ android:importantForAccessibility="no"
+ android:layout_marginRight="100px"
+ />
<ImageView
android:id="@+id/videocall_preview_off_blurred_image_view"5、通话界面-UI布局修改-功能菜单控制条左侧垂直显示改为-底部横向展示-隐藏部分UI
路径：/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/video/impl/res/layout/videocall_controls.xml
修改如下
java
--- a/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/video/impl/res/layout/videocall_controls.xml
+++ b/vendor/mediatek/proprietary/packages/apps/Dialer/java/com/android/incallui/video/impl/res/layout/videocall_controls.xml
@@ -45,177 +45,7 @@
android:layout_alignParentBottom="true"
android:layout_alignParentStart="true"
android:visibility="invisible"/>
- <!-- M: add scroll view to add mediatek new features. @{ -->
- <ScrollView
- android:id="@+id/videocall_video_controls_scrollview"
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:layout_below="@+id/incall_contact_grid"
- android:gravity="center_horizontal"
- android:layout_above="@+id/videocall_video_preview_placeholder"
- android:layout_alignEnd="@+id/videocall_video_preview_placeholder"
- android:layout_alignStart="@+id/videocall_video_preview_placeholder"
- android:fadeScrollbars="false"
- android:verticalScrollbarPosition="left"
- android:scrollbarStyle="outsideOverlay"
- android:scrollIndicators="bottom|top"
- android:visibility="visible"
- android:layout_marginBottom="12dp">
- <!-- @} -->
- <LinearLayout
- android:id="@+id/videocall_video_controls"
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:orientation="vertical"
- android:visibility="invisible"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- tools:visibility="visible">
- <com.android.incallui.video.impl.CheckableImageButton
- android:id="@+id/videocall_speaker_button"
- style="@style/Incall.Button.VideoCall"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:checked="true"
- android:src="@drawable/quantum_ic_volume_up_vd_theme_24"
- app:contentDescriptionChecked="@string/incall_content_description_speaker"
- app:contentDescriptionUnchecked="@string/incall_content_description_earpiece"
- />
- <com.android.incallui.video.impl.CheckableImageButton
- android:id="@+id/videocall_mute_button"
- style="@style/Incall.Button.VideoCall"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:src="@drawable/quantum_ic_mic_off_vd_theme_24"
- app:contentDescriptionChecked="@string/incall_content_description_muted"
- app:contentDescriptionUnchecked="@string/incall_content_description_unmuted"
- />
- <com.android.incallui.video.impl.CheckableImageButton
- android:id="@+id/videocall_mute_video"
- style="@style/Incall.Button.VideoCall"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:src="@drawable/quantum_ic_videocam_off_vd_theme_24"
- app:contentDescriptionChecked="@string/incall_content_description_video_off"
- app:contentDescriptionUnchecked="@string/incall_content_description_video_on"
- android:visibility="gone"
- />
- <include
- layout="@layout/switch_camera_button"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:layout_marginBottom="@dimen/videocall_button_spacing"/>
- <!-- M: add mediatek new features. @{ -->
- <ImageButton
- android:id="@+id/videocall_downgrade_audio"
- style="@style/Incall.Button.VideoCall"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:src="@drawable/mtk_ic_downgrade_audio"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:visibility="gone"
- />
- <!-- [Oneway Video] @{ -->
- <ImageButton
- android:id="@+id/videocall_upgrade"
- style="@style/Incall.Button.VideoCall"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:src="@drawable/quantum_ic_videocam_vd_theme_24"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:visibility="gone"
- />
- <com.android.incallui.video.impl.CheckableImageButton
- android:id="@+id/hide_preview"
- style="@style/Incall.Button.VideoCall"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:src="@drawable/mtk_ic_hidepreview"
- app:contentDescriptionChecked="@string/hideVideoPreview"
- app:contentDescriptionUnchecked="@string/showVideoPreview"
- android:visibility="gone"
- />
- <ImageButton
- android:id="@+id/cancel_upgrade"
- style="@style/Incall.Button.VideoCall"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:src="@drawable/mtk_ic_cancelupgrade"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:visibility="gone"
- />
- <!-- [Video Conference] @{ -->
- <ImageButton
- android:id="@+id/add_call"
- style="@style/Incall.Button.VideoCall"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:src="@drawable/ic_addcall_white"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- />
- <ImageButton
- android:id="@+id/merge_call"
- style="@style/Incall.Button.VideoCall"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:src="@drawable/quantum_ic_call_merge_vd_theme_24"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:visibility="gone"
- />
- <ImageButton
- android:id="@+id/manage_video_conference"
- style="@style/Incall.Button.VideoCall"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:src="@drawable/quantum_ic_group_vd_theme_24"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:visibility="gone"
- />
- <!-- @} -->
- <ImageButton
- android:id="@+id/transfer_call"
- style="@style/Incall.Button.VideoCall"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:src="@drawable/mtk_ic_toolbar_transfer"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:visibility="gone"
- />
- <ImageButton
- android:id="@+id/blind_transfer_call"
- style="@style/Incall.Button.VideoCall"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:src="@drawable/mtk_ic_toolbar_transfer"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:visibility="gone"
- />
- <!-- [CMCC video ringtone] @{ -->
- <com.android.incallui.video.impl.CheckableImageButton
- android:id="@+id/video_dialpad"
- style="@style/Incall.Button.VideoCall"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:src="@drawable/mtk_ic_dialpad"
- app:contentDescriptionChecked="@string/incall_label_dialpad"
- app:contentDescriptionUnchecked="@string/incall_label_dialpad"
- />
- <!-- @} -->
- <!-- [Video hold] @{ -->
- <com.android.incallui.video.impl.CheckableImageButton
- android:id="@+id/hold_call"
- style="@style/Incall.Button.VideoCall"
- android:layout_width="@dimen/videocall_button_size"
- android:layout_height="@dimen/videocall_button_size"
- android:layout_marginBottom="@dimen/videocall_button_spacing"
- android:src="@drawable/mtk_ic_pause"
- app:contentDescriptionChecked="@string/incall_content_description_hold"
- app:contentDescriptionUnchecked="@string/incall_content_description_unhold"
- android:visibility="gone"
- />
- <!-- @} -->
- </LinearLayout>
- </ScrollView>
- <!-- @} -->
<FrameLayout
android:id="@+id/videocall_switch_controls"
@@ -231,8 +61,7 @@
android:contentDescription="@string/incall_content_description_swap_calls"
android:src="@drawable/quantum_ic_swap_calls_vd_theme_24"
android:visibility="gone"
- tools:visibility="visible"
- />
+ />
</FrameLayout>
<!-- [CMCC video ringtone] @{ -->
@@ -254,4 +83,206 @@
android:contentDescription="@string/incall_content_description_end_call"
android:visibility="visible"/>
+
+
+ <!-- M: add scroll view to add mediatek new features. @{ -->
+ <ScrollView
+ android:id="@+id/videocall_video_controls_scrollview"
+ android:layout_width="match_parent"
+ android:layout_height="wrap_content"
+ android:gravity="center_horizontal"
+ android:scrollbarStyle="outsideOverlay"
+ android:scrollIndicators="bottom|top"
+ android:visibility="visible"
+ android:layout_marginBottom="200dp"
+ android:layout_alignParentBottom="true"
+ >
+ <RelativeLayout
+ android:layout_width="match_parent"
+ android:layout_height="wrap_content"
+ android:gravity="center_horizontal"
+ >
+ <LinearLayout
+ android:id="@+id/videocall_video_controls"
+ android:layout_width="wrap_content"
+ android:layout_height="wrap_content"
+ android:orientation="horizontal"
+ android:layout_centerHorizontal="true"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ tools:visibility="visible">
+
+ <com.android.incallui.video.impl.CheckableImageButton
+ android:id="@+id/videocall_mute_button"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:src="@drawable/quantum_ic_mic_off_vd_theme_24"
+ app:contentDescriptionChecked="@string/incall_content_description_muted"
+ app:contentDescriptionUnchecked="@string/incall_content_description_unmuted"
+ android:layout_marginLeft="50dp"
+ android:layout_marginRight="50dp"
+ />
+
+ <com.android.incallui.video.impl.CheckableImageButton
+ android:id="@+id/videocall_speaker_button"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:checked="true"
+ android:src="@drawable/quantum_ic_volume_up_vd_theme_24"
+ app:contentDescriptionChecked="@string/incall_content_description_speaker"
+ app:contentDescriptionUnchecked="@string/incall_content_description_earpiece"
+ android:layout_marginLeft="50dp"
+ android:layout_marginRight="50dp"
+ />
+
+ <com.android.incallui.video.impl.CheckableImageButton
+ android:id="@+id/videocall_mute_video"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:src="@drawable/quantum_ic_videocam_off_vd_theme_24"
+ app:contentDescriptionChecked="@string/incall_content_description_video_off"
+ app:contentDescriptionUnchecked="@string/incall_content_description_video_on"
+ android:layout_marginLeft="50dp"
+ android:layout_marginRight="50dp"
+ />
+
+ <ImageButton
+ android:id="@+id/videocall_upgrade"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:src="@drawable/quantum_ic_videocam_vd_theme_24"
+ android:layout_marginLeft="50dp"
+ android:layout_marginRight="50dp"
+ android:visibility="gone"
+ />
+
+ <include
+ layout="@layout/switch_camera_button"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:visibility="gone"
+ />
+
+ <!-- M: add mediatek new features. @{ -->
+ <ImageButton
+ android:id="@+id/videocall_downgrade_audio"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:src="@drawable/mtk_ic_downgrade_audio"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:visibility="gone"
+ />
+ <!-- [Oneway Video] @{ -->
+ <!-- <ImageButton
+ android:id="@+id/videocall_upgrade"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:src="@drawable/quantum_ic_videocam_vd_theme_24"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:visibility="gone"
+ />-->
+ <com.android.incallui.video.impl.CheckableImageButton
+ android:id="@+id/hide_preview"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:src="@drawable/mtk_ic_hidepreview"
+ app:contentDescriptionChecked="@string/hideVideoPreview"
+ app:contentDescriptionUnchecked="@string/showVideoPreview"
+ android:visibility="gone"
+ />
+ <ImageButton
+ android:id="@+id/cancel_upgrade"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:src="@drawable/mtk_ic_cancelupgrade"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:visibility="gone"
+ />
+ <!-- [Video Conference] @{ -->
+ <ImageButton
+ android:id="@+id/add_call"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:src="@drawable/ic_addcall_white"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ />
+ <ImageButton
+ android:id="@+id/merge_call"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:src="@drawable/quantum_ic_call_merge_vd_theme_24"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:visibility="gone"
+ />
+ <ImageButton
+ android:id="@+id/manage_video_conference"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:src="@drawable/quantum_ic_group_vd_theme_24"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:visibility="gone"
+ />
+ <!-- @} -->
+ <ImageButton
+ android:id="@+id/transfer_call"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:src="@drawable/mtk_ic_toolbar_transfer"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:visibility="gone"
+ />
+ <ImageButton
+ android:id="@+id/blind_transfer_call"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:src="@drawable/mtk_ic_toolbar_transfer"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:visibility="gone"
+ />
+ <!-- [CMCC video ringtone] @{ -->
+ <com.android.incallui.video.impl.CheckableImageButton
+ android:id="@+id/video_dialpad"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:src="@drawable/mtk_ic_dialpad"
+ app:contentDescriptionChecked="@string/incall_label_dialpad"
+ app:contentDescriptionUnchecked="@string/incall_label_dialpad"
+ android:visibility="gone"
+
+ />
+ <!-- @} -->
+ <!-- [Video hold] @{ -->
+ <com.android.incallui.video.impl.CheckableImageButton
+ android:id="@+id/hold_call"
+ style="@style/Incall.Button.VideoCall"
+ android:layout_width="@dimen/videocall_button_size"
+ android:layout_height="@dimen/videocall_button_size"
+ android:layout_marginBottom="@dimen/videocall_button_spacing"
+ android:src="@drawable/mtk_ic_pause"
+ app:contentDescriptionChecked="@string/incall_content_description_hold"
+ app:contentDescriptionUnchecked="@string/incall_content_description_unhold"
+ android:visibility="gone"
+ />
+ <!-- @} -->
+ </LinearLayout>
+
+ </RelativeLayout>
+ <!-- @} -->
+
+ </ScrollView>
+ <!-- @} -->
+
</RelativeLayout>五、经验之谈-坑点
在调试如下按钮时候，特别难调：
注意点：控制大小 布局里面要设置、控制位置 硬编码Java 里面要定义。 注意自适应和实际写死高度等细节问题，不然很难调试成功的。
总结
- 这里是对之前文章的一次补充：MTK-Android13-Dialer 通话界面定制修改
- 如果知道了修改的准确位置，可以借助AI 帮你初步分析代码或者布局，方便理解知识点。选择性的吸收核心知识点。
- 如果你需要参考我的修改，源码在这里：Android-原生电话-Dialer-UI 界面仿手机-定制化修改
