需求

  通用圆形百分比进度控件。

  1.三圈背景圈

  2.进度条

  3.百分比显示

  4.颜色可调，圈粗细可变化，颜色可变化

  尽可能预留常用的属性与接口，方便后续整理与现场调试修改，减少临时修改代码和提高需求变更维护效率。

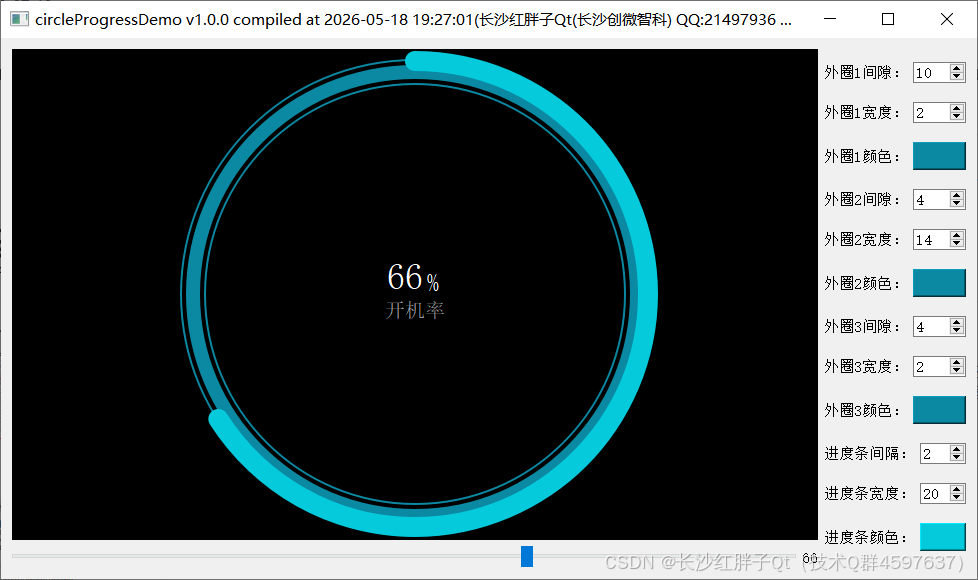

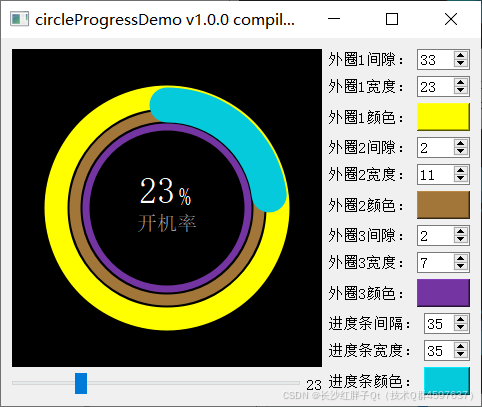

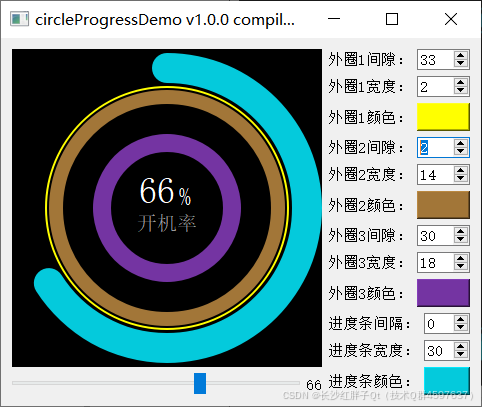

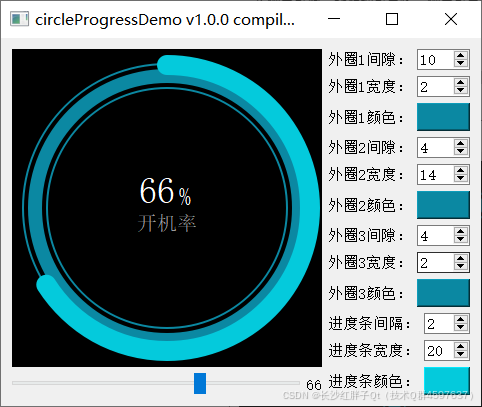

Demo_v1.0.0: circleProgressDemo v1.0.0

  

  

  

  

下载

  windows 运行包下载地址 CSDNf粉丝0积分下载：https://download.csdn.net/download/qq21497936/92883041

  QQ技术群，进Q群，点击"文件"搜索"circleProgressDemo"，群内与博文同步更新）

关键源码

void CirclePercentWidget::paintEvent(QPaintEvent *event)
{
    QPainter painter(this);
    painter.setRenderHint(QPainter::Antialiasing);
    drawBackground(&painter);
    drawCircle(&painter);
    drawProgress(&painter);
    drawText(&painter);
}

void CirclePercentWidget::drawBackground(QPainter *painter)
{
    painter->save();

    painter->fillRect(rect(), _backgroundColor);

    painter->restore();
}

void CirclePercentWidget::drawCircle(QPainter *painter)
{
    painter->save();

    painter->setBackground(Qt::transparent);

    painter->setPen(QPen(_circleColor1, _circleWidth1));
    int radius = _radius;

    radius = _radius - _circleSpace1 - _circleWidth1 / 2;
    painter->drawEllipse(_centerPointF, radius, radius);

    painter->setPen(QPen(_circleColor2, _circleWidth2));
    radius = _radius - _circleSpace1 - _circleWidth1 - _circleSpace2 - _circleWidth2 / 2;
    painter->drawEllipse(_centerPointF, radius, radius);

    painter->setPen(QPen(_circleColor3, _circleWidth3));
    radius = _radius - _circleSpace1 - _circleWidth1 - _circleSpace2 - _circleWidth2 - _circleSpace3 - _circleWidth3 / 2;
    painter->drawEllipse(_centerPointF, radius, radius);

    painter->restore();
}

void CirclePercentWidget::drawProgress(QPainter *painter)
{
    painter->save();

    painter->setPen(QPen(_progressColor, _circleProgressWidth, Qt::SolidLine, Qt::RoundCap));
    int radius = _radius - _circleProgressSpace - _circleProgressWidth / 2;
//    painter->drawEllipse(_centerPointF, radius, radius);
    painter->drawArc(_centerPointF.x() - radius, _centerPointF.y() - radius, radius * 2, radius * 2, 90 * 16, -_value * 16 * 3.6);

    painter->restore();
}

void CirclePercentWidget::drawText(QPainter *painter)
{
    painter->save();

    painter->setFont(_textFont);
    painter->setPen(QPen(_textColor));
    painter->drawText(                 0, _textYOffset, rect().width() / 2 + _textXOffset, rect().height() / 2 + _textYOffset, Qt::AlignRight | Qt::AlignBottom, QString("%1").arg(_value));

    painter->setFont(_labelFont);
    painter->setPen(QPen(_textColor));
    painter->drawText(rect().width() / 2 + 4 + _textXOffset, _textYOffset, rect().width() / 2 + _textXOffset, rect().height() / 2 + _textYOffset, Qt::AlignLeft | Qt::AlignBottom, "%");

    painter->setFont(_tipFont);
    painter->setPen(QPen(_labelColor));
    painter->drawText(0, 10 + _textYOffset, rect().width(), rect().height() + 10 + _textYOffset, Qt::AlignHCenter | Qt::AlignVCenter, _text);

    painter->restore();
}
