DicomViewer (dcmtk读取dcm文件)5

1背景

上一篇将选择的文件传入了后台线程中，这一篇继续处理解析文件的。

2 正文

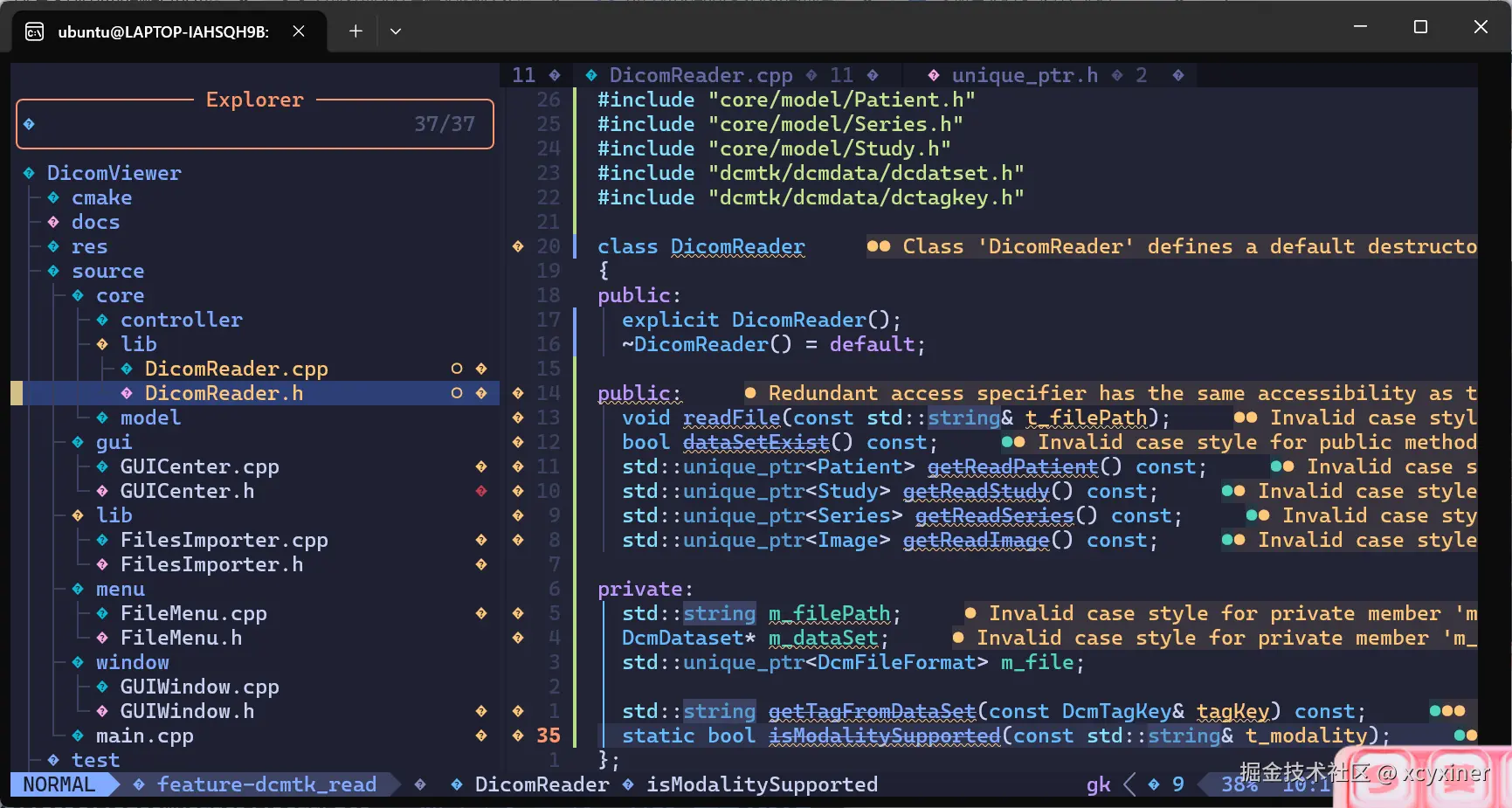

2.1 DicomReader 增加读取文件的方法

c++ 复制代码

#pragma once
#include <memory>
#include <string>

#include <dcmtk/dcmdata/dcfilefo.h>

#include "core/model/Image.h"
#include "core/model/Patient.h"
#include "core/model/Series.h"
#include "core/model/Study.h"
#include "dcmtk/dcmdata/dcdatset.h"
#include "dcmtk/dcmdata/dctagkey.h"

class DicomReader
{
public:
explicit DicomReader();
~DicomReader() = default;

public:
void readFile(const std::string& t_filePath);
bool dataSetExist() const;
std::unique_ptr<Patient> getReadPatient() const;
std::unique_ptr<Study> getReadStudy() const;
std::unique_ptr<Series> getReadSeries() const;
std::unique_ptr<Image> getReadImage() const;

private:
std::string m_filePath;
DcmDataset* m_dataSet;
std::unique_ptr<DcmFileFormat> m_file;

std::string getTagFromDataSet(const DcmTagKey& tagKey) const;
static bool isModalitySupported(const std::string& t_modality);
};

除了存储dcm文件地址，还有dcm信息读取并封装成对应的类，以及读取tag的公用方法。 DcmDataset只能用普通指针，因为类库读取的就是普通的指针。

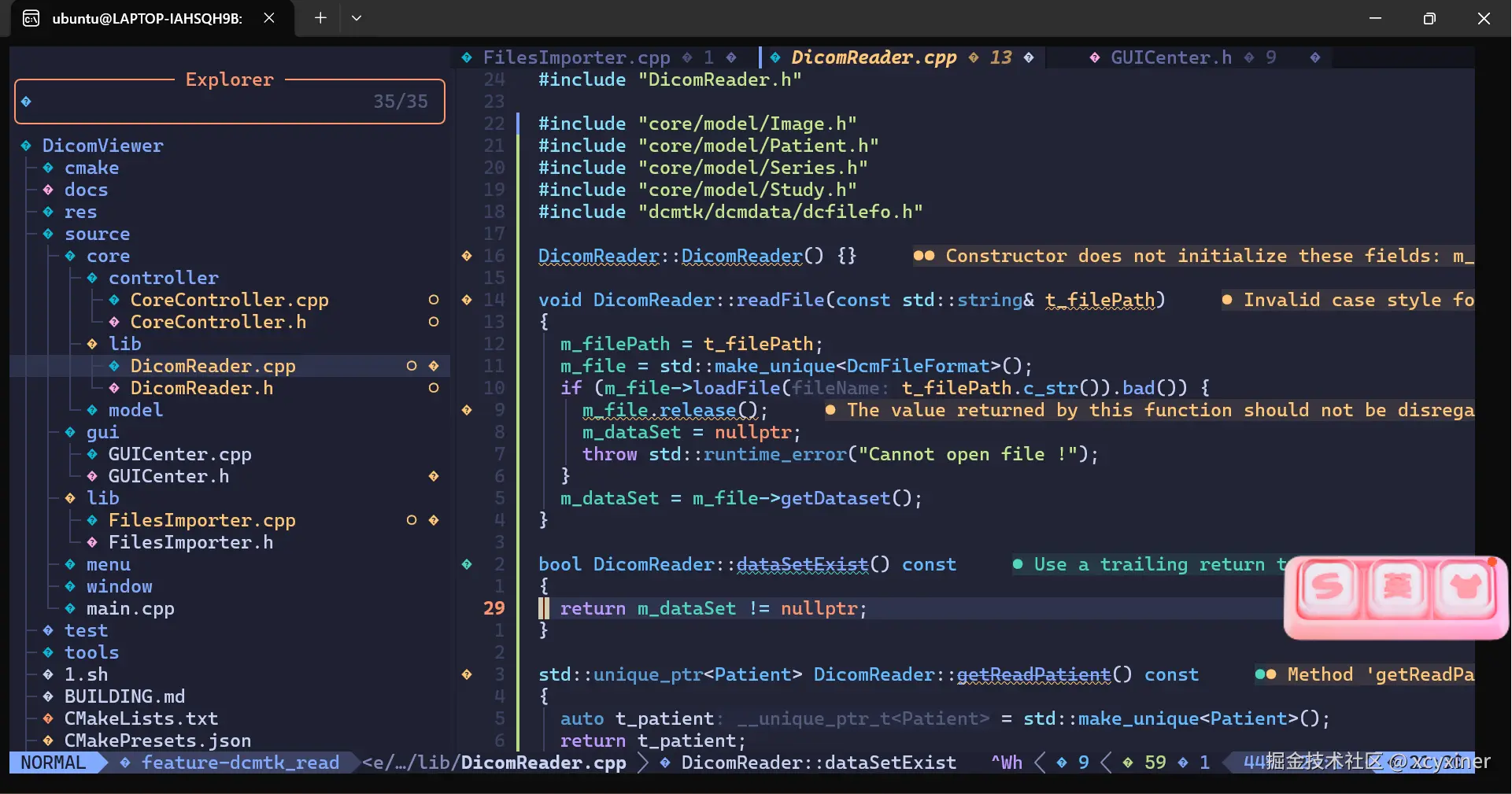

2.2 DicomReader读取文件的定义

这里先实现读取文件，其他的先写个空的，防止编译报错

c++ 复制代码

#include <memory>
#include <stdexcept>

#include "DicomReader.h"

#include "core/model/Image.h"
#include "core/model/Patient.h"
#include "core/model/Series.h"
#include "core/model/Study.h"
#include "dcmtk/dcmdata/dcfilefo.h"

DicomReader::DicomReader() {}

void DicomReader::readFile(const std::string& t_filePath)
{
  m_filePath = t_filePath;
  m_file = std::make_unique<DcmFileFormat>();
  if (m_file->loadFile(t_filePath.c_str()).bad()) {
    m_file.release();
    m_dataSet = nullptr;
    throw std::runtime_error("Cannot open file !");
  }
  m_dataSet = m_file->getDataset();
}

bool DicomReader::dataSetExist() const
{
  return m_dataSet != nullptr;
}

std::unique_ptr<Patient> DicomReader::getReadPatient() const
{
  auto t_patient = std::make_unique<Patient>();
  return t_patient;
}

std::unique_ptr<Study> DicomReader::getReadStudy() const
{
  auto t_study = std::make_unique<Study>();
  return t_study;
}

std::unique_ptr<Series> DicomReader::getReadSeries() const
{
  auto t_series = std::make_unique<Series>();
  return t_series;
}

std::unique_ptr<Image> DicomReader::getReadImage() const
{
  auto t_image = std::make_unique<Image>();
  return t_image;
}

std::string DicomReader::getTagFromDataSet(const DcmTagKey& tagKey) const
{
  auto t_tag = "";
  return t_tag;
}

bool DicomReader::isModalitySupported(const std::string& t_modality)
{
  return true;
}

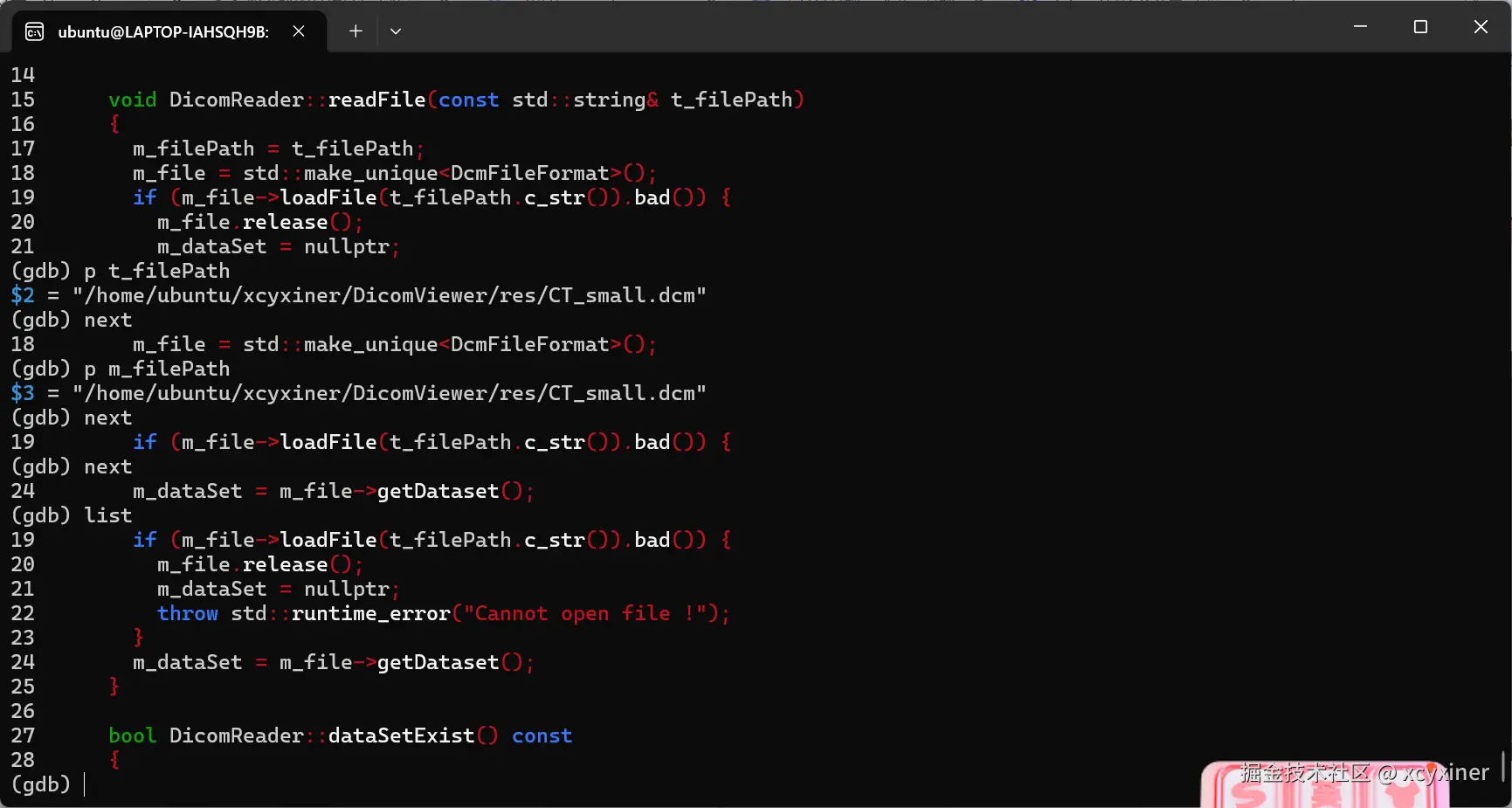

复制文件路径，并读取，如果读取失败则释放，否则读取数据集。

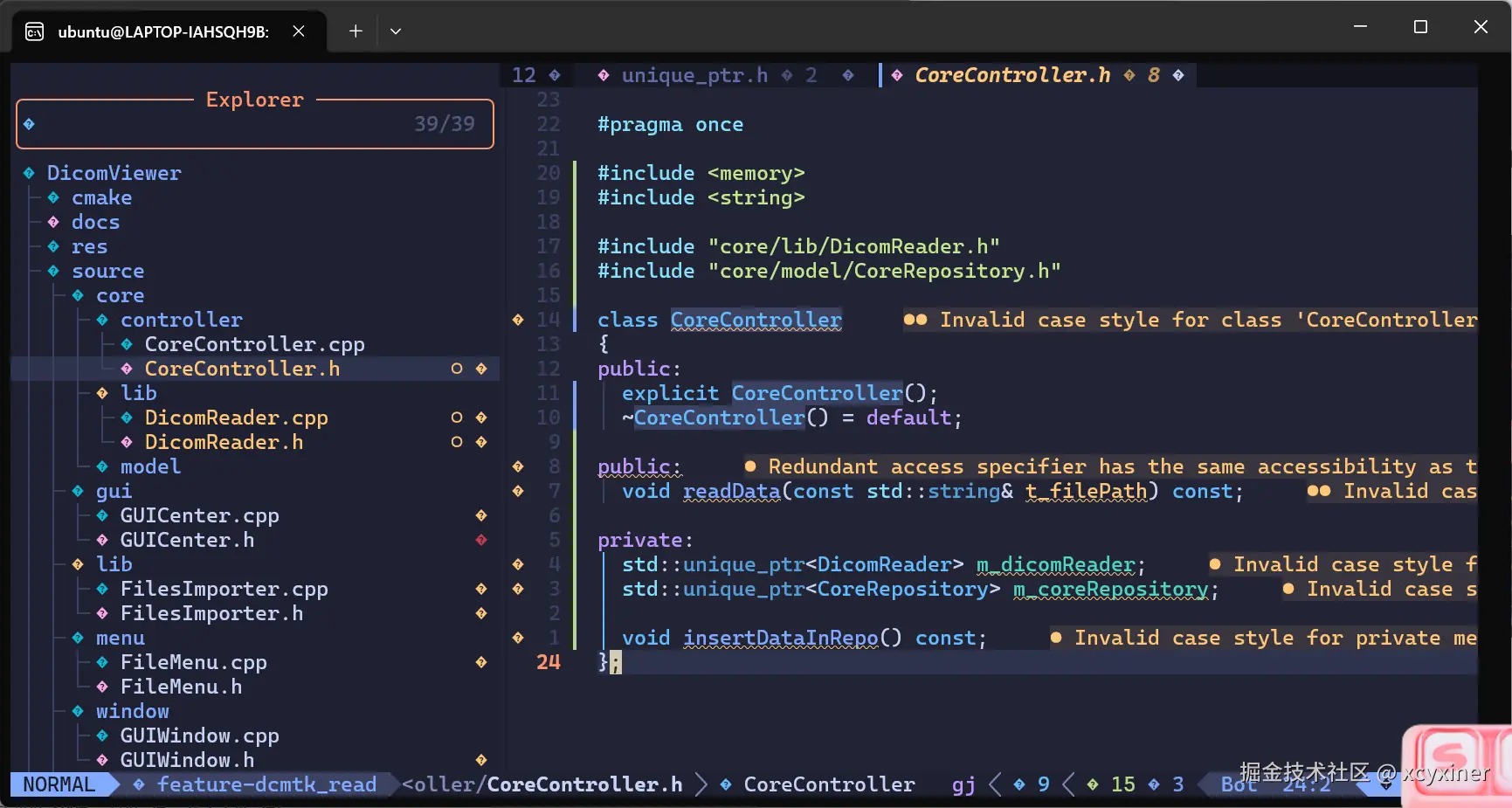

2.3 在controller中调用上面的读取文件

c++ 复制代码

#pragma once

#include <memory>
#include <string>

#include "core/lib/DicomReader.h"
#include "core/model/CoreRepository.h"

class CoreController
{
public:
  explicit CoreController();
  ~CoreController() = default;

public:
  void readData(const std::string& t_filePath) const;

private:
  std::unique_ptr<DicomReader> m_dicomReader;
  std::unique_ptr<CoreRepository> m_coreRepository;

  void insertDataInRepo() const;
};

申明DicomReader和CoreRepository独立指针，并申明dmc文件解析方法readData,这个是判断解析解析成功后存储的方法。

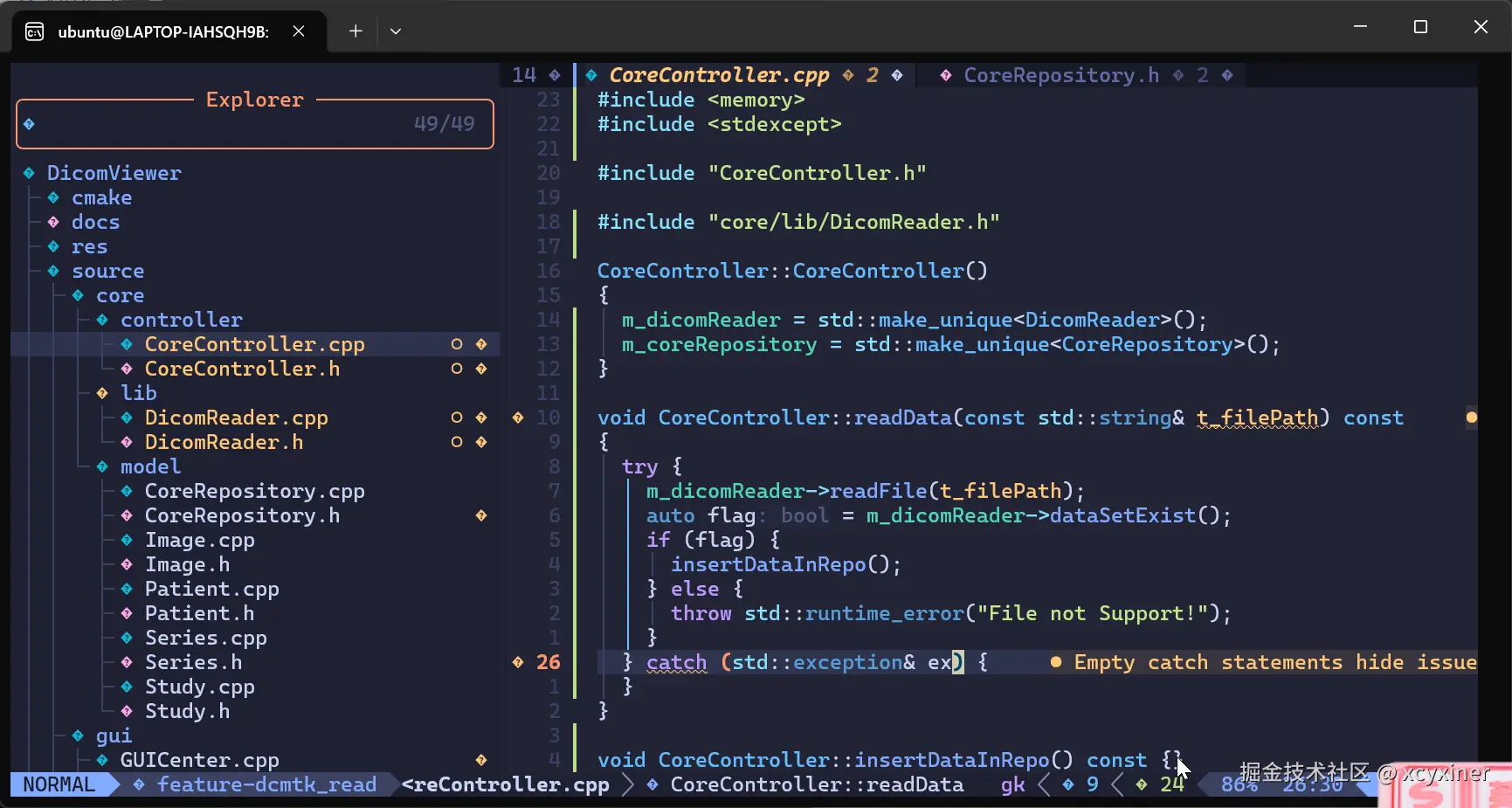

定义

c++ 复制代码

#include <exception>
#include <memory>
#include <stdexcept>

#include "CoreController.h"

#include "core/lib/DicomReader.h"

CoreController::CoreController()
{
  m_dicomReader = std::make_unique<DicomReader>();
  m_coreRepository = std::make_unique<CoreRepository>();
}

void CoreController::readData(const std::string& t_filePath) const
{
  try {
    m_dicomReader->readFile(t_filePath);
    auto flag = m_dicomReader->dataSetExist();
    if (flag) {
      insertDataInRepo();
    } else {
      throw std::runtime_error("File not Support!");
    }
  } catch (std::exception& ex) {
  }
}

void CoreController::insertDataInRepo() const {}

调用读取文件的方法，判断文件是否读取成功

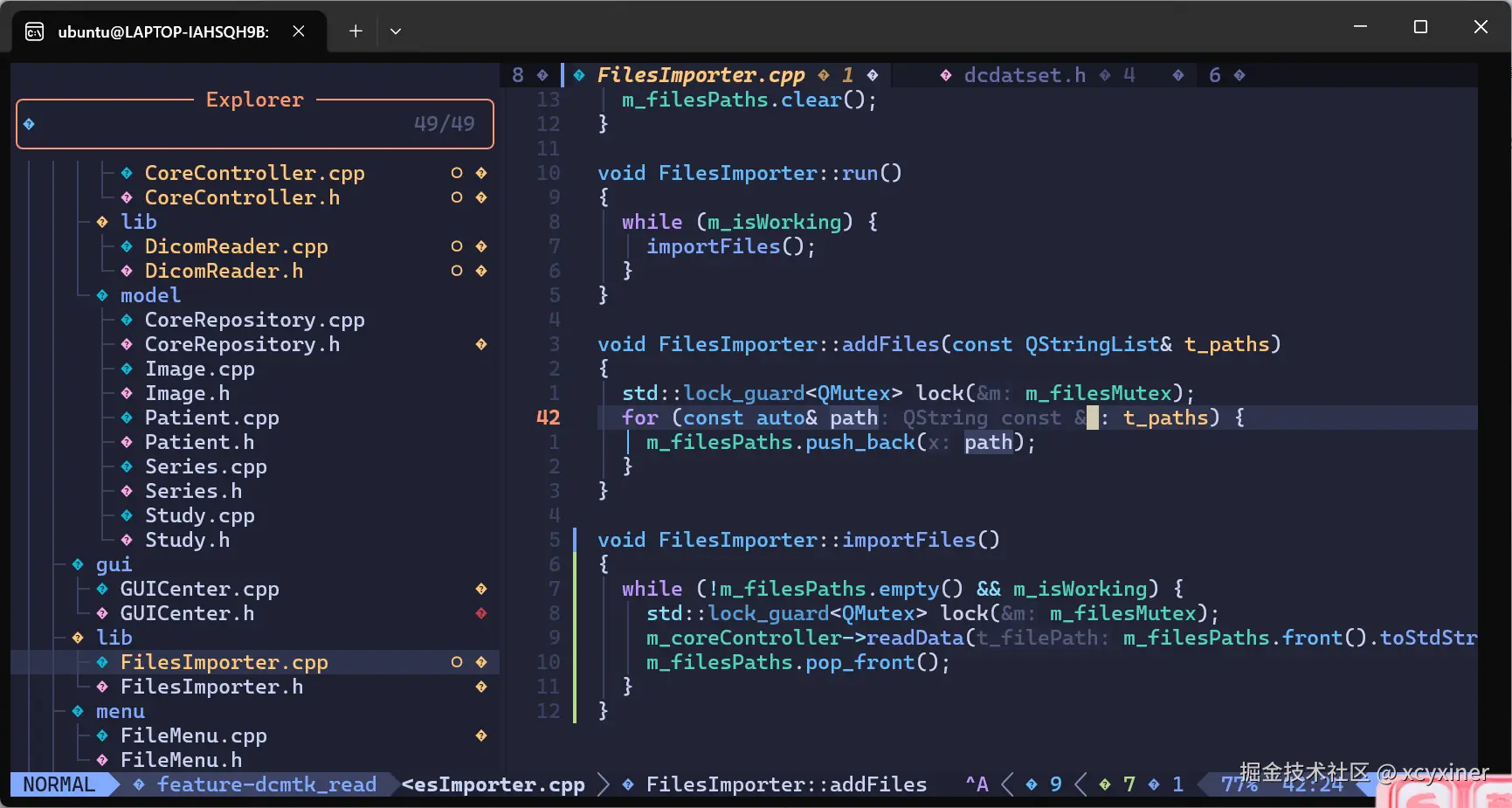

2.4 在后台线程循环里调用解析

c++ 复制代码

#include <cstdlib>
#include <mutex>

#include "FilesImporter.h"

#include "qglobal.h"
#include "qobject.h"

FilesImporter::FilesImporter(QObject* parent)
    : QThread(Q_NULLPTR)
{
 m_coreController = std::make_unique<CoreController>();
}

void FilesImporter::startImporter()
{
  m_isWorking = true;
  start();
}

void FilesImporter::stopImporter()
{
  if (!m_isWorking) {
    return;
  }
  m_isWorking = false;
  quit();
  wait();
  m_filesPaths.clear();
}

void FilesImporter::run()
{
  while (m_isWorking) {
    importFiles();
  }
}

void FilesImporter::addFiles(const QStringList& t_paths)
{
  std::lock_guard<QMutex> lock(m_filesMutex);
  for (const auto& path : t_paths) {
    m_filesPaths.push_back(path);
  }
}

void FilesImporter::importFiles()
{
  while (!m_filesPaths.empty() && m_isWorking) {
    std::lock_guard<QMutex> lock(m_filesMutex);
    m_coreController->readData(m_filesPaths.front().toStdString());
    m_filesPaths.pop_front();
  }
}

解析文件里，先判断是否队列有文件，然后获取锁，并调用文件

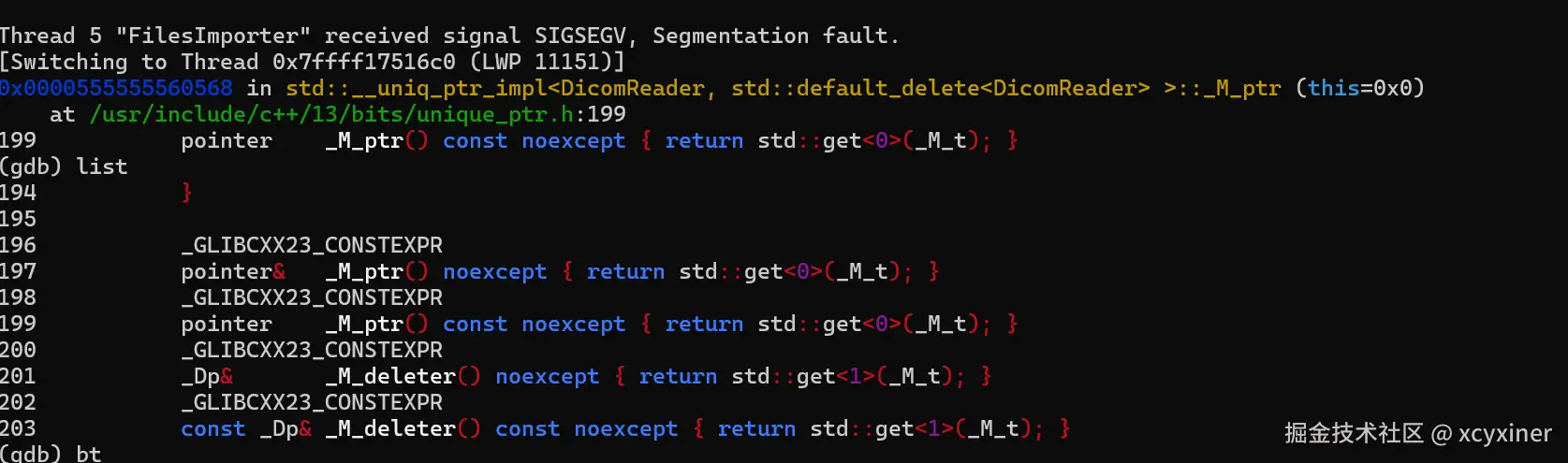

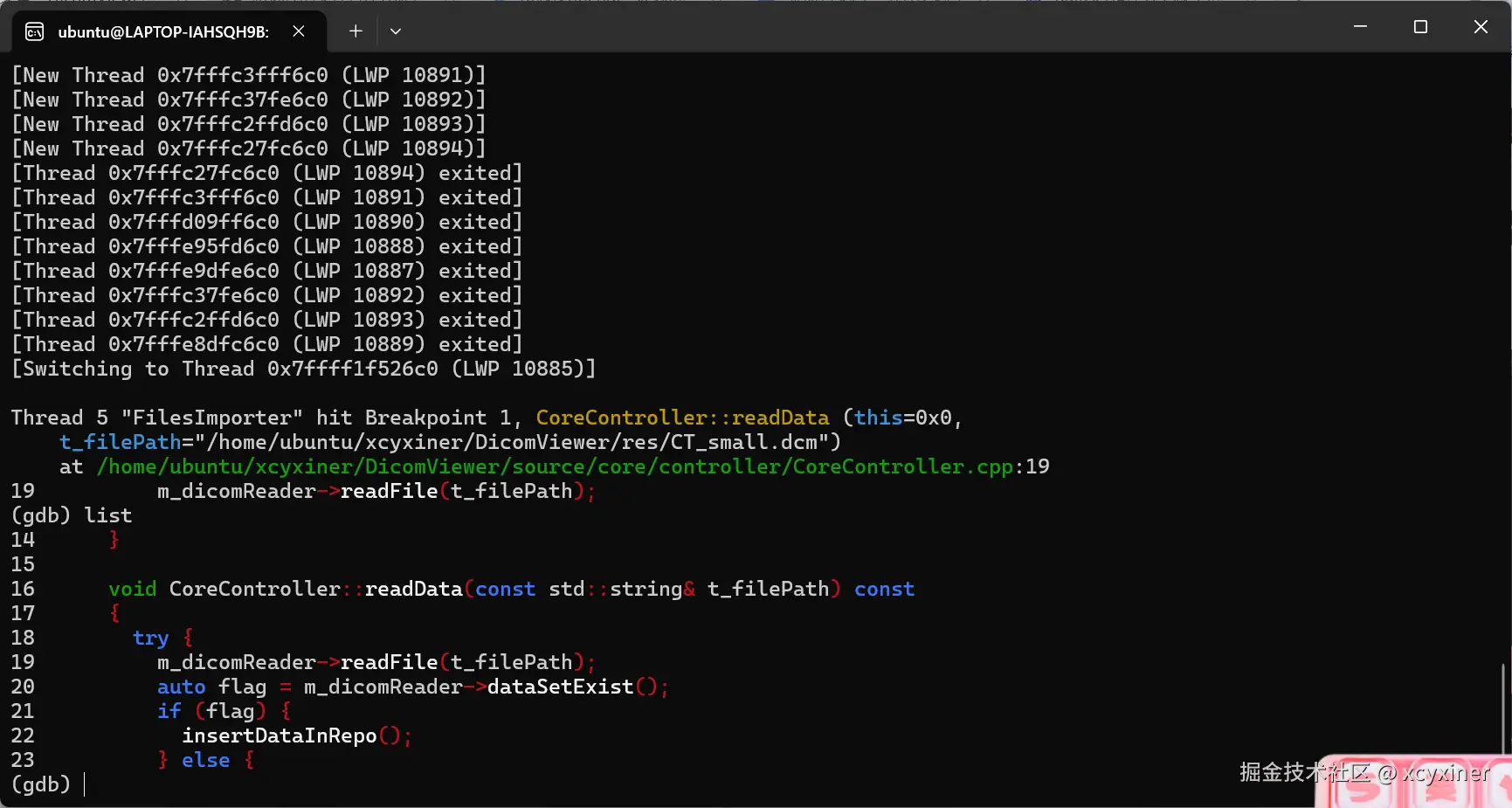

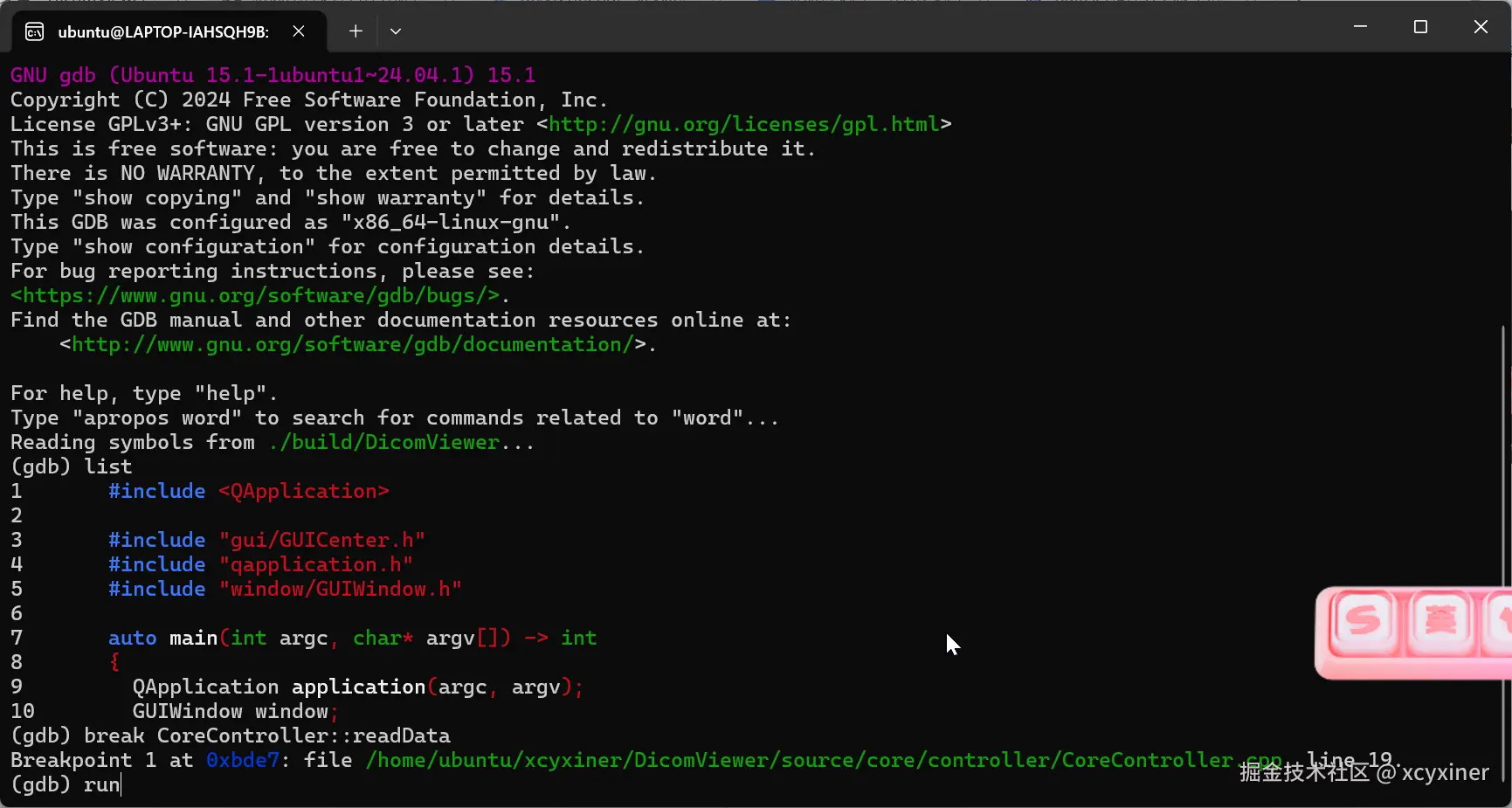

ps:要初始化m_coreController，否则后面gdb调试会报错

arduino 复制代码

Thread 5 "FilesImporter" received signal SIGSEGV, Segmentation fault.
[Switching to Thread 0x7ffff17516c0 (LWP 11151)]
0x0000555555560568 in std::__uniq_ptr_impl<DicomReader, std::default_delete<DicomReader> >::_M_ptr (this=0x0)
    at /usr/include/c++/13/bits/unique_ptr.h:199
199           pointer    _M_ptr() const noexcept { return std::get<0>(_M_t); }
(gdb) list
194           }
195
196           _GLIBCXX23_CONSTEXPR
197           pointer&   _M_ptr() noexcept { return std::get<0>(_M_t); }
198           _GLIBCXX23_CONSTEXPR
199           pointer    _M_ptr() const noexcept { return std::get<0>(_M_t); }
200           _GLIBCXX23_CONSTEXPR
201           _Dp&       _M_deleter() noexcept { return std::get<1>(_M_t); }
202           _GLIBCXX23_CONSTEXPR
203           const _Dp& _M_deleter() const noexcept { return std::get<1>(_M_t); }

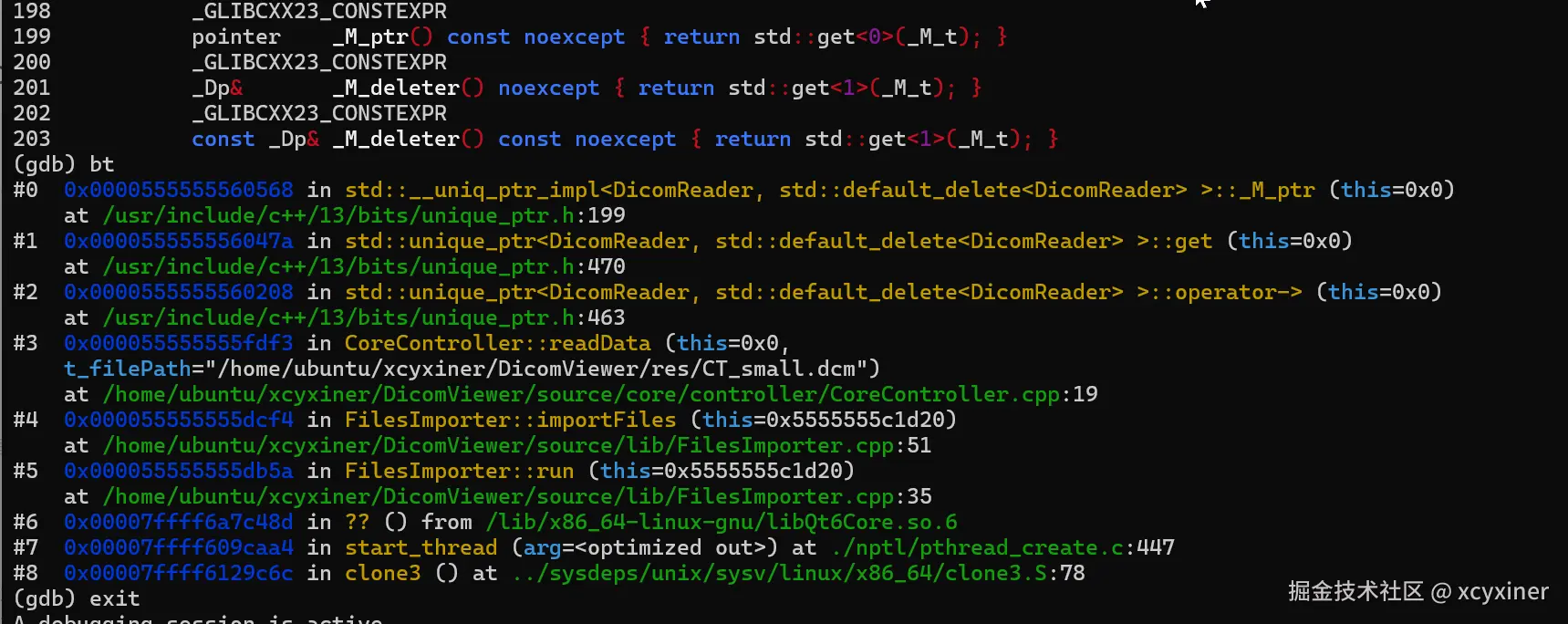

(gdb) bt
#0  0x0000555555560568 in std::__uniq_ptr_impl<DicomReader, std::default_delete<DicomReader> >::_M_ptr (this=0x0)
    at /usr/include/c++/13/bits/unique_ptr.h:199
#1  0x000055555556047a in std::unique_ptr<DicomReader, std::default_delete<DicomReader> >::get (this=0x0)
    at /usr/include/c++/13/bits/unique_ptr.h:470
#2  0x0000555555560208 in std::unique_ptr<DicomReader, std::default_delete<DicomReader> >::operator-> (this=0x0)
    at /usr/include/c++/13/bits/unique_ptr.h:463
#3  0x000055555555fdf3 in CoreController::readData (this=0x0,
    t_filePath="/home/ubuntu/xcyxiner/DicomViewer/res/CT_small.dcm")
    at /home/ubuntu/xcyxiner/DicomViewer/source/core/controller/CoreController.cpp:19
#4  0x000055555555dcf4 in FilesImporter::importFiles (this=0x5555555c1d20)
    at /home/ubuntu/xcyxiner/DicomViewer/source/lib/FilesImporter.cpp:51
#5  0x000055555555db5a in FilesImporter::run (this=0x5555555c1d20)
    at /home/ubuntu/xcyxiner/DicomViewer/source/lib/FilesImporter.cpp:35
#6  0x00007ffff6a7c48d in ?? () from /lib/x86_64-linux-gnu/libQt6Core.so.6
#7  0x00007ffff609caa4 in start_thread (arg=<optimized out>) at ./nptl/pthread_create.c:447
#8  0x00007ffff6129c6c in clone3 () at ../sysdeps/unix/sysv/linux/x86_64/clone3.S:78
(gdb) exit
