SAP Fiori App 带Micro Chart的例子

1.CDS视图ZI_FI_PROFIT

@AccessControl.authorizationCheck: #NOT_REQUIRED
@EndUserText.label: '财务运营指标'
@Metadata.ignorePropagatedAnnotations: true
define view entity ZI_FI_PROFIT
  as select from zfit0006
  association [1..1] to t001 as _Company on $projection.bukrs = _Company.bukrs
{
  key bukrs,
  key gjahr,
  key monat,
  key period_type,
      cast( 'CNY' as abap.cuky )       as Currency,
      _Company.butxt                   as bukrs_text,
      cast( income as abap.dec(15,2) ) as income,
      cast( income_year as abap.dec(15,2) ) as income_year,
      cast( cost as abap.dec(15,2) ) as cost,
      cast( cost_year as abap.dec(15,2) ) as cost_year,
      cast( gross as abap.dec(15,2) ) as gross,
      gross_rate,
      cast( qjfy as abap.dec(15,2) ) as qjfy,
      qjfy_rate,
      cast( net as abap.dec(15,2) ) as net,
      cast( net_year as abap.dec(15,2) ) as net_year,
      net_rate,
      net_zc_rate,
      zcfz_rate,
      current_ratio,
      quick_ratio,
      artr,
      ch_rate,
      artr_d,
      ch_rate_d
}

2.CDS消费视图ZC_FI_PROFIT_M

@AccessControl.authorizationCheck: #NOT_REQUIRED
@EndUserText.label: '月度运营指标'
@Analytics.dataCategory: #CUBE
@Metadata.ignorePropagatedAnnotations: true
@UI.presentationVariant: [{
    sortOrder: [
        { by: 'bukrs', direction: #ASC },  // 按照公司代码正序 (Ascending)
        { by: 'gjahr', direction: #ASC },  // 按照会计年度正序 (Ascending)
        { by: 'monat', direction: #ASC }   // 按照月正序 (Ascending)
    ]
}]
@UI.chart: [{
    qualifier: 'GrossRateMicroChart',      // 给这个小图起个唯一的全剧名字
    chartType: #DONUT,
    measures: ['gross_rate'],              // 图表绑定哪个字段
    measureAttributes: [{
        measure: 'gross_rate',
        role: #AXIS_1,
        asDataPoint: true                  //
    }]
},
{
    qualifier: 'QjfyRateMicroChart',
    chartType: #DONUT,
    measures: ['qjfy_rate'],
    measureAttributes: [{
        measure: 'qjfy_rate',
        role: #AXIS_1,
        asDataPoint: true
    }]
}]
define view entity ZC_FI_PROFIT_M
  as select from ZI_FI_PROFIT
{
      @EndUserText.label: '公司代码'
      @UI.lineItem: [{ position: 10 }]
      @UI.selectionField: [{ position: 10 }]
      @Consumption.valueHelpDefinition: [{
              entity: {
                name: 'ZCDS_BUKRS', // 你的现成视图名
                element: 'bukrs'
              }
            }]
  key bukrs,
      @EndUserText.label: '会计年度'
      @UI.lineItem: [{ position: 20 }]
      @UI.selectionField: [{ position: 20 }]
  key gjahr,
      @EndUserText.label: '月'
      @UI.lineItem: [{ position: 30 }]
      @UI.selectionField: [{ position: 30 }]
  key monat,
      @UI.hidden: true
  key period_type,
      @UI.hidden: true
      cast( '%' as abap.unit )                       as rate_unit,
      @EndUserText.label: '公司名称'
      @UI.lineItem: [{ position: 20 }]
      bukrs_text,
      Currency,
      @EndUserText.label: '收入'
      @UI.lineItem: [{ position: 40 }]
      income,
      @EndUserText.label: '成本'
      @UI.lineItem: [{ position: 50 }]
      cost,
      //      @EndUserText.label: '毛利率'
      //      @Semantics.quantity.unitOfMeasure: 'rate_unit'
      @UI.lineItem: [{
         position: 60,
         type: #AS_CHART,
         valueQualifier: 'GrossRateMicroChart',
         label: '毛利率'
       }]
      @UI.dataPoint: {
          title: '毛利率',
          targetValue: 100  // 告诉环形图满分是 100%
      }
      cast( gross_rate * 100 as abap.dec(23,2 ) )    as gross_rate,
      @EndUserText.label: '期间费用'
      @UI.lineItem: [{ position: 70 }]
      qjfy,
      //      @EndUserText.label: '期间费用率'
      //      @Semantics.quantity.unitOfMeasure: 'rate_unit'
      @UI.lineItem: [{ position: 80,
        type: #AS_CHART,
        valueQualifier: 'QjfyRateMicroChart',
        label: '期间费用率' }]
      @UI.dataPoint: {
        title: '期间费用率',
        targetValue: 100
      }
      cast( qjfy_rate * 100 as abap.dec( 23, 2 ) )   as qjfy_rate,
      @EndUserText.label: '净利润'
      @UI.lineItem: [{ position: 90 }]
      net,
      @EndUserText.label: '净利润率'
      @Semantics.quantity.unitOfMeasure: 'rate_unit'
      @UI.lineItem: [{ position: 100 }]
      cast( net_rate * 100 as abap.dec( 23, 2 ) )    as net_rate,
      @EndUserText.label: '净资产收益率'
      @Semantics.quantity.unitOfMeasure: 'rate_unit'
      @UI.lineItem: [{ position: 110 }]
      cast( net_zc_rate * 100 as abap.dec( 23, 2 ) ) as net_zc_rate,
      @EndUserText.label: '资产负债率'
      @Semantics.quantity.unitOfMeasure: 'rate_unit'
      @UI.lineItem: [{ position: 120 }]
      cast( zcfz_rate * 100 as abap.dec( 23, 2 ) )   as zcfz_rate,
      @EndUserText.label: '流动比例'
      @UI.lineItem: [{ position: 130 }]
      current_ratio,
      @EndUserText.label: '速冻比率'
      @UI.lineItem: [{ position: 140 }]
      quick_ratio,
      @EndUserText.label: '应收账款周转率'
      @UI.lineItem: [{ position: 150 }]
      artr,
      @EndUserText.label: '存货周转率'
      @UI.lineItem: [{ position: 160 }]
      ch_rate,
      @EndUserText.label: '应收账款周转天数'
      @UI.lineItem: [{ position: 170 }]
      artr_d,
      @EndUserText.label: '存货周转天数'
      @UI.lineItem: [{ position: 180 }]
      ch_rate_d
}
where
  period_type = 'M'

3.Service Definition

@EndUserText.label: '月度运营指标服务定义'
define service ZUI_FI_PROFIT_M {
  expose ZC_FI_PROFIT_M as MonthlyProfit;
}

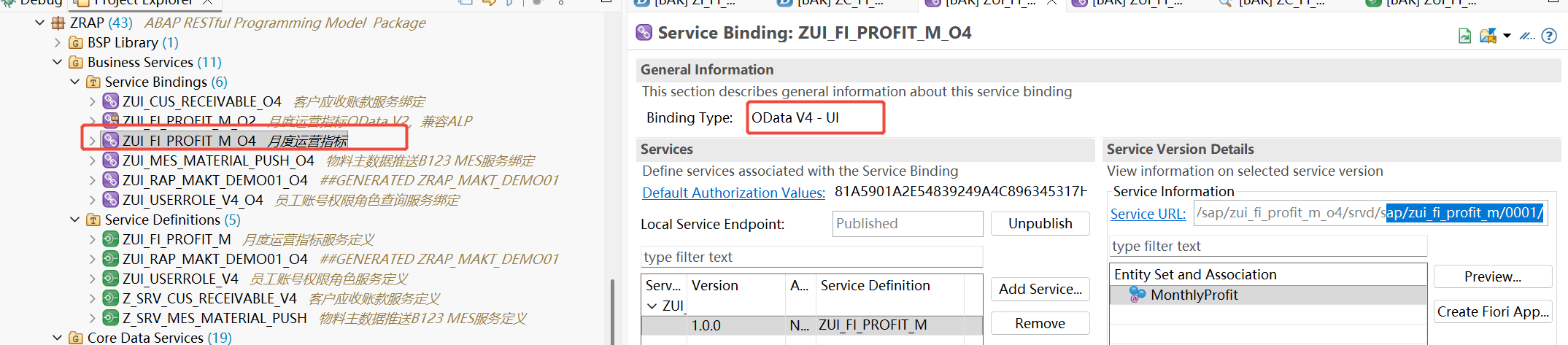

4.Service Binding

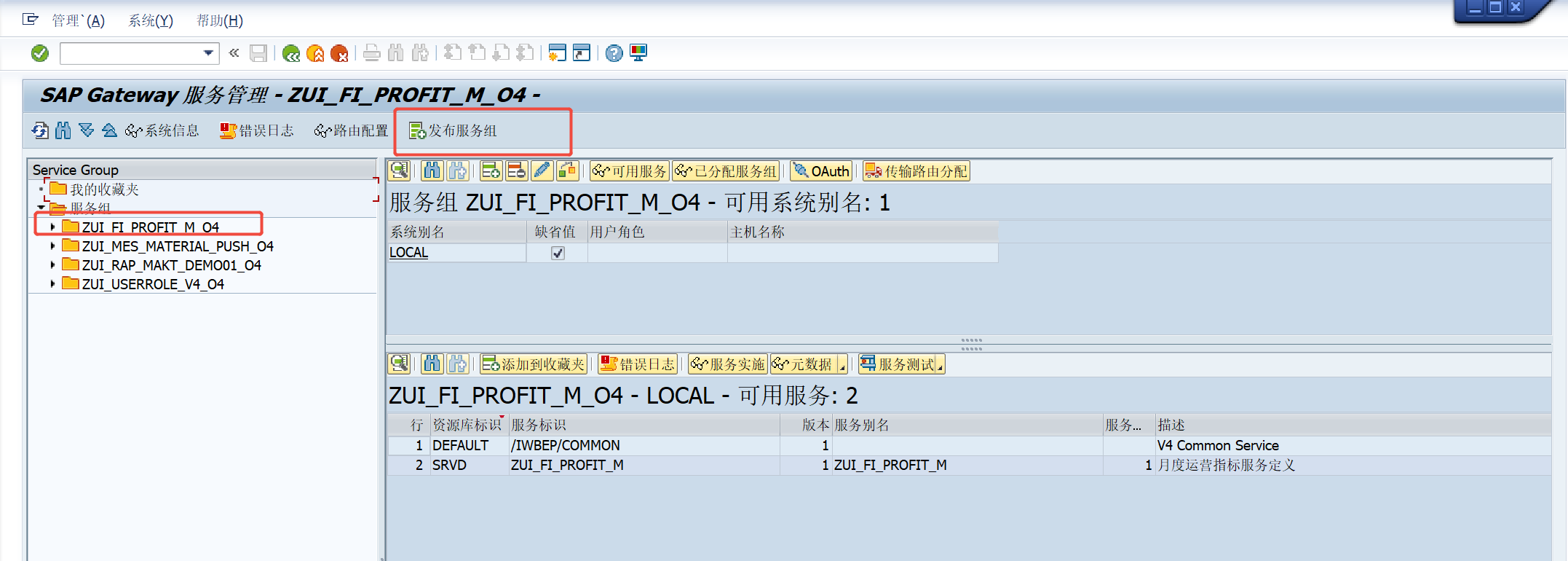

5.op版本记得发布服务组

激活OData V4的服务

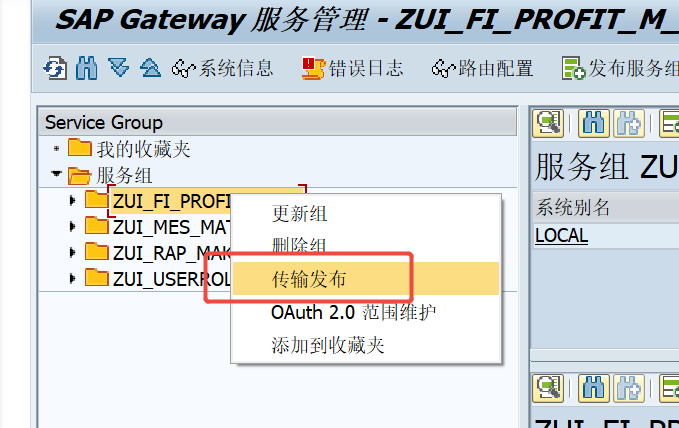

事务码：/IWFND/V4_ADMIN

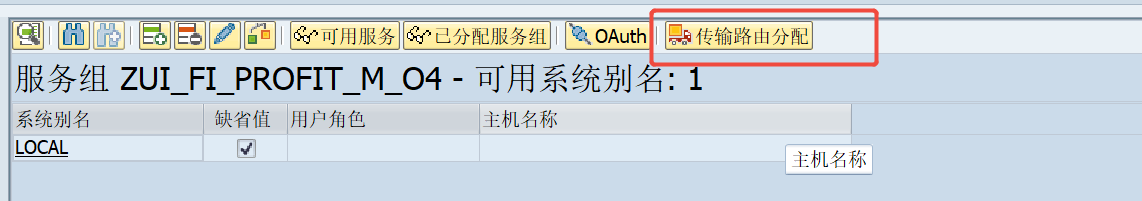

右键传输

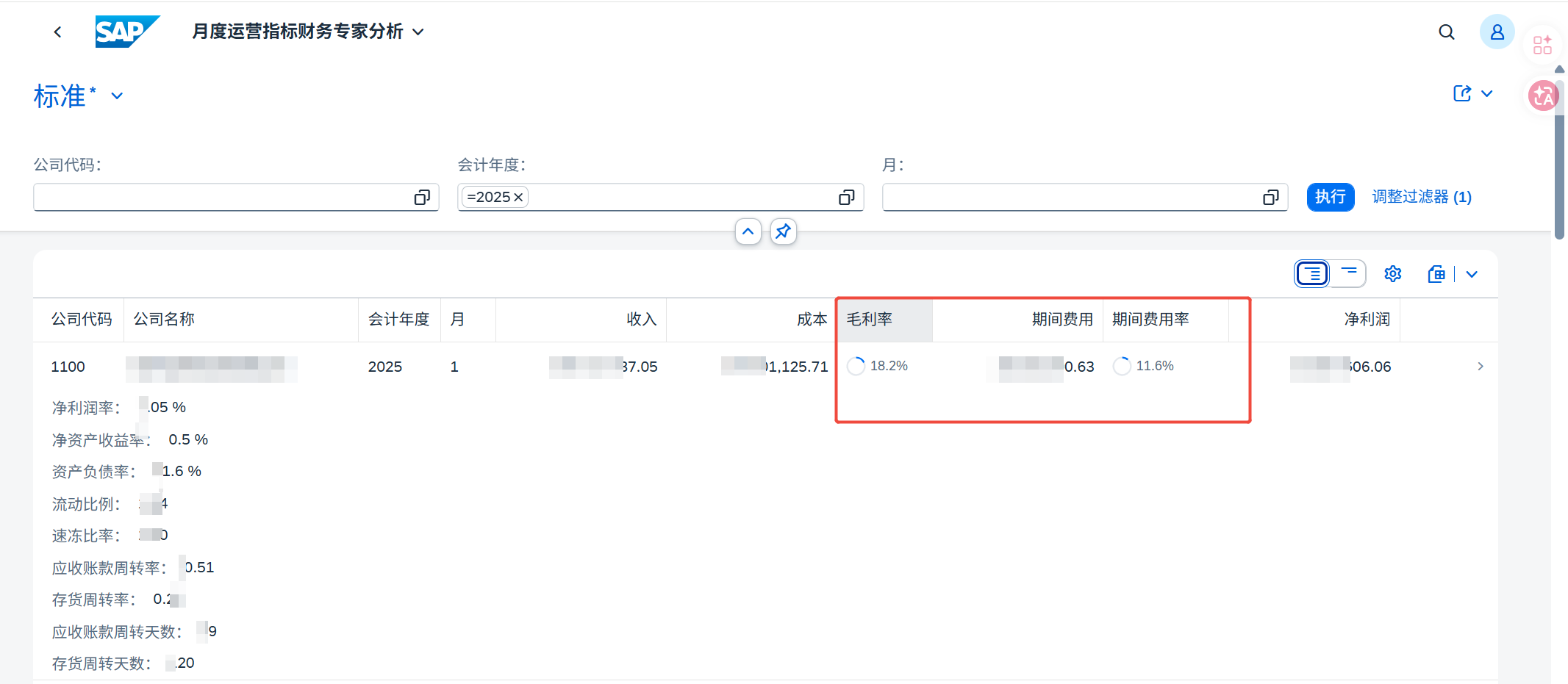

6.预览效果

带Micro Chart
