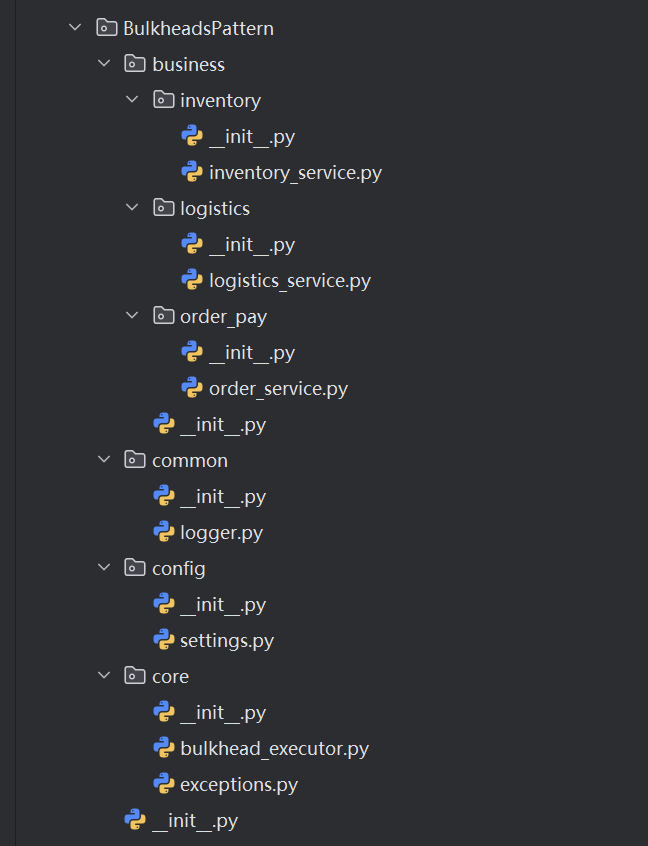

项目结构：
python
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Bulkheads Pattern 舱壁模式
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/6/26 23:15
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : settings.py
# 舱壁资源配置：各业务域独立线程池参数
BULKHEAD_CONFIG = {
"inventory": {
"max_workers": 2,
"timeout": 3.0,
"thread_prefix": "bulkhead-inventory"
},
"order_pay": {
"max_workers": 3,
"timeout": 3.0,
"thread_prefix": "bulkhead-order-pay"
},
"logistics": {
"max_workers": 2,
"timeout": 3.0,
"thread_prefix": "bulkhead-logistics"
}
}
# 业务常量
BUSINESS_TIMEOUT_MSG = "请求超时，舱壁隔离熔断"
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Bulkheads Pattern 舱壁模式
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/6/26 23:14
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : exceptions.py
class BulkheadTimeoutException(Exception):
"""
舱壁执行超时异常
"""
pass
class BulkheadPoolFullException(Exception):
"""
舱壁线程池耗尽异常
"""
pass
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Bulkheads Pattern 舱壁模式
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/6/26 23:15
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : bulkhead_executor.py
import time
from concurrent.futures import ThreadPoolExecutor, TimeoutError
from functools import wraps
from typing import Dict, Any
from .exceptions import BulkheadTimeoutException
class BulkheadExecutor:
"""
舱壁执行器：每个业务域独立实例，隔离线程资源
"""
def __init__(self, config: Dict[str, Any]):
self.max_workers = config["max_workers"]
self.timeout = config["timeout"]
self.pool = ThreadPoolExecutor(
max_workers=self.max_workers,
thread_name_prefix=config["thread_prefix"]
)
def execute(self, func, *args, **kwargs):
"""
提交任务至独立舱壁线程池执行
:param func:
:param args:
:param kwargs:
:return:
"""
try:
future = self.pool.submit(func, *args, **kwargs)
return future.result(timeout=self.timeout)
except TimeoutError:
raise BulkheadTimeoutException(f"执行超时 {self.timeout}s")
except Exception as e:
raise e
def bulkhead_decorator(self):
"""
装饰器：绑定当前舱壁实例执行能力
:return:
"""
def decorator(target_func):
@wraps(target_func)
def wrapper(*args, **kwargs):
try:
return self.execute(target_func, *args, **kwargs)
except BulkheadTimeoutException as te:
return {"success": False, "code": 504, "msg": str(te)}
except Exception as e:
return {"success": False, "code": 500, "msg": f"业务异常: {str(e)}"}
return wrapper
return decorator
def shutdown(self, wait: bool = True):
"""
程序退出释放线程池资源
:param wait:
:return:
"""
self.pool.shutdown(wait=wait)
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Bulkheads Pattern 舱壁模式
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/6/26 23:17
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : logger.py
import logging
import sys
# 全局日志配置
logging.basicConfig(
level=logging.INFO,
format="%(asctime)s [%(threadName)s] %(levelname)s | %(message)s",
datefmt="%Y-%m-%d %H:%M:%S",
stream=sys.stdout
)
logger = logging.getLogger("jewelry-bulkhead")
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Bulkheads Pattern 舱壁模式
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/6/26 23:17
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : inventory_service.py
import time
from BulkheadsPattern.config.settings import BULKHEAD_CONFIG
from BulkheadsPattern.core.bulkhead_executor import BulkheadExecutor
from BulkheadsPattern.common.logger import logger
# 初始化独立库存舱壁
inventory_bulkhead = BulkheadExecutor(BULKHEAD_CONFIG["inventory"])
bulkhead = inventory_bulkhead.bulkhead_decorator()
class InventoryService:
"""
珠宝库存服务：钻石、黄金、铂金库存查询，独立舱壁隔离
"""
@bulkhead
def query_gem_stock(self, jewelry_id: str):
"""
查询宝石类珠宝库存（模拟阻塞故障场景）
:param jewelry_id:
:return:
"""
logger.info(f"查询珠宝库存 ID: {jewelry_id}")
# 模拟数据库慢查询/第三方接口卡死，超过超时阈值
time.sleep(5)
return {
"success": True,
"code": 200,
"data": {
"jewelry_id": jewelry_id,
"stock_num": 15,
"material": "钻石",
"store": "深圳总店"
}
}
@bulkhead
def query_gold_stock(self, jewelry_id: str):
"""
黄金素圈库存查询（正常逻辑）
:param jewelry_id:
:return:
"""
logger.info(f"查询黄金库存 ID: {jewelry_id}")
time.sleep(0.3)
return {
"success": True,
"code": 200,
"data": {
"jewelry_id": jewelry_id,
"stock_num": 32,
"material": "足金999",
"store": "全国门店总仓"
}
}
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Bulkheads Pattern 舱壁模式
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/6/26 23:29
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : order_service.py
import time
from BulkheadsPattern.config.settings import BULKHEAD_CONFIG
from BulkheadsPattern.core.bulkhead_executor import BulkheadExecutor
from BulkheadsPattern.common.logger import logger
# 订单支付独立舱壁
order_bulkhead = BulkheadExecutor(BULKHEAD_CONFIG["order_pay"])
bulkhead = order_bulkhead.bulkhead_decorator()
class OrderPayService:
"""
珠宝订单与支付服务：下单、收银、结算
"""
@bulkhead
def create_order(self, order_no: str, amount: float, user_id: str):
"""创建珠宝订单"""
logger.info(f"创建订单 {order_no} 用户:{user_id} 金额:{amount}")
time.sleep(0.5)
return {
"success": True,
"code": 200,
"data": {
"order_no": order_no,
"pay_amount": amount,
"status": "待支付"
}
}
@bulkhead
def order_settle(self, order_no: str, pay_channel: str):
"""
订单支付结算
:param order_no:
:param pay_channel:
:return:
"""
logger.info(f"订单结算 {order_no} 渠道:{pay_channel}")
time.sleep(0.4)
return {
"success": True,
"code": 200,
"data": {
"order_no": order_no,
"pay_status": "已结清",
"transaction_id": f"TX{hash(order_no) % 9999999}"
}
}
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Bulkheads Pattern 舱壁模式
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/6/26 23:31
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : logistics_service.py
import time
from BulkheadsPattern.config.settings import BULKHEAD_CONFIG
from BulkheadsPattern.core.bulkhead_executor import BulkheadExecutor
from BulkheadsPattern.common.logger import logger
# 物流独立舱壁
logistics_bulkhead = BulkheadExecutor(BULKHEAD_CONFIG["logistics"])
bulkhead = logistics_bulkhead.bulkhead_decorator()
class LogisticsService:
"""
珠宝物流服务：保价出库、快递揽收、物流跟踪
"""
@bulkhead
def ship_jewelry(self, order_no: str, receiver_addr: str):
"""
珠宝保价发货
:param order_no:
:param receiver_addr:
:return:
"""
logger.info(f"订单{order_no}安排发货，收件地址:{receiver_addr}")
time.sleep(0.4)
return {
"success": True,
"code": 200,
"data": {
"order_no": order_no,
"express_no": f"SF{hash(order_no) % 1000000}",
"insured_value": 20000,
"status": "已揽收"
}
}
@bulkhead
def track_express(self, express_no: str):
"""
物流轨迹查询
:param express_no:
:return:
"""
logger.info(f"查询物流单号 {express_no}")
time.sleep(0.2)
return {
"success": True,
"code": 200,
"data": {"express_no": express_no, "location": "深圳转运中心"}
}
调用：
python
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Bulkheads Pattern 舱壁模式
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/6/26 23:31
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : BulkheadsBll.py
import threading
import time
from BulkheadsPattern.common.logger import logger
from BulkheadsPattern.business.inventory.inventory_service import InventoryService, inventory_bulkhead
from BulkheadsPattern.business.order_pay.order_service import OrderPayService, order_bulkhead
from BulkheadsPattern.business.logistics.logistics_service import LogisticsService, logistics_bulkhead
class BulkheadsBll(object):
"""
"""
# 实例化各业务服务
inv_svc = InventoryService()
ord_svc = OrderPayService()
log_svc = LogisticsService()
def run_scene(self):
"""模拟珠宝门店高并发流量场景"""
logger.info("===== 珠宝行业舱壁模式压测开始 =====")
start = time.time()
task_list = [
# 库存域（会超时故障）
threading.Thread(target=lambda: logger.info(self.inv_svc.query_gem_stock("D001"))),
threading.Thread(target=lambda: logger.info(self.inv_svc.query_gem_stock("D002"))),
# 库存正常接口
threading.Thread(target=lambda: logger.info(self.inv_svc.query_gold_stock("G001"))),
# 订单支付域
threading.Thread(target=lambda: logger.info(self.ord_svc.create_order("O2026062601", 16888, "U10086"))),
threading.Thread(target=lambda: logger.info(self.ord_svc.create_order("O2026062602", 9999, "U10087"))),
threading.Thread(target=lambda: logger.info(self.ord_svc.order_settle("O2026062601", "微信支付"))),
# 物流域
threading.Thread(target=lambda: logger.info(self.log_svc.ship_jewelry("O2026062601", "深圳福田珠宝大厦"))),
threading.Thread(target=lambda: logger.info(self.log_svc.track_express("SF12345678"))),
]
# 启动所有并发任务
for t in task_list:
t.start()
for t in task_list:
t.join()
cost = round(time.time() - start, 2)
logger.info(f"===== 压测结束，总耗时 {cost}s =====")
def run_example(self):
"""
:return:
"""
try:
self.run_scene()
finally:
# 优雅释放所有舱壁线程池资源
inventory_bulkhead.shutdown()
order_bulkhead.shutdown()
logistics_bulkhead.shutdown()
logger.info("所有舱壁线程池已安全关闭")
@staticmethod
def demo():
bll = BulkheadsBll()

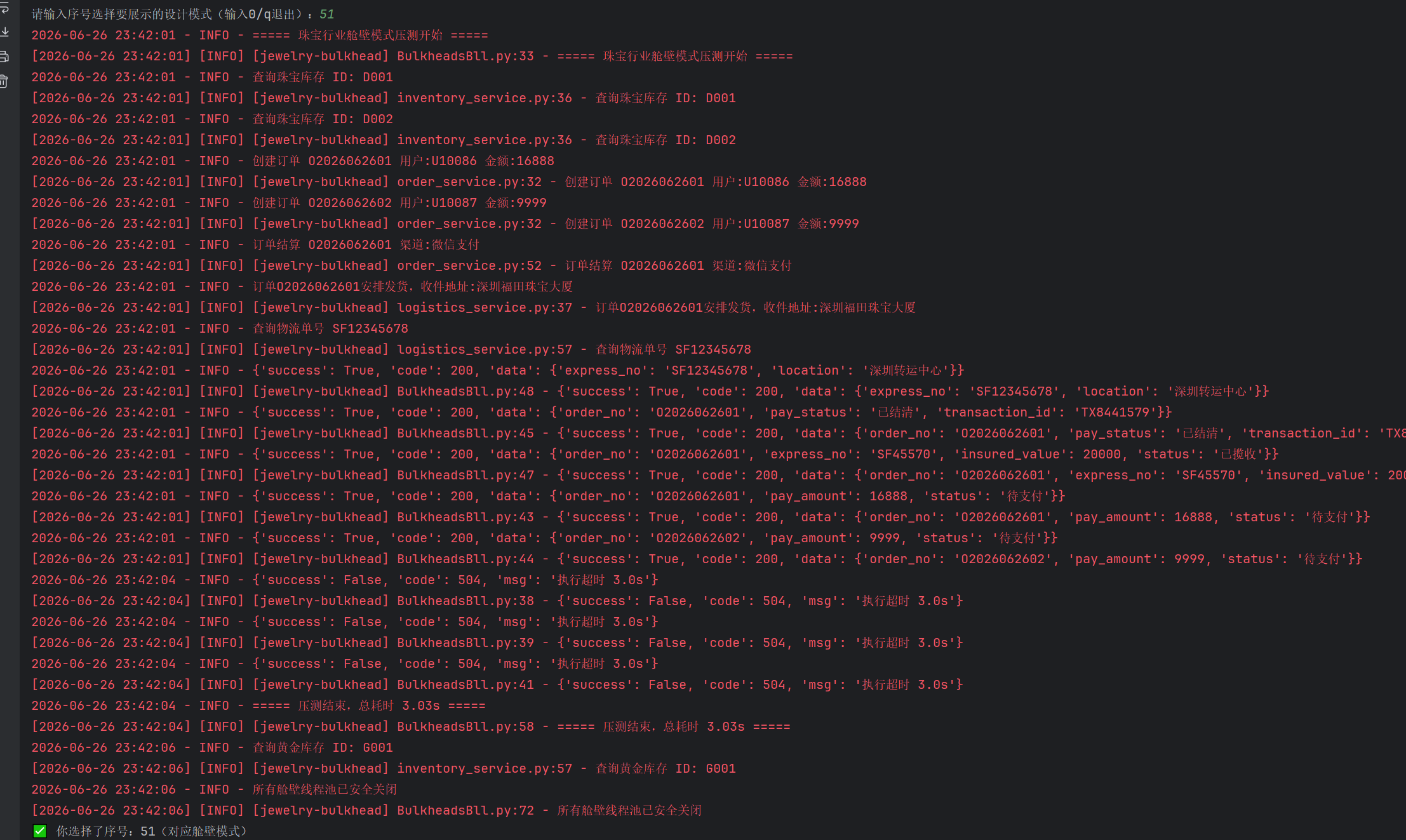

bll.run_example()输出：
