SeaTunnel docker-compose 部署

镜像下载

bash 复制代码

# apache官方的镜像
docker pull apache/seatunnel:2.3.13

# 如果网络不好，可以通过阿里的地址下载，修改docker-compose中image
docker pull registry.cn-hangzhou.aliyuncs.com/images-docker-cn/seatunnel:2.3.13

部署

docker-compose.yml文件

一个master节点，两个worker节点，也可以用一个worker节点

复制代码

services:
  master:
    image: apache/seatunnel:2.3.13
    container_name: seatunnel_master
    restart: unless-stopped
    environment:
      - ST_DOCKER_MEMBER_LIST=seatunnel_master:5801
      - SEATUNNEL_ENGINE_HTTP_ENABLE_HTTP=true
      - SEATUNNEL_ENGINE_HTTP_PORT=8080
    entrypoint: /bin/sh -c "/opt/seatunnel/bin/seatunnel-cluster.sh -r master"
    ports:
      - "5801:5801"
      - "8080:8080"
    networks:
      - seatunnel_network

  worker1:
    image: apache/seatunnel:2.3.13
    container_name: seatunnel_worker_1
    restart: unless-stopped
    environment:
      - ST_DOCKER_MEMBER_LIST=seatunnel_master:5801
      - HZ_NETWORK_RESTAPI_ENABLED=true
    entrypoint: /bin/sh -c "/opt/seatunnel/bin/seatunnel-cluster.sh -r worker"
    depends_on:
      - master
    networks:
      - seatunnel_network

  worker2:
    image: apache/seatunnel:2.3.13
    container_name: seatunnel_worker_2
    restart: unless-stopped
    environment:
      - ST_DOCKER_MEMBER_LIST=seatunnel_master:5801
      - HZ_NETWORK_RESTAPI_ENABLED=true
    entrypoint: /bin/sh -c "/opt/seatunnel/bin/seatunnel-cluster.sh -r worker"
    depends_on:
      - master
    networks:
      - seatunnel_network

networks:
  seatunnel_network:
    name: seatunnel-network
    driver: bridge

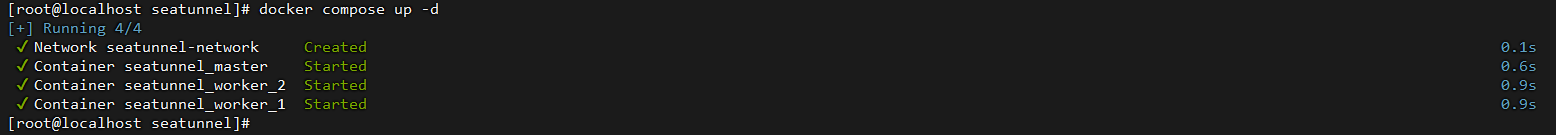

启动

bash 复制代码

docker compose up -d

验证

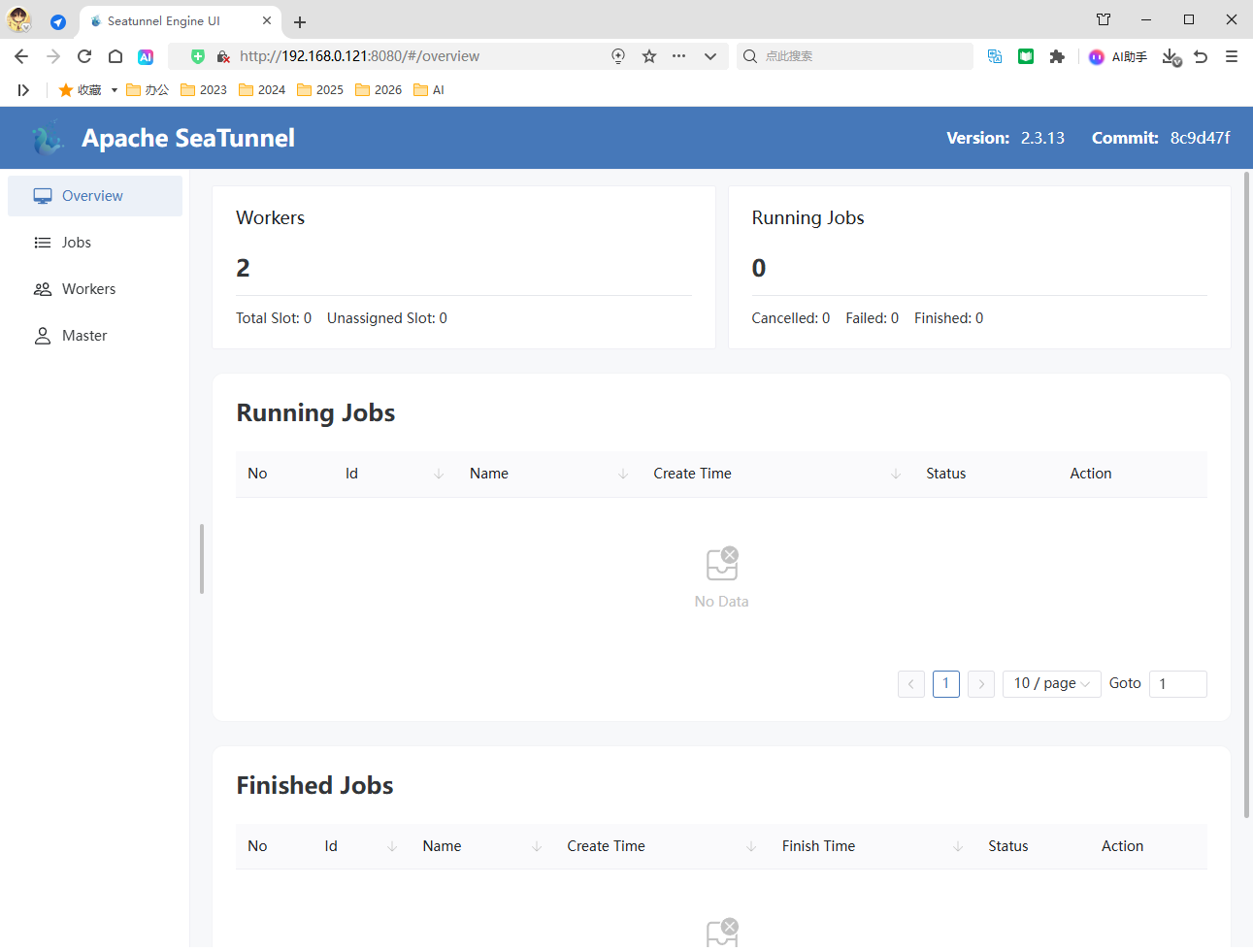

页面访问

ip+8080 端口访问页面

CLI命令

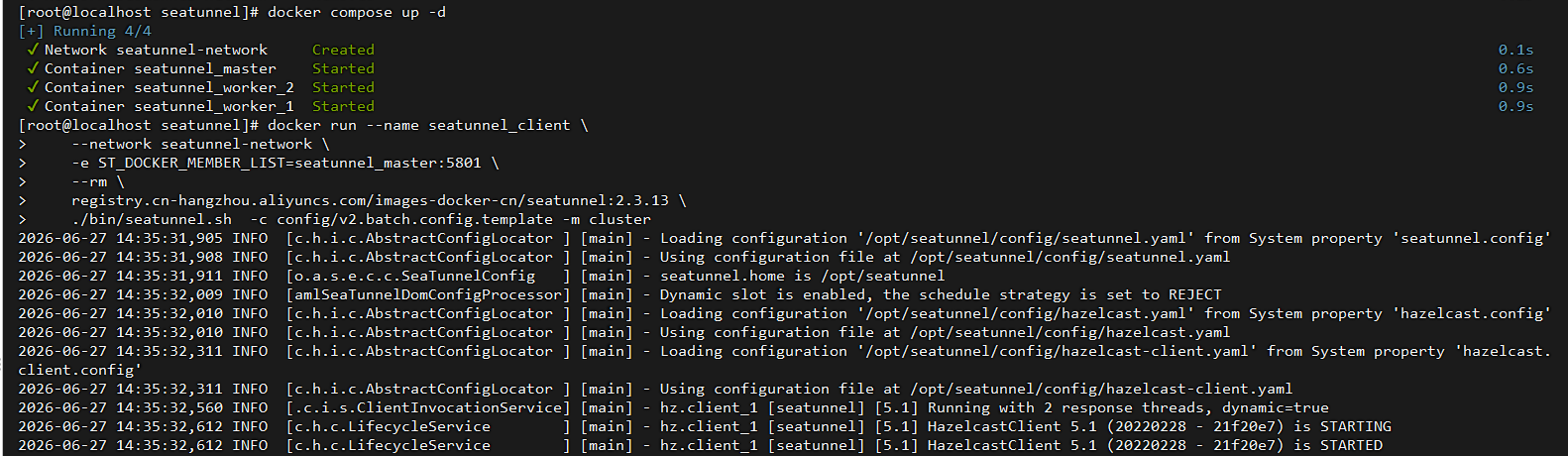

提交任务

bash 复制代码

docker run --name seatunnel_client \
    --network seatunnel-network \
    -e ST_DOCKER_MEMBER_LIST=seatunnel_master:5801 \
    --rm \
    apache/seatunnel:2.3.13 \
    ./bin/seatunnel.sh  -c config/v2.batch.config.template -m cluster

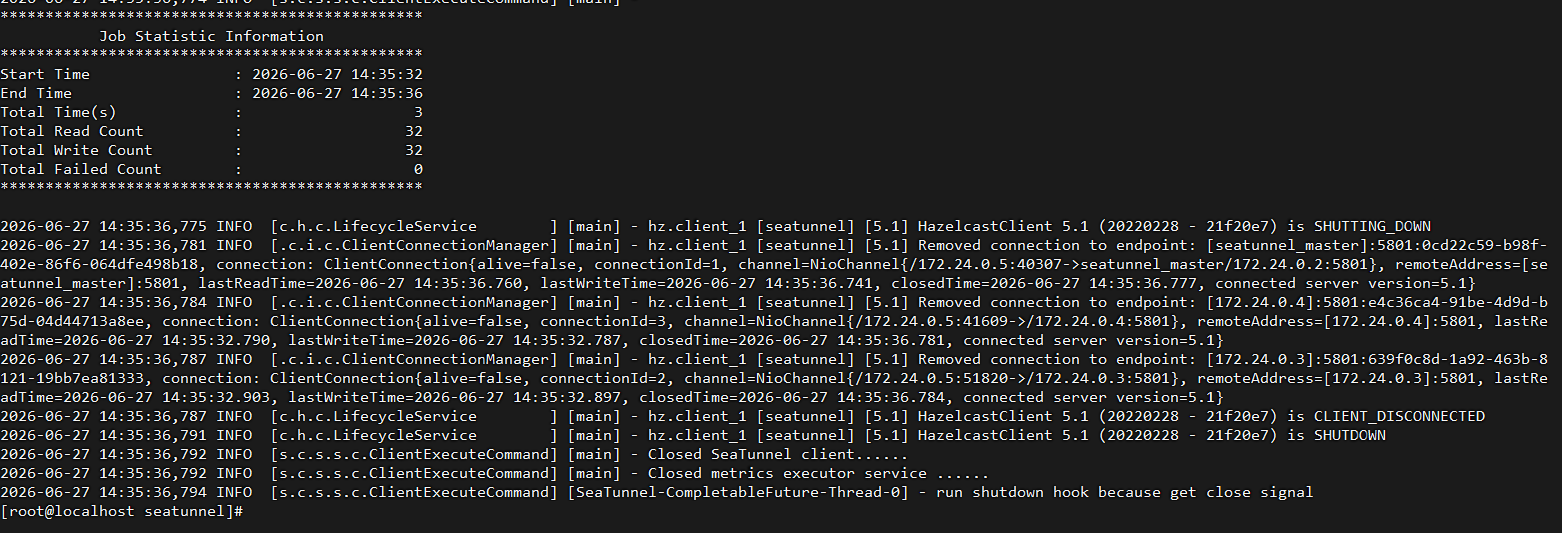

日志输出

查看任务

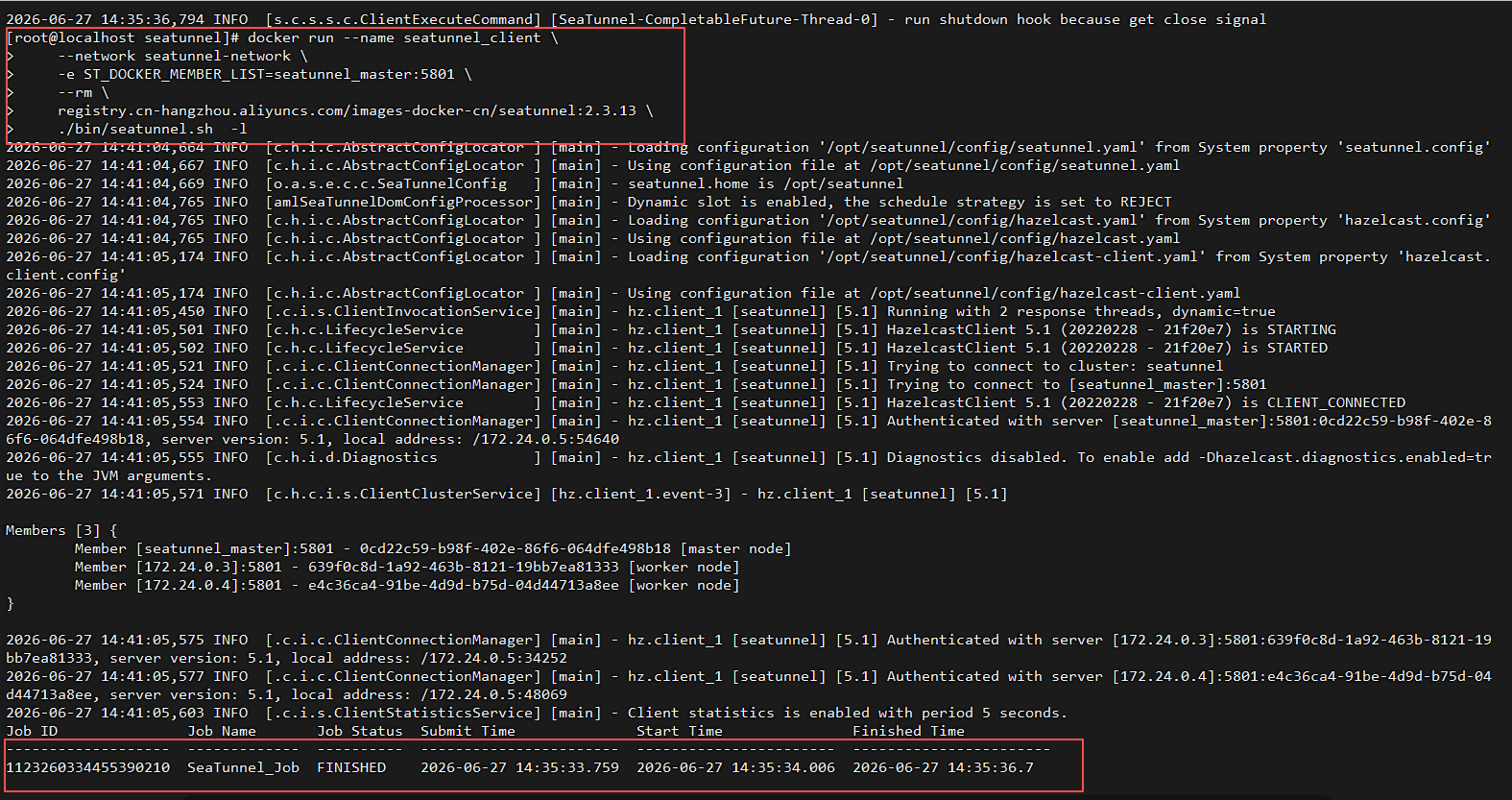

命令模式查看

bash 复制代码

docker run --name seatunnel_client \
    --network seatunnel-network \
    -e ST_DOCKER_MEMBER_LIST=seatunnel_master:5801 \
    --rm \
    apache/seatunnel:2.3.13 \
    ./bin/seatunnel.sh  -l

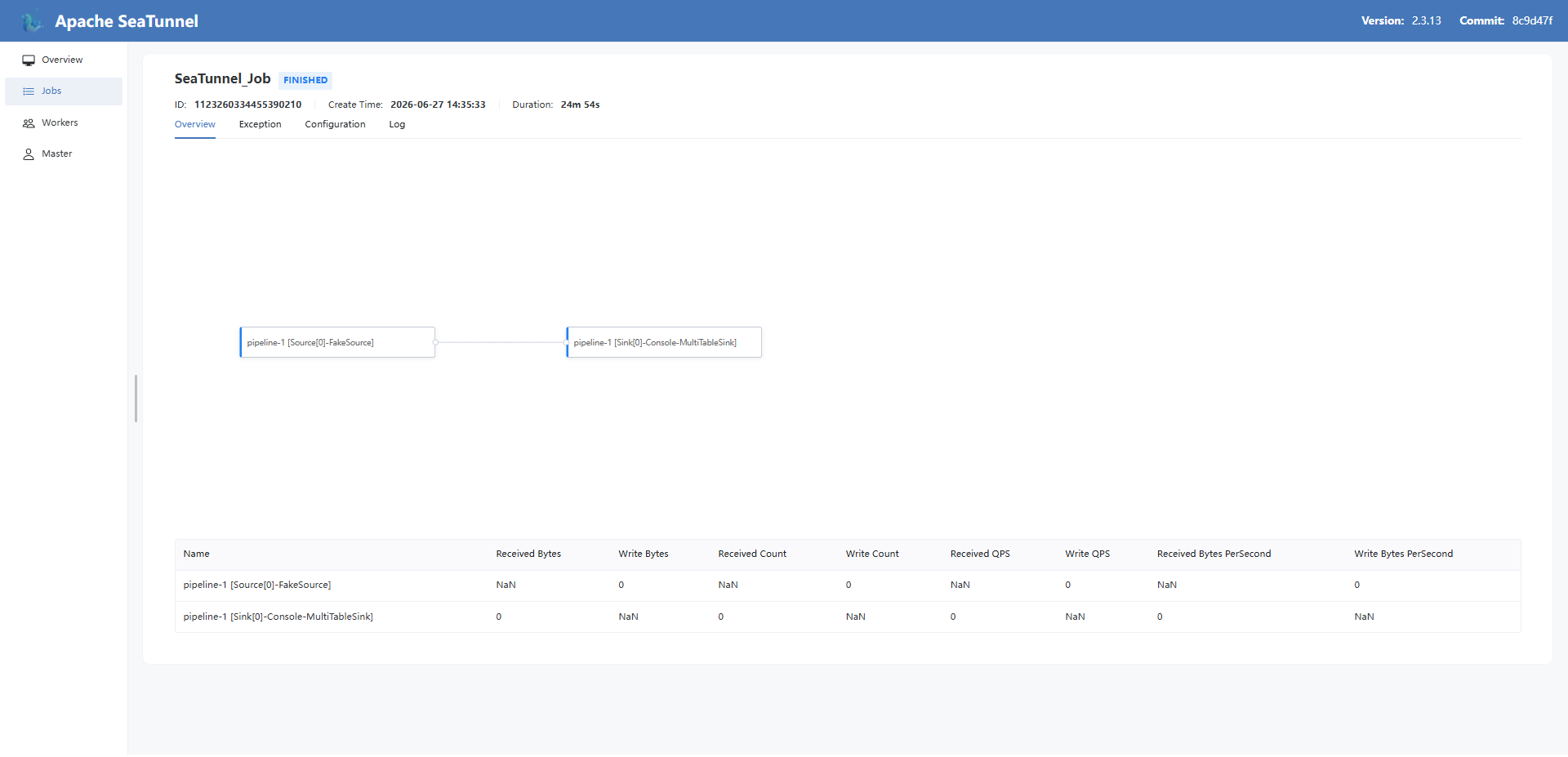

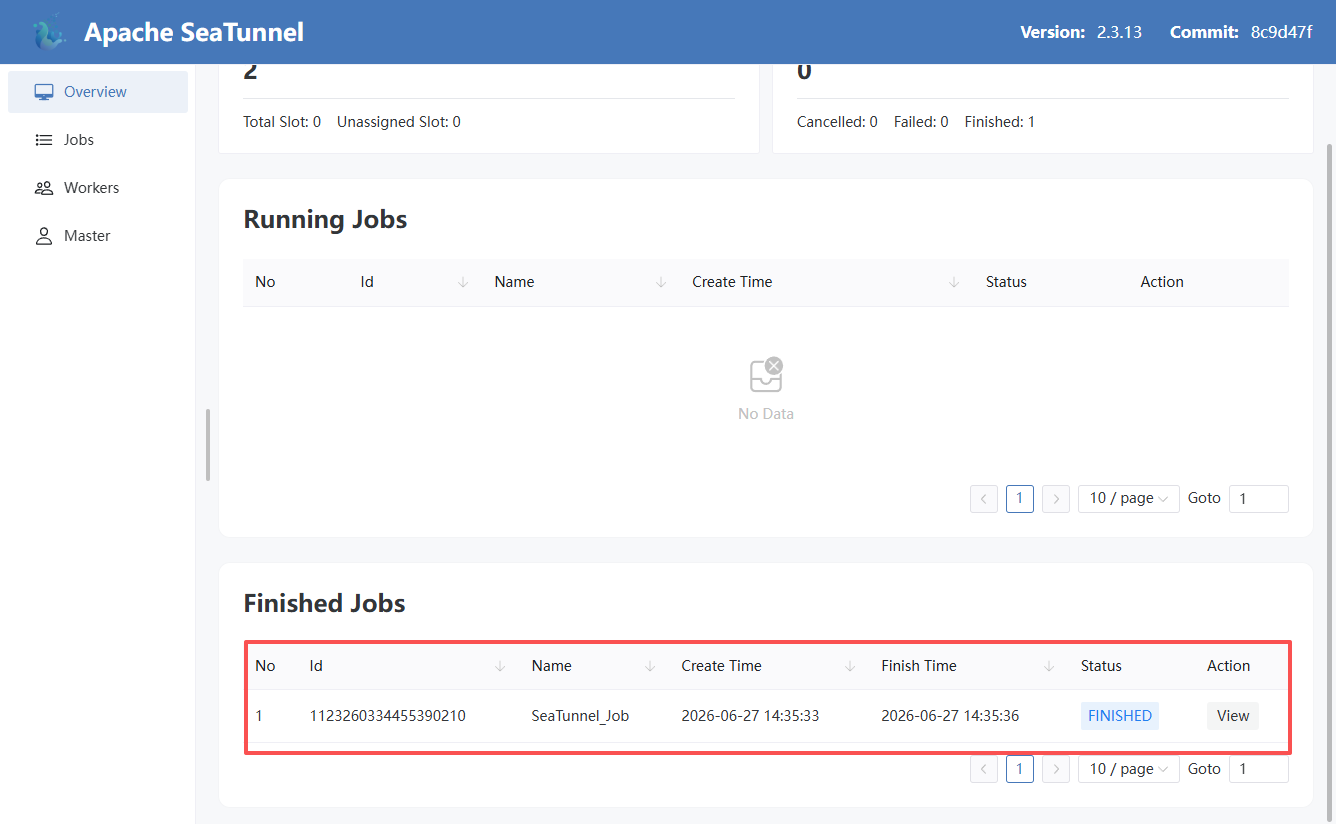

也可以在看版本中查看刚提交的任务

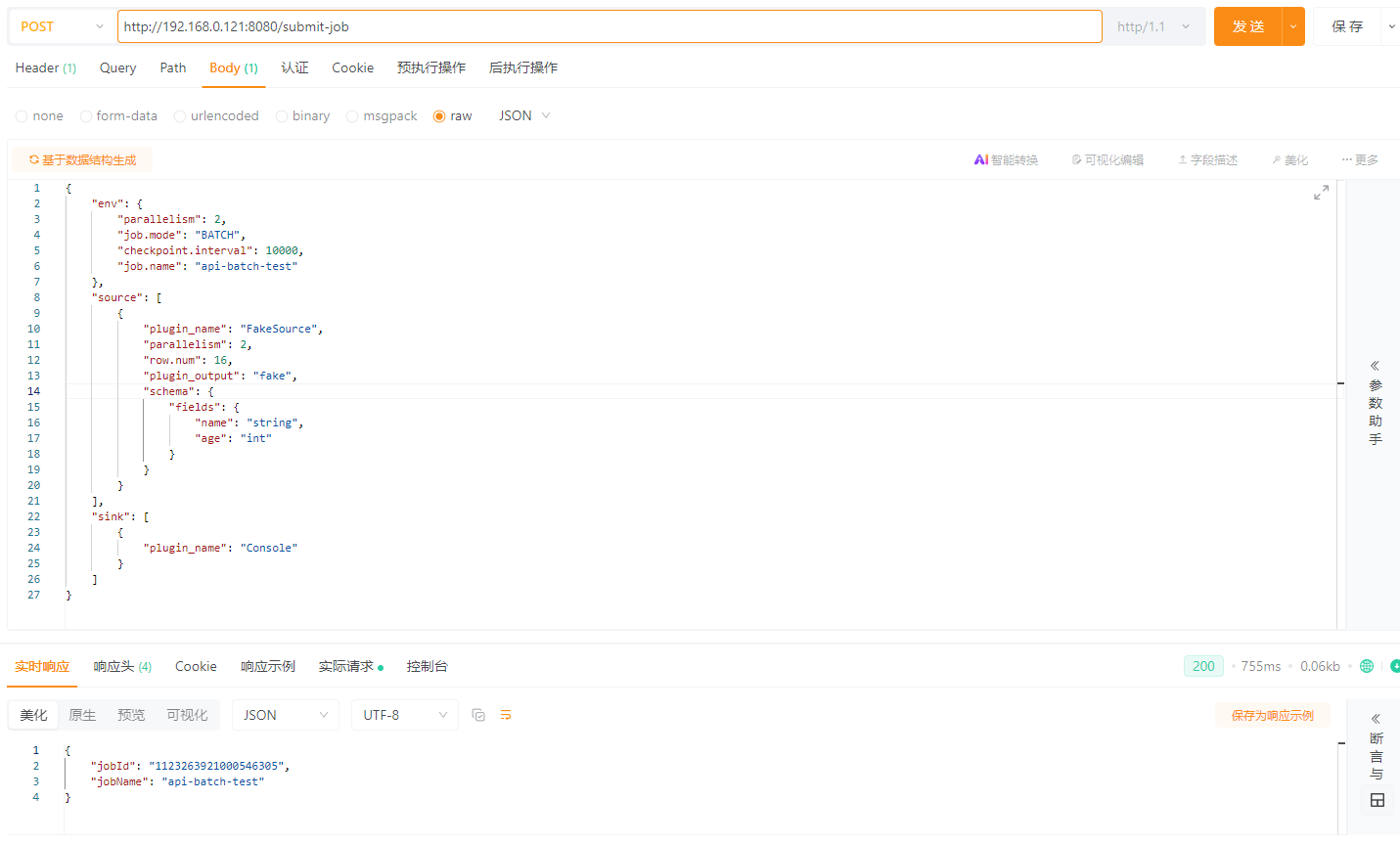

用API接口提交任务

示例一：提交任务

POST 请求 ip+8080端口 / submit-job

示例JSON

bash 复制代码

{
    "env": {
        "parallelism": 2,
        "job.mode": "BATCH",
        "checkpoint.interval": 10000,
        "job.name": "api-batch-test"
    },
    "source": [
        {
            "plugin_name": "FakeSource",
            "parallelism": 2,
            "row.num": 16,
            "plugin_output": "fake",
            "schema": {
                "fields": {
                    "name": "string",
                    "age": "int"
                }
            }
        }
    ],
    "sink": [
        {
            "plugin_name": "Console"
        }
    ]
}

示例二:迁移mysql to mysql

接口同上

json示例

bash 复制代码

{
    "env": {
        "parallelism": 1,
        "job.mode": "BATCH",
        "job.name": "batch-mysql-test"
    },
    "source": [
        {
            "plugin_name": "Jdbc",
            "url": "jdbc:mysql://192.168.56.100:3000/test?serverTimezone=GMT%2b8&useUnicode=true&characterEncoding=UTF-8&rewriteBatchedStatements=true",
            "driver": "com.mysql.cj.jdbc.Driver",
            "connection_check_timeout_sec": 100,
            "username": "root",
            "password": "123456",
            "query": "select * from student"
        }
    ],
    "transform": [],
    "sink": [
        {
            "plugin_name": "jdbc",
            "url": "jdbc:mysql://192.168.56.100:3000/test2?useUnicode=true&characterEncoding=UTF-8&rewriteBatchedStatements=true",
            "driver": "com.mysql.cj.jdbc.Driver",
            "username": "root",
            "password": "123456",
            "generate_sink_sql": true,
            "database": "test2",
            "table": "student"
        }
    ]
}

补充

job任务列表持久化

当前docker 容器重启后，job列表就不见了，需要持久化配置。

配置文件为master 节点的 /opt/seatunnel/config/hazelcast-master.yaml 文件

可参考以下配置

bash 复制代码

# 1. 创建目录并导出容器内配置
mkdir -p /data/seatunnel /data/seatunnel/imap
docker run --rm apache/seatunnel:2.3.13 cat /opt/seatunnel/config/hazelcast-master.yaml > /data/seatunnel/hazelcast-master.yaml

# 2. 追加持久化存储配置
cat >> /data/seatunnel/hazelcast-master.yaml <<'EOF'
  map:
    engine*:
      map-store:
        enabled: true
        initial-mode: LAZY
        factory-class-name: org.apache.seatunnel.engine.server.persistence.FileMapStoreFactory
        properties:
          type: hdfs
          namespace: /opt/seatunnel/imap-data
          fs.defaultFS: file:///
          clusterName: seatunnel
EOF

docker-compose.yml

bash 复制代码

version: "3.8"

services:
  master:
    image: apache/seatunnel:2.3.13
    container_name: seatunnel_master
    restart: unless-stopped
    environment:
      - ST_DOCKER_MEMBER_LIST=seatunnel_master:5801
      - SEATUNNEL_ENGINE_HTTP_ENABLE_HTTP=true
      - SEATUNNEL_ENGINE_HTTP_PORT=8080
    entrypoint: /bin/sh -c "/opt/seatunnel/bin/seatunnel-cluster.sh -r master"
    ports:
      - "5801:5801"
      - "8080:8080"
    volumes:
      # 覆盖容器内置hazelcast-master.yaml
      - /data/seatunnel/hazelcast-master.yaml:/opt/seatunnel/config/hazelcast-master.yaml
      # 持久化任务数据映射到宿主机
      - /data/seatunnel/imap:/opt/seatunnel/imap-data
    networks:
      - seatunnel_network

  worker1:
    image: apache/seatunnel:2.3.13
    container_name: seatunnel_worker_1
    restart: unless-stopped
    environment:
      - ST_DOCKER_MEMBER_LIST=seatunnel_master:5801
      - HZ_NETWORK_RESTAPI_ENABLED=true
    entrypoint: /bin/sh -c "/opt/seatunnel/bin/seatunnel-cluster.sh -r worker"
    depends_on:
      - master
    volumes:
      # Worker不需要自定义hazelcast-master，但共享持久化目录（集群共享任务状态）
      - /data/seatunnel/imap:/opt/seatunnel/imap-data
    networks:
      - seatunnel_network

  worker2:
    image: apache/seatunnel:2.3.13
    container_name: seatunnel_worker_2
    restart: unless-stopped
    environment:
      - ST_DOCKER_MEMBER_LIST=seatunnel_master:5801
      - HZ_NETWORK_RESTAPI_ENABLED=true
    entrypoint: /bin/sh -c "/opt/seatunnel/bin/seatunnel-cluster.sh -r worker"
    depends_on:
      - master
    volumes:
      - /data/seatunnel/imap:/opt/seatunnel/imap-data
    networks:
      - seatunnel_network

networks:
  seatunnel_network:
    name: seatunnel-network
    driver: bridge
