Tomcat项目本地部署

测试tomcat

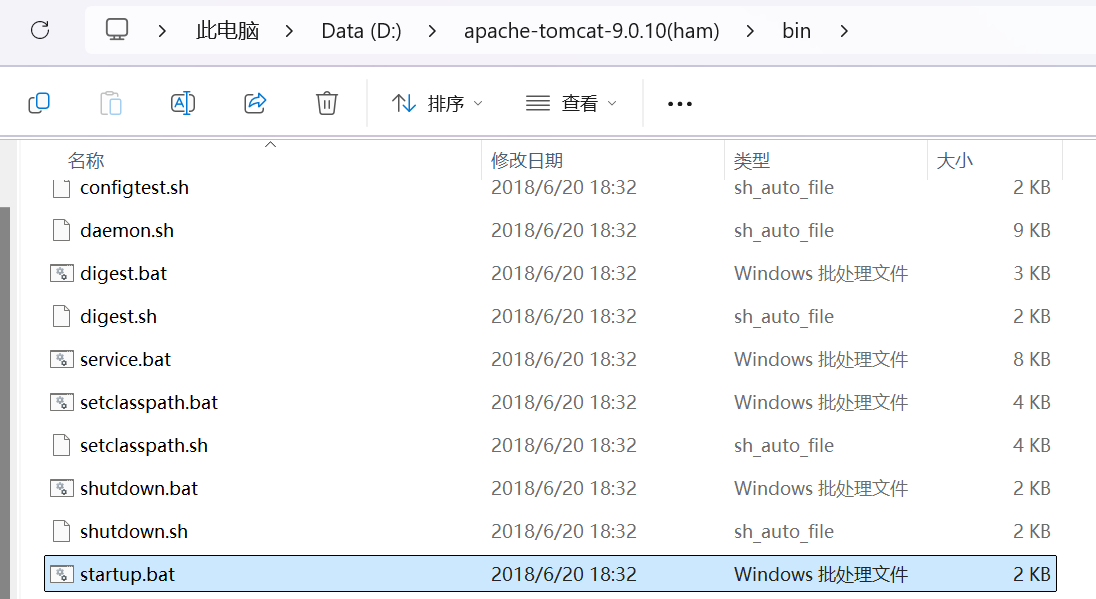

1.进入tomcat中bin文件夹下，启动tomcat，双击startup.bat

如果启动闪退，通常是 JAVA_HOME 环境变量未正确配置，或Tomcat路径包含中文/空格

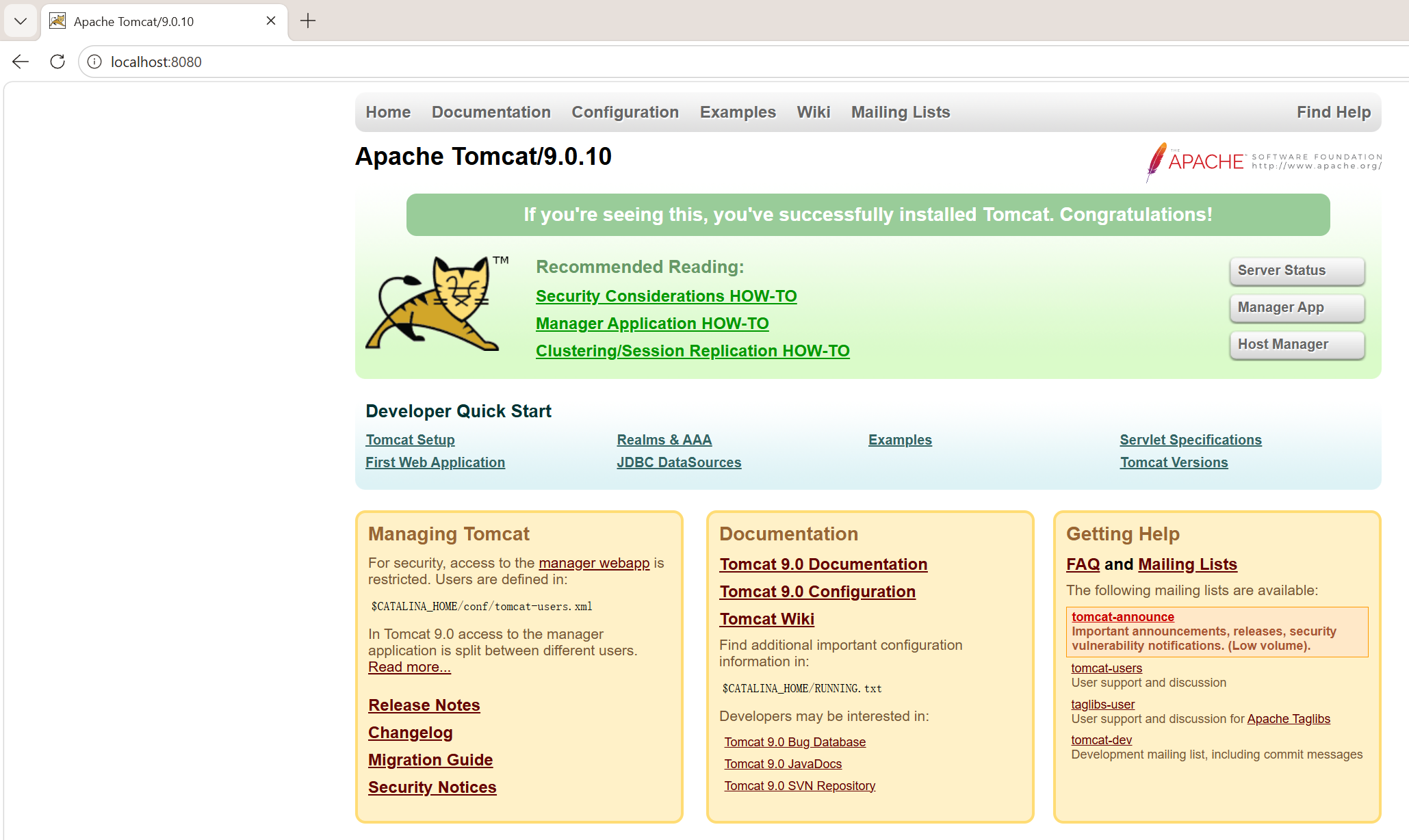

2.打开浏览器，访问 http://localhost:8080。如果看到Tomcat的默认欢迎页面,成功

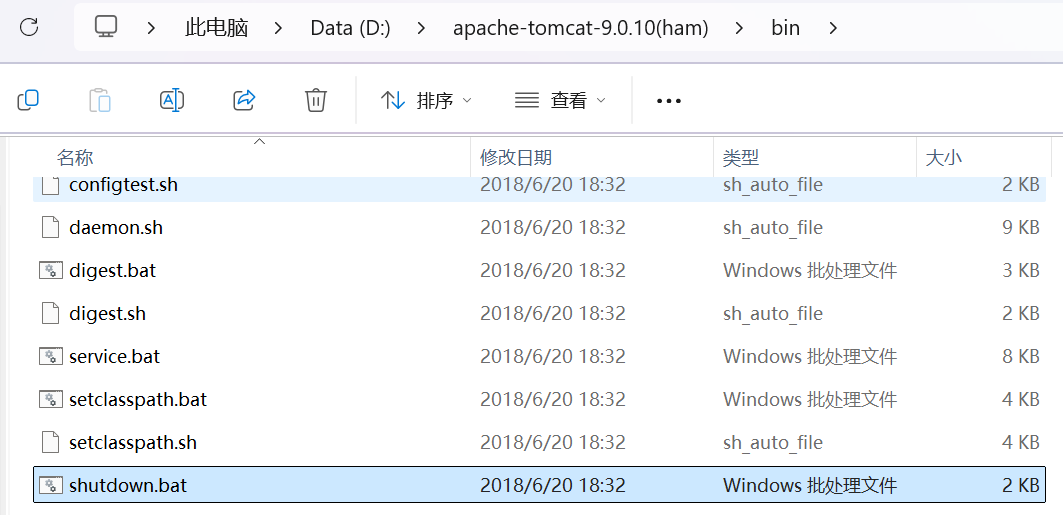

3.关闭tomcat，双击shutdown.bat

打包项目

打开一个项目，以我最近写的SSM项目哈米音乐为例，项目分为4个模块，如下图所示：

其中，属于web项目的是console(后台)、file(图片服务器)以及portal(后台)，所以今天的tomcat本地部署就是部署这三个web

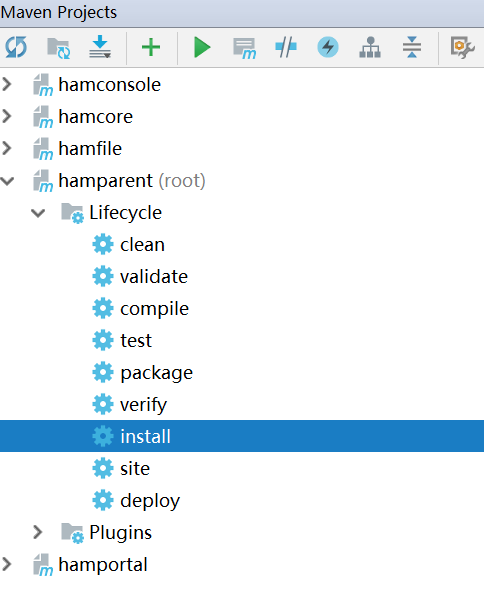

1.使用maven对项目进行打包

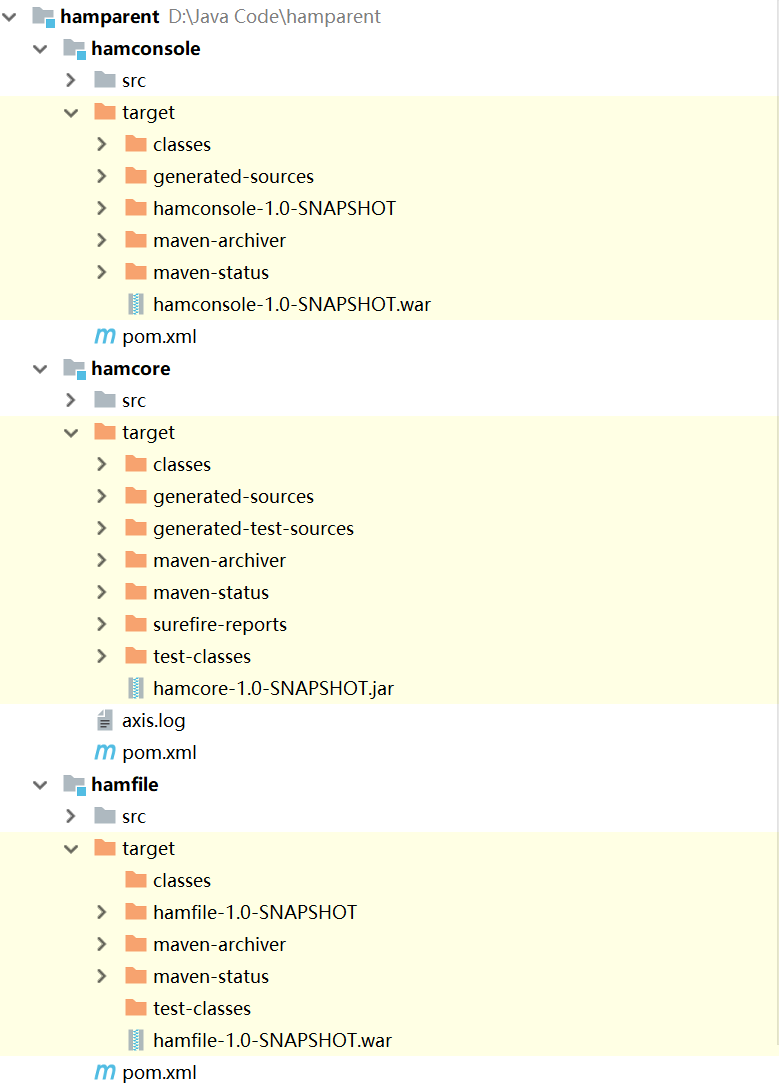

target目录下，能找到所打包的jar包和war包

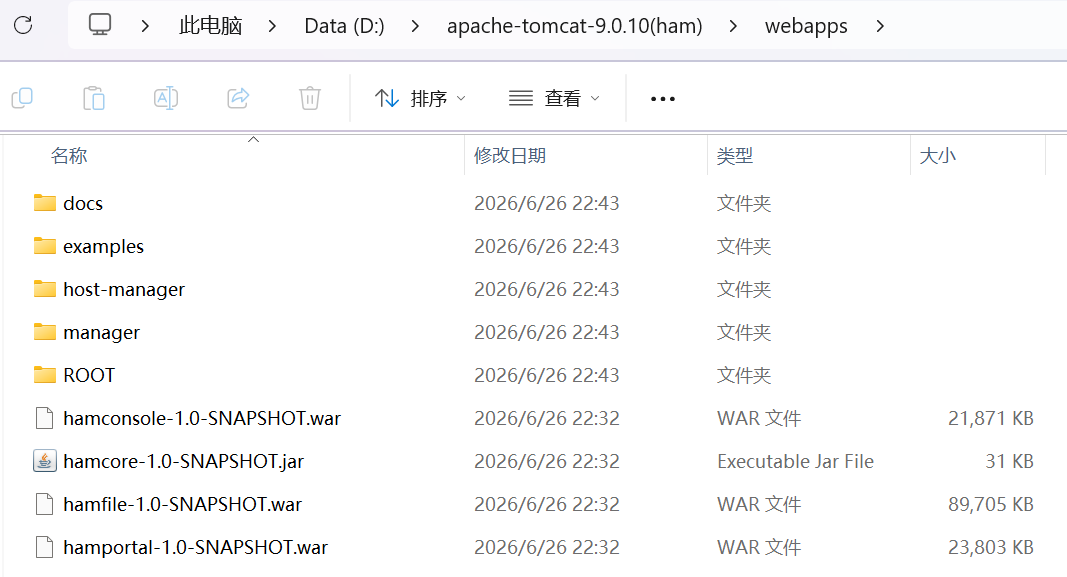

2.将打包后的项目放到自己tomcat中webapps文件夹下

修改tomcat配置

1.进入tomcat的conf下，修改server.xml

添加如下代码(需要部署多少个，就加几个，我这里是3个，所以就加了3个)

XML 复制代码

<!-- 每个service的名称要区别开 -->
<Service name="Catalina1">
    <!-- 每个项目的端口号也要进行区分，保证不被占用 -->
    <Connector port="8088" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443" URLEncoding="UTF-8"/>
    <!-- 这里的AJP端口同样也要进行区分 -->
	<Connector port="8010" protocol="AJP/1.3" redirectPort="8443" secretRequired=""/>
    <Engine name="Catalina1" defaultHost="localhost">
      <Realm className="org.apache.catalina.realm.LockOutRealm">
        <Realm className="org.apache.catalina.realm.UserDatabaseRealm"
               resourceName="UserDatabase"/>
      </Realm>

      <Host name="localhost"  appBase="webapps"
            unpackWARs="true" autoDeploy="true">
        <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
               prefix="localhost_access_log" suffix=".txt"
               pattern="%h %l %u %t &quot;%r&quot; %s %b" />
            <!-- 这里是想要部署的对应项目的名称 -->
		    <Context docBase="ham-file-1.0-SNAPSHOT" path="/" reloadable="true"/>
      </Host>
    </Engine>
  </Service>
  <Service name="Catalina2">
    <Connector port="8075" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443" URLEncoding="UTF-8"/>
	<Connector port="8011" protocol="AJP/1.3" redirectPort="8443" secretRequired=""/>
    <Engine name="Catalina2" defaultHost="localhost">
      <Realm className="org.apache.catalina.realm.LockOutRealm">
        <Realm className="org.apache.catalina.realm.UserDatabaseRealm"
               resourceName="UserDatabase"/>
      </Realm>

      <Host name="localhost"  appBase="webapps"
            unpackWARs="true" autoDeploy="true">
        <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
               prefix="localhost_access_log" suffix=".txt"
               pattern="%h %l %u %t &quot;%r&quot; %s %b" />
		    <Context docBase="ham-portal-1.0-SNAPSHOT" path="/" reloadable="true"/>
      </Host>
    </Engine>
  </Service>
  <Service name="Catalina3">
    <Connector port="8089" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443" URLEncoding="UTF-8"/>
	<Connector port="8012" protocol="AJP/1.3" redirectPort="8443" secretRequired=""/>
    <Engine name="Catalina3" defaultHost="localhost">
      <Realm className="org.apache.catalina.realm.LockOutRealm">
        <Realm className="org.apache.catalina.realm.UserDatabaseRealm"
               resourceName="UserDatabase"/>
      </Realm>

      <Host name="localhost"  appBase="webapps"
            unpackWARs="true" autoDeploy="true">
        <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
               prefix="localhost_access_log" suffix=".txt"
               pattern="%h %l %u %t &quot;%r&quot; %s %b" />
		    <Context docBase="ham-console-1.0-SNAPSHOT" path="/" reloadable="true"/>
      </Host>
    </Engine>
  </Service>

部署项目

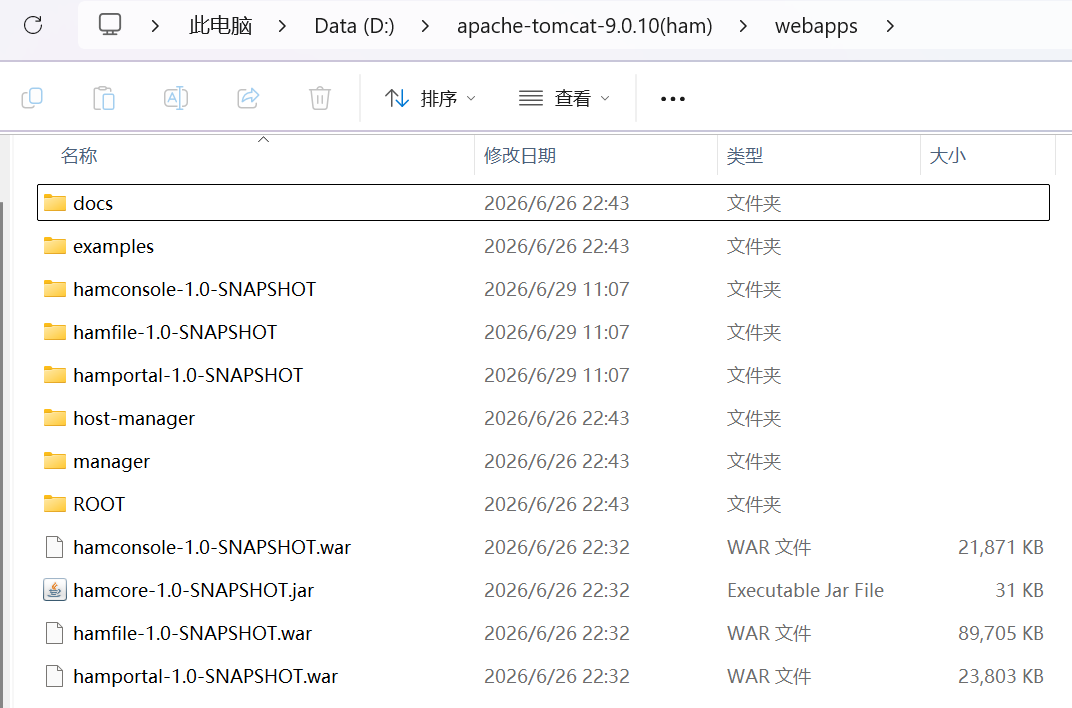

双击startup.bat，启动tomcat，webapps下会产生三个新的文件夹

这样就可以在浏览器访问了
