说明:
我希望将pdf文件转换成jpg文件
请去下载并安装 Ghostscript,gs10050w64.exe
配置环境变量:D:\Program Files\gs\gs10.05.0\bin
本地pdf路径:C:\Users\wangrusheng\Documents\name.pdf
输出文件目录:C:\Users\wangrusheng\Documents\PdfToJpgOutput

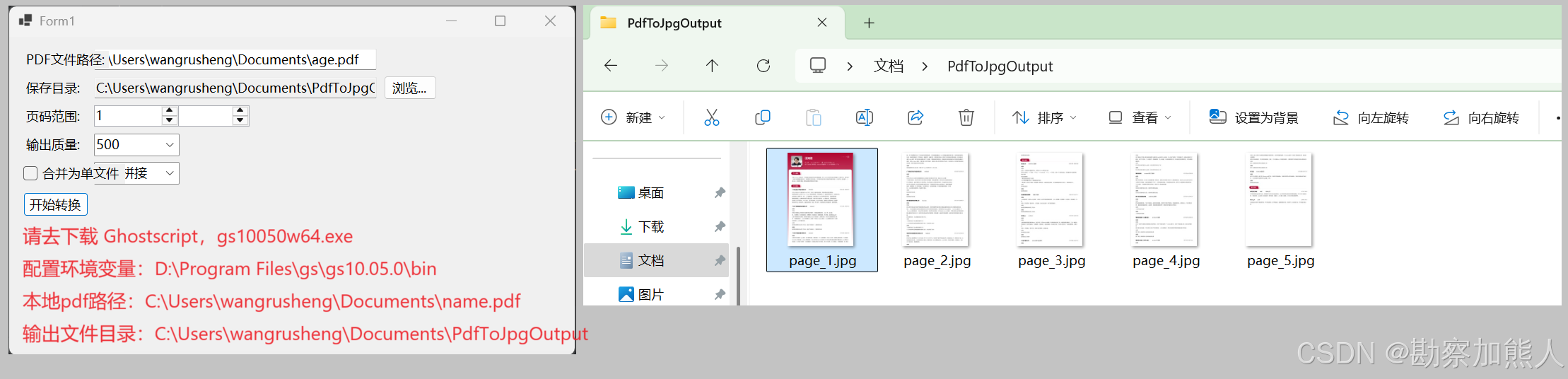

效果图:
step1:C:\Users\wangrusheng\RiderProjects\WinFormsApp18\WinFormsApp18\Form1.cs
csharp
using System;
using System.Collections.Generic;
using System.Drawing;
using System.IO;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace WinFormsApp18
{
public partial class Form1 : Form
{
// 固定PDF路径配置 C:\Users\wangrusheng\Documents
public const string FixedPdfPath = @"C:\Users\wangrusheng\Documents\age.pdf";
private string _currentTempDir;
// UI控件
private TextBox txtSaveDir;
private NumericUpDown numStartPage;
private NumericUpDown numEndPage;
private ComboBox cmbQuality;
private CheckBox chkMerge;
private ComboBox cmbOrientation;
public Form1()
{
InitializeComponent();
InitializeComponents();
LoadSettings();
}
private void InitializeComponents()
{
// 固定PDF路径显示
var lblFile = new Label
{
Text = "PDF文件路径:",
Location = new Point(20, 20),
AutoSize = true
};
var txtFixedPath = new TextBox
{
Text = FixedPdfPath,
Location = new Point(120, 17),
Width = 400,
ReadOnly = true,
BackColor = SystemColors.Window
};
// 保存目录区域
var lblSaveDir = new Label
{
Text = "保存目录:",
Location = new Point(20, 60),
AutoSize = true
};
txtSaveDir = new TextBox
{
Text = Path.Combine(
Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments),
"PdfToJpgOutput"),
Location = new Point(120, 57),
Width = 400,
ReadOnly = true
};
var btnSelectDir = new Button
{
Text = "浏览...",
Location = new Point(530, 55),
AutoSize = true
};
btnSelectDir.Click += BtnSelectDir_Click;
// 页码选择
var lblPages = new Label
{
Text = "页码范围:",
Location = new Point(20, 100),
AutoSize = true
};
numStartPage = new NumericUpDown
{
Location = new Point(120, 97),
Minimum = 1,
Maximum = 10000
};
numEndPage = new NumericUpDown
{
Location = new Point(220, 97),
Minimum = 0,
Maximum = 10000
};
// 质量选择
var lblQuality = new Label
{
Text = "输出质量:",
Location = new Point(20, 140),
AutoSize = true
};
cmbQuality = new ComboBox
{
Location = new Point(120, 137),
Items = { "300", "400", "500", "600" },
SelectedIndex = 2
};
// 合并选项
chkMerge = new CheckBox
{
Text = "合并为单文件",
Location = new Point(20, 180),
AutoSize = true
};
cmbOrientation = new ComboBox
{
Location = new Point(120, 177),
Items = { "垂直拼接", "水平拼接" },
SelectedIndex = 0
};
// 操作按钮
var btnRun = new Button
{
Text = "开始转换",
Location = new Point(20, 220),
AutoSize = true
};
btnRun.Click += BtnRun_Click;
// 添加所有控件
Controls.AddRange(new Control[]
{
lblFile, txtFixedPath,
lblSaveDir, txtSaveDir, btnSelectDir,
lblPages, numStartPage, numEndPage,
lblQuality, cmbQuality,
chkMerge, cmbOrientation,
btnRun
});
}
private void BtnSelectDir_Click(object sender, EventArgs e)
{
using var dialog = new FolderBrowserDialog
{
SelectedPath = txtSaveDir.Text,
Description = "选择保存目录"
};
if (dialog.ShowDialog() == DialogResult.OK)
{
if (FileHelper.ValidatePath(dialog.SelectedPath))
{
txtSaveDir.Text = dialog.SelectedPath;
}
else
{
MessageBox.Show("选择的目录路径无效");
}
}
}
private async void BtnRun_Click(object sender, EventArgs e)
{
try
{
if (!ValidateInputs()) return;
_currentTempDir = FileHelper.GetTempWorkspace();
var result = await ConvertPdfToImagesAsync();
if (result.Success)
{
if (chkMerge.Checked)
{
await MergeImagesAsync();
}
MoveFinalFiles();
MessageBox.Show("转换成功完成");
}
else
{
throw new Exception(result.ErrorMessage);
}
}
catch (Exception ex)
{
MessageBox.Show($"操作失败: {ex.Message}");
}
finally
{
FileHelper.CleanTempFiles(_currentTempDir);
}
}
private bool ValidateInputs()
{
if (!File.Exists(FixedPdfPath))
{
MessageBox.Show($"自动读取的PDF文件不存在:{FixedPdfPath}");
return false;
}
if (numStartPage.Value > numEndPage.Value && numEndPage.Value != 0)
{
MessageBox.Show("起始页码不能大于结束页码");
return false;
}
return true;
}
private async Task<(bool Success, string ErrorMessage)> ConvertPdfToImagesAsync()
{
var args = new List<string>
{
"-dNOSAFER",
$"-r{cmbQuality.SelectedItem}",
"-sDEVICE=jpeg",
"-dBATCH",
"-dNOPAUSE",
"-dEPSCrop",
$"-dFirstPage={numStartPage.Value}",
numEndPage.Value > 0 ? $"-dLastPage={numEndPage.Value}" : "",
$"-sOutputFile={Path.Combine(_currentTempDir, "page_%d.jpg")}",
$"\"{FixedPdfPath}\""
};
var (success, output) = FileHelper.ExecuteCommand("gswin64c", string.Join(" ", args), _currentTempDir);
return (success, output);
}
private async Task MergeImagesAsync()
{
var args = $"{Path.Combine(_currentTempDir, "page_*.jpg")} " +
$"{(cmbOrientation.SelectedIndex == 0 ? "-append" : "+append")} " +
$"{Path.Combine(_currentTempDir, "merged.jpg")}";
var (success, output) = FileHelper.ExecuteCommand("magick", args, _currentTempDir);
if (!success) throw new Exception(output);
}
private void MoveFinalFiles()
{
var destDir = txtSaveDir.Text;
Directory.CreateDirectory(destDir);
var filesToMove = chkMerge.Checked
? new[] { "merged.jpg" }
: Directory.GetFiles(_currentTempDir, "page_*.jpg");
foreach (var file in filesToMove)
{
var destPath = Path.Combine(destDir, Path.GetFileName(file));
File.Move(file, destPath, true);
}
}
private void LoadSettings()
{
// 可添加其他配置加载逻辑
numStartPage.Value = 1;
numEndPage.Value = 0;
}
private void SaveSettings()
{
// 可添加配置保存逻辑
}
protected override void OnFormClosing(FormClosingEventArgs e)
{
SaveSettings();
base.OnFormClosing(e);
}
}
}
step2:C:\Users\wangrusheng\RiderProjects\WinFormsApp18\WinFormsApp18\FileHelper.cs
csharp
using System;
using System.Diagnostics;
using System.IO;
using System.Linq;
using System.Runtime.InteropServices;
namespace WinFormsApp18
{
public static class FileHelper
{
private const string GhostscriptExeName = "gswin64c.exe";
private static readonly string[] GhostscriptSearchPaths =
{
@"D:\Program Files\gs"
};
public static string GetTempWorkspace()
{
var tempDir = Path.Combine(
Path.GetTempPath(),
"PdfToJpg",
DateTime.Now.ToString("yyyyMMdd_HHmmss")
);
Directory.CreateDirectory(tempDir);
return tempDir;
}
public static bool ValidatePath(string path)
{
try
{
var fullPath = Path.GetFullPath(path);
if (path.IndexOfAny(Path.GetInvalidPathChars()) >= 0)
return false;
if (RuntimeInformation.IsOSPlatform(OSPlatform.Windows))
{
if (!fullPath.StartsWith(ApplicationInfo.AppRootPath, StringComparison.OrdinalIgnoreCase))
return false;
}
else
{
if (!fullPath.StartsWith(ApplicationInfo.AppRootPath))
return false;
}
return true;
}
catch
{
return false;
}
}
public static (bool Success, string Output) ExecuteCommand(string command, string args, string workingDir)
{
try
{
var fullCommandPath = command.Equals("gswin64c", StringComparison.OrdinalIgnoreCase)
? FindGhostscriptPath()
: command;
if (fullCommandPath == null)
throw new FileNotFoundException("Ghostscript not found. Please install from https://www.ghostscript.com/");
var startInfo = new ProcessStartInfo
{
FileName = fullCommandPath,
Arguments = args,
WorkingDirectory = workingDir,
UseShellExecute = false,
RedirectStandardOutput = true,
RedirectStandardError = true,
CreateNoWindow = true
};
using var process = Process.Start(startInfo);
var output = process.StandardOutput.ReadToEnd();
var error = process.StandardError.ReadToEnd();
if (!process.WaitForExit(30000))
throw new TimeoutException("Process execution timed out");
return (
process.ExitCode == 0,
$"Exit Code: {process.ExitCode}\nOutput:\n{output}\nErrors:\n{error}"
);
}
catch (Exception ex)
{
return (false, ex.Message);
}
}
private static string FindGhostscriptPath()
{
// Check if ghostscript is in PATH
var pathEnv = Environment.GetEnvironmentVariable("PATH") ?? "";
foreach (var path in pathEnv.Split(Path.PathSeparator))
{
var fullPath = Path.Combine(path, GhostscriptExeName);
if (File.Exists(fullPath))
return fullPath;
}
// Search common installation directories
foreach (var basePath in GhostscriptSearchPaths)
{
if (!Directory.Exists(basePath)) continue;
var versions = Directory.GetDirectories(basePath)
.OrderByDescending(d => d)
.ToList();
foreach (var versionDir in versions)
{
var exePath = Path.Combine(versionDir, "bin", GhostscriptExeName);
if (File.Exists(exePath))
return exePath;
}
}
throw new FileNotFoundException($"Ghostscript executable ({GhostscriptExeName}) not found. " +
"Please install from https://www.ghostscript.com/");
}
public static void CleanTempFiles(string tempDir)
{
try
{
if (Directory.Exists(tempDir))
{
Directory.Delete(tempDir, true);
}
}
catch (Exception ex)
{
Debug.WriteLine($"Error cleaning temp files: {ex.Message}");
}
}
}
public static class ApplicationInfo
{
public static string AppRootPath => AppDomain.CurrentDomain.BaseDirectory;
}
}
end
