Ubuntu 编译SRS和ZLMediaKit用于视频推拉流

小鱼仙官2025-05-16 8:15

SRS实现视频的rtmp webrtc推流

ZLMediaKit编译生成MediaServer实现rtsp推流

SRS指定某个固定网卡，修改程序后重新编译

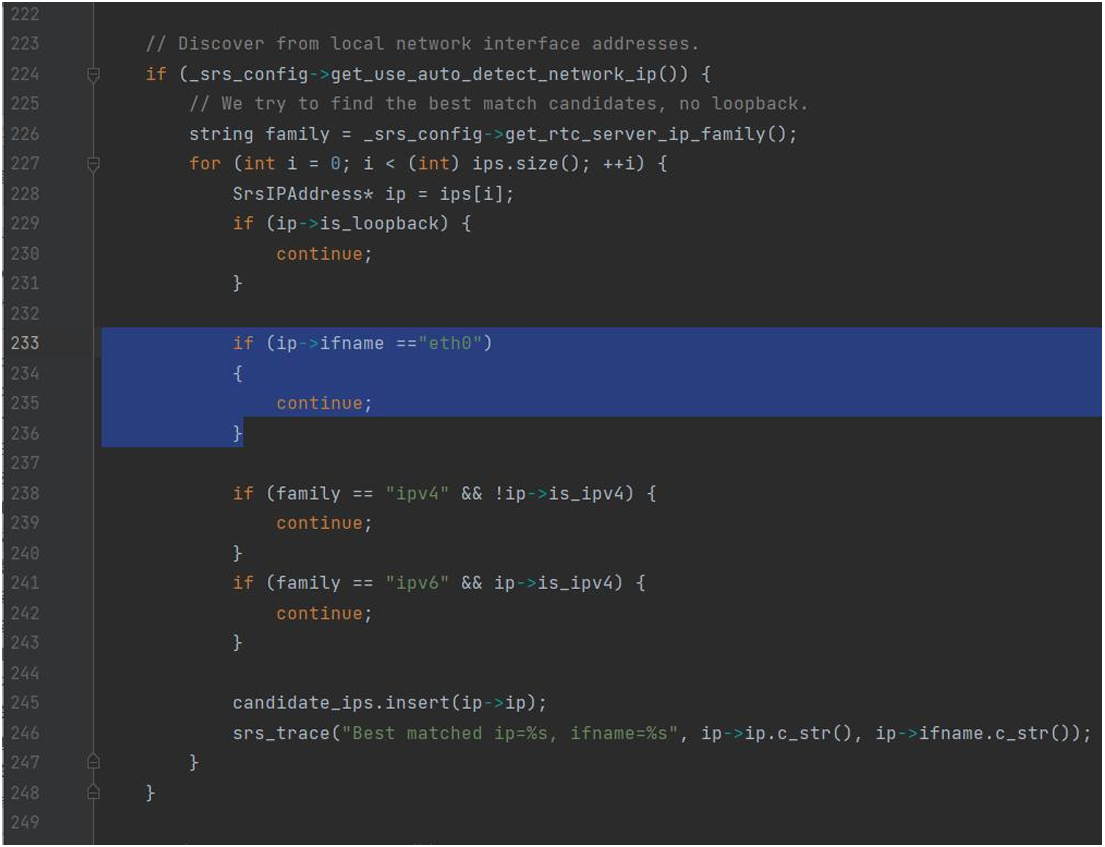

打开SRS-4.0.0/trunk/src/app/srs_app_rtc_server.cpp，在 232 行后面添加：

ZLMediaKit编译后文件存放在ZLMediakit/release/linux/Debug/下，需要在执行文件目录放一个auth.json文件，存放rtsp使用用户名admin和密码admin（MD5加密），文件内容：

复制代码
{
    "auth": [
        {
            "passwd": "21232F297A57A5A743894A0E4A801FC3",
            "username": "admin"
        }
    ]
}

使用FFMPEG实现获取摄像头数据，压缩，推流过程。

FFMPEG编译带webrtc功能：sudo ./configure --enable-libx264 --enable-gpl --enable-nvmpi --enable-shared --prefix=/usr/local/ffmpeg_webrtc

具体程序如下：

FFmpegEncode.h

复制代码
#ifndef ffmpeg_encode_hpp
#define ffmpeg_encode_hpp

#include <iostream>
#include <opencv2/opencv.hpp>
#include <boost/thread.hpp>
#include <boost/smart_ptr.hpp>
#include <boost/bind.hpp>
#include <vector>
#include <map>
#include <stdio.h>
#include <string>
#include <utility>

extern "C" {
#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <math.h>

#include <libavutil/avassert.h>
#include <libavutil/channel_layout.h>
#include <libavutil/opt.h>
#include <libavutil/mathematics.h>
#include <libavutil/timestamp.h>
#include <libavcodec/avcodec.h>
#include <libavformat/avformat.h>
#include <libswscale/swscale.h>
#include <libswresample/swresample.h>

#include <libavcodec/avcodec.h>
#include <libavformat/avformat.h>
#include <libswscale/swscale.h>
#include <libavutil/imgutils.h>
#include <libavutil/opt.h>
#include <libavutil/mathematics.h>
#include <libavutil/samplefmt.h>

#include <libavutil/time.h>
#include <libavdevice/avdevice.h>
}


#include <thread>

class FFmpegEncode
{
public:
    FFmpegEncode();
    ~FFmpegEncode();

    int open_output(std::string path, std::string type, bool isAudio);

    // 初始化编码器
    int init_encoderCodec(std::string type, int32_t fps, uint32_t width, uint32_t height, int IFrame, int code_rate);

    std::string get_encode_extradata();

    std::shared_ptr<AVPacket> encode();

    int write_packet(std::shared_ptr<AVPacket> packet){
        return av_interleaved_write_frame(outputContext, packet.get());
    }

    int mat_to_frame(cv::Mat &mat);

private:
    int initSwsFrame(AVFrame *pSwsFrame, int iWidth, int iHeight);

    AVFrame *pSwsVideoFrame;

    AVFormatContext *outputContext = nullptr;
    AVCodecContext *encodeContext = nullptr;

    int64_t packetCount = 0;

    int video_fps = 25;

    uint8_t *pSwpBuffer = nullptr;
};

#endif /* ffmpeg_encode_hpp*/

FFmpegEncode.cpp

复制代码
#include "ffmpeg_encode.h"

FFmpegEncode::FFmpegEncode()
{
    av_register_all();
    avcodec_register_all();
    avformat_network_init();
    avdevice_register_all();
    av_log_set_level(AV_LOG_ERROR);     // 设置 log 为error级别

    pSwsVideoFrame = av_frame_alloc();
}

FFmpegEncode::~FFmpegEncode()
{
    if(encodeContext != nullptr)
        avcodec_free_context(&encodeContext);

    if(outputContext != nullptr)
    {
        av_write_trailer(outputContext);
        for(uint32_t i = 0; i < outputContext->nb_streams; i++)
        {
            avcodec_close(outputContext->streams[i]->codec);
        }
        avformat_close_input(&outputContext);
    }

    av_frame_free(&pSwsVideoFrame);

    if(pSwpBuffer)
        av_free(pSwpBuffer);
}

int FFmpegEncode::open_output(std::string path, std::string type, bool isAudio)
{
    int ret = avformat_alloc_output_context2(&outputContext, NULL, type.c_str(), path.c_str());
    std::cout<<"avformat_alloc_output_context2 ret : "<<ret<<std::endl;
    if (ret < 0)
    {
        av_log(NULL, AV_LOG_ERROR, "open output context failed\n");
        return ret;
    }

    ret = avio_open(&outputContext->pb, path.c_str(), AVIO_FLAG_WRITE);
    std::cout<<"avio_open ret : "<<ret<<std::endl;

    if (isAudio)
    {
        for (uint32_t i = 0; i < outputContext->nb_streams; i++) // 如果有音频 和 视频 nputContext->nb_streams则为2
        {
            if (outputContext->streams[i]->codec->codec_type == AVMediaType::AVMEDIA_TYPE_AUDIO)// 如果有stream 为音频 则不处理
            {
                continue;
            }
            AVStream * stream = avformat_new_stream(outputContext, encodeContext->codec);
            ret = avcodec_copy_context(stream->codec, encodeContext);
            if (ret < 0)
            {
                av_log(NULL, AV_LOG_ERROR, "copy coddec context failed");
                return ret;
            }
        }
    }
    else
    {
        AVStream * stream = avformat_new_stream(outputContext, encodeContext->codec);
        if (!stream)
        {
            char buf[1024];
            //获取错误信息
            av_strerror(ret, buf, sizeof(buf));
            std::cout << " failed! " << buf << std::endl;
            return -1;
        }
        ret = avcodec_copy_context(stream->codec, encodeContext);
        std::cout<<"avcodec_copy_context ret : "<<ret<<std::endl;
        if (ret < 0)
        {
            char buf[1024];
            //获取错误信息
            av_strerror(ret, buf, sizeof(buf));
            std::cout << " failed! " << buf << std::endl;
            return ret;
        }
    }

    av_dump_format(outputContext, 0, path.c_str(), 1);

    ret = avformat_write_header(outputContext, nullptr);
    if (ret < 0)
    {
        av_log(NULL, AV_LOG_ERROR, "format write header failed");
        return ret;
    }

    av_log(NULL, AV_LOG_FATAL, " Open output file success: %s\n", path.c_str());
    return ret;
}

int FFmpegEncode::init_encoderCodec(std::string type, int32_t fps, uint32_t width, uint32_t height, int IFrame, int code_rate)
{
    video_fps = fps;

    // 终端运行
    // ffmpeg -hwaccels
    // ffmpeg -codecs | grep videotoolbox
    // ffprobe -codecs -hide_banner| grep h264
    std::string encoder_name = type + "_nvmpi";
    AVCodec *enCodec = avcodec_find_encoder_by_name(encoder_name.c_str());

    if(!enCodec)
        enCodec = avcodec_find_encoder_by_name("libx264");

    std::cout<< "使用编码器: "<< enCodec->name<< std::endl;

    encodeContext = avcodec_alloc_context3(enCodec);
    encodeContext->codec_id = enCodec->id;

    encodeContext->time_base = (AVRational){1, video_fps};
    encodeContext->framerate = (AVRational){video_fps, 1};

    encodeContext->gop_size = IFrame;  //每50帧插入1个I帧
    encodeContext->max_b_frames = 0;   //两个非B帧之间允许出现多少个B帧数,设置0表示不使用B帧,b 帧越多，图片越小

    encodeContext->pix_fmt = AV_PIX_FMT_YUV420P;     //像素的格式，也就是说采用什么样的色彩空间来表明一个像素点

    encodeContext->width = (width == 0) ? outputContext->streams[0]->codecpar->width : width;
    encodeContext->height = (height == 0) ? outputContext->streams[0]->codecpar->height : height;

    encodeContext->flags |= AV_CODEC_FLAG_GLOBAL_HEADER;
    encodeContext->bit_rate = code_rate*1024;


    AVDictionary *param = NULL;
    av_dict_set(&param, "preset", "fast", 0);        // ultrafast, superfast, veryfast, faster, fast, medium, slow, slower, veryslow, placebo.
    av_dict_set(&param, "tune", "fastdecode", 0);    // film、animation、grain、stillimage、psnr、ssim、fastdecode、zerolatency
    av_dict_set(&param, "profile", "baseline", 0);   //baseline, extended, main, high

    int ret = avcodec_open2(encodeContext, enCodec, &param);
    av_free(param);
    param = NULL;
    if (ret < 0)
    {
        std::cout<< "open video codec failed"<< std::endl;
        return  ret;
    }

    initSwsFrame(pSwsVideoFrame, encodeContext->width, encodeContext->height);

    return 1;
}

std::string FFmpegEncode::get_encode_extradata()
{
    std::string output = "";
    if(encodeContext->extradata_size > 0)
    {
        output = "extradata_" + std::to_string(encodeContext->extradata_size);
        for(int i = 0; i< encodeContext->extradata_size; i++)
            output = output + "_" + std::to_string(int(encodeContext->extradata[i]));
    }
    return output;
}

std::shared_ptr<AVPacket> FFmpegEncode::encode()
{
    int gotOutput = 0;
    std::shared_ptr<AVPacket> pkt(static_cast<AVPacket*>(av_malloc(sizeof(AVPacket))), [&](AVPacket *p) { av_packet_free(&p); av_freep(&p); });
    av_init_packet(pkt.get());
    pkt->data = NULL;
    pkt->size = 0;

    int ret = avcodec_encode_video2(encodeContext, pkt.get(), pSwsVideoFrame, &gotOutput);

    if (ret >= 0 && gotOutput)
    {
        int64_t pts_time = av_rescale_q(packetCount++, (AVRational){1, video_fps}, outputContext->streams[0]->time_base);
        pkt->pts = pkt->dts = pts_time;

        return pkt;
    }
    return nullptr;
}

int FFmpegEncode::mat_to_frame(cv::Mat &mat)
{
    int width = mat.cols;
    int height = mat.rows;
    int cvLinesizes[1];
    cvLinesizes[0] = (int)mat.step1();
    if (pSwsVideoFrame == NULL){
        pSwsVideoFrame = av_frame_alloc();
        av_image_alloc(pSwsVideoFrame->data, pSwsVideoFrame->linesize, width, height, AVPixelFormat::AV_PIX_FMT_YUV420P, 1);
    }
    SwsContext* conversion = sws_getContext(width, height, AVPixelFormat::AV_PIX_FMT_BGR24, width, height, (AVPixelFormat)pSwsVideoFrame->format, SWS_FAST_BILINEAR, NULL, NULL, NULL);
    sws_scale(conversion, &mat.data, cvLinesizes , 0, height, pSwsVideoFrame->data, pSwsVideoFrame->linesize);
    sws_freeContext(conversion);

    return  0;
}

int FFmpegEncode::initSwsFrame(AVFrame *pSwsFrame, int iWidth, int iHeight)
{
    // 计算一帧的大小
    int numBytes = av_image_get_buffer_size(encodeContext->pix_fmt, iWidth, iHeight, 1);
    if(pSwpBuffer)
        av_free(pSwpBuffer);

    pSwpBuffer = (uint8_t *)av_malloc(numBytes * sizeof(uint8_t));
    // 将数据存入 uint8_t 中
    av_image_fill_arrays(pSwsFrame->data, pSwsFrame->linesize, pSwpBuffer, encodeContext->pix_fmt, iWidth, iHeight, 1);
    pSwsFrame->width = iWidth;
    pSwsFrame->height = iHeight;
    pSwsFrame->format = encodeContext->pix_fmt;
    return 1;
}

main.cpp

复制代码
//ZLMediaKit用于播放rtsp，SRS/nginx用于播放rtmp/webrtc
#include <iostream>
#include <opencv2/opencv.hpp>
#include <boost/thread.hpp>
#include <boost/smart_ptr.hpp>
#include <boost/bind.hpp>
#include <vector>
#include <map>
#include <stdio.h>
#include <string>
#include <utility>

#include <boost/date_time/posix_time/posix_time.hpp>
#include <boost/thread.hpp>
#include "ffmpeg_encode.hpp"

using namespace std;

uint32_t rgb_fps = 20;                      // 可见光视频帧率

int main(int argc, char* argv[])
{
    std::cout << "start" << std::endl;

    std::string pipeline = "rtsp://admin:[email protected]/h264/ch1/main/av_stream";

    std::string rgb_rtmp_path = "rtmp://127.0.0.1:1935/hls/test_rgb";
    std::string rgb_rtsp_path = "rtsp://127.0.0.1:8556/hls/test_rgb";
    std::string rgb_webrtc_path = "webrtc://127.0.0.1:1985/hls/test_rgb";

    std::string rgb_path;
    std::string rgb_type;

    if(argc != 2) {
        cout<<"1-rtmp 2-rtsp 3-webrtc"<<endl;
    } else {
        if (strcmp(argv[1], "1") == 0) {
            rgb_path = rgb_rtmp_path;
            rgb_type = "flv";
        } else if (strcmp(argv[1], "2") == 0) {
            rgb_path = rgb_rtsp_path;
            rgb_type = "rtsp";
        } else if (strcmp(argv[1], "3") == 0) {
            rgb_path = rgb_webrtc_path;
            rgb_type = "webrtc";
        }
    }

    cv::VideoCapture capture(pipeline);
    if (! capture.isOpened())
    {
        std::cout<< "RGB摄像头打开失败"<< std::endl;
        return -1;
    }

    FFmpegEncode camera_io;

    // 初始化编码器
    if(camera_io.init_encoderCodec("h264", rgb_fps, 1280, 720, 50, 4096) < 0)
        return -3;

    std::string rgb_extradata = camera_io.get_encode_extradata() + "_" + "h264";
    rgb_extradata = rgb_extradata + "&&" + std::to_string(rgb_fps) + "_1280_720";
    std::cout<<"rgb_extradata = "<<rgb_extradata<<std::endl;

    cout<<"rgb_path: "<<rgb_path<<" rgb_type: "<<rgb_type<<endl;
    if(camera_io.open_output(rgb_path, rgb_type, false) < 0)
        return -4;

    int64_t fps_start_time = av_gettime();
    uint64_t fps_count = 0;
    int64_t get_frame_time = 0;

    // 获取可见光视频
    while(capture.isOpened())
    {
        cv::Mat rgb_mat;
        capture >> rgb_mat;
        get_frame_time = av_gettime();

        if(rgb_mat.empty())
        {
            boost::this_thread::sleep(boost::posix_time::microseconds(5));
            continue;
        }

        // 输出可见光视频帧率
        if(get_frame_time - fps_start_time < 1 * 1000 * 1000)
        {
            fps_count++;
        }
        else
        {
            std::cout<< "rgb fps: "<< fps_count + 1 << std::endl;
            fps_count = 0;
            fps_start_time = get_frame_time;
        }

        // Mat转frame
        if(camera_io.mat_to_frame(rgb_mat) < 0)
            continue;

        // 编码
        auto packet_encode = camera_io.encode();
        if(packet_encode)
        {
            camera_io.write_packet(packet_encode);
            av_free_packet(packet_encode.get());

        }
    }
    std::cout<< "RGB摄像头编解码程序退出"<< std::endl;

    return 0;
}
