Mac安装配置InfluxDB,InfluxDB快速入门,Java集成InfluxDB

1. 与MySQL的比较

InfluxDB MySQL 解释
Bucket Database 数据库
Measurement Table
Tag Indexed Column 索引列
Field Column 普通列
Point Row 每行数据

2. 安装FluxDB

bash 复制代码
brew update

默认安装 2.x的版本

bash 复制代码
brew install influxdb

查看influxdb版本

bash 复制代码
influxd version # InfluxDB 2.7.11 (git: fbf5d4ab5e) build_date: 2024-11-26T18:06:07Z

启动influxdb

bash 复制代码
influxd

访问面板

bash 复制代码
http://localhost:8086/

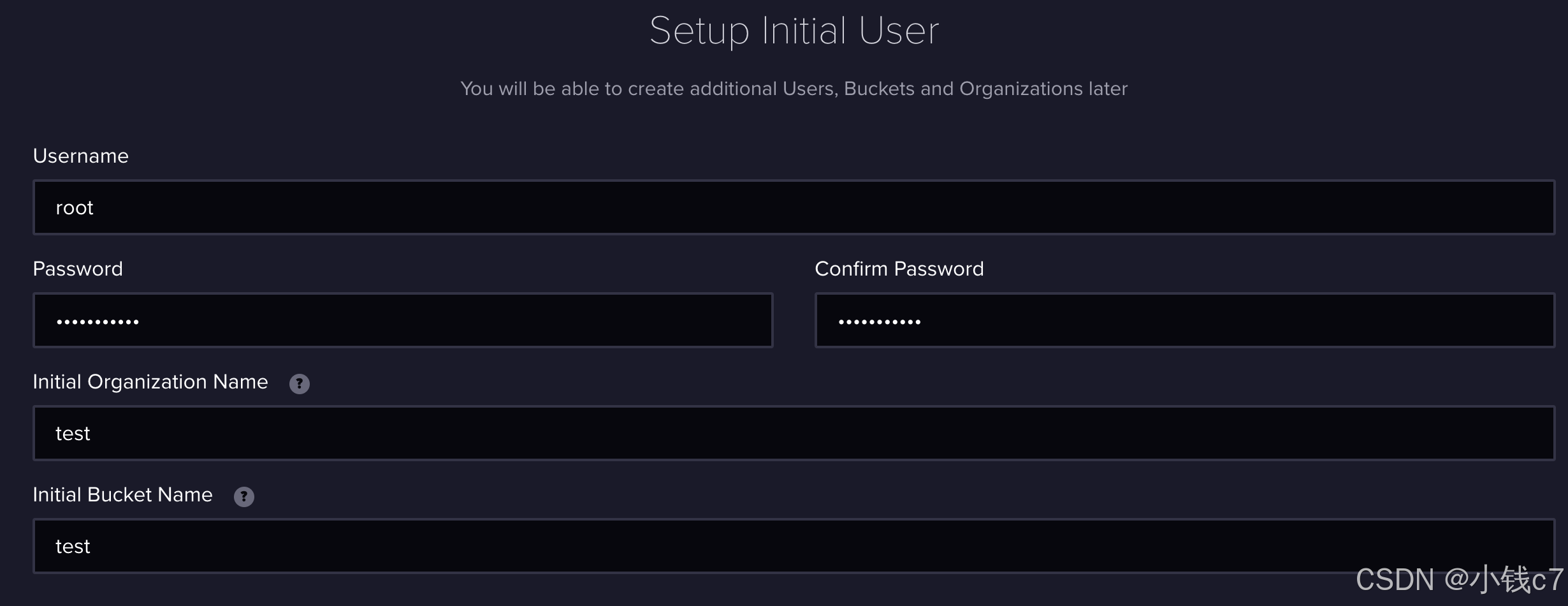

配置用户信息

保存token

bash 复制代码
L5IeK5vutRmkCuyzbz781GVKj4fR6fKGQdl3CaWAPNEKmigrI0Yt8IlEN5_qkO9Lgb80BpcISK0U4WSkWDcqIQ==

3. 使用行协议写入数据

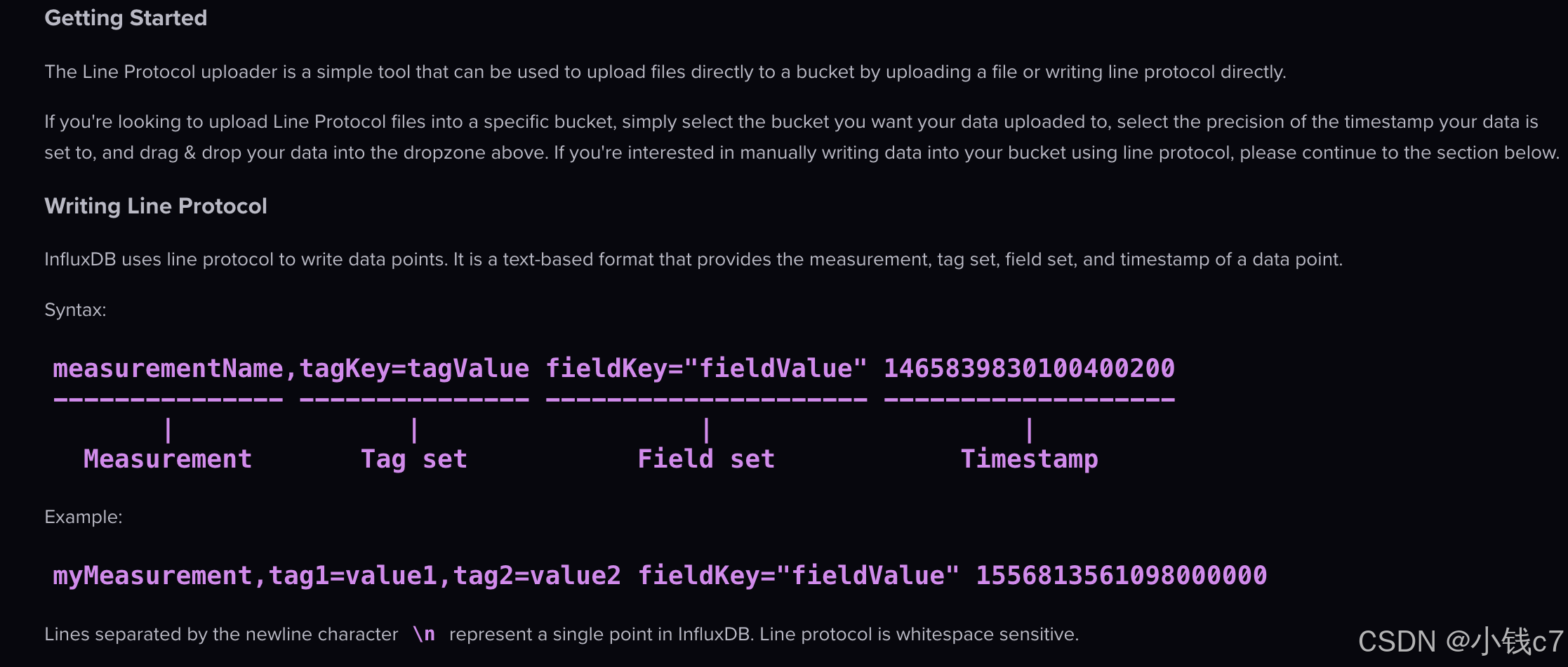

官网规范

  • 首先是一个measurementName,和指定MySQL的表名一样
  • 然后是Tag,和指定MySQL的索引列一样,多个Tag通过逗号分隔
  • 然后是Field,和指定MySQL的普通列一样多个Field通过逗号分隔,与Tag通过空格分隔
  • 最后是时间戳(选填,下面测试时单位为秒)

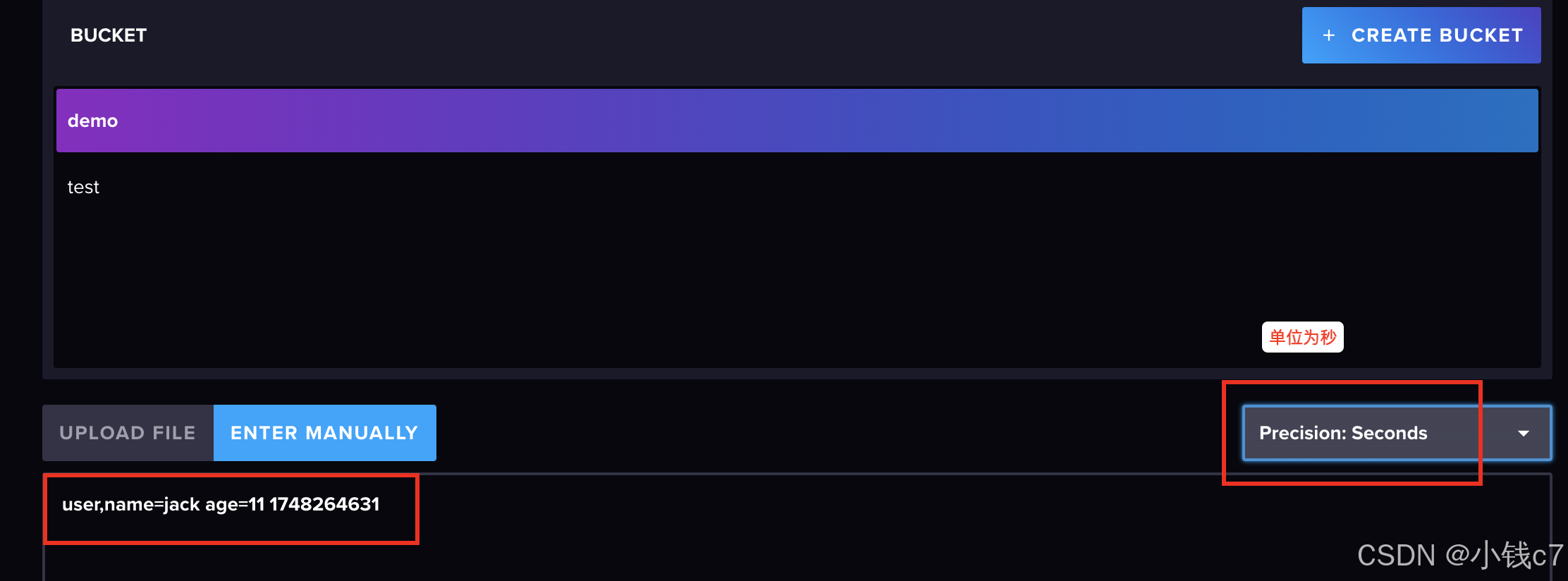

测试写入:

bash 复制代码
user,name=jack age=11 1748264631

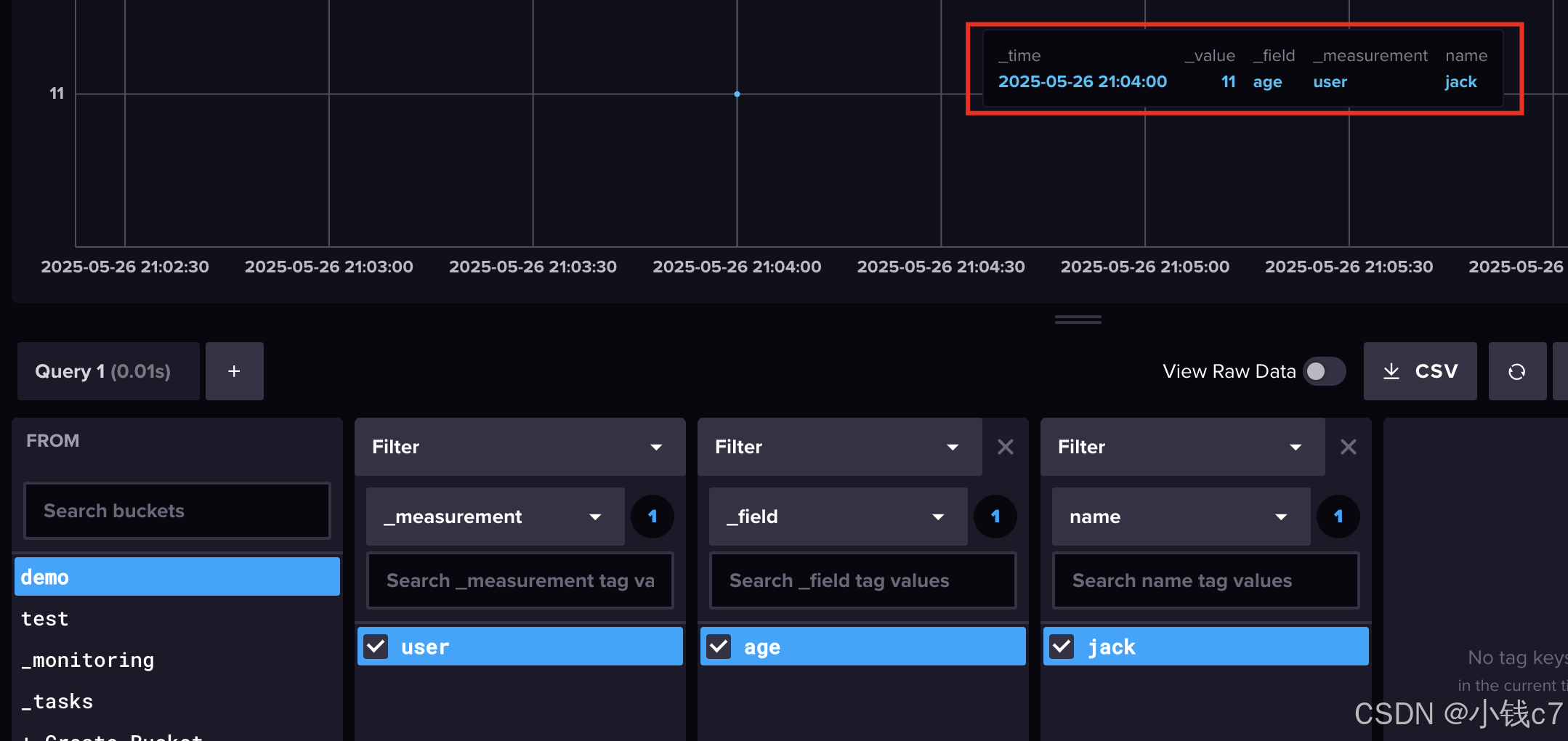

结果:

4. 使用Flux查询数据

  • from:从哪个Bucket即桶中查询数据
  • range:根据时间筛选数据,单位有ms毫秒,s秒,m分钟,h消失,d天,w星期,mo月,y年,比如range(start: -1d, stop:now())就是过去一天内的数据,其中stop:now()是默认的,可以不写。
  • filter:根据列筛选数据

样例并解释:

bash 复制代码
from(bucket: "demo") # 从demo这个数据库中去数据
    |> range(start: -1d, stop:now()) # 时间范围筛选
    |> filter(fn: (r) => r["_measurement"] == "user") # 从这个user这个表查询数据
    |> filter(fn: (r) => r["name"] == "jack") # 根据索引等值查询,相当于MySQL后面的where条件,influx会根据这个tag上的倒排索引加快查询速度
    |> filter(fn: (r) => r["_field"] == "age") # 相当于MySQL查询具体的列的数据,只不过有多个Field会被拆分为多行,每行对应一个Field的数据

关于r["_field"] == "age"的问题:为什么需要这么查询?因为Field如果有多个,就会被拆成多行

比如我们插入数据时是这样的:user,name=jack age=18,height=180 1716715200000000000,虽然这是一个数据点Point,但是由于有两个Field,那么查询到的数据其实是两行,如果加了r["_field"] == "age",就只会出现第一条数据,注意Tag不会被拆分为多行

_measurement name _field _value _time
user jack age 18 2024-05-26 00:00:00Z
user jack height 180 2024-05-26 00:00:00Z

5. SpringBoot集成

5.1 引入依赖

xml 复制代码
<dependency>
    <groupId>com.influxdb</groupId>
    <artifactId>influxdb-client-java</artifactId>
    <version>6.9.0</version>
</dependency>
<dependency>
    <groupId>org.jetbrains.kotlin</groupId>
    <artifactId>kotlin-stdlib</artifactId>
    <version>1.8.20</version>
</dependency>

5.2. 插入数据

5.2.1 基础数据

java 复制代码
private final static String token = "L5IeK5vutRmkCuyzbz781GVKj4fR6fKGQdl3CaWAPNEKmigrI0Yt8IlEN5_qkO9Lgb80BpcISK0U4WSkWDcqIQ==";
private final static String org = "test";
private final static String bucket = "demo";
private final static String url = "http://127.0.0.1:8086";

5.2.2 通过行协议插入

java 复制代码
private static void writeDataByLine() {
    InfluxDBClient influxDBClient = InfluxDBClientFactory.create(url, token.toCharArray());
    WriteApiBlocking writeApi = influxDBClient.getWriteApiBlocking();
    String data = "user,name=tom age=18 1748270504";
    writeApi.writeRecord(bucket, org, WritePrecision.S, data);
}

5.2.3 通过Point插入

java 复制代码
private static void writeDataByPoint() {
    InfluxDBClient influxDBClient = InfluxDBClientFactory.create(url, token.toCharArray());
    WriteApiBlocking writeApi = influxDBClient.getWriteApiBlocking();
    Point point = Point.measurement("user")
            .addTag("name", "jerry")
            .addField("age", 20f)
            .time(Instant.now(), WritePrecision.S);
    writeApi.writePoint(bucket, org, point);
}

5.2.4 通过Pojo类插入

java 复制代码
import com.influxdb.annotations.Column;
import com.influxdb.annotations.Measurement;
import lombok.AllArgsConstructor;
import lombok.NoArgsConstructor;

import java.time.Instant;

@Measurement(name = "user")
@NoArgsConstructor
@AllArgsConstructor
public class InfluxData {
    @Column(tag = true)
    String name;
    @Column
    Float age;
    @Column(timestamp = true)
    Instant time;
}
java 复制代码
private static void writeDataByPojo() {
    InfluxDBClient influxDBClient = InfluxDBClientFactory.create(url, token.toCharArray());
    WriteApiBlocking writeApi = influxDBClient.getWriteApiBlocking();
    InfluxData influxData = new InfluxData("cat", 30f, Instant.now());
    writeApi.writeMeasurement(bucket, org, WritePrecision.S, influxData);
}

5.3 查询数据

java 复制代码
private static void queryData() {
    InfluxDBClient influxDBClient = InfluxDBClientFactory.create(url, token.toCharArray());
    String query = "from(bucket: \"demo\")\n" +
            "    |> range(start: -1d, stop:now())\n" +
            "    |> filter(fn: (r) => r[\"_measurement\"] == \"user\")";
    List<FluxTable> fluxTables = influxDBClient.getQueryApi().query(query, org);
    for (FluxTable fluxTable : fluxTables) {// 根据索引列分组
        for (FluxRecord record : fluxTable.getRecords()) { // 每组的数据
            System.out.println(record.getValues());
        }
        System.out.println();
    }
}

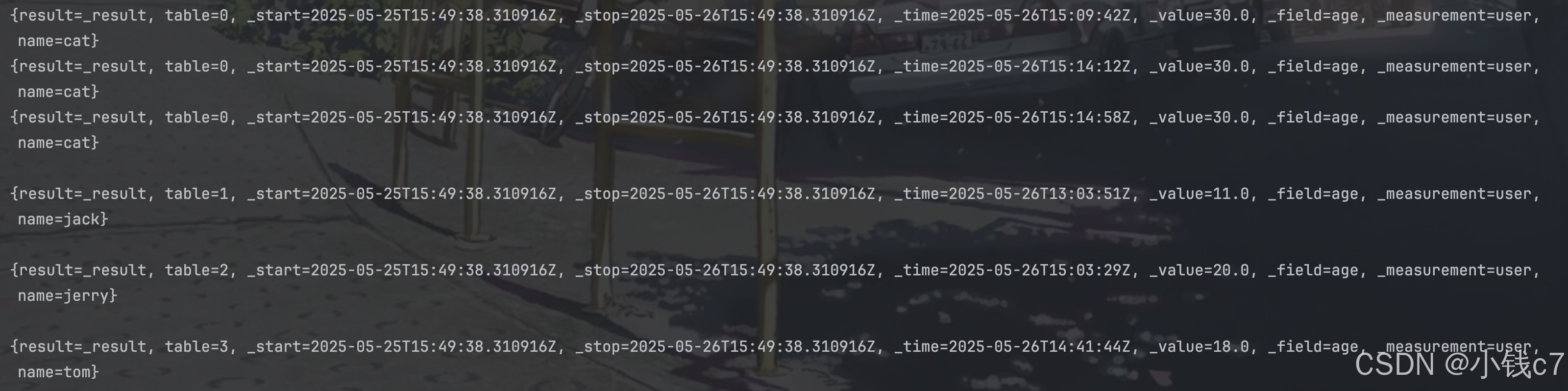

最终结果:
