rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75 $sudo apt-get install libsqlite3-dev rootroot@rootroot-X99-Turbo:\~/14TB/versions/OK3576_linux_source6.1.75$ sudo apt install libicu-dev

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75 $./build.sh chip 2. ok3576 Which would you like? \[1\]: 2 2. OK3576_C_defconfig Which would you like? \[1\]: 2 rootroot@rootroot-X99-Turbo:\~/14TB/versions/OK3576_linux_source6.1.75$ ./build.sh

20250617在ubuntu20.04.6下编译飞凌OK3576-C_Linux6.1.75_用户资料_R1（更新日期_20241014）

2025/6/17 18:00

缘起：公司预研RK3576，于是在公司服务器ubuntu20.04.6下编译飞凌OK3576-C_Linux6.1.75_用户资料_R1（更新日期_20241014）。

以前编译Android/Buildroot的环境需要安装2个程序：

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75$ sudo apt-get install libsqlite3-dev

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75$ sudo apt install libicu-dev

https://forlinx-book.yuque.com/rh74yu/ok3576/mm9euuggu3l0r11a

04_相关代码编译

第四章相关代码编译

本章节主要描述开发板相关源码的编译方法，包括内核源码编译、应用程序编译方法。注意：当前只提供了内核源码，本节只介绍内核和应用程序的编译方法

4.1编译前准备

4.1.1 环境说明

开发环境操作系统：Ubuntu22.04 64位版

交叉工具链：aarch64-none-linux-gnu

开发板使用Bootloader 版本：u-boot-2017.09

开发板内核版本：linux-6.1.57

4.1.2 拷贝源码

程序源码：用户资料\Linux\源码\

创建工作目录

forlinx@ubuntu:~$ mkdir -p /home/forlinx/3576 //按照顺序创建工作目录

将用户资料中的源码文件和交叉编译工具链拷贝到虚拟机/home/forlinx/3576目录。

forlinx@ubuntu:~$ cd /home/forlinx/3576 //切换到工作目录

forlinx@ubuntu:~/3576$ cat OK3576_linux_source.tar.bz2.0* >OK3576_linux_source.tar.bz2 //在当前位置解压压缩包

forlinx@ubuntu:~/3576$ tar -vxf OK3576_linux_source.tar.bz2

运行命令后等待完成即可。

4.2 源码编译

注意：

? 整体编译过后，可根据实际情况再进行单独编译

? 该源码编译需要开发环境运行内存 18G 及以上，请不要修改我们提供的 VM 虚拟机镜像配置

? 使用root账户编译会报unknown user#UID 导致编译不成功；需要使用普通账户编译

4.2.1 全编译测试

在源码路径内，提供了编译脚本 build.sh，运行该脚本对整个源码进行编译，需要在终端切换到解压

出来的源码路径，找到 build.sh 文件。

forlinx@ubuntu: ~/3576$ cd OK3576_linux_source/ // 跳转到源码路径

以下操作需要在源码目录下操作，全编译方法：

forlinx@ubuntu: ~/3576/OK3576_linux_source$ ./build.sh chip //设置环境变量，这里选择ok3576

forlinx@ubuntu: ~/3576/OK3576_linux_source$ ./build.sh //进行全编译

编译完成后，系统镜像会在output/update/Image/ 文件夹中生成update.img

注意：update.img 为打包好用于 OTG 或者 TF 卡完全烧写用，其它文件为分步烧写使用

4.2.2 单独编译

forlinx@ubuntu: ~/3576$ cd OK3576_linux_source/ // 跳转到源码路径

forlinx@ubuntu: ~/3576$ ./build.sh chip //设置环境变量，这里选择ok3576

forlinx@ubuntu: ~/3576$ ./build.sh kernel //编译内核

//编译完成后，在kernel/路径生成boot.img。

编译成功后 update.img 里的内核不更新。请分步烧写 kernel/boot.img 文件。参考用户使用手册OTG烧写测试章节，使用生成的boot.img替换默认出厂镜像烧写即可。

4.2.3 清除编译生成的文件

用户在源码路径下进行操作

forlinx@ubuntu: ~/3576$ ./build.sh cleanall // 清理编译生成的所有文件

4.3 应用程序编译及运行

4.3.1 编译并运行命令行应用

本小节使用飞凌看门狗测试程序做演示，也可以自行构建工程。

1、使用cd命令进入/home/forlinx/3576目录

forlinx@ubuntu:~$ cd OK3576_linux_source/app/forlinx/forlinx_cmd/fltest_watchdog

2、配置交叉编译器路径，使用make进行交叉编译

forlinx@ubuntu:~/3576/OK3576_linux_source/app/forlinx/forlinx_cmd/fltest_watchdog$ export CROSS_COMPILE=/home/forlinx/3576/aarch64-buildroot-linux-gnu_sdk-buildroot/bin/aarch64-buildroot-linux-gnu-

forlinx@ubuntu:~/3576/OK3576_linux_source/app/forlinx/forlinx_cmd/fltest_watchdog $export PATH=$ PATH:/home/forlinx/3576/aarch64-buildroot-linux-gnu_sdk-buildroot/bin/

修改Makefile的cpp选项为 CPP=$(CROSS_COMPILE)gcc

forlinx@ubuntu:~/3576/OK3576_linux_source/app/forlinx/forlinx_cmd/fltest_watchdog$ make

aarch64-linux-gcc watchdog.c -o fltest_watchdog

generate fltest_watchdog success!!!

用file命令查看生成的文件信息

forlinx@ubuntu:~/3576/OK3576-linux-source/app/forlinx/forlinx_cmd/fltest_watchdog$

file fltest_watchdog

fltest_watchdog: ELF 64-bit LSB executable, ARM aarch64, version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux-aarch64.so.1, for GNU/Linux 3.7.0, with debug_info, not stripped

通过结果可以看到编译生成的是64位、ARM的文件。

3、将编译生成的fltest_watchdog通过U盘或者ftp等方式拷贝到板子上，比如/forlinx路径下，下述以tf卡为例，拷贝到开发板，运行测试。

HOSTCC scripts/kconfig/menu.o

HOSTCC scripts/kconfig/preprocess.o

HOSTCC scripts/kconfig/symbol.o

HOSTCC scripts/kconfig/util.o

HOSTCC scripts/kconfig/lexer.lex.o

HOSTCC scripts/kconfig/parser.tab.o

HOSTLD scripts/kconfig/conf

configuration written to .config

make: Leaving directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

make -C /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel/ -j25 CROSS_COMPILE=/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 OK3576-C-linux.img

make: Entering directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

UPD include/config/kernel.release

HOSTCC scripts/dtc/dtc.o

HOSTCC scripts/dtc/flattree.o

HOSTCC scripts/dtc/fstree.o

HOSTCC scripts/dtc/data.o

HOSTCC scripts/dtc/livetree.o

HOSTCC scripts/dtc/treesource.o

HOSTCC scripts/dtc/srcpos.o

HOSTCC scripts/dtc/checks.o

WRAP arch/arm64/include/generated/uapi/asm/kvm_para.h

HOSTCC scripts/dtc/util.o

WRAP arch/arm64/include/generated/uapi/asm/errno.h

LEX scripts/dtc/dtc-lexer.lex.c

YACC scripts/dtc/dtc-parser.tab.[ch]

WRAP arch/arm64/include/generated/uapi/asm/ioctl.h

WRAP arch/arm64/include/generated/uapi/asm/ioctls.h

HOSTCC scripts/dtc/libfdt/fdt.o

HOSTCC scripts/dtc/libfdt/fdt_ro.o

WRAP arch/arm64/include/generated/uapi/asm/ipcbuf.h

WRAP arch/arm64/include/generated/uapi/asm/msgbuf.h

HOSTCC scripts/dtc/libfdt/fdt_wip.o

WRAP arch/arm64/include/generated/uapi/asm/poll.h

HOSTCC scripts/dtc/libfdt/fdt_sw.o

WRAP arch/arm64/include/generated/uapi/asm/resource.h

HOSTCC scripts/dtc/libfdt/fdt_rw.o

HOSTCC scripts/dtc/libfdt/fdt_strerror.o

WRAP arch/arm64/include/generated/uapi/asm/sembuf.h

HOSTCC scripts/dtc/libfdt/fdt_empty_tree.o

WRAP arch/arm64/include/generated/uapi/asm/shmbuf.h

HOSTCC scripts/dtc/libfdt/fdt_addresses.o

HOSTCC scripts/dtc/libfdt/fdt_overlay.o

WRAP arch/arm64/include/generated/uapi/asm/siginfo.h

WRAP arch/arm64/include/generated/uapi/asm/socket.h

WRAP arch/arm64/include/generated/uapi/asm/sockios.h

WRAP arch/arm64/include/generated/uapi/asm/stat.h

WRAP arch/arm64/include/generated/uapi/asm/swab.h

WRAP arch/arm64/include/generated/uapi/asm/termbits.h

WRAP arch/arm64/include/generated/uapi/asm/termios.h

WRAP arch/arm64/include/generated/uapi/asm/types.h

UPD include/generated/uapi/linux/version.h

HOSTCC scripts/dtc/fdtoverlay.o

UPD include/generated/utsrelease.h

UPD include/generated/compile.h

WRAP arch/arm64/include/generated/asm/early_ioremap.h

WRAP arch/arm64/include/generated/asm/mcs_spinlock.h

WRAP arch/arm64/include/generated/asm/qrwlock.h

WRAP arch/arm64/include/generated/asm/qspinlock.h

WRAP arch/arm64/include/generated/asm/parport.h

WRAP arch/arm64/include/generated/asm/user.h

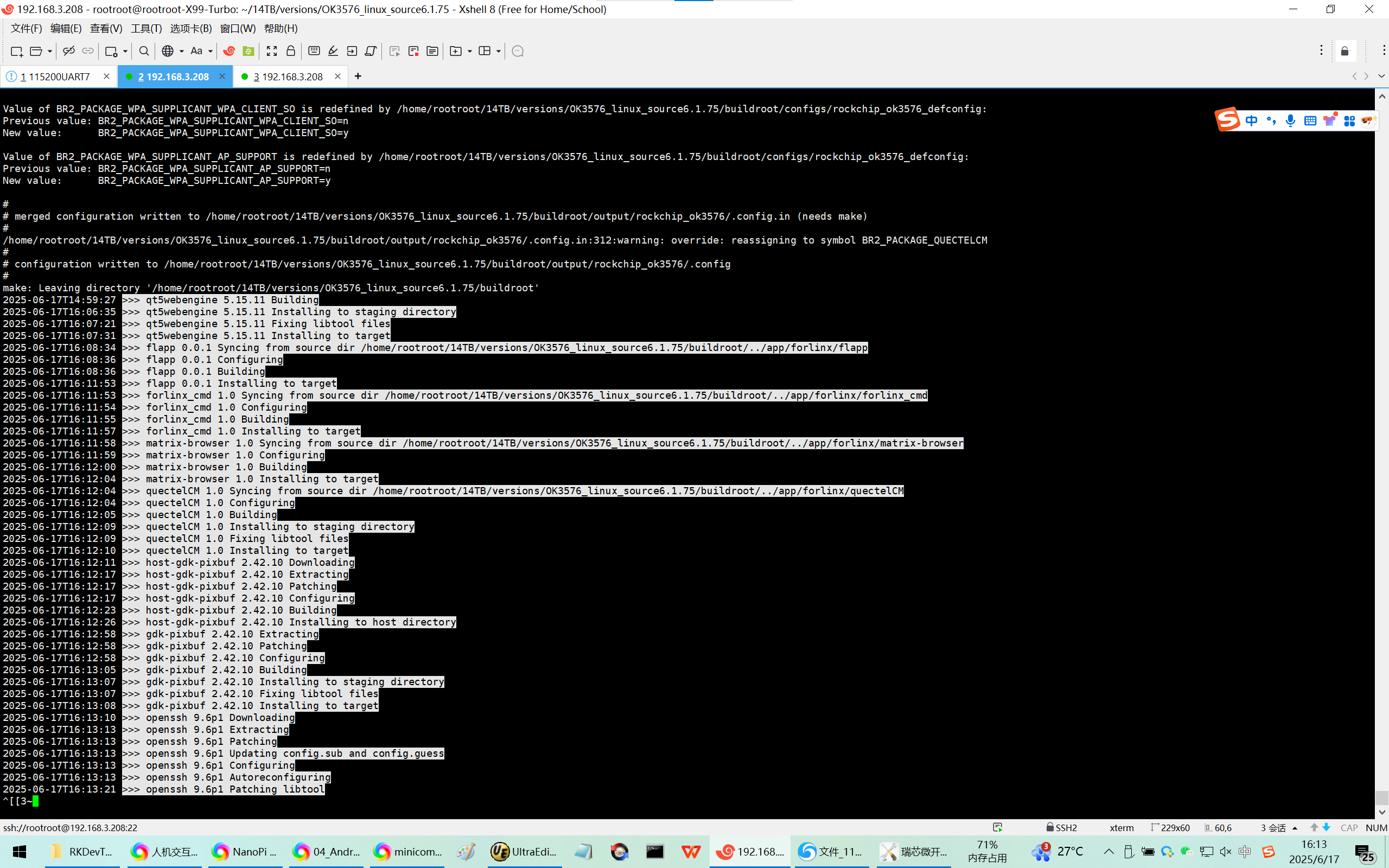

2025-06-17T12:14:29 >>> host-freetype 2.13.2 Extracting

2025-06-17T12:14:30 >>> host-freetype 2.13.2 Patching

2025-06-17T12:14:30 >>> host-freetype 2.13.2 Updating config.sub and config.guess

2025-06-17T12:14:30 >>> host-freetype 2.13.2 Patching libtool

2025-06-17T12:14:30 >>> host-freetype 2.13.2 Configuring

2025-06-17T12:14:35 >>> host-freetype 2.13.2 Building

2025-06-17T12:14:39 >>> host-freetype 2.13.2 Installing to host directory

2025-06-17T12:14:43 >>> host-harfbuzz 8.3.0 Extracting

2025-06-17T12:14:45 >>> host-harfbuzz 8.3.0 Patching

2025-06-17T12:14:46 >>> host-harfbuzz 8.3.0 Configuring

2025-06-17T12:14:50 >>> host-harfbuzz 8.3.0 Building

2025-06-17T12:15:57 >>> host-harfbuzz 8.3.0 Installing to host directory

2025-06-17T12:16:01 >>> host-libjpeg 9f Downloading

2025-06-17T12:16:03 >>> host-libjpeg 9f Extracting

2025-06-17T12:16:03 >>> host-libjpeg 9f Patching

2025-06-17T12:16:03 >>> host-libjpeg 9f Updating config.sub and config.guess

2025-06-17T12:16:03 >>> host-libjpeg 9f Patching libtool

2025-06-17T12:16:03 >>> host-libjpeg 9f Configuring

2025-06-17T12:16:08 >>> host-libjpeg 9f Building

2025-06-17T12:16:09 >>> host-libjpeg 9f Installing to host directory

2025-06-17T12:16:13 >>> host-libnspr 4.35 Extracting

2025-06-17T12:16:13 >>> host-libnspr 4.35 Patching

2025-06-17T12:16:13 >>> host-libnspr 4.35 Updating config.sub and config.guess

2025-06-17T12:16:13 >>> host-libnspr 4.35 Patching libtool

2025-06-17T12:16:13 >>> host-libnspr 4.35 Configuring

2025-06-17T12:16:17 >>> host-libnspr 4.35 Building

2025-06-17T12:16:34 >>> host-libnspr 4.35 Installing to host directory

2025-06-17T12:16:38 >>> host-sqlite 3.44.2 Extracting

2025-06-17T12:16:38 >>> host-sqlite 3.44.2 Patching

2025-06-17T12:16:38 >>> host-sqlite 3.44.2 Updating config.sub and config.guess

2025-06-17T12:16:38 >>> host-sqlite 3.44.2 Patching libtool

2025-06-17T12:16:38 >>> host-sqlite 3.44.2 Configuring

2025-06-17T12:16:44 >>> host-sqlite 3.44.2 Building

2025-06-17T12:17:27 >>> host-sqlite 3.44.2 Installing to host directory

2025-06-17T12:17:31 >>> host-libnss 3.97 Extracting

2025-06-17T12:17:34 >>> host-libnss 3.97 Patching

2025-06-17T12:17:34 >>> host-libnss 3.97 Configuring

2025-06-17T12:17:34 >>> host-libnss 3.97 Building

Done in 1h 59min 24s (error code: 2)

Failed to build rockchip_ok3576:

2025-06-17T12:18:07 /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/bin/ccache /usr/bin/gcc -o Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/ecperf -g -g -fPIC -m64 -pipe -ffunction-sections -fdata-sections -DHAVE_STRERROR -DLINUX -Dlinux -Wall -Wshadow -DNSS_NO_GCC48 -DXP_UNIX -DXP_UNIX -DDEBUG -UNDEBUG -D_DEFAULT_SOURCE -D_BSD_SOURCE -D_POSIX_SOURCE -DSDB_MEASURE_USE_TEMP_DIR -D_REENTRANT -DDEBUG -UNDEBUG -D_DEFAULT_SOURCE -D_BSD_SOURCE -D_POSIX_SOURCE -DSDB_MEASURE_USE_TEMP_DIR -D_REENTRANT -DNSS_DISABLE_SSE3 -DNSS_NO_INIT_SUPPORT -DUSE_UTIL_DIRECTLY -DNO_NSPR_10_SUPPORT -DSSL_DISABLE_DEPRECATED_CIPHER_SUITE_NAMES -DNSS_USE_STATIC_LIBS -I../../nss/lib/softoken -I/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/include/nspr -I/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/include -I../../../dist/public/nss -I../../../dist/private/nss Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/ecperf.o -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -Wl,-rpath,/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsectool.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsmime.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libssl.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnss.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkcs12.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkcs7.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcerthi.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcryptohi.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpk11wrap.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsoftokn.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcertdb.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnsspki.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnssdev.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnssb.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libfreebl.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libdbm.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixtop.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixutil.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixsystem.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixcrlsel.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixmodule.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixstore.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixparams.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixchecker.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixpki.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixtop.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixresults.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixcertsel.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnss.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpk11wrap.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcerthi.a -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib -lsqlite3 -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib -lnssutil3 -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -lplc4 -lplds4 -lnspr4 -lpthread -ldl -lc

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/atob /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/fbectest /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/ocspresp

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/multinit

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/dbtest

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/digest /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/addbuiltin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nss-policy-check /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/makepqg /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/derdump /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/listsuites /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 sdb.c:24:10: fatal error: sqlite3.h: No such file or directory

2025-06-17T12:18:07 24 | #include <sqlite3.h>

2025-06-17T12:18:07 | ^~~~~~~~~~~

2025-06-17T12:18:07 compilation terminated.

2025-06-17T12:18:07 make[5]: *** [../../coreconf/rules.mk:292: Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/sdb.o] Error 1

2025-06-17T12:18:07 make[4]: *** [../coreconf/rules.mk:44: dbtool] Error 2

2025-06-17T12:18:07 make[4]: *** Waiting for unfinished jobs....

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/ocspresp /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/multinit /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/crmftest

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/ocspclnt

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/dbtest /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/addbuiltin /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/mangle

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/httpserv

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/ecperf /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/mangle /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/ocspclnt /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/httpserv /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/crmftest /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/p7content

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/p7env

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/p7sign

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/p7content /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/crlutil

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/p7env /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/p7verify

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk11ectest

2025-06-17T12:18:07 /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/bin/ccache /usr/bin/gcc -o Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk11ectest -g -g -fPIC -m64 -pipe -ffunction-sections -fdata-sections -DHAVE_STRERROR -DLINUX -Dlinux -Wall -Wshadow -DNSS_NO_GCC48 -DXP_UNIX -DXP_UNIX -DDEBUG -UNDEBUG -D_DEFAULT_SOURCE -D_BSD_SOURCE -D_POSIX_SOURCE -DSDB_MEASURE_USE_TEMP_DIR -D_REENTRANT -DDEBUG -UNDEBUG -D_DEFAULT_SOURCE -D_BSD_SOURCE -D_POSIX_SOURCE -DSDB_MEASURE_USE_TEMP_DIR -D_REENTRANT -DNSS_DISABLE_SSE3 -DNSS_NO_INIT_SUPPORT -DUSE_UTIL_DIRECTLY -DNO_NSPR_10_SUPPORT -DSSL_DISABLE_DEPRECATED_CIPHER_SUITE_NAMES -DNSS_USE_STATIC_LIBS -I/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/include/nspr -I/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/include -I../../../dist/public/nss -I../../../dist/private/nss Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk11ectest.o -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -Wl,-rpath,/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsectool.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsmime.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libssl.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnss.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkcs12.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkcs7.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcerthi.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcryptohi.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpk11wrap.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsoftokn.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcertdb.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnsspki.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnssdev.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnssb.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libfreebl.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libdbm.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixtop.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixutil.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixsystem.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixcrlsel.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixmodule.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixstore.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixparams.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixchecker.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixpki.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixtop.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixresults.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixcertsel.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnss.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpk11wrap.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcerthi.a -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib -lsqlite3 -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib -lnssutil3 -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -lplc4 -lplds4 -lnspr4 -lpthread -ldl -lc

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/bltest

2025-06-17T12:18:07 /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/bin/ccache /usr/bin/gcc -o Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/bltest -g -g -fPIC -m64 -pipe -ffunction-sections -fdata-sections -DHAVE_STRERROR -DLINUX -Dlinux -Wall -Wshadow -DNSS_NO_GCC48 -DXP_UNIX -DXP_UNIX -DDEBUG -UNDEBUG -D_DEFAULT_SOURCE -D_BSD_SOURCE -D_POSIX_SOURCE -DSDB_MEASURE_USE_TEMP_DIR -D_REENTRANT -DDEBUG -UNDEBUG -D_DEFAULT_SOURCE -D_BSD_SOURCE -D_POSIX_SOURCE -DSDB_MEASURE_USE_TEMP_DIR -D_REENTRANT -DNSS_DISABLE_SSE3 -DNSS_NO_INIT_SUPPORT -DUSE_UTIL_DIRECTLY -DNO_NSPR_10_SUPPORT -DSSL_DISABLE_DEPRECATED_CIPHER_SUITE_NAMES -DNSS_USE_STATIC_LIBS -I../../nss/lib/softoken -I/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/include/nspr -I/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/include -I../../../dist/public/nss -I../../../dist/private/nss -I../../../dist/public/seccmd -I../../../dist/public/dbm -I../../../dist/public/softoken Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/blapitest.o -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -Wl,-rpath,/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsectool.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsmime.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libssl.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnss.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkcs12.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkcs7.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcerthi.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcryptohi.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpk11wrap.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsoftokn.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcertdb.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnsspki.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnssdev.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnssb.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libfreebl.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libdbm.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixtop.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixutil.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixsystem.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixcrlsel.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixmodule.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixstore.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixparams.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixchecker.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixpki.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixtop.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixresults.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixcertsel.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnss.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpk11wrap.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcerthi.a -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib -lsqlite3 -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib -lnssutil3 -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -lplc4 -lplds4 -lnspr4 -lpthread -ldl -lc

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk11gcmtest

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/p7sign /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/shlibsign

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/crlutil /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/p7verify /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk11importtest

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk12util

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk11gcmtest /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/shlibsign /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/bltest /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk12util /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk11importtest /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/certutil

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/certutil /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/fipstest

2025-06-17T12:18:07 /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/bin/ccache /usr/bin/gcc -o Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/fipstest -g -g -fPIC -m64 -pipe -ffunction-sections -fdata-sections -DHAVE_STRERROR -DLINUX -Dlinux -Wall -Wshadow -DNSS_NO_GCC48 -DXP_UNIX -DXP_UNIX -DDEBUG -UNDEBUG -D_DEFAULT_SOURCE -D_BSD_SOURCE -D_POSIX_SOURCE -DSDB_MEASURE_USE_TEMP_DIR -D_REENTRANT -DDEBUG -UNDEBUG -D_DEFAULT_SOURCE -D_BSD_SOURCE -D_POSIX_SOURCE -DSDB_MEASURE_USE_TEMP_DIR -D_REENTRANT -DNSS_DISABLE_SSE3 -DNSS_NO_INIT_SUPPORT -DUSE_UTIL_DIRECTLY -DNO_NSPR_10_SUPPORT -DSSL_DISABLE_DEPRECATED_CIPHER_SUITE_NAMES -DNSS_USE_STATIC_LIBS -I/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/include/nspr -I/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/include -I../../../dist/public/nss -I../../../dist/private/nss Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/fipstest.o -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -Wl,-rpath,/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack -m64 -z noexecstack /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsectool.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsmime.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libssl.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnss.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkcs12.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkcs7.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcerthi.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcryptohi.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpk11wrap.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libsoftokn.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcertdb.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnsspki.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnssdev.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnssb.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libfreebl.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libdbm.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixtop.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixutil.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixsystem.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixcrlsel.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixmodule.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixstore.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixparams.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixchecker.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixpki.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixtop.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixresults.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpkixcertsel.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libnss.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libpk11wrap.a /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib/libcerthi.a -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib -lsqlite3 -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/lib -lnssutil3 -L/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host/lib -lplc4 -lplds4 -lnspr4 -lpthread -ldl -lc

2025-06-17T12:18:07 rm -f Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk11mode

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk11ectest /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/pk11mode /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 ../../coreconf/nsinstall/Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/nsinstall -R -m 775 Linux5.15_x86_64_gcc_glibc_PTH_64_DBG.OBJ/fipstest /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/dist/bin

2025-06-17T12:18:07 make[3]: *** [coreconf/rules.mk:44: cmd] Error 2

2025-06-17T12:18:07 make[2]: *** [manifest.mn:21: all] Error 2

2025-06-17T12:18:07 make[1]: *** [package/pkg-generic.mk:303: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/host-libnss-3.97/.stamp_built] Error 2

2025-06-17T12:18:07 make: *** [Makefile:112: _all] Error 2

2025-06-17T12:18:07 make: Leaving directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot'

Please check details in /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/sessions/2025-06-17_10-13-28/br-rockchip_ok3576_2025-06-17_10-18-43.log

ERROR: Running /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/scripts/mk-rootfs.sh - build_buildroot failed!

ERROR: exit code 1 from line 21:

" $RK_SCRIPTS_DIR/mk-buildroot.sh"$ RK_BUILDROOT_CFG "$IMAGE_DIR"

ERROR: call stack:

mk-rootfs.sh: build_buildroot(21)

mk-rootfs.sh: build_hook(298)

mk-rootfs.sh: main(327)

ERROR: Running /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/build-hooks/99-all.sh - build_all failed!

ERROR: exit code 1 from line 21:

"$RK_SCRIPTS_DIR/mk-rootfs.sh"

ERROR: call stack:

99-all.sh: build_all(21)

99-all.sh: build_hook(128)

build-helper: try_func(63)

build-helper: try_hook(96)

build-helper: source(176)

99-all.sh: main(139)

ERROR: Running /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/build-hooks/99-all.sh - try_func build_hook all failed!

ERROR: exit code 1 from line 67:

build_hook

ERROR: call stack:

build-helper: try_func(67)

build-helper: try_hook(96)

build-helper: source(176)

99-all.sh: main(139)

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75$

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75$ sudo apt-get install libsqlite3-dev

sudo\] password for rootroot: Reading package lists... Done Building dependency tree Reading state information... Done The following packages were automatically installed and are no longer required: chromium-codecs-ffmpeg-extra gstreamer1.0-vaapi libgstreamer-plugins-bad1.0-0 libjs-underscore libnvidia-cfg1-535 libnvidia-common-535 libnvidia-decode-535 libnvidia-encode-535 libnvidia-extra-535 libnvidia-fbc1-535 libnvidia-gl-535 libva-wayland2 libx11-xcb1:i386 libxnvctrl0 nvidia-compute-utils-535 nvidia-kernel-source-535 nvidia-settings nvidia-utils-535 screen-resolution-extra xserver-xorg-video-nvidia-535 Use 'sudo apt autoremove' to remove them. The following additional packages will be installed: libsqlite3-0 Suggested packages: sqlite3-doc The following NEW packages will be installed: libsqlite3-dev The following packages will be upgraded: libsqlite3-0 1 upgraded, 1 newly installed, 0 to remove and 1630 not upgraded. Need to get 1,489 kB of archives. After this operation, 3,452 kB of additional disk space will be used. Do you want to continue? \[Y/n\] y Get:1 http://th.archive.ubuntu.com/ubuntu jammy/main amd64 libsqlite3-0 amd64 3.37.2-2 \[643 kB

Get:2 http://th.archive.ubuntu.com/ubuntu jammy/main amd64 libsqlite3-dev amd64 3.37.2-2 [847 kB]

Fetched 1,489 kB in 28s (53.3 kB/s)

(Reading database ... 212789 files and directories currently installed.)

Preparing to unpack .../libsqlite3-0_3.37.2-2_amd64.deb ...

Unpacking libsqlite3-0:amd64 (3.37.2-2) over (3.31.1-4ubuntu0.5) ...

Selecting previously unselected package libsqlite3-dev:amd64.

Preparing to unpack .../libsqlite3-dev_3.37.2-2_amd64.deb ...

Unpacking libsqlite3-dev:amd64 (3.37.2-2) ...

Setting up libsqlite3-0:amd64 (3.37.2-2) ...

Setting up libsqlite3-dev:amd64 (3.37.2-2) ...

Processing triggers for libc-bin (2.35-0ubuntu3) ...

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75$

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75$ ./build.sh

2025-06-17T13:43:52 >>> libevent 2.1.12 Downloading

2025-06-17T13:43:54 >>> libevent 2.1.12 Extracting

2025-06-17T13:43:54 >>> libevent 2.1.12 Patching

2025-06-17T13:43:54 >>> libevent 2.1.12 Updating config.sub and config.guess

2025-06-17T13:43:54 >>> libevent 2.1.12 Patching libtool

2025-06-17T13:43:54 >>> libevent 2.1.12 Configuring

2025-06-17T13:44:16 >>> libevent 2.1.12 Building

2025-06-17T13:44:16 >>> libevent 2.1.12 Installing to staging directory

2025-06-17T13:44:17 >>> libevent 2.1.12 Fixing libtool files

2025-06-17T13:44:18 >>> libevent 2.1.12 Installing to target

2025-06-17T13:44:19 >>> libxslt 1.1.39 Downloading

2025-06-17T13:44:22 >>> libxslt 1.1.39 Extracting

2025-06-17T13:44:22 >>> libxslt 1.1.39 Patching

2025-06-17T13:44:22 >>> libxslt 1.1.39 Updating config.sub and config.guess

2025-06-17T13:44:22 >>> libxslt 1.1.39 Patching libtool

2025-06-17T13:44:22 >>> libxslt 1.1.39 Configuring

2025-06-17T13:44:28 >>> libxslt 1.1.39 Building

2025-06-17T13:44:33 >>> libxslt 1.1.39 Installing to staging directory

2025-06-17T13:44:34 >>> libxslt 1.1.39 Fixing package configuration files

2025-06-17T13:44:34 >>> libxslt 1.1.39 Fixing libtool files

2025-06-17T13:44:35 >>> libxslt 1.1.39 Installing to target

2025-06-17T13:44:36 >>> re2 2022-04-01 Downloading

2025-06-17T13:44:37 >>> re2 2022-04-01 Extracting

2025-06-17T13:44:37 >>> re2 2022-04-01 Patching

2025-06-17T13:44:37 >>> re2 2022-04-01 Configuring

2025-06-17T13:44:38 >>> re2 2022-04-01 Building

2025-06-17T13:44:44 >>> re2 2022-04-01 Installing to staging directory

2025-06-17T13:44:44 >>> re2 2022-04-01 Fixing libtool files

2025-06-17T13:44:45 >>> re2 2022-04-01 Installing to target

2025-06-17T13:44:46 >>> snappy 1.1.10 Downloading

2025-06-17T13:44:48 >>> snappy 1.1.10 Extracting

2025-06-17T13:44:48 >>> snappy 1.1.10 Patching

2025-06-17T13:44:48 >>> snappy 1.1.10 Configuring

2025-06-17T13:44:54 >>> snappy 1.1.10 Building

2025-06-17T13:44:57 >>> snappy 1.1.10 Installing to staging directory

2025-06-17T13:44:57 >>> snappy 1.1.10 Fixing libtool files

2025-06-17T13:44:58 >>> snappy 1.1.10 Installing to target

2025-06-17T13:44:59 >>> webp 1.3.2 Extracting

2025-06-17T13:44:59 >>> webp 1.3.2 Patching

2025-06-17T13:44:59 >>> webp 1.3.2 Updating config.sub and config.guess

2025-06-17T13:44:59 >>> webp 1.3.2 Patching libtool

2025-06-17T13:44:59 >>> webp 1.3.2 Configuring

2025-06-17T13:45:05 >>> webp 1.3.2 Building

2025-06-17T13:45:10 >>> webp 1.3.2 Installing to staging directory

2025-06-17T13:45:11 >>> webp 1.3.2 Fixing libtool files

2025-06-17T13:45:12 >>> webp 1.3.2 Installing to target

2025-06-17T13:45:14 >>> qt5webengine 5.15.11 Downloading

2025-06-17T13:45:16 >>> qt5webengine 5.15.11 Extracting

2025-06-17T13:45:17 >>> qt5webengine-chromium 0ad2814370799a2161057d92231fe3ee00e2fe98 Downloading

2025-06-17T13:45:54 >>> qt5webengine-chromium 0ad2814370799a2161057d92231fe3ee00e2fe98 Extracting

2025-06-17T13:47:06 >>> qt5webengine-chromium-catapult 5eedfe23148a234211ba477f76fc2ea2e8529189 Downloading

2025-06-17T13:47:42 >>> qt5webengine-chromium-catapult 5eedfe23148a234211ba477f76fc2ea2e8529189 Extracting

2025-06-17T13:47:46 >>> qt5webengine-chromium-catapult 5eedfe23148a234211ba477f76fc2ea2e8529189 Patching

2025-06-17T13:47:46 >>> qt5webengine-chromium 0ad2814370799a2161057d92231fe3ee00e2fe98 Patching

2025-06-17T13:47:49 >>> qt5webengine 5.15.11 Patching

2025-06-17T13:48:01 >>> qt5webengine 5.15.11 Configuring

2025-06-17T13:48:08 >>> qt5webengine 5.15.11 Building

Done in 39min 40s (error code: 2)

Failed to build rockchip_ok3576:

2025-06-17T14:20:08 108 | DCHECK(display_id == kInvalidDisplayId ^

2025-06-17T14:20:08 | ^~~~~~

17103/21949\] CXX obj/ui/events/blink/blink/blink_jumbo_1.o 2025-06-17T14:20:16 In file included from gen/ui/events/blink/blink_jumbo_1.cc:8: 2025-06-17T14:20:16 ./../../3rdparty/chromium/ui/events/blink/web_input_event_traits.cc: In function 'void ui::{anonymous}::ApppendEventDetails(const blink::WebGestureEvent\&, std::string\*)': 2025-06-17T14:20:16 ./../../3rdparty/chromium/ui/events/blink/web_input_event_traits.cc:61:75: warning: format '%d' expects argument of type 'int', but argument 7 has type 'blink::mojom::GestureDevice' \[-Wformat=

2025-06-17T14:20:16 61 | "{\n Pos: (%f, %f)\n GlobalPos: (%f, %f)\n SourceDevice: %d\n"

2025-06-17T14:20:16 | ~^

2025-06-17T14:20:16 | |

2025-06-17T14:20:16 | int

2025-06-17T14:20:16 ......

2025-06-17T14:20:16 65 | event.SourceDevice(), event.data.scroll_update.delta_x,

2025-06-17T14:20:16 | ~~~~~~~~~~~~~~~~~~~~

2025-06-17T14:20:16 | |

2025-06-17T14:20:16 | blink::mojom::GestureDevice

2025-06-17T14:20:16 ./../../3rdparty/chromium/ui/events/blink/web_input_event_traits.cc: In function 'void ui::{anonymous}::ApppendTouchPointDetails(const blink::WebTouchPoint&, std::string*)':

2025-06-17T14:20:16 ./../../3rdparty/chromium/ui/events/blink/web_input_event_traits.cc:73:37: warning: format '%d' expects argument of type 'int', but argument 4 has type 'const blink::WebTouchPoint::State' {aka 'const blink::mojom::TouchState'} [-Wformat=]

2025-06-17T14:20:16 73 | " (ID: %d, State: %d, ScreenPos: (%f, %f), Pos: (%f, %f),"

2025-06-17T14:20:16 | ~^

2025-06-17T14:20:16 | |

2025-06-17T14:20:16 | int

2025-06-17T14:20:16 ......

2025-06-17T14:20:16 76 | point.id, point.state, point.PositionInScreen().x(),

2025-06-17T14:20:16 | ~~~~~~~~~~~

2025-06-17T14:20:16 | |

2025-06-17T14:20:16 | const blink::WebTouchPoint::State {aka const blink::mojom::TouchState}

2025-06-17T14:20:16 ./../../3rdparty/chromium/ui/events/blink/web_input_event_traits.cc: In function 'void ui::{anonymous}::ApppendEventDetails(const blink::WebTouchEvent&, std::string*)':

2025-06-17T14:20:16 ./../../3rdparty/chromium/ui/events/blink/web_input_event_traits.cc:85:50: warning: format '%d' expects argument of type 'int', but argument 4 has type 'const blink::WebInputEvent::DispatchType' {aka 'const blink::mojom::DispatchType'} [-Wformat=]

2025-06-17T14:20:16 85 | "{\n Touches: %u, DispatchType: %d, CausesScrolling: %d,"

2025-06-17T14:20:16 | ~^

2025-06-17T14:20:16 | |

2025-06-17T14:20:16 | int

2025-06-17T14:20:16 86 | " Hovering: %d, uniqueTouchEventId: %u\n[\n",

2025-06-17T14:20:16 87 | event.touches_length, event.dispatch_type,

2025-06-17T14:20:16 | ~~~~~~~~~~~~~~~~~~~

2025-06-17T14:20:16 | |

2025-06-17T14:20:16 | const blink::WebInputEvent::DispatchType {aka const blink::mojom::DispatchType}

17107/21949\] CXX obj/ui/gfx/ipc/buffer_types/buffer_types/gfx_param_traits.o 2025-06-17T14:20:17 ../../3rdparty/chromium/ui/gfx/ipc/buffer_types/gfx_param_traits.cc: In static member function 'static void IPC::ParamTraits\::Log(const gfx::BufferUsageAndFormat\&, std::string\*)': 2025-06-17T14:20:17 ../../3rdparty/chromium/ui/gfx/ipc/buffer_types/gfx_param_traits.cc:33:35: warning: format '%d' expects argument of type 'int', but argument 2 has type 'const gfx::BufferUsage' \[-Wformat=

2025-06-17T14:20:17 33 | l->append(base::StringPrintf("(%d, %d)", p.usage, p.format));

2025-06-17T14:20:17 | ~^ ~~~~~~~

2025-06-17T14:20:17 | | |

2025-06-17T14:20:17 | int const gfx::BufferUsage

2025-06-17T14:20:17 ../../3rdparty/chromium/ui/gfx/ipc/buffer_types/gfx_param_traits.cc:33:39: warning: format '%d' expects argument of type 'int', but argument 3 has type 'const gfx::BufferFormat' [-Wformat=]

2025-06-17T14:20:17 33 | l->append(base::StringPrintf("(%d, %d)", p.usage, p.format));

2025-06-17T14:20:17 | ~^ ~~~~~~~~

2025-06-17T14:20:17 | | |

2025-06-17T14:20:17 | int const gfx::BufferFormat

17253/21949\] CXX obj/ui/latency/latency/latency_jumbo_1.o 2025-06-17T14:20:35 In file included from gen/ui/latency/latency_jumbo_1.cc:5: 2025-06-17T14:20:35 ./../../3rdparty/chromium/ui/latency/latency_info.cc:79:1: warning: 'static std::unique_ptr\ {anonymous}::LatencyInfoTracedValue::FromValue(std::unique_ptr\)' defined but not used \[-Wunused-function

2025-06-17T14:20:35 79 | LatencyInfoTracedValue::FromValue(std::unique_ptr<base::Value> value) {

2025-06-17T14:20:35 | ^~~~~~~~~~~~~~~~~~~~~~

18102/21949\] CXX host/obj/base/base/logging.o 2025-06-17T14:21:06 ../../3rdparty/chromium/base/logging.cc:11: warning: ignoring #pragma clang max_tokens_here \[-Wunknown-pragmas

2025-06-17T14:21:06 11 | #pragma clang max_tokens_here 350000

2025-06-17T14:21:06 |

18106/21949\] CXX host/obj/base/base/base_jumbo_2.o 2025-06-17T14:21:07 In file included from host/gen/base/base_jumbo_2.cc:6: 2025-06-17T14:21:07 ./../../3rdparty/chromium/base/check.cc:11: warning: ignoring #pragma clang max_tokens_here \[-Wunknown-pragmas

2025-06-17T14:21:07 11 | #pragma clang max_tokens_here 17000

2025-06-17T14:21:07 |

2025-06-17T14:21:07 In file included from host/gen/base/base_jumbo_2.cc:7:

2025-06-17T14:21:07 ./../../3rdparty/chromium/base/check_op.cc:11: warning: ignoring #pragma clang max_tokens_here [-Wunknown-pragmas]

2025-06-17T14:21:07 11 | #pragma clang max_tokens_here 244000

2025-06-17T14:21:07 |

18121/21949\] CXX host/obj/base/base/base_jumbo_13.o 2025-06-17T14:21:12 In file included from host/gen/base/base_jumbo_13.cc:7: 2025-06-17T14:21:12 ./../../3rdparty/chromium/base/notreached.cc:11: warning: ignoring #pragma clang max_tokens_here \[-Wunknown-pragmas

2025-06-17T14:21:12 11 | #pragma clang max_tokens_here 17000

2025-06-17T14:21:12 |

18138/21949\] CXX host/obj/base/base/base_jumbo_4.o 2025-06-17T14:21:17 In file included from host/gen/base/base_jumbo_4.cc:6: 2025-06-17T14:21:17 ./../../3rdparty/chromium/base/debug/alias.cc:11: warning: ignoring #pragma clang max_tokens_here \[-Wunknown-pragmas

2025-06-17T14:21:17 11 | #pragma clang max_tokens_here 250

2025-06-17T14:21:17 |

18192/21949\] CXX host/obj/base/base/base_jumbo_23.o 2025-06-17T14:21:24 In file included from host/gen/base/base_jumbo_23.cc:9: 2025-06-17T14:21:24 ./../../3rdparty/chromium/base/task/sequence_manager/task_queue_impl.cc: In member function 'void base::sequence_manager::internal::TaskQueueImpl::MaybeReportIpcTaskQueuedFromAnyThreadUnlocked(base::sequence_manager::Task\*, const char\*)': 2025-06-17T14:21:24 ./../../3rdparty/chromium/base/task/sequence_manager/task_queue_impl.cc:1320:8: warning: variable 'should_report' set but not used \[-Wunused-but-set-variable

2025-06-17T14:21:24 1320 | bool should_report = false;

2025-06-17T14:21:24 | ^~~~~~~~~~~~~

18375/21949\] CXX v8_snapshot/obj/v8/gen-regexp-special-case/gen-regexp-special-case.o 2025-06-17T14:21:37 FAILED: v8_snapshot/obj/v8/gen-regexp-special-case/gen-regexp-special-case.o 2025-06-17T14:21:37 ccache /usr/bin/g++ -MMD -MF v8_snapshot/obj/v8/gen-regexp-special-case/gen-regexp-special-case.o.d -DUSE_UDEV -DUSE_AURA=1 -DUSE_NSS_CERTS=1 -DUSE_OZONE=1 -DOFFICIAL_BUILD -DTOOLKIT_QT -D_FILE_OFFSET_BITS=64 -D_LARGEFILE_SOURCE -D_LARGEFILE64_SOURCE -DNO_UNWIND_TABLES -D__STDC_CONSTANT_MACROS -D__STDC_FORMAT_MACROS -DNDEBUG -DNVALGRIND -DDYNAMIC_ANNOTATIONS_ENABLED=0 -DV8_TYPED_ARRAY_MAX_SIZE_IN_HEAP=64 -DENABLE_MINOR_MC -DV8_INTL_SUPPORT -DV8_CONCURRENT_MARKING -DV8_ENABLE_LAZY_SOURCE_POSITIONS -DV8_WIN64_UNWINDING_INFO -DV8_ENABLE_REGEXP_INTERPRETER_THREADED_DISPATCH -DV8_SNAPSHOT_COMPRESSION -DV8_COMPRESS_POINTERS -DV8_31BIT_SMIS_ON_64BIT_ARCH -DV8_DEPRECATION_WARNINGS -DV8_REVERSE_JSARGS -DV8_TARGET_ARCH_ARM64 -DV8_HAVE_TARGET_OS -DV8_TARGET_OS_LINUX -DDISABLE_UNTRUSTED_CODE_MITIGATIONS -DV8_COMPRESS_POINTERS -DV8_31BIT_SMIS_ON_64BIT_ARCH -DV8_DEPRECATION_WARNINGS -DV8_REVERSE_JSARGS -DUSING_SYSTEM_ICU=1 -DICU_UTIL_DATA_IMPL=ICU_UTIL_DATA_STATIC -DUCHAR_TYPE=uint16_t -Iv8_snapshot/gen -I../../3rdparty/chromium -I../../3rdparty/chromium/v8 -I../../3rdparty/chromium/v8/include -Iv8_snapshot/gen/v8 -Iv8_snapshot/gen -Iv8_snapshot/gen -fno-strict-aliasing --param=ssp-buffer-size=4 -fstack-protector -fno-unwind-tables -fno-asynchronous-unwind-tables -fPIC -pipe -pthread -m64 -Wall -U_FORTIFY_SOURCE -D_FORTIFY_SOURCE=2 -Wno-unused-local-typedefs -Wno-maybe-uninitialized -Wno-deprecated-declarations -fno-delete-null-pointer-checks -Wno-comments -Wno-packed-not-aligned -Wno-dangling-else -Wno-missing-field-initializers -Wno-unused-parameter -fno-omit-frame-pointer -g0 -fvisibility=hidden -Wno-strict-overflow -Wno-return-type -O3 -fno-ident -fdata-sections -ffunction-sections -I/usr/include -I/usr/include -std=gnu++14 -Wno-narrowing -Wno-class-memaccess -Wno-attributes -Wno-class-memaccess -Wno-subobject-linkage -Wno-invalid-offsetof -Wno-return-type -Wno-deprecated-copy -fno-exceptions -fno-rtti -fvisibility-inlines-hidden -c ../../3rdparty/chromium/v8/src/regexp/gen-regexp-special-case.cc -o v8_snapshot/obj/v8/gen-regexp-special-case/gen-regexp-special-case.o 2025-06-17T14:21:37 In file included from ../../3rdparty/chromium/v8/src/regexp/gen-regexp-special-case.cc:10: 2025-06-17T14:21:37 ../../3rdparty/chromium/v8/src/regexp/special-case.h:12:10: fatal error: unicode/uchar.h: No such file or directory 2025-06-17T14:21:37 12 \| #include "unicode/uchar.h" 2025-06-17T14:21:37 \| \^\~\~\~\~\~\~\~\~\~\~\~\~\~\~\~\~ 2025-06-17T14:21:37 compilation terminated. \[18399/21949\] CXX host/obj/third_party/perfetto/src/tracing/core/service/tracing_service_impl.o 2025-06-17T14:21:47 ninja: build stopped: subcommand failed. 2025-06-17T14:21:48 make\[5\]: \*\*\* \[Makefile.gn_run:410: run_ninja\] Error 1 2025-06-17T14:21:48 make\[4\]: \*\*\* \[Makefile:82: sub-gn_run-pro-make_first\] Error 2 2025-06-17T14:21:48 make\[3\]: \*\*\* \[Makefile:79: sub-core-make_first\] Error 2 2025-06-17T14:21:48 make\[2\]: \*\*\* \[Makefile:49: sub-src-make_first\] Error 2 2025-06-17T14:21:48 make\[1\]: \*\*\* \[package/pkg-generic.mk:303: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/build/qt5webengine-5.15.11/.stamp_built\] Error 2 2025-06-17T14:21:48 make: \*\*\* \[Makefile:112: _all\] Error 2 2025-06-17T14:21:48 make: Leaving directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot' Please check details in /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/sessions/2025-06-17_13-41-57/br-rockchip_ok3576_2025-06-17_13-42-08.log ERROR: Running /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/scripts/mk-rootfs.sh - build_buildroot failed! ERROR: exit code 1 from line 21: "$RK_SCRIPTS_DIR/mk-buildroot.sh" $RK_BUILDROOT_CFG "$IMAGE_DIR" ERROR: call stack: mk-rootfs.sh: build_buildroot(21) mk-rootfs.sh: build_hook(298) mk-rootfs.sh: main(327) ERROR: Running /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/build-hooks/99-all.sh - build_all failed! ERROR: exit code 1 from line 21: "$RK_SCRIPTS_DIR/mk-rootfs.sh" ERROR: call stack: 99-all.sh: build_all(21) 99-all.sh: build_hook(128) build-helper: try_func(63) build-helper: try_hook(96) build-helper: source(176) 99-all.sh: main(139) ERROR: Running /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/build-hooks/99-all.sh - try_func build_hook all failed! ERROR: exit code 1 from line 67: build_hook ERROR: call stack: build-helper: try_func(67) build-helper: try_hook(96) build-helper: source(176) 99-all.sh: main(139) rootroot@rootroot-X99-Turbo:\~/14TB/versions/OK3576_linux_source6.1.75$ rootroot@rootroot-X99-Turbo:\~/14TB/versions/OK3576_linux_source6.1.75$ rootroot@rootroot-X99-Turbo:\~/14TB/versions/OK3576_linux_source6.1.75$ sudo apt install libicu-dev \[sudo\] password for rootroot: Reading package lists... Done Building dependency tree Reading state information... Done The following packages were automatically installed and are no longer required: chromium-codecs-ffmpeg-extra gstreamer1.0-vaapi libgstreamer-plugins-bad1.0-0 libjs-underscore libnvidia-cfg1-535 libnvidia-common-535 libnvidia-decode-535 libnvidia-encode-535 libnvidia-extra-535 libnvidia-fbc1-535 libnvidia-gl-535 libva-wayland2 libx11-xcb1:i386 libxnvctrl0 nvidia-compute-utils-535 nvidia-kernel-source-535 nvidia-settings nvidia-utils-535 screen-resolution-extra xserver-xorg-video-nvidia-535 Use 'sudo apt autoremove' to remove them. The following additional packages will be installed: icu-devtools libicu70 Suggested packages: icu-doc The following NEW packages will be installed: icu-devtools libicu-dev libicu70 0 upgraded, 3 newly installed, 0 to remove and 1630 not upgraded. Need to get 22.4 MB of archives. After this operation, 83.1 MB of additional disk space will be used. Do you want to continue? \[Y/n\] y Get:1 http://th.archive.ubuntu.com/ubuntu jammy/main amd64 libicu70 amd64 70.1-2 \[10.6 MB

Get:1 http://th.archive.ubuntu.com/ubuntu jammy/main amd64 libicu70 amd64 70.1-2 [10.6 MB]

Get:2 http://th.archive.ubuntu.com/ubuntu jammy/main amd64 icu-devtools amd64 70.1-2 [197 kB]

Get:3 http://th.archive.ubuntu.com/ubuntu jammy/main amd64 libicu-dev amd64 70.1-2 [11.6 MB]

Fetched 22.3 MB in 29min 31s (12.6 kB/s)

Selecting previously unselected package libicu70:amd64.

(Reading database ... 212797 files and directories currently installed.)

Preparing to unpack .../libicu70_70.1-2_amd64.deb ...

Unpacking libicu70:amd64 (70.1-2) ...

Selecting previously unselected package icu-devtools.

Preparing to unpack .../icu-devtools_70.1-2_amd64.deb ...

Unpacking icu-devtools (70.1-2) ...

Selecting previously unselected package libicu-dev:amd64.

Preparing to unpack .../libicu-dev_70.1-2_amd64.deb ...

Unpacking libicu-dev:amd64 (70.1-2) ...

Setting up libicu70:amd64 (70.1-2) ...

Setting up icu-devtools (70.1-2) ...

Setting up libicu-dev:amd64 (70.1-2) ...

Processing triggers for man-db (2.9.1-1) ...

Processing triggers for libc-bin (2.35-0ubuntu3) ...

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75$

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75$ ./build.sh

2025-06-17T17:10:59 >>> host-libxcb 1.15 Downloading

2025-06-17T17:11:00 >>> host-libxcb 1.15 Extracting

2025-06-17T17:11:00 >>> host-libxcb 1.15 Patching

2025-06-17T17:11:00 >>> host-libxcb 1.15 Updating config.sub and config.guess

2025-06-17T17:11:00 >>> host-libxcb 1.15 Patching libtool

2025-06-17T17:11:00 >>> host-libxcb 1.15 Configuring

2025-06-17T17:11:10 >>> host-libxcb 1.15 Building

2025-06-17T17:11:12 >>> host-libxcb 1.15 Installing to host directory

2025-06-17T17:11:17 >>> host-xlib_xtrans 1.5.0 Downloading

2025-06-17T17:11:18 >>> host-xlib_xtrans 1.5.0 Extracting

2025-06-17T17:11:18 >>> host-xlib_xtrans 1.5.0 Patching

2025-06-17T17:11:18 >>> host-xlib_xtrans 1.5.0 Updating config.sub and config.guess

2025-06-17T17:11:18 >>> host-xlib_xtrans 1.5.0 Patching libtool

2025-06-17T17:11:18 >>> host-xlib_xtrans 1.5.0 Configuring

2025-06-17T17:11:23 >>> host-xlib_xtrans 1.5.0 Building

2025-06-17T17:11:23 >>> host-xlib_xtrans 1.5.0 Installing to host directory

2025-06-17T17:11:27 >>> host-xlib_libX11 1.8.7 Downloading

2025-06-17T17:11:29 >>> host-xlib_libX11 1.8.7 Extracting

2025-06-17T17:11:29 >>> host-xlib_libX11 1.8.7 Patching

2025-06-17T17:11:29 >>> host-xlib_libX11 1.8.7 Updating config.sub and config.guess

2025-06-17T17:11:29 >>> host-xlib_libX11 1.8.7 Patching libtool

2025-06-17T17:11:30 >>> host-xlib_libX11 1.8.7 Configuring

2025-06-17T17:11:40 >>> host-xlib_libX11 1.8.7 Building

2025-06-17T17:11:56 >>> host-xlib_libX11 1.8.7 Installing to host directory

2025-06-17T17:12:01 >>> host-xlib_libxkbfile 1.1.2 Downloading

2025-06-17T17:12:02 >>> host-xlib_libxkbfile 1.1.2 Extracting

2025-06-17T17:12:02 >>> host-xlib_libxkbfile 1.1.2 Patching

2025-06-17T17:12:02 >>> host-xlib_libxkbfile 1.1.2 Updating config.sub and config.guess

2025-06-17T17:12:02 >>> host-xlib_libxkbfile 1.1.2 Patching libtool

2025-06-17T17:12:02 >>> host-xlib_libxkbfile 1.1.2 Configuring

2025-06-17T17:12:10 >>> host-xlib_libxkbfile 1.1.2 Building

2025-06-17T17:12:11 >>> host-xlib_libxkbfile 1.1.2 Installing to host directory

2025-06-17T17:12:15 >>> host-xapp_xkbcomp 1.4.6 Downloading

2025-06-17T17:12:17 >>> host-xapp_xkbcomp 1.4.6 Extracting

2025-06-17T17:12:17 >>> host-xapp_xkbcomp 1.4.6 Patching

2025-06-17T17:12:17 >>> host-xapp_xkbcomp 1.4.6 Updating config.sub and config.guess

2025-06-17T17:12:17 >>> host-xapp_xkbcomp 1.4.6 Patching libtool

2025-06-17T17:12:18 >>> host-xapp_xkbcomp 1.4.6 Configuring

2025-06-17T17:12:23 >>> host-xapp_xkbcomp 1.4.6 Building

2025-06-17T17:12:25 >>> host-xapp_xkbcomp 1.4.6 Installing to host directory

2025-06-17T17:12:30 >>> xkeyboard-config 2.38 Downloading

2025-06-17T17:12:31 >>> xkeyboard-config 2.38 Extracting

2025-06-17T17:12:31 >>> xkeyboard-config 2.38 Patching

2025-06-17T17:12:31 >>> xkeyboard-config 2.38 Configuring

2025-06-17T17:12:32 >>> xkeyboard-config 2.38 Building

2025-06-17T17:12:33 >>> xkeyboard-config 2.38 Installing to staging directory

2025-06-17T17:12:33 >>> xkeyboard-config 2.38 Fixing libtool files

2025-06-17T17:12:35 >>> xkeyboard-config 2.38 Installing to target

2025-06-17T17:12:36 >>> host-lz4 1.9.4 Downloading

2025-06-17T17:12:37 >>> host-lz4 1.9.4 Extracting

2025-06-17T17:12:37 >>> host-lz4 1.9.4 Patching

2025-06-17T17:12:37 >>> host-lz4 1.9.4 Configuring

2025-06-17T17:12:38 >>> host-lz4 1.9.4 Building

2025-06-17T17:12:51 >>> host-lz4 1.9.4 Installing to host directory

2025-06-17T17:12:56 >>> host-lzo 2.10 Downloading

2025-06-17T17:13:06 >>> host-lzo 2.10 Extracting

2025-06-17T17:13:06 >>> host-lzo 2.10 Patching

2025-06-17T17:13:06 >>> host-lzo 2.10 Configuring

2025-06-17T17:13:18 >>> host-lzo 2.10 Building

2025-06-17T17:13:22 >>> host-lzo 2.10 Installing to host directory

2025-06-17T17:13:26 >>> host-squashfs 4.6.1 Downloading

2025-06-17T17:13:27 >>> host-squashfs 4.6.1 Extracting

2025-06-17T17:13:27 >>> host-squashfs 4.6.1 Patching

2025-06-17T17:13:27 >>> host-squashfs 4.6.1 Configuring

2025-06-17T17:13:28 >>> host-squashfs 4.6.1 Building

2025-06-17T17:13:28 >>> host-squashfs 4.6.1 Installing to host directory

2025-06-17T17:13:32 >>> Finalizing host directory

2025-06-17T17:13:34 >>> Finalizing target directory

2025-06-17T17:14:10 >>> Sanitizing RPATH in target tree

2025-06-17T17:14:24 >>> Sanity check in overlay board/rockchip/common/base

2025-06-17T17:14:24 >>> Sanity check in overlay board/rockchip/rk3576/fs-overlay/

2025-06-17T17:14:24 >>> Copying overlay board/rockchip/common/base

2025-06-17T17:14:24 >>> Copying overlay board/rockchip/rk3576/fs-overlay/

2025-06-17T17:14:28 >>> Executing post-build script board/rockchip/common/post-build.sh

2025-06-17T17:14:28 >>> Copying board/rockchip/common/overlays/00-pm-utils

2025-06-17T17:14:28 >>> Copying board/rockchip/common/overlays/10-weston

2025-06-17T17:14:28 >>> Copying board/rockchip/common/overlays/11-weston-chromium

2025-06-17T17:14:28 >>> Ignored board/rockchip/common/overlays/20-wlan0

2025-06-17T17:14:30 >>> Running 00-wifibt.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:30 >>> Building Wifi/BT module and firmwares...

2025-06-17T17:14:31 >>> Start building wifi/BT (CM358)

2025-06-17T17:14:31 >>> Running 01-hostname.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:31 >>> Running 05-udev.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:31 >>> Installing udev rule: external/rkscript/61-persistent-internal-storage.rules

2025-06-17T17:14:31 >>> Installing udev rule: external/rkscript/88-rockchip-camera.rules

2025-06-17T17:14:31 >>> Installing udev rule: external/rkscript/99-rockchip-permissions.rules

2025-06-17T17:14:31 >>> Running 06-async-commit.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:31 >>> Installing async-commit service...

2025-06-17T17:14:31 >>> Running 07-log-guardian.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:31 >>> Installing log-guardian...

2025-06-17T17:14:31 >>> Running 09-disk.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:31 >>> Installing mount service...

2025-06-17T17:14:31 >>> Running 10-os-release.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:31 >>> Running 20-info.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:32 >>> Running 30-fstab.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:32 >>> Running 40-busybox-reboot.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:32 >>> Running 50-locale.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:32 >>> Running 60-dirs.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:33 >>> Running 90-overlay.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:33 >>> Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/bootanim)...

2025-06-17T17:14:33 >>> Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/chromium)...

2025-06-17T17:14:33 >>> Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/fonts)...

2025-06-17T17:14:33 >>> Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/frecon)...

2025-06-17T17:14:33 >>> Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/fstrim)...

2025-06-17T17:14:33 >>> Installing fstrim service to /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target...

2025-06-17T17:14:33 >>> Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/generate-logs)...

2025-06-17T17:14:33 >>> Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/input-event-daemon)...

2025-06-17T17:14:33 >>> Installing input-event-daemon to /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target...

2025-06-17T17:14:33 >>> Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/irqbalance)...

2025-06-17T17:14:33 >>> Installing irqbalance to /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target...

2025-06-17T17:14:33 >>> Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/tools)...

2025-06-17T17:14:33 >>> Installing prebuilt tools: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/tools to /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target...

2025-06-17T17:14:34 >>> Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/usb-gadget)...

2025-06-17T17:14:34 >>> Installing USB gadget to /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target...

2025-06-17T17:14:34 >>> Installing adbd...

2025-06-17T17:14:34 >>> Installing USB services...

2025-06-17T17:14:34 >>> Running 91-modules.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:34 >>> Running 95-partitions.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:35 >>> Running 97-ldcache.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:35 >>> Running 99-owner.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

2025-06-17T17:14:35 >>> Running build.sh - post-rootfs succeeded.

2025-06-17T17:14:36 >>> Generating root filesystems common tables

2025-06-17T17:14:36 >>> Generating filesystem image rootfs.cpio

2025-06-17T17:18:19 >>> Generating filesystem image rootfs.ext2

2025-06-17T17:19:01 >>> Generating filesystem image rootfs.squashfs

2025-06-17T17:19:24 >>> Generating filesystem image rootfs.tar

Done in 2h 20min 20s

Log saved on /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/sessions/2025-06-17_14-58-58/br-rockchip_ok3576_2025-06-17_14-59-17.log

Generated images:

/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/buildroot/images/rootfs.cpio

/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/buildroot/images/rootfs.cpio.gz

/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/buildroot/images/rootfs.ext2

/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/buildroot/images/rootfs.ext4

/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/buildroot/images/rootfs.squashfs

/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/buildroot/images/rootfs.tar

2025-06-17 17:14:30

run hook: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target

Running 00-wifibt.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Building Wifi/BT module and firmwares...

==========================================

Start building wifi/BT (CM358)

==========================================

kernel config: CONFIG_USB=y CONFIG_MMC=y CONFIG_RFKILL=y

create Android style dirs

copy prebuilt tools/scripts to rootfs

Copy AP file to rootfs

Running 01-hostname.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Setting hostname: ok3576-buildroot

Running 05-udev.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Installing udev rule: external/rkscript/61-persistent-internal-storage.rules

Installing udev rule: external/rkscript/88-rockchip-camera.rules

Installing udev rule: external/rkscript/99-rockchip-permissions.rules

Running 06-async-commit.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Installing async-commit service...

Running 07-log-guardian.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Installing log-guardian...

Running 09-disk.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Installing mount service...

Running 10-os-release.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Adding information to /etc/os-release...

Running 20-info.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Adding info dir...

Running 30-fstab.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Fixing up /etc/fstab...

Fixing up rootfs type: ext4

Fixing up basic partition: proc /proc

Fixing up basic partition: devtmpfs /dev

Fixing up basic partition: devpts /dev/pts mode=0620,ptmxmode=0000,gid=5

Fixing up basic partition: tmpfs /dev/shm nosuid,nodev,noexec

Fixing up basic partition: sysfs /sys nosuid,nodev,noexec

Fixing up basic partition: configfs /sys/kernel/config

Fixing up basic partition: debugfs /sys/kernel/debug

Fixing up basic partition: pstore /sys/fs/pstore nosuid,nodev,noexec

Fixing up device partition: oem /oem ext4 defaults

Fixing up device partition: userdata /userdata ext4 defaults

Running 40-busybox-reboot.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Running 50-locale.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Setting LANG environment to en_US.UTF-8...

Running 60-dirs.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Adding dirs and links...

Running 90-overlay.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/bootanim)...

Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/chromium)...

Disabling chromium commandline flag security warnings...

Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/fonts)...

No extra fonts for buildroot by default

Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/frecon)...

Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/fstrim)...

Installing fstrim service to /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target...

Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/generate-logs)...

sending incremental file list

copying unsafe symlink "usr/bin/modetest" -> "../../../../../tools/armhf/modetest"

copying unsafe symlink "usr/bin/kmsgrab" -> "../../../../../tools/armhf/kmsgrab"

etc/

etc/generate_logs.d/

etc/generate_logs.d/20-drm.sh

usr/

usr/bin/

usr/bin/generate_logs

usr/bin/kmsgrab

usr/bin/modetest

sent 1,151,323 bytes received 112 bytes 2,302,870.00 bytes/sec

total size is 1,150,643 speedup is 1.00

Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/input-event-daemon)...

Installing input-event-daemon to /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target...

sending incremental file list

etc/input-event-daemon.conf

etc/input-event-daemon.conf.d/

etc/input-event-daemon.conf.d/power-key.conf

usr/bin/input-event-daemon

usr/bin/power-key.sh

sent 441,589 bytes received 103 bytes 883,384.00 bytes/sec

total size is 441,083 speedup is 1.00

'/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/tools/armhf/inotifywait' -> '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target/usr/bin/inotifywait'

Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/irqbalance)...

Installing irqbalance to /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target...

sending incremental file list

etc/irqbalance.d/

etc/irqbalance.d/force_core.sh

usr/sbin/

usr/sbin/irqbalance

usr/share/

usr/share/man/

usr/share/man/man1/

usr/share/man/man1/irqbalance.1

sent 1,306,418 bytes received 99 bytes 2,613,034.00 bytes/sec

total size is 1,305,714 speedup is 1.00

Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/tools)...

Installing prebuilt tools: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/tools to /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target...

sending incremental file list

adb

brcm_patchram_plus1

busybox

coremark

dhd_priv

dhrystone

edid-decode

frecon

gdb

gdbserver

inotifywait

inotifywatch

kmsgrab

lockfile-check

lockfile-create

lockfile-remove

lockfile-touch

memtester

modetest

perf

perf-4.19

perf-4.4

perf-5.10

perf-6.1

pmap

procrank

rtk_hciattach

slabtop

strace

stressapptest

top

umtprd

update

updateEngine

uvc-gadget

vendor_storage

vmstat

watch

sent 58,731,370 bytes received 779 bytes 39,154,766.00 bytes/sec

total size is 58,714,860 speedup is 1.00

Handling overlay: /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/overlays/rootfs/usb-gadget)...

Installing USB gadget to /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target...

USB gadget functions: adb

Installing adbd...

Installing USB services...

Running 91-modules.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Strip kernel modules...

copy from `/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target/usr/lib/modules/mlan.ko' [elf64-littleaarch64] to `/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target/usr/lib/modules/str40g5W' [elf64-littleaarch64]

copy from `/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target/usr/lib/modules/moal.ko' [elf64-littleaarch64] to `/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target/usr/lib/modules/stWfaeJp' [elf64-littleaarch64]

Running 95-partitions.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Preparing extra partitions...

Running 97-ldcache.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Creating ld.so.cache for ...

/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/tools/x86_64/ldconfig: Can't open configuration file /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target/etc/ld.so.conf: No such file or directory

/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/tools/x86_64/ldconfig: /lib/libstdc++.so.6.0.30-gdb.py is not an ELF file - it has the wrong magic bytes at the start.

saving cache in little endian encoding

Running 99-owner.sh for /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/target (buildroot init=busybox)...

Running mk-rootfs.sh - build_buildroot /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/buildroot/images succeeded.

Running mk-rootfs.sh - build_rootfs succeeded.

==========================================

Start building recovery(buildroot)

==========================================

Use forlinx prebuilts rootfs.cpio.gz

Using kernel version(6.1) from environment

Toolchain for kernel:

/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu-

==========================================

Start building recovery-kernel

==========================================

rm -rf /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/recovery-kernel
ln -rsf /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/recovery-kernel
cd /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/recovery-kernel
make -C /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel/ -j25 CROSS_COMPILE=/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 OK3576-C-linux_defconfig

make: Entering directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

No change to .config

make: Leaving directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

make -C /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel/ -j25 CROSS_COMPILE=/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 Image

make: Entering directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

CALL scripts/checksyscalls.sh

fatal: not a git repository (or any parent up to mount point /home/rootroot)

Stopping at filesystem boundary (GIT_DISCOVERY_ACROSS_FILESYSTEM not set).

MODPOST vmlinux.symvers

make: Leaving directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

make -C /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel/ -j25 CROSS_COMPILE=/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 rockchip/OK3576-C-linux.dtb

make: Entering directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

make: Leaving directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

ln -rsf arch/arm64/boot/Image /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/recovery-kernel.img
ln -rsf arch/arm64/boot/dts/rockchip/OK3576-C-linux.dtb /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/recovery-kernel.dtb
scripts/resource_tool arch/arm64/boot/dts/rockchip/OK3576-C-linux.dtb logo.bmp logo_kernel.bmp

Pack to resource.img successed!

ln -rsf resource.img /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/recovery-resource.img

Running mk-kernel.sh - build_recovery-kernel succeeded.

Packing /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/recovery/ramboot.img...

FIT description: U-Boot FIT source file for arm

Created: Tue Jun 17 17:20:49 2025

Image 0 (fdt)

Description: unavailable

Created: Tue Jun 17 17:20:49 2025

Type: Flat Device Tree

Compression: uncompressed

Data Size: 274874 Bytes = 268.43 KiB = 0.26 MiB

Architecture: AArch64

Load Address: 0xffffff00

Hash algo: sha256

Hash value: f86bf7fec1cbaa0d346d68cc4d1f56652261575a426756159df2aeb9ac7c4974

Image 1 (kernel)

Description: unavailable

Created: Tue Jun 17 17:20:49 2025

Type: Kernel Image

Compression: uncompressed

Data Size: 40499712 Bytes = 39550.50 KiB = 38.62 MiB

Architecture: AArch64

OS: Linux

Load Address: 0xffffff01

Entry Point: 0xffffff01

Hash algo: sha256

Hash value: 14cbb37229e498d79cd0b4e51c040b0c60813339eb49375c2e8c38ba032494a0

Image 2 (ramdisk)

Description: unavailable

Created: Tue Jun 17 17:20:49 2025

Type: RAMDisk Image

Compression: uncompressed

Data Size: 184455942 Bytes = 180132.76 KiB = 175.91 MiB

Architecture: AArch64

OS: Linux

Load Address: 0xffffff02

Entry Point: unavailable

Hash algo: sha256

Hash value: 6faaca9a416cd7a25fe0920b73ba9a7e22e0300a4fa56906ec76cc60c083f1a3

Image 3 (resource)

Description: unavailable

Created: Tue Jun 17 17:20:49 2025

Type: Multi-File Image

Compression: uncompressed

Data Size: 312832 Bytes = 305.50 KiB = 0.30 MiB

Hash algo: sha256

Hash value: a4fab931b899440455efe9d2ce53488097941350c9ab977c1c3c6e866d899561

Default Configuration: 'conf'

Configuration 0 (conf)

Description: unavailable

Kernel: kernel

Init Ramdisk: ramdisk

FDT: fdt

Running mk-recovery.sh - build_recovery succeeded.

==========================================

Start packing firmwares

==========================================

Linking /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/firmware/parameter.txt from /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/.chip/parameter.txt...

Preparing partiton oem

Merging /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/extra-parts/oem/normal into /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem

Packing /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem.img from /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem.fs

Using host tools in /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host (except for mke2fs)

Making /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem.img from /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem (auto sized)

Making /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem.img from /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem with size(14271KB)

mke2fs 1.45.5 (07-Jan-2020)

Creating regular file /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem.img

Creating filesystem with 3567 4k blocks and 3584 inodes

Allocating group tables: done

Writing inode tables: done

Creating journal (1024 blocks): done

Copying files into the device: __populate_fs: Could not allocate block in ext2 filesystem while writing file "game_test.gba"

mke2fs: Could not allocate block in ext2 filesystem while populating file system

Retring with increased size....(1/20)

Making /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem.img from /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem with size(18367KB)

mke2fs 1.45.5 (07-Jan-2020)

Creating regular file /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem.img

Creating filesystem with 4591 4k blocks and 4608 inodes

Allocating group tables: done

Writing inode tables: done

Creating journal (1024 blocks): done

Copying files into the device: done

Writing superblocks and filesystem accounting information: done

tune2fs 1.47.0 (5-Feb-2023)

Setting maximal mount count to -1

Setting interval between checks to 0 seconds

Generated /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem.img

Done packing /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem.img

Preparing partiton userdata

Merging /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/extra-parts/userdata/normal into /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata

Packing /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata.img from /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata.fs

Using host tools in /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/host (except for mke2fs)

Making /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata.img from /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata (auto sized)

Making /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata.img from /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata with size(190823KB)

mke2fs 1.45.5 (07-Jan-2020)

Creating regular file /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata.img

Creating filesystem with 47705 4k blocks and 47744 inodes

Filesystem UUID: 103513a0-7167-4f09-aba6-499c4f318743

Superblock backups stored on blocks:

32768

Allocating group tables: done

Writing inode tables: done

Creating journal (4096 blocks): done

Copying files into the device: __populate_fs: Could not allocate block in ext2 filesystem while writing file "4k_60fps_h265-30S.mp4"

mke2fs: Could not allocate block in ext2 filesystem while populating file system

Retring with increased size....(1/20)

mke2fs 1.45.5 (07-Jan-2020)

Creating regular file /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata.img

Creating filesystem with 48729 4k blocks and 48768 inodes

Filesystem UUID: 34df9d7a-0acf-49a8-85f1-49a89d17d663

Superblock backups stored on blocks:

32768

Allocating group tables: done

Writing inode tables: done

Creating journal (4096 blocks): done

Copying files into the device: __populate_fs: Could not allocate block in ext2 filesystem while writing file "4k_60fps_h265-30S.mp4"

mke2fs: Could not allocate block in ext2 filesystem while populating file system

Retring with increased size....(2/20)

mke2fs 1.45.5 (07-Jan-2020)

Creating regular file /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata.img

Creating filesystem with 49753 4k blocks and 49792 inodes

Filesystem UUID: 7fe6aa51-7eca-4b27-b526-02cb58ea39ec

Superblock backups stored on blocks:

32768

Allocating group tables: done

Writing inode tables: done

Creating journal (4096 blocks): done

Copying files into the device: done

Writing superblocks and filesystem accounting information: done

tune2fs 1.47.0 (5-Feb-2023)

Setting maximal mount count to -1

Setting interval between checks to 0 seconds

Generated /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata.img

Done packing /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata.img

Running mk-extra-parts.sh - build_extra_part succeeded.

Packed files:

MiniLoaderAll.bin(/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/u-boot/rk3576_spl_loader_v1.05.105.bin): 737K

boot.img(/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1/boot.img): 40M

misc.img(/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/misc.img): 48K

oem.img(/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/oem.img): 18M

parameter.txt(/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/.chips/ok3576/parameter.txt): 540

recovery.img(/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/recovery/ramboot.img): 216M

rootfs.img(/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/buildroot/output/rockchip_ok3576/images/rootfs.ext2): 1.9G

uboot.img(/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/u-boot/uboot.img): 4.0M

userdata.img(/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/extra-parts/userdata.img): 195M

Making update image...

==========================================

Start packing update image

==========================================

Generating package-file for update:

NAME PATH

package-file package-file

parameter parameter.txt

bootloader MiniLoaderAll.bin

uboot uboot.img

misc misc.img

boot boot.img

recovery recovery.img

backup RESERVED

rootfs rootfs.img

oem oem.img

userdata userdata.img

Packing /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/firmware/update.img for update...

Android Firmware Package Tool v2.27

------ PACKAGE ------

Add file: ./package-file

package-file,Add file: ./package-file done,offset=0x800,size=0xe1,userspace=0x1

Add file: ./parameter.txt

parameter,Add file: ./parameter.txt done,offset=0x1000,size=0x228,userspace=0x1,flash_address=0x00000000

Add file: ./MiniLoaderAll.bin

bootloader,Add file: ./MiniLoaderAll.bin done,offset=0x1800,size=0xb81f9,userspace=0x171

Add file: ./uboot.img

uboot,Add file: ./uboot.img done,offset=0xba000,size=0x400000,userspace=0x800,flash_address=0x00004000

Add file: ./misc.img

misc,Add file: ./misc.img done,offset=0x4ba000,size=0xc000,userspace=0x18,flash_address=0x00006000

Add file: ./boot.img

boot,Add file: ./boot.img done,offset=0x4c6000,size=0x272fe00,userspace=0x4e60,flash_address=0x00008000

Add file: ./recovery.img

recovery,Add file: ./recovery.img done,offset=0x2bf6000,size=0xd719200,userspace=0x1ae33,flash_address=0x00028000

Add file: ./rootfs.img

rootfs,Add file: ./rootfs.img done,offset=0x1030f800,size=0x74900000,userspace=0xe9200,flash_address=0x000b8000

Add file: ./oem.img

oem,Add file: ./oem.img done,offset=0x84c0f800,size=0x11ef000,userspace=0x23de,flash_address=0x01cb8000

Add file: ./userdata.img

userdata,Add file: ./userdata.img done,offset=0x85dfe800,size=0xc259000,userspace=0x184b2,flash_address=0x01cf8000

Add CRC...

Make firmware OK!

------ OK ------

********rkImageMaker ver 2.23********

Generating new image, please wait...

Writing head info...

Writing boot file...

Writing firmware...

Generating MD5 data...

MD5 data generated successfully!

New image generated successfully!

Run 'make edit-package-file' if you want to change the package-file.

Running mk-updateimg.sh - build_updateimg succeeded.

Images under /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/firmware/ are ready!

Running mk-firmware.sh - build_firmware succeeded.

==========================================

Start building linux-headers

==========================================

make -C /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel/ -j25 CROSS_COMPILE=/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 OK3576-C-linux_defconfig

make: Entering directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

No change to .config

make: Leaving directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

make -C /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel/ -j25 CROSS_COMPILE=/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/prebuilts/gcc/linux-x86/aarch64/gcc-arm-10.3-2021.07-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu- ARCH=arm64 Image

make: Entering directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

CALL scripts/checksyscalls.sh

fatal: not a git repository (or any parent up to mount point /home/rootroot)

Stopping at filesystem boundary (GIT_DISCOVERY_ACROSS_FILESYSTEM not set).

make: Leaving directory '/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel-6.1'

==========================================

Start packing linux-headers-amd64

==========================================

mkdir -p /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers
rm -rf /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-kbuild-amd64 /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-amd64.tar*
ln -rsf /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-kbuild-amd64
cd /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel

{

Based on kernel/scripts/package/builddeb

find . arch/arm64 -maxdepth 1 -name Makefile\*

find include -type f -o -type l

find arch/arm64 -name module.lds -o -name Kbuild.platforms -o -name Platform

find $(find arch/arm64 -name include -o -name scripts -type d) -type f

find arch/arm64/include Module.symvers -type f

echo .config

} | tar --no-recursion --ignore-failed-read -T - -cf "/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-amd64.tar"

Pack kbuild

tar -uf "/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-amd64.tar" -C "/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-kbuild-amd64" scripts/ tools/

cd /home/rootroot/14TB/versions/OK3576_linux_source6.1.75

Unpacking /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-amd64.tar ...

Debian control file:

Package: linux-headers-6.1-arm64

Source: linux-rockchip (6.1)

Version: 6.1-rockchip

Architecture: amd64

Section: kernel

Priority: optional

Multi-Arch: foreign

Maintainer: Tao Huang <[email protected]>

Homepage: https://www.kernel.org/

Description: Kbuild and headers for Rockchip Linux 6.1 arm64 configuration

Packing linux-headers-6.1-arm64_amd64.deb...

Running mk-kernel.sh - linux-headers-amd64 succeeded.

==========================================

Start packing linux-headers-armhf

==========================================

mkdir -p /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers
rm -rf /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-kbuild-armhf /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-armhf.tar*
ln -rsf /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/linux-kbuild/armhf/linux-kbuild-6.1 /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-kbuild-armhf
cd /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel

{

Based on kernel/scripts/package/builddeb

find . arch/arm64 -maxdepth 1 -name Makefile\*

find include -type f -o -type l

find arch/arm64 -name module.lds -o -name Kbuild.platforms -o -name Platform

find $(find arch/arm64 -name include -o -name scripts -type d) -type f

find arch/arm64/include Module.symvers -type f

echo .config

} | tar --no-recursion --ignore-failed-read -T - -cf "/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-armhf.tar"

Pack kbuild

tar -uf "/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-armhf.tar" -C "/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-kbuild-armhf" scripts/ tools/

cd /home/rootroot/14TB/versions/OK3576_linux_source6.1.75

Unpacking /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-armhf.tar ...

Debian control file:

Package: linux-headers-6.1-arm64

Source: linux-rockchip (6.1)

Version: 6.1-rockchip

Architecture: armhf

Section: kernel

Priority: optional

Multi-Arch: foreign

Maintainer: Tao Huang <[email protected]>

Homepage: https://www.kernel.org/

Description: Kbuild and headers for Rockchip Linux 6.1 arm64 configuration

Packing linux-headers-6.1-arm64_armhf.deb...

Running mk-kernel.sh - linux-headers-armhf succeeded.

==========================================

Start packing linux-headers-aarch64

==========================================

mkdir -p /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers
rm -rf /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-kbuild-aarch64 /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-aarch64.tar*
ln -rsf /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/device/rockchip/common/linux-kbuild/aarch64/linux-kbuild-6.1 /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-kbuild-aarch64
cd /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/kernel

{

Based on kernel/scripts/package/builddeb

find . arch/arm64 -maxdepth 1 -name Makefile\*

find include -type f -o -type l

find arch/arm64 -name module.lds -o -name Kbuild.platforms -o -name Platform

find $(find arch/arm64 -name include -o -name scripts -type d) -type f

find arch/arm64/include Module.symvers -type f

echo .config

} | tar --no-recursion --ignore-failed-read -T - -cf "/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-aarch64.tar"

Pack kbuild

tar -uf "/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-aarch64.tar" -C "/home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-kbuild-aarch64" scripts/ tools/

cd /home/rootroot/14TB/versions/OK3576_linux_source6.1.75

Unpacking /home/rootroot/14TB/versions/OK3576_linux_source6.1.75/output/linux-headers/linux-headers-aarch64.tar ...

Debian control file:

Package: linux-headers-6.1-arm64

Source: linux-rockchip (6.1)

Version: 6.1-rockchip

Architecture: aarch64

Section: kernel

Priority: optional

Multi-Arch: foreign

Maintainer: Tao Huang <[email protected]>

Homepage: https://www.kernel.org/

Description: Kbuild and headers for Rockchip Linux 6.1 arm64 configuration

Packing linux-headers-6.1-arm64_aarch64.deb...

Running mk-kernel.sh - linux-headers-aarch64 succeeded.

Running mk-kernel.sh - linux-headers succeeded.

Running 99-all.sh - build_all succeeded.

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75$

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75$ ll

total 241212

drwxrwxr-x 16 rootroot rootroot 4096 6月 17 17:20 ./

drwxrwxr-x 6 rootroot rootroot 4096 6月 17 10:08 ../

drwxrwxr-x 8 rootroot rootroot 4096 8月 14 2024 app/

drwxrwxr-x 18 rootroot rootroot 4096 6月 17 14:59 buildroot/

lrwxrwxrwx 1 rootroot rootroot 39 8月 14 2024 build.sh -> device/rockchip/common/scripts/build.sh*

lrwxrwxrwx 1 rootroot rootroot 22 8月 14 2024 common -> device/rockchip/common/

lrwxrwxrwx 1 rootroot rootroot 21 8月 14 2024 Copyright_Statement.md -> docs/licenses/LICENSE*

drwxrwxr-x 9 rootroot rootroot 4096 8月 14 2024 debian/

drwxrwxr-x 3 rootroot rootroot 4096 8月 14 2024 device/

drwxrwxr-x 6 rootroot rootroot 4096 8月 14 2024 docs/

drwxrwxr-x 33 rootroot rootroot 4096 8月 14 2024 external/

-rw-rw-r-- 1 rootroot rootroot 59 8月 14 2024 .gitignore

lrwxrwxrwx 1 rootroot rootroot 10 8月 14 2024 kernel -> kernel-6.1/

drwxrwxr-x 26 rootroot rootroot 4096 6月 17 17:21 kernel-6.1/

-rw-rw-r-- 1 rootroot rootroot 242640293 6月 17 10:01 kernel-6.1b.tgz

lrwxrwxrwx 1 rootroot rootroot 31 8月 14 2024 Makefile -> device/rockchip/common/Makefile

drwxrwxr-x 10 rootroot rootroot 4096 6月 17 17:21 output/

drwxrwxr-x 11 rootroot rootroot 4096 8月 14 2024 poky/

drwxrwxr-x 4 rootroot rootroot 4096 8月 14 2024 prebuilts/

-rw-rw-r-- 1 rootroot rootroot 6225 8月 14 2024 README.md

drwxrwxr-x 9 rootroot rootroot 4096 8月 14 2024 rkbin/

lrwxrwxrwx 1 rootroot rootroot 41 8月 14 2024 rkflash.sh -> device/rockchip/common/scripts/rkflash.sh*

lrwxrwxrwx 1 rootroot rootroot 15 6月 17 17:20 rockdev -> output/firmware/

drwxrwxr-x 5 rootroot rootroot 4096 8月 14 2024 tools/

drwxrwxr-x 5 rootroot rootroot 4096 8月 14 2024 u-boot/

-rw-rw-r-- 1 rootroot rootroot 4273496 6月 17 10:00 u-boot1.tgz

drwxrwxr-x 8 rootroot rootroot 4096 8月 14 2024 yocto/

rootroot@rootroot-X99-Turbo:~/14TB/versions/OK3576_linux_source6.1.75$
