vue3 vux ui table 可以编辑的表格，增删改查

背景：

在vue3中需要table展示一些数据，并且需要对表格的数据进行编辑、添加、输入等操作。可以编辑的表格的某一行、某一个单元格。

通过npm下载插件：【版本可自定义】

"vxe-pc-ui": "^4.7.13",

"vxe-table": "^4.14.4"

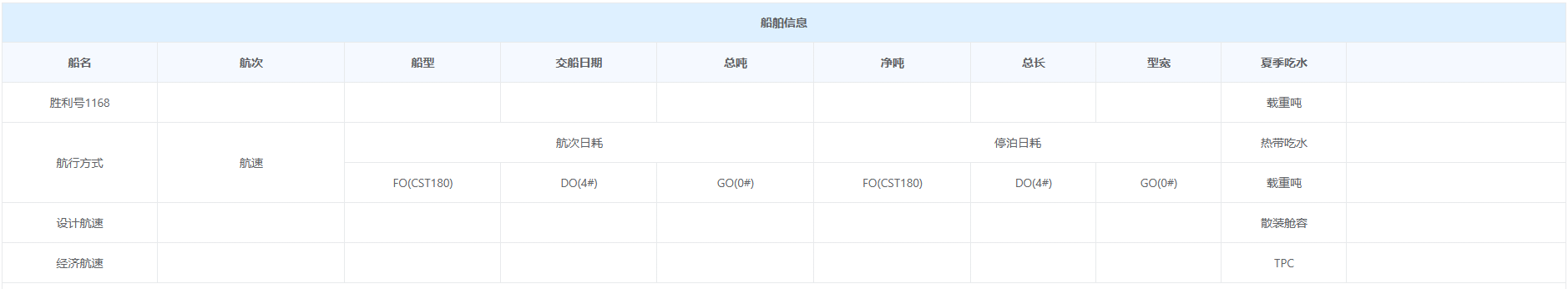

实现效果：

理论知识：

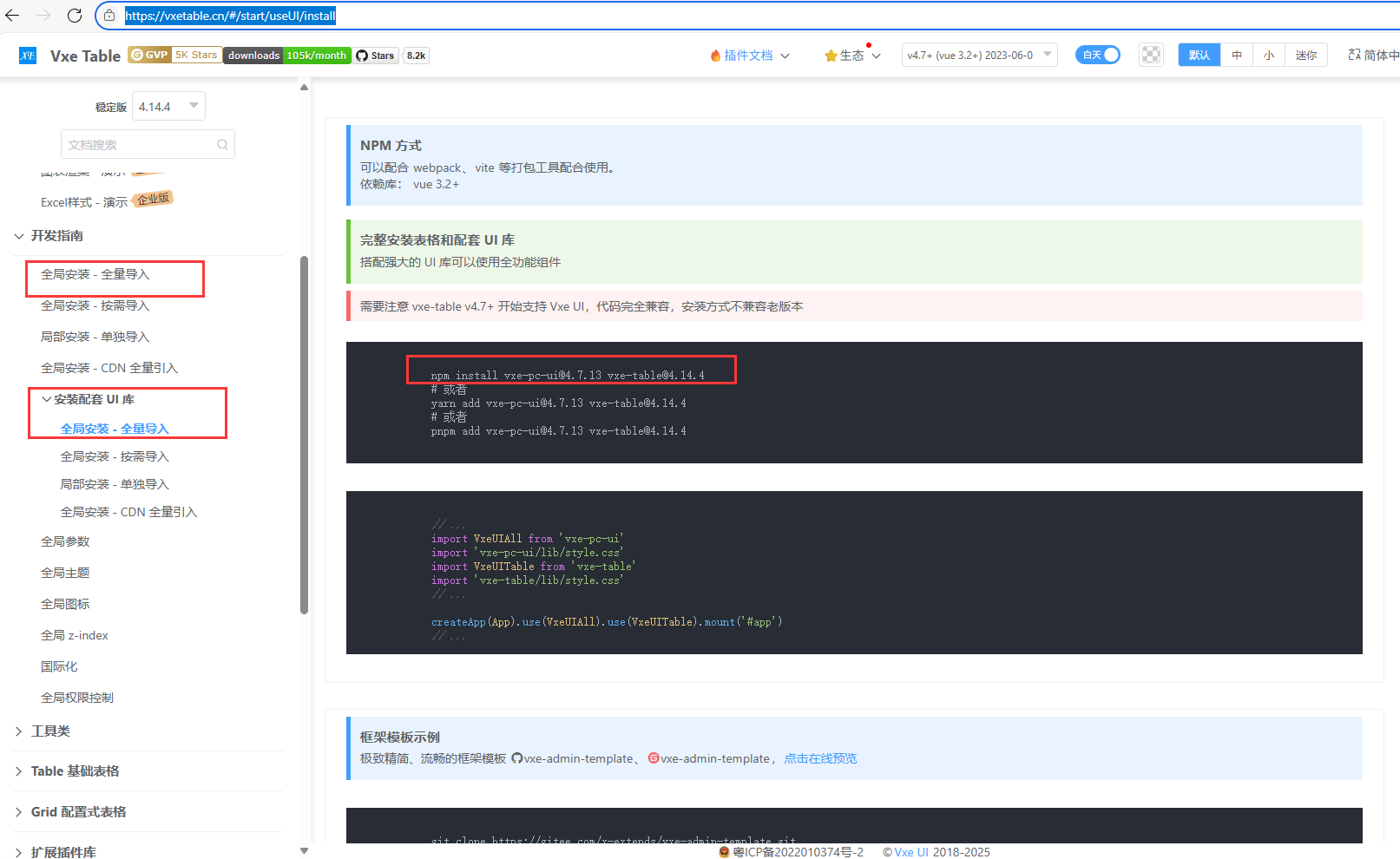

一、插件安装

npm install vxe-pc-ui@4.7.13 vxe-table@4.14.4

官网链接：点击跳转官网

全局引入挂载，在main.js文件：

import VxeUIAll from 'vxe-pc-ui'

import 'vxe-pc-ui/lib/style.css'

import VxeUITable from 'vxe-table' import 'vxe-table/lib/style.css'

createApp(App).use(VxeUIAll).use(VxeUITable).mount('#app')

二、插件理论知识

(1)、插件使用示例

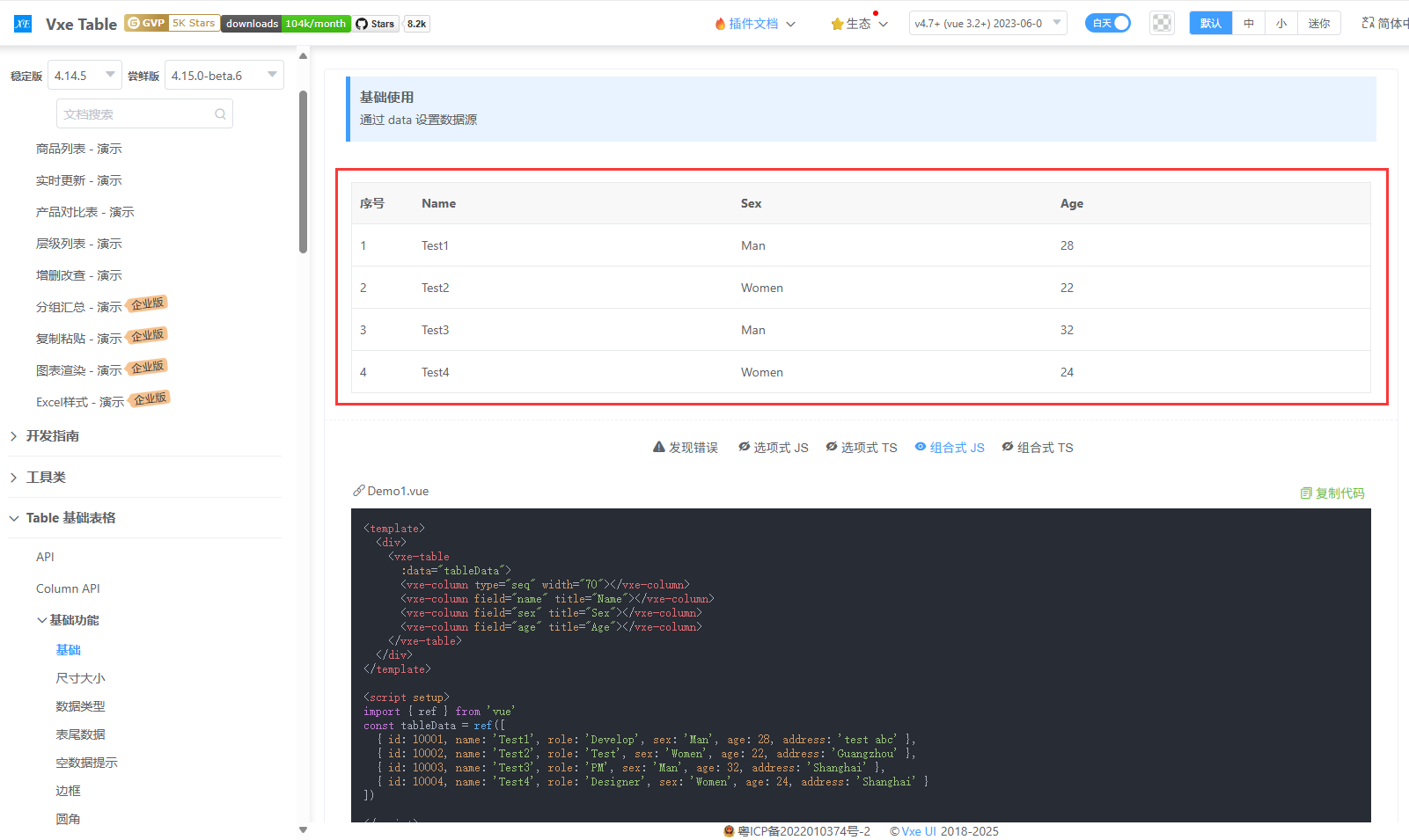

示例：官方基础表格

代码：

<template>
  <div>
    <vxe-table
      :data="tableData">
      <vxe-column type="seq" width="70"></vxe-column>
      <vxe-column field="name" title="Name"></vxe-column>
      <vxe-column field="sex" title="Sex"></vxe-column>
      <vxe-column field="age" title="Age"></vxe-column>
    </vxe-table>
  </div>
</template>

<script setup>
import { ref } from 'vue'
const tableData = ref([
  { id: 10001, name: 'Test1', role: 'Develop', sex: 'Man', age: 28, address: 'test abc' },
  { id: 10002, name: 'Test2', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },
  { id: 10003, name: 'Test3', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },
  { id: 10004, name: 'Test4', role: 'Designer', sex: 'Women', age: 24, address: 'Shanghai' }
])

</script>

(2)、实际使用实例

示例一：简单的表头+表格标题

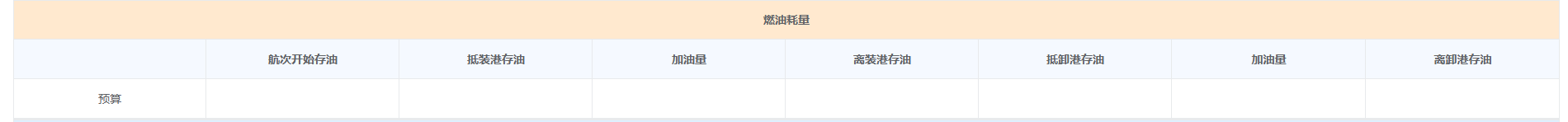

实现效果：

实现思路：

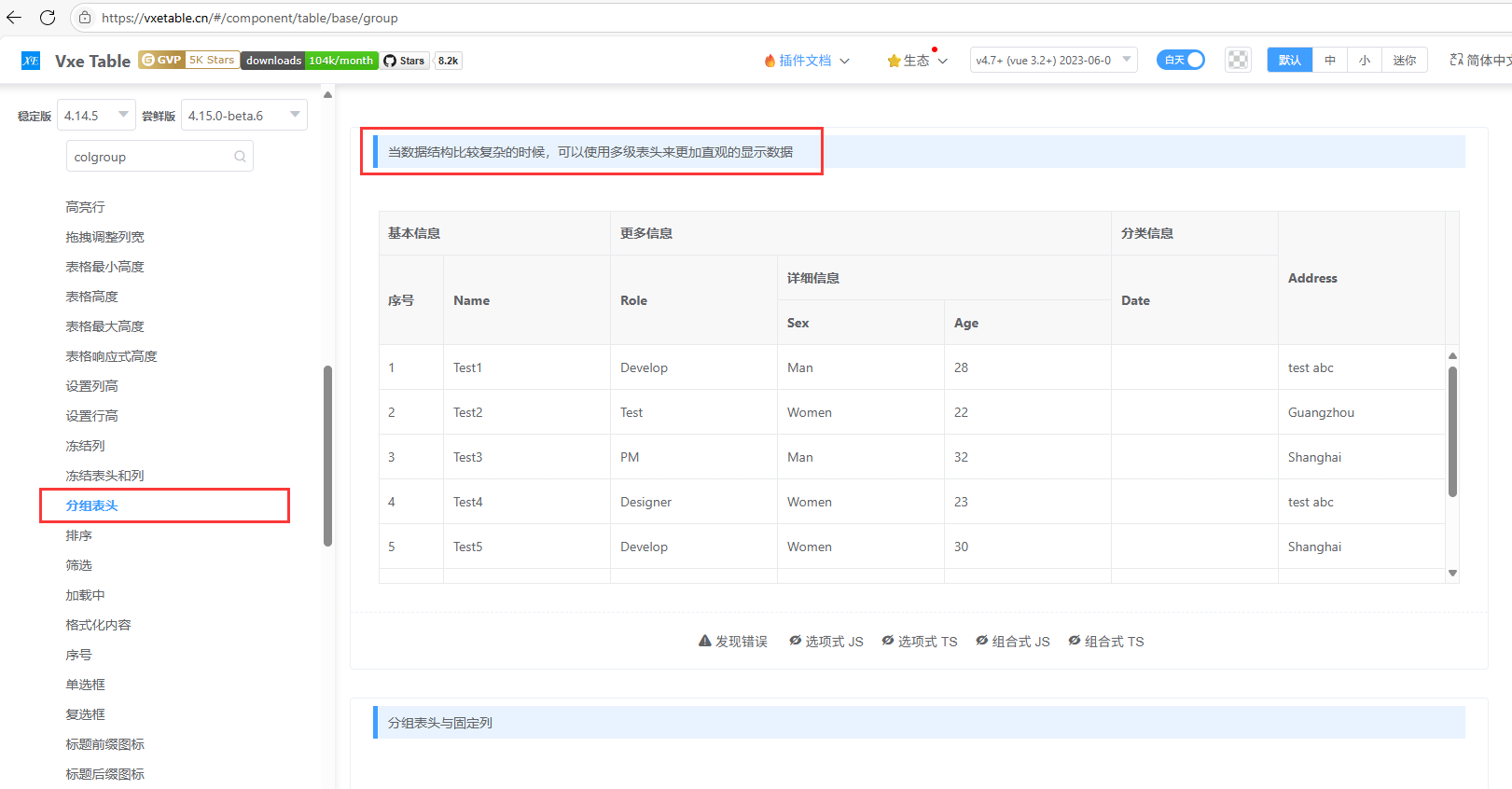

设置多级表头，用一个大表头包住其它二级等表头。

官网链接：点击跳转

核心代码：

<vxe-colgroup title="基本信息"></vxe-colgroup>

    <vxe-table
      border
      height="400"
      :data="tableData">
      <vxe-colgroup title="基本信息">
        <vxe-column type="seq" width="70"></vxe-column>
        <vxe-column field="name" title="Name"></vxe-column>
      </vxe-colgroup>
      <vxe-column field="address" title="Address" show-overflow></vxe-column>
    </vxe-table>

实际代码：

布局代码：

//html
<vxe-table
:data="fuelConsumptionState.tableData"
empty-text="没有更多数据了！"
:loading="fuelConsumptionState.loading"
:border="'full'"
:align="'center'">
    <vxe-colgroup title="燃油耗量" :header-cell-class-name="'header-cell'">
       <template v-for="(item, index) in fuelConsumptionState.tableList" :key="index">
        <vxe-column :field="item.prop" :title="item.label" :width="item.width"
                                v-if="!item.children">
        </vxe-column>
        <vxe-colgroup v-else :title="item.label" :header-cell-class-name="'header-cell'">
            <vxe-column v-for="(item2, index2) in item.children" :field="item2.prop"
                :title="item2.label" :width="item2.width" :key="index2">
            </vxe-column>
         </vxe-colgroup>
       </template>
    </vxe-colgroup>
</vxe-table>

逻辑代码：

//js
const fuelConsumptionState = reactive({
    loading: false,
    tableData: [
        {
            id: 10001,
            weikong: "预算",
            startOil: "Man",
            arrivalLoadingOil: "Man",
            pushOil: "Man",
            departureLoadingOil: "Man",
            arrivalDischargeOil: "Man",
            dischargeBunkering: "Man",
            departureDischargeOil: "Man",
        },
    ],
    tableList: [
        {
            label: "",
            prop: "weikong",
            width: "12.5%",
        },
        {
            label: "航次开始存油",
            prop: "startOil",
            width: "12.5%",
        },
        {
            label: "抵装港存油",
            prop: "arrivalLoadingOil",
            width: "12.5%",
        },
        {
            label: "加油量",
            prop: "pushOil",
            width: "12.5%",
        },
        {
            label: "离装港存油",
            prop: "departureLoadingOil",
            width: "12.5%",
        },
        {
            label: "抵卸港存油",
            prop: "arrivalDischargeOil",
            width: "12.5%",
        },
        {
            label: "加油量",
            prop: "dischargeBunkering",
            width: "12.5%",
        },
        {
            label: "离卸港存油",
            prop: "departureDischargeOil",
            width: "12.5%",
        },
    ],
});

样式代码：

//css
.fuelConsumptionState {
    :deep(.vxe-header--row) {
         background-color: #ffe9cf;
     }
}

示例二： 多级表头

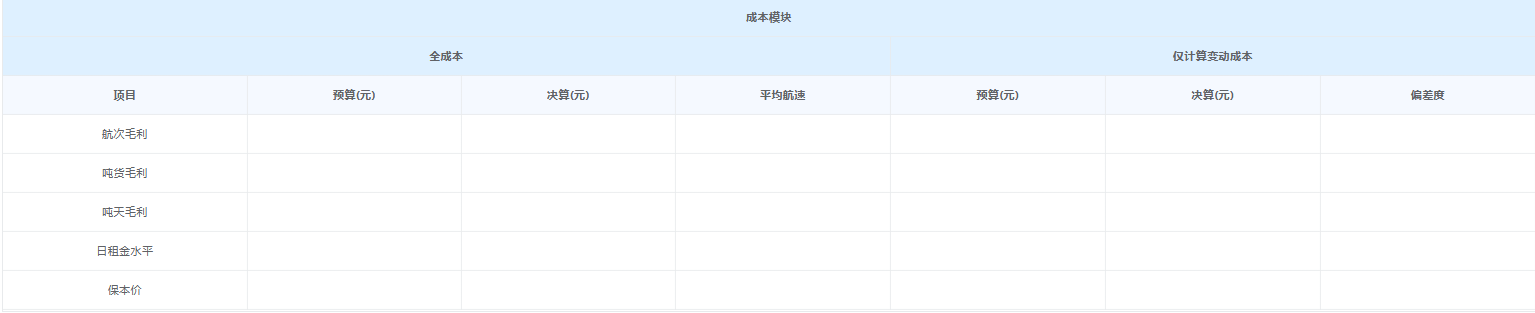

实现效果：

实现思路：

多级表头。除了一个表头，还有二级表头、三级表头，以至于多级表头。

核心代码：

<vxe-table
      border
      height="400"
      :data="tableData">
      <vxe-colgroup title="一级表头">
        <vxe-column type="seq" width="70"></vxe-column>
        <vxe-column field="name" title="Name"></vxe-column>
      </vxe-colgroup>
      <vxe-colgroup title="一级表头2">
        <vxe-column field="role" title="Role"></vxe-column>
        <vxe-colgroup title="二级表头">
          <vxe-column field="sex" title="Sex"></vxe-column>
          <vxe-column field="age" title="Age"></vxe-column>
        </vxe-colgroup>
      </vxe-colgroup>
      <vxe-column field="address" title="Address" show-overflow></vxe-column>
    </vxe-table>

实际代码：

//html
<vxe-table
:data="fullCostState.tableData"
empty-text="没有更多数据了！"
:loading="fullCostState.loading"
:border="'full'"
:align="'center'">
      <vxe-colgroup title="全成本" :header-cell-class-name="'header-cell'">
        <template v-for="(item, index) in fullCostState.tableList" :key="index">

            <vxe-column
                :field="item.prop"
                :title="item.label"
                :width="item.width"
                v-if="!item.children">
            </vxe-column>
            <vxe-colgroup
                v-else
                :title="item.label"
                :header-cell-class-name="'header-cell'">
              <vxe-column v-for="(item2, index2) in item.children"
                :field="item2.prop"
                :title="item2.label"
                :width="item2.width" :key="index2">
              </vxe-column>
            </vxe-colgroup>
         </template>
       </vxe-colgroup>
</vxe-table>
//js
const fullCostState= reactive({
    loading: false,
    tableData: [
        {
            id: 10001,
            myType: '航次毛利',
            myMeter: '装港',
            prepDistance: '',
            prepSailingDays: '',
            prepAvgSpeed: '',
            loadWaitingTime: '',
            dischargOperationTime: '',
            totalDowntime: '',
        },
        {
            id: 10002,
            myType: '吨货毛利',
            myMeter: '卸港',
            prepDistance: '',
            prepSailingDays: '',
            prepAvgSpeed: '',
            loadWaitingTime: '',
            dischargOperationTime: '',
            totalDowntime: '',
        },
    ],
    tableList: [
        {
            label: "全成本",
            prop: "hcrh",
            width: '58%',
            children: [
                {
                    label: "项目",
                    prop: "myType",
                    width: '16%',
                },
                {
                    label: "预算(元)",
                    prop: "prepDistance",
                    width: '14%',
                },
                {
                    label: "决算(元)",
                    prop: "prepSailingDays",
                    width: '14%',
                },
                {
                    label: "平均航速",
                    prop: "prepAvgSpeed",
                    width: '14%',
                },
            ]
        },
        {
            label: "仅计算变动成本",
            prop: "hcrh",
            width: '42%',
            children: [
                {
                    label: "预算(元)",
                    prop: "prepDistance",
                    width: '14%',
                },
                {
                    label: "决算(元)",
                    prop: "prepSailingDays",
                    width: '14%',
                },
                {
                    label: "偏差度",
                    prop: "prepAvgSpeed",
                    width: '14%',
                },
            ]
        },
    ]
})

示例三：左边第一列当作表头

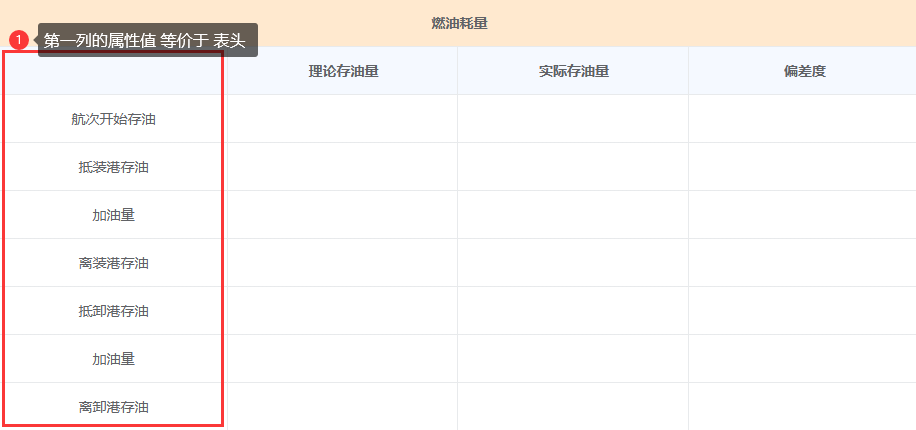

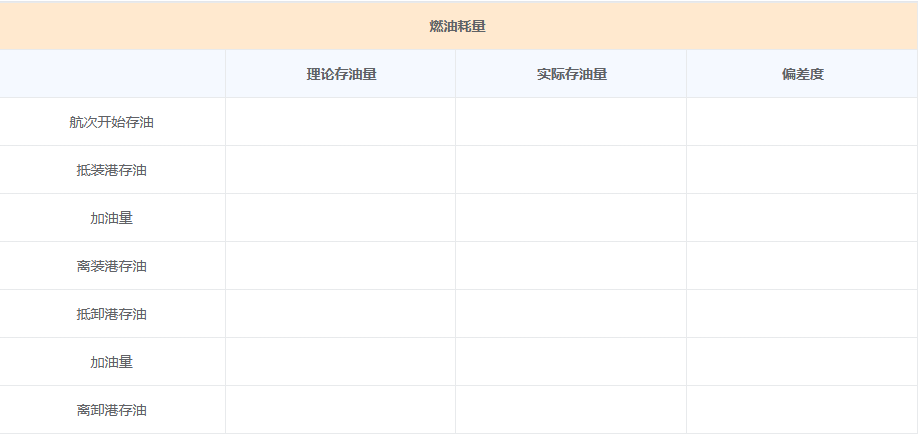

实现效果：

实现思路：

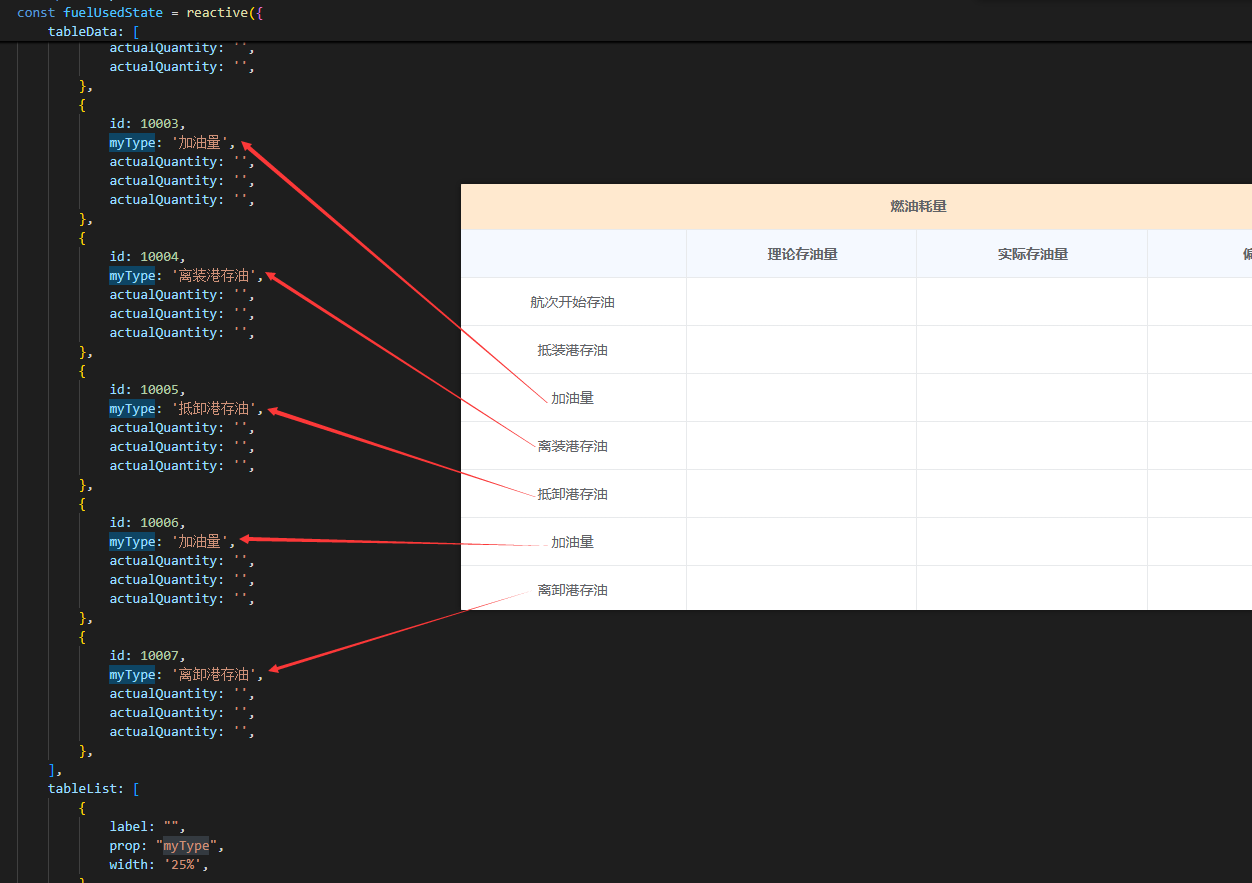

第一列 的属性值，等价于 表头

核心代码：

完整代码：

<template>
    <div>
        <vxe-table :data="fuelUsedState.tableData" empty-text="没有更多数据了！" :loading="fuelUsedState.loading"
            :border="'full'" :align="'center'" :header-row-class-name="'header-row'"
            :merge-cells="fuelUsedState.mergeCells">
            <vxe-colgroup title="燃油耗量">
                <vxe-column v-for="(item, index) in fuelUsedState.tableList" :field="item.prop" :title="item.label"
                    :width="item.width" :key="index">
                </vxe-column>
            </vxe-colgroup>
        </vxe-table>
    </div>
</template>

<script setup lang="ts">
import { reactive, ref, watch } from "vue";

const fuelUsedState = reactive({
    loading: false,
    tableData: [
        {
            id: 10001,
            myType: '航次开始存油',
            actualQuantity: '',
            actualQuantity: '',
            actualQuantity: '',
        },
        {
            id: 10002,
            myType: '抵装港存油',
            actualQuantity: '',
            actualQuantity: '',
            actualQuantity: '',
        },
        {
            id: 10003,
            myType: '加油量',
            actualQuantity: '',
            actualQuantity: '',
            actualQuantity: '',
        },
        {
            id: 10004,
            myType: '离装港存油',
            actualQuantity: '',
            actualQuantity: '',
            actualQuantity: '',
        },
        {
            id: 10005,
            myType: '抵卸港存油',
            actualQuantity: '',
            actualQuantity: '',
            actualQuantity: '',
        },
        {
            id: 10006,
            myType: '加油量',
            actualQuantity: '',
            actualQuantity: '',
            actualQuantity: '',
        },
        {
            id: 10007,
            myType: '离卸港存油',
            actualQuantity: '',
            actualQuantity: '',
            actualQuantity: '',
        },
    ],
    tableList: [
        {
            label: "",
            prop: "myType",
            width: '25%',
        },
        {
            label: "理论存油量",
            prop: "actualQuantity",
            width: '25%',
        },
        {
            label: "实际存油量",
            prop: "actualQuantity",
            width: '25%',
        },
        {
            label: "偏差度",
            prop: "actualQuantity",
            width: '25%',
        },
    ],
    mergeCells: []
})
</script>

<style scoped>
:deep(.vxe-header--row) {
    background-color: #def0ff;

    &:last-child {
        background-color: #f5f9ff;
    }
}

.infoState {
    height: 400px;
}
</style>

示例四：合并单元格。横着合并叫做合并列，竖着合并叫做合并行

实现效果：

实现思路：

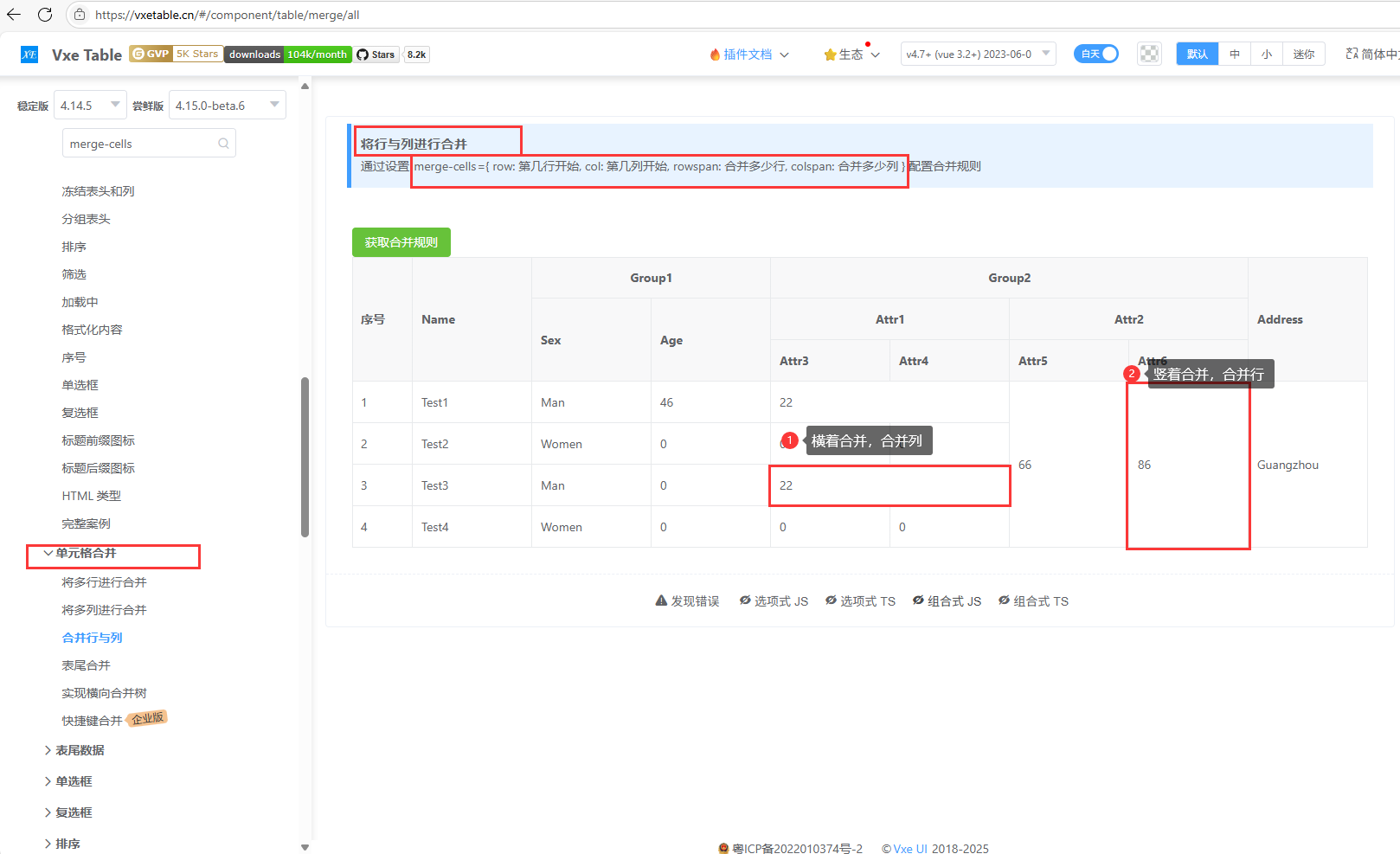

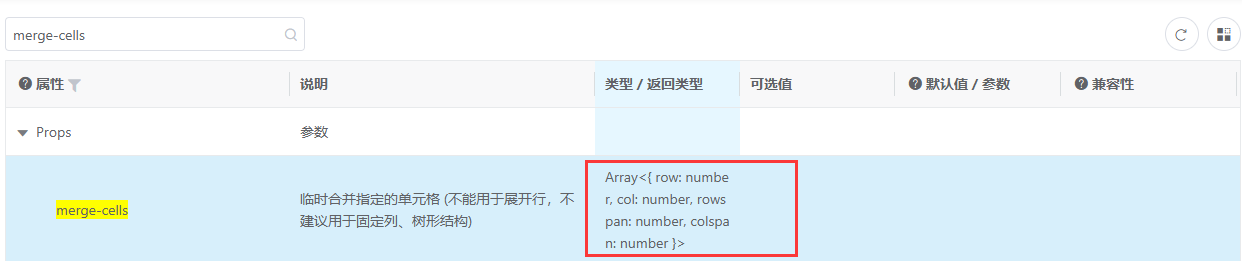

合并单元格，如果想要合并单元格的行或者列，可以使用官方文档的这个方法merge-cells=【{ row: 0, col: 4, rowspan: 1, colspan: 2 },...{对象四个参数}】。

官网链接：点击跳转

合并单元格的规律：

合并单元格的规律是从数值0开始数，行或者列都是从0开始数。行是根据表头确定总数值，列是从第一列确定数值0 ，然后从上往下递增。

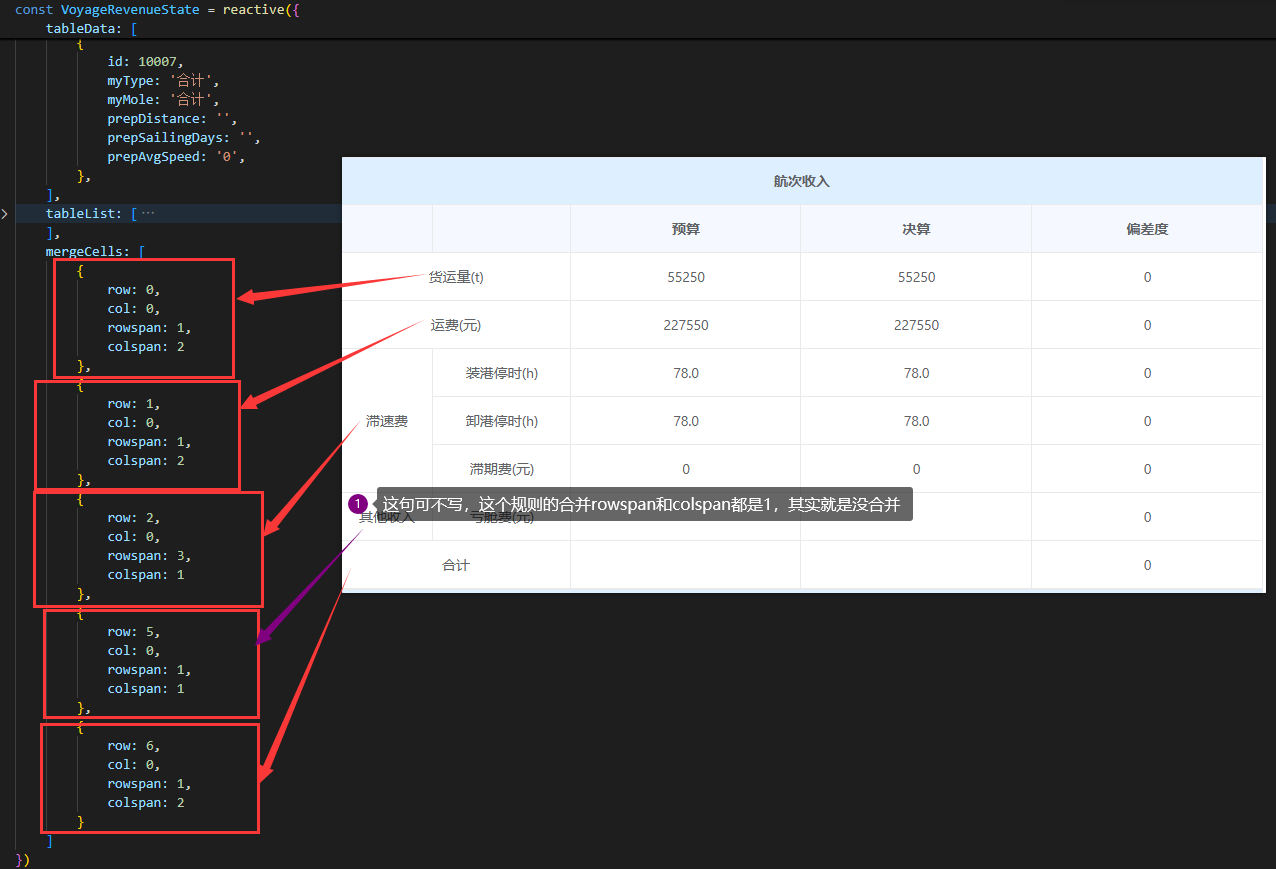

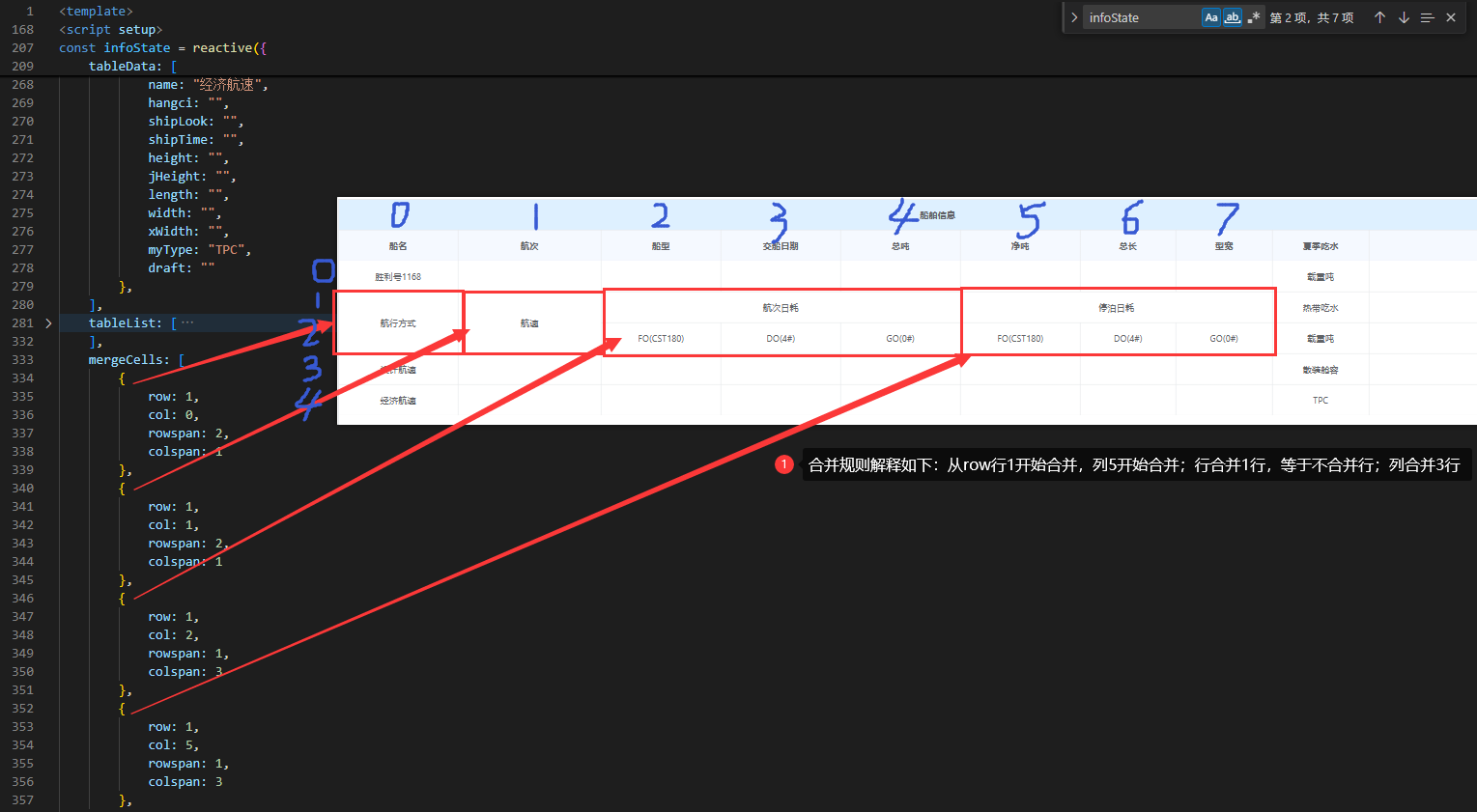

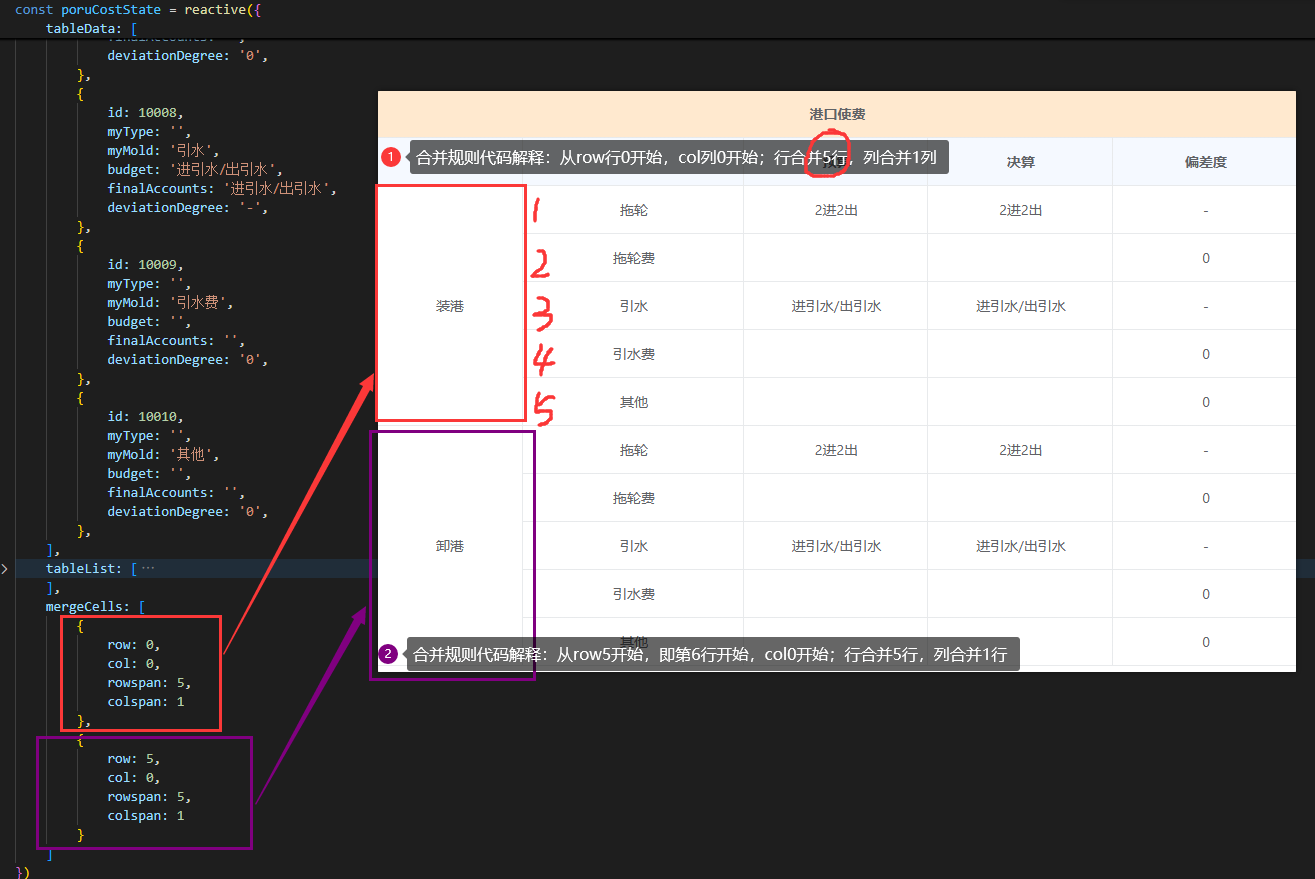

合并单元格的规则解释：

示例如下：

写到这儿，你已经能够理解什么是合并行，合并列了 。。。接下来是更复杂的合并单元格

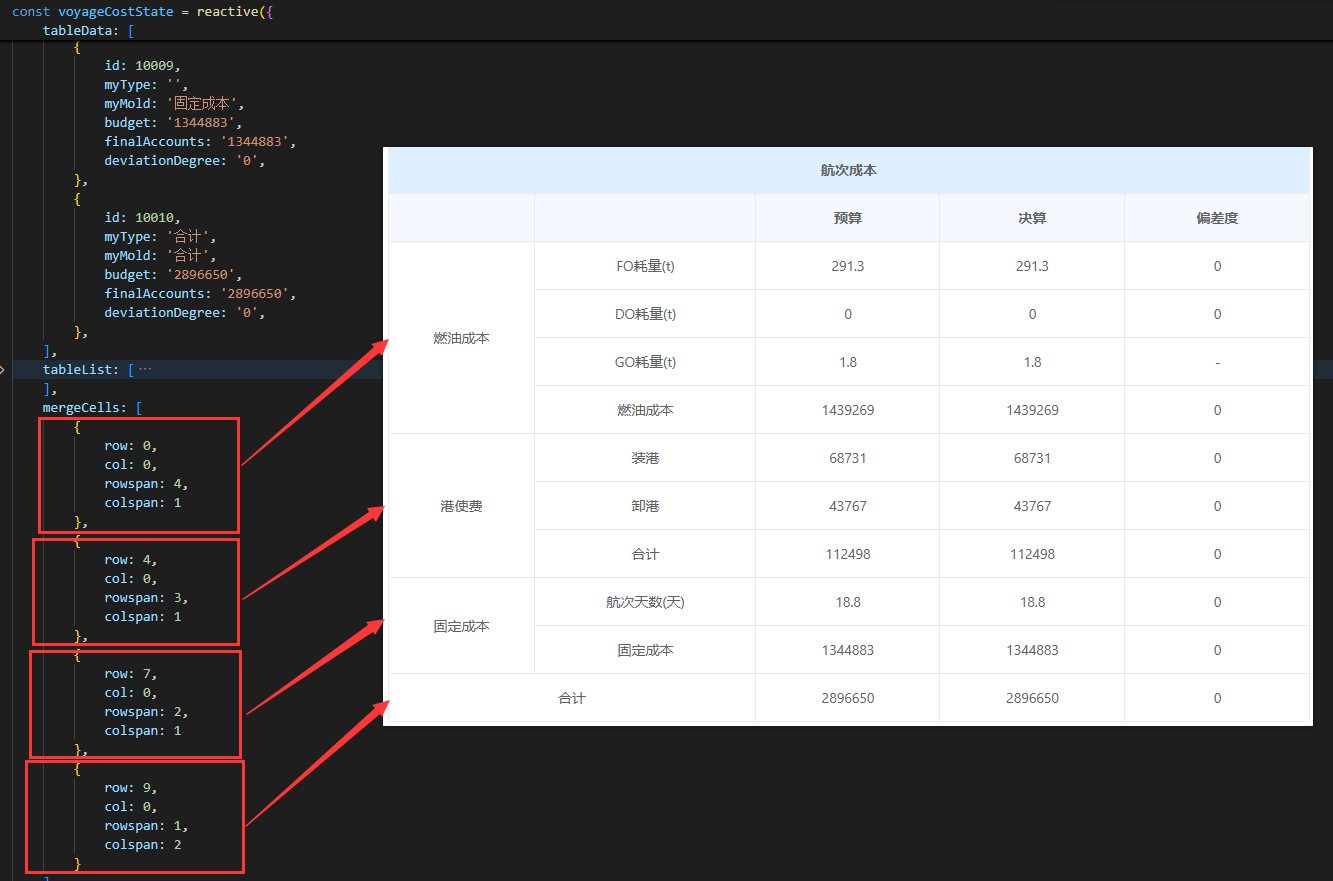

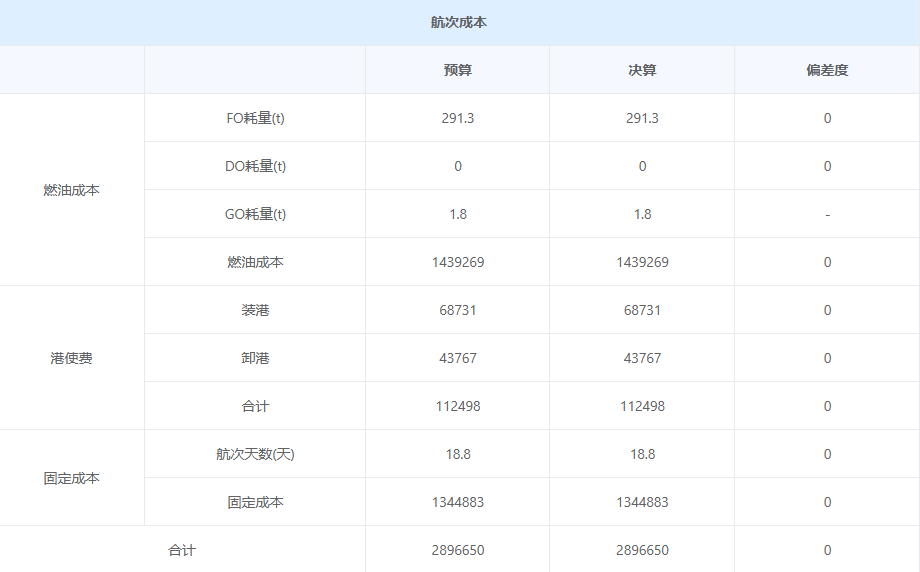

更复杂的示例，如下：

实现效果：

三、合并单元格的merge-cells

(1)、合并单元格

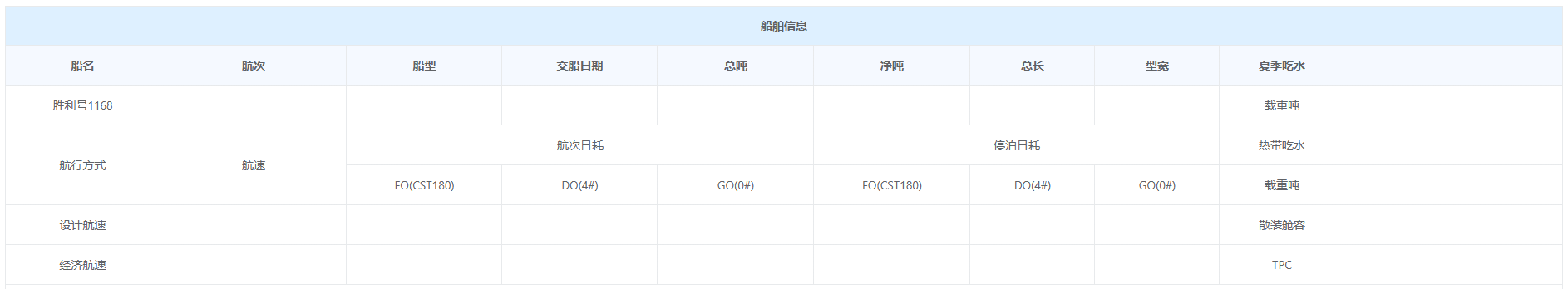

实现效果：

实现思路：

上面这张实现效果，从上往下看，以及从左往右看。有行的合并，也有列的合并。

实现代码：

完整代码：

<template>
    <div>
        <vxe-table :data="infoState.tableData" empty-text="没有更多数据了！" :loading="infoState.loading" :border="'full'"
            :align="'center'" :merge-cells="infoState.mergeCells">
            <vxe-colgroup title="船舶信息" :header-cell-class-name="'header-cell'">
                <vxe-column v-for="(item, index) in infoState.tableList" :field="item.prop" :title="item.label"
                    :width="item.width" :key="index"></vxe-column>
            </vxe-colgroup>
        </vxe-table>
    </div>
</template>

<script setup lang="ts">
import { reactive, ref, watch } from "vue";

const infoState = reactive({
    loading: false,
    tableData: [
        {
            id: 10001,
            name: "胜利号1168",
            hangci: "",
            shipLook: "",
            shipTime: "",
            height: "",
            jHeight: "",
            length: "",
            width: "",
            xWidth: "",
            myType: "载重吨",
            draft: ""
        },
        {
            id: 10002,
            name: "航行方式",
            hangci: "航速",
            shipLook: "航次日耗",
            shipTime: "航次日耗",
            height: "航次日耗",
            jHeight: "停泊日耗",
            length: "停泊日耗",
            width: "停泊日耗",
            xWidth: "31",
            myType: "热带吃水",
            draft: ""
        },
        {
            id: 10003,
            name: "航行方式",
            hangci: "航速",
            shipLook: "FO(CST180)",
            shipTime: "DO(4#)",
            height: "GO(0#)",
            jHeight: "FO(CST180)",
            length: "DO(4#)",
            width: "GO(0#)",
            xWidth: "31",
            myType: "载重吨",
            draft: ""
        },
        {
            id: 10004,
            name: "设计航速",
            hangci: "",
            shipLook: "",
            shipTime: "",
            height: "",
            jHeight: "",
            length: "",
            width: "",
            xWidth: "",
            myType: "散装舱容",
            draft: ""
        },
        {
            id: 10005,
            name: "经济航速",
            hangci: "",
            shipLook: "",
            shipTime: "",
            height: "",
            jHeight: "",
            length: "",
            width: "",
            xWidth: "",
            myType: "TPC",
            draft: ""
        },
    ],
    tableList: [
        {
            label: "船名",
            prop: "name",
            width: '10%',
        },
        {
            label: "航次",
            prop: "hangci",
            width: '12%',
        },
        {
            label: "船型",
            prop: "shipLook",
            width: '10%',
        },
        {
            label: "交船日期",
            prop: "shipTime",
            width: '10%',
        },
        {
            label: "总吨",
            prop: "height",
            width: '10%',
        },
        {
            label: "净吨",
            prop: "jHeight",
            width: '10%',
        },
        {
            label: "总长",
            prop: "length",
            width: '8%',
        },
        {
            label: "型宽",
            prop: "width",
            width: '8%',
        },
        {
            label: "夏季吃水",
            prop: "myType",
            width: '8%',
        },
        {
            label: "",
            prop: "draft",
            width: '14%',
        },
    ],
    mergeCells: [
        {
            row: 1,
            col: 0,
            rowspan: 2,
            colspan: 1
        },
        {
            row: 1,
            col: 1,
            rowspan: 2,
            colspan: 1
        },
        {
            row: 1,
            col: 2,
            rowspan: 1,
            colspan: 3
        },
        {
            row: 1,
            col: 5,
            rowspan: 1,
            colspan: 3
        },
    ]
});
</script>

<style scoped>
:deep(.vxe-header--row) {
    background-color: #def0ff;

    &:last-child {
        background-color: #f5f9ff;
    }
}

.infoState {
    height: 400px;
}
</style>

写到这儿，我们就可以自定义表单，各种样式就可以实现了。。。
