前言

注意：Udemy上更新了课程，原来的版本删掉了。新版教程与旧版顺序相差较大，并且改用Unity6。但这个笔记已经写到一半了，所以还是按照旧版来。

本文为Udemy课程The Ultimate Guide to Creating an RPG Game in Unity学习笔记，如有错误，欢迎指正。

本节实现角色投剑技能冻结时间的功能。

Udemy课程地址

对应视频：

Bouncy sword

Setting sword type

Pierce sword

Saw spin sword

一、概述

本节给投剑技能添加冻结时间的功能。

在Enemy类中添加敌人冻结后的反馈，并创建协程。

设置时间冻结的持续时长，由Sword_Skill传入控制器。

在Sword_Skill_Controller中检测敌人，并在击中敌人时调用冻结敌人的协程实现时间冻结。

二、冻结时间的实现

首先在Enemy中添加敌人被冻结后应有的反应。敌人被冻结时，速度归零，动画停止播放；冻结结束后，恢复原速度，恢复动画播放速度。

添加变量 defaultMoveSpeed记录敌人原有的速度。

创建协程，实现将敌人冻结一段时间。

代码如下：

csharp 复制代码
    [Header("Move Info")]
    public float moveSpeed = 1.5f;
    public float idleTime = 2.0f;
    public float battleTime = 4.0f;
    private float defaultMoveSpeed;

    protected override void Awake()
    {
        base.Awake();
        stateMachine = new EnemyStateMachine();

        defaultMoveSpeed = moveSpeed;
    }

    public virtual void FreezeTime(bool _timeFrozen)
    {
        if(_timeFrozen)
        {
            moveSpeed = 0;
            anim.speed = 0;
        }
        else
        {
            moveSpeed = defaultMoveSpeed;
            anim.speed = 1;
        }
    }

    protected virtual IEnumerator FreezeTimeFor(float _seconds)
    {
        FreezeTime(true);

        yield return new WaitForSeconds(_seconds);

        FreezeTime(false);
    }

在Sword_Skill中添加冻结时间持续时长，并传至控制器

csharp 复制代码
    [Header("Skill Info")]
    [SerializeField] private GameObject swordPrefab;
    [SerializeField] private Vector2 launchForce;
    [SerializeField] private float swordGravity;
    [SerializeField] private float returnSpeed;
    [SerializeField] private float freezeTimeDuration;
    public void CreateSword()
    {
        GameObject newSword = Instantiate(swordPrefab, player.transform.position, transform.rotation);

        Sword_Skill_Controller newSwordScript = newSword.GetComponent<Sword_Skill_Controller>();

        if (swordType == SwordType.Bounce)
            newSwordScript.SetupBounce(true, bounceAmount, bounceSpeed);
        else if (swordType == SwordType.Pierce)
            newSwordScript.SetupPierce(pierceAmount);
        else if (swordType== SwordType.Spin)
            newSwordScript.SetupSpin(true, maxTravelDistance, spinDuration, hitCooldown);

        newSwordScript.SetupSword(finalDir, swordGravity, player, returnSpeed,freezeTimeDuration);

        player.AssignNewSword(newSword);

        DotsActive(false);
    }

在Sword_Skill_Controller中添加变量freezeTimeDuration，在SetupSword函数中接收传来的参数。

在触发器函数OnTriggerEnter2D中检测敌人，并调用协程FreezeTimeFor冻结敌人。

csharp 复制代码
    private float freezeTimeDuration;

    public void SetupSword(Vector2 _dir, float _gravityScale, Player _player, float _returnSpeed, float _freezeTimeDuration)
    {
        player = _player;

        rb.velocity = _dir;
        rb.gravityScale = _gravityScale;

        returnSpeed = _returnSpeed;
        freezeTimeDuration = _freezeTimeDuration;

        if (pierceAmount<=0)
            anim.SetBool("Rotation", true);

        Invoke("DestroyMe", 7.0f);
    }

    private void OnTriggerEnter2D(Collider2D collision)
    {
        if (isReturning)
            return;

        if(collision.GetComponent<Enemy>()!=null)
        {
            Enemy enemy = collision.GetComponent<Enemy>();

            enemy.Damage();
            enemy.StartCoroutine("FreezeTimeFor",freezeTimeDuration);
        }

        SetupTargetsForBounce(collision);

        StuckInto(collision);
    }

在SkillManager中设置FreezeTimeDuration。

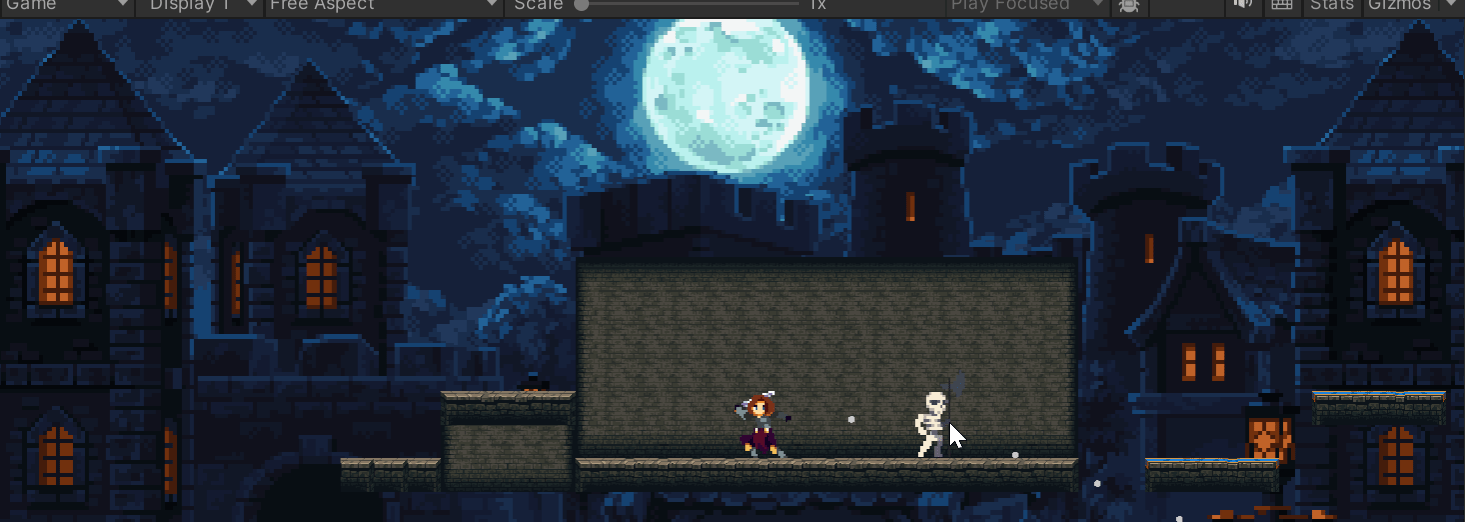

这样可能会遇到一点问题，骷髅被击中时会转身，冻结期间会抖动。

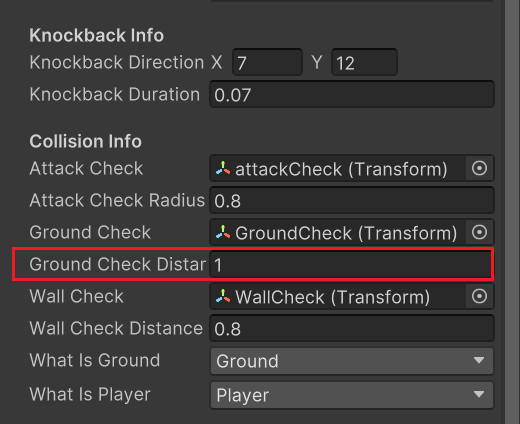

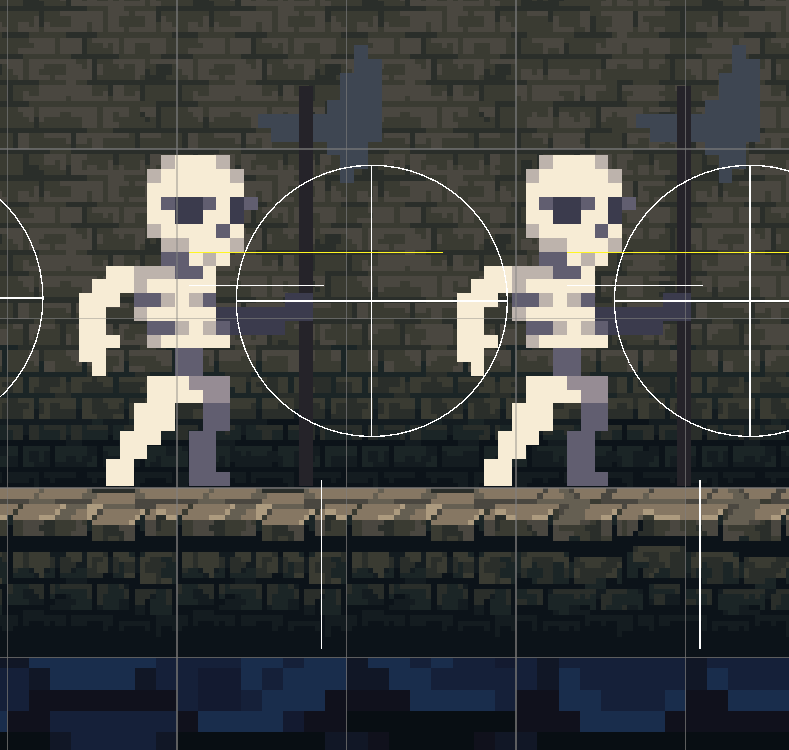

骷髅转身问题，只需要延长骷髅的地面检测距离就可以。因为骷髅被击退时会向上移动一点，地面检测过短会导致问题。

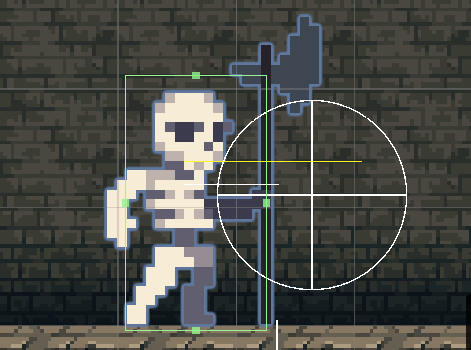

抖动是因为骷髅碰撞盒过大，不断与剑碰撞，修改到合适大小即可

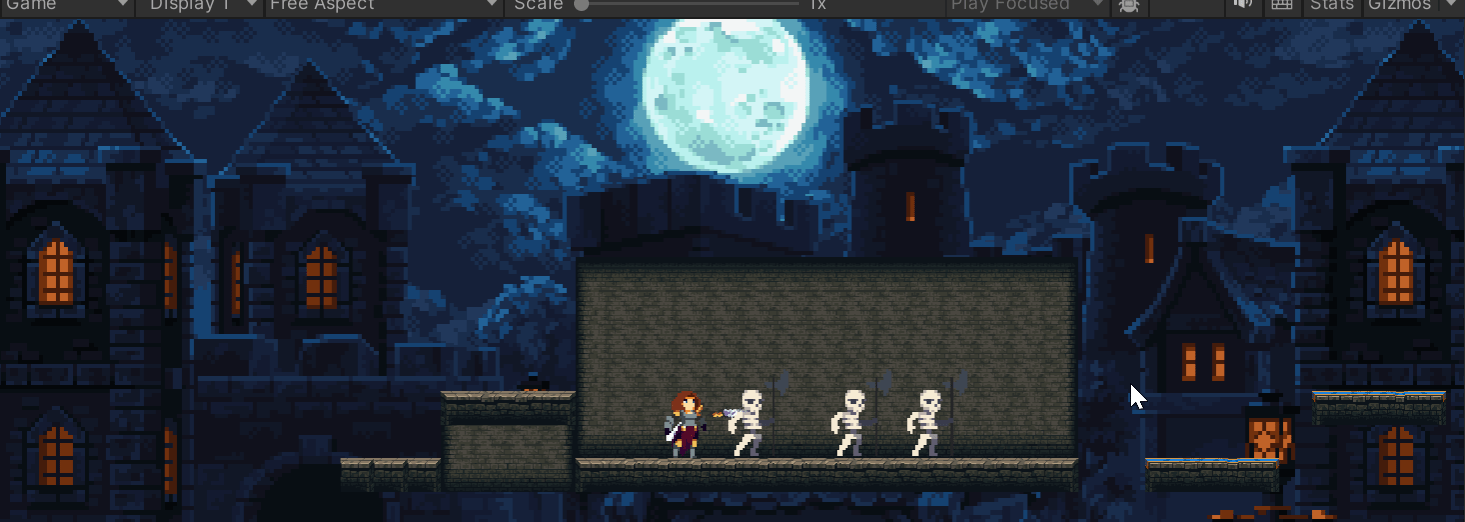

修改后效果如下：

教程里给弹跳和盘旋类型也加了时间冻结，但我觉得这两个连续攻击的不加会流畅一些，这里就不添加了。而且我不想这两种类型第一次攻击时冻结敌人，于是自己改了一下：

csharp 复制代码
    {
        if (isReturning)
            return;

        if(collision.GetComponent<Enemy>()!=null)
        {
            Enemy enemy = collision.GetComponent<Enemy>();

            enemy.Damage();

            if (!isBouncing && !isSpinning)
                enemy.StartCoroutine("FreezeTimeFor", freezeTimeDuration);
        }

        SetupTargetsForBounce(collision);

        StuckInto(collision);
    }

总结 完整代码

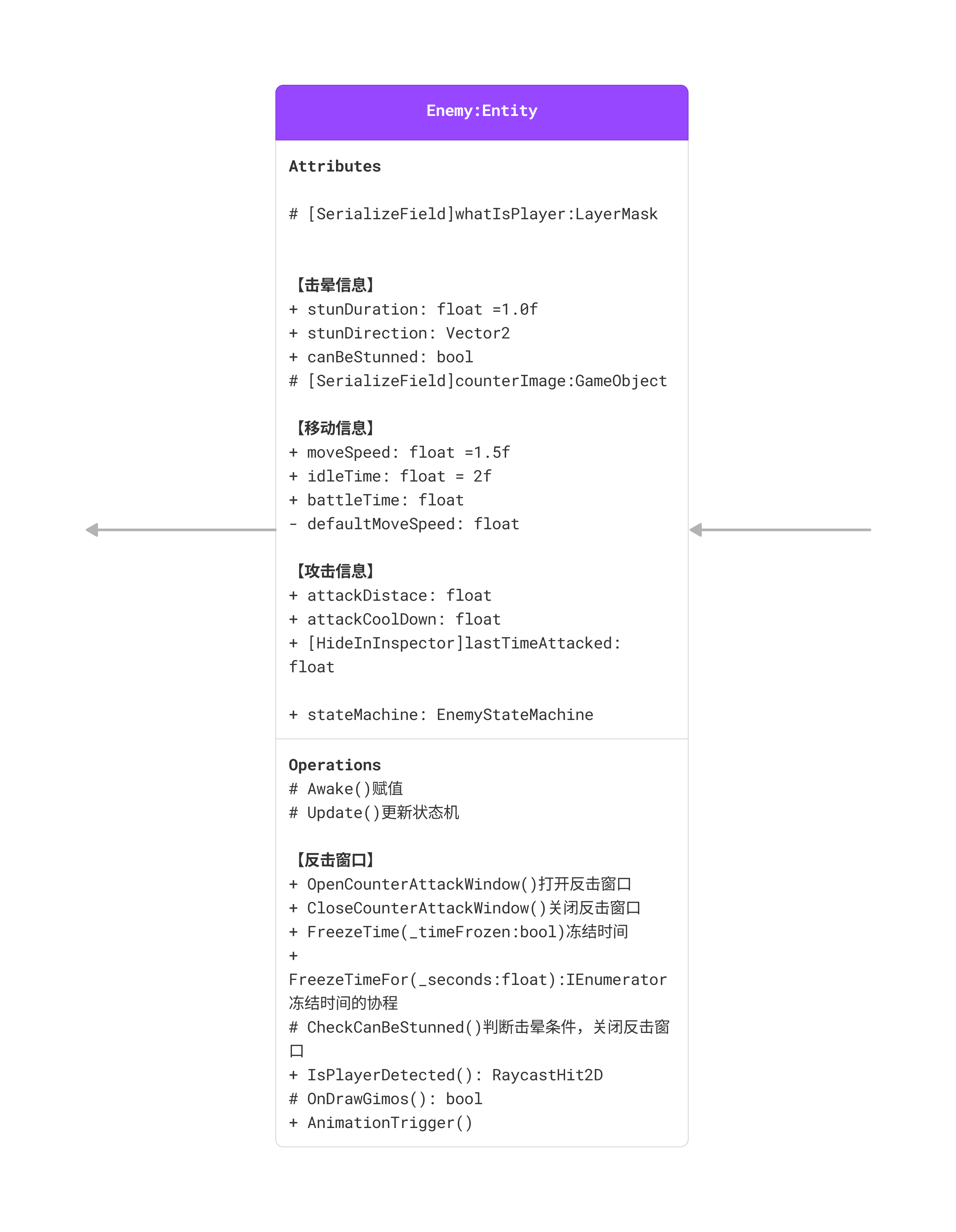

Enemy.cs

添加敌人被冻结时的反馈。

csharp 复制代码
//Enemy:敌人基类
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Enemy : Entity
{
    [SerializeField] protected LayerMask WhatIsPlayer;

    [Header("Stunned Info")]
    public float stunDuration = 1.0f;
    public Vector2 stunDirection;
    protected bool canBeStunned;
    [SerializeField] protected GameObject counterImage;

    [Header("Move Info")]
    public float moveSpeed = 1.5f;
    public float idleTime = 2.0f;
    public float battleTime = 4.0f;
    private float defaultMoveSpeed;

    [Header("Attack Info")]
    public float attackDistance;
    public float attackCoolDown;
    [HideInInspector] public float lastTimeAttacked;


    public EnemyStateMachine stateMachine;

    protected override void Awake()
    {
        base.Awake();
        stateMachine = new EnemyStateMachine();

        defaultMoveSpeed = moveSpeed;
    }


    protected override void Update()
    {
        base.Update();
        stateMachine.currentState.Update();
    }

    public virtual void FreezeTime(bool _timeFrozen)
    {
        if(_timeFrozen)
        {
            moveSpeed = 0;
            anim.speed = 0;
        }
        else
        {
            moveSpeed = defaultMoveSpeed;
            anim.speed = 1;
        }
    }

    protected virtual IEnumerator FreezeTimeFor(float _seconds)
    {
        FreezeTime(true);

        yield return new WaitForSeconds(_seconds);

        FreezeTime(false);
    }

    #region Counter Attack Window
    //打开反击窗口
    public virtual void OpenCounterAttackWindow()
    {
        canBeStunned = true;
        counterImage.SetActive(true);
    }

    //关闭反击窗口
    public virtual void CloseCounterAttackWindow()
    {
        canBeStunned = false;
        counterImage.SetActive(false);
    }
    #endregion

    //检查击晕条件，关闭反击窗口
    public virtual bool CheckCanBeStunned()
    {
        if(canBeStunned)
        {
            CloseCounterAttackWindow();

            return true;
        }
        return false;
    }

    //设置触发器
    public virtual void AnimationTrigger() => stateMachine.currentState.AnimationFinishTrigger();

    public virtual RaycastHit2D IsPlayerDetected()=>Physics2D.Raycast(transform.position, Vector2.right * facingDir, 50 ,WhatIsPlayer);

    protected override void OnDrawGizmos()
    {
        base.OnDrawGizmos();

        Gizmos.color = Color.yellow;
        Gizmos.DrawLine(transform.position, new Vector3(transform.position.x + attackDistance * facingDir, transform.position.y));

    }
}

Sword_Skill.cs

添加冻结时长变量，并传至控制器。

csharp 复制代码
//Sword_Skill:掷剑技能
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public enum SwordType
{
    Regular,
    Bounce,
    Pierce,
    Spin
}

public class Sword_Skill : Skill
{
    public SwordType swordType = SwordType.Regular;

    [Header("Skill Info")]
    [SerializeField] private GameObject swordPrefab;
    [SerializeField] private Vector2 launchForce;
    [SerializeField] private float swordGravity;
    [SerializeField] private float returnSpeed;
    [SerializeField] private float freezeTimeDuration;


    [Header("Aim dots")]
    [SerializeField] private int numberOfDots;
    [SerializeField] private float spaceBetweenDots;
    [SerializeField] private GameObject dotPrefab;
    [SerializeField] private Transform dotsParent;

    private GameObject[] dots;

    private Vector2 finalDir;

    [Header("Bounce Info")]
    [SerializeField] private float bounceGravity;
    [SerializeField] private int bounceAmount;
    [SerializeField] private float bounceSpeed;

    [Header("Pierce Info")]
    [SerializeField] private int pierceAmount;
    [SerializeField] private float pierceGravity;

    [Header("Spin Info")]
    [SerializeField] private float maxTravelDistance;
    [SerializeField] private float spinDuration;
    [SerializeField] private float spinGravity;
    [SerializeField] private float hitCooldown;

    protected override void Start()
    {
        base.Start();

        GenerateDots();

        SetupGravity();
    }

    protected override void Update()
    {
        if(Input.GetKeyUp(KeyCode.Mouse1))
            finalDir = new Vector2(AimDirection().normalized.x * launchForce.x , AimDirection().normalized.y * launchForce.y);

        if(Input.GetKey(KeyCode.Mouse1))
        {
            for(int i = 0; i < dots.Length; i++)
            {
                dots[i].transform.position = DotsPosition(i * spaceBetweenDots);
            }
        }
    }

    private void SetupGravity()
    {
        if (swordType == SwordType.Bounce)
            swordGravity = bounceGravity;
        else if (swordType == SwordType.Pierce)
            swordGravity = pierceGravity;
        else if(swordType == SwordType.Spin)
            swordGravity = spinGravity;
    }

    public void CreateSword()
    {
        GameObject newSword = Instantiate(swordPrefab, player.transform.position, transform.rotation);

        Sword_Skill_Controller newSwordScript = newSword.GetComponent<Sword_Skill_Controller>();

        if (swordType == SwordType.Bounce)
            newSwordScript.SetupBounce(true, bounceAmount, bounceSpeed);
        else if (swordType == SwordType.Pierce)
            newSwordScript.SetupPierce(pierceAmount);
        else if (swordType== SwordType.Spin)
            newSwordScript.SetupSpin(true, maxTravelDistance, spinDuration, hitCooldown);

        newSwordScript.SetupSword(finalDir, swordGravity, player, returnSpeed,freezeTimeDuration);

        player.AssignNewSword(newSword);

        DotsActive(false);
    }

    #region 瞄准
    public Vector2 AimDirection()
    {
        Vector2 playerPosition = player.transform.position;
        Vector2 mousePosition = Camera.main.ScreenToWorldPoint(Input.mousePosition);
        Vector2 direction = mousePosition - playerPosition;

        return direction;
    }

    private void GenerateDots()
    {
        dots = new GameObject[numberOfDots];
        for (int i = 0; i < numberOfDots; i++)
        {
            dots[i] = Instantiate(dotPrefab, player.transform.position, Quaternion.identity, dotsParent);
            dots[i].SetActive(false);
        }
    }

    public void DotsActive(bool _isActive)
    {
        for (int i = 0; i < dots.Length; i++)
        {
            dots[i].SetActive(_isActive);
        }
    }

    private Vector2 DotsPosition(float t)
    {
        Vector2 position = (Vector2)player.transform.position +
            new Vector2(AimDirection().normalized.x * launchForce.x, AimDirection().normalized.y * launchForce.y) * t +
            0.5f * (Physics2D.gravity * swordGravity) * (t * t);

        return position;
    }

    #endregion
}

Sword_Skill_Controller.cs

接收冻结时长参数。调用携程冻结敌人。

csharp 复制代码
//Sword_Skill_Controller:掷剑技能控制器
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Sword_Skill_Controller : MonoBehaviour
{

    private Animator anim;
    private Rigidbody2D rb;
    private CircleCollider2D cd;
    private Player player;

    private bool canRotate = true;
    private bool isReturning;

    private float returnSpeed = 12;

    private float freezeTimeDuration;

    [Header("Bounce Info")]
    private bool isBouncing;
    private int bounceAmount;
    private float bounceSpeed;
    private List<Transform> enemyTarget;
    private int targetIndex;

    [Header("Pierce Info")]
    private float pierceAmount;

    [Header("Spin Info")]
    private bool isSpinning;
    private float maxTravelDistance;
    private float spinDuration;
    private float spinTimer;
    private bool wasStopped;

    private float hitTimer;
    private float hitCooldown;


    private void Awake()
    {
        anim = GetComponentInChildren<Animator>();
        rb = GetComponent<Rigidbody2D>();
        cd = GetComponent<CircleCollider2D>();
    }

    private void DestroyMe()
    {
        Destroy(gameObject);
    }

    public void SetupSword(Vector2 _dir, float _gravityScale, Player _player, float _returnSpeed, float _freezeTimeDuration)
    {
        player = _player;

        rb.velocity = _dir;
        rb.gravityScale = _gravityScale;

        returnSpeed = _returnSpeed;
        freezeTimeDuration = _freezeTimeDuration;

        if (pierceAmount<=0)
            anim.SetBool("Rotation", true);

        Invoke("DestroyMe", 7.0f);
    }

    public void SetupBounce(bool _isBouncing, int _bounceAmount , float _bounceSpeed)
    {
        isBouncing = _isBouncing;
        bounceAmount = _bounceAmount;
        bounceSpeed = _bounceSpeed;

        enemyTarget = new List<Transform>();
    }

    public void SetupPierce(int _pierceAmount)
    {
        pierceAmount = _pierceAmount;
    }

    public void SetupSpin(bool _isSpinning, float _maxTravelDistance,float _spinDuration, float _hitCooldown)
    {
        isSpinning = _isSpinning;
        maxTravelDistance = _maxTravelDistance;
        spinDuration = _spinDuration;
        hitCooldown = _hitCooldown;
    }

    public void ReturnSword()
    {
        rb.constraints = RigidbodyConstraints2D.FreezeAll;
        transform .parent = null;
        isReturning = true;
    }

    private void Update()
    {
        if (canRotate)
        {
            transform.right = rb.velocity;
        }

        if (isReturning)
        {
            transform.position = Vector2.MoveTowards(transform.position, player.transform.position, returnSpeed * Time.deltaTime);

            if (Vector2.Distance(transform.position, player.transform.position) < 1)
                player.CatchTheSword();
        }

        BounceLogic();

        SpinLogic();
    }

    private void SpinLogic()
    {
        if (isSpinning)
        {
            if (Vector2.Distance(player.transform.position, transform.position) > maxTravelDistance && !wasStopped)
            {
                StopWhenSpinning();
            }
        }

        if (wasStopped)
        {
            spinTimer -= Time.deltaTime;

            if (spinTimer < 0)
            {
                isReturning = true;
                isSpinning = false;
            }

            hitTimer -= Time.deltaTime;

            if (hitTimer < 0)
            {
                hitTimer = hitCooldown;

                Collider2D[] colliders = Physics2D.OverlapCircleAll(transform.position, 1);

                foreach (var hit in colliders)
                {
                    if (hit.GetComponent<Enemy>() != null)
                        hit.GetComponent<Enemy>().Damage();
                }
            }
        }
    }

    private void BounceLogic()
    {
        if (isBouncing && enemyTarget.Count > 0)
        {

            transform.position = Vector2.MoveTowards(transform.position, enemyTarget[targetIndex].position, bounceSpeed * Time.deltaTime);

            if (Vector2.Distance(transform.position, enemyTarget[targetIndex].position) < 0.1f)
            {
                enemyTarget[targetIndex].GetComponent<Enemy>().Damage();

                targetIndex = (targetIndex + 1) % enemyTarget.Count;

                bounceAmount--;
                if (bounceAmount <= 0)
                {
                    isBouncing = false;
                    isReturning = true;
                }

            }
        }
    }

    private void OnTriggerEnter2D(Collider2D collision)
    {
        if (isReturning)
            return;

        if(collision.GetComponent<Enemy>()!=null)
        {
            Enemy enemy = collision.GetComponent<Enemy>();

            enemy.Damage();

            if (!isBouncing && !isSpinning)
                enemy.StartCoroutine("FreezeTimeFor", freezeTimeDuration);
        }

        SetupTargetsForBounce(collision);

        StuckInto(collision);
    }

    private void SetupTargetsForBounce(Collider2D collision)
    {
        if (collision.GetComponent<Enemy>() != null)
        {
            if (isBouncing && enemyTarget.Count <= 0)
            {
                Collider2D[] colliders = Physics2D.OverlapCircleAll(transform.position, 10);

                foreach (var hit in colliders)
                {
                    if (hit.GetComponent<Enemy>() != null)
                        enemyTarget.Add(hit.transform);
                }
            }
        }
    }

    private void StopWhenSpinning()
    {
        wasStopped = true;
        rb.constraints = RigidbodyConstraints2D.FreezePosition;
        spinTimer = spinDuration;
    }

    private void StuckInto(Collider2D collision)
    {
        if(pierceAmount >0 && collision.GetComponent<Enemy>() != null)
        {
            pierceAmount--;
            return;
        }

        if (isSpinning)
        {
            //StopWhenSpinning();
            return;
        }

        canRotate = false;
        cd.enabled = false;

        rb.isKinematic = true;
        rb.constraints = RigidbodyConstraints2D.FreezeAll;

        if(isBouncing && enemyTarget.Count > 0)
            return;

        anim.SetBool("Rotation", false);
        transform.parent = collision.transform;
    }

}
热门推荐
01Qwen3-Coder 快速上手教程 | Qwen Code + Claude Code02全球最强模型Grok4，国内已可免费使用！（附教程）03Coze 开源了，送上保姆级私有化部署方案【建议收藏】04扣子开源本地部署教程 丨Coze智能体小白喂饭级指南05KGG转MP3工具|非KGM文件|解密音频06腾讯还是太全面了，限时免费！超全CodeBuddy IDE保姆级教程！（附案例）07【手把手攻略】国家育儿补贴正式开领！一键算清你能拿多少钱？附补贴领取计算器0801-开源版COZE-字节 Coze Studio 重磅开源！保姆级本地安装教程，手把手带你体验09干翻 Typora！MilkUp：完全免费的桌面端 Markdown 编辑器！10ChatGPT Agent 完全使用指南：2025年7月最新功能详解
