React 上下文游标栈 contextStackCursor valueStack fiberStack

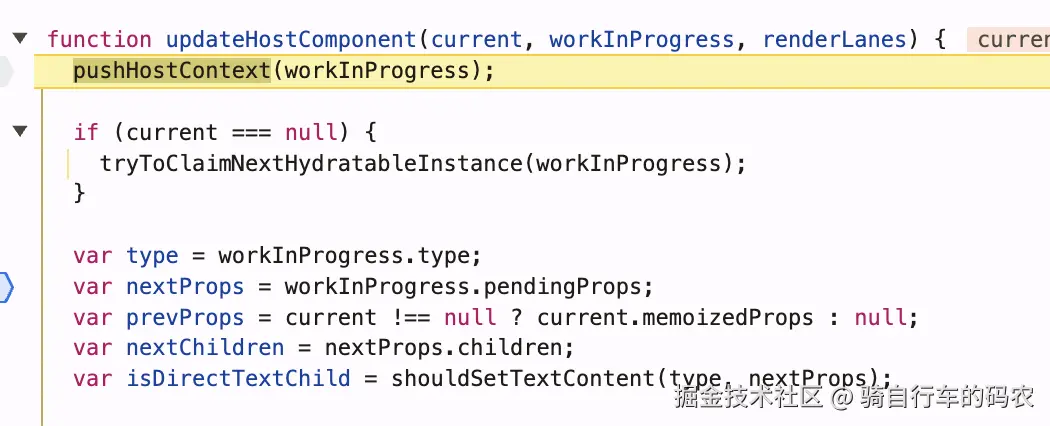

在beginWork completeWork的过程中switch catch到updateHostComponent就有一行代码

completeWork是对应的popHostContext。

总是在fiber节点的beginWork/completeWork，在updateHostComponent等的第一行出现。

概念和组成

"游标"是指向栈中元素的一个指针，例如指向了栈顶元素。

游标栈是栈 + 游标。

2个公共的栈 + 5个游标组成

js 复制代码

var valueStack = [];//1.包含3个内容：包含Provider的Context是否change、上下文Context、fiber
var fiberStack; //2.只包含fiber

{
  fiberStack = [];
}

var index = -1;

function createCursor(defaultValue) {
  return {
    current: defaultValue
  };
}


// 3.Provider提供的Context的游标
var contextStackCursor = createCursor(emptyContextObject);
// 4.对应的Context是否change的游标
var didPerformWorkStackCursor = createCursor(false);

// 上一个contextStackCursor,用于新旧contextStackCursor的合并
var previousContext = emptyContextObject;


var NO_CONTEXT = {};
// 5.实际dom元素的fiber节点的上下文游标
var contextStackCursor$1 = createCursor(NO_CONTEXT);
// 6.fiber节点的游标
var contextFiberStackCursor = createCursor(NO_CONTEXT);
// 7.根节点HostRoot游标
var rootInstanceStackCursor = createCursor(NO_CONTEXT);

contextStackCursor$1是最新的HostComponent的游标

contextStackCursor是最新的ClassComponent且设置了childContextTypes属性的类组件的游标

5个入栈函数

设置contextStackCursor和didPerformWorkStackCursor游标

js 复制代码

function pushTopLevelContextObject(fiber, context, didChange) {
  {
    if (contextStackCursor.current !== emptyContextObject) {
      throw new Error('Unexpected context found on stack. ' + 'This error is likely caused by a bug in React. Please file an issue.');
    }

    push(contextStackCursor, context, fiber);
    push(didPerformWorkStackCursor, didChange, fiber);
  }
}

设置contextStackCursor和didPerformWorkStackCursor游标

js 复制代码

var emptyContextObject = {};
function pushContextProvider(workInProgress) {
  {
    var instance = workInProgress.stateNode;

    // We push the context as early as possible to ensure stack integrity.
    // If the instance does not exist yet, we will push null at first,
    // and replace it on the stack later when invalidating the context.
    var memoizedMergedChildContext = instance && instance.__reactInternalMemoizedMergedChildContext || emptyContextObject;
    // Remember the parent context so we can merge with it later.
    // Inherit the parent's did-perform-work value to avoid inadvertently blocking updates.

    previousContext = contextStackCursor.current;
    push(contextStackCursor, memoizedMergedChildContext, workInProgress);
    push(didPerformWorkStackCursor, didPerformWorkStackCursor.current, workInProgress);
    return true;
  }
}

设置contextFiberStackCursor contextStackCursor$1 和rootInstanceStackCursor 游标

js 复制代码

function pushHostContainer(fiber, nextRootInstance) {
  // Push current root instance onto the stack;
  // This allows us to reset root when portals are popped.
  push(rootInstanceStackCursor, nextRootInstance, fiber);

  // Track the context and the Fiber that provided it.
  // This enables us to pop only Fibers that provide unique contexts.
  push(contextFiberStackCursor, fiber, fiber);

  // Finally, we need to push the host context to the stack.
  // However, we can't just call getRootHostContext() and push it because
  // we'd have a different number of entries on the stack depending on
  // whether getRootHostContext() throws somewhere in renderer code or not.
  // So we push an empty value first. This lets us safely unwind on errors.
  push(contextStackCursor$1, NO_CONTEXT, fiber);
  var nextRootContext = getRootHostContext(nextRootInstance);

  // Now that we know this function doesn't throw, replace it.
  pop(contextStackCursor$1, fiber);
  push(contextStackCursor$1, nextRootContext, fiber);
}

设置contextFiberStackCursor contextStackCursor$1游标

js 复制代码

function pushHostContext(fiber) {
  var rootInstance = requiredContext(rootInstanceStackCursor.current);
  var context = requiredContext(contextStackCursor$1.current);
  var nextContext = getChildHostContext(context, fiber.type);

  // Don't push this Fiber's context unless it's unique.
  if (context === nextContext) {
    return;
  }

  // Track the context and the Fiber that provided it.
  // This enables us to pop only Fibers that provide unique contexts.
  push(contextFiberStackCursor, fiber, fiber);
  push(contextStackCursor$1, nextContext, fiber);
}

设置contextStackCursor和didPerformWorkStackCursor游标合并上下文，设置到contextStackCursor

js 复制代码

function invalidateContextProvider(workInProgress, type, didChange) {
  {
    var instance = workInProgress.stateNode;

    if (!instance) {
      throw new Error('Expected to have an instance by this point. ' + 'This error is likely caused by a bug in React. Please file an issue.');
    }

    if (didChange) {
      // Merge parent and own context.
      // Skip this if we're not updating due to sCU.
      // This avoids unnecessarily recomputing memoized values.
      // 合并上下文对象，类似于assign({},obj1,obj2}
      var mergedContext = processChildContext(workInProgress, type, previousContext);
      instance.__reactInternalMemoizedMergedChildContext = mergedContext;
      // Replace the old (or empty) context with the new one.
      // It is important to unwind the context in the reverse order.
      // 先把pushContextProvider的取出来
      pop(didPerformWorkStackCursor, workInProgress);
      pop(contextStackCursor, workInProgress);

      // Now push the new context and mark that it has changed.
      push(contextStackCursor, mergedContext, workInProgress);
      push(didPerformWorkStackCursor, didChange, workInProgress);
    } else {
      pop(didPerformWorkStackCursor, workInProgress);
      push(didPerformWorkStackCursor, didChange, workInProgress);
    }
  }
}

其中三个都是设置contextStackCursor和didPerformWorkStackCursor游标，下面具体介绍。

这5个入栈函数是在不同的fiber节点tag类型使用的：

beginWork:HostRoot-updateHostRoot-pushHostRootContext-pushTopLevelContextObject、pushHostContainer
beginWork:ClassComponent-updateClassComponent-pushContextProvider isContextProvider hasContext = true

beginWork:ClassComponent-updateClassComponent-mountClassInstance-getUnmaskedContext、getMaskedContext

beginWork:ClassComponent-updateClassComponent-finishClassComponent-invalidateContextProvider hasContext
beginWork:HostComponent-updateHostComponent-pushHostContext

介绍

1.pushHostRootContext内部调用pushTopLevelContextObject和pushHostContainer把5个游标都设置，用于HostRoot节点，也就是差不多是div#root的fiber。

pushContextProvider 只设置contextStackCursor didPerformWorkStackCursor游标。它是在类组件（ClassComponent）、且有childContextTypes属性的情况下调用。有childContextTypes表明它是一个上下文提供者Provider。在最后面的代码中有例子。

pushHostContext设置contextFiberStackCursor contextStackCursor$1游标。在dom实例对应的fiber节点，fiberNode.tag=5 即HostComponent(dom元素对应的fiber)的情况使用。contextStackCursor$1保存当前fiber的上下文。

上下文对象：一个是我们在validateDOMNesting校验dom嵌套结构介绍过的保存祖先信息的对象，还有一个是Provider-Context上下文对象

js 复制代码

//祖先嵌套信息
{
  ancestorInfo:{
    aTagInScope: null
    buttonTagInScope : null
    current: {tag: 'div'}
    dlItemTagAutoclosing: null
    formTag: null
    listItemTagAutoclosing: null
    nobrTagInScope: null
    pTagInButtonScope: null}
  namespace: "http://www.w3.org/1999/xhtml"
}

getUnmaskedContext、getMaskedContext

Unmasked : unmasked 意为"未被遮盖的"。在编程中，mask（掩码）是一个非常重要的概念，它是一个二进制值 ，用于通过位运算来选择性地保留或隐藏另一个值中的某些位元。unmasked 则表示一个值在被获取之前，没有经过位运算的过滤或修改，它是其原始形式。

对应的是Provider-Context的contextTypes属性。

上上下下的Provider-Context合并起来，供全局使用，类似于assign({},obj1,obj2}。合并后的是UnmaskedContext，没有过滤的。过滤出要使用的是，过滤后的是MaskedContext的，依据的就是contextTypes属性进行过滤。在源码的getUnmaskedContext、getMaskedContext进行。

isContextProvider hasContext = true invalidateContextProvider

isContextProvider函数判断类组件是否有childContextTypes属性。然后把hasContext设置为true/false。

childContextTypes、contextTypes是旧版的Provider-Context的用法。

有childContextTypes属性，就把上上下下的Context合并起来，对应源码invalidateContextProvider。

有这样的属性的类组件，

js 复制代码

// 提供context
// ...一些代码
// 提供了childContextTypes {theme:'dark',other:...}

// 消费 context
class ThemedButton extends React.Component {
  // 声明需要订阅哪些 context
  static contextTypes = {// getMaskedContext内部获取这个属性
    theme: PropTypes.string, //只要theme
  };

  render() {
    return <button>当前主题: {this.context.theme}</button>;
  }
}

invalidateContextProvider和pushContextProvider

pushContextProvider和invalidateContextProvider联合使用，除了HostRoot后续fiber都是在isContextProvider为true下使用。

挂载阶段instance是null,memoizedMergedChildContext=emptyContextObject为了尽早push，使用pushContextProvide。

如果上下文变了，invalidateContextProvider把pushContextProviderpush的pop，然后push新的。

我们看一看顺序：

a. updateClassComponent

b. 挂载阶段，实例还没创建pushContextProvider

c. 创建实例constructClassInstance:var instance = new ctor(props, context);

d. finishClassComponent

e. invalidateContextProvider合并上下文

更新阶段instance不是null，也是尽早push,使用缓存的合并值，在finishClassComponent时发现变了，先把push的pop，最后push新的。

js 复制代码

function updateClassComponent(current, workInProgress, Component, nextProps, renderLanes) {
  ...
  var hasContext;

  if (isContextProvider(Component)) {
    hasContext = true;
    pushContextProvider(workInProgress);
  } else {
    hasContext = false;
  }
  ...
  var nextUnitOfWork = finishClassComponent(current, workInProgress, Component, shouldUpdate, hasContext, renderLanes);

}

js 复制代码

function finishClassComponent(current, workInProgress, Component, shouldUpdate, hasContext, renderLanes) {

  var didCaptureError = (workInProgress.flags & DidCapture) !== NoFlags;

  //既没有更新，也没有错误，跳过后续渲染
  if (!shouldUpdate && !didCaptureError) {
    // Context providers should defer to sCU for rendering
    if (hasContext) {
      invalidateContextProvider(workInProgress, Component, false);
    }

    return bailoutOnAlreadyFinishedWork(current, workInProgress, renderLanes);
  }

  ...
 if (hasContext) {
    invalidateContextProvider(workInProgress, Component, true);
  }
 return workInProgress.child;
}

这么复杂设计的游标栈在哪里使用

1.completeWork的dom实例创建(createInstance)和更新(updateHostComponent$1），文本节点实例的创建(createTextInstance)。

只有这两个涉及到dom的需要检查html标签嵌套的检查，会用到游标栈保存的上写文，对于其他类型的fiber，都不会用到游标栈。

completeWork:HostComponent-updateHostComponent$1-prepareUpdate更新dom实例

completeWork:HostComponent-createInstance 创建dom实例

completeWork:HostText-createTextInstance 创建文本dom实例

这些都validateDOMNesting检查嵌套，需要祖先标签信息，祖先信息保存在上下文。

源码completeWork createInstance createTextInstance

为什么dom实例更新也要检查嵌套？

举个例子：

jsx 复制代码

function App({ bad }) {
  return <table>{bad ? <div>oops</div> : <tr><td>ok</td></tr>}</table>;
}

a. 初次渲染 bad = false，生成 <table><tr><td>ok</td></tr></table> ✅ 合法。

b. 更新时 bad = true，React diff 发现 <tr> → <div>，于是准备在 同一个 table DOM 节点 里插入 <div>。

c. 这时候如果不在 update 里跑 validateDOMNesting，React 就不会报错，最终会出现 <table><div>oops</div></table> ❌ 不合法的 DOM。

2.函数组件渲染的时候，传入函数组件的内部，函数组件的第二个参数

updateSimpleMemoComponent-updateFunctionComponent-renderWithHooks

mountLazyComponent:FunctionComponent-updateFunctionComponent-renderWithHooks

beginWork:FunctionComponent-updateFunctionComponent-renderWithHooks

这些情况都Component(props, secondArg);

jsx 复制代码

function updateFunctionComponent(current, workInProgress, Component, nextProps, renderLanes) {
  ...
  var context;

  {
    var unmaskedContext = getUnmaskedContext(workInProgress, Component, true);
    context = getMaskedContext(workInProgress, unmaskedContext);
  }

  ...
  nextChildren = renderWithHooks(current, workInProgress, Component, nextProps, context, renderLanes);
  ...
  reconcileChildren(current, workInProgress, nextChildren, renderLanes);
  return workInProgress.child;
}
function renderWithHooks(current, workInProgress, Component, props, secondArg, nextRenderLanes) {
  ...
  var children = Component(props, secondArg); // Check if there was a render phase update
  ...
  return children;
}

js 复制代码

以前（React <16.3）函数组件是可以写成这样：
function MyComponent(props, context) {
  console.log(props, context);
  return <div>{context.theme}</div>;
}

MyComponent.contextTypes = {
  theme: PropTypes.string
};

为什么不把上下文保存在fiber节点上，而是通过栈+游标？

我们需要跨级取用，contextStackCursor$1是最新的HostComponent的游标，只会看到dom元素的fiber。

div-CustomComponent-p,这样的嵌套结构，我们不需要CustomComponent，我们需要的是div-p，contextStackCursor$1是div的，到p进入pushHostContext,contextStackCursor$1更新为p。

看getChildHostContext。 updatedAncestorInfo是校验dom嵌套结构的内容。

js 复制代码

function getChildHostContext(parentHostContext, type, rootContainerInstance) {
  {
    var parentHostContextDev = parentHostContext;
    var namespace = getChildNamespace(parentHostContextDev.namespace, type);
    //每个标签要重新计算祖先和当前节点的嵌套信息，作为上下文
    var ancestorInfo = updatedAncestorInfo(parentHostContextDev.ancestorInfo, type);
    return {
      namespace: namespace,
      ancestorInfo: ancestorInfo
    };
  }
}

push和参数

我们在push的时候提供的第二个参数value是第一个参数游标的最新的值。

js 复制代码

function push(cursor, value, fiber) {
  index++;
  valueStack[index] = cursor.current;//旧的

  {
    fiberStack[index] = fiber;
  }

  cursor.current = value;//最新的
}

pushTopLevelContextObject:
           cursor        value    fiber
push(contextStackCursor, context, fiber);//context是contextStackCursor的值
push(didPerformWorkStackCursor, didChange, fiber);//cursor是didPerformWorkStackCursor，value是didChange

pushHostContainer:
push(rootInstanceStackCursor, nextRootInstance, fiber); // Track the context and the Fiber that provided it.
push(contextFiberStackCursor, fiber, fiber); // Finally, we need to push the host context to the stack.
push(contextStackCursor$1, nextRootContext, fiber);

pushContextProvider:
push(contextStackCursor, memoizedMergedChildContext, workInProgress);
push(didPerformWorkStackCursor, didPerformWorkStackCursor.current, workInProgress);

pushHostContext:
push(contextFiberStackCursor, fiber, fiber);
push(contextStackCursor$1, nextContext, fiber);

cursor分别是contextStackCursor、didPerformWorkStackCursor...等游标
value是nextContext fiber didChange等，如祖先信息对象、Provider-Context的上下文对象
我们在push的时候提供的第二个参数value是第一个参数游标cursor的最新的值。
valueStack栈是全部游标的值，可以看到valueStack其实非常的乱，代码中也没有对valueStack栈的直接使用，都是使用contextStackCursor$1 contextStackCursor rootInstanceStackCursor 这些游标的值
fiberStack是全部fiber

实例

jsx 复制代码

import React from "react";
import PropTypes from "prop-types";

// 顶层 Provider，定义 childContextTypes
class ThemeProvider extends React.Component {
  // 定义能往下传的 context 类型
  static childContextTypes = {
    theme: PropTypes.string,
  };

  // 返回要传递下去的值（合并到父 context）
  getChildContext() {
    return { theme: "dark" };
  }

  render() {
    return this.props.children;
  }
}

// 中间组件，不消费 context，只是转发 children
class Layout extends React.Component {
  render() {
    return <div>{this.props.children}</div>;
  }
}

// 消费 context 的组件
class ThemedButton extends React.Component {
  // 声明需要订阅哪些 context
  static contextTypes = {
    theme: PropTypes.string, //过滤出需要使用的
  };

  render() {
    return <button>当前主题: {this.context.theme}</button>;
  }
}

export default function App() {
  return (
    <ThemeProvider>
      <Layout>
        <ThemedButton />
      </Layout>
    </ThemeProvider>
  );
}

源码 completeWork createInstance createTextInstance

js 复制代码

function completeWork(){
  case HostComponent:{
    popHostContext(workInProgress);
    //获取游标
    var rootContainerInstance = getRootHostContainer();
    var type = workInProgress.type;
    if (current !== null && workInProgress.stateNode != null) {
      updateHostComponent$1(current, workInProgress, type, newProps, rootContainerInstance);

      if (current.ref !== workInProgress.ref) {
        markRef$1(workInProgress);
      }
    }else{
      ...
      //获取游标
      var currentHostContext = getHostContext();
      var _wasHydrated = popHydrationState(workInProgress);
      if (_wasHydrated) {
        if (prepareToHydrateHostInstance(workInProgress, rootContainerInstance, currentHostContext)) {
          markUpdate(workInProgress);
        }
      }else{
      //创建dom实例 里面会校验html标签嵌套
        var instance = createInstance(type, newProps, rootContainerInstance, currentHostContext, workInProgress);
        appendAllChildren(instance, workInProgress, false, false);
        workInProgress.stateNode = instance;
        if (finalizeInitialChildren(instance, type, newProps, rootContainerInstance)) {
          markUpdate(workInProgress);
        }
      }
    }
  }
  case HostText:
  {
    var newText = newProps;

    if (current && workInProgress.stateNode != null) {
      var oldText = current.memoizedProps;
      updateHostText$1(current, workInProgress, oldText, newText);
    } else {
      if (typeof newText !== 'string') {
        if (workInProgress.stateNode === null) {
          throw new Error('We must have new props for new mounts. This error is likely ' + 'caused by a bug in React. Please file an issue.');
        } // This can happen when we abort work.

      }

      var _rootContainerInstance = getRootHostContainer();
      var _currentHostContext = getHostContext();

      var _wasHydrated2 = popHydrationState(workInProgress);
      if (_wasHydrated2) {
        if (prepareToHydrateHostTextInstance(workInProgress)) {
          markUpdate(workInProgress);
        }
      } else {
        workInProgress.stateNode = createTextInstance(newText, _rootContainerInstance, _currentHostContext, workInProgress);
      }
    }

    bubbleProperties(workInProgress);
    return null;
  }
}

js 复制代码

// validateDOMNesting需要知道上下文
function createInstance(type, props, rootContainerInstance, hostContext, internalInstanceHandle) {
  var parentNamespace;

  {
    //
    validateDOMNesting(type, null, hostContextDev.ancestorInfo);

    if (typeof props.children === 'string' || typeof props.children === 'number') {
      var string = '' + props.children;
      //validateDOMNesting需要知道上下文
      var ownAncestorInfo = updatedAncestorInfo(hostContextDev.ancestorInfo, type);
      validateDOMNesting(null, string, ownAncestorInfo);
    }

    parentNamespace = hostContextDev.namespace;
  }
//创建element
  var domElement = createElement(type, props, rootContainerInstance, parentNamespace);
  precacheFiberNode(internalInstanceHandle, domElement);
  updateFiberProps(domElement, props);
  return domElement;
}

js 复制代码

// validateDOMNesting需要知道上下文
function createTextInstance(text, rootContainerInstance, hostContext, internalInstanceHandle) {
  {
    // validateDOMNesting需要知道上下文
    var hostContextDev = hostContext;
    validateDOMNesting(null, text, hostContextDev.ancestorInfo);
  }

  var textNode = createTextNode(text, rootContainerInstance);
  precacheFiberNode(internalInstanceHandle, textNode);
  return textNode;
}

js 复制代码

updateHostComponent$1 = function (current, workInProgress, type, newProps, rootContainerInstance) {
  var oldProps = current.memoizedProps;

  if (oldProps === newProps) {
    // In mutation mode, this is sufficient for a bailout because
    // we won't touch this node even if children changed.
    return;
  }

  var instance = workInProgress.stateNode;
  var currentHostContext = getHostContext();

  var updatePayload = prepareUpdate(instance, type, oldProps, newProps, rootContainerInstance, currentHostContext);

  workInProgress.updateQueue = updatePayload;
  if (updatePayload) {
    markUpdate(workInProgress);
  }
};

js 复制代码

// validateDOMNesting需要知道上下文
function prepareUpdate(domElement, type, oldProps, newProps, rootContainerInstance, hostContext) {
  {
    var hostContextDev = hostContext;

    if (typeof newProps.children !== typeof oldProps.children && (typeof newProps.children === 'string' || typeof newProps.children === 'number')) {
      var string = '' + newProps.children;
      //validateDOMNesting需要知道上下文
      var ownAncestorInfo = updatedAncestorInfo(hostContextDev.ancestorInfo, type);
      validateDOMNesting(null, string, ownAncestorInfo);
    }
  }

  return diffProperties(domElement, type, oldProps, newProps);
}

js 复制代码

function requiredContext(c) {
  if (c === NO_CONTEXT) {
    throw new Error('Expected host context to exist. This error is likely caused by a bug ' + 'in React. Please file an issue.');
  }

  return c;
}

js 复制代码

function getRootHostContainer() {
  var rootInstance = requiredContext(rootInstanceStackCursor.current);
  return rootInstance;
}

js 复制代码

function getHostContext() {
  var context = requiredContext(contextStackCursor$1.current);
  return context;
}
