HarvardX TinyML小笔记2（番外1：TFLite）

1 原理

tflite就是Tensorflow的轻量化模型，核心处理就是量化和剪枝。不过这部分目前是在Tensorflow中封装了，所以这里也不会去看细节，主要就是看看原理和使用方法。

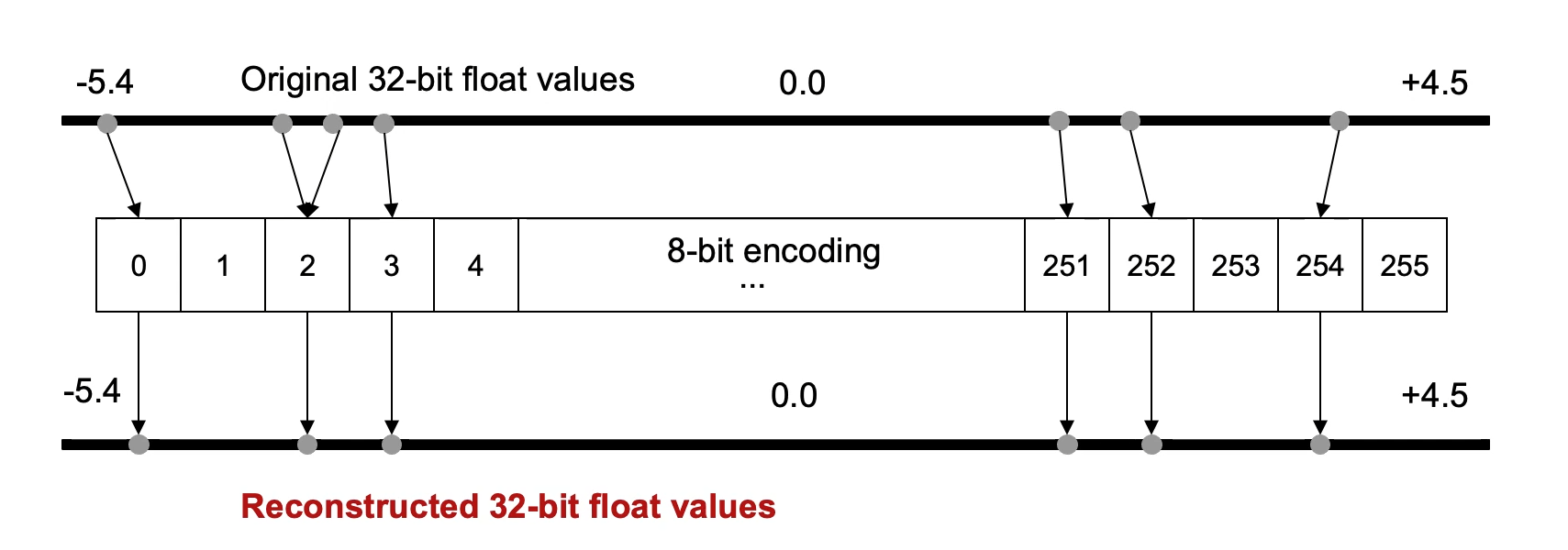

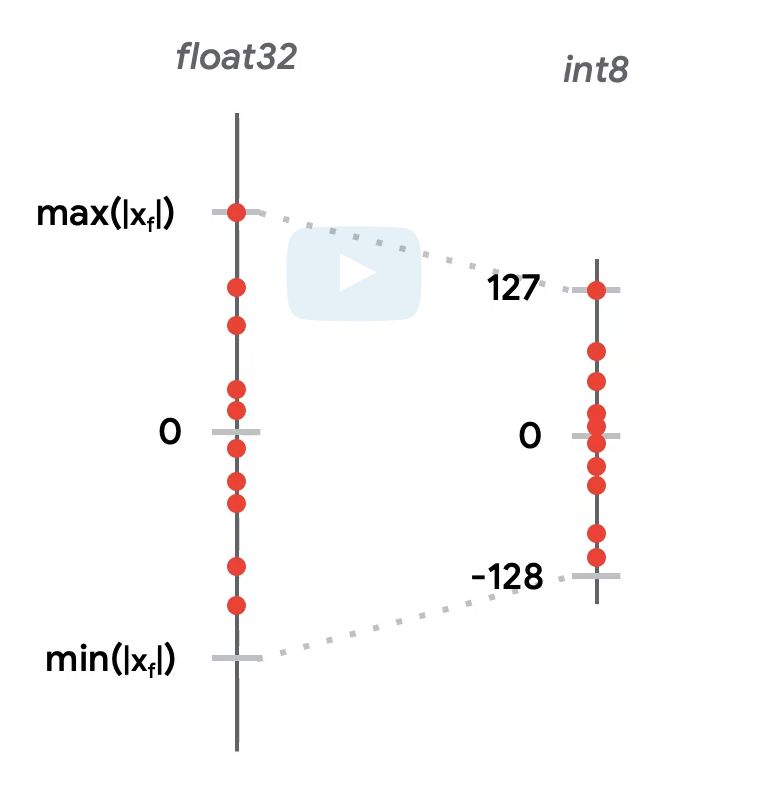

量化Quantization，其实就是把原来的float32换成int8。这样一个是减少了模型中的参数大小，理论上缩减到之前的1/4，另外也加快了运算。换算就是把之前的浮点数映射到int8的256个格子里面。

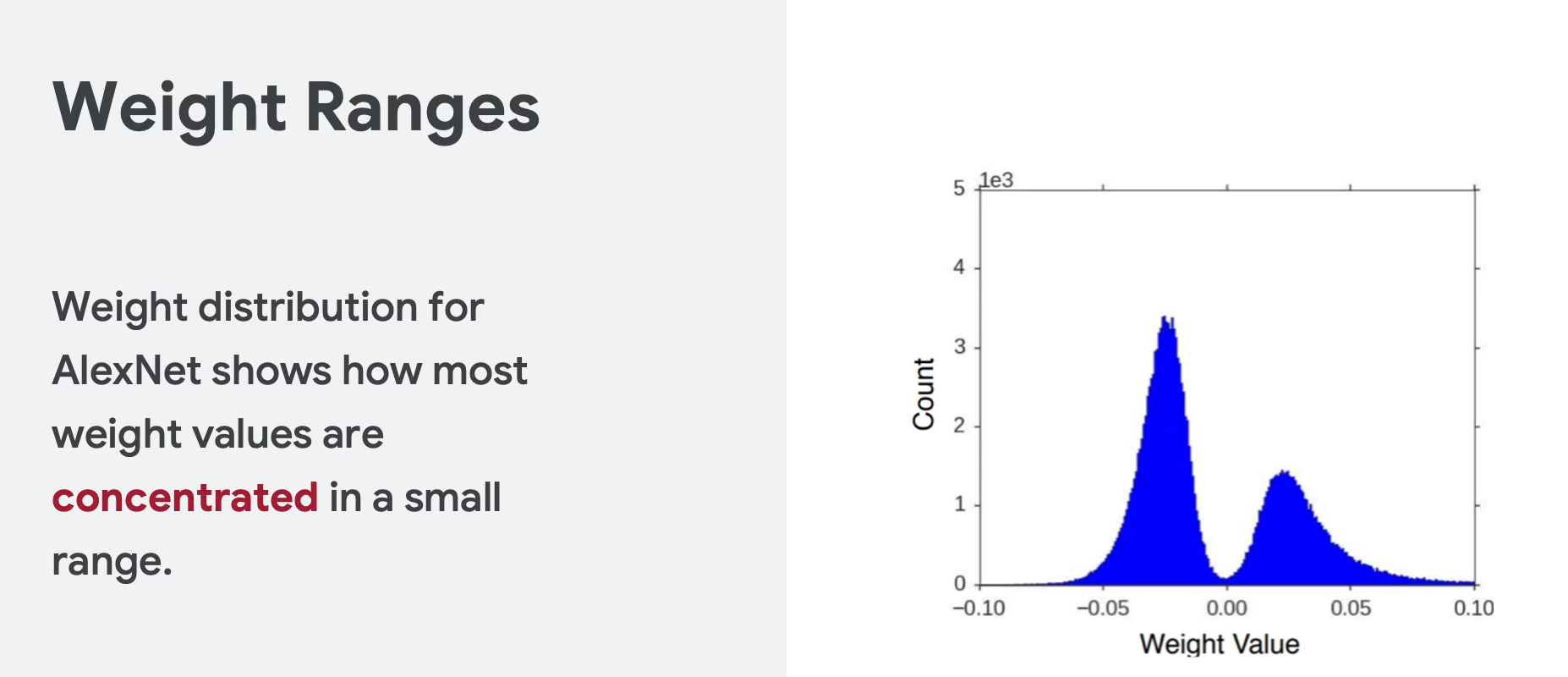

原因是根据分析，大部分的权重都分布在一些相对狭窄的区域，也就是说很多区域其实是浪费了。所以可以压缩，这也是压缩的理论基础。

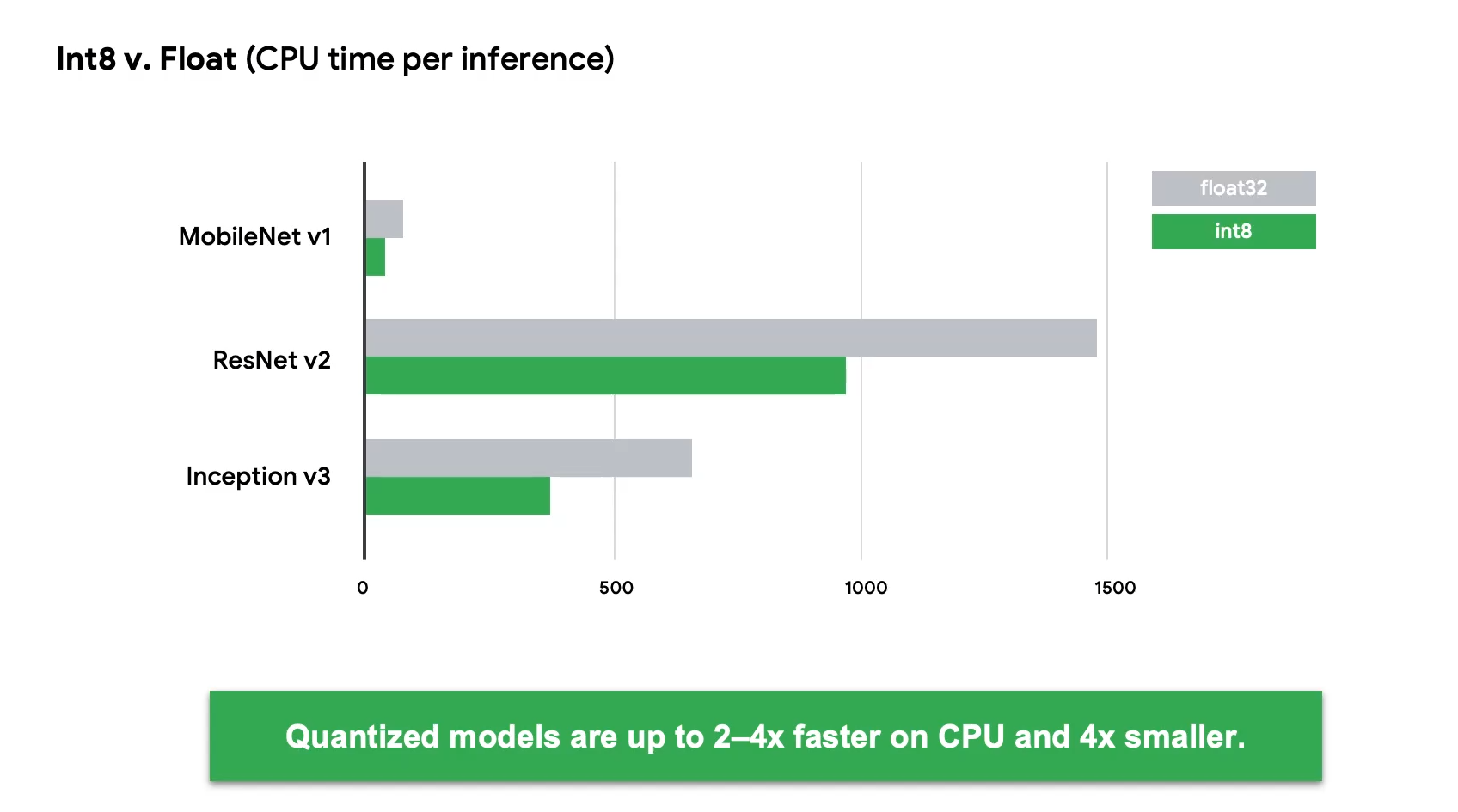

测试后，量化的数据运行速度基本能达到之前的1/2甚至1/4。

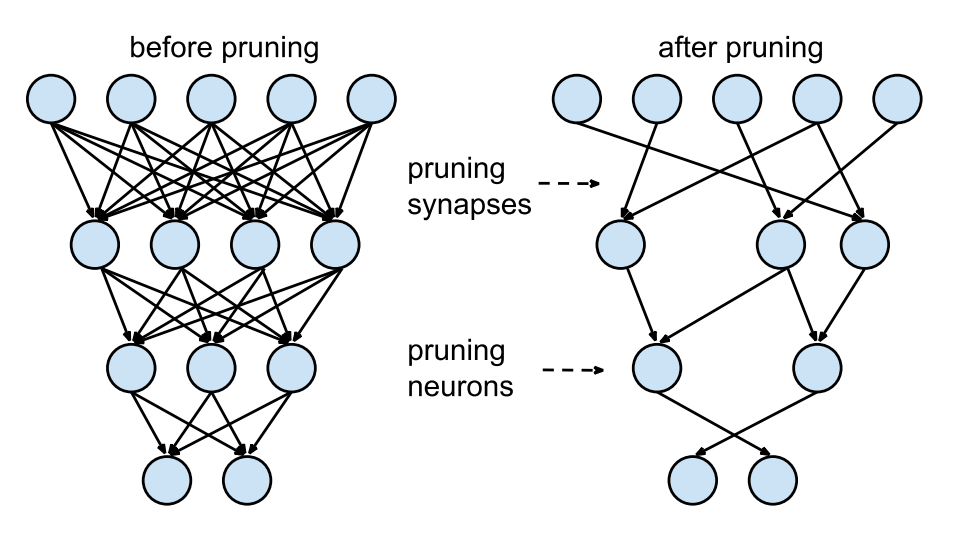

剪枝pruning，则是去掉一些不必要的神经元。这样可以减少体积和加快推理速度，具体怎么剪的，目前不知道。。。

2 练习

2.1 线性回归

练习：https://colab.research.google.com/github/tinyMLx/colabs/blob/master/3-3-4-TFLiteConverter.ipynb

整理的代码

import tensorflow as tf
if tf.__version__ != "2.14.0":
    print(f"Current TensorFlow version: {tf.__version__}, switching to 2.14.0")

    # Uninstall current TensorFlow version
    !pip uninstall -y tensorflow

    # Install TensorFlow 2.10
    !pip install numpy==1.26 --force-reinstall
    !pip install tensorflow==2.14.0


    # After installation, restart runtime
    print("TensorFlow 2.14.0 installed.")
    print("Please click on the Runtime > Restart session and run all.")
else:
    print("TensorFlow 2.14.0 is already installed.")

import tensorflow as tf
import numpy as np
from tensorflow.keras import Sequential
from tensorflow.keras.layers import Dense


l0 = Dense(units=1, input_shape=[1])
model = Sequential([l0])
model.compile(optimizer='sgd', loss='mean_squared_error')

xs = np.array([-1.0, 0.0, 1.0, 2.0, 3.0, 4.0], dtype=float)
ys = np.array([-3.0, -1.0, 1.0, 3.0, 5.0, 7.0], dtype=float)

model.fit(xs, ys, epochs=500)

print(model.predict(np.array([10.0])))
print("Here is what I learned: {}".format(l0.get_weights()))


export_dir = 'saved_model/1'
tf.saved_model.save(model, export_dir)

# Convert the model.
converter = tf.lite.TFLiteConverter.from_saved_model(export_dir)
tflite_model = converter.convert()


import pathlib
tflite_model_file = pathlib.Path('model.tflite')
tflite_model_file.write_bytes(tflite_model)

# Load TFLite model and allocate tensors.
interpreter = tf.lite.Interpreter(model_content=tflite_model)
interpreter.allocate_tensors()

# Get input and output tensors.
input_details = interpreter.get_input_details()
output_details = interpreter.get_output_details()
print(input_details)
print(output_details)


to_predict = np.array([[10.0]], dtype=np.float32)
print(to_predict)
interpreter.set_tensor(input_details[0]['index'], to_predict)
interpreter.invoke()
tflite_results = interpreter.get_tensor(output_details[0]['index'])
print(tflite_results)

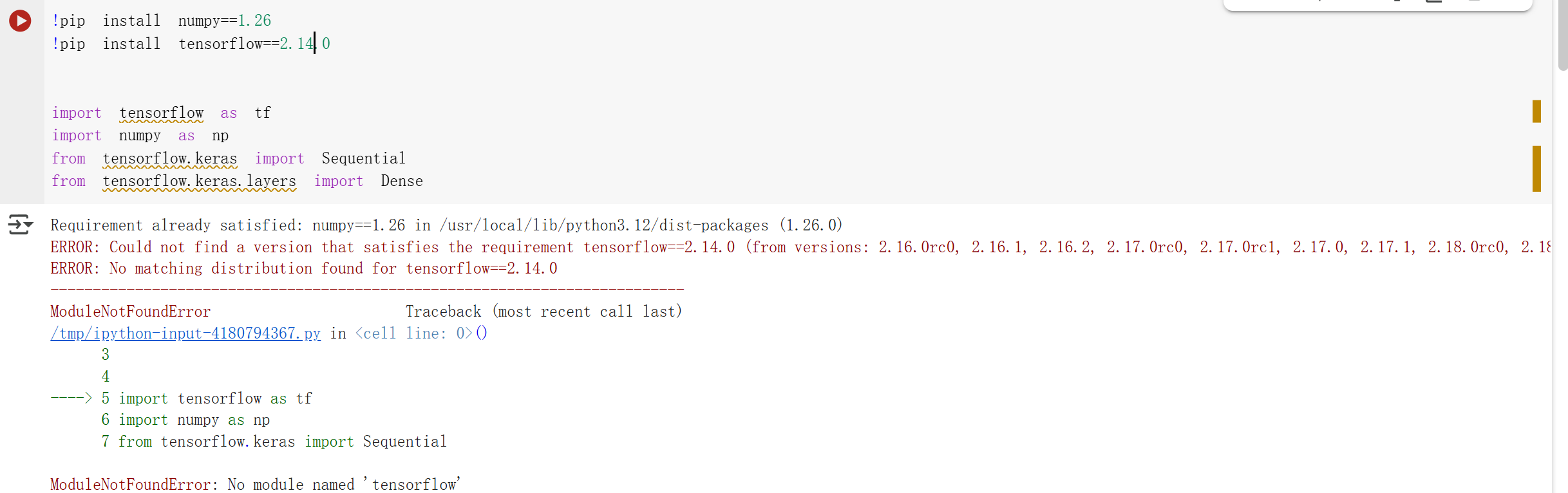

因为里面指定了版本是2.14.0，但是Colab上面已经没有2.14.0了。后面改成2.16倒是可以安装，但是会在后面报错，所以这次只看代码了。

核心就是三个地方。

转换

# Convert the model.
converter = tf.lite.TFLiteConverter.from_saved_model(export_dir)
tflite_model = converter.convert()

加载

interpreter = tf.lite.Interpreter(model_content=tflite_model)
interpreter.allocate_tensors()

推理

interpreter.set_tensor(input_details[0]['index'], to_predict)
interpreter.invoke()

2.2 猫狗识别

练习代码是在：https://colab.research.google.com/github/tinyMLx/colabs/blob/master/3-3-7-RunningTFLiteModels.ipynb

本来是想运行的，但是和上面一样，Google的colab用着确实有点问题，更换了库之后，死活也无法重启colab。所以只能手搓代码学习了。。。

代码整理：

tf_version = "2.14.0"
hub_version = "0.15.0"
datasets_version = "4.6.0"
numpy_version = "1.26.4"
protobuf_version = "3.20.3"

import tensorflow as tf
import numpy as np

try:
    import tensorflow_hub as hub
    import tensorflow_datasets as tfds
except:
    hub = None
    tfds = None

# Check if versions match
if (tf.__version__ != tf_version or
    (hub and hub.__version__ != hub_version) or
    (tfds and tfds.__version__ != datasets_version) or
    not np.__version__.startswith(numpy_version)):

    print(f"Current TensorFlow version: {tf.__version__} → {tf_version}")
    if hub: print(f"Current TensorFlow Hub version: {hub.__version__} → {hub_version}")
    if tfds: print(f"Current TensorFlow Datasets version: {tfds.__version__} → {datasets_version}")
    print(f"Current NumPy version: {np.__version__} → {numpy_version}")

    # Uninstall old versions
    !pip uninstall -y tensorflow tensorflow_hub tensorflow_datasets numpy protobuf

    # Install specific versions
    !pip install tensorflow=={tf_version} \
                tensorflow_hub=={hub_version} \
                tensorflow_datasets=={datasets_version} \
                numpy=={numpy_version} \
                protobuf=={protobuf_version}

    # Prompt user to restart
    print("\n Specified versions installed successfully.")
    print(" Please restart the runtime (Runtime > Restart session) and re-run the notebook.\n")
else:
    print(" All packages are already at the specified versions.")

import numpy as np
import matplotlib.pylab as plt

import tensorflow as tf
import tensorflow_hub as hub
import tensorflow_datasets as tfds
setattr(tfds.image_classification.cats_vs_dogs, '_URL',"https://download.microsoft.com/download/3/E/1/3E1C3F21-ECDB-4869-8368-6DEBA77B919F/kagglecatsanddogs_5340.zip")


def format_image(image, label):
    image = tf.image.resize(image, (224, 224)) / 255.0
    return  image, label


(raw_train, raw_validation, raw_test), metadata = tfds.load(
    'cats_vs_dogs',
    split=['train[:80%]', 'train[80%:90%]', 'train[90%:]'],
    with_info=True,
    as_supervised=True,
)

num_examples = metadata.splits['train'].num_examples
num_classes = metadata.features['label'].num_classes
print(num_examples)
print(num_classes)

BATCH_SIZE = 32
train_batches = raw_train.shuffle(num_examples // 4).map(format_image).batch(BATCH_SIZE).prefetch(1)
validation_batches = raw_validation.map(format_image).batch(BATCH_SIZE).prefetch(1)
test_batches = raw_test.map(format_image).batch(1)

for image_batch, label_batch in train_batches.take(1):
    pass

image_batch.shape



module_selection = ("mobilenet_v2", 224, 1280)
handle_base, pixels, FV_SIZE = module_selection
MODULE_HANDLE ="https://tfhub.dev/google/tf2-preview/{}/feature_vector/4".format(handle_base)
IMAGE_SIZE = (pixels, pixels)
print("Using {} with input size {} and output dimension {}".format(MODULE_HANDLE, IMAGE_SIZE, FV_SIZE))

feature_extractor = hub.KerasLayer(MODULE_HANDLE,
                                   input_shape=IMAGE_SIZE + (3,),
                                   output_shape=[FV_SIZE],
                                   trainable=False)

print("Building model with", MODULE_HANDLE)

model = tf.keras.Sequential([
        feature_extractor,
        tf.keras.layers.Dense(num_classes, activation='softmax')
])

model.summary()

model.compile(optimizer='adam',
                  loss='sparse_categorical_crossentropy',
                  metrics=['accuracy'])

EPOCHS = 5

hist = model.fit(train_batches,
                 epochs=EPOCHS,
                 validation_data=validation_batches)


CATS_VS_DOGS_SAVED_MODEL = "exp_saved_model"
tf.saved_model.save(model, CATS_VS_DOGS_SAVED_MODEL)

import pathlib
converter = tf.lite.TFLiteConverter.from_saved_model(CATS_VS_DOGS_SAVED_MODEL)

tflite_model = converter.convert()
tflite_models_dir = pathlib.Path("/tmp/")

tflite_model_file = tflite_models_dir/'model1.tflite'
tflite_model_file.write_bytes(tflite_model)
# This will report back the file size in bytes


from tqdm import tqdm
# Load TFLite model and allocate tensors.
tflite_model_file = '/tmp/model1.tflite'
interpreter = tf.lite.Interpreter(model_path=tflite_model_file)
interpreter.allocate_tensors()

input_index = interpreter.get_input_details()[0]["index"]
output_index = interpreter.get_output_details()[0]["index"]

predictions = []

# This will report how many iterations per second, where each
# iteration is 100 predictions
test_labels, test_imgs = [], []
for img, label in tqdm(test_batches.take(100)):
    interpreter.set_tensor(input_index, img)
    interpreter.invoke()
    predictions.append(interpreter.get_tensor(output_index))

    test_labels.append(label.numpy()[0])
    test_imgs.append(img)


# This will tell you how many of the predictions were correct
score = 0
for item in range(0,len(predictions)):
  prediction=np.argmax(predictions[item])
  label = test_labels[item]
  if prediction==label:
    score=score+1

print("Out of 100 predictions I got " + str(score) + " correct")


#@title Utility functions for plotting
# Utilities for plotting

class_names = ['cat', 'dog']

def plot_image(i, predictions_array, true_label, img):
    predictions_array, true_label, img = predictions_array[i], true_label[i], img[i]
    plt.grid(False)
    plt.xticks([])
    plt.yticks([])

    img = np.squeeze(img)

    plt.imshow(img, cmap=plt.cm.binary)

    predicted_label = np.argmax(predictions_array)

    if predicted_label == true_label:
        color = 'green'
    else:
        color = 'red'

    plt.xlabel("{} {:2.0f}% ({})".format(class_names[predicted_label],
                                         100*np.max(predictions_array),
                                         class_names[true_label]), color=color)



#@title Visualize the outputs { run: "auto" }
max_index = 73 #@param {type:"slider", min:1, max:100, step:1}
for index in range(0,max_index):
  plt.figure(figsize=(6,3))
  plt.subplot(1,2,1)
  plot_image(index, predictions, test_labels, test_imgs)
  plt.show()

关键的解读如下：

首先就是约束版本。。。感觉真的挺复杂的，以后整合这些版本也是很麻烦的。

tf_version = "2.14.0"

hub_version = "0.15.0"

datasets_version = "4.6.0"

numpy_version = "1.26.4"

protobuf_version = "3.20.3"

tf就是tensorflow，numpy倒是不用说，protobuf之前是谷歌网络框架gPRC里面的，没想到在AI领域又拿出来了，是直接用来替代json保存模型。hub是提供了一些预先训练好的模型，可以直接用。datasets不是数据库，因为如果要把数据库都下载下来，体积是非常大。datasets是数据库的管理工具。

2.2.1 训练模型

首先是数据划分。

split=['train[:80%]', 'train[80%:90%]', 'train[90%:]'],

训练集80%，验证集10%，测试集10%。

之前做了归一化，打乱这些处理。

之后使用Hub加载了MobileNet V2 预训练特征提取器。之后直接在后面增加一个全连接层就搞定。。

module_selection = ("mobilenet_v2", 224, 1280)
MODULE_HANDLE ="https://tfhub.dev/google/tf2-preview/mobilenet_v2/feature_vector/4"
feature_extractor = hub.KerasLayer(MODULE_HANDLE, input_shape=(224,224,3), output_shape=[1280], trainable=False)


model = tf.keras.Sequential([
        feature_extractor,
        tf.keras.layers.Dense(num_classes, activation='softmax')
])

2.2.2 模型转换

其实也就是几行代码。

tf.saved_model.save(model, "exp_saved_model")

converter = tf.lite.TFLiteConverter.from_saved_model("exp_saved_model")
tflite_model = converter.convert()

2.2.3 使用tflite推理

interpreter = tf.lite.Interpreter(model_path='/tmp/model1.tflite')
interpreter.allocate_tensors()

input_index = interpreter.get_input_details()[0]["index"]
output_index = interpreter.get_output_details()[0]["index"]

for img, label in tqdm(test_batches.take(100)):
    interpreter.set_tensor(input_index, img)
    interpreter.invoke()
    predictions.append(interpreter.get_tensor(output_index))

    test_labels.append(label.numpy()[0])
    test_imgs.append(img)

后面还有显示预测准确性，还有做了一个可视化。

不过可惜我在Colab上面运行一直报错，这里暂时看不到了。。。

2.3 大作业

链接：https://colab.research.google.com/github/tinyMLx/colabs/blob/master/3-3-14-Assignment.ipynb

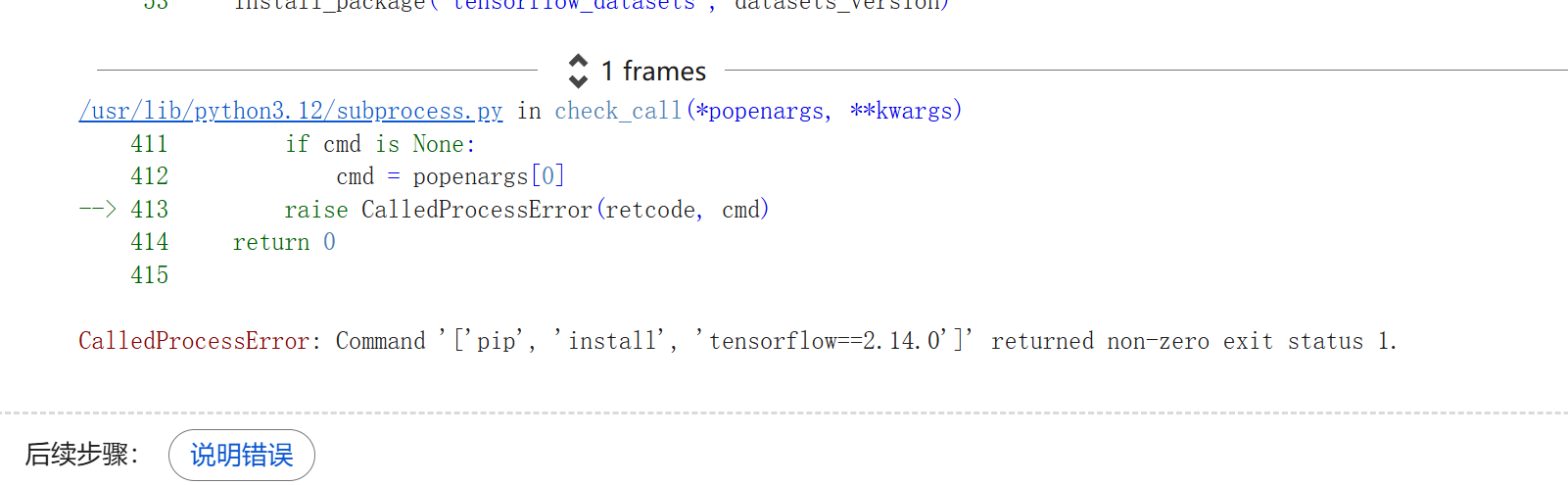

依旧还是2.14版本的问题。

代码如下：

import subprocess
import tensorflow as tf
import numpy as np

# Desired versions
tf_version = "2.14.0"
hub_version = "0.15.0"
datasets_version = "4.6.0"
numpy_version = "1.26.4"
protobuf_version = "3.20.3"

# Try importing optional packages
try:
    import tensorflow_hub as hub
except ImportError:
    hub = None

try:
    import tensorflow_datasets as tfds
except ImportError:
    tfds = None

# Helper to install a specific version of a package
def install_package(package, version):
    subprocess.check_call(["pip", "install", f"{package}=={version}"])

# Helper to uninstall multiple packages
def uninstall_packages(packages):
    subprocess.check_call(["pip", "uninstall", "-y"] + packages)

# Version mismatch check
version_mismatch = (
    tf.__version__ != tf_version or
    (hub and hub.__version__ != hub_version) or
    (tfds and tfds.__version__ != datasets_version) or
    not np.__version__.startswith(numpy_version)
)

# Act on mismatches
if version_mismatch:
    print(f"TensorFlow: {tf.__version__} → {tf_version}")
    if hub: print(f"TensorFlow Hub: {hub.__version__} → {hub_version}")
    if tfds: print(f"TensorFlow Datasets: {tfds.__version__} → {datasets_version}")
    print(f"NumPy: {np.__version__} → {numpy_version}")

    uninstall_packages([
        "tensorflow", "tensorflow_hub", "tensorflow_datasets",
        "numpy", "protobuf"
    ])

    install_package("tensorflow", tf_version)
    install_package("tensorflow_hub", hub_version)
    install_package("tensorflow_datasets", datasets_version)
    install_package("numpy", numpy_version)
    install_package("protobuf", protobuf_version)

    print("\nRequired versions installed successfully.")
    print("Please restart the runtime (Runtime > Restart session) and re-run the notebook.")
else:
    print("All packages are already at the specified versions.")

import numpy as np
import matplotlib.pylab as plt
import tensorflow as tf
import tensorflow_hub as hub
import tensorflow_datasets as tfds
from tqdm import tqdm
import pathlib

def format_image(image, label):
    image = tf.image.resize(image, (224, 224)) / 255.0
    return  image, label


(raw_train, raw_validation, raw_test), metadata = tfds.load(
    'rock_paper_scissors', split=['train[:80%]', 'train[80%:]', 'test'],
    with_info=True, as_supervised=True)
num_examples = metadata.splits['train'].num_examples
num_classes = metadata.features['label'].num_classes

BATCH_SIZE = 32
train_batches = raw_train.shuffle(num_examples // 4).map(format_image).batch(BATCH_SIZE).prefetch(1)
validation_batches = raw_validation.map(format_image).batch(BATCH_SIZE).prefetch(1)
test_batches = raw_test.map(format_image).batch(1)

for image_batch, label_batch in train_batches.take(1):
    pass

module_selection = ("mobilenet_v2", 224, 1280)
handle_base, pixels, FV_SIZE = module_selection
MODULE_HANDLE ="https://tfhub.dev/google/tf2-preview/{}/feature_vector/4".format(handle_base)
IMAGE_SIZE = (pixels, pixels)
print("Using {} with input size {} and output dimension {}".format(MODULE_HANDLE, IMAGE_SIZE, FV_SIZE))

feature_extractor = hub.KerasLayer(MODULE_HANDLE,
                                   input_shape=IMAGE_SIZE + (3,),
                                   output_shape=[FV_SIZE],
                                   trainable=False)

print("Building model with", MODULE_HANDLE)

model = tf.keras.Sequential([
        feature_extractor,
        tf.keras.layers.Dense(num_classes, activation='softmax')
])

model.summary()

model.compile(optimizer='adam',
                  loss='sparse_categorical_crossentropy',
                  metrics=['accuracy'])

EPOCHS = 5

hist = model.fit(train_batches,
                 epochs=EPOCHS,
                 validation_data=validation_batches)



ROCK_PAPER_SCISSORS_SAVED_MODEL = "exp_saved_model"
tf.saved_model.save(model, ROCK_PAPER_SCISSORS_SAVED_MODEL)


converter = # YOUR CODE GOES HERE #
tflite_model = # YOUR CODE GOES HERE #

tflite_models_dir = pathlib.Path("/tmp/")
tflite_model_file = tflite_models_dir/'model1.tflite'
tflite_model_file.write_bytes(tflite_model)
# This will report back the file size in bytes
# you will note that this model is too big for our Arduino
# but would work on a mobile phone


# Load TFLite model and allocate tensors.
TFLITE_MODEL_FILE = '/tmp/model1.tflite'
interpreter = # YOUR CODE GOES HERE #
interpreter.allocate_tensors()


input_index = interpreter.get_input_details()[0]["index"]
output_index = interpreter.get_output_details()[0]["index"]
predictions = []

# This will report how many iterations per second, where each
# iteration is 100 predictions
test_labels, test_imgs = [], []
for img, label in tqdm(test_batches.take(100)):
    interpreter.set_tensor(input_index, img)
    interpreter.invoke()
    predictions.append(interpreter.get_tensor(output_index))
    test_labels.append(label.numpy()[0])
    test_imgs.append(img)

# This will tell you how many of the predictions were correct
score = 0
for item in range(0,99):
  prediction=np.argmax(predictions[item])
  label = test_labels[item]
  if prediction==label:
    score=score+1

print("\nOut of 100 predictions I got " + str(score) + " correct")


# Utilities for plotting

class_names = ['rock', 'paper', 'scissors']

def plot_image(i, predictions_array, true_label, img):
    predictions_array, true_label, img = predictions_array[i], true_label[i], img[i]
    plt.grid(False)
    plt.xticks([])
    plt.yticks([])

    img = np.squeeze(img)

    plt.imshow(img, cmap=plt.cm.binary)

    predicted_label = np.argmax(predictions_array)

    if predicted_label == true_label:
        color = 'green'
    else:
        color = 'red'

    plt.xlabel("{} {:2.0f}% ({})".format(class_names[predicted_label],
                                         100*np.max(predictions_array),
                                         class_names[true_label]), color=color)



#@title Visualize the outputs { run: "auto" }
max_index = 73 #@param {type:"slider", min:0, max:99, step:1}
for index in range(0,max_index):
  plt.figure(figsize=(6,3))
  plt.subplot(1,2,1)
  plot_image(index, predictions, test_labels, test_imgs)
  plt.show()

填写的应该和之前的类似。

ROCK_PAPER_SCISSORS_SAVED_MODEL = "exp_saved_model"

tf.saved_model.save(model, ROCK_PAPER_SCISSORS_SAVED_MODEL)
interpreter = tf.lite.Interpreter(model_path='/tmp/model1.tflite')
