vue 如何使用 vxe-table 来实现跨表拖拽，多表联动互相拖拽数据

vue 如何使用 vxe-table 来实现跨表拖拽，多表联动互相拖拽数据

row-drag-config.isCrossTableDrag 启用跨表格、多表格互相拖拽；跨表拖拽需要确保数据主键不重复，通过 row-config.keyField 指定主键字段名

查看官网：vxetable.cn

gitbub：github.com/x-extends/v...

gitee：gitee.com/x-extends/v...

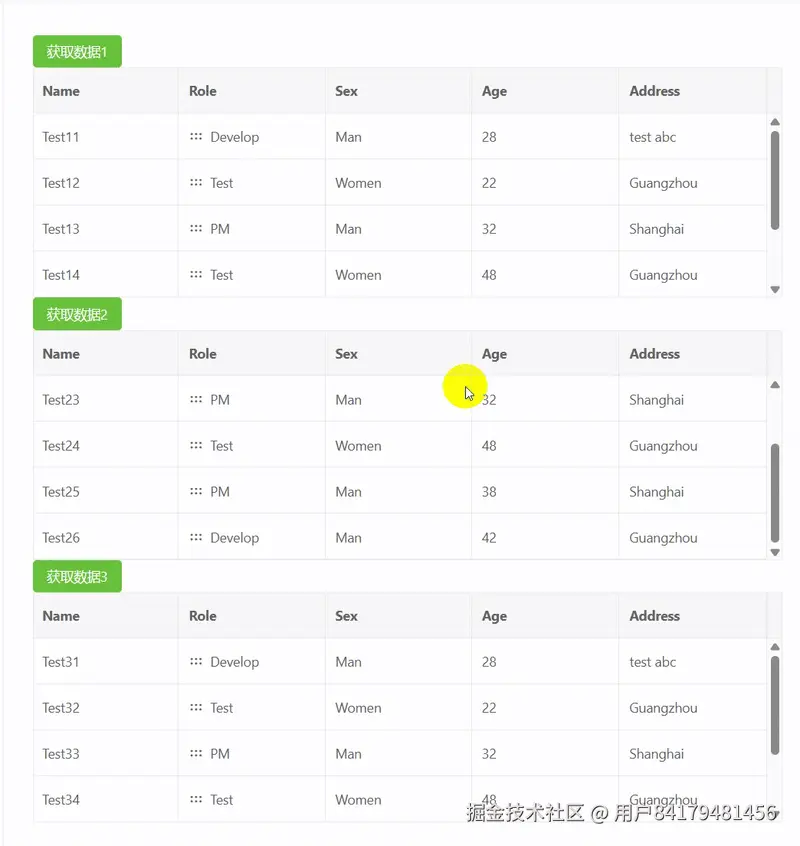

效果

例如。页面上加载3个表格，需求是实现跨表格直接可以互相拖拽

代码

多表格直接互相拖拽需要确保数据主键不重复，通过 row-config.keyField 指定主键字段名

<template>
  <div>
    <vxe-button status="success" @click="resultEvent1">获取数据1</vxe-button>
    <vxe-grid ref="gridRef1" v-bind="gridOptions1"></vxe-grid>

    <vxe-button status="success" @click="resultEvent2">获取数据2</vxe-button>
    <vxe-grid ref="gridRef2" v-bind="gridOptions2"></vxe-grid>

    <vxe-button status="success" @click="resultEvent3">获取数据3</vxe-button>
    <vxe-grid ref="gridRef3" v-bind="gridOptions3"></vxe-grid>
  </div>
</template>

<script setup>
import { ref, reactive } from 'vue'
import { VxeUI } from 'vxe-pc-ui'

const gridRef1 = ref()
const gridOptions1 = reactive({
  border: true,
  height: 240,
  rowConfig: {
    drag: true,
    keyField: 'id'
  },
  rowDragConfig: {
    isCrossTableDrag: true // 允许跨表
  },
  columns: [
    { field: 'name', title: 'Name' },
    { field: 'role', title: 'Role', dragSort: true },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' },
    { field: 'address', title: 'Address' }
  ],
  data: [
    { id: 10001, name: 'Test11', role: 'Develop', sex: 'Man', age: 28, address: 'test abc' },
    { id: 10002, name: 'Test12', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },
    { id: 10003, name: 'Test13', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },
    { id: 10004, name: 'Test14', role: 'Test', sex: 'Women', age: 48, address: 'Guangzhou' },
    { id: 10005, name: 'Test15', role: 'PM', sex: 'Man', age: 38, address: 'Shanghai' },
    { id: 10006, name: 'Test16', role: 'Develop', sex: 'Man', age: 42, address: 'Guangzhou' }
  ]
})
const resultEvent1 = () => {
  const $grid = gridRef1.value
  if ($grid) {
    const { insertRecords, removeRecords } = $grid.getRecordset()
    const tableData = $grid.getFullData()
    VxeUI.modal.message({
      content: `新增：${insertRecords.length} 删除：${removeRecords.length} 现有：${tableData.length}`,
      status: 'success'
    })
  }
}



const gridRef2 = ref()
const gridOptions2 = reactive({
  border: true,
  height: 240,
  rowConfig: {
    drag: true,
    keyField: 'id'
  },
  rowDragConfig: {
    isCrossTableDrag: true // 允许跨表
  },
  columns: [
    { field: 'name', title: 'Name' },
    { field: 'role', title: 'Role', dragSort: true },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' },
    { field: 'address', title: 'Address' }
  ],
  data: [
    { id: 20001, name: 'Test21', role: 'Develop', sex: 'Man', age: 28, address: 'test abc' },
    { id: 20002, name: 'Test22', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },
    { id: 20003, name: 'Test23', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },
    { id: 20004, name: 'Test24', role: 'Test', sex: 'Women', age: 48, address: 'Guangzhou' },
    { id: 20005, name: 'Test25', role: 'PM', sex: 'Man', age: 38, address: 'Shanghai' },
    { id: 20006, name: 'Test26', role: 'Develop', sex: 'Man', age: 42, address: 'Guangzhou' }
  ]
})
const resultEvent2 = () => {
  const $grid = gridRef2.value
  if ($grid) {
    const { insertRecords, removeRecords } = $grid.getRecordset()
    const tableData = $grid.getFullData()
    VxeUI.modal.message({
      content: `新增：${insertRecords.length} 删除：${removeRecords.length} 现有：${tableData.length}`,
      status: 'success'
    })
  }
}



const gridRef3 = ref()
const gridOptions3 = reactive({
  border: true,
  height: 240,
  rowConfig: {
    drag: true,
    keyField: 'id'
  },
  rowDragConfig: {
    isCrossTableDrag: true // 允许跨表
  },
  columns: [
    { field: 'name', title: 'Name' },
    { field: 'role', title: 'Role', dragSort: true },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' },
    { field: 'address', title: 'Address' }
  ],
  data: [
    { id: 30001, name: 'Test31', role: 'Develop', sex: 'Man', age: 28, address: 'test abc' },
    { id: 30002, name: 'Test32', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },
    { id: 30003, name: 'Test33', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },
    { id: 30004, name: 'Test34', role: 'Test', sex: 'Women', age: 48, address: 'Guangzhou' },
    { id: 30005, name: 'Test35', role: 'PM', sex: 'Man', age: 38, address: 'Shanghai' },
    { id: 30006, name: 'Test36', role: 'Develop', sex: 'Man', age: 42, address: 'Guangzhou' }
  ]
})
const resultEvent3 = () => {
  const $grid = gridRef3.value
  if ($grid) {
    const { insertRecords, removeRecords } = $grid.getRecordset()
    const tableData = $grid.getFullData()
    VxeUI.modal.message({
      content: `新增：${insertRecords.length} 删除：${removeRecords.length} 现有：${tableData.length}`,
      status: 'success'
    })
  }
}
</script>
