SpringBoot3 + Netty + Vue3 实现消息推送(最新)

SpringBoot3 + Netty + Vue3 实现消息推送

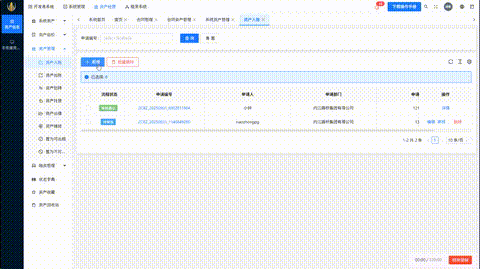

1、效果展示

2、依赖引入

xml 复制代码
<parent>
     <groupId>org.springframework.boot</groupId>
     <artifactId>spring-boot-starter-parent</artifactId>
     <version>3.2.1</version>
 </parent>

   <!-- Netty 核心 -->
<dependency>
    <groupId>io.netty</groupId>
    <artifactId>netty-all</artifactId>
    <version>4.1.107.Final</version>
</dependency>

3、后端代码

MessageVO

java 复制代码
package vip.xiaonuo.biz.modular.websocket;

import com.google.gson.Gson;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.util.Map;

/**
 * @Author 小钟
 * @Date 2025/7/30 16:06
 * @PackagePath vip.xiaonuo.biz.modular.websocket
 * @ClassDescription
 **/


@Data
@AllArgsConstructor
@NoArgsConstructor
public class MessageVO {
    private Long unread;
    private Map<String, String> unreadByUserList;
    private String title;
    private String type;
    private String content;
    private String extJson;

    @Override
    public String toString() {
        return new Gson().toJson(this);
    }
}

NettyWebSocketServer

java 复制代码
package vip.xiaonuo.biz.modular.websocket;

import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import jakarta.annotation.PostConstruct;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

/**
 * @Author 小钟
 * @Date 2025/7/30 15:26
 * @PackagePath vip.xiaonuo.biz.modular.websocket
 * @ClassDescription
 **/
@Component
public class NettyWebSocketServer {

    @Autowired
    private WebSocketConfigProperties configProperties;

    @Autowired
    private WebSocketChannelInitializer webSocketChannelInitializer;

    public void start() {
        int port = configProperties.getPort();
        EventLoopGroup bossGroup = new NioEventLoopGroup(1);
        EventLoopGroup workGroup = new NioEventLoopGroup();

        try {
            ServerBootstrap b = new ServerBootstrap();
            b.group(bossGroup, workGroup)
                    .channel(NioServerSocketChannel.class)
                    .childHandler(webSocketChannelInitializer);

            ChannelFuture f = b.bind(port).sync();
            System.out.println("Netty WebSocket 启动成功,端口:" + port);
            f.channel().closeFuture().sync();
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            bossGroup.shutdownGracefully();
            workGroup.shutdownGracefully();
        }
    }

    @PostConstruct
    public void init() {
        new Thread(this::start).start();
    }
}

WebSocketChannelInitializer

java 复制代码
package vip.xiaonuo.biz.modular.websocket;


import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.socket.SocketChannel;
import io.netty.handler.codec.http.HttpObjectAggregator;
import io.netty.handler.codec.http.HttpServerCodec;
import io.netty.handler.codec.http.websocketx.WebSocketServerProtocolHandler;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

/**
 * @Author 小钟
 * @Date 2025/7/30 15:26
 * @PackagePath vip.xiaonuo.biz.modular.websocket
 * @ClassDescription
 **/
@Component
public class WebSocketChannelInitializer extends ChannelInitializer<SocketChannel> {

    @Autowired
    private WebSocketHandler webSocketHandler;

    @Override
    protected void initChannel(SocketChannel ch) {
        ChannelPipeline pipeline = ch.pipeline();
        pipeline.addLast(new HttpServerCodec());
        pipeline.addLast(new HttpObjectAggregator(65536));
        pipeline.addLast(new WebSocketServerProtocolHandler("/ws"));
        pipeline.addLast(webSocketHandler);
    }
}

WebSocketConfigProperties

java 复制代码
package vip.xiaonuo.biz.modular.websocket;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

/**
 * @Author 小钟
 * @Date 2025/7/30 18:35
 * @PackagePath vip.xiaonuo.biz.modular.websocket
 * @ClassDescription
 **/
@Data
@Component
@ConfigurationProperties(prefix = "websocket")
public class WebSocketConfigProperties {
    private int port;
}

WebSocketHandler

java 复制代码
package vip.xiaonuo.biz.modular.websocket;


import com.alibaba.fastjson2.JSONObject;
import io.netty.channel.Channel;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import vip.xiaonuo.biz.modular.oamsmessage.service.OamsDevMessageService;

import java.util.Map;
import java.util.Set;
import java.util.concurrent.ConcurrentHashMap;

/**
 * @Author 小钟
 * @Date 2025/7/30 15:27
 * @PackagePath vip.xiaonuo.biz.modular.websocket
 * @ClassDescription
 **/
@Component
@ChannelHandler.Sharable
public class WebSocketHandler extends SimpleChannelInboundHandler<TextWebSocketFrame> {

    @Autowired
    private OamsDevMessageService oamsDevMessageService;

    // userId -> 多个连接
    public static final Map<String, Set<Channel>> userChannelMap = new ConcurrentHashMap<>();
    // channelId -> userId(用于断开连接时清理)
    public static final Map<String, String> channelUserMap = new ConcurrentHashMap<>();

    @Override
    public void handlerRemoved(ChannelHandlerContext ctx) {
        Channel channel = ctx.channel();
        String channelId = channel.id().asShortText();
        String userId = channelUserMap.remove(channelId);
        if (userId != null) {
            Set<Channel> channels = userChannelMap.get(userId);
            if (channels != null) {
                channels.remove(channel);
                if (channels.isEmpty()) {
                    userChannelMap.remove(userId);
                }
            }
        }
        System.out.println("连接断开:" + channelId);
    }

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, TextWebSocketFrame msg) {
        String json = msg.text();
        JSONObject obj = JSONObject.parseObject(json);

        String type = obj.getString("type");
        String userId = obj.getString("userId");

        if ("bind".equals(type)) {
            Channel channel = ctx.channel();
            userChannelMap.computeIfAbsent(userId, k -> ConcurrentHashMap.newKeySet()).add(channel);
            channelUserMap.put(channel.id().asShortText(), userId);
            channel.writeAndFlush(new TextWebSocketFrame("用户 [" + userId + "] 绑定成功"));

            // 推送消息提示
            Long unreadNumber = oamsDevMessageService.unreadNumber(userId);
            MessageVO pushMessageVO = new MessageVO();
            pushMessageVO.setUnread(unreadNumber);
            pushMessageVO.setType("unreadNumber");
            WebSocketPushUtil.pushToUser(userId, String.valueOf(pushMessageVO));

        } else if ("ping".equals(type)) {
            ctx.channel().writeAndFlush(new TextWebSocketFrame("pong"));
        } else {
            ctx.channel().writeAndFlush(new TextWebSocketFrame("未知类型"));
        }
    }
}

WebSocketPushUtil

java 复制代码
package vip.xiaonuo.biz.modular.websocket;

import io.netty.channel.Channel;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;

import java.util.Collection;
import java.util.Map;
import java.util.Set;

/**
 * @Author 小钟
 * @Date 2025/7/30 15:27
 * @PackagePath vip.xiaonuo.biz.modular.websocket
 * @ClassDescription
 **/
public class WebSocketPushUtil {

    // 推送给一个用户所有连接
    public static void pushToUser(String userId, String msg) {
        Set<Channel> channels = WebSocketHandler.userChannelMap.get(userId);
        if (channels != null) {
            for (Channel channel : channels) {
                if (channel.isActive()) {
                    channel.writeAndFlush(new TextWebSocketFrame(msg));
                }
            }
        }
    }

    // 推送给多个用户
    public static void pushToUsers(Collection<String> userIds, MessageVO pushMessageVO) {
        Map<String, String> unreadByUserList = pushMessageVO.getUnreadByUserList();
        for (String userId : userIds) {
            String unreadStr = unreadByUserList.getOrDefault(userId, "0");

            MessageVO vo = new MessageVO();
            vo.setType(pushMessageVO.getType());
            vo.setUnread(Long.parseLong(unreadStr));
            vo.setExtJson(pushMessageVO.getExtJson());
            vo.setTitle(pushMessageVO.getTitle());
            vo.setContent(pushMessageVO.getContent());

            pushToUser(userId, vo.toString());
        }

    }

    // 广播给所有在线用户
    public static void broadcast(String msg) {
        for (Set<Channel> channels : WebSocketHandler.userChannelMap.values()) {
            for (Channel channel : channels) {
                if (channel.isActive()) {
                    channel.writeAndFlush(new TextWebSocketFrame(msg));
                }
            }
        }
    }
}

application.yml

yml 复制代码
server:
  port: 82
  servlet:
    context-path: /eam

websocket:
  port: 9001

4、后端使用推送

java 复制代码
// 推送申请通过消息(单个)
Long unreadNumber = messageService.unreadNumber();
MessageVO pushMessageVO = new MessageVO();
pushMessageVO.setUnread(unreadNumber);
pushMessageVO.setTitle("同意 ".concat(apply.getActionType()).concat(" 申请"));
pushMessageVO.setType("message");
pushMessageVO.setContent(htmlContent);
WebSocketPushUtil.pushToUser(apply.getApplicantId(), String.valueOf(pushMessageVO));

// 推送消息提示(多个)
Map<String, String> unreadNumber = oamsDevMessageService.unreadNumber(reviewerIdList);
MessageVO pushMessageVO = new MessageVO();
pushMessageVO.setUnreadByUserList(unreadNumber);
pushMessageVO.setTitle(user.getName().concat(" 提交了 ").concat(apply.getActionType()).concat(" 申请"));
pushMessageVO.setType("message");
pushMessageVO.setContent(htmlContent);
WebSocketPushUtil.pushToUsers(reviewerIdList, pushMessageVO);

5、前端代码

5.1 websocket.js

js 复制代码
/*
 * @Date: 2025-07-30 15:45:06
 * @LastEditors: zhong
 * @LastEditTime: 2025-08-20 11:22:11
 * @FilePath: \snowy-admin-web\src\utils\websocket.js
 */
// src/utils/websocket.js
// websocketClient.js
import { useMessageStore } from "@/store/messageStore.js";
import { notification } from "ant-design-vue";

let socket = null;
let reconnectTimer = null;
let isManualClose = false; // 是否人为关闭
// 创建 WebSocket 连接
export const createWebSocket = (userId) => {
	const messageStore = useMessageStore();

	if (socket && socket.readyState === WebSocket.OPEN) {
		console.log("🟡 WebSocket 已连接,跳过重复连接");
		return;
	}

	const wsUrl = `ws://${import.meta.env.VITE_WEBSOCKET_BASEURL}:${import.meta.env.VITE_WEBSOCKET_PORT}/ws`;
	isManualClose = false;
	socket = new WebSocket(wsUrl);

	socket.onopen = () => {
		console.log("✅ WebSocket 连接成功");

		socket.send(JSON.stringify({ type: "bind", userId }));
	};

	socket.onmessage = (event) => {
		try {
			const msg = JSON.parse(event.data);
			if (msg.type === "unreadNumber" || msg.type === "message") {
				console.log("📨 收到消息:", msg);

				messageStore.addMessage(msg);

				if (msg.type === "message") {
					notification.success({
						message: "新消息提醒",
						description: msg.title || msg.content,
						duration: 4
					});
				}
			}
		} catch (e) {
			console.warn("❌ 消息解析失败:", event.data);
		}
	};

	socket.onerror = () => {
		console.warn("WebSocket 连接出错");
		reconnect(userId);
	};

	socket.onclose = (e) => {
		console.warn("WebSocket 已关闭");
		if (!isManualClose) {
			reconnect(userId);
		}
	};
};

// 主动断开 WebSocket 连接
export const closeWebSocket = () => {
	isManualClose = true;
	if (socket) {
		console.log("🔌 手动关闭 WebSocket");
		socket.close();
		socket = null;
	}
	clearTimeout(reconnectTimer);
};

// 重连机制
const reconnect = (userId) => {
	clearTimeout(reconnectTimer);
	reconnectTimer = setTimeout(() => {
		console.log("♻️ WebSocket 尝试重连...");
		createWebSocket(userId);
	}, 3000);
};

// 获取当前连接状态
export const getWebSocketStatus = () => {
	if (!socket) return "未连接";
	switch (socket.readyState) {
		case WebSocket.CONNECTING:
			return "连接中";
		case WebSocket.OPEN:
			return "已连接";
		case WebSocket.CLOSING:
			return "正在关闭";
		case WebSocket.CLOSED:
			return "已关闭";
		default:
			return "未知状态";
	}
};

5.2 login.vue

登录时需要初始化 websocket 连接

js 复制代码
const login = async () => {
	loginForm.value
		.validate()
		.then(async () => {
			loading.value = true
			const loginData = {
				account: ruleForm.account,
				// 密码进行SM2加密,传输过程中看到的只有密文,后端存储使用hash
				password: smCrypto.doSm2Encrypt(ruleForm.password),
				validCode: ruleForm.validCode,
				validCodeReqNo: ruleForm.validCodeReqNo
			}
			// 获取token
			try {
				const loginToken = await loginApi.login(loginData)
				await afterLogin(loginToken)

				const userId = tool.data.get("USER_INFO")?.id
				console.log(userId);

				if (userId) {
					createWebSocket(userId, (msg) => {
						// 🔔 这里处理消息(比如展示通知)
						console.log("💬 WebSocket 消息:", msg)
						// 你也可以触发通知组件或消息中心
					})
				}
			} catch (err) {
				loading.value = false
				if (captchaOpen.value === 'true') {
					loginCaptcha()
				}
			}
		})
		.catch(() => { })
}
相关推荐
火山kim6 小时前
一文速通liunx命令
java·linux·运维·服务器
渣哥6 小时前
你真的知道 Java 里的 Exception 和 Error 有啥不同吗?
java
weixin_456904276 小时前
多模态大语言模型部署
java·python·语言模型
叫我阿柒啊7 小时前
从Java全栈到前端框架:一场真实面试的深度技术探索
java·redis·微服务·typescript·vue3·springboot·jwt
珠峰下的沙砾7 小时前
keycloak中对接oidc协议时设置prompt=login
java·服务器
纤瘦的鲸鱼8 小时前
JUC 并发集合:高效处理多线程数据共享的利器
java·开发语言
小菜全8 小时前
基于若依框架开发WebSocket接口
java·javascript·maven·mybatis·html5
瓯雅爱分享8 小时前
Java搭建高效后端,Vue打造友好前端,联合构建电子采购管理系统,实现采购流程电子化、自动化,涵盖采购全周期管理,功能完备,附详细可运行源码
java·mysql·vue·软件工程·源代码管理
