静态分析神器 + 动态调试利器：IDA Pro × Frida 混合调试实战

版权归作者所有，如有转发，请注明文章出处：cyrus-studio.github.io/blog/

前言

IDA Pro 作为静态分析神器，能快速反编译 so 库，展示清晰的函数结构和反汇编代码，但它对运行时行为却一无所知；而 Frida 能在设备上动态 Hook 任意函数，实时观察寄存器、参数、返回值。

把 Frida 直接集成进 IDA Pro！这样我们就能在 IDA 里调用 Frida API ，实时获取目标 App 中 so 的基址、动态执行状态，甚至一键启动 Trace。

1. 确认 IDA Pro 内置的 Python 版本

IDA Pro 自带 Python 解释器，不一定跟你系统 Python 一致。

在 IDA Python 控制台 （快捷键 Shift+F2）里输入：

import sys
print(sys.version)
print(sys.executable)

输出类似：

3.8.10 (tags/v3.8.10:3d8993a, May  3 2021, 11:48:03) [MSC v.1928 64 bit (AMD64)]
D:\App\IDA_Pro\IDA_Pro_7.7\ida64.exe

这里有两个关键信息：

1. IDA Pro 7.7 自带的是 Python 3.8.10

2. ida64.exe 所在路径

2. IDA Python 安装第三方库

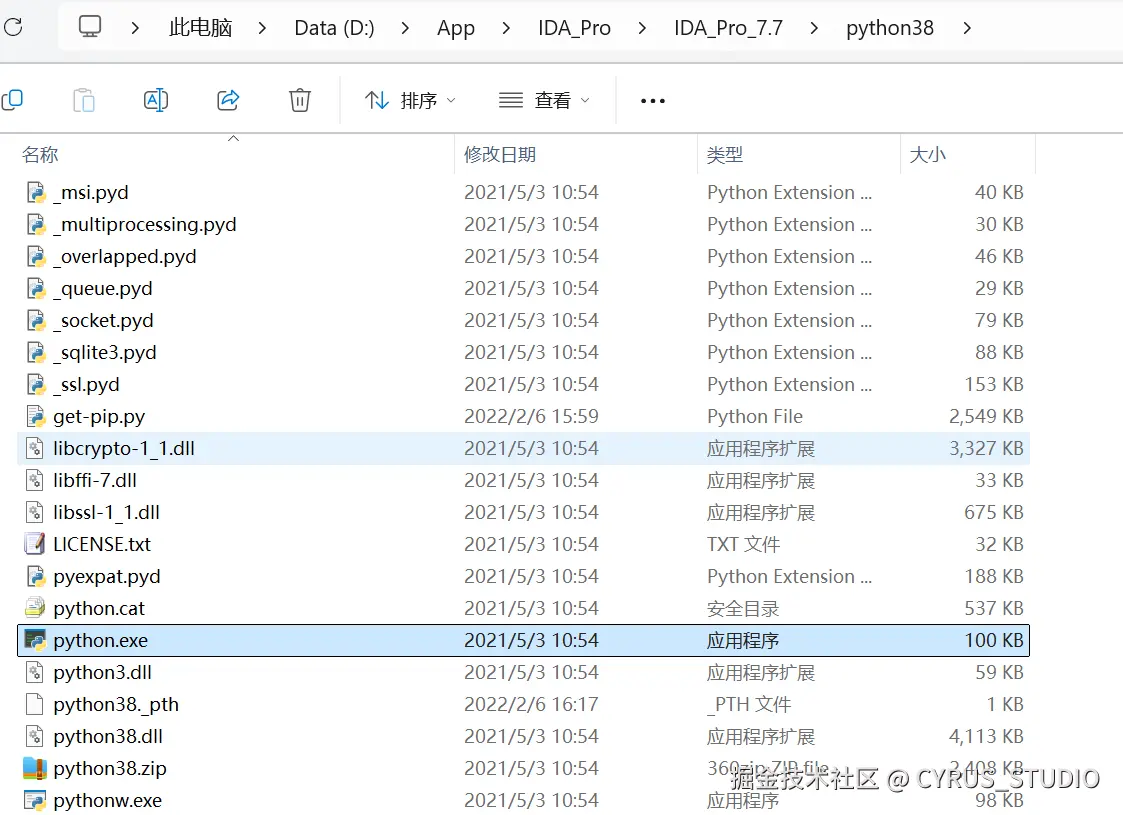

这里 IDA 的 Python 是 3.8.10，python.exe 在 IDA 安装目录的 python38 目录下：

可以这样：

D:\App\IDA_Pro\IDA_Pro_7.7\python38\python.exe -m pip install frida frida-tools

或者指定安装版本：

D:\App\IDA_Pro\IDA_Pro_7.7\python38\python.exe -m pip install frida==14.2.18 frida-tools==9.2.2

这样库会被安装到 IDA 自带 Python 的 site-packages 目录中。

3. 安装 frida 报错

执行命令后日志输出如下：

(base) PS D:\App\android\sdk\platform-tools> D:\App\IDA_Pro\IDA_Pro_7.7\python38\python.exe -m pip install frida==14.2.18 frida-tools==9.2.2
Collecting frida==14.2.18
  Using cached frida-14.2.18.tar.gz (7.7 kB)
  Preparing metadata (setup.py) ... done
Collecting frida-tools==9.2.2
  Using cached frida-tools-9.2.2.tar.gz (37 kB)
  Preparing metadata (setup.py) ... done
Requirement already satisfied: setuptools in d:\app\ida_pro\ida_pro_7.7\python38\lib\site-packages (from frida==14.2.18) (60.9.3)
Collecting colorama<1.0.0,>=0.2.7 (from frida-tools==9.2.2)
  Using cached colorama-0.4.6-py2.py3-none-any.whl.metadata (17 kB)
Collecting prompt-toolkit<4.0.0,>=2.0.0 (from frida-tools==9.2.2)
  Downloading prompt_toolkit-3.0.51-py3-none-any.whl.metadata (6.4 kB)
Collecting pygments<3.0.0,>=2.0.2 (from frida-tools==9.2.2)
  Downloading pygments-2.19.2-py3-none-any.whl.metadata (2.5 kB)
Collecting wcwidth (from prompt-toolkit<4.0.0,>=2.0.0->frida-tools==9.2.2)
  Downloading wcwidth-0.2.13-py2.py3-none-any.whl.metadata (14 kB)
Using cached colorama-0.4.6-py2.py3-none-any.whl (25 kB)
Downloading prompt_toolkit-3.0.51-py3-none-any.whl (387 kB)
Downloading pygments-2.19.2-py3-none-any.whl (1.2 MB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.2/1.2 MB 893.4 kB/s eta 0:00:00
Downloading wcwidth-0.2.13-py2.py3-none-any.whl (34 kB)
Building wheels for collected packages: frida, frida-tools
  Building wheel for frida (setup.py) ... error
  error: subprocess-exited-with-error

  × python setup.py bdist_wheel did not run successfully.
  │ exit code: 1
  ╰─> [69 lines of output]
      running bdist_wheel
      running build
      running build_py
      creating build
      creating build\lib.win-amd64-cpython-38
      creating build\lib.win-amd64-cpython-38\frida
      copying frida\core.py -> build\lib.win-amd64-cpython-38\frida
      copying frida\__init__.py -> build\lib.win-amd64-cpython-38\frida
      running build_ext
      Traceback (most recent call last):
        File "C:\Users\cyrus\AppData\Local\Temp\pip-install-uf4a5lj6\frida_d2b25c48b01748e6bfb04c1245fc6a82\setup.py", line 101, in build_extension
          with open(egg_path, "rb") as cache:
      FileNotFoundError: [Errno 2] No such file or directory: 'C:\\Users\\cyrus/frida-14.2.18-py3.8-win-amd64.egg'

      During handling of the above exception, another exception occurred:

      Traceback (most recent call last):
        File "<string>", line 2, in <module>
        File "<pip-setuptools-caller>", line 34, in <module>
        File "C:\Users\cyrus\AppData\Local\Temp\pip-install-uf4a5lj6\frida_d2b25c48b01748e6bfb04c1245fc6a82\setup.py", line 155, in <module>
          setup(
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\__init__.py", line 87, in setup
          return distutils.core.setup(**attrs)
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\core.py", line 148, in setup
          return run_commands(dist)
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\core.py", line 163, in run_commands
          dist.run_commands()
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\dist.py", line 967, in run_commands
          self.run_command(cmd)
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\dist.py", line 1224, in run_command
          super().run_command(command)
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\dist.py", line 986, in run_command
          cmd_obj.run()
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\wheel\bdist_wheel.py", line 299, in run
          self.run_command('build')
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\cmd.py", line 313, in run_command
          self.distribution.run_command(command)
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\dist.py", line 1224, in run_command
          super().run_command(command)
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\dist.py", line 986, in run_command
          cmd_obj.run()
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\command\build.py", line 136, in run
          self.run_command(cmd_name)
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\cmd.py", line 313, in run_command
          self.distribution.run_command(command)
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\dist.py", line 1224, in run_command
          super().run_command(command)
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\dist.py", line 986, in run_command
          cmd_obj.run()
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\command\build_ext.py", line 79, in run
          _build_ext.run(self)
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\command\build_ext.py", line 339, in run
          self.build_extensions()
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\command\build_ext.py", line 448, in build_extensions
          self._build_extensions_serial()
        File "D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\setuptools\_distutils\command\build_ext.py", line 473, in _build_extensions_serial
          self.build_extension(ext)
        File "C:\Users\cyrus\AppData\Local\Temp\pip-install-uf4a5lj6\frida_d2b25c48b01748e6bfb04c1245fc6a82\setup.py", line 108, in build_extension
          urls = client.release_urls("frida", frida_version)
        File "xmlrpc\client.py", line 1109, in __call__
        File "xmlrpc\client.py", line 1450, in __request
        File "C:\Users\cyrus\AppData\Local\Temp\pip-install-uf4a5lj6\frida_d2b25c48b01748e6bfb04c1245fc6a82\setup.py", line 58, in request
          return self.parse_response(fp)
        File "xmlrpc\client.py", line 1341, in parse_response
        File "xmlrpc\client.py", line 655, in close
      xmlrpc.client.Fault: <Fault -32500: 'RuntimeError: PyPI no longer supports the XMLRPC package_releases method. Use JSON or Simple API instead. See https://warehouse.pypa.io/api-reference/xml-rpc.html#deprecated-methods for more information.'>
      looking for prebuilt extension in home directory, i.e. C:\Users\cyrus/frida-14.2.18-py3.8-win-amd64.egg
      prebuilt extension not found in home directory, will try downloading it
      querying pypi for available prebuilds
      [end of output]

  note: This error originates from a subprocess, and is likely not a problem with pip.
  ERROR: Failed building wheel for frida
  Running setup.py clean for frida
  Building wheel for frida-tools (setup.py) ... done
  Created wheel for frida-tools: filename=frida_tools-9.2.2-py3-none-any.whl size=41502 sha256=ffca4ce9b4cb815038075288489d59297fce89452c5357491ad7e5d9426b8a9c
  Stored in directory: c:\users\cyrus\appdata\local\pip\cache\wheels\f7\6d\3e\f1f44850a1146281b51e2055df574bd66f948f7c871f535ef8
Successfully built frida-tools
Failed to build frida
ERROR: Failed to build installable wheels for some pyproject.toml based projects (frida)

这里遇到的问题主要有两个：

1. 在 IDA Pro 自带的 Python 3.8.10 环境里用 pip install frida==14.2.18 时，setup.py 会尝试从 PyPI XMLRPC API 下载 预编译扩展（.egg） ，但 PyPI 早就停用了这个接口 → 所以报错。

2. frida 不能从源码编译 （需要 C++17 工具链 + Frida SDK），而官方是直接发布 预编译 wheel 包 （.whl 文件）。

4. 通过预编译 wheel 安装 frida

不要用 pip 从源码构建，直接用官方 wheel 包。

1. 下载对应的预编译 wheel

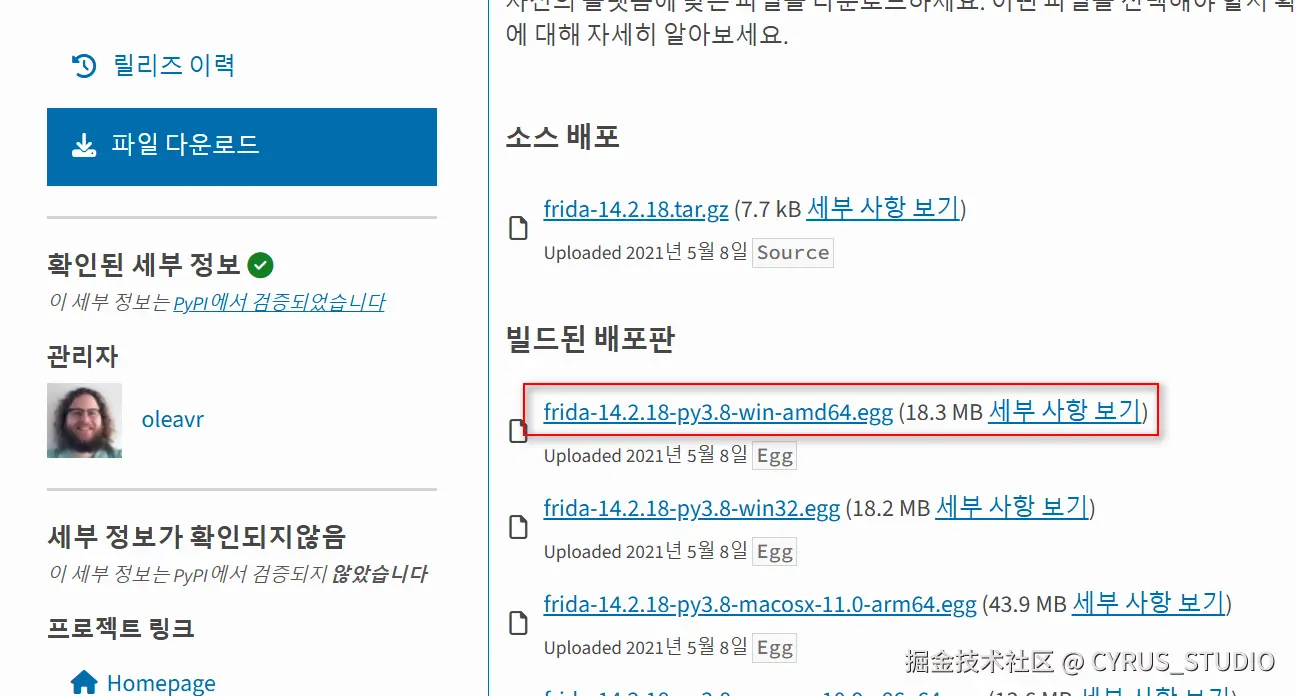

Frida 官方有 Windows 的预编译 wheel：pypi.org/project/fri...

比如你需要：

• Python 3.8

• Windows 64-bit (AMD64)

pypi.org/project/fri...

对应的文件名大概是：

frida-14.2.18-cp38-cp38-win_amd64.whl

或者

frida-14.2.18-py3.8-win-amd64.egg

.egg 是早期 setuptools 分发的二进制包格式，作用等同于 .whl。

把 .whl 或者 .egg 下载到本地。

2. 用 IDA 自带 Python 安装 frida

如果是 .whl 直接用 pip install

D:\App\IDA_Pro\IDA_Pro_7.7\python38\python.exe -m pip install "D:\Downloads\frida-17.2.16-cp37-abi3-win_arm64.whl"

如果是 .egg 使用 easy_install

D:\App\IDA_Pro\IDA_Pro_7.7\python38\python.exe -m easy_install "D:\Downloads\frida-14.2.18-py3.8-win-amd64.egg"

easy_install 是 setuptools 里带的一个命令，专门支持 egg 格式。

用 IDA 自带 Python 安装 frida 提示 No module named easy_install

D:\App\IDA_Pro\IDA_Pro_7.7\python38\python.exe: No module named easy_install

easy_install 早期版本才有，现在很多 Python 环境默认不带了。

先确认 IDA 自带 Python 里有没有 setuptools：

(base) PS D:\Downloads> D:\App\IDA_Pro\IDA_Pro_7.7\python38\python.exe -m pip show setuptools
Name: setuptools
Version: 60.9.3
Summary: Easily download, build, install, upgrade, and uninstall Python packages
Home-page: https://github.com/pypa/setuptools
Author: Python Packaging Authority
Author-email: distutils-sig@python.org
License: UNKNOWN
Location: d:\app\ida_pro\ida_pro_7.7\python38\lib\site-packages
Requires:
Required-by: sip

如果版本很新（>=50），那么 可能已经不再提供 easy_install。

3. 手动安装 egg

egg 本质上就是一个 zip 文件 ，可以直接手动解压丢进 site-packages。

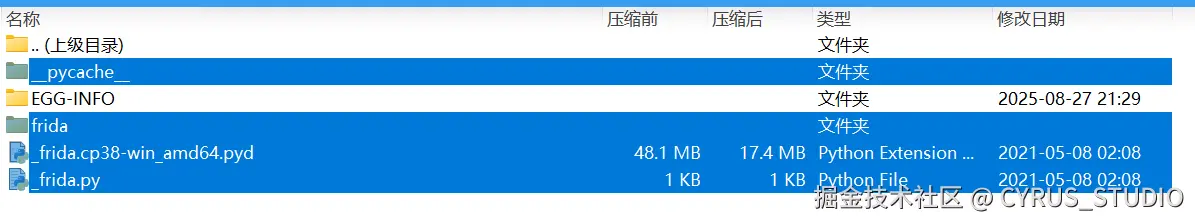

解压 frida-14.2.18-py3.8-win-amd64.egg，得到 frida python 库源码。

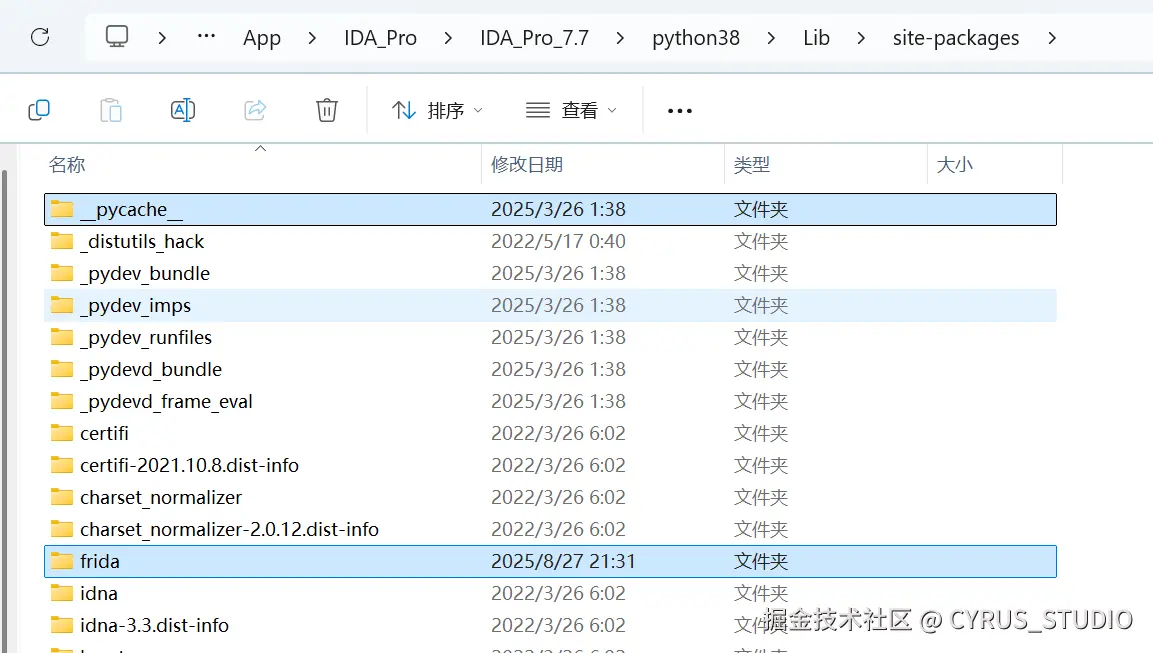

解压出来并复制到：

D:\App\IDA_Pro\IDA_Pro_7.7\python38\Lib\site-packages\

大概这样：

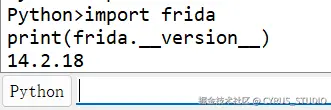

启动 IDA Python 测试：

import frida
print(frida.__version__)

能正常输出版本号代表安装成功。

5. 安装 frida-tools

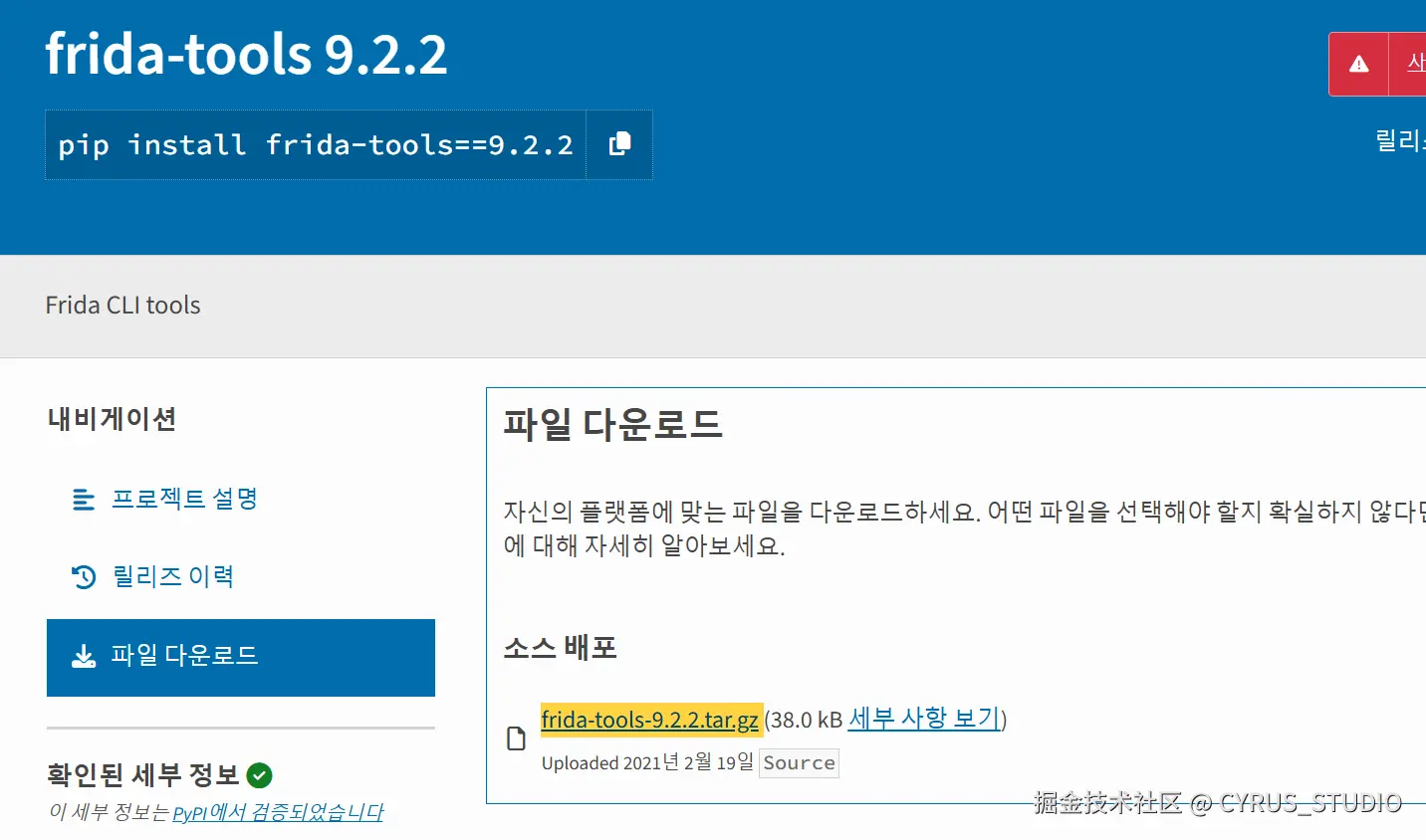

frida-tools 版本列表：pypi.org/project/fri...

比如这里安装的是 frida-tools 9.2.2，下载 frida-tools-9.2.2.tar.gz

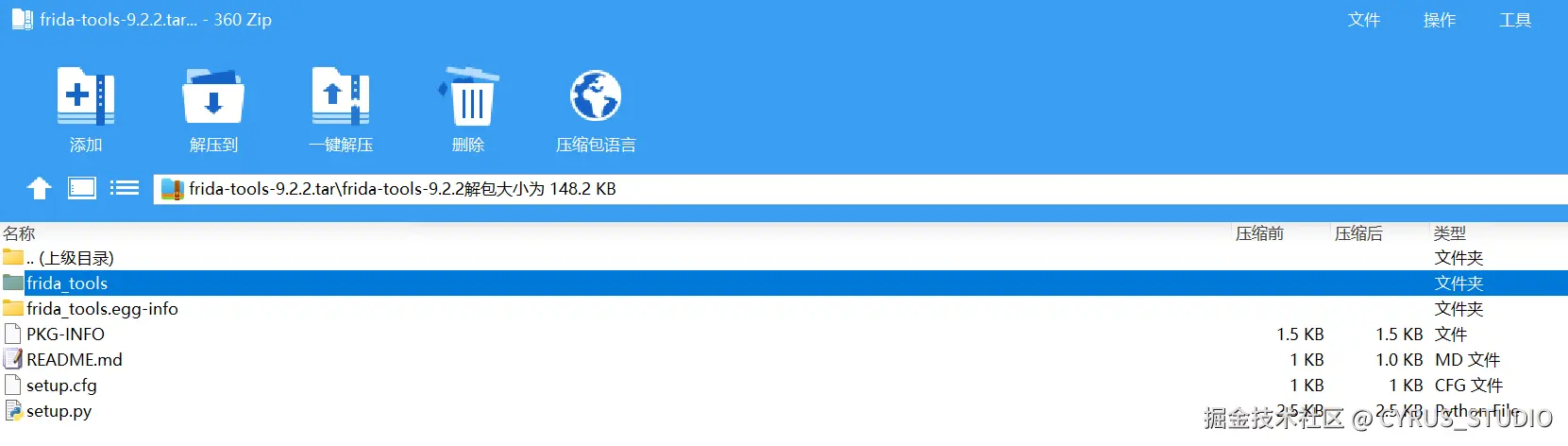

把压缩包里的 frida_tools 文件夹复制到 D:\App\IDA_Pro\IDA_Pro_7.7\python38\Lib\site-packages\

IDA Python 中测试是否安装成功：

Python>import frida_tools
print(frida_tools.__file__)
D:\App\IDA_Pro\IDA_Pro_7.7\python38\lib\site-packages\frida_tools\__init__.py

如果能打印出路径（比如 ...\site-packages\frida_tools_init_.py），说明安装好了。

6. Frida Python 脚本：自动捕获目标模块信息

编写一个 Frida Python 辅助脚本 ：

• 支持配置 包名 / 模块名 / 是否 spawn ，一键切换调试策略；

• 支持 attach 前台应用 或 spawn 启动应用 ；

• spawn 模式下，通过 Hook dlopen & android_dlopen_ext 捕获 so 加载事件；

• attach 模式下，直接枚举已加载模块；

• 输出模块的 基址、大小和名称 ，方便后续 Trace、断点或内存分析。

frida_get_module_info.py

# -*- coding: utf-8 -*-
"""
Frida Attach Helper
===================
一个简单的 Frida 辅助脚本：
1. 支持配置包名 / 模块名 / 是否 spawn
2. 支持附加前台应用或指定应用
3. 自动捕获目标 so 基址信息
"""

import frida

# =========================
# 配置区 (根据需要修改)
# =========================
REMOTE_ADDR = "127.0.0.1:1234"  # frida-server 地址
PACKAGE_NAME = "com.cyrus.example"  # 目标应用包名
MODULE_NAME = "libnative-lib.so"  # 目标 so 名称
USE_SPAWN = False  # True=spawn 启动, False=附加前台应用


# =========================
# Frida 辅助函数
# =========================

# 连接远程设备并附加到前台应用
def attach_frontmost(remote_addr=REMOTE_ADDR):
    # 连接远程 frida-server
    device = frida.get_device_manager().add_remote_device(remote_addr)
    print(f"[+] 已连接到远程设备: {remote_addr}")

    # 附加到前台应用
    app = device.get_frontmost_application()
    print(f"[+] 前台应用: {app.identifier} (pid={app.pid})")

    session = device.attach(app.pid)
    return device, session, app.pid


# 连接远程设备并附加到指定应用
def attach_package(package_name, remote_addr=REMOTE_ADDR):
    # 连接远程 frida-server
    device = frida.get_device_manager().add_remote_device(remote_addr)
    print(f"[+] 已连接到远程设备: {remote_addr}")

    # 启动目标应用 (相当于 -f)
    pid = device.spawn([package_name])
    print(f"[+] 已启动进程: {package_name} (pid={pid})")

    # 附加到目标进程
    session = device.attach(pid)
    return device, session, pid


def find_module(session, module_name):
    """直接 enumerateModules 查找目标模块"""
    js_code = f"""
        rpc.exports = {{
            findmodule: function() {{
                var results = [];
                Process.enumerateModules().forEach(function(m) {{
                    if (m.name.indexOf("{module_name}") >= 0) {{
                        results.push({{
                            name: m.name,
                            base: m.base.toString(),
                            size: m.size
                        }});
                    }}
                }});
                return results;
            }}
        }};
    """
    script = session.create_script(js_code)
    script.load()
    module_info = script.exports.findmodule()

    if not module_info:
        print(f"[!] 没找到模块: {module_name}")
        return None
    else:
        print(f"[+] 找到 {module_name}: {module_info[0]}")
        return module_info[0]


def hook_dlopen_and_wait(session, module_name, on_load):
    """
    Hook dlopen / android_dlopen_ext，捕获目标模块加载完成事件
    :param session: frida.Session
    :param module_name: 目标模块名 (字符串，支持部分匹配)
    :param on_load: 回调函数，参数为 module_info(dict)
    """

    js_code = f"""
        var target = "{module_name}";

        function notifyModule(name) {{
            if (name.indexOf(target) >= 0) {{
                try {{
                    var m = Process.getModuleByName(name);
                    var result = {{
                        name: m.name,
                        base: m.base.toString(),
                        size: m.size
                    }};
                    send(result);
                }} catch (e) {{
                    console.log("[-] getModuleByName failed: " + e);
                }}
            }}
        }}

        function hookFunc(name) {{
            var addr = Module.findExportByName(null, name) ||
                       Module.findExportByName("libdl.so", name);
            if (!addr) {{
                console.log("[-] Not found: " + name);
                return;
            }}
            Interceptor.attach(addr, {{
                onEnter: function(args) {{
                    this.path = args[0].readUtf8String();
                }},
                onLeave: function(retval) {{
                    if (this.path) {{
                        notifyModule(this.path);
                    }}
                }}
            }});
            console.log("[+] Hooked " + name + " @ " + addr);
        }}

        hookFunc("dlopen");
        hookFunc("android_dlopen_ext");
    """

    script = session.create_script(js_code)

    def on_message(msg, data):
        if msg["type"] == "send":
            module_info = msg["payload"]
            print(f"[+] 捕获到目标模块加载: {module_info}")
            if on_load:
                on_load(module_info)
        elif msg["type"] == "error":
            print(f"[!] Frida 脚本错误: {msg['stack']}")

    script.on("message", on_message)
    script.load()
    return script


# =========================
# 主逻辑入口
# =========================
if __name__ == "__main__":
    if USE_SPAWN:
        device, session, pid = attach_package(PACKAGE_NAME, REMOTE_ADDR)


        def module_loaded_callback(module_info):
            print(f"===> 回调触发: 模块加载完成 {module_info}")
            session.detach()


        # Hook dlopen / android_dlopen_ext，捕获目标模块加载完成事件
        hook_dlopen_and_wait(session, MODULE_NAME, module_loaded_callback)

        # 让 APP 继续运行
        device.resume(pid)

    else:
        device, session, pid = attach_frontmost(REMOTE_ADDR)
        module_info = find_module(session, MODULE_NAME)
        print("模块信息:", module_info)
        session.detach()

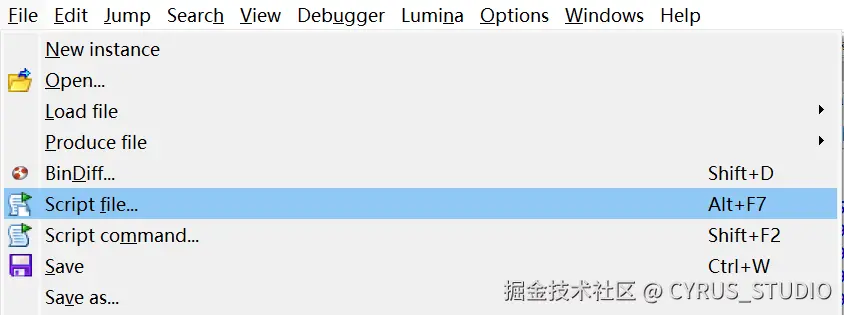

在 IDA Pro 中，Alt + F7 执行该脚本文件

输出如下：
