l2tp over ipsec lac 和lns 永久连接

沈艺强2025-09-14 10:25

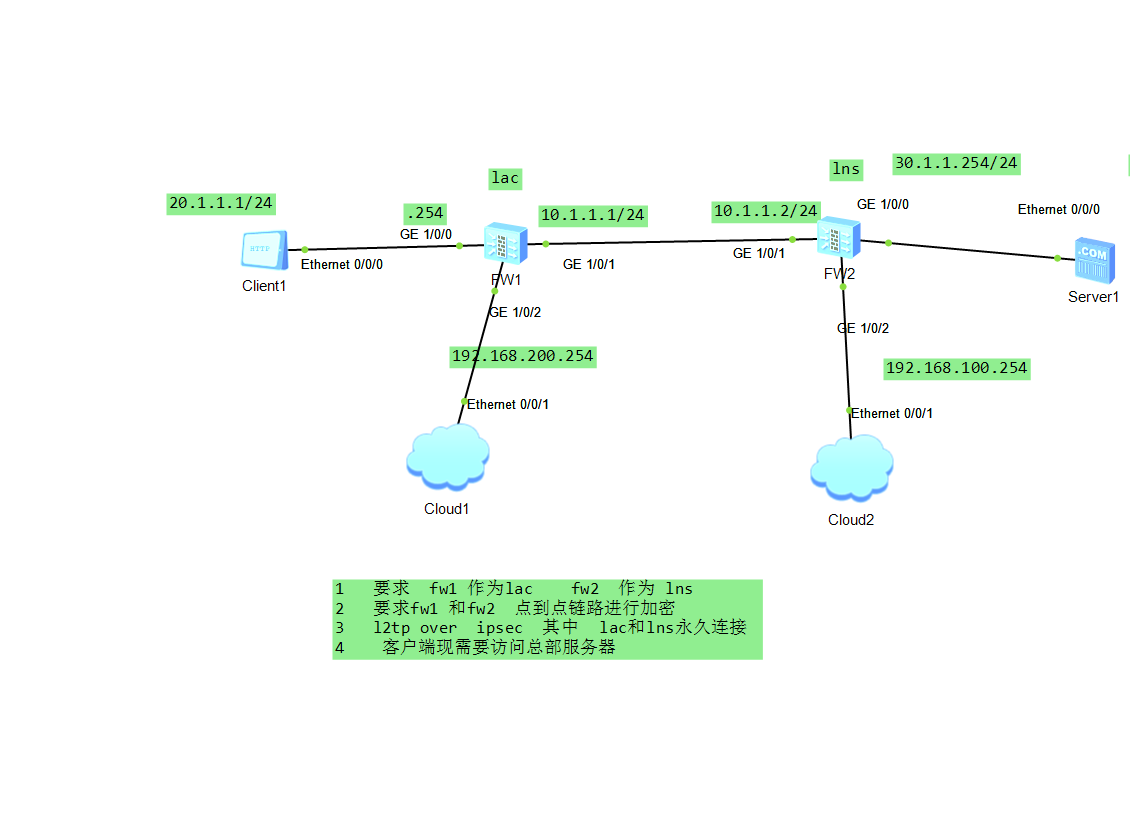

1 拓扑

2 基础配置

接口配置，地址配置，防火墙登入配置，准备工作要做好

fw1 的基础配置

update schedule sa-sdb daily 03:05

update schedule cnc daily 03:05

update schedule file-reputation daily 03:05

ip vpn-instance default

ipv4-family

time-range worktime

period-range 08:00:00 to 18:00:00 working-day

ike proposal default

encryption-algorithm aes-256 aes-192 aes-128

dh group14

authentication-algorithm sha2-512 sha2-384 sha2-256

authentication-method pre-share

integrity-algorithm hmac-sha2-256

prf hmac-sha2-256

aaa

authentication-scheme default

authentication-scheme admin_local

authentication-scheme admin_radius_local

authentication-scheme admin_hwtacacs_local

authentication-scheme admin_ad_local

authentication-scheme admin_ldap_local

authentication-scheme admin_radius

authentication-scheme admin_hwtacacs

authentication-scheme admin_ad

authorization-scheme default

accounting-scheme default

domain default

service-type internetaccess ssl-vpn l2tp ike

internet-access mode password

reference user current-domain

manager-user audit-admin

password cipher @%@%Ca[}-ynC3X"Nh:Jj%'a)/4pan,*0760/6<WMNE'ir-4>4pd/@%@%

service-type web terminal

level 15

manager-user api-admin

password cipher @%@%ra0vLsyz+ET/fd6J#UiQ9J3&5*|>XVNHs*"=v"1)P3M/J3)9@%@%

level 15

manager-user admin

password cipher @%@%KROL2&8u,2@fn8"171|>`<Jn0fsU=NR2lI8N9e&<"ll:<Jq`@%@%

service-type web terminal

level 15

role system-admin

role device-admin

role device-admin(monitor)

role audit-admin

bind manager-user audit-admin role audit-admin

bind manager-user admin role system-admin

l2tp-group default-lns

interface GigabitEthernet0/0/0

undo shutdown

ip binding vpn-instance default

ip address 192.168.0.1 255.255.255.0

alias GE0/METH
#
interface GigabitEthernet1/0/0
undo shutdown
ip address 20.1.1.254 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit
#
interface GigabitEthernet1/0/1
undo shutdown
ip address 10.1.1.1 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit

interface GigabitEthernet1/0/2
undo shutdown
ip address 192.168.200.250 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit

interface GigabitEthernet1/0/3

undo shutdown

interface GigabitEthernet1/0/4

undo shutdown

interface GigabitEthernet1/0/5

undo shutdown

interface GigabitEthernet1/0/6

undo shutdown

interface Virtual-if0

interface NULL0

**firewall zone local
set priority 100

firewall zone trust
set priority 85
add interface GigabitEthernet0/0/0
add interface GigabitEthernet1/0/0
add interface GigabitEthernet1/0/2

firewall zone untrust
set priority 5
add interface GigabitEthernet1/0/1

firewall zone dmz
set priority 50
#**

undo ssh server compatible-ssh1x enable

ssh authentication-type default password

ssh server cipher aes256_ctr aes128_ctr

ssh server hmac sha2_256 sha1

ssh client cipher aes256_ctr aes128_ctr

ssh client hmac sha2_256 sha1

firewall detect ftp

user-interface con 0

authentication-mode aaa

user-interface vty 0 4

authentication-mode aaa

protocol inbound ssh

user-interface vty 16 20

pki realm default

sa

location

multi-linkif

mode proportion-of-weight

right-manager server-group

device-classification

device-group pc

device-group mobile-terminal

device-group undefined-group

user-manage server-sync tsm

security-policy

rule name 20.1.1.0

source-zone local
source-zone trust
destination-zone local
destination-zone trust
source-address 20.1.1.0 mask 255.255.255.0
destination-address 20.1.1.0 mask 255.255.255.0
action permit
rule name 192.168.200.0
source-zone local
source-zone trust
destination-zone local
destination-zone trust
source-address 192.168.200.0 mask 255.255.255.0
destination-address 192.168.200.0 mask 255.255.255.0
action permit
rule name 10.1.1.0
source-zone local
source-zone untrust
destination-zone local
destination-zone untrust
source-address 10.1.1.0 mask 255.255.255.0
destination-address 10.1.1.0 mask 255.255.255.0
action permit
#

auth-policy

traffic-policy

policy-based-route

nat-policy

quota-policy

pcp-policy

dns-transparent-policy

rightm-policy

return

fw2 的基础配置

web-manager security version tlsv1.1 tlsv1.2

web-manager enable

web-manager security enable

firewall dataplane to manageplane application-apperceive default-action drop

undo ips log merge enable

decoding uri-cache disable

update schedule ips-sdb daily 22:30

update schedule av-sdb daily 22:30

update schedule sa-sdb daily 22:30

update schedule cnc daily 22:30

update schedule file-reputation daily 22:30

ip vpn-instance default

ipv4-family

time-range worktime

period-range 08:00:00 to 18:00:00 working-day

ike proposal default

encryption-algorithm aes-256 aes-192 aes-128

dh group14

authentication-algorithm sha2-512 sha2-384 sha2-256

authentication-method pre-share

integrity-algorithm hmac-sha2-256

prf hmac-sha2-256

aaa

authentication-scheme default

authentication-scheme admin_local

authentication-scheme admin_radius_local

authentication-scheme admin_hwtacacs_local

authentication-scheme admin_ad_local

authentication-scheme admin_ldap_local

authentication-scheme admin_radius

authentication-scheme admin_hwtacacs

authentication-scheme admin_ad

authorization-scheme default

accounting-scheme default

domain default

service-type internetaccess ssl-vpn l2tp ike

internet-access mode password

reference user current-domain

manager-user audit-admin

password cipher @%@%@.51F"Im9LPnClL{+jgQz5M,gx<62i%qs)hQE~&P@.h.5M/z@%@%

service-type web terminal

level 15

manager-user api-admin

password cipher @%@%GkMC1Pv@::4zb,#~ktj<i85IU:!A5!1X2@)J7}I|l,DS85Li@%@%

level 15

manager-user admin

password cipher @%@%B8o,Ha9T%>L)u,Oc:dI8->b3U&UI-M#{3O>~6;03`nl>>b6-@%@%

service-type web terminal

level 15

role system-admin

role device-admin

role device-admin(monitor)

role audit-admin

bind manager-user audit-admin role audit-admin

bind manager-user admin role system-admin

l2tp-group default-lns

interface GigabitEthernet0/0/0

undo shutdown

ip binding vpn-instance default

ip address 192.168.0.1 255.255.255.0

alias GE0/METH

interface GigabitEthernet1/0/0
undo shutdown
ip address 30.1.1.254 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit

interface GigabitEthernet1/0/1
undo shutdown
ip address 10.1.1.2 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit
#
interface GigabitEthernet1/0/2
undo shutdown
ip address 192.168.100.250 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit
#

interface GigabitEthernet1/0/3

undo shutdown

interface GigabitEthernet1/0/4

undo shutdown

interface GigabitEthernet1/0/5

undo shutdown

interface GigabitEthernet1/0/6

undo shutdown

interface Virtual-if0

interface NULL0

firewall zone local

set priority 100

**firewall zone trust
set priority 85
add interface GigabitEthernet0/0/0
add interface GigabitEthernet1/0/0
add interface GigabitEthernet1/0/2

firewall zone untrust
set priority 5
add interface GigabitEthernet1/0/1

firewall zone dmz
set priority 50
#**

undo ssh server compatible-ssh1x enable

ssh authentication-type default password

ssh server cipher aes256_ctr aes128_ctr

ssh server hmac sha2_256 sha1

ssh client cipher aes256_ctr aes128_ctr

ssh client hmac sha2_256 sha1

firewall detect ftp

user-interface con 0

authentication-mode aaa

user-interface vty 0 4

authentication-mode aaa

protocol inbound ssh

user-interface vty 16 20

pki realm default

sa

location

multi-linkif

mode proportion-of-weight

right-manager server-group

device-classification

device-group pc

device-group mobile-terminal

device-group undefined-group

user-manage server-sync tsm

security-policy

rule name 10.1.1.0

source-zone local

source-zone untrust

destination-zone local

destination-zone untrust

source-address 10.1.1.0 mask 255.255.255.0

destination-address 10.1.1.0 mask 255.255.255.0

action permit

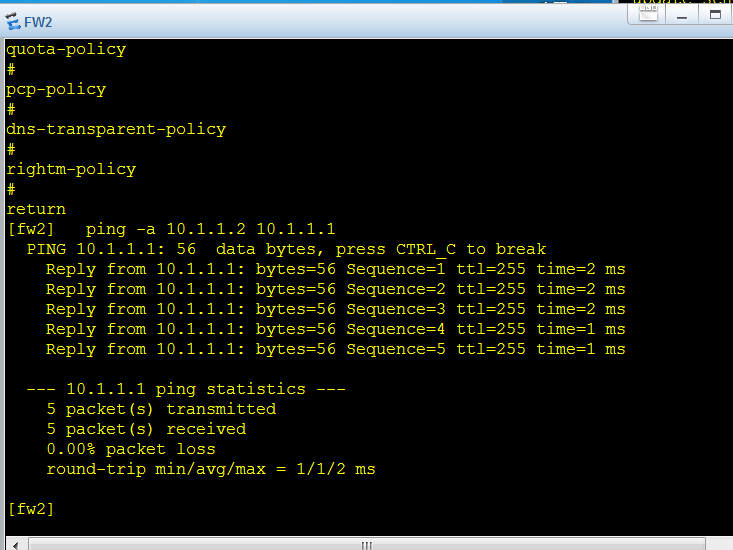

基础测试完成 ，保证防火墙的直连接口可以通信

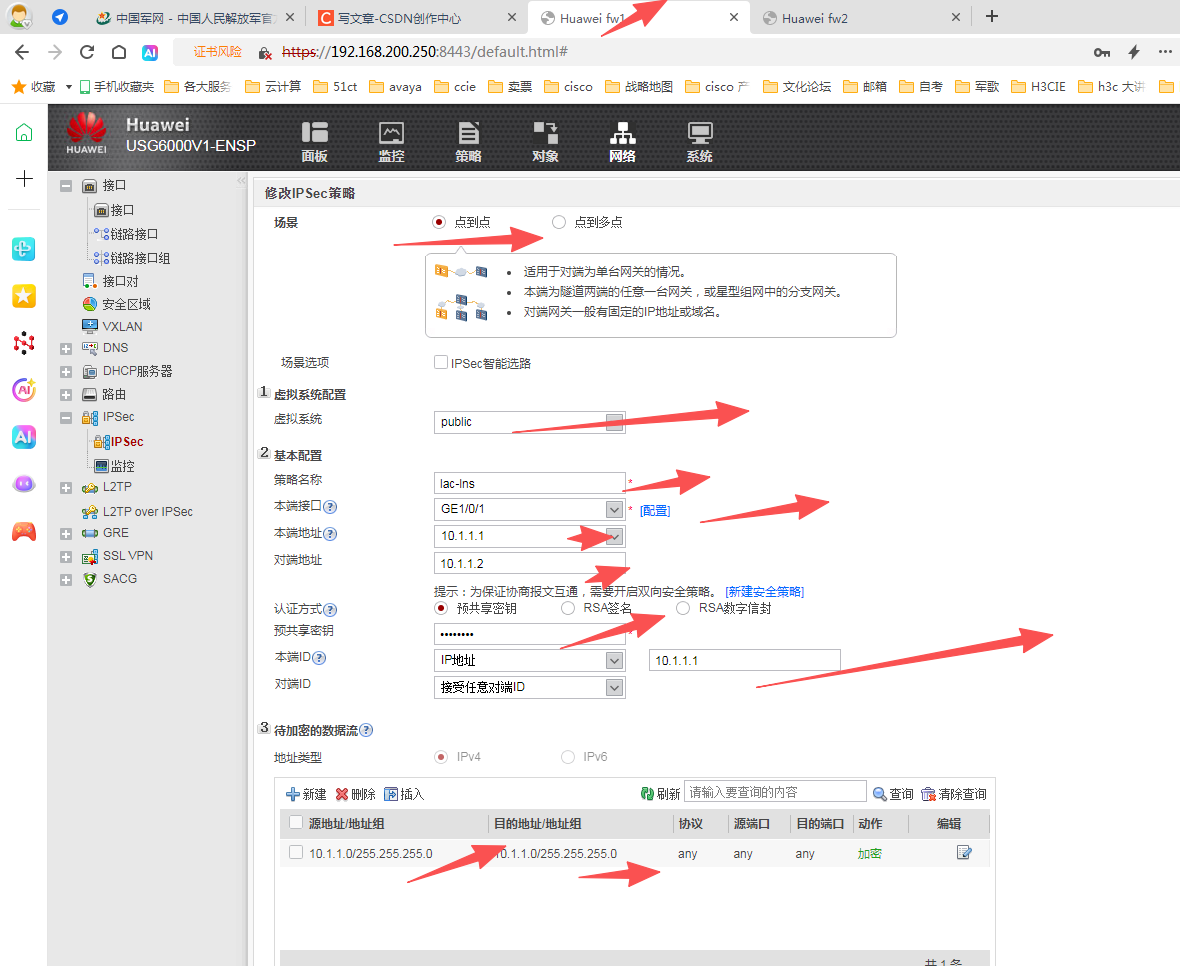

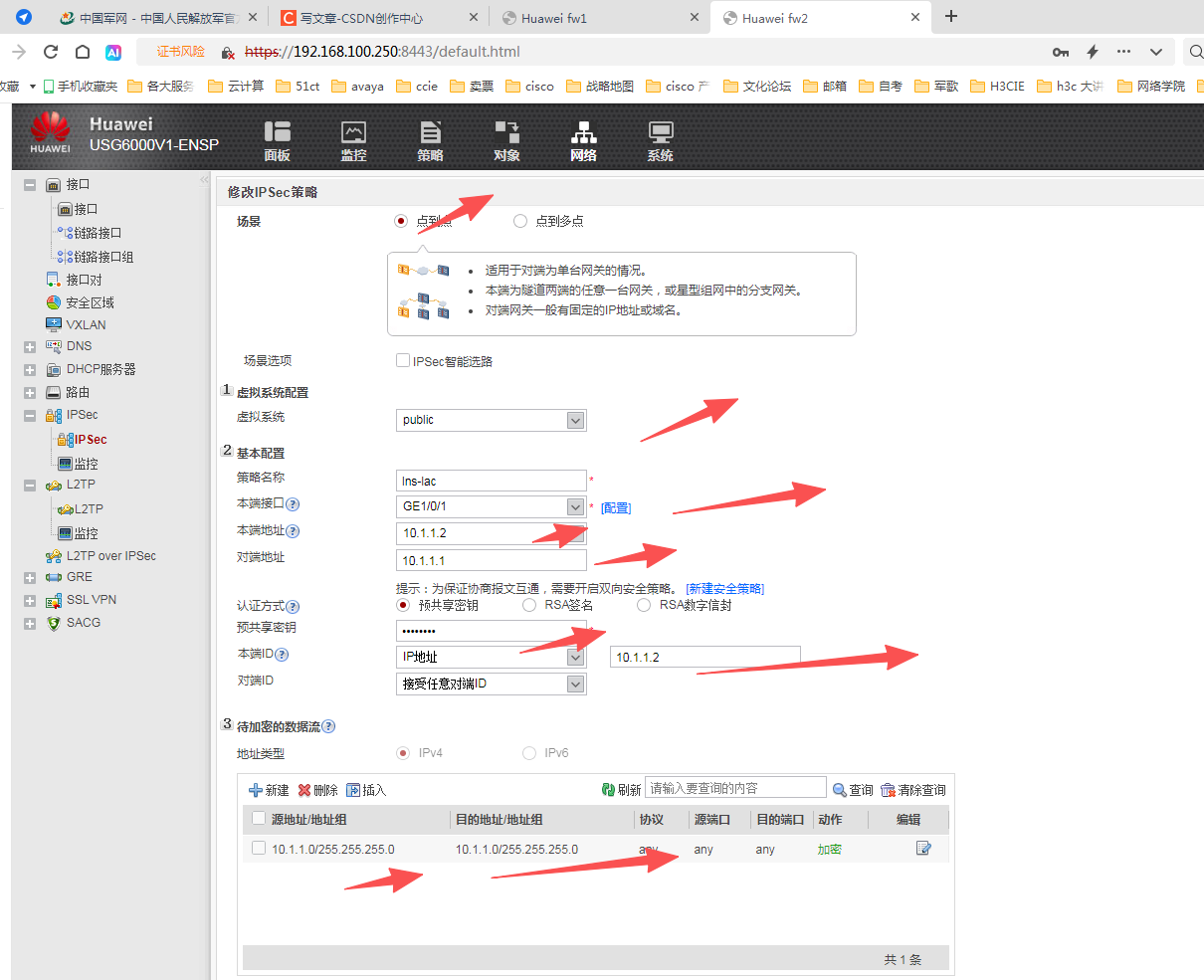

3 先做ipsec的配置把fw1 和fw2 直连网段ipsec打通

<fw1>display ike sa

2025-09-13 10:50:56.680

IKE SA information :

Conn-ID Peer VPN Flag(

s) Phase RemoteType RemoteID

4 10.1.1.2:500 RD|A

v2:2 IP 10.1.1.2

3 10.1.1.2:500 RD|A

v2:1 IP 10.1.1.2

Number of IKE SA : 2

Flag Description:

RD--READY ST--STAYALIVE RL--REPLACED FD--FADING TO--TIMEOUT

HRT--HEARTBEAT LKG--LAST KNOWN GOOD SEQ NO. BCK--BACKED UP

M--ACTIVE S--STANDBY A--ALONE NEG--NEGOTIATING

<fw1> dis

<fw1> display ipsa

<fw1> display ips

<fw1> display ipsec sa

<fw1> display ipsec sa

2025-09-13 10:51:01.200

ipsec sa information:

===============================

Interface: GigabitEthernet1/0/1

===============================

IPSec policy name: "ipsec1391845572"

Sequence number : 1

Acl group : 3000

Acl rule : 5

Mode : ISAKMP

Connection ID : 4

Encapsulation mode: Tunnel

Holding time : 0d 0h 3m 44s

Tunnel local : 10.1.1.1:500

Tunnel remote : 10.1.1.2:500

Flow source : 10.1.1.0/255.255.255.0 0/0-65535

Flow destination : 10.1.1.0/255.255.255.0 0/0-65535

Outbound ESP SAs

SPI: 198188983 (0xbd01fb7)

Proposal: ESP-ENCRYPT-AES-256 ESP-AUTH-SHA2-256-128

SA remaining key duration (kilobytes/sec): 0/604576

Max sent sequence-number: 8

UDP encapsulation used for NAT traversal: N

SA encrypted packets (number/bytes): 7/588

Inbound ESP SAs

SPI: 185357876 (0xb0c5634)

Proposal: ESP-ENCRYPT-AES-256 ESP-AUTH-SHA2-256-128

SA remaining key duration (kilobytes/sec): 0/604576

Max received sequence-number: 1

UDP encapsulation used for NAT traversal: N

SA decrypted packets (number/bytes): 7/588

Anti-replay : Enable

Anti-replay window size: 1024

<fw1>

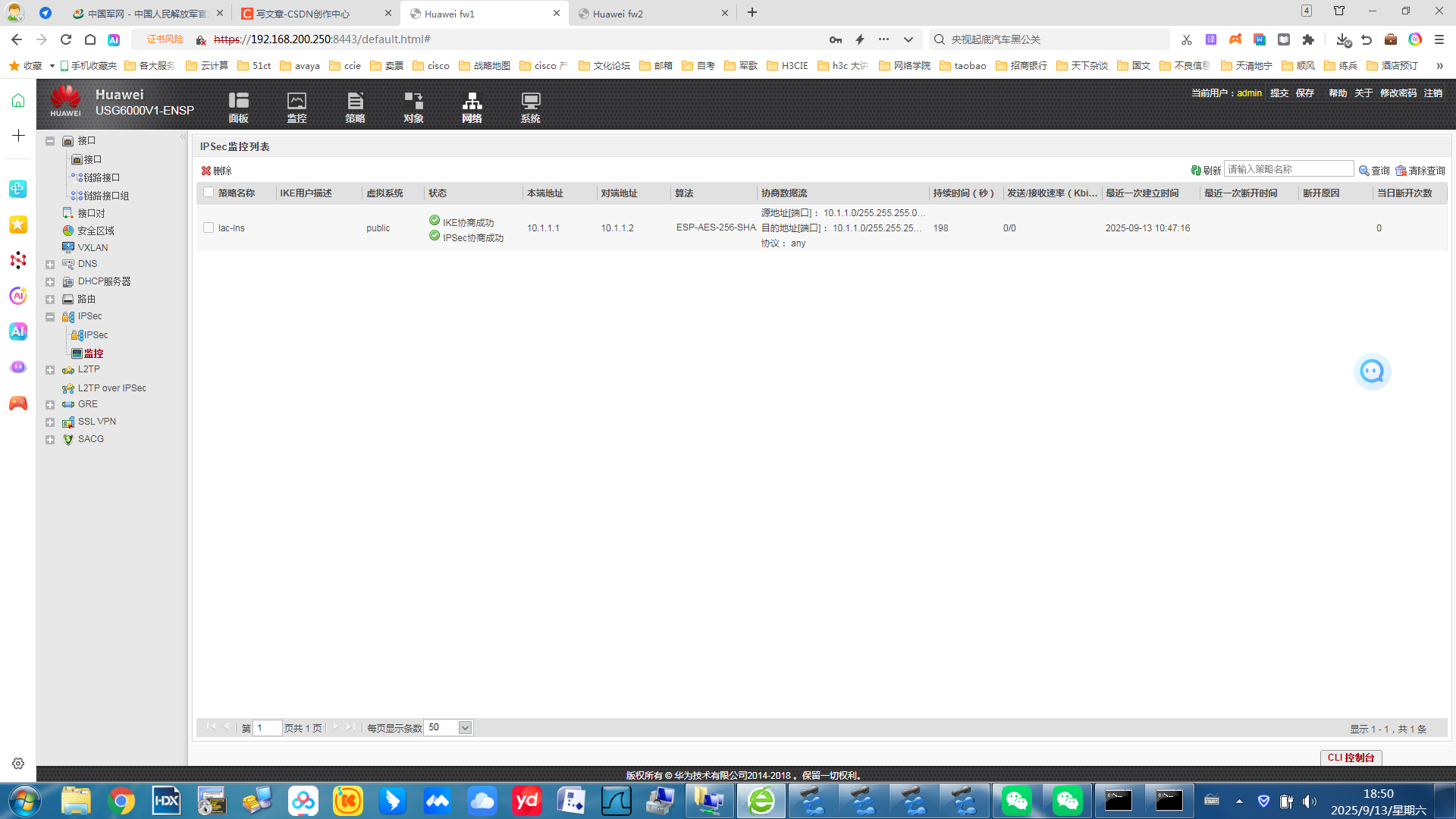

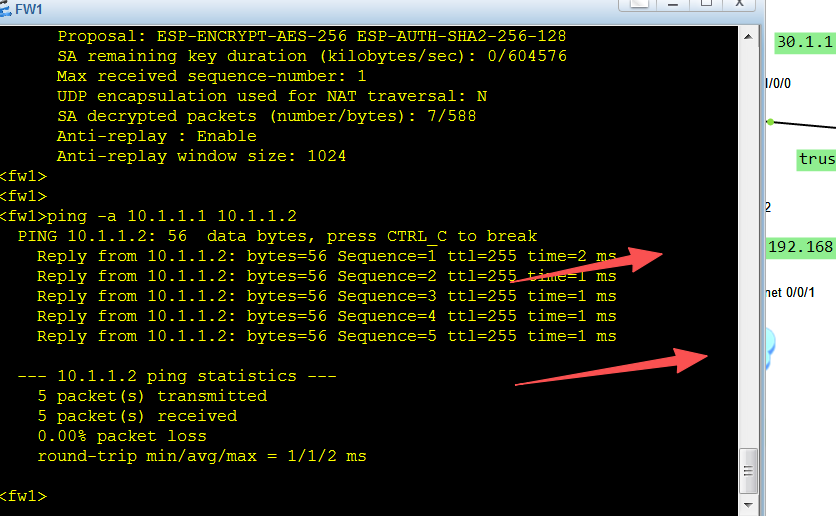

做到这里ipsec 算是成功了

4 做lac 和lns

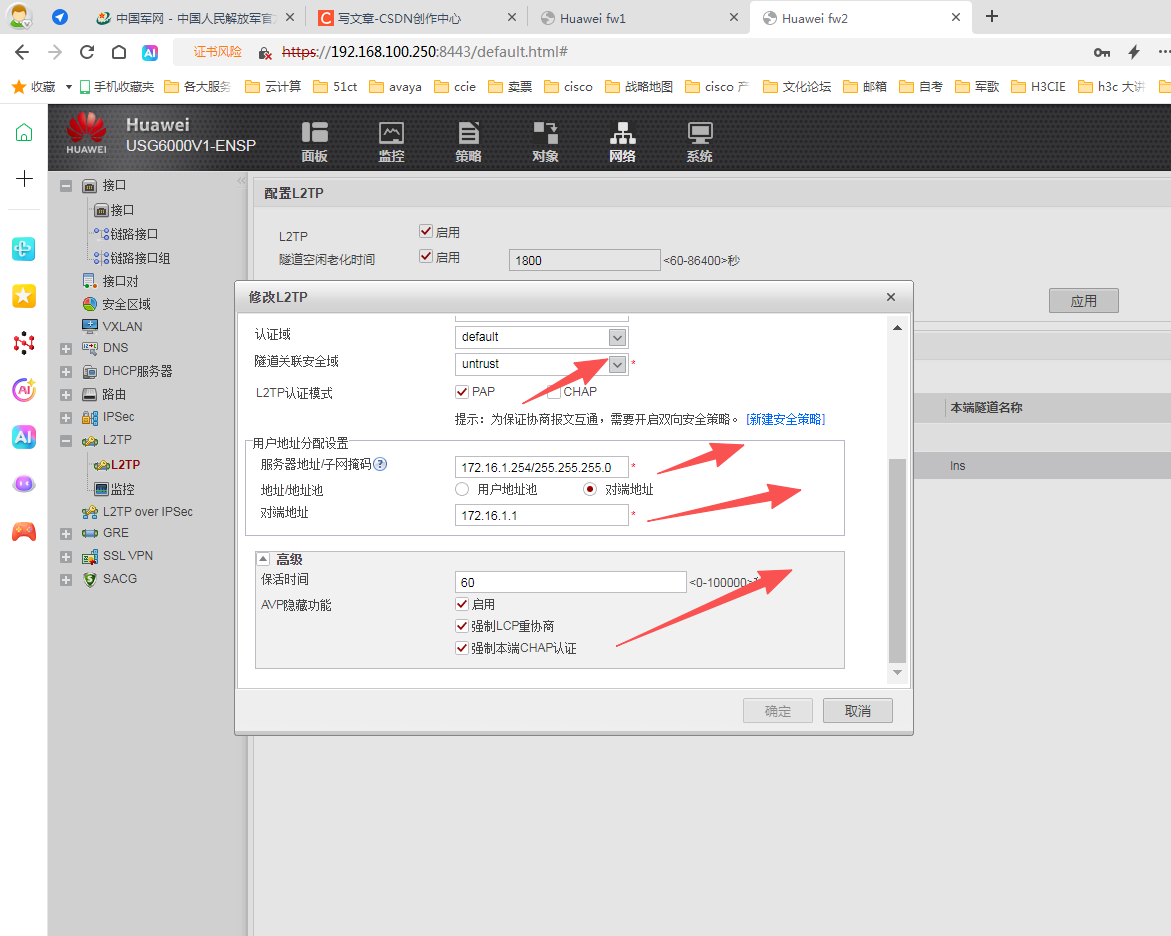

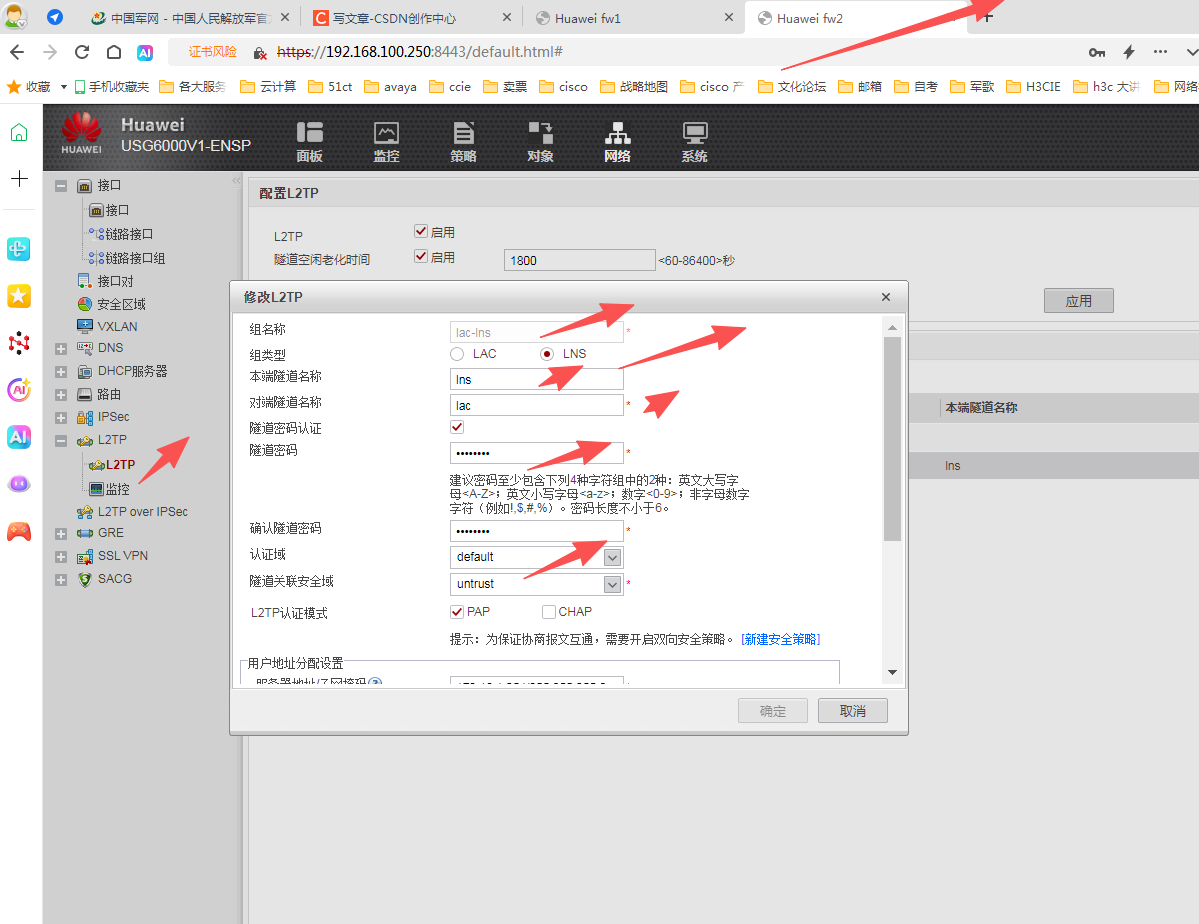

lns 配置

穿件本地用户

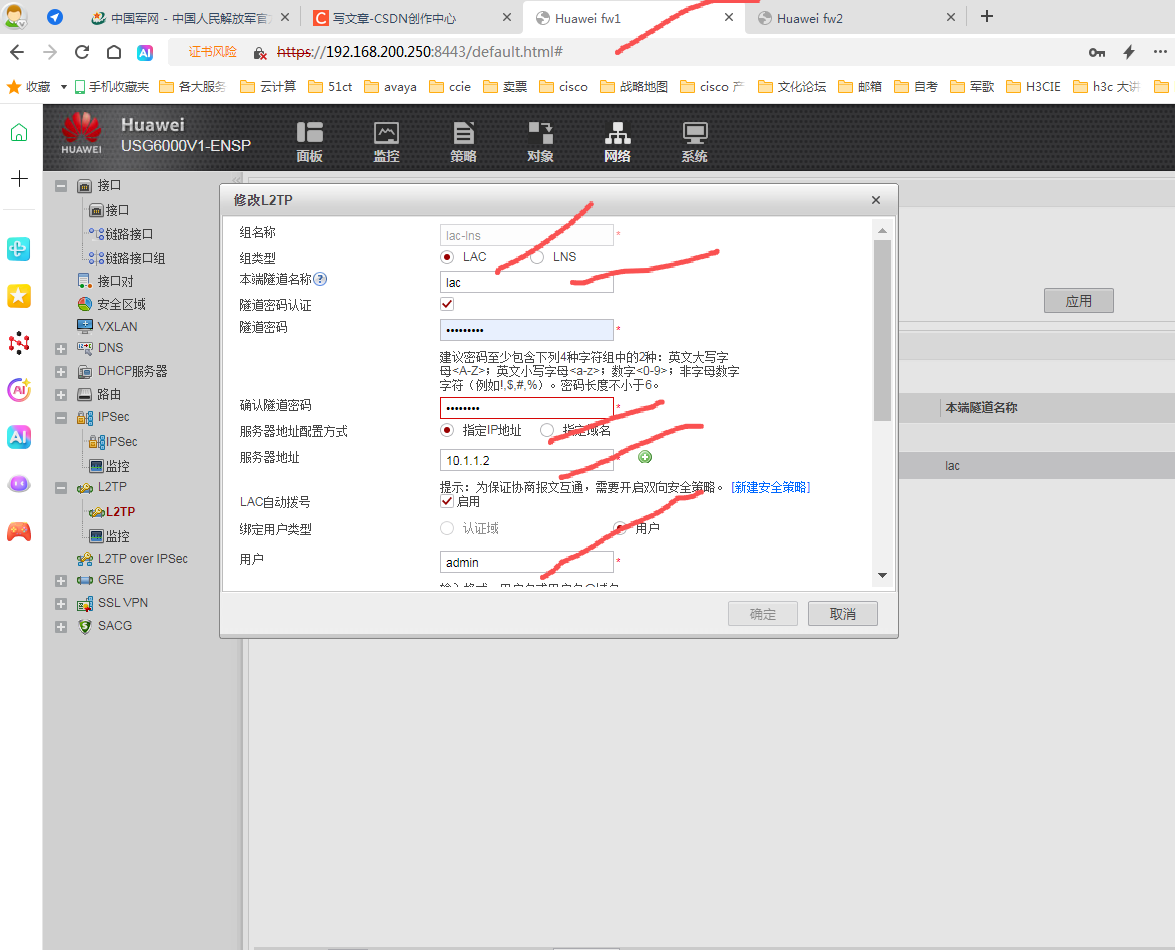

lac 侧配置

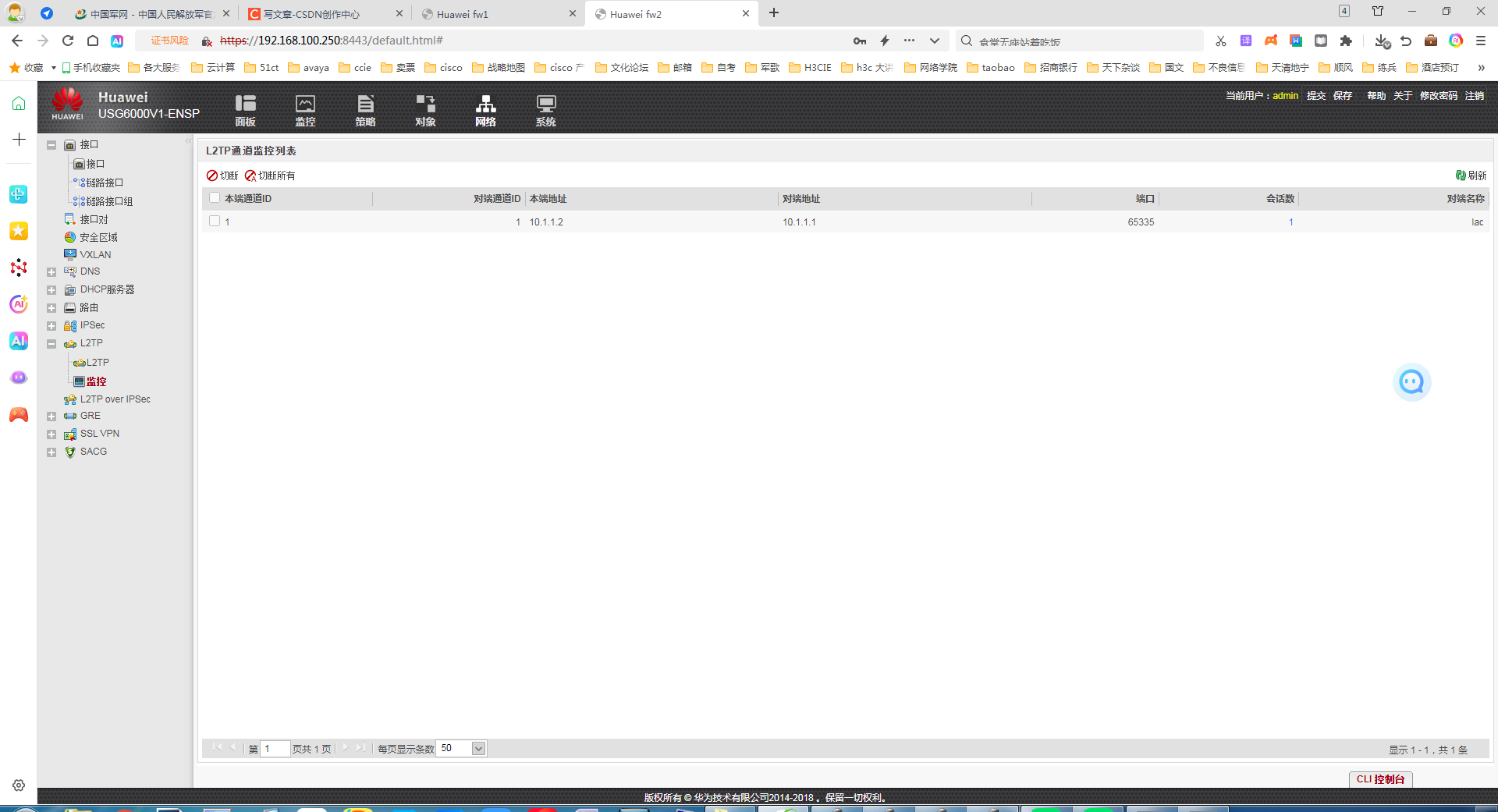

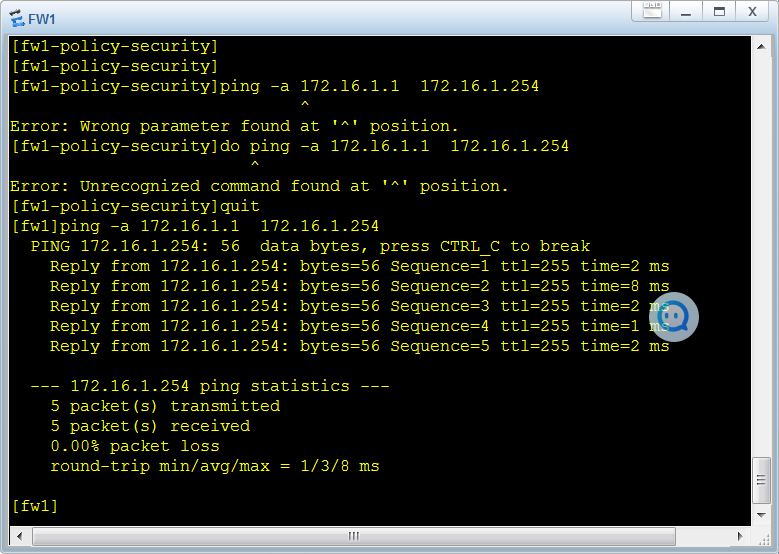

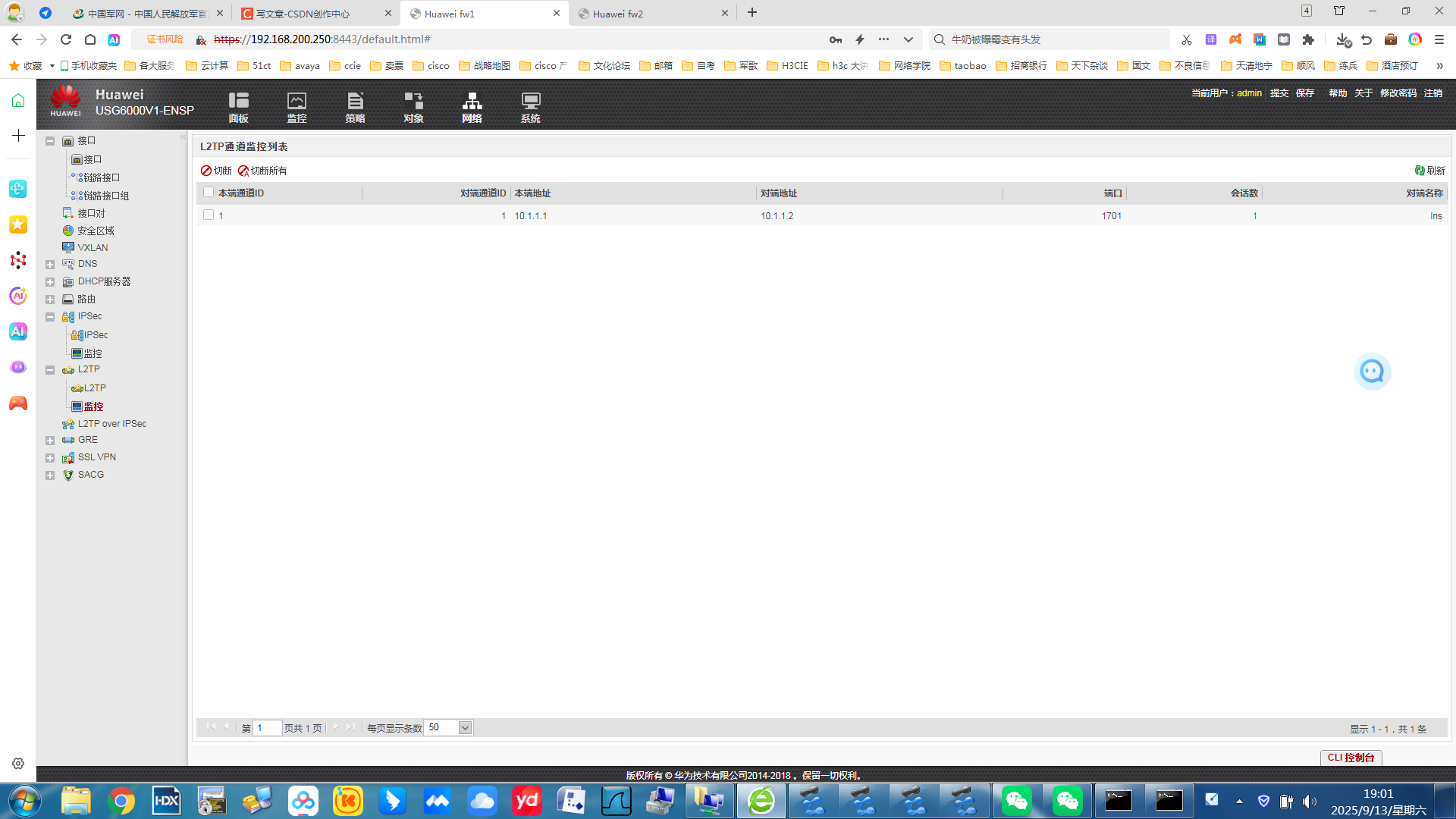

很明显lac和lns的隧道成功了

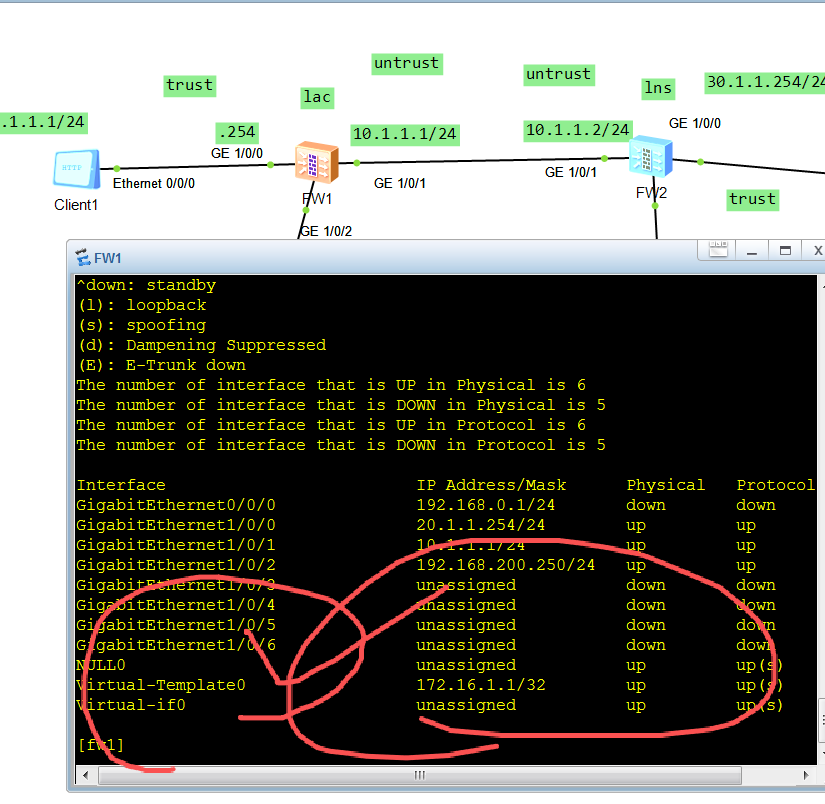

注意事项

fw1\]interface Virtual-Template 0 \[fw1-Virtual-Template0

fw1-Virtual-Template0\]dis th 2025-09-13 11:07:15.050 # interface Virtual-Template0 ppp authentication-mode chap pap ppp chap user admin ppp chap password cipher %$%$\]pRhHRe\~R,4x\*RP(9p!2\&O9\]%$%$ ppp pap local-user admin password cipher %$%$\[l"x2\|f_KA,p(HX\\x\~;#cnW@%$%$ ip address ppp-negotiate call-lns local-user admin binding l2tp-group lac-lns alias L2TP_LAC_0 **service-manage http permit service-manage https permit service-manage ping permit service-manage ssh permit service-manage snmp permit service-manage telnet permit** # return rule name l2tp source-zone local source-zone untrust destination-zone local destination-zone untrust source-address 172.16.1.0 mask 255.255.255.0 destination-address 172.16.1.0 mask 255.255.255.0 action permit fw2 上注意的配置 \[fw2-Virtual-Template0\]dis th 2025-09-13 11:08:21.620 # interface Virtual-Template0 ppp authentication-mode pap remote address 172.16.1.1 ip address 172.16.1.254 255.255.255.0 alias L2TP_LNS_0 service-manage http permit service-manage https permit service-manage ping permit service-manage ssh permit service-manage snmp permit service-manage telnet permit # return \[fw2-Virtual-Template0

rule name l2tp
source-zone local
source-zone untrust
destination-zone local
destination-zone untrust
source-address 172.16.1.0 mask 255.255.255.0
destination-address 172.16.1.0 mask 255.255.255.0
action permit

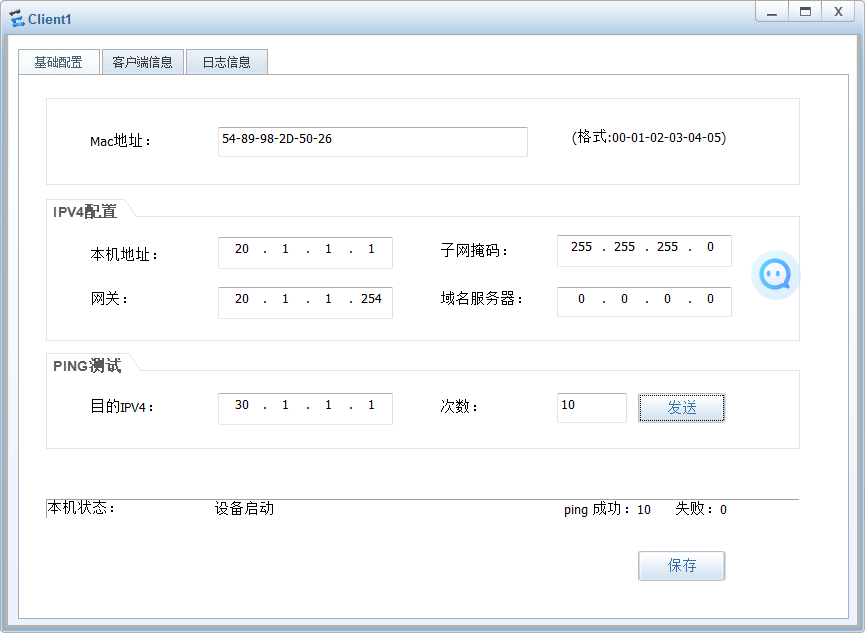

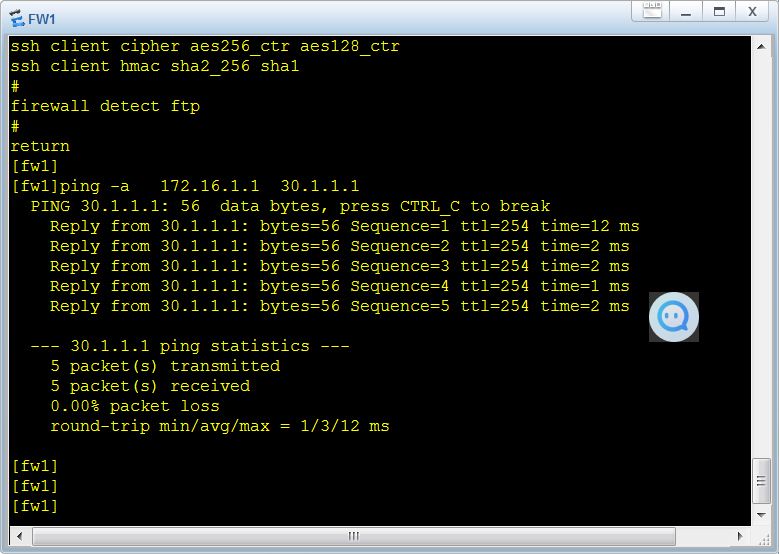

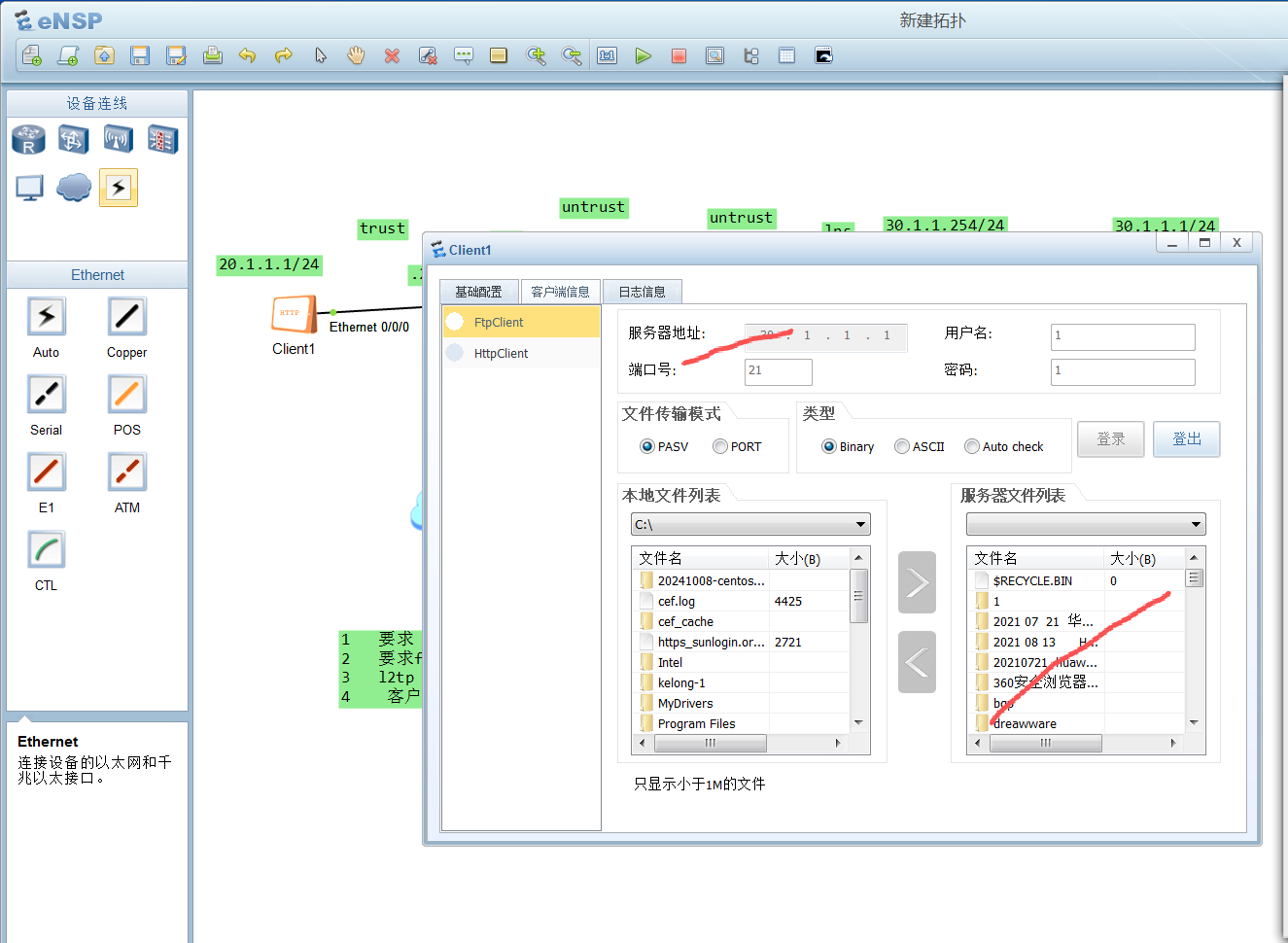

5 pc 访问ftp

fw1 上的配置

rule name vi-30.1..10

source-zone local

source-zone untrust

destination-zone local

destination-zone untrust

source-address 172.16.1.0 mask 255.255.255.0

source-address 30.1.1.0 mask 255.255.255.0

destination-address 172.16.1.0 mask 255.255.255.0

destination-address 30.1.1.0 mask 255.255.255.0

action permit

ip route-static 30.1.1.0 255.255.255.0 Virtual-Template0

ip route-static 172.16.1.0 255.255.255.0 Virtual-Template0

------------------------------------------------------------fw1 shang

rule name ftp

source-zone local

source-zone trust

source-zone untrust

destination-zone local

destination-zone trust

destination-zone untrust

source-address 172.16.1.0 mask 255.255.255.0

source-address 30.1.1.0 mask 255.255.255.0

destination-address 172.16.1.0 mask 255.255.255.0

destination-address 30.1.1.0 mask 255.255.255.0

action permit

=====================================================fw2 上的配置

pc 上网

rule name pc

source-zone trust

destination-zone untrust

source-address 10.1.1.0 mask 255.255.255.0

source-address 20.1.1.0 mask 255.255.255.0

action permit

fw1-policy-nat\]dis th 2025-09-13 11:24:16.900 # nat-policy rule name pc source-zone trust destination-zone untrust source-address 10.1.1.0 mask 255.255.255.0 source-address 20.1.1.0 mask 255.255.255.0 action source-nat easy-ip # ![](https://i-blog.csdnimg.cn/direct/56931c9194144078a8550533fc36911f.png) ![](https://i-blog.csdnimg.cn/direct/e7fc73a2dce04779a3d8e47059c6deae.png) 很明显访问 30.1.1.1 文件服务可以测试成功

相关推荐
ZeroNews内网穿透2 小时前
企业远程访问方案选择：何时选内网穿透，何时需要反向代理？
运维·服务器·网络·python·安全
勤奋的小王同学~2 小时前
(网络编程)网络编程套接字 UDP的socket API 代码解析
网络
paopaokaka_luck2 小时前
绿色环保活动平台（AI问答、WebSocket即时通讯、协同过滤算法、Echarts图形化分析）
java·网络·vue.js·spring boot·websocket·网络协议·架构
wow_DG2 小时前
【WebSocket✨】入门之旅（三）：WebSocket 的实战应用
网络·websocket·网络协议
江流月照3 小时前
PCIE地址空间介绍
java·服务器·网络
与天仙漫步星海4 小时前
OSPF协议原理讲解和实际配置（华为/思科）
网络
九河云10 小时前
华为云 GaussDB：金融级高可用数据库，为核心业务保驾护航
网络·数据库·科技·金融·华为云·gaussdb
独行soc10 小时前
2025年渗透测试面试题总结-66（题目+回答）
java·网络·python·安全·web安全·adb·渗透测试
码农101号11 小时前
运维安全05 - iptables规则保存与恢复
运维·网络·安全
热门推荐
01KGG转MP3工具|非KGM文件|解密音频02UV安装并设置国内源03GitHub 镜像站点04conda中设置镜像地址（附所有可换的地址）05A股预测还能更准？开源大模型Kronos带你跑通预测+回测全流程06UV 工具安装与国内镜像源配置指南07突破百度网盘的下载限速，两种方法教会你【超详细】0846个Nano-banana 精选提示词，持续更新中09智能库存管理的需求预测模型：从业务痛点到落地代码的完整实践10教你如何认证 Gemini 教育优惠的二次验证，薅个 1年的 Gemini Pro 会员
