ini
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent">
<androidx.constraintlayout.widget.Group
app:constraint_referenced_ids="tv3,tv4,tv5"
android:visibility="visible"
android:layout_width="0dp"
android:layout_height="0dp"/>
<TextView
android:id="@+id/tv1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
app:layout_constraintWidth_min="120dp"
android:text="左上角"
android:gravity="center"
android:textSize="32sp"
android:background="@color/color_3"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent" />
<TextView
android:id="@+id/tv2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
app:layout_constraintWidth_min="120dp"
android:text="右上角"
android:gravity="center"
android:textSize="32sp"
android:background="@color/color_1"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintTop_toTopOf="parent" />
<TextView
android:id="@+id/tv3"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
app:layout_constraintWidth_min="120dp"
android:text="右下角"
android:gravity="center"
android:textSize="32sp"
android:background="@color/color_8"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintBottom_toBottomOf="parent" />
<TextView
android:id="@+id/tv4"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
app:layout_constraintWidth_min="120dp"
android:text="左下角"
android:gravity="center"
android:textSize="32sp"
android:background="@color/color_12"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintBottom_toBottomOf="parent" />
<TextView
android:id="@+id/tv5"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
app:layout_constraintWidth_min="120dp"
android:text="中间位置"
android:gravity="center"
android:textSize="32sp"
android:background="@color/color_10"
app:layout_constraintTop_toTopOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintBottom_toBottomOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>

这个布局使用 ConstraintLayout
作为根容器,并结合 Group
控件实现了对多个 TextView
的批量控制,整体布局清晰地展示了屏幕五个关键位置的文本控件。以下是详细解析:
1. 根布局(ConstraintLayout)
xml
ini
<androidx.constraintlayout.widget.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent">
- 宽高均为
match_parent
,占据整个屏幕空间 - 定义了必要的命名空间,支持系统属性、ConstraintLayout 自定义属性和工具属性
- 作为容器承载所有子控件,提供约束定位基础
2. Group 控件(批量控制可见性)
xml
ini
<androidx.constraintlayout.widget.Group
app:constraint_referenced_ids="tv3,tv4,tv5" <!-- 关联的控件ID列表 -->
android:visibility="visible" <!-- 控制关联控件的可见性 -->
android:layout_width="0dp"
android:layout_height="0dp"/>
-
核心作用 :通过
app:constraint_referenced_ids
关联多个控件(这里是tv3
、tv4
、tv5
),统一控制它们的可见性- 当
android:visibility="visible"
时,关联的三个控件都可见 - 若改为
invisible
或gone
,这三个控件会同时隐藏(无需逐个设置)
- 当
-
特点:
- 自身宽高设为
0dp
,不占用任何屏幕空间,也不会在界面上显示 - 仅用于逻辑上的控件分组,方便批量操作(主要是可见性控制)
- 自身宽高设为
-
优势 :对于需要同时显示 / 隐藏的多个控件,使用
Group
可以简化代码,避免重复设置
3. 各 TextView 解析
(1)左上角文本(tv1)
xml
ini
<TextView
android:id="@+id/tv1"
android:text="左上角"
android:background="@color/color_3"
app:layout_constraintStart_toStartOf="parent" <!-- 左边缘与父布局左对齐 -->
app:layout_constraintTop_toTopOf="parent" /> <!-- 上边缘与父布局上对齐 -->
- 定位:通过左上角与父布局对齐,固定在屏幕左上角
- 尺寸 :
wrap_content
自适应内容,app:layout_constraintWidth_min="120dp"
确保宽度至少 120dp - 样式 :32sp 字体,文字居中,背景色为
color_3
(2)右上角文本(tv2)
xml
ini
<TextView
android:id="@+id/tv2"
android:text="右上角"
android:background="@color/color_1"
app:layout_constraintEnd_toEndOf="parent" <!-- 右边缘与父布局右对齐 -->
app:layout_constraintTop_toTopOf="parent" /> <!-- 上边缘与父布局上对齐 -->
- 定位:通过右上角与父布局对齐,固定在屏幕右上角
- 其他属性(尺寸、样式)与 tv1 一致,背景色为
color_1
- 注意 :tv2 未被
Group
关联,其可见性不受Group
控制
(3)右下角文本(tv3)
xml
ini
<TextView
android:id="@+id/tv3"
android:text="右下角"
android:background="@color/color_8"
app:layout_constraintEnd_toEndOf="parent" <!-- 右边缘与父布局右对齐 -->
app:layout_constraintBottom_toBottomOf="parent" /> <!-- 下边缘与父布局下对齐 -->
- 定位:通过右下角与父布局对齐,固定在屏幕右下角
- 属于
Group
关联的控件(tv3
在constraint_referenced_ids
中),可见性由Group
控制
(4)左下角文本(tv4)
xml
ini
<TextView
android:id="@+id/tv4"
android:text="左下角"
android:background="@color/color_12"
app:layout_constraintStart_toStartOf="parent" <!-- 左边缘与父布局左对齐 -->
app:layout_constraintBottom_toBottomOf="parent" /> <!-- 下边缘与父布局下对齐 -->
- 定位:通过左下角与父布局对齐,固定在屏幕左下角
- 属于
Group
关联的控件,可见性由Group
控制
(5)中间位置文本(tv5)
xml
ini
<TextView
android:id="@+id/tv5"
android:text="中间位置"
android:background="@color/color_10"
app:layout_constraintTop_toTopOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintBottom_toBottomOf="parent" />
- 定位:通过上下左右四个方向与父布局对齐,被约束在屏幕正中心
- 属于
Group
关联的控件,可见性由Group
控制
布局核心特点
-
Group 控件的应用:
- 实现了对
tv3
、tv4
、tv5
的批量可见性控制,体现了 ConstraintLayout 对控件分组管理的支持 - 当需要动态切换部分控件的显示状态时(如点击按钮隐藏 / 显示一组控件),只需修改
Group
的visibility
属性,无需逐个操作
- 实现了对
-
定位逻辑清晰:

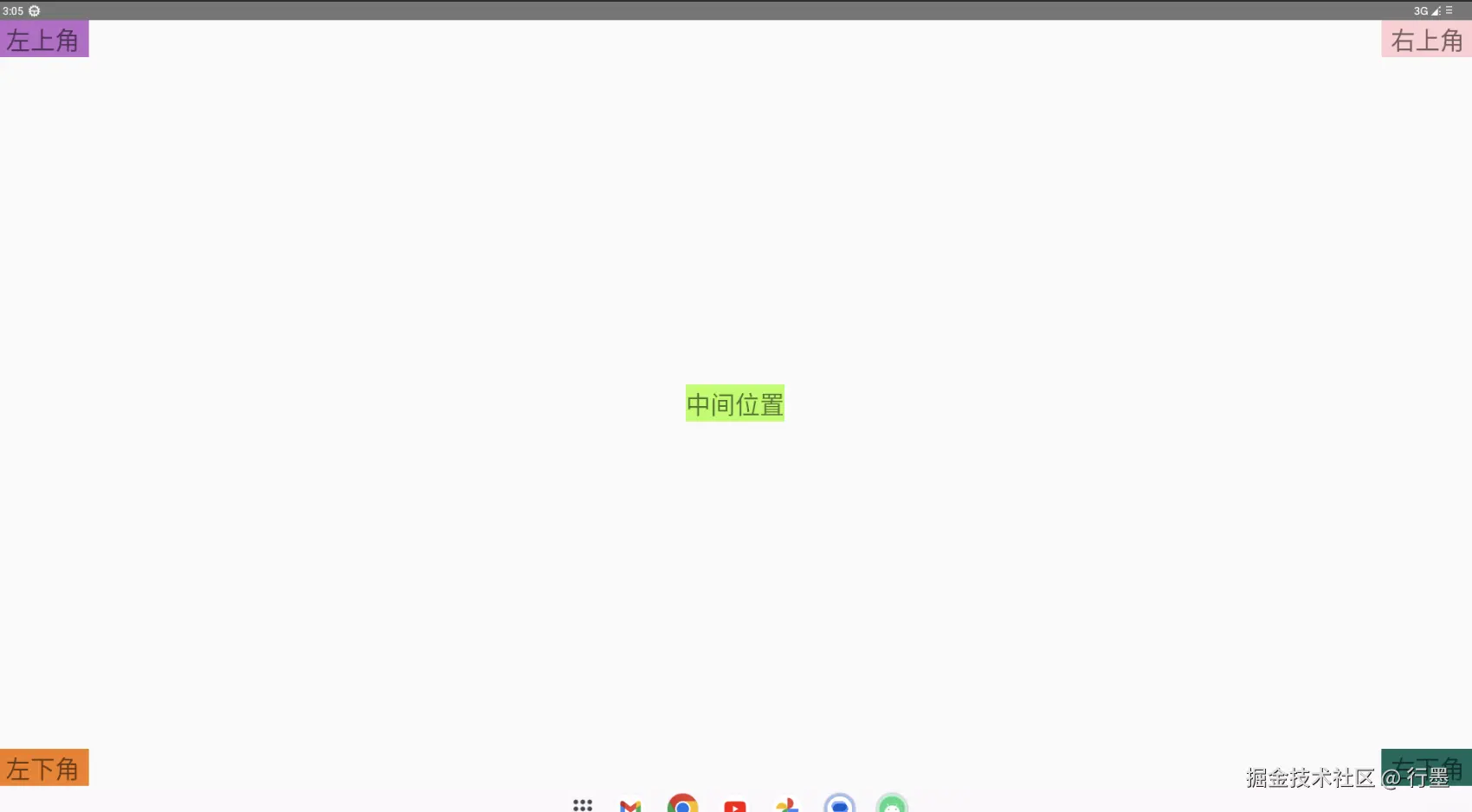

- 五个文本控件分别位于屏幕的左上角、右上角、右下角、左下角和正中心,通过简单的边缘约束实现精确定位
-
尺寸控制统一:
- 所有文本控件都通过
app:layout_constraintWidth_min="120dp"
保证最小宽度,避免内容过短时控件过窄,保持布局一致性
- 所有文本控件都通过
-
布局层级扁平:
- 所有控件直接位于
ConstraintLayout
下,无嵌套布局,有利于提升渲染性能
- 所有控件直接位于
这个布局展示了 Group
控件在批量控制控件可见性方面的便捷性,特别适合需要统一管理多个相关控件显示状态的场景(如表单区域、功能模块的显示 / 隐藏)。
