为打印预览对话框 PrintPreviewDialog 添加保存到 PDF 文件按钮源代码详解
- 前言
- [1、创建自定义打印预览对话框 CustomPrintPreviewDialog](#1、创建自定义打印预览对话框 CustomPrintPreviewDialog)
- 2、自定义打印预览对话框内部按钮和事件
- 3、自定义打印预览对话框外部按钮
- [4、Adobe PDF 与 Microsoft Print to PDF 的转换特点](#4、Adobe PDF 与 Microsoft Print to PDF 的转换特点)
-
- [4.1、Microsoft Print to PDF 转换 PDF](#4.1、Microsoft Print to PDF 转换 PDF)
- [4.2、Adobe PDF 转换 PDF](#4.2、Adobe PDF 转换 PDF)
前言
以 Windows 平台 Visual Studio 2017 C# 为开发工具，Windows Forms（.Net FrameWork 4.0）为框架，创建创建自定义打印预览对话框，并添加自定义按钮，以将打印文档内容保存到 PDF 文件。
1、创建自定义打印预览对话框 CustomPrintPreviewDialog
在项目中添加类，命名为 CustomPrintPreviewDialog : PrintPreviewDialog
csharp
using System;
using System.Drawing;
using System.Drawing.Printing;
using System.Windows.Forms;
namespace 命名空间
{
public partial class CustomPrintPreviewDialog : PrintPreviewDialog//以原始打印预览为基类
{
}
} 2、自定义打印预览对话框内部按钮和事件
2.1、自定义打印预览对话框内部按钮和事件
csharp
using static 命名空间.PublicStaticClass;
namespace 命名空间
{
public partial class CustomPrintPreviewDialog : PrintPreviewDialog
{
/// <summary>页面设置</summary>
private PageSetupDialog pageSetupDialog = new PageSetupDialog();
/// <summary>当前打印文档</summary>
private PrintDocument CurrentDocument;
/// <summary>获取和设置当前打印文档</summary>
public new PrintDocument Document
{
get => CurrentDocument;
set
{
CurrentDocument = value;
base.Document = value;
}
}
/// <summary>自定义打印预览对话框</summary>
public CustomPrintPreviewDialog()
{
// 获取打印预览对话框原生工具栏
if (!(this.Controls["toolStrip1"] is ToolStrip toolStrip)) return;
//初始化页面设置
pageSetupDialog = new PageSetupDialog
{
EnableMetric = true//打开毫米为单位，否则为1/100英寸
};
// 添加页面设置按钮，和内部单击事件
ToolStripButton PrintSettingsButton = new ToolStripButton("页面设置", null, (s, e) => PrintSettingsButton_Click())
{
DisplayStyle = ToolStripItemDisplayStyle.ImageAndText,// 显示样式
Image = Properties.Resources.PageSetup,//自定义按钮图标图像
ImageScaling = ToolStripItemImageScaling.SizeToFit,
Size = new Size(120, 40),// 设置按钮大小
Margin = new Padding(20, 2, 5, 2),// 设置边距控制位置
Alignment = ToolStripItemAlignment.Left,//.Right// 设置对齐方式
};
toolStrip.Items.Insert(0, PrintSettingsButton);//插入到PrintPreviewDialog工具栏最前面
// 添加保存为PDF文件按钮，和内部单击事件
ToolStripButton SavePDFButton = new ToolStripButton("保存为 PDF", null, (s, e) => PrintToPDF())
{
DisplayStyle = ToolStripItemDisplayStyle.ImageAndText,
Image = Properties.Resources.PDFFile,
ImageScaling = ToolStripItemImageScaling.SizeToFit,
ToolTipText = "保存为 PDF 文件"
};
toolStrip.Items.Insert(10, SavePDFButton);//插入第10个图标位置
}
/// <summary>打印设置按钮单击</summary>
private void PrintSettingsButton_Click()
{
pageSetupDialog.Document = this.PrintPreviewControl.Document;
pageSetupDialog.PageSettings = this.PrintPreviewControl.Document.DefaultPageSettings;
if (pageSetupDialog.ShowDialog() == DialogResult.OK)
{
this.Document.DefaultPageSettings = pageSetupDialog.PageSettings;
this.PrintPreviewControl.InvalidatePreview();//刷新预览
}
}
/// <summary>打印到PDF文件</summary>
private void PrintToPDF()
{
if (CurrentDocument == null)
{
MessageBox.Show("没有可打印的文档", "提示",MessageBoxButtons.OK, MessageBoxIcon.Warning);
return;
}
string PDFFilePath = string.Empty;
switch (printResultTableType)
{
case PrintResultTableType.AdcpDischargeMeasureResults:
PDFFilePath = SiteMeasureResultsFile.Replace(".SRF", "_ADCP流量测验记载表.PDF");
break;
case PrintResultTableType.AdcpVelocityDirectionResults:
PDFFilePath = SiteMeasureResultsFile.Replace(".SRF", "_ADCP流速流向成果表.PDF");
break;
case PrintResultTableType.PrintPreviewFormGraphics:
if (string.IsNullOrEmpty(ProjectDirectory))
{
PDFFilePath = Application.StartupPath + $"\\{ActiveFormName}窗体图形.PDF";
}
else
{
PDFFilePath = ProjectDirectory + $"\\{ActiveFormName}窗体图形.PDF";
}
break;
case PrintResultTableType.PrintPreviewGraphics:
if (string.IsNullOrEmpty(ProjectDirectory))
{
PDFFilePath = Application.StartupPath + $"\\{ActiveFormName}图形.PDF";
}
else
{
PDFFilePath = ProjectDirectory + $"\\{ActiveFormName}图形.PDF";
}
break;
}
string PrinterString = string.Empty;
if (CheckPdfPrinterExists(out PrinterString))
{
using (PrintDialog printDialog = new PrintDialog())
{
// 配置打印设置
PrinterSettings printerSettings = new PrinterSettings
{
PrinterName = PrinterString,//PDF 虚拟打印机名称
PrintToFile = true,//打开打印到文件
PrintFileName = PDFFilePath//打印的PDF文件路径名称
};
printDialog.Document = CurrentDocument;
printDialog.PrinterSettings = printerSettings;
// printDialog.UseEXDialog = true;
// 执行打印
CurrentDocument.PrinterSettings = printerSettings;
CurrentDocument.Print();
MessageBox.Show($"PDF文件已成功保存到：\r\n\r\n{PDFFilePath}", "导出成功", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
}
else
{
MessageBox.Show("未找到 Adobe 或微软 PDF 打印机","提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
}
/// <summary>检查 PDF虚拟打印机</summary>
/// <param name="PrinterString">输出 PDF 打印机名称</param>
/// <returns>返回是否存在 PDF 虚拟打印机</returns>
private bool CheckPdfPrinterExists(out string PrinterString)
{
foreach (string printer in PrinterSettings.InstalledPrinters)
{
if (printer.Contains("Microsoft Print to PDF") || printer.Contains("Adobe PDF") || printer.Contains("Acrobat Distiller"))
{
PrinterString = printer;
return true;
}
}
PrinterString = string.Empty;
return false;
}
}
} 2.2、公共静态类和打印预览分类枚举
csharp
namespace 命名空间
{
/// <summary>公共静态类</summary>
public static class PublicStaticClass
{
/// <summary>打印表类型</summary>
public static PrintResultTableType printResultTableType;
///<summary>活动窗体名称</summary>
public static string ActiveFormName = string.Empty;
}
/// <summary>打印成果表类型</summary>
public enum PrintResultTableType
{
/// <summary>打印预览ADCP流量测验成果表</summary>
AdcpDischargeMeasureResults = 0,
/// <summary>打印预览ADCP流速流向成果表</summary>
AdcpVelocityDirectionResults = 1,
/// <summary>打印预览图形</summary>
PrintPreviewGraphics = 2,
/// <summary>打印预览窗体图形</summary>
PrintPreviewFormGraphics = 3,
}
} 2.3、主窗调用自定义打印预览对话框
主窗体为MDI，以打印子窗体图像为例。
csharp
using static 命名空间.PublicStaticClass;
namespace 命名空间
{
public partial class AdcpProcesMainForm : Form
{
/// <summary>打印文档</summary>
private PrintDocument PrintDocument = null;
public AdcpProcesMainForm()
{
InitializeComponent();
this.MdiChildActivate += OnMdiChildActivated;
}
/// <summary>当前活动子窗口</summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void OnMdiChildActivated(object sender, EventArgs e)
{
var activeChild = this.ActiveMdiChild;
if (activeChild != null)
{
ActiveFormName =activeChild.Text;
}
}
private void PrintPreviewFormGraphicsMenu_Click(object sender, EventArgs e)
{
var activeChild = this.ActiveMdiChild;
if (this.ActiveMdiChild != null)
{
printResultTableType = PrintResultTableType.PrintPreviewFormGraphics;
//this.Hide();//隐藏主窗，配合Preview.FormClosed。
PrintDocument = new PrintDocument();
// 自定义打印预览
CustomPrintPreviewDialog Preview = new CustomPrintPreviewDialog
{
// ShowIcon = false,
StartPosition = FormStartPosition.CenterScreen,
WindowState = FormWindowState.Maximized,
Icon = Properties.Resources.AdcpTable, // 设置自定义打印预览图标
Text = "窗体打印预览", // 设置窗口标题
Height = Screen.PrimaryScreen.Bounds.Height,
Width = Screen.PrimaryScreen.Bounds.Width,
FormBorderStyle = FormBorderStyle.FixedDialog,
};
// 捕获子窗体的图形区域
Bitmap FormImage = new Bitmap(activeChild.Width, activeChild.Height);
activeChild.DrawToBitmap(FormImage, new Rectangle(0, 0, FormImage.Width, FormImage.Height));
PrintDocument.PrintPage += (s, args) =>
{
// 计算居中打印位置
Rectangle printArea = args.MarginBounds;
if (FormImage.Width > printArea.Width || FormImage.Height > printArea.Height)
{
// 按比例缩放
Size newSize = FitSize(FormImage.Size, printArea.Size);
int x = printArea.X + (printArea.Width - newSize.Width) / 2;
int y = printArea.Y + (printArea.Height - newSize.Height) / 2;
args.Graphics.DrawImage(FormImage,
new Rectangle(x, y, newSize.Width, newSize.Height));
}
else
{
// 居中打印
int x = printArea.X + (printArea.Width - FormImage.Width) / 2;
int y = printArea.Y + (printArea.Height - FormImage.Height) / 2;
args.Graphics.DrawImage(FormImage, x, y);
}
};
/// <summary>打印预览窗体关闭后，恢复主窗显示</summary>
//Preview.FormClosed += (s, args) =>
// {
// this.Show(); // 预览关闭时重新显示主窗体
// this.Activate(); // 激活主窗体获得焦点
// };
Preview.Document = PrintDocument;
if (FormImage.Width > FormImage.Height)
{
Preview.Document.DefaultPageSettings.Landscape = true;
Preview.Landscape = true;
}
else
{
Preview.Document.DefaultPageSettings.Landscape = false;
Preview.Landscape = false;
}
Preview.ShowDialog(this);
}
}
}
}3、自定义打印预览对话框外部按钮
3.1、自定义打印预览对话框外部按钮
csharp
namespace 命名空间
{
public partial class CustomPrintPreviewDialog : PrintPreviewDialog
{
/// <summary>页面设置</summary>
private PageSetupDialog pageSetupDialog = new PageSetupDialog();
/// <summary>保存到PDF按钮事件</summary>
public event EventHandler SavePDFButtonClick;
/// <summary>自定义打印预览对话框</summary>
public CustomPrintPreviewDialog()
{
// 获取打印预览对话框原生工具栏
if (!(this.Controls["toolStrip1"] is ToolStrip toolStrip)) return;
//初始化页面设置
pageSetupDialog = new PageSetupDialog
{
EnableMetric = true//打开毫米为单位，否则为1/100英寸
};
// 添加页面设置按钮，和内部单击事件
ToolStripButton PrintSettingsButton = new ToolStripButton("页面设置", null, (s, e) => PrintSettingsButton_Click())
{
DisplayStyle = ToolStripItemDisplayStyle.ImageAndText,// 显示样式
Image = Properties.Resources.PageSetup,//自定义按钮图标图像
ImageScaling = ToolStripItemImageScaling.SizeToFit,
Size = new Size(120, 40),// 设置按钮大小
Margin = new Padding(20, 2, 5, 2),// 设置边距控制位置
Alignment = ToolStripItemAlignment.Left,//.Right// 设置对齐方式
};
toolStrip.Items.Insert(0, PrintSettingsButton);//插入到PrintPreviewDialog工具栏最前面
// 添加保存为PDF文件按钮，和外部单击事件
ToolStripButton SavePDFButton = new ToolStripButton("保存为 PDF", null, (s, e) => SavePDFButtonClick?.Invoke(this, e))
{
DisplayStyle = ToolStripItemDisplayStyle.ImageAndText,
Image = Properties.Resources.PDFFile,
ImageScaling = ToolStripItemImageScaling.SizeToFit,
ToolTipText = "保存为 PDF 文件"
};
toolStrip.Items.Insert(10, SavePDFButton);//插入第10个图标位置
}
/// <summary>打印设置按钮单击</summary>
private void PrintSettingsButton_Click()
{
pageSetupDialog.Document = this.PrintPreviewControl.Document;
pageSetupDialog.PageSettings = this.PrintPreviewControl.Document.DefaultPageSettings;
if (pageSetupDialog.ShowDialog() == DialogResult.OK)
{
this.Document.DefaultPageSettings = pageSetupDialog.PageSettings;
this.PrintPreviewControl.InvalidatePreview();//刷新预览
}
}
}
} 3.2、公共静态类和打印预览分类枚举
csharp
namespace 命名空间
{
/// <summary>公共静态类</summary>
public static class PublicStaticClass
{
/// <summary>打印表类型</summary>
public static PrintResultTableType printResultTableType;
///<summary>活动窗体名称</summary>
public static string ActiveFormName = string.Empty;
}
/// <summary>打印成果表类型</summary>
public enum PrintResultTableType
{
/// <summary>打印预览ADCP流量测验成果表</summary>
AdcpDischargeMeasureResults = 0,
/// <summary>打印预览ADCP流速流向成果表</summary>
AdcpVelocityDirectionResults = 1,
/// <summary>打印预览图形</summary>
PrintPreviewGraphics = 2,
/// <summary>打印预览窗体图形</summary>
PrintPreviewFormGraphics = 3,
}
} 3.3、主窗调用自定义打印预览对话框
csharp
namespace 命名空间
{
public partial class AdcpProcesMainForm : Form
{
/// <summary>打印文档</summary>
private PrintDocument PrintDocument = null;
public AdcpProcesMainForm()
{
InitializeComponent();
this.MdiChildActivate += OnMdiChildActivated;
}
/// <summary>当前活动子窗口</summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void OnMdiChildActivated(object sender, EventArgs e)
{
var activeChild = this.ActiveMdiChild;
if (activeChild != null)
{
ActiveFormName =activeChild.Text;
}
}
private void PrintPreviewFormGraphicsMenu_Click(object sender, EventArgs e)
{
var activeChild = this.ActiveMdiChild;
if (this.ActiveMdiChild != null)
{
printResultTableType = PrintResultTableType.PrintPreviewFormGraphics;
//this.Hide();
PrintDocument = new PrintDocument();
// 打印预览
CustomPrintPreviewDialog Preview = new CustomPrintPreviewDialog
{
// ShowIcon = false,
StartPosition = FormStartPosition.CenterScreen,
WindowState = FormWindowState.Maximized,
Icon = Properties.Resources.AdcpTable, // 设置系统信息图标
Text = "窗体打印预览", // 设置窗口标题
Height = Screen.PrimaryScreen.Bounds.Height,
Width = Screen.PrimaryScreen.Bounds.Width,
FormBorderStyle = FormBorderStyle.FixedDialog,
};
// 捕获子窗体的图形区域
Bitmap FormImage = new Bitmap(activeChild.Width, activeChild.Height);
//Bitmap FormImage = new Bitmap(activeChild.ClientSize.Width, activeChild.ClientSize.Height );
activeChild.DrawToBitmap(FormImage, new Rectangle(0, 0, FormImage.Width, FormImage.Height));
PrintDocument.PrintPage += (s, args) =>
{
// 计算居中打印位置
Rectangle printArea = args.MarginBounds;
if (FormImage.Width > printArea.Width || FormImage.Height > printArea.Height)
{
// 按比例缩放
Size newSize = FitSize(FormImage.Size, printArea.Size);
int x = printArea.X + (printArea.Width - newSize.Width) / 2;
int y = printArea.Y + (printArea.Height - newSize.Height) / 2;
args.Graphics.DrawImage(FormImage,
new Rectangle(x, y, newSize.Width, newSize.Height));
}
else
{
// 居中打印
int x = printArea.X + (printArea.Width - FormImage.Width) / 2;
int y = printArea.Y + (printArea.Height - FormImage.Height) / 2;
args.Graphics.DrawImage(FormImage, x, y);
}
};
//Preview.FormClosed += (s, args) =>
// {
// this.Show(); // 预览关闭时重新显示主窗体
// this.Activate(); // 激活主窗体获得焦点
// };
Preview.Document = PrintDocument;
if (FormImage.Width > FormImage.Height)
{
Preview.Document.DefaultPageSettings.Landscape = true;
Preview.Landscape = true;
}
else
{
Preview.Document.DefaultPageSettings.Landscape = false;
Preview.Landscape = false;
}
Preview.SavePDFButtonClick += SavePDFButton_Click;//按钮事件
Preview.ShowDialog(this);//
}
}
/// <summary>保存为PDF文件</summary>
/// <param name="sender"></param>
/// <param name="e">事件基类</param>
private void SavePDFButton_Click(object sender, EventArgs e)
{
string PrinterString = string.Empty;
if (CheckPdfPrinterExists(out PrinterString))//检查和获取PDF虚拟打印机名称
{
string PDFFilePath = string.Empty;
switch (printResultTableType)
{
case PrintResultTableType.AdcpDischargeMeasureResults:
PDFFilePath = SiteMeasureResultsFile.Replace(".SRF", "_ADCP流量测验记载表.PDF");
break;
case PrintResultTableType.AdcpVelocityDirectionResults:
PDFFilePath = SiteMeasureResultsFile.Replace(".SRF", "_ADCP流速流向成果表.PDF");
break;
case PrintResultTableType.PrintPreviewFormGraphics:
if (string.IsNullOrEmpty(ProjectDirectory))
{
PDFFilePath = Application.StartupPath + $"\\{ActiveFormName}窗体图形.PDF";
}
else
{
PDFFilePath = ProjectDirectory + $"\\{ActiveFormName}窗体图形.PDF";
}
break;
case PrintResultTableType.PrintPreviewGraphics:
if (string.IsNullOrEmpty(ProjectDirectory))
{
PDFFilePath = Application.StartupPath + $"\\{ActiveFormName}图形.PDF";
}
else
{
PDFFilePath = ProjectDirectory + $"\\{ActiveFormName}图形.PDF";
}
break;
}
if (PrintDocument != null)
{
using (PrintDialog printDialog = new PrintDialog())
{
// 配置打印设置
PrinterSettings printerSettings = new PrinterSettings
{
PrinterName = PrinterString,//PDF 虚拟打印机名称
PrintToFile = true,//打开打印到文件
PrintFileName = PDFFilePath//打印的PDF文件路径名称
};
printDialog.Document = PrintDocument;
printDialog.PrinterSettings = printerSettings;
// printDialog.UseEXDialog = true;
// 执行打印
PrintDocument.PrinterSettings = printerSettings;
PrintDocument.Print();
MessageBox.Show($"PDF文件已成功保存到：\r\n\r\n{PDFFilePath}", "导出成功", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
}
}
else
{
//throw new Exception("未找到 Adobe 或微软 PDF 打印机");
MessageBox.Show("未找到 Adobe 或微软 PDF 打印机", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
}
/// <summary>检查 PDF虚拟打印机</summary>
/// <param name="PrinterString">输出 PDF 打印机名称</param>
/// <returns>返回是否存在 PDF 虚拟打印机</returns>
private bool CheckPdfPrinterExists(out string PrinterString)
{
foreach (string printer in PrinterSettings.InstalledPrinters)
{
if (printer.Contains("Microsoft Print to PDF") || printer.Contains("Adobe PDF") || printer.Contains("Acrobat Distiller"))
{
PrinterString = printer;
return true;
}
}
PrinterString = string.Empty;
return false;
}
}
}4、Adobe PDF 与 Microsoft Print to PDF 的转换特点
4.1、Microsoft Print to PDF 转换 PDF
采用 Microsoft Print to PDF 虚拟打印机转换 PDF 文件，如果是窗体或图像，像素没有 Adobe PDF 虚拟打印机转换 PDF 清晰。
Microsoft Print to PDF 虚拟打印设置，可以设置 PrintToFile = true 直接指定文件输出：
csharp
PrinterSettings printerSettings = new PrinterSettings
{
PrinterName = PrinterString,//PDF 虚拟打印机名称
PrintToFile = true,//打开打印到文件
PrintFileName = PDFFilePath//打印的PDF文件路径名称
};4.2、Adobe PDF 转换 PDF
采用 Adobe PDF 虚拟打印机转换 PDF 文件，图像像素明显清晰。设置 PrintToFile = true 直接指定文件输出，输出的文件类型为 PostScript，文件扩展名为 PS，需要再转换为 PDF 文件，原创说明网络上很难搜索到这方面的详细描叙。设置 PrintToFile = false 直接可以输出 PDF 文件，默认输出到系统文档目录 Document\document.pdf 输出，不能直接定义文件名和目录。
需要指定输出 PDF 文件可以采用输出先输出 *.PS，再转换为 *.PDF。
转换关键，计算机必须安装有 Adobo Acrobat Pro ，在项目中引用 COM 类库 Acrobat Distiller 或 Acrobat。
引用 COM 类库 Acrobat Distiller 后声明：
using ACRODISTXLib;
csharp
String PSFile = PDFFilePath.Replace(".PDF", ".PS");
PrinterSettings printerSettings = new PrinterSettings
{
PrinterName = PrinterString,//PDF 虚拟打印机名称
PrintToFile = true,//打开打印到文件
PrintFileName = PSFilePath//打印的PS文件路径名称
};
CurrentPrintDocument.PrintController = new StandardPrintController();
CurrentPrintDocument.PrinterSettings = printerSettings;
CurrentPrintDocument.DefaultPageSettings.Landscape = Landscape;
CurrentPrintDocument.Print();
System.Threading.Thread.Sleep(200);
if (File.Exists(PSFilePath))
{
PdfDistiller PdfDistiller = new PdfDistiller();
PdfDistiller.FileToPDF(PSFile, PDFFilePath, "Standard");
if (File.Exists(PDFFilePath))
{
String LOGFile = PDFFilePath.Replace(".PDF", ".LOG");
File.Delete(PSFile);//删除转换过程文件
File.Delete(LOGFile);//删除转换日志文件
MessageBox.Show($"PDF文件已成功保存到：\r\n\r\n{PDFFilePath}", "导出成功", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
Marshal.ReleaseComObject(PdfDistiller);//卸载 Distiller 进程
PdfDistiller = null;

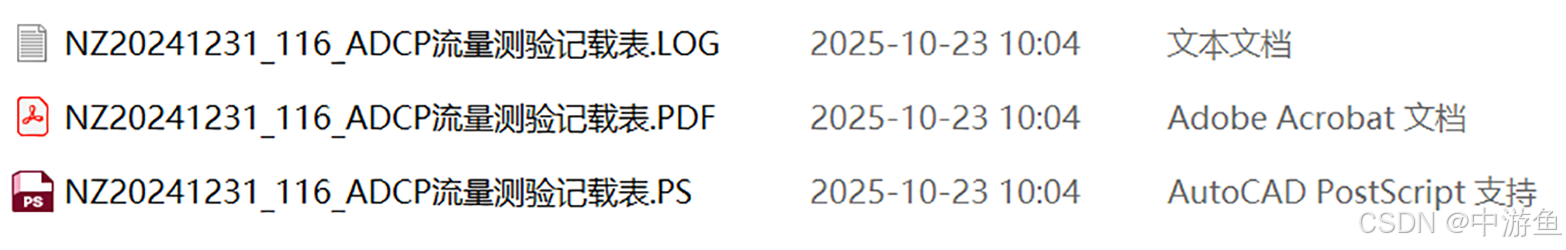

} 转换结果：
其它转换中解决的问题：
1、首先提示，上述代码中没有处理错误消息！

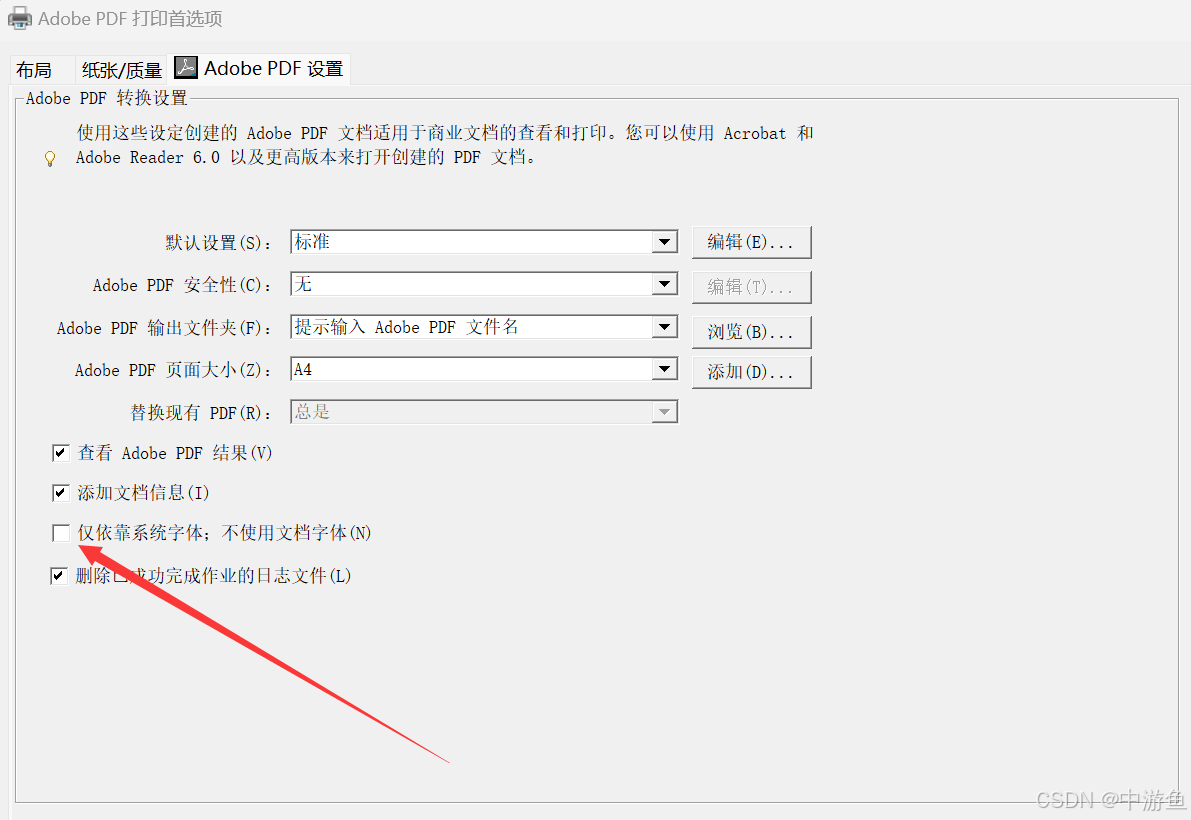

2、使用 PrintToFile = true 打印到 PS 文件，必须取消勾选仅依靠系统字体；不使用文档字体，否则程序弹出错误。
通过程序修改注册表可以取消勾选仅依靠系统字体；不使用文档字体
信息位置：\HKEY_CURRENT_USER\Printers\DevModePerUser\Adobe PDF
主键：HKEY_CURRENT_USER
子健：Printers\DevModePerUser
键名：Adobe PDF
键值：二进制 Binary 第 1164 个数设置为 0
SubKey = "Printers\\DevModePerUser\\";
object AdobePDFobject = null;
PdfRegKey(RegDomain.CurrentUser, SubKey, "Adobe PDF", ref AdobePDFobject, RegValueKind.Binary);//读注册表
byte[] AdobePDFArray = (byte[])AdobePDFobject;
AdobePDFArray[1164] = 0;
AdobePDFobject = AdobePDFArray;
PdfRegKey(RegDomain.CurrentUser, SubKey, "Adobe PDF", ref AdobePDFobject, RegValueKind.Binary,true );//写注册表该设置值写入了很多地方：
-
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Print\Printers\Adobe PDF\PrinterDriverData\DistillerHostFontHasMostFonts
-
HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\Windows NT\CurrentVersion\Print\Printers\Adobe PDF\PrinterDriverData\DistillerHostFontHasMostFonts
-
HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Control\Print\Printers\Adobe PDF\PrinterDriverData\DistillerHostFontHasMostFonts
-
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Print\Printers\Adobe PDF\PrinterDriverData\DistillerHostFontHasMostFonts
-
HKEY_CURRENT_USER\Printers\DevModePerUser\Adobe PDF
-
HKEY_CURRENT_USER\Printers\DevModes2\Adobe PDF
只有使用用户权限修改 HKEY_CURRENT_USER\Printers\DevModePerUser\Adobe PDF 即可。

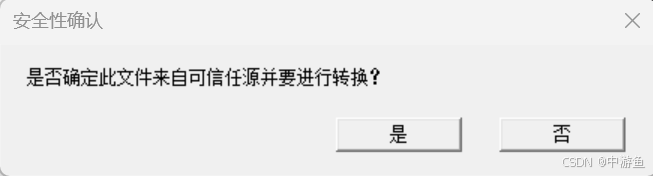

3、PS 转换为 PDF 默认弹出安全性确定
可以运行 Acrobat Distiller 勾选信任通过所有文件:
通过程序修改注册表可以勾选信任通过所有文件：
SubKey = "Software\\Adobe\\Acrobat Distiller\\DC\\Preferences\\"; //通过所有输入文件的安全性，不弹出安全性对话框
object bTrustAllFiles =new byte[] {0};
PdfRegKey(RegDomain.CurrentUser, SubKey, "bTrustAllFiles", ref bTrustAllFiles, RegValueKind.Binary, true);以上针对 Adobo Acrobat Pro 2023 版本。
