基于mac地直划分vlan实现不同vlan间数据传输

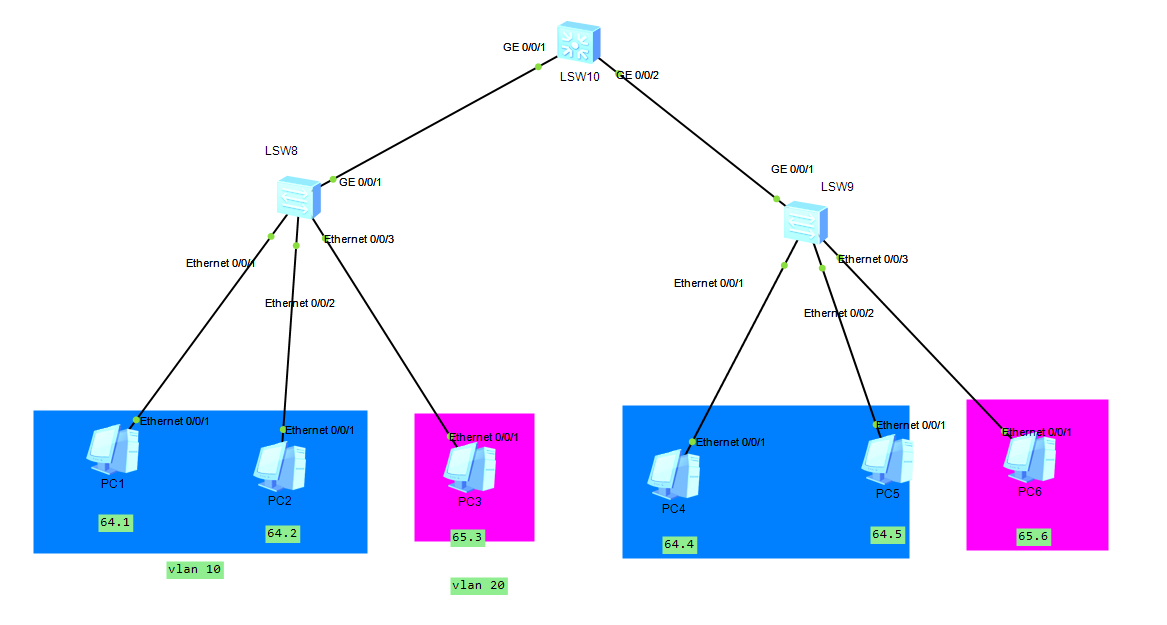

1.模型构建

实验目地：通过mac地址划分vlan，然后通过创新虚拟接口实现不同vlan间主机通信。mac地址对照表如下：

|-----|----------------|
| 主机 | mac地址 |
| pc1 | 5489-98be-2cf8 |
| pc2 | 5489-9831-4830 |
| pc3 | 5489-981f-364f |
| pc4 | 5489-988c-7d7d |
| pc5 | 5489-98d8-028c |
| pc6 | 5489-9860-5a6d |

2.具体步骤

2.1首先在LSW8，LSW9上通过mac划分vlan，

具体步骤：1.创建vlan 10 、20.

2.进入对应vlan将所属pc进行mac地址绑定。（pc1，pc2，pc4，pc5绑定在vlan 10中，其绑定在vlan 20中）

3.设置对应端口向下数据传输时要去掉vlan标签

复制代码

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]vlan batch 10 20
Info: This operation may take a few seconds. Please wait for a moment...done.
[Huawei]vlan 10
[Huawei-vlan10]mac-vlan mac-address 5489-98be-2cf8
[Huawei-vlan10]mac-vlan mac-address 5489-9831-4830
[Huawei-vlan10]quit
[Huawei]vlan 20
[Huawei-vlan20]mac-vlan mac-address 5489-981f-364f
[Huawei-vlan20]quit
[Huawei]interface Ethernet 0/0/1
[Huawei-Ethernet0/0/1]port hybrid untagged vlan 10 20
[Huawei-Ethernet0/0/1]quit

[Huawei]interface Ethernet 0/0/2
[Huawei-Ethernet0/0/2]port hybrid untagged vlan 10 20
[Huawei-Ethernet0/0/2]quit

[Huawei]interface Ethernet 0/0/3
[Huawei-Ethernet0/0/3]port hybrid untagged vlan 10 20
[Huawei-Ethernet0/0/3]quit
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]port hybrid tagged vlan 10 20
[Huawei-GigabitEthernet0/0/1]quit

4.使能mac-vlan功能

复制代码

[Huawei]interface Ethernet 0/0/1
[Huawei-Ethernet0/0/1]mac-vlan enable
Info: This operation may take a few seconds. Please wait for a moment...done.
[Huawei-Ethernet0/0/1]quit

[Huawei]interface Ethernet 0/0/2
[Huawei-Ethernet0/0/2]mac-vlan enable
Info: This operation may take a few seconds. Please wait for a moment...done.
[Huawei-Ethernet0/0/2] User interface con0 is available
[Huawei-Ethernet0/0/3]quit

[Huawei]interface Ethernet 0/0/3
[Huawei-Ethernet0/0/3]mac-vlan enable
Info: This operation may take a few seconds. Please wait for a moment...done.

LSW9配置与LSW8类似。

2.2 路由交换机配置

要实现不同vlan间通信需要对vlan创建相应SVI并配置ip地址，另外还需要对端口进行配置(干道链路配置：1.使用trunk接口进行配置，2.使用hybrid接口进行配置)

复制代码

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]vlan batch 10 20
Info: This operation may take a few seconds. Please wait for a moment...done.

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]port hybrid tagged vlan 10 20
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]interface GigabitEThernet 0/0/2
[Huawei-GigabitEthernet0/0/2]port hybrid tagged vlan 10 20
[Huawei-GigabitEthernet0/0/2]quit
[Huawei]interface vlanif 10
[Huawei-Vlanif10]ip address 192.168.64.254 24
[Huawei-Vlanif10]quit
[Huawei]interface vlanif 20
[Huawei-Vlanif20]ip address 192.168.65.254 255.255.255.0
[Huawei-Vlanif20]quit
[Huawei] User interface con0 is available

3.实验结果

|-----|-----|---|
| pc1 | pc2 | 通 |
| pc1 | pc3 | 通 |
| pc1 | pc4 | 通 |
| pc3 | pc6 | 通 |
