flutter中WebView的使用及JavaScript桥接的问题记录

一、在原生安卓中的使用

在原生安卓中一般采用的是@JavascriptInterface注解和WebView的addJavascriptInterface方法实现桥接

1. 实现一个@JavascriptInterface的注解。

   class JavaScriptCall() {

    @JavascriptInterface
    fun CallApp(string: String) {
        //{"action":"geolocationGet","jsCallBackId":"func1703575966310","params":{"coordinate":1,"withReGeocode":false}}
        LogUtils.e("CallApp" + string)
    }

   }

2. 继承WebView使用addJavascriptInterface添加桥接方法。

   class BridgeWebView : WebView{
   var bridgeJs = JavaScriptCall(this)

    constructor(context: Context) : super(context) {
        init()
    }

    constructor(context: Context, attrs: AttributeSet?) : super(context, attrs) {
        init()
    }

    constructor(context: Context, attrs: AttributeSet?, defStyleAttr: Int) : super(context, attrs, defStyleAttr) {
        init()
    }

    constructor(context: Context, attrs: AttributeSet?, defStyleAttr: Int, defStyleRes: Int) : super(context, attrs, defStyleAttr, defStyleRes) {
        init()
    }

    private fun init() {
        addJavascriptInterface(bridgeJs, "ISANDNative")
    }

   }

3. js端调用桥接方法。

   // JavaScript代码调用Android原生
   ISANDNative.CallApp('{"action":"closeWebView","jsCallBackId":"...","params":{...}}');

二、在flutter端的使用

1. 在pubspec.yaml中引用webview的包。

   webview_flutter: ^4.0.7

2. 创建一个widget实现WebViewController和WebViewWidget(老版的WebView已不建议使用)。

   import 'package:flutter/material.dart';
   import 'package:flutter/services.dart';
   import 'package:get/get.dart';
   import 'package:webview_flutter/webview_flutter.dart';

   class UserAgreementWebPage extends StatefulWidget {
   final String url;
   final String title;

   const UserAgreementWebPage({Key? key, required this.url, this.title = ''}) : super(key: key);

   @override
   State<UserAgreementWebPage> createState() => _UserAgreementWebPageState();
   }

   class _UserAgreementWebPageState extends State<UserAgreementWebPage> {
   late final WebViewController _controller;
   bool _isLoading = true;

   @override
   void initState() {
   super.initState();

    // 初始化WebViewController
    _controller = WebViewController()
      ..setJavaScriptMode(JavaScriptMode.unrestricted)
      ..addJavaScriptChannel(
        'ISANDNative',
        onMessageReceived: (JavaScriptMessage message) {
          print('接收到JS消息: ${message.message}');
          Get.back();
        },
      )
    // 添加额外的错误处理通道，便于调试
      ..addJavaScriptChannel(
        'debugChannel',
        onMessageReceived: (JavaScriptMessage message) {
          print('调试信息: ${message.message}');
        },
      )
      ..setNavigationDelegate(
        NavigationDelegate(
          onPageStarted: (String url) {
            setState(() {
              _isLoading = true;
            });
          },
          onPageFinished: (String url) {
            setState(() {
              _isLoading = false;
            });
          },
          onWebResourceError: (WebResourceError error) {
            setState(() {
              _isLoading = false;
            });
            // 处理错误
            print('Web错误: ${error.description}');
          },
          onNavigationRequest: (NavigationRequest request) async {
            print("onNavigationRequest:${request.url}");
            return NavigationDecision.navigate;
          },
        ),
      )
      ..loadRequest(Uri.parse(widget.url));

   }

   @override
   Widget build(BuildContext context) {
   return AnnotatedRegion<SystemUiOverlayStyle>(
   value: SystemUiOverlayStyle(
   statusBarColor: Colors.white, // 设置状态栏背景色
   ),
   child: SafeArea(
   child: Stack(
   children: [
   WebViewWidget(controller: _controller),
   if (_isLoading)
   const Center(
   child: CircularProgressIndicator(),
   ),
   ],
   ),
   ),
   );
   }

   @override
   void dispose() {
   // 恢复状态栏的默认样式
   SystemChrome.setSystemUIOverlayStyle(const SystemUiOverlayStyle(
   statusBarColor: Colors.transparent, // 根据您应用的默认样式设置
   statusBarIconBrightness: Brightness.dark, // 根据您应用的默认样式设置
   ));
   super.dispose();
   }
   }

其中的addJavaScriptChannel即是添加桥接的方法，ISANDNative为通道名称，onMessageReceived中为收到的消息。

3. 通过上述配置后会发现实际还是收不到通道的消息，这是因为原生安卓和flutter调用的差异导致的。

Android原生调用方式：

// JavaScript代码调用Android原生
ISANDNative.CallApp('{"action":"closeWebView","jsCallBackId":"...","params":{...}}');

Flutter调用方式：

// JavaScript代码调用Flutter
ISANDNative.postMessage('{"action":"closeWebView","jsCallBackId":"...","params":{...}}');

如果Web端采用了flutter的带哦用方式，我们就可以正常收到通道的消息了。

4. 如果您无法修改Web页面的JavaScript代码，可以在Flutter中注入一个适配脚本，将CallApp调用转换为postMessage。完整代码如下：

   import 'package:flutter/material.dart';
   import 'package:flutter/services.dart';
   import 'package:get/get.dart';
   import 'package:webview_flutter/webview_flutter.dart';

   class UserAgreementWebPage extends StatefulWidget {
   final String url;
   final String title;

   const UserAgreementWebPage({Key? key, required this.url, this.title = ''}) : super(key: key);

   @override
   State<UserAgreementWebPage> createState() => _UserAgreementWebPageState();
   }

   class _UserAgreementWebPageState extends State<UserAgreementWebPage> {
   late final WebViewController _controller;
   bool _isLoading = true;

   @override
   void initState() {
   super.initState();

    // 初始化WebViewController
    _controller = WebViewController()
      ..setJavaScriptMode(JavaScriptMode.unrestricted)
      ..addJavaScriptChannel(
        'ISANDNative',
        onMessageReceived: (JavaScriptMessage message) {
          print('接收到JS消息: ${message.message}');
          Get.back();
        },
      )
    // 添加额外的错误处理通道，便于调试
      ..addJavaScriptChannel(
        'debugChannel',
        onMessageReceived: (JavaScriptMessage message) {
          print('调试信息: ${message.message}');
        },
      )
      ..setNavigationDelegate(
        NavigationDelegate(
          onPageStarted: (String url) {
            setState(() {
              _isLoading = true;
            });
          },
          onPageFinished: (String url) {
            // 注入适配脚本，将CallApp调用转换为postMessage
            _controller.runJavaScript('''
            // 创建一个包装器来捕获CallApp调用
            window.ISANDNative_Original = window.ISANDNative;
            window.ISANDNative = {
              CallApp: function(jsonString) {
                // 转换为Flutter的调用方式
                window.ISANDNative_Original.postMessage(jsonString);
              }
            };
          ''');

            setState(() {
              _isLoading = false;
            });
          },
          onWebResourceError: (WebResourceError error) {
            setState(() {
              _isLoading = false;
            });
            // 处理错误
            print('Web错误: ${error.description}');
          },
          onNavigationRequest: (NavigationRequest request) async {
            print("onNavigationRequest:${request.url}");
            return NavigationDecision.navigate;
          },
        ),
      )
      ..loadRequest(Uri.parse(widget.url));

   }

   @override
   Widget build(BuildContext context) {
   return AnnotatedRegion<SystemUiOverlayStyle>(
   value: SystemUiOverlayStyle(
   statusBarColor: Colors.white, // 设置状态栏背景色
   ),
   child: SafeArea(
   child: Stack(
   children: [
   WebViewWidget(controller: _controller),
   if (_isLoading)
   const Center(
   child: CircularProgressIndicator(),
   ),
   ],
   ),
   ),
   );
   }

   @override
   void dispose() {
   // 恢复状态栏的默认样式
   SystemChrome.setSystemUIOverlayStyle(const SystemUiOverlayStyle(
   statusBarColor: Colors.transparent, // 根据您应用的默认样式设置
   statusBarIconBrightness: Brightness.dark, // 根据您应用的默认样式设置
   ));
   super.dispose();
   }
   }

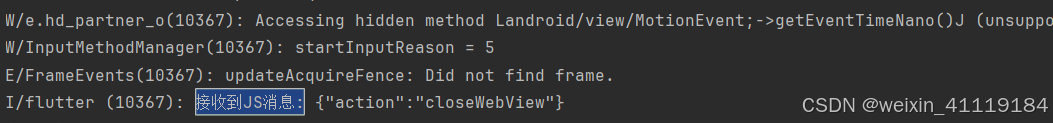

5. 经过上述操作后，就可以在日志打印中看到我们收到的消息了。
