windows系统Docker装Milvus向量数据库

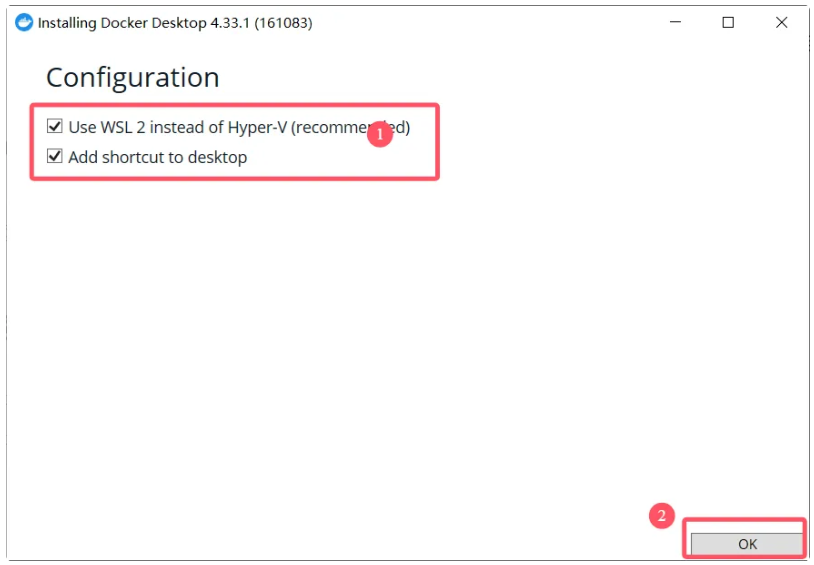

一. 安装windows系统docker

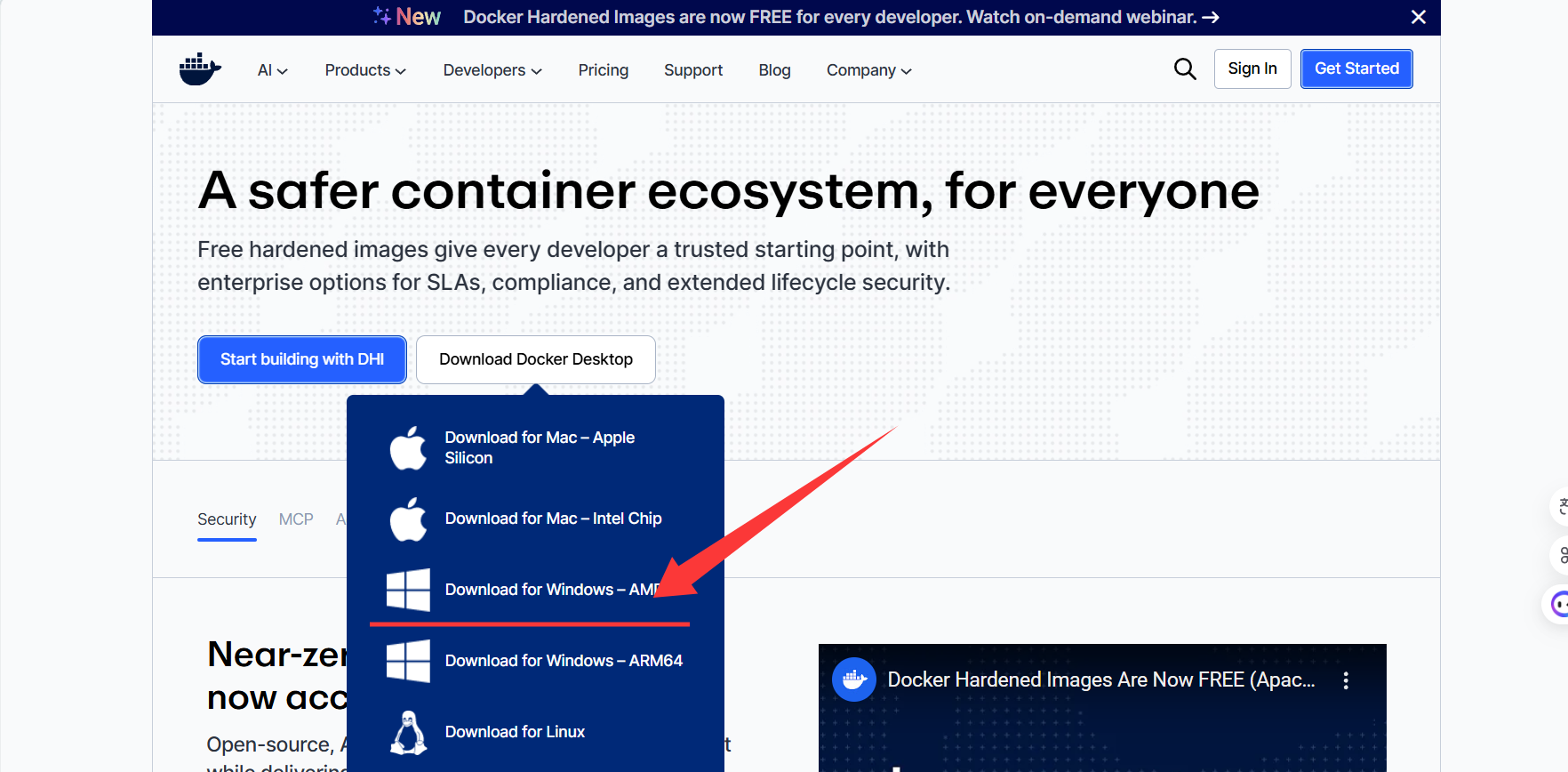

官网下载：https://www.docker.com/

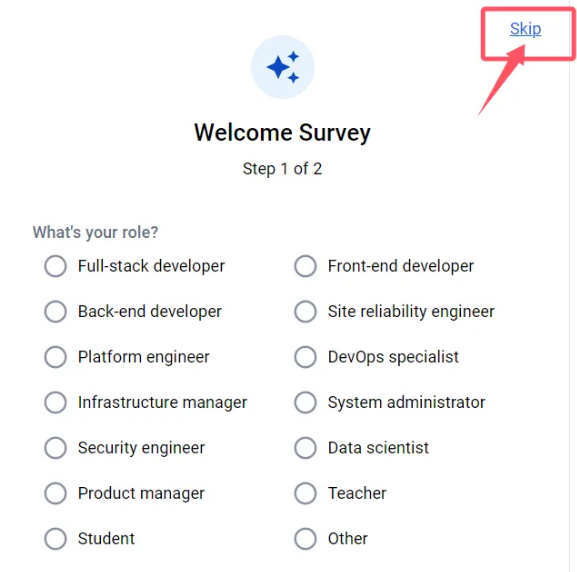

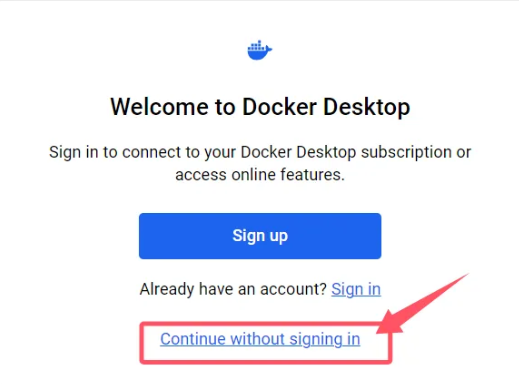

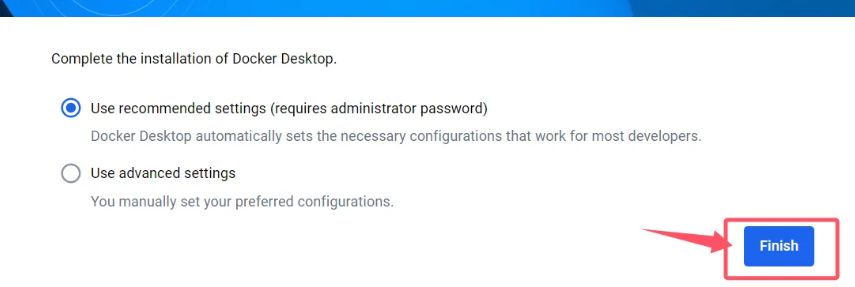

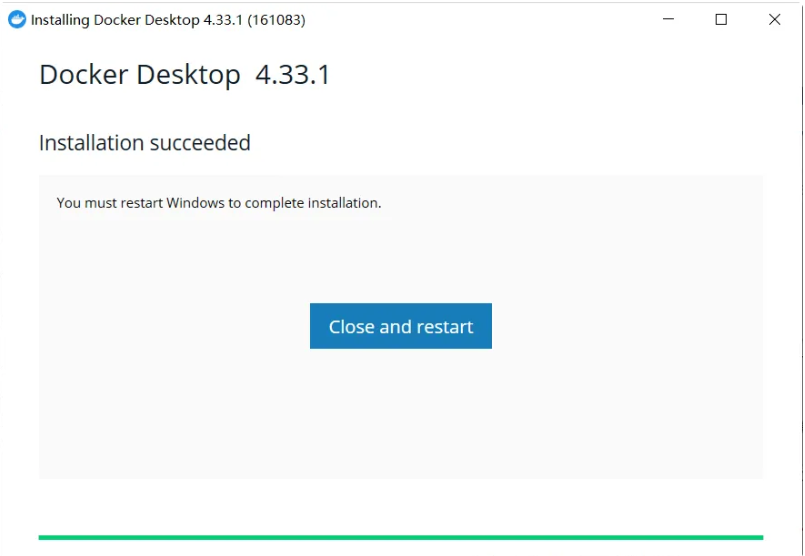

Docker安装成功

国内镜像配置

{

"builder": {

"gc": {

"defaultKeepStorage": "20GB",

"enabled": true

}

},

"experimental": false,

"registry-mirrors": [

"https://docker.1panel.live",

"https://hub.rat.dev/",

"https://docker.chenby.cn",

"https://docker.m.daocloud.io"

]

}

9.启动cmd

docker ps

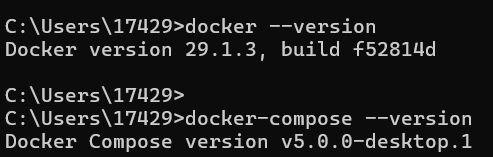

输入以下命令以验证 Docker 和 Docker Compose 是否安装成功：

docker --version

docker-compose --version

二. docker安装milvus

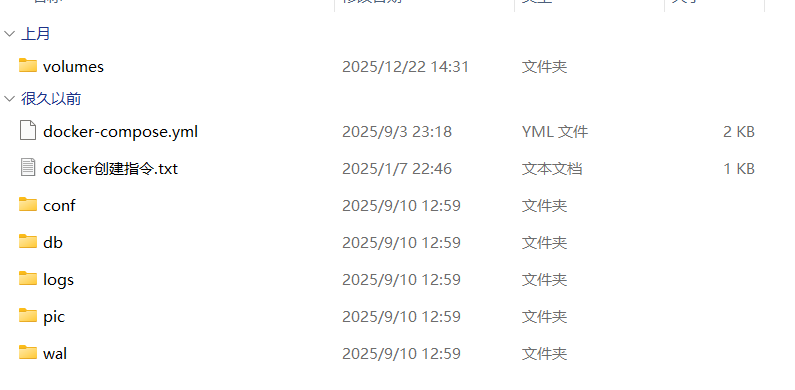

（1）首先创建一个文件夹比如milvus,再创建如下文件

（2）docker-compose.yml文件代码如下:

html 复制代码

version: '3.5'

services:
  etcd:
    container_name: milvus-etcd
    image: quay.io/coreos/etcd:v3.5.5
    environment:
      - ETCD_AUTO_COMPACTION_MODE=revision
      - ETCD_AUTO_COMPACTION_RETENTION=1000
      - ETCD_QUOTA_BACKEND_BYTES=4294967296
      - ETCD_SNAPSHOT_COUNT=50000
    volumes:
      - ${DOCKER_VOLUME_DIRECTORY:-.}/volumes/etcd:/etcd
    command: etcd -advertise-client-urls=http://127.0.0.1:2379 -listen-client-urls http://0.0.0.0:2379 --data-dir /etcd
    healthcheck:
      test: ["CMD", "etcdctl", "endpoint", "health"]
      interval: 30s
      timeout: 20s
      retries: 3

  minio:
    container_name: milvus-minio
    image: minio/minio:RELEASE.2023-03-20T20-16-18Z
    environment:
      MINIO_ACCESS_KEY: minioadmin
      MINIO_SECRET_KEY: minioadmin
    ports:
      - "9001:9001"
      - "9000:9000"
    volumes:
      - ${DOCKER_VOLUME_DIRECTORY:-.}/volumes/minio:/minio_data
    command: minio server /minio_data --console-address ":9001"
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:9000/minio/health/live"]
      interval: 30s
      timeout: 20s
      retries: 3

  standalone:
    container_name: milvus-standalone
    image: milvusdb/milvus:v2.3.10
    command: ["milvus", "run", "standalone"]
    security_opt:
    - seccomp:unconfined
    environment:
      ETCD_ENDPOINTS: etcd:2379
      MINIO_ADDRESS: minio:9000
    volumes:
      - ${DOCKER_VOLUME_DIRECTORY:-.}/volumes/milvus:/var/lib/milvus
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:9091/healthz"]
      interval: 30s
      start_period: 90s
      timeout: 20s
      retries: 3
    ports:
      - "19530:19530"
      - "9091:9091"
    depends_on:
      - "etcd"
      - "minio"
  attu:
    container_name: attu
    image: zilliz/attu:v2.3.10
    environment:
      MILVUS_URL: standalone:19530
    ports:
      - "8000:3000"
    depends_on:
      - "standalone"
networks:
  default:
    name: milvus

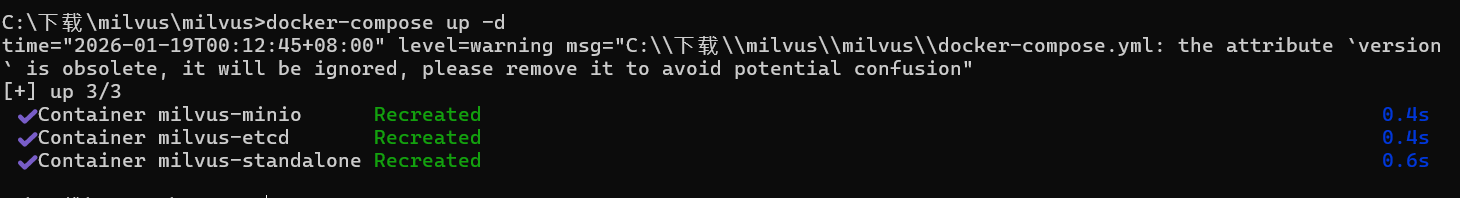

（3）运行docker

docker-compose up -d

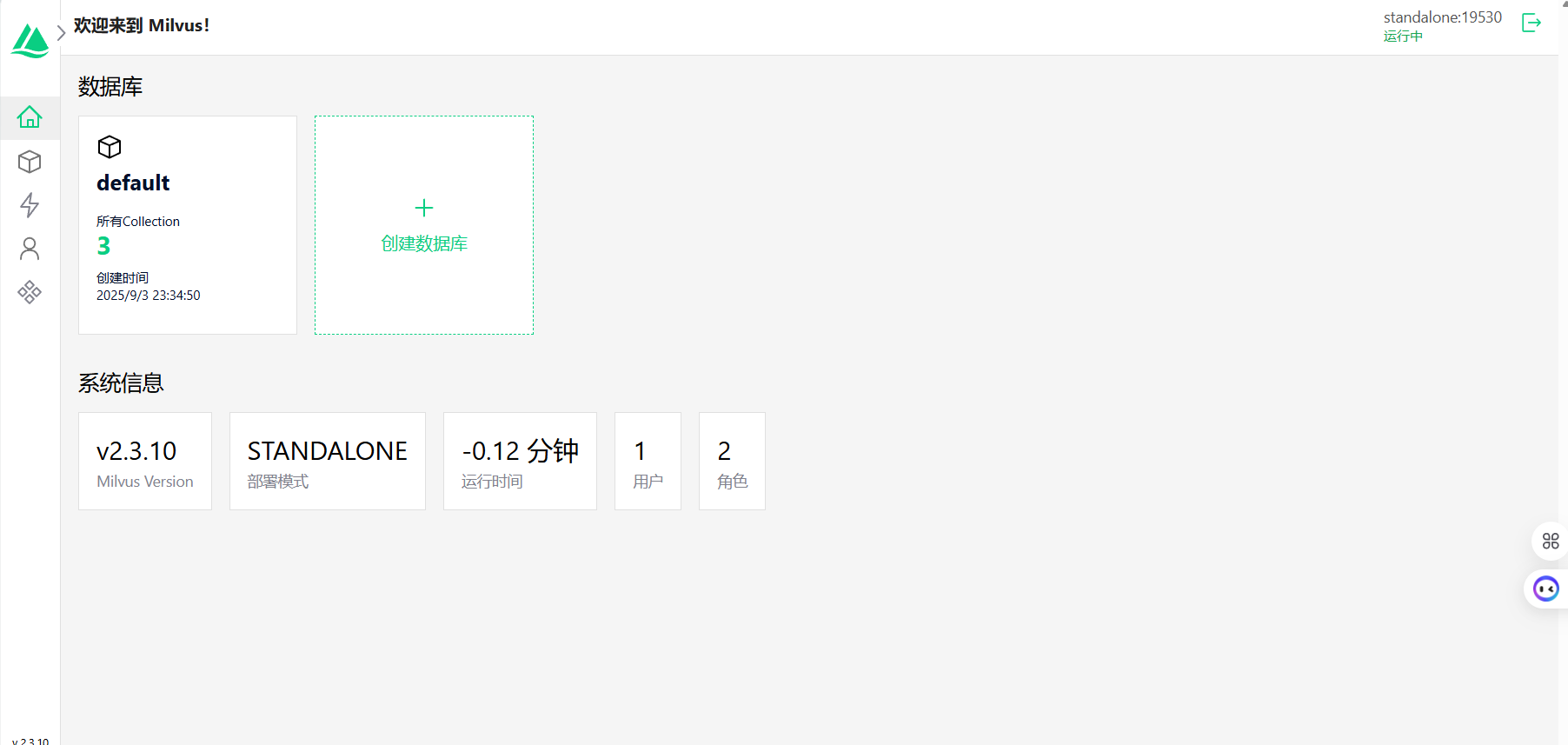

（4）启动attu界面：

官网：https://github.com/zilliztech/attu

启动后，浏览器输入：http:127.0.0.1:8000
