gsap -滚动插件 ScrollTrigger 简单demo

js 复制代码

<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>GSAP Scroll Demo</title>
    <style>
      body {
        margin: 0;
        font-family: "Segoe UI", sans-serif;
        background: #0b1020;
        color: #e2e8f0;
      }
      section {
        height: 100vh;
        position: relative;
        overflow: hidden;
      }
      .center-stack {
        position: absolute;
        left: 50%;
        top: 50%;
        transform: translate(-50%, -50%);
        width: 80vw;
        height: 60vh;
      }
      .stack-item {
        position: absolute;
        left: 50%;
        top: 50%;
        transform: translate(-50%, -50%);
        border-radius: 18px;
        opacity: 0.95;
      }
      .stack-1 { width: 140px; height: 140px; background: #0ea5e9; }
      .stack-2 { width: 200px; height: 200px; background: #22c55e; }
      .stack-3 { width: 280px; height: 280px; background: #f59e0b; }
      .stack-4 { width: 200px; height: 200px; background: #a855f7; }
      .stack-5 { width: 140px; height: 140px; background: #ef4444; }

      .quad {
        position: absolute;
        padding: 12px 16px;
        border-radius: 10px;
        font-size: 20px;
        font-weight: 600;
        background: #111827;
      }
      .quad-up { left: 50%; top: 20%; transform: translate(-50%, 0); }
      .quad-down { left: 50%; bottom: 20%; transform: translate(-50%, 0); }
      .quad-left { left: 12%; top: 50%; transform: translate(0, -50%); }
      .quad-right { right: 12%; top: 50%; transform: translate(0, -50%); }

      .list {
        position: absolute;
        left: 10%;
        top: 50%;
        transform: translateY(-50%);
        display: flex;
        flex-direction: column;
        gap: 16px;
      }
      .list-item {
        width: 140px;
        padding: 12px 16px;
        border-radius: 10px;
        background: #111827;
        font-size: 16px;
        font-weight: 600;
      }
    </style>
    <script src="https://cdn.jsdelivr.net/npm/gsap@3.14.1/dist/gsap.min.js"></script>
    <script src="https://cdn.jsdelivr.net/npm/gsap@3.14.1/dist/ScrollTrigger.min.js"></script>
</head>
<body>
    <section id="view-one">
      <div class="center-stack">
        <div class="stack-item stack-1" id="stack-1"></div>
        <div class="stack-item stack-2" id="stack-2"></div>
        <div class="stack-item stack-3" id="stack-3"></div>
        <div class="stack-item stack-4" id="stack-4"></div>
        <div class="stack-item stack-5" id="stack-5"></div>
      </div>
    </section>

    <section id="view-two">
      <div class="quad quad-up" id="quad-up">向上</div>
      <div class="quad quad-down" id="quad-down">向下</div>
      <div class="quad quad-left" id="quad-left">向左</div>
      <div class="quad quad-right" id="quad-right">向右</div>
    </section>

    <section id="view-three">
      <div class="list">
        <div class="list-item" id="list-1">第一个</div>
        <div class="list-item" id="list-2">第二个</div>
        <div class="list-item" id="list-3">第三个</div>
      </div>
    </section>

    <script>
      gsap.registerPlugin(ScrollTrigger);
       // 第一视图
      gsap.set(["#stack-1", "#stack-5"], { x: 0 });
      gsap.set(["#stack-2", "#stack-4"], { x: 0 });
      gsap.set("#stack-3", { x: 0 });

      gsap.timeline({
        scrollTrigger: {
          trigger: "#view-one",
          start: "top top",
          end: "+=400%",
          scrub: true,
          pin: true
        }
      })
      .to(["#stack-1", "#stack-5"],{ x:(i) => i === 0 ? -220 : 220, duration: 0.4 })
      .to(["#stack-2", "#stack-4"], { x:(i) => i === 0 ? -160 : 160, duration: 0.4 })

     // 第二视图
      gsap.set(["#quad-up", "#quad-down", "#quad-left", "#quad-right"], { opacity: 0 });
      gsap.set("#quad-up", { y: -40 });
      gsap.set("#quad-down", { y: 40 });
      gsap.set("#quad-left", { x: -40 });
      gsap.set("#quad-right", { x: 40 });

      gsap.timeline({
        scrollTrigger: {
          trigger: "#view-two",
          start: "top top",
          end: "+=400%",
          scrub: true,
          pin: true
        }
      })
      .to("#quad-up", { y: 0, opacity: 1, duration: 0.25 })
      .to("#quad-down", { y: 0, opacity: 1, duration: 0.25 })
      .to("#quad-left", { x: 0, opacity: 1, duration: 0.25 })
      .to("#quad-right", { x: 0, opacity: 1, duration: 0.25 });

     // 第三视图
      gsap.set(["#list-1", "#list-2", "#list-3"], { x: 0 });

      gsap.timeline({
        scrollTrigger: {
          trigger: "#view-three",
          start: "top top",
          end: "+=400%",
          scrub: true,
          pin: true
        }
      })
      .to("#list-1", { x: 100, duration: 0.33 })
      .to("#list-2", { x: 200, duration: 0.33 })
      .to("#list-3", { x: 300, duration: 0.33 });
    </script>
</body>
</html>

这个cdn是用官网的如果报错请使用魔法

js 复制代码

scrollTrigger: {
trigger: "#element-id", // 触发动画的元素
start: "top top", // 起始位置(元素顶部, 视口顶部)
end: "+=400%", // 结束位置(起始位置+400%视口高度)
scrub: true, // 动画进度与滚动同步
pin: true // 在动画期间固定元素
}

效果就是

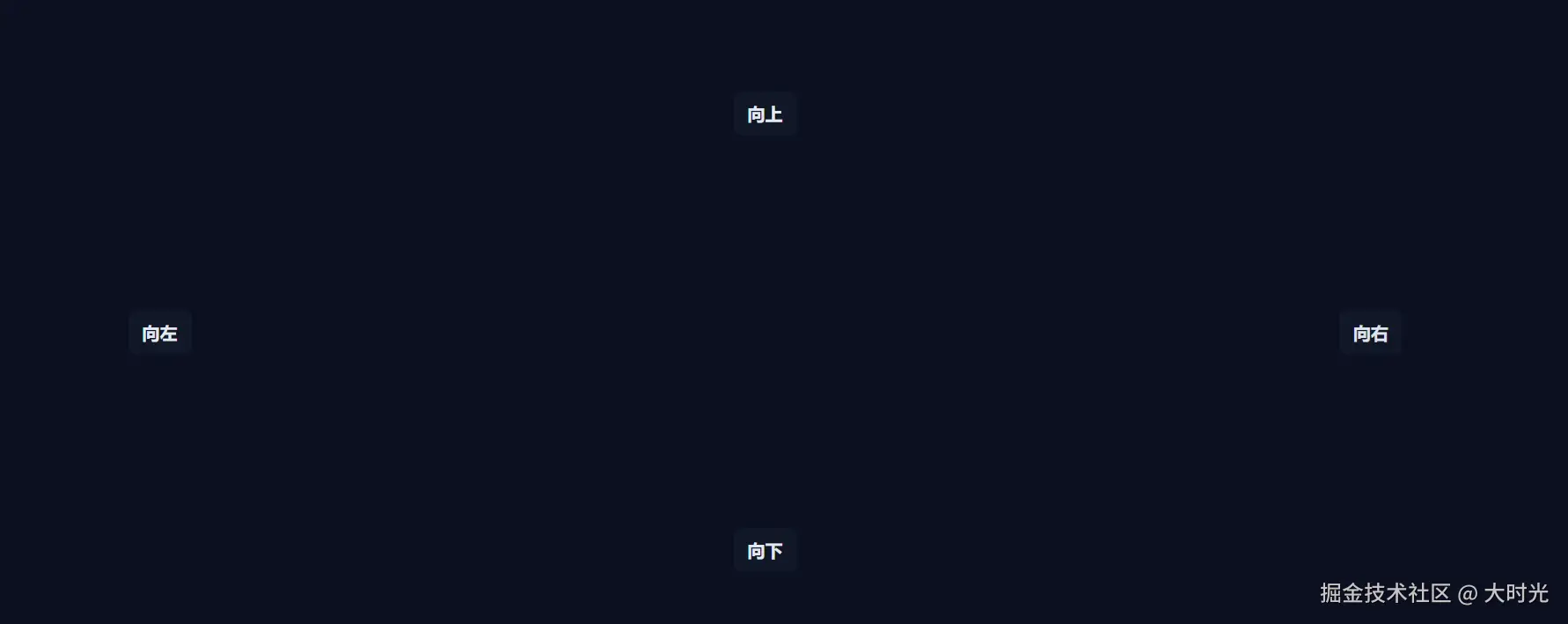

依次出现上下左右文字

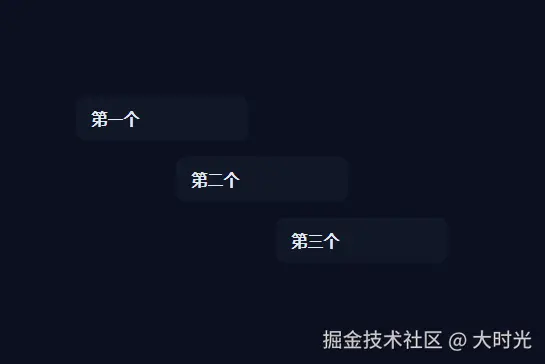

然后依次向右移动
