QT聊天项目(8)

简介

我们启动GateServer和VarifyServer

我们启动客户端，点击注册按钮进入注册界面，输入邮箱并且点击获取验证码

GateServer收到Client发送的请求后，会调用grpc 服务 访问VarifyServer，VarifyServer会随机生成验证码，并且调用邮箱模块发送邮件给指定邮箱。而且把发送的结果给GateServer，GateServer再将消息回传给客户端。

一、设置验证码过期

我们的验证码是要设置过期的，可以用redis管理过期的验证码自动删除，key为邮箱，value为验证码，过期时间为3min。

二、windows 安装redis服务

windows 版本下载地址:

https://github.com/tporadowski/redis/releases

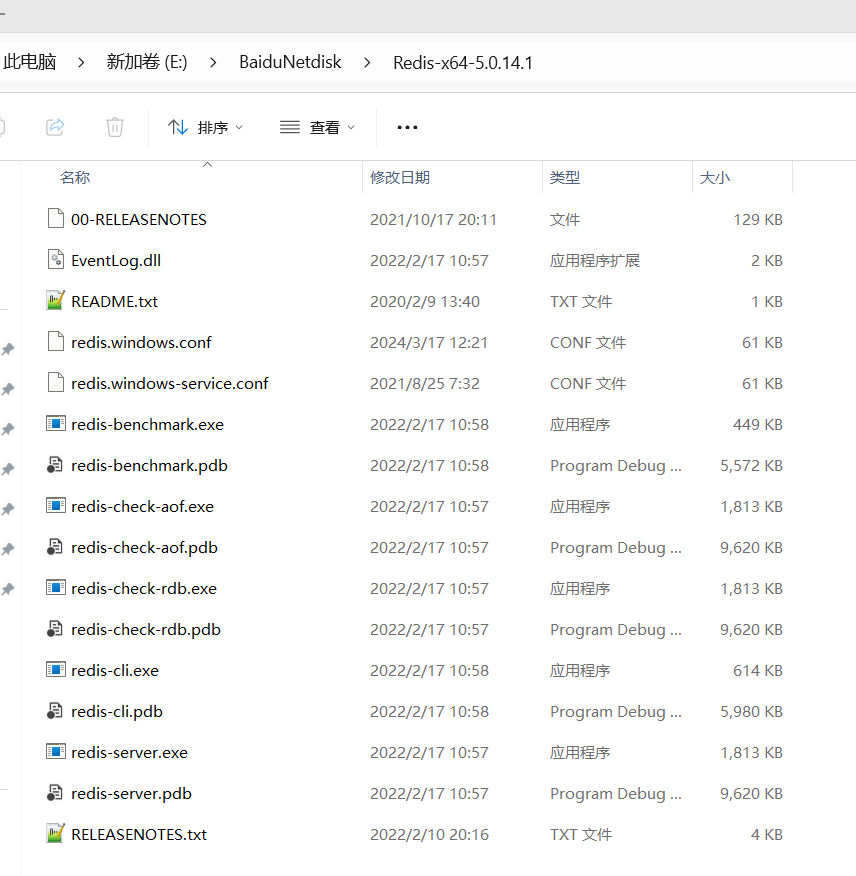

下载完成解压

修改redis.windows.conf, 并且修改端口

port 6380

找到requirepass foobared，下面添加requirepass

# requirepass foobared
requirepass 123456

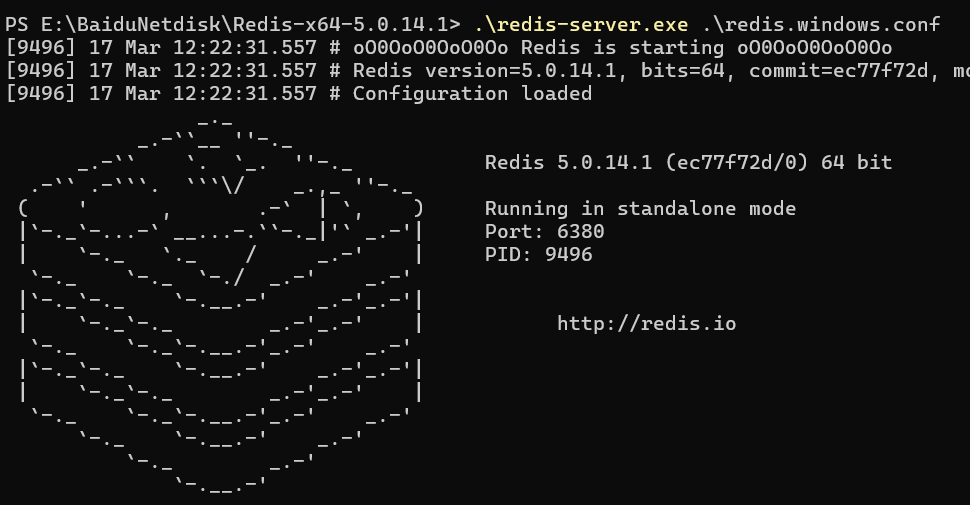

启动redis 服务器.\redis-server.exe .\redis.windows.conf

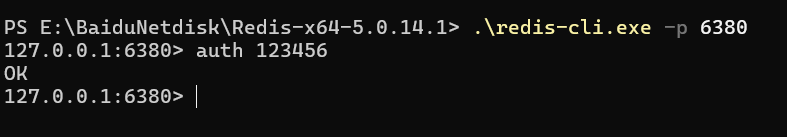

启动客户端 .\redis-cli.exe -p 6380, 输入密码登录成功

三、widows编译和配置redis

windows版本redis下载地址

https://github.com/microsoftarchive/redis

因为是源码，所以进入msvc目录

用visual studio打开sln文件，弹出升级窗口, 我的是vs2022所以升级到143

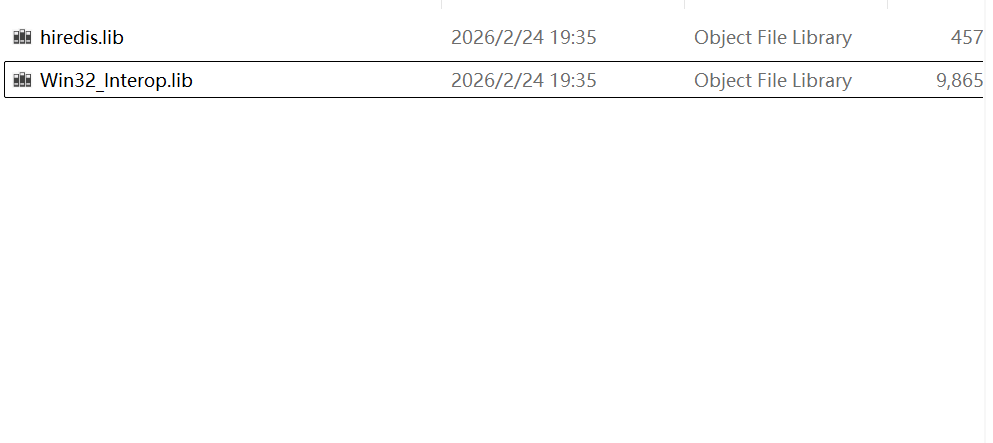

只需要生成hiredis工程和Win32_Interop工程即可，分别点击生成,生成hiredis.lib和Win32_Interop.lib即可

右键两个工程的属性，代码生成里选择运行时库加载模式为MDD(Debug模式动态运行加载)，为了兼容我们其他的库，其他的库也是MDD模式

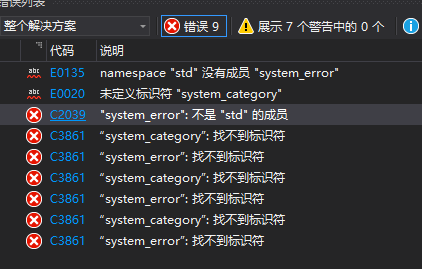

编译Win32_Interop.lib时报错， system_error不是std成员，解决办法为在Win32_variadicFunctor.cpp和Win32_FDAPI.cpp添加
#include <system_error>,再右键生成成功

然后我们在visual studio中配置VC++ 包含目录、库目录

然后在链接器->输入->附加依赖项中添加

我们需要写代码测试库配置的情况

void TestRedis() {
    //连接redis 需要启动才可以进行连接
//redis默认监听端口为6387 可以再配置文件中修改
    redisContext* c = redisConnect("127.0.0.1", 6380);
    if (c->err)
    {
        printf("Connect to redisServer faile:%s\n", c->errstr);
        redisFree(c);        return;
    }
    printf("Connect to redisServer Success\n");
    std::string redis_password = "123456";
    redisReply* r = (redisReply*)redisCommand(c, "AUTH %s", redis_password);
     if (r->type == REDIS_REPLY_ERROR) {
         printf("Redis认证失败！\n");
    }else {
        printf("Redis认证成功！\n");
         }
    //为redis设置key
    const char* command1 = "set stest1 value1";
    //执行redis命令行
    r = (redisReply*)redisCommand(c, command1);
    //如果返回NULL则说明执行失败
    if (NULL == r)
    {
        printf("Execut command1 failure\n");
        redisFree(c);        return;
    }
    //如果执行失败则释放连接
    if (!(r->type == REDIS_REPLY_STATUS && (strcmp(r->str, "OK") == 0 || strcmp(r->str, "ok") == 0)))
    {
        printf("Failed to execute command[%s]\n", command1);
        freeReplyObject(r);
        redisFree(c);        return;
    }
    //执行成功 释放redisCommand执行后返回的redisReply所占用的内存
    freeReplyObject(r);
    printf("Succeed to execute command[%s]\n", command1);
    const char* command2 = "strlen stest1";
    r = (redisReply*)redisCommand(c, command2);
    //如果返回类型不是整形 则释放连接
    if (r->type != REDIS_REPLY_INTEGER)
    {
        printf("Failed to execute command[%s]\n", command2);
        freeReplyObject(r);
        redisFree(c);        return;
    }
    //获取字符串长度
    int length = r->integer;
    freeReplyObject(r);
    printf("The length of 'stest1' is %d.\n", length);
    printf("Succeed to execute command[%s]\n", command2);
    //获取redis键值对信息
    const char* command3 = "get stest1";
    r = (redisReply*)redisCommand(c, command3);
    if (r->type != REDIS_REPLY_STRING)
    {
        printf("Failed to execute command[%s]\n", command3);
        freeReplyObject(r);
        redisFree(c);        return;
    }
    printf("The value of 'stest1' is %s\n", r->str);
    freeReplyObject(r);
    printf("Succeed to execute command[%s]\n", command3);
    const char* command4 = "get stest2";
    r = (redisReply*)redisCommand(c, command4);
    if (r->type != REDIS_REPLY_NIL)
    {
        printf("Failed to execute command[%s]\n", command4);
        freeReplyObject(r);
        redisFree(c);        return;
    }
    freeReplyObject(r);
    printf("Succeed to execute command[%s]\n", command4);
    //释放连接资源
    redisFree(c);
}

在主函数中调用TestRedis

四、封装redis操作类

封装的类叫RedisMgr，它是个单例类并且可接受回调，按照我们之前的风格

class RedisMgr: public Singleton<RedisMgr>,
    public std::enable_shared_from_this<RedisMgr>
{
    friend class Singleton<RedisMgr>;
public:
    ~RedisMgr();
    bool Connect(const std::string& host, int port);
    bool Get(const std::string &key, std::string& value);
    bool Set(const std::string &key, const std::string &value);
    bool Auth(const std::string &password);
    bool LPush(const std::string &key, const std::string &value);
    bool LPop(const std::string &key, std::string& value);
    bool RPush(const std::string& key, const std::string& value);
    bool RPop(const std::string& key, std::string& value);
    bool HSet(const std::string &key, const std::string  &hkey, const std::string &value);
    bool HSet(const char* key, const char* hkey, const char* hvalue, size_t hvaluelen);
    std::string HGet(const std::string &key, const std::string &hkey);
    bool Del(const std::string &key);
    bool ExistsKey(const std::string &key);
    void Close();
private:
    RedisMgr();
    redisContext* _connect;
    redisReply* _reply;
};

//连接操作

bool RedisMgr::Connect(const std::string &host, int port)
{
    this->_connect = redisConnect(host.c_str(), port);
    if (this->_connect != NULL && this->_connect->err)
    {
        std::cout << "connect error " << this->_connect->errstr << std::endl;
        return false;
    }
    return true;
}
//获取key对应的value

bool RedisMgr::Get(const std::string &key, std::string& value)
{
     this->_reply = (redisReply*)redisCommand(this->_connect, "GET %s", key.c_str());
     if (this->_reply == NULL) {
         std::cout << "[ GET  " << key << " ] failed" << std::endl;
         freeReplyObject(this->_reply);
          return false;
    }
     if (this->_reply->type != REDIS_REPLY_STRING) {
         std::cout << "[ GET  " << key << " ] failed" << std::endl;
         freeReplyObject(this->_reply);
         return false;
    }
     value = this->_reply->str;
     freeReplyObject(this->_reply);
     std::cout << "Succeed to execute command [ GET " << key << "  ]" << std::endl;
     return true;
}
//设置key和value

bool RedisMgr::Set(const std::string &key, const std::string &value){
    //执行redis命令行
    this->_reply = (redisReply*)redisCommand(this->_connect, "SET %s %s", key.c_str(), value.c_str());
    //如果返回NULL则说明执行失败
    if (NULL == this->_reply)
    {
        std::cout << "Execut command [ SET " << key << "  "<< value << " ] failure ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    //如果执行失败则释放连接
    if (!(this->_reply->type == REDIS_REPLY_STATUS && (strcmp(this->_reply->str, "OK") == 0 || strcmp(this->_reply->str, "ok") == 0)))
    {
        std::cout << "Execut command [ SET " << key << "  " << value << " ] failure ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    //执行成功 释放redisCommand执行后返回的redisReply所占用的内存
    freeReplyObject(this->_reply);
    std::cout << "Execut command [ SET " << key << "  " << value << " ] success ! " << std::endl;
    return true;
}
//密码认证

bool RedisMgr::Auth(const std::string &password)
{
    this->_reply = (redisReply*)redisCommand(this->_connect, "AUTH %s", password.c_str());
    if (this->_reply->type == REDIS_REPLY_ERROR) {
        std::cout << "认证失败" << std::endl;
        //执行成功 释放redisCommand执行后返回的redisReply所占用的内存
        freeReplyObject(this->_reply);
        return false;
    }
    else {
        //执行成功 释放redisCommand执行后返回的redisReply所占用的内存
        freeReplyObject(this->_reply);
        std::cout << "认证成功" << std::endl;
        return true;
    }
}
//左侧push

bool RedisMgr::LPush(const std::string &key, const std::string &value)
{
    this->_reply = (redisReply*)redisCommand(this->_connect, "LPUSH %s %s", key.c_str(), value.c_str());
    if (NULL == this->_reply)
    {
        std::cout << "Execut command [ LPUSH " << key << "  " << value << " ] failure ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    if (this->_reply->type != REDIS_REPLY_INTEGER || this->_reply->integer <= 0) {
        std::cout << "Execut command [ LPUSH " << key << "  " << value << " ] failure ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    std::cout << "Execut command [ LPUSH " << key << "  " << value << " ] success ! " << std::endl;
    freeReplyObject(this->_reply);
    return true;
}
//左侧pop

bool RedisMgr::LPop(const std::string &key, std::string& value){
    this->_reply = (redisReply*)redisCommand(this->_connect, "LPOP %s ", key.c_str());
    if (_reply == nullptr || _reply->type == REDIS_REPLY_NIL) {
        std::cout << "Execut command [ LPOP " << key<<  " ] failure ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    value = _reply->str;
    std::cout << "Execut command [ LPOP " << key <<  " ] success ! " << std::endl;
    freeReplyObject(this->_reply);
    return true;
}
//右侧push

bool RedisMgr::RPush(const std::string& key, const std::string& value) {
    this->_reply = (redisReply*)redisCommand(this->_connect, "RPUSH %s %s", key.c_str(), value.c_str());
    if (NULL == this->_reply)
    {
        std::cout << "Execut command [ RPUSH " << key << "  " << value << " ] failure ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    if (this->_reply->type != REDIS_REPLY_INTEGER || this->_reply->integer <= 0) {
        std::cout << "Execut command [ RPUSH " << key << "  " << value << " ] failure ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    std::cout << "Execut command [ RPUSH " << key << "  " << value << " ] success ! " << std::endl;
    freeReplyObject(this->_reply);
    return true;
}
//右侧pop

bool RedisMgr::RPop(const std::string& key, std::string& value) {
    this->_reply = (redisReply*)redisCommand(this->_connect, "RPOP %s ", key.c_str());
    if (_reply == nullptr || _reply->type == REDIS_REPLY_NIL) {
        std::cout << "Execut command [ RPOP " << key << " ] failure ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    value = _reply->str;
    std::cout << "Execut command [ RPOP " << key << " ] success ! " << std::endl;
    freeReplyObject(this->_reply);
    return true;
}
//HSet操作

bool RedisMgr::HSet(const std::string &key, const std::string &hkey, const std::string &value) {
    this->_reply = (redisReply*)redisCommand(this->_connect, "HSET %s %s %s", key.c_str(), hkey.c_str(), value.c_str());
    if (_reply == nullptr || _reply->type != REDIS_REPLY_INTEGER ) {
        std::cout << "Execut command [ HSet " << key << "  " << hkey <<"  " << value << " ] failure ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    std::cout << "Execut command [ HSet " << key << "  " << hkey << "  " << value << " ] success ! " << std::endl;
    freeReplyObject(this->_reply);
    return true;
}
bool RedisMgr::HSet(const char* key, const char* hkey, const char* hvalue, size_t hvaluelen)
{
     const char* argv[4];
     size_t argvlen[4];
     argv[0] = "HSET";
    argvlen[0] = 4;
    argv[1] = key;
    argvlen[1] = strlen(key);
    argv[2] = hkey;
    argvlen[2] = strlen(hkey);
    argv[3] = hvalue;
    argvlen[3] = hvaluelen;
    this->_reply = (redisReply*)redisCommandArgv(this->_connect, 4, argv, argvlen);
    if (_reply == nullptr || _reply->type != REDIS_REPLY_INTEGER) {
        std::cout << "Execut command [ HSet " << key << "  " << hkey << "  " << hvalue << " ] failure ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    std::cout << "Execut command [ HSet " << key << "  " << hkey << "  " << hvalue << " ] success ! " << std::endl;
    freeReplyObject(this->_reply);
    return true;
}
//HGet操作

std::string RedisMgr::HGet(const std::string &key, const std::string &hkey)
{
    const char* argv[3];
    size_t argvlen[3];
    argv[0] = "HGET";
    argvlen[0] = 4;
    argv[1] = key.c_str();
    argvlen[1] = key.length();
    argv[2] = hkey.c_str();
    argvlen[2] = hkey.length();
    this->_reply = (redisReply*)redisCommandArgv(this->_connect, 3, argv, argvlen);
    if (this->_reply == nullptr || this->_reply->type == REDIS_REPLY_NIL) {
        freeReplyObject(this->_reply);
        std::cout << "Execut command [ HGet " << key << " "<< hkey <<"  ] failure ! " << std::endl;
        return "";
    }
    std::string value = this->_reply->str;
    freeReplyObject(this->_reply);
    std::cout << "Execut command [ HGet " << key << " " << hkey << " ] success ! " << std::endl;
    return value;
}
//Del 操作

bool RedisMgr::Del(const std::string &key)
{
    this->_reply = (redisReply*)redisCommand(this->_connect, "DEL %s", key.c_str());
    if (this->_reply == nullptr || this->_reply->type != REDIS_REPLY_INTEGER) {
        std::cout << "Execut command [ Del " << key <<  " ] failure ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    std::cout << "Execut command [ Del " << key << " ] success ! " << std::endl;
     freeReplyObject(this->_reply);
     return true;
}
//判断键值是否存在

bool RedisMgr::ExistsKey(const std::string &key)
{
    this->_reply = (redisReply*)redisCommand(this->_connect, "exists %s", key.c_str());
    if (this->_reply == nullptr || this->_reply->type != REDIS_REPLY_INTEGER || this->_reply->integer == 0) {
        std::cout << "Not Found [ Key " << key << " ]  ! " << std::endl;
        freeReplyObject(this->_reply);
        return false;
    }
    std::cout << " Found [ Key " << key << " ] exists ! " << std::endl;
    freeReplyObject(this->_reply);
    return true;
}
//关闭

void RedisMgr::Close()
{
    redisFree(_connect);
}

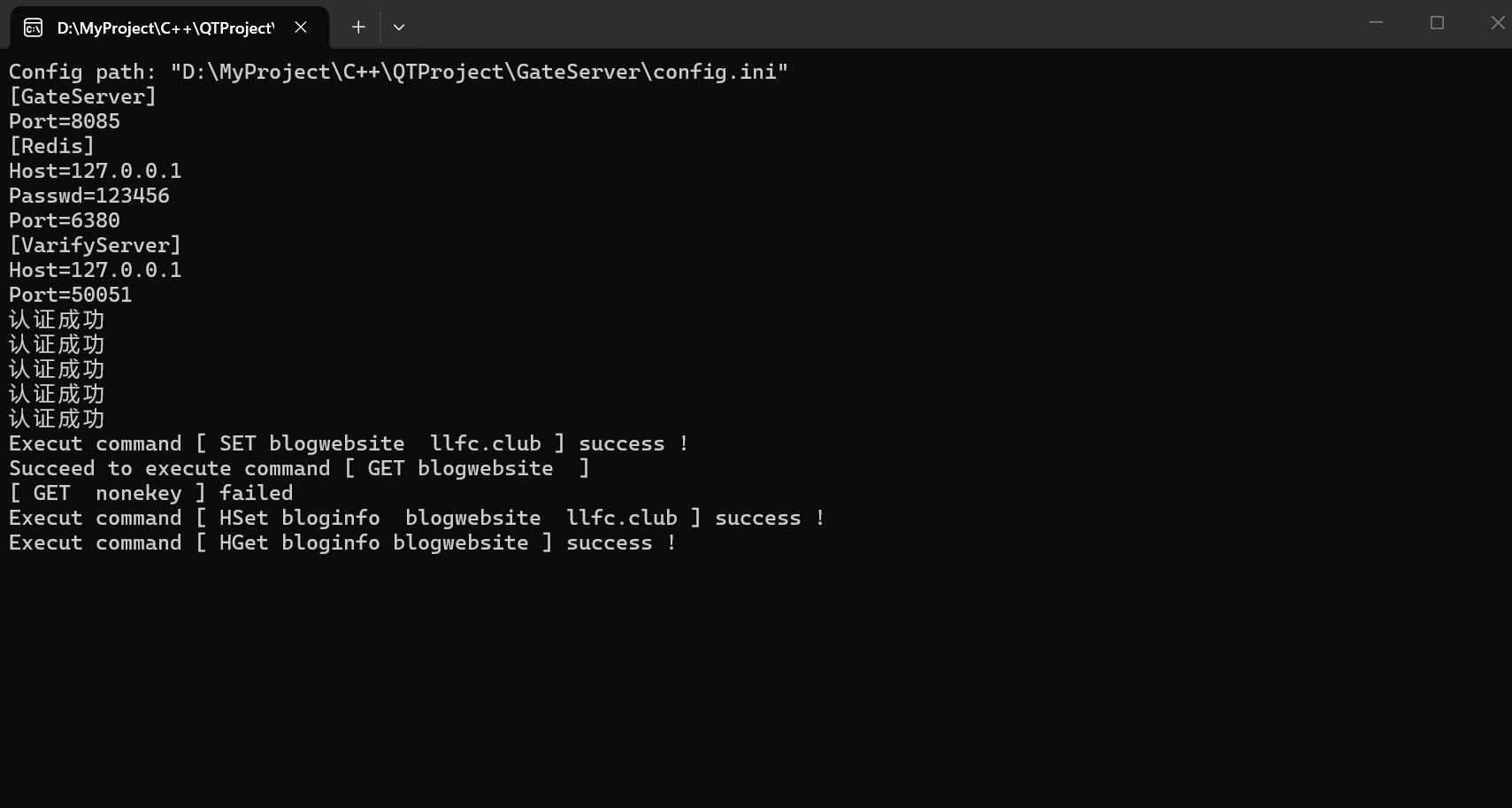

测试用例

void TestRedisMgr() {
    assert(RedisMgr::GetInstance()->Connect("127.0.0.1", 6380));
    assert(RedisMgr::GetInstance()->Auth("123456"));
    assert(RedisMgr::GetInstance()->Set("blogwebsite","llfc.club"));
    std::string value="";
    assert(RedisMgr::GetInstance()->Get("blogwebsite", value) );
    assert(RedisMgr::GetInstance()->Get("nonekey", value) == false);
    assert(RedisMgr::GetInstance()->HSet("bloginfo","blogwebsite", "llfc.club"));
    assert(RedisMgr::GetInstance()->HGet("bloginfo","blogwebsite") != "");
    assert(RedisMgr::GetInstance()->ExistsKey("bloginfo"));
    assert(RedisMgr::GetInstance()->Del("bloginfo"));
    assert(RedisMgr::GetInstance()->Del("bloginfo"));
    assert(RedisMgr::GetInstance()->ExistsKey("bloginfo") == false);
    assert(RedisMgr::GetInstance()->LPush("lpushkey1", "lpushvalue1"));
    assert(RedisMgr::GetInstance()->LPush("lpushkey1", "lpushvalue2"));
    assert(RedisMgr::GetInstance()->LPush("lpushkey1", "lpushvalue3"));
    assert(RedisMgr::GetInstance()->RPop("lpushkey1", value));
    assert(RedisMgr::GetInstance()->RPop("lpushkey1", value));
    assert(RedisMgr::GetInstance()->LPop("lpushkey1", value));
    assert(RedisMgr::GetInstance()->LPop("lpushkey2", value)==false);
    RedisMgr::GetInstance()->Close();
}

五、封装redis连接池

class RedisConPool {
public:
    RedisConPool(size_t poolSize, const char* host, int port, const char* pwd)
        : poolSize_(poolSize), host_(host), port_(port), b_stop_(false){
        for (size_t i = 0; i < poolSize_; ++i) {
            auto* context = redisConnect(host, port);
            if (context == nullptr || context->err != 0) {
                if (context != nullptr) {
                    redisFree(context);
                }
                continue;
            }
            auto reply = (redisReply*)redisCommand(context, "AUTH %s", pwd);
            if (reply->type == REDIS_REPLY_ERROR) {
                std::cout << "认证失败" << std::endl;
                //执行成功 释放redisCommand执行后返回的redisReply所占用的内存
                freeReplyObject(reply);
                continue;
            }
            //执行成功 释放redisCommand执行后返回的redisReply所占用的内存
            freeReplyObject(reply);
            std::cout << "认证成功" << std::endl;
            connections_.push(context);
        }
    }
    ~RedisConPool() {
        std::lock_guard<std::mutex> lock(mutex_);
        while (!connections_.empty()) {
            connections_.pop();
        }
    }
    redisContext* getConnection() {
        std::unique_lock<std::mutex> lock(mutex_);
        cond_.wait(lock, [this] {
            if (b_stop_) {
                return true;
            }
            return !connections_.empty();
            });
        //如果停止则直接返回空指针
        if (b_stop_) {
            return  nullptr;
        }
        auto* context = connections_.front();
        connections_.pop();
        return context;
    }
    void returnConnection(redisContext* context) {
        std::lock_guard<std::mutex> lock(mutex_);
        if (b_stop_) {
            return;
        }
        connections_.push(context);
        cond_.notify_one();
    }
    void Close() {
        b_stop_ = true;
        cond_.notify_all();
    }
private:
    atomic<bool> b_stop_;
    size_t poolSize_;
    const char* host_;
    int port_;
    std::queue<redisContext*> connections_;
    std::mutex mutex_;
    std::condition_variable cond_;
};

RedisMgr构造函数中初始化pool连接池

RedisMgr::RedisMgr() {
    auto& gCfgMgr = ConfigMgr::Inst();
    auto host = gCfgMgr["Redis"]["Host"];
    auto port = gCfgMgr["Redis"]["Port"];
    auto pwd = gCfgMgr["Redis"]["Passwd"];
    _con_pool.reset(new RedisConPool(5, host.c_str(), atoi(port.c_str()), pwd.c_str()));
}

在析构函数中回收资源

RedisMgr::~RedisMgr() {
    Close();
}
void RedisMgr::Close() {
    _con_pool->Close();
}

在使用的时候改为从Pool中获取链接

bool RedisMgr::Get(const std::string& key, std::string& value)
{
    auto connect = _con_pool->getConnection();
    if (connect == nullptr) {
        return false;
    }
     auto reply = (redisReply*)redisCommand(connect, "GET %s", key.c_str());
     if (reply == NULL) {
         std::cout << "[ GET  " << key << " ] failed" << std::endl;
         freeReplyObject(reply);
         _con_pool->returnConnection(connect);
          return false;
    }
     if (reply->type != REDIS_REPLY_STRING) {
         std::cout << "[ GET  " << key << " ] failed" << std::endl;
         freeReplyObject(reply);
         _con_pool->returnConnection(connect);
         return false;
    }
     value = reply->str;
     freeReplyObject(reply);
     std::cout << "Succeed to execute command [ GET " << key << "  ]" << std::endl;
     _con_pool->returnConnection(connect);
     return true;
}

运行测试成功
