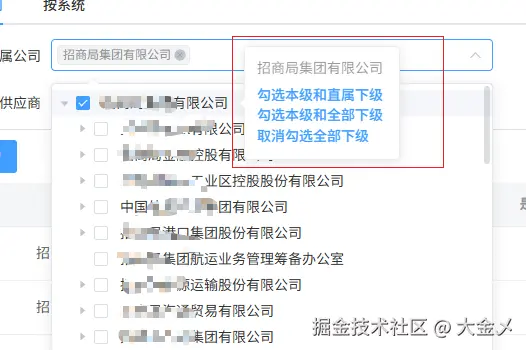

看效果图： 多选模式：
单选模式：
直接上复制代码就能用，在代码中找到这个方法getCompanyList；然后替换成自己的树形结构的接口，返回的数据结构需要根据自身的结构来处理
使用例子
js
<template>
<TreeSelect
v-model="selectedValue"
:tree-data="treeData"
:multiple="true"
placeholder="请选择部门"
/>
</template>
<script>
export default {
data() {
return {
selectedValue: [],
treeData: [
{
deptName: '总公司',
rcmOrgId: '1',
children: [
{ deptName: '技术部', rcmOrgId: '2' },
{ deptName: '市场部', rcmOrgId: '3' }
]
}
]
}
}
}
</script>动态加载数据
js
<template>
<TreeSelect
v-model="selectedDept"
resource-code="cmrmp:dept"
:is-dept="true"
placeholder="选择部门"
@tree-done="handleTreeDone"
/>
</template>
<script>
export default {
data() {
return {
selectedDept: ''
}
},
methods: {
handleTreeDone(treeData) {
console.log('树数据加载完成:', treeData)
}
}
}
</script>自定义配置
js
<template>
<TreeSelect
v-model="selectedValues"
:tree-data="orgData"
:multiple="true"
:check-strictly="true"
:default-props="{
children: 'children',
label: 'name',
value: 'id'
}"
:clearable="false"
size="medium"
@change="handleSelectionChange"
/>
</template>
<script>
export default {
data() {
return {
selectedValues: [],
orgData: [
{
name: '组织架构',
id: 'org-1',
children: [
{ name: '研发中心', id: 'dept-1' },
{ name: '产品部', id: 'dept-2' }
]
}
]
}
},
methods: {
handleSelectionChange(values, nodes) {
console.log('选中值:', values)
console.log('节点数据:', nodes)
}
}
}
</script>获取选中数据
js
<template>
<div>
<TreeSelect
ref="treeSelect"
v-model="selectedIds"
:tree-data="companyData"
:multiple="true"
/>
<button @click="getSelectedData">获取选中数据</button>
</div>
</template>
<script>
export default {
data() {
return {
selectedIds: [],
companyData: [] // 树数据
}
},
methods: {
getSelectedData() {
const nodes = this.$refs.treeSelect.getCheckedNodes()
const keys = this.$refs.treeSelect.getCheckedKeys()
console.log('选中节点:', nodes)
console.log('选中键值:', keys)
}
}
}
</script>组件代码如下： 在components文件夹下建立treeSelect文件夹，然后创建index.vue文件；把下面代码复制进去
js
<template>
<div
class="treeSelectWrap"
@mouseleave="onmouseleave"
@mouseenter="onmouseenter"
>
<!-- 禁用状态，单选 -->
<el-input
v-if="disabled && !multiple"
disabled
style="width: 100%"
placeholder="请输入"
:size="size"
:value="selectedDisabledValue"
></el-input>
<!-- 禁用状态，多选 -->
<el-select
v-if="disabled && multiple"
:value="selectedDisabledValue"
:size="size"
style="width: 100%"
disabled
multiple
collapse-tags
>
<el-option
v-for="item in options"
:key="item.value"
:label="item.label"
:value="item.value"
></el-option>
</el-select>
<template v-if="!disabled">
<!-- 下拉树形选择器 -->
<el-popover
:trigger="trigger"
ref="popoverRef"
popper-class="treeSelectPopover"
:width="popoverSlotWidth"
:visible-arrow="false"
:placement="placement"
:disabled="disabled"
:append-to-body="appendToBody"
>
<el-select
v-model="selectedValue"
ref="treeSelect"
slot="reference"
filterable
popper-class="displayNone"
placeholder="请选择（可输入名称搜索）"
style="width: 100%"
:multiple="multiple"
:clearable="clearable"
:collapse-tags="multiple"
:filter-method="filterMethod"
:size="size"
:disabled="disabled"
@clear="clearSelected"
@remove-tag="removeTag"
@visible-change="visbleChange"
>
<el-option
v-for="item in options"
:key="item.value"
:label="item.label"
:value="item.value"
></el-option>
</el-select>
<el-tree
v-if="!disabled"
ref="tree"
:data="treeDataList"
:props="defaultProps"
:node-key="treeNodeKey"
:show-checkbox="multiple"
:filter-node-method="filterNode"
:check-strictly="!checkStrictly"
:default-expanded-keys="defaultExpandedKeys"
:highlight-current="!multiple"
:expand-on-click-node="false"
@check="handleTreeCheck"
@node-click="handleTreeNodeClick"
@current-change="handleCurrentChange"
@node-expand="nodeExpand"
@node-collapse="nodeCollapse"
>
<!-- 多种勾选选项 -->
<div
class="span-ellipsis"
slot-scope="{ node, data }"
v-if="multiple"
>
<TreeSeletLabelPopover
v-if="node.data.children && node.data.children.length"
v-bind="refs"
:node="node"
:node-key="treeNodeKey"
:selectedValue="selectedValue"
@popoverChangeValue="popoverChangeValue"
>
<div
class="text-ellipsis"
:style="{
backgroundColor: data.orgStatus === '0' ? '#DDD' : '',
textDecoration: data.orgStatus === '0' ? 'line-through' : '',
}"
>
<span>{{ node.label }}</span>
</div>
</TreeSeletLabelPopover>
<div
v-else
class="text-ellipsis"
:style="{
backgroundColor: data.orgStatus === '0' ? '#DDD' : '',
textDecoration: data.orgStatus === '0' ? 'line-through' : '',
}"
:title="node.label"
>
<span>{{ node.label }}</span>
</div>
</div>
<div
v-else
slot-scope="{ node, data }"
:class="{ 'text-ellipsis': true, 'node-disabled': !data.open }"
:style="{
backgroundColor: data.orgStatus === '0' ? '#DDD' : '',
textDecoration: data.orgStatus === '0' ? 'line-through' : '',
}"
:title="node.label"
>
<span>{{ node.label }}</span>
</div>
</el-tree>
</el-popover>
</template>
</div>
</template>
<script>
import { getOpenNode, getTreeAllLength } from "@/utils";
import TreeSeletLabelPopover from "./TreeSeletLabelPopover";
import axios from "axios";
export default {
name: "CMR_TreeSelect",
components: {
TreeSeletLabelPopover,
},
props: {
// select的size
size: {
type: String,
default: "small",
},
// 树形数据
treeData: {
type: Array,
default: () => [],
},
// 是否多选
multiple: {
type: Boolean,
default: false,
},
// 是否可清空
clearable: {
type: Boolean,
default: true,
},
// 父子节点关联（多选时有效）
checkStrictly: {
type: Boolean,
default: false,
},
// 节点配置选项
defaultProps: {
type: Object,
default: () => ({
children: "children",
label: "deptName",
value: "rcmOrgId",
}),
},
// 默认选中的值
value: {
type: [String, Number, Array],
default: () => [],
},
// 是否默认选中第一个
defaultOne: {
type: Boolean,
default: false,
},
resourceCode: {
type: String,
default: "",
},
isDept: {
type: Boolean,
default: false,
},
requestUrl: {
type: String,
default: "",
},
// 是否挂在body上
appendToBody: {
type: Boolean,
default: false,
},
// popover的位置
placement: {
type: String,
default: "bottom-start",
},
disabled: {
type: Boolean,
default: false,
},
// 禁用状态下，以文本的方式展示
/**
* 为何需要单独设置禁用状态的值？
* 1.禁用下不走树结构，减少数的接口请求
* 2.回显值不一定在树结构中
*/
disabledValue: {
type: [String, Array],
default: "",
},
trigger: {
type: String,
default: "click",
},
},
data() {
return {
selectedValue: this.multiple ? [] : "", // 选中的值
selectedDisabledValue: this.multiple ? [] : "", // 禁用状态的值
treeDataList: [], // 数结构数据
treeNodeKey: "", // 节点唯一标识字段
options: [], // 下拉选择的option
popoverSlotWidth: 350, // popover的宽度
isInit: true,
refs: {
companyTreeRef: {},
companySelectRef: {},
},
};
},
watch: {
value: {
handler(newVal) {
if (!this.disabled) {
this.selectedValue = newVal;
this.initSelectedNodes();
}
},
deep: true,
immediate: true,
},
disabled: {
handler(newVal) {
if (newVal) {
this.initDisabledText();
}
},
deep: true,
immediate: true,
},
disabledValue: {
handler() {
this.initDisabledText();
},
immediate: true,
deep: true,
},
treeData: {
handler(val) {
if (val.length && !this.disabled) {
this.treeDataList = val;
}
},
deep: true,
immediate: true,
},
treeDataList: {
handler(val) {
if (!this.disabled) {
this.addAttr(val);
if (this.defaultOne) {
this.setDefaultOne();
}
this.initOptions();
this.initSelectedNodes();
}
},
deep: true,
immediate: true,
},
resourceCode: {
handler(val) {
if (val) {
this.getCompanyList(val);
}
},
immediate: true,
},
defaultProps: {
handler(val) {
if (val && typeof val === "object") {
this.treeNodeKey = val.value;
}
},
deep: true,
immediate: true,
},
// 动态改变展开节点
defaultExpandedKeys: {
handler(keys) {
if (this.$refs.tree && this.$refs.tree.store) {
const nodes = this.$refs.tree.store._getAllNodes();
nodes.forEach((item) => {
item.expanded = keys.includes(item.data[this.defaultProps.value]);
});
}
},
deep: true,
},
},
computed: {
// 默认展开的节点
defaultExpandedKeys() {
if (this.disabled) {
return [];
}
const findOpen = getOpenNode(this.treeDataList || []);
let findNode = [];
if (findOpen.length) {
findNode = this.getExpandChild(this.treeDataList, findOpen[0].level);
}
const data = Array.isArray(this.value) ? this.value : [this.value];
const valueLength = getTreeAllLength(this.treeDataList);
// 当全选时，只展开根节点
if (valueLength === data.length) {
return findNode;
}
// 初始化时, 不为第一级时,展开第一个open的项
if (this.isInit && findOpen[0]?.level > 1) {
// eslint-disable-next-line vue/no-side-effects-in-computed-properties
this.isInit = false;
return [findOpen[0][this.defaultProps.value]];
}
const checkedParentKeys = data
.filter(Boolean)
.map((item) => {
return this.findParentOrSelf(
this.treeDataList || [],
(node) => node[this.defaultProps.value] === item
);
})
.filter(Boolean)
.map((i) => i[this.defaultProps.value]);
const res = [...findNode, ...checkedParentKeys].filter(Boolean);
return this.$lodash.uniq(res);
},
},
mounted() {
if (!this.disabled) {
this.refs.companySelectRef = this.$refs.treeSelect;
this.refs.companyTreeRef = this.$refs.tree;
const treeSelectPopoverEl =
this.$refs.popoverRef.$el.querySelector(".treeSelectPopover");
if (treeSelectPopoverEl) {
treeSelectPopoverEl.addEventListener("mouseenter", this.onmouseenter);
treeSelectPopoverEl.addEventListener("mouseleave", this.onmouseleave);
}
window.addEventListener("resize", this.setPopoverSlotWidth);
this.setPopoverSlotWidth();
}
},
beforeDestroy() {
if (!this.disabled) {
window.removeEventListener("resize", this.setPopoverSlotWidth);
const treeSelectPopoverEl =
this.$refs.popoverRef.$el.querySelector(".treeSelectPopover");
if (treeSelectPopoverEl) {
treeSelectPopoverEl.removeEventListener(
"mouseenter",
this.onmouseenter
);
treeSelectPopoverEl.removeEventListener(
"mouseleave",
this.onmouseleave
);
}
}
},
methods: {
// 处理hover模式下的交互样式问题
onmouseleave() {
if (!this.disabled && this.trigger === "hover") {
this.$refs.treeSelect.visible = false;
}
},
onmouseenter() {
if (!this.disabled && this.trigger === "hover") {
this.$refs.treeSelect.visible = true;
}
},
// 设置popover的宽度
setPopoverSlotWidth() {
setTimeout(() => {
this.popoverSlotWidth =
this.$refs.treeSelect?.$el?.offsetWidth || 350;
});
},
// 添加权限禁用节点
addAttr(tree) {
tree.map((item) => {
if (!item.open) {
item.disabled = true;
} else {
item.disabled = false;
}
if (item.children) {
this.addAttr(item.children);
}
});
},
// 重置过滤显示
visbleChange(visible) {
if (!visible) {
this.$refs.tree.filter();
}
},
// 输入过滤寻找
filterMethod(val) {
if (val) {
this.$refs.tree.filter(val);
} else {
this.$refs.tree.filter();
}
},
filterNode(value, data) {
if (!value) return true;
return data.deptName.indexOf(value) !== -1;
},
// 节点悬浮选择
popoverChangeValue(ids) {
this.$emit("change", ids);
this.$emit("input", ids);
},
// 获取数结构数据
async getCompanyList(val) {
if (this.disabled || (this.treeDataList && this.treeDataList.length)) {
return;
}
let url = "/cmrmp/api/commonComponent/queryCompanyTree";
if (this.isDept) url = "/cmrmp/api/commonComponent/queryOrgTree";
if (this.requestUrl) url = this.requestUrl;
const res = await axios.get(url, {
params: {
resourceCode: val,
},
});
if (res.data.code === "1") {
const data = res.data.result || [];
this.addAttr(data);
this.treeDataList = data;
if (this.defaultOne) {
this.setDefaultOne();
}
this.$emit("treeDone", data);
}
},
// 找寻父节点或自己
findParentOrSelf(tree, condition, parent = null) {
// 如果 tree 是数组，遍历每个子节点
if (Array.isArray(tree)) {
for (let node of tree) {
const result = this.findParentOrSelf(node, condition, parent);
if (result) return result;
}
return null;
}
// 如果当前节点满足条件
if (condition(tree)) {
// 如果有父节点，返回父节点；否则返回自己
return parent || tree;
}
// 递归查找子节点
if (tree.children && Array.isArray(tree.children)) {
for (let child of tree.children) {
const result = this.findParentOrSelf(child, condition, tree);
if (result) return result;
}
}
return null;
},
// 找到需要展开的节点层级
getExpandChild(node, level, result = []) {
if (Array.isArray(node)) {
node.forEach((o, ind) => {
if (ind === 0 && level === 1 && o.level === 1)
result.push(o[this.defaultProps.value]);
else if (o.level < level) result.push(o[this.defaultProps.value]);
if (o.children) this.getExpandChild(o.children, level, result);
});
} else {
if (node.children) this.getExpandChild(node.children, level, result);
}
return result;
},
// 递归找到第一个有权限（open）的节点
findFirstOpenNode(list) {
if (!list) return;
let arr = JSON.parse(JSON.stringify(list));
while (arr.length) {
let cur = arr[0];
if (cur.open) return cur;
if (cur.children?.length) {
arr = arr.concat(cur.children);
}
arr.shift();
}
},
// 默认选中第一个
setDefaultOne() {
if (!this.treeDataList.length) return;
const curNode = this.findFirstOpenNode(this.treeDataList);
if (curNode) {
const data = this.multiple
? [curNode[this.defaultProps.value]]
: curNode[this.defaultProps.value];
this.$emit("change", data);
this.$emit("input", data);
}
},
// 初始化已选中的节点
initSelectedNodes() {
if (!this.treeDataList.length) return;
this.$nextTick(() => {
if (this.multiple) {
// 多选模式
this.$refs.tree?.setCheckedKeys(this.selectedValue || []);
} else {
// 单选模式
this.$refs.tree?.setCurrentKey(this.selectedValue || "");
}
});
},
// 初始化禁用状态下的文本
initDisabledText() {
if (!this.disabled) {
return;
}
const val = this.disabledValue;
if (this.multiple) {
// 多选模式
if (typeof val == "string" && val.includes(",")) {
this.selectedDisabledValue = val.split(",");
} else if (Array.isArray(val)) {
this.selectedDisabledValue = val;
} else {
this.selectedDisabledValue = [val];
}
this.options = this.selectedDisabledValue.map((d) => {
return { value: d, label: d };
});
} else {
// 单选模式
this.selectedDisabledValue = val;
}
},
// 树结构平铺成el-select的一维option
flattenTree(
treeData,
idKey = this.defaultProps.value,
nameKey = this.defaultProps.label,
childrenKey = this.defaultProps.children
) {
const result = [];
// 确保输入是数组，如果不是则包装成数组
const treeArray = Array.isArray(treeData) ? treeData : [treeData];
function traverse(node) {
if (!node) return;
// 将当前节点转换为目标格式并添加到结果中
result.push({
label: node[nameKey],
value: node[idKey],
});
// 如果存在子节点，则递归遍历
if (node[childrenKey] && Array.isArray(node[childrenKey])) {
node[childrenKey].forEach(traverse);
}
}
// 遍历树的每个根节点
treeArray.forEach(traverse);
return result;
},
// 初始化options
initOptions() {
if (!this.treeDataList.length) return;
const list = this.flattenTree(this.treeDataList);
this.options = list;
},
// 节点展开
nodeExpand() {
this.$refs.treeSelect.visible = true;
},
// 节点收起
nodeCollapse() {
this.$refs.treeSelect.visible = true;
},
// 处理树节点点击（单选）
handleTreeNodeClick(data, node) {
if (this.multiple) {
this.$refs.treeSelect.visible = true;
return;
}
if (!this.multiple && data.open) {
this.selectedValue =
data[this.defaultProps.value] || data[this.treeNodeKey];
this.$emit("input", this.selectedValue);
this.$emit("change", this.selectedValue, data, node);
this.$refs.popoverRef.doClose();
}
},
// 处理树节点选择变化（多选）
handleTreeCheck(data, checkedInfo) {
if (this.multiple) {
this.$refs.treeSelect.visible = true;
const checkedKeys = checkedInfo.checkedKeys;
this.selectedValue = checkedKeys;
this.$emit("input", this.selectedValue);
this.$emit("change", this.selectedValue, checkedInfo.checkedNodes);
}
},
// 处理当前节点变化（单选）
handleCurrentChange(data, node) {
if (this.multiple) {
this.$refs.treeSelect.visible = true;
return;
}
if (!this.multiple && data.open) {
this.selectedValue =
data[this.defaultProps.value] || data[this.treeNodeKey];
}
},
// 清空选择
clearSelected() {
// if (this.defaultOne) {
// this.setDefaultOne();
// return;
// }
if (this.multiple) {
this.selectedValue = [];
this.$refs.tree.setCheckedKeys([]);
} else {
this.selectedValue = "";
this.$refs.tree.setCurrentKey(null);
}
this.$emit("input", this.selectedValue);
this.$emit("change", this.selectedValue);
},
// 移除标签（多选时）
removeTag(tag) {
// 查找要移除的节点
const nodes = this.$refs.tree.getCheckedNodes();
const nodeToRemove = nodes.find(
(node) => node[this.defaultProps.value] === tag
);
if (nodeToRemove) {
const key =
nodeToRemove[this.defaultProps.value] ||
nodeToRemove[this.treeNodeKey];
this.$refs.tree.setChecked(key, false);
// 更新选中值
const index = this.selectedValue.indexOf(key);
if (index > -1) {
this.selectedValue.splice(index, 1);
}
// if (this.selectedValue.length === 0) {
// if (this.defaultOne) {
// this.setDefaultOne();
// return;
// }
// }
this.$emit("input", this.selectedValue);
this.$emit("change", this.selectedValue);
}
},
// 获取选中的节点数据
getCheckedNodes() {
return this.multiple
? this.$refs.tree.getCheckedNodes()
: [this.$refs.tree.getCurrentNode()].filter(Boolean);
},
// 获取选中的键值
getCheckedKeys() {
return this.multiple
? this.$refs.tree.getCheckedKeys()
: this.selectedValue
? [this.selectedValue]
: [];
},
},
};
</script>
<style lang="less">
.treeSelectPopover {
max-height: 350px;
overflow-y: auto;
padding: 0;
.el-tree {
padding: 5px;
}
}
.treeSelectPopover[x-placement] {
margin: 0;
}
</style>
<style lang="less" scoped>
/deep/ .el-select-dropdown__item {
padding: 0;
}
/deep/ .el-tree {
// max-height: 350px;
// padding: 5px;
/* max-height: 300px; */
/* overflow-y: auto; */
// overflow: unset;
}
/deep/ .el-popover {
// overflow-y: auto;
// padding: 0;
// width: 100%;
}
.treeSelectWrap {
width: 100%;
}
.el-select-dropdown__item.selected {
font-weight: normal;
}
.span-ellipsis {
color: #333;
}
.text-ellipsis {
max-width: 280px;
overflow: hidden;
white-space: nowrap;
text-overflow: ellipsis;
}
.node-disabled {
color: #999;
cursor: not-allowed;
}
</style>在treeSelect文件夹下再建立TreeSeletLabelPopover.vue文件，代码如下：
js
<template>
<el-popover placement="right" :open-delay="600" trigger="hover">
<div class="optional-list-wrapper">
<div :title="node.label" class="popover-title">
{{ node.label || node.data.deptName }}
</div>
<el-link
v-for="item in optionalList"
:key="item"
type="primary"
:underline="false"
style="display: block; margin: 1px 0"
@click="handlePopoverClick(node.data, item)"
>
{{ item }}
</el-link>
</div>
<template #reference>
<slot></slot>
</template>
</el-popover>
</template>
<script>
export default {
props: {
node: {
// 树节点
type: Object,
default: () => ({}),
},
selectedValue: {
type: Array,
default: () => [],
},
companyTreeRef: {
// 树组件的ref，必填
type: Object,
default: () => ({}),
},
companySelectRef: {
type: Object,
default: () => ({}),
},
nodeKey: {
type: String,
default: "rcmOrgId",
},
},
data() {
return {
optionalList: [
"勾选本级和直属下级",
"勾选本级和全部下级",
"取消勾选全部下级",
],
};
},
methods: {
getAllChildrenIds(node) {
// 存储结果的数组
const ids = [];
// 如果当前节点有children且是一个数组
if (node.children && Array.isArray(node.children)) {
for (const child of node.children) {
// 将当前子节点的id加入结果
if (child[this.nodeKey] && child.open) {
ids.push(child[this.nodeKey]);
}
// 递归处理该子节点的后代
ids.push(...this.getAllChildrenIds(child));
}
}
return ids;
},
handlePopoverClick(companyNode, type) {
this.companySelectRef.visible = true;
const allIds = this.getAllChildrenIds(companyNode);
if (type === this.optionalList[0]) {
const data = [...this.selectedValue];
if (companyNode.open) {
data.push(companyNode[this.nodeKey]);
}
const ids = data.filter((item) => !allIds.includes(item));
if (companyNode.children?.length) {
companyNode.children.forEach((element) => {
if (element.open) {
ids.push(element[this.nodeKey]);
}
});
}
this.$emit("popoverChangeValue", this.$lodash.uniq(ids));
return;
}
if (type === this.optionalList[1]) {
const ids = [...this.selectedValue];
if (companyNode.open) {
ids.push(companyNode[this.nodeKey]);
}
ids.push(...allIds);
this.$emit("popoverChangeValue", this.$lodash.uniq(ids));
return;
}
if (type === this.optionalList[2]) {
const ids = this.selectedValue.filter(
(item) => !allIds.includes(item)
);
this.$emit("popoverChangeValue", this.$lodash.uniq(ids));
return;
}
},
},
};
</script>
<style lang="less" scoped>
.optional-list-wrapper {
margin: -10px;
padding: 10px;
position: relative;
z-index: 1000000;
}
.popover-title {
color: rgba(0, 0, 0, 0.4);
font-size: 14px;
padding: 0 4px 4px 0;
margin-bottom: 3px;
max-width: 150px;
overflow: hidden;
text-overflow: ellipsis;
white-space: nowrap;
}
</style>它的效果如图：
