删除AppBarLayout自带阴影

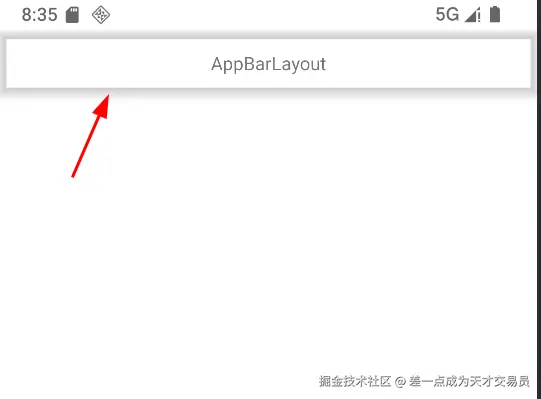

把AppBarLayout的background设置成透明之后,边缘会有阴影效果。elavation设置为0后还是有阴影。

xml 复制代码
<com.google.android.material.appbar.AppBarLayout
  android:layout_width="match_parent"
  android:layout_height="wrap_content"
  android:background="@android:color/transparent"
  android:elevation="0dp">

  <LinearLayout
    android:layout_width="match_parent"
    android:layout_height="50dp">

    <TextView
      android:layout_width="match_parent"
      android:layout_height="match_parent"
      android:gravity="center"
      android:text="AppBarLayout" />
  </LinearLayout>
</com.google.android.material.appbar.AppBarLayout>

原因

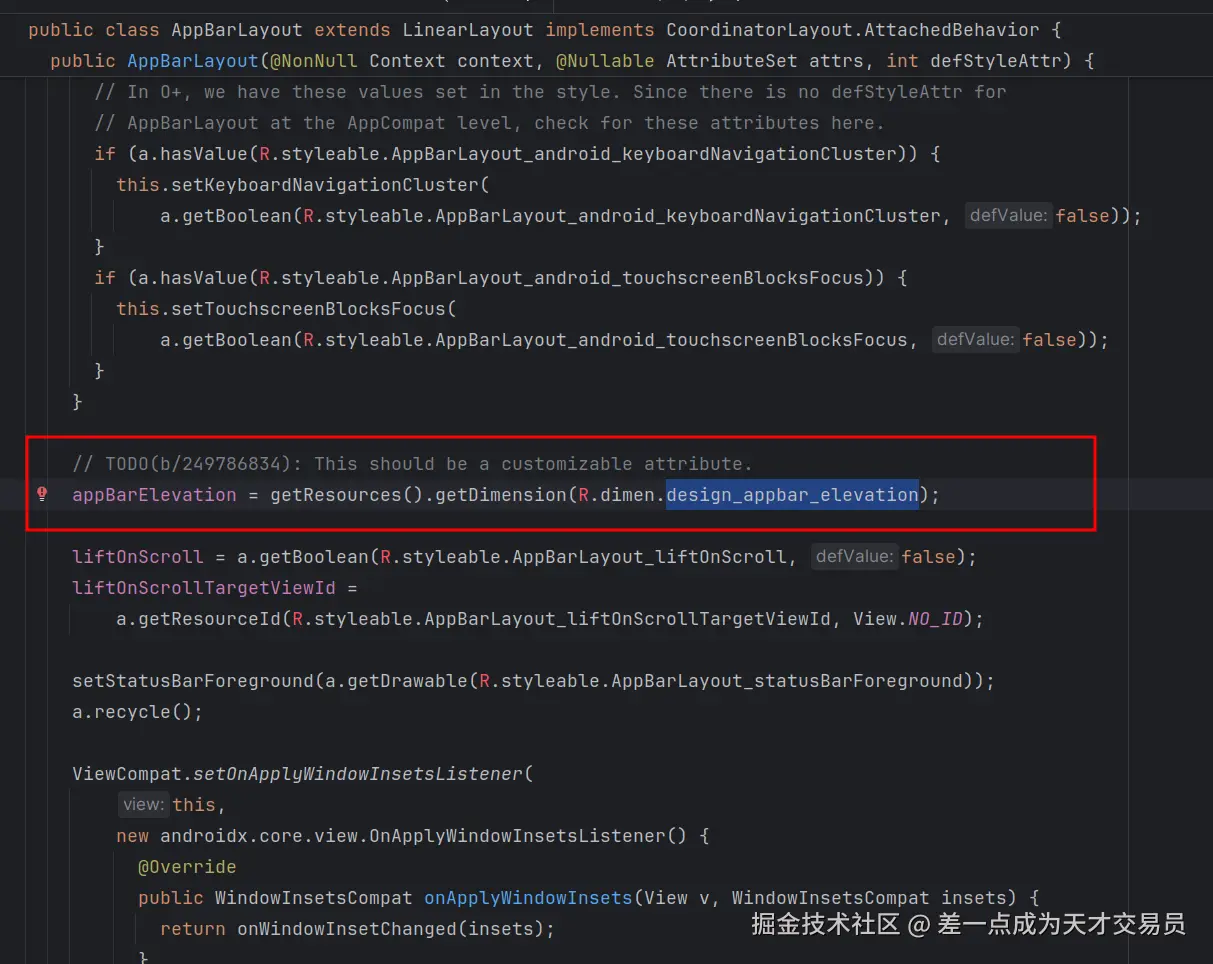

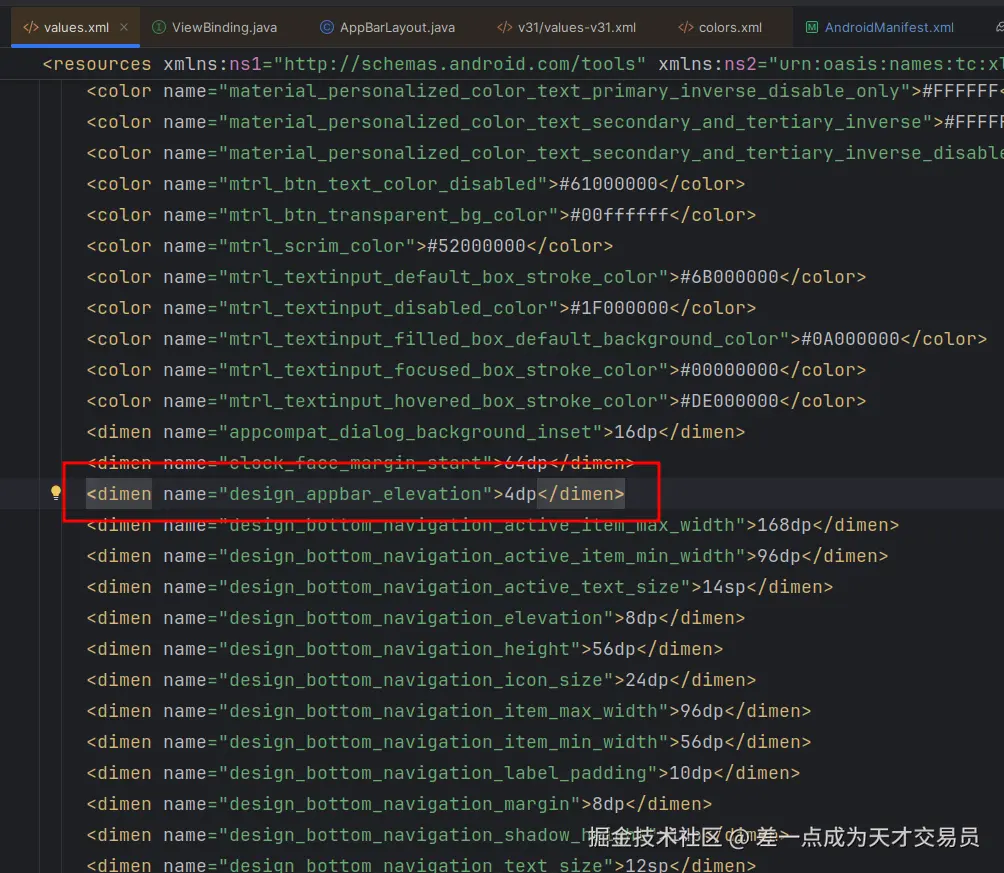

AppBarLayout的阴影是通过R.dimen.design_appbar_elevation来设置的,并没有通过自定义属性来设置。AppBarLayout的源码注释有一个TODO:This should be a customizable attribute,说明未来是google应该会把这个参数改为自定义的属性。

解决方法

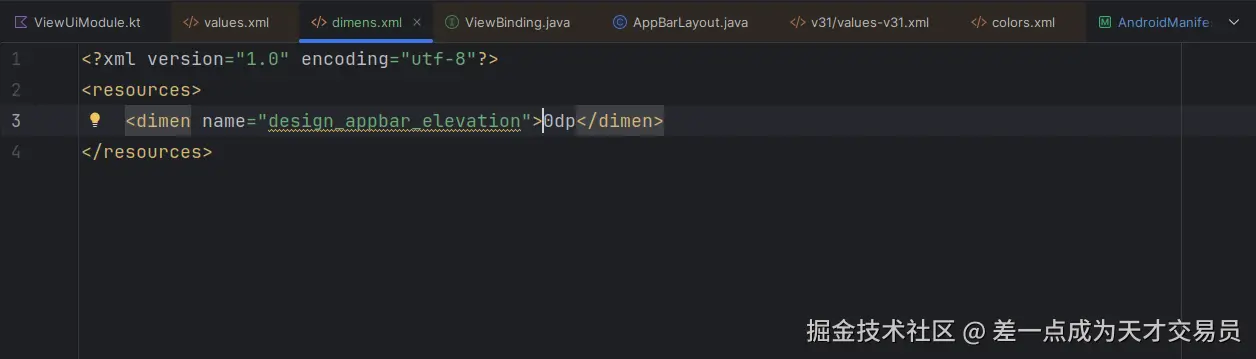

在dimens.xml中添加design_appbar_elevation即可,打包的时候自动替换AppBarLayout中的同名资源。
