DOM手搓一个渲染树形卡片的画布（二）

rudy_zhou2026-03-18 8:16

提示：文章写完后，目录可以自动生成，如何生成可参考右边的帮助文档

文章目录

前言

紧跟上一篇信息，换个布局方式渲染画布卡片

看上个渲染布局的信息：DOM手搓一个渲染卡片树的画布（一）

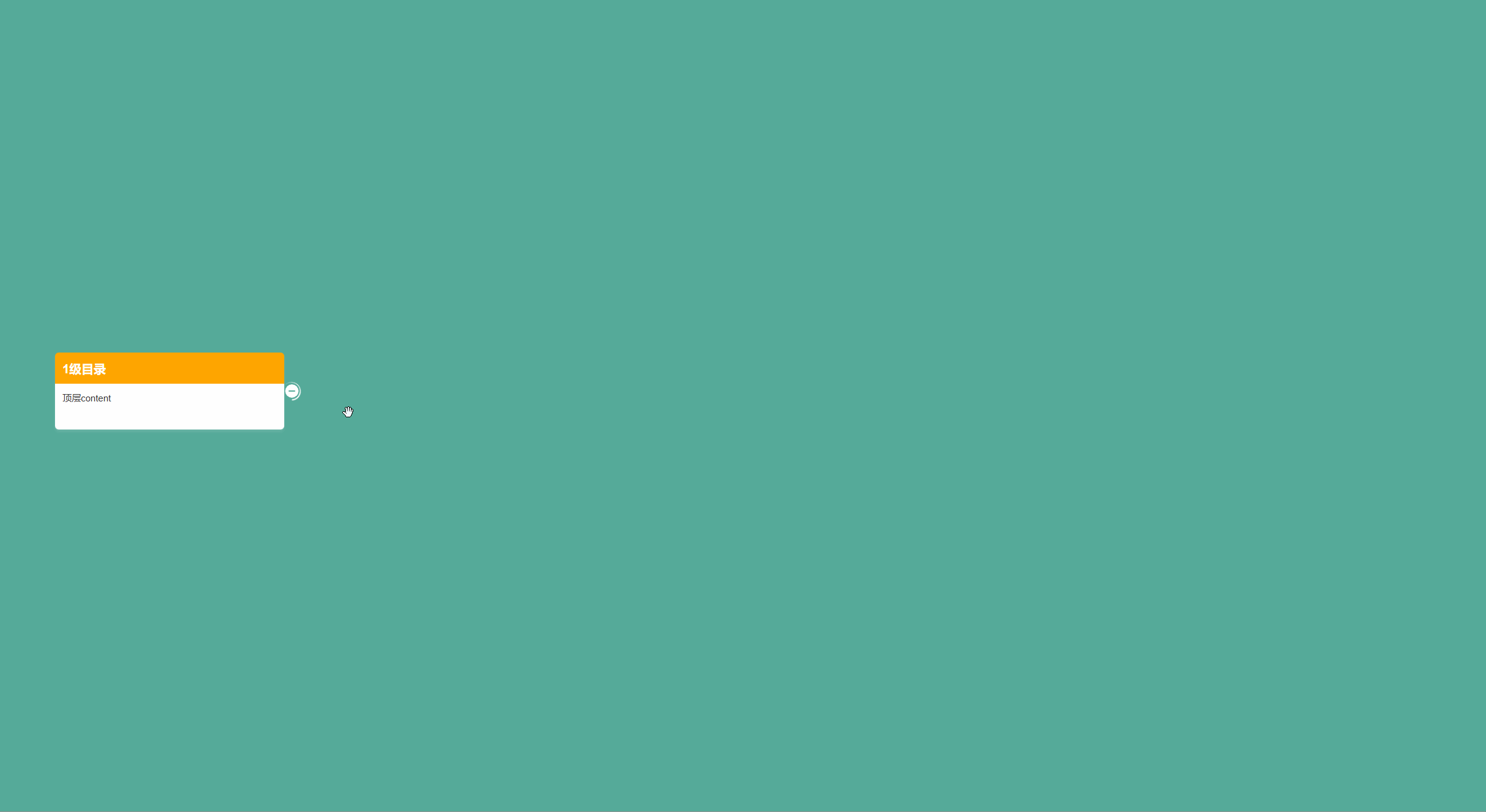

一、还是先看演示效果吧

二、画布主要功能介绍

  1. 节点使用随机数据（模拟请求）展开下级
  2. 画布支持放大，缩小，拖拽功能
  3. 节点展开添加过渡，以及请求过渡（点击展开按钮，按钮上的旋转效果）
  4. 画布布局采用向右，上下扩展布局（和上一篇布局方式有点区别）
  5. 卡片使用随机文案长度，支持不同大小卡片渲染效果展示
  6. ...

三、完整代码

使用两个组件实现效果，一个是 index.vue 画布组件，放大，缩小，移动 在这个组件上实现

另一个是 TopologyItem.vue 组件，画布内的卡片，以及连接卡片的线条、展开效果等在这个组件上实现

index.vue 组件代码

typescript 复制代码
<template lang="pug">
div.topology-wrapper
  div.topology-box( ref="El" @mousewheel.prevent.stop="mousewheelHandle" @mousedown="addMouseMove")
    div.translate-wrap( ref="mapRef" :style="translateStyle")
      TopologyItem( :data="treeData" :style="scaleStyle")
</template>

<script lang="ts">
import { defineComponent, reactive, computed, ref, onMounted, onUnmounted, provide } from 'vue'
import TopologyItem from './TopologyItem.vue'
import { debounce } from 'lodash-es'

export default defineComponent({
  name: 'Topology',
  components: {
    TopologyItem
  },
  setup(props) {
    const mapRef = ref<null | HTMLElement>(null);
    const mapHeight = ref<number>(0);
    // 切换节点展开关闭，判断画布卡片容器高度变化，自动移动容器，平滑展开关闭效果
    provide('action-change', () => {
      if(mapRef.value){
        const y = mapRef.value.clientHeight - mapHeight.value
        translateY.value -= y / 2
        mapHeight.value = mapRef.value.clientHeight
      }
    })

    const treeData = reactive({
      label: '1级目录',
      content: '顶层content',
      expand: false
    })

    const translateX = ref<number>(100);
    const translateY = ref<number>(100);
    const translateStyle = computed(() => {
      return `margin-left: ${translateX.value}px; margin-top: ${translateY.value}px`
    })
    const scaleStyle = computed(() => {
      return `zoom: ${scale.value}`
    })

    const scale = ref<number>(1);
    var scaleStep = 0.05;
    var maxScale = 2;
    var minScale = 0.2;
    const El = ref<null | HTMLElement>(null)

    var targetX = 0;
    var targetY = 0;

    onMounted(() => {
      document.addEventListener('mouseup', removeMouseMove)
      mapHeight.value = mapRef.value?.clientHeight as number
    })
    onUnmounted(() => {
      document.removeEventListener('mouseup', removeMouseMove);
    })
    const mousewheelHandle = (e: Event | any) => {
      let boundingRect = e.currentTarget.getBoundingClientRect();

      if(e.wheelDelta){
        let x = e.clientX - translateX.value - boundingRect.left;
        let y = e.clientY - translateY.value - boundingRect.top;
        let clientX = (x / scale.value ) * scaleStep;
        let clientY = (y / scale.value ) * scaleStep;
        if (e.wheelDelta > 0) {
          translateX.value -= scale.value >= maxScale ? 0 : clientX;
          translateY.value -= scale.value >= maxScale ? 0 : clientY;
          scale.value += scaleStep;
        } else {
          translateX.value += scale.value <= minScale ? 0 : clientX;
          translateY.value += scale.value <= minScale ? 0 : clientY;
          scale.value -= scaleStep;
          scale.value = Math.min(maxScale, Math.max(scale.value, minScale))
        }
      }
    }
    const addMouseMove = (e: Event | any) => {
      (El.value as any).style.cursor = 'grabbing';
      targetX = e.clientX;
      targetY = e.clientY;

      (El.value as any).addEventListener('mousemove', moveCanvasFunc, false);

      document.onselectstart = () => false;
      document.ondragstart = () => false;
    }
    const removeMouseMove = () => {
      (El.value as any).style.cursor = '';
      (El.value as any).removeEventListener('mousemove', moveCanvasFunc, false);

      document.onselectstart = null;
      document.ondragstart = null;
    }
    const moveCanvasFunc = (e: Event | any) => {
      e.preventDefault();
      let moveX = e.clientX - targetX;
      let moveY = e.clientY - targetY;

      translateX.value += moveX;
      translateY.value += moveY;

      targetX = e.clientX;
      targetY = e.clientY;
    }

    return {
      El,
      mapRef,
      treeData,
      translateStyle,
      scaleStyle,
      mousewheelHandle,
      addMouseMove
    }
  }
})
</script>

<style lang="stylus" scoped>
.topology-wrapper {
  height: 100%;
  --bg-color: #5a9; // 背景色，与覆盖线条颜色一致，不支持背景图，因为覆盖背景线条与图样式差异过大
  background-color: var(--bg-color);
  .topology-box {
    overflow: hidden;
    height: 100%;
    cursor: grab;
    box-sizing: border-box;
  }
}
</style>

TopologyItem.vue 组件代码

typescript 复制代码
<template lang="pug">
div.topology-item-wrap
  div.topology-card-column.card-column
    div.topology-card( @mousedown.stop)
      .header {{treeData.label}}
      el-icon( :size="20" @click="expandChange" color="#ffffff" :class="{loading: isLoading }")
        i-ep-CirclePlusFilled( v-if="!treeData.expand")
        i-ep-RemoveFilled( v-else)
      .body {{treeData.content}}
  transition( :duration="300" name="scale" @after-leave="actionChange")
    div.topology-card-column.next-column( v-show="treeData.expand" v-if="treeData.children && treeData.children.length" :class="{ 'child-only-one': treeData.children.length === 1 }")
      TopologyItem( v-for="(item, i) in treeData.children" :data="item" :key="i")
</template>

<script lang="ts">
import { ref, reactive, defineComponent, inject, nextTick } from 'vue'
interface TreeNode {
  label: string;
  content: string;
  children?: TreeNode[];
  expand: boolean;
}

export default defineComponent({
  name: 'TopologyItem',
  props: {
    data: {
      type: Object,
      default: () => ({})
    }
  },
  setup(props) {
    const actionChange = inject<any>('action-change')

    const isLoading = ref<boolean>(false)
    const treeData = reactive<TreeNode>({
      label: props.data.label,
      content: props.data.content,
      children: props.data.children || [],
      expand: props.data.expand
    })

    const str = '今天天天气真正好，我和小明抢银行。我抢金他抢银，不止谁拨了110。我跑得快，他跑得慢，他被抓到了警察局。我在家里吃馒头，他在牢里吃拳头，我在家里数金币，他在牢里等枪毙。我的金币数完了，他的小命没有了。今天天天气真正好，我和小明抢银行。我抢金他抢银，不止谁拨了110。我跑得快，他跑得慢，他被抓到了警察局。我在家里吃馒头，他在牢里吃拳头，我在家里数金币，他在牢里等枪毙。我的金币数完了，他的小命没有了。'
    const expandChange = () => {
      treeData.expand = !treeData.expand
      if(treeData.expand && !treeData.children?.length){
        treeData.children = []
        isLoading.value = true
        setTimeout(() => {
          treeData.children = Array.from(new Array(Math.ceil(Math.random() * 3))).map((v, i) => {
            return {
              label: `随机目录${Date.now()}`,
              content: str.slice(0, Math.ceil(Math.random() * str.length)),
              expand: false,
              children: []
            }
          })
          isLoading.value = false

          nextTick(() => {
            actionChange()
          })
        }, 1500 * Math.random())
      } else if(treeData.expand){
        nextTick(() => {
          actionChange()
        })
      }
    }

    return {
      actionChange,
      isLoading,
      treeData,
      expandChange
    }
  }
})
</script>

<style lang="stylus" scoped>
.topology-item-wrap {
  display: flex;
  flex-wrap: nowrap;
  & + .topology-item-wrap {
    margin-top: 20px;
  }
  .topology-card-column {
    pointer-events: none;
    &.card-column {
      display: flex;
      flex-direction: column;
      justify-content: center;
      padding-right: 20px;
    }
    &.next-column {
      // padding-left: 120px;
      padding-left: 100px;
      position: relative;
      overflow: hidden;
      display: flex;
      flex-direction: column;
      justify-content: center;
      &::before {
        content: '';
        position: absolute;
        top: 50%;
        left: 0px;
        width 40px;
        border-bottom: 1px solid #ffffff;
      }
      &.child-only-one {
        > .topology-item-wrap {
          &:nth-of-type(1) {
            & > .card-column {
              & > .topology-card {
                &::before {
                  content: '';
                  pointer-events: none;
                  position: absolute;
                  top: 50%;
                  border-bottom: 1px solid #ffffff;
                  left: -100px;
                  width: 100px;
                }
              }
            }
          }
        }
      }
      &:not(.child-only-one) {
        > .topology-item-wrap {
          &:nth-of-type(1) {
            & > .card-column {
              & > .topology-card {
                &::before {
                  content: '';
                  pointer-events: none;
                  position: absolute;
                  width: 60px;
                  height: 5px;
                  top: 50%;
                  left: -60px;
                  border-top: 1px solid #ffffff;
                  border-left: 1px solid #ffffff;
                  border-top-left-radius: 5px;
                }
                &::after {
                  content: '';
                  pointer-events: none;
                  position: absolute;
                  top: calc(-99999px + 50% + 3px);
                  left: -60px;
                  height: 99999px;
                  border-left: 1px solid var(--bg-color);
                  z-index: 1;
                  border-bottom-right-radius: 5px;
                }
              }
            }
          }
        }
      }
      &:not(.child-only-one) {
        > .topology-item-wrap {
          &:last-of-type {
            & > .topology-card-column {
              & > .topology-card {
                &::before {
                  content: '';
                  pointer-events: none;
                  position: absolute;
                  top: calc(-99999px + 50%);
                  left: -60px;
                  width: 60px;
                  height: 99999px;
                  border-left: 1px solid #ffffff;
                  border-bottom: 1px solid #ffffff;
                  border-bottom-left-radius: 5px;
                }
              }
            }
          }
        }
      }
      .topology-item-wrap {
        & + .topology-item-wrap {
          > .topology-card-column > .topology-card {
            &::before {
              content: '';
              pointer-events: none;
              position: absolute;
              bottom: 50%;
              left: -60px;
              width: 60px;
              border-bottom: 1px solid #ffffff;
            }
          }
        }
      }
    }
  }
  .topology-card {
    pointer-events: auto;
    position: relative;
    cursor: default;
    width: 300px;
    border-radius: 5px;
    box-shadow: 0 3px 3px rgba(255, 255, 255, .1);
    .header {
      padding: 10px;
      background-color: orange;
      color: #ffffff;
      font-size: 16px;
      font-weight: bold;
      border-radius: 5px 5px 0 0;
      & + .el-icon {
        float: right;
        margin-right: -20px;
        // margin-top: -10px;
        cursor: pointer;
        position: absolute;
        right: -0;
        top: 50%;
        transform: translateY(-50%);
        &.loading::after {
          content: '';
          pointer-events: none;
          display: block;
          position: absolute;
          box-sizing: border-box;
          width: calc(100% + 4px);
          height: calc(100% + 4px);
          left: -2px;
          top: -2px;
          border-left: 2px solid #ffffff;
          border-bottom: 1px solid #ffffff;
          border-top: 2px solid transparent;
          border-radius: 50%;
          animation: rotating 1s linear infinite;
        }
      }
    }
    .body {
      padding: 10px;
      background-color: #ffffff;
      border-radius: 0 0 5px 5px;
      min-height: 40px;
    }
  }

  .scale-enter-active, .scale-leave-active {
    transform-origin: 0 50%;
    transition: transform .3s linear;
  }
  .scale-leave-to, .scale-enter-from {
    transform: scale(0);
  }
  .scale-enter-to, .scale-leave-from {
    transform: scale(1);
  }
}
</style>

效果演示DEMO

功能效果演示地址：DOM手搓一个渲染树形布局卡片的画布

总结

对比上一篇（开头有链接）

主要就改了下渲染卡片的布局方式，改动较大的就是卡片对齐方式，以及连接线定位，

以及更改了下随机卡片内容，演示了高度随机也支持，

还有因为是向上向下展开，需要展开关闭后重新移动定位

以上信息如有疏漏或错误，欢迎指正，谢谢
