HCIP作业 - 技术栈

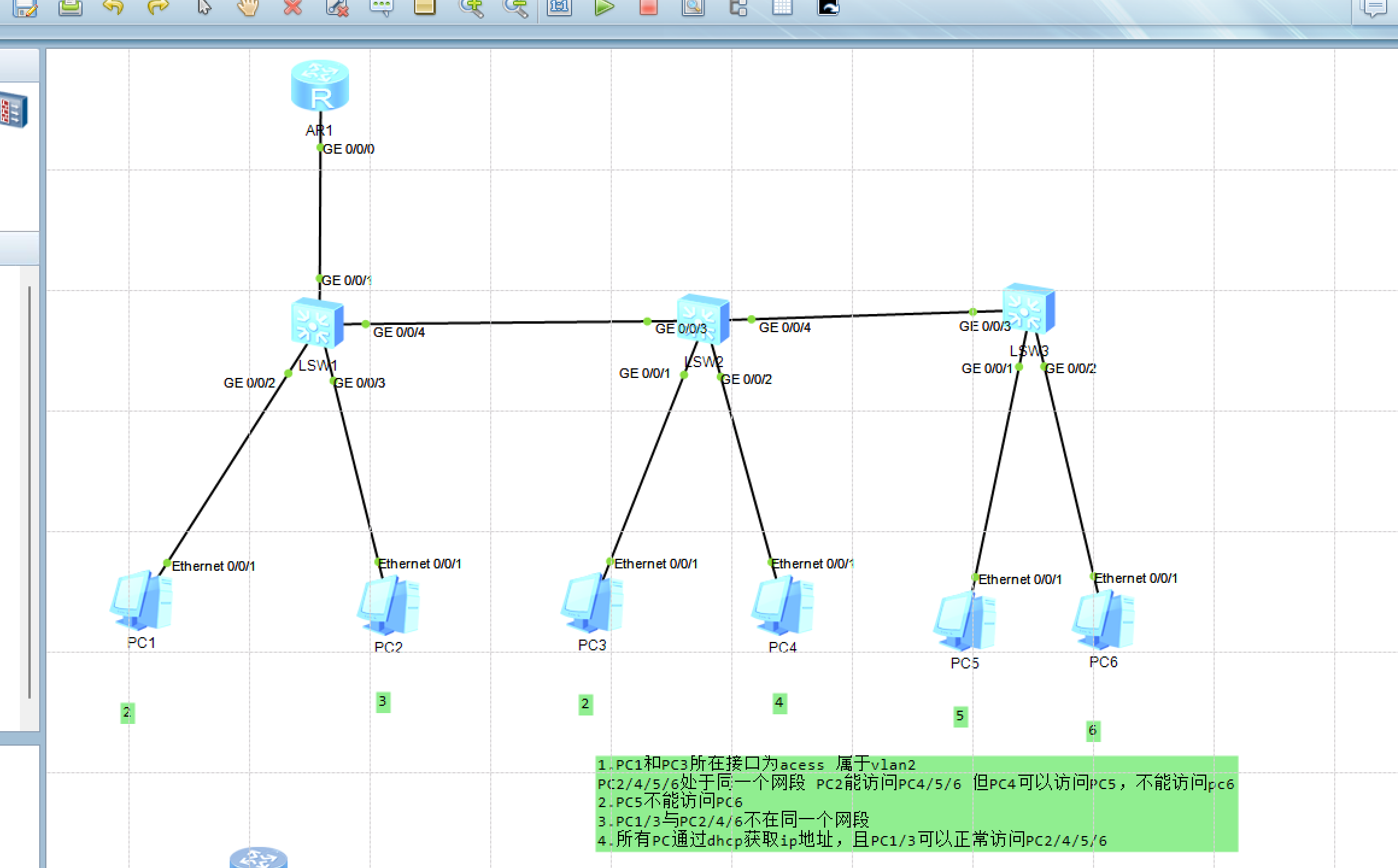

1 PC1和PC3所在接口为access;属于 vlan2;

PC2/4/5/6处于同一网段;其中PC2可以访问PC4/5/6;

但PC4可以访问PC5,不能访问PC6

3 PC1/3与PC2/4/5/6不在同一个网段

复制代码

PC：
1：IPv4 address......................: 192.168.2.253
2：IPv4 address......................: 192.168.3.253
3：IPv4 address......................: 192.168.2.252
4：IPv4 address......................: 192.168.3.252
5：IPv4 address......................: 192.168.3.251
6：IPv4 address......................: 192.168.3.250

2 PC5不能访问PC6

复制代码

PC>ping 192.168.3.250

Ping 192.168.3.250: 32 data bytes, Press Ctrl_C to break
From 192.168.3.252: Destination host unreachable
From 192.168.3.252: Destination host unreachable
From 192.168.3.252: Destination host unreachable
From 192.168.3.252: Destination host unreachable
From 192.168.3.252: Destination host unreachable

--- 192.168.3.250 ping statistics ---
  5 packet(s) transmitted
  0 packet(s) received
  100.00% packet loss

PC>

4 所有PC通过DHCP获取IP地址,且PC1/3可以正常访问PC2/4/5/6

复制代码

<Huawei> sys
[Huawei] sys AR1
[AR1] interface GigabitEthernet 0/0/0
[AR1-GigabitEthernet0/0/0] ip address 192.168.1.1 255.255.255.0
[AR1-GigabitEthernet0/0/0] undo shutdown
[AR1-GigabitEthernet0/0/0] quit
[AR1] ip route-static 192.168.2.0 255.255.255.0 192.168.1.2
[AR1] ip route-static 192.168.3.0 255.255.255.0 192.168.1.2

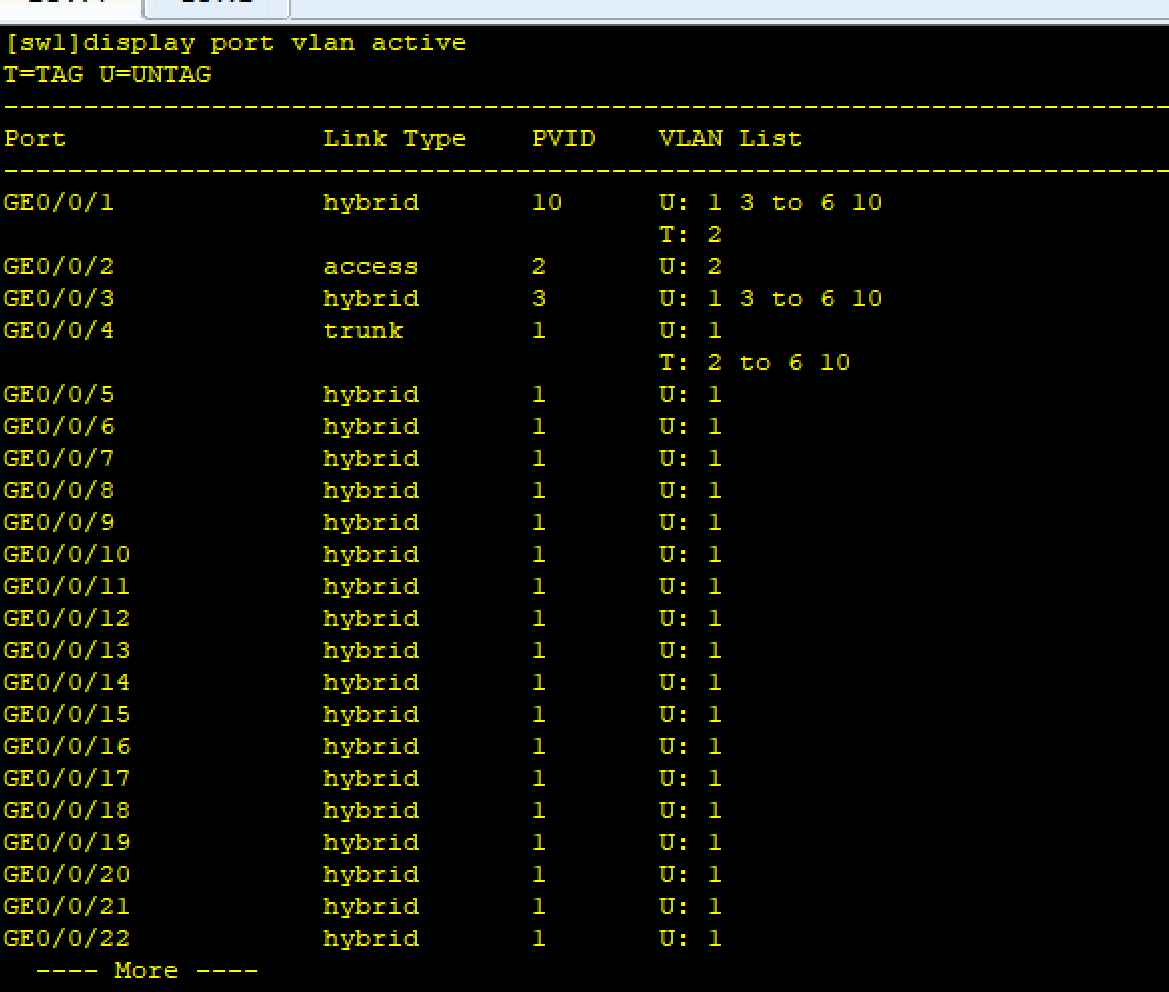

<Huawei> system-view
[Huawei] sysname LSW1
[LSW1] vlan batch 2 3 4 5 6
[LSW1] vlan 10
[LSW1-vlan10] aggregate-vlan
[LSW1-vlan10] access-vlan 3 4 5 6  # 子VLAN3/4/5/6聚合到Super-VLAN10
[LSW1-vlan10] quit
[LSW1] interface Vlanif 2
[LSW1-Vlanif2] ip address 192.168.2.254 255.255.255.0
[LSW1-Vlanif2] dhcp select global
[LSW1-Vlanif2] quit
[LSW1] interface Vlanif 10
[LSW1-Vlanif10] ip address 192.168.3.254 255.255.255.0
[LSW1-Vlanif10] arp-proxy inter-sub-vlan-proxy enable
[LSW1-Vlanif10] dhcp select global
[LSW1-Vlanif10] quit
[LSW1] dhcp enable
[LSW1] ip pool vlan2
[LSW1-ip-pool-vlan2] network 192.168.2.0 mask 24
[LSW1-ip-pool-vlan2] gateway-list 192.168.2.254
[LSW1-ip-pool-vlan2] dns-list 8.8.8.8
[LSW1-ip-pool-vlan2] quit
[LSW1] ip pool super_vlan10
[LSW1-ip-pool-super_vlan10] network 192.168.3.0 mask 24
[LSW1-ip-pool-super_vlan10] gateway-list 192.168.3.254
[LSW1-ip-pool-super_vlan10] dns-list 8.8.8.8
[LSW1] acl number 3000

[LSW1-acl-adv-3000] rule deny ip source 192.168.3.4 0 destination 192.168.3.6 0

[LSW1-acl-adv-3000] rule deny ip source 192.168.3.5 0 destination 192.168.3.6 0

[LSW1-acl-adv-3000] rule permit ip
[LSW1-acl-adv-3000] quit

[LSW1] interface Vlanif 10
[LSW1-Vlanif10] traffic-filter inbound acl 3000
[LSW1-Vlanif10] quit


[LSW1] interface GigabitEthernet 0/0/1
[LSW1-GigabitEthernet0/0/1] port link-type trunk
[LSW1-GigabitEthernet0/0/1] port trunk allow-pass vlan 2 3 4 5 6
[LSW1-GigabitEthernet0/0/1] quit

[LSW1] interface GigabitEthernet 0/0/2
[LSW1-GigabitEthernet0/0/2] port link-type trunk
[LSW1-GigabitEthernet0/0/2] port trunk allow-pass vlan 2 3 4 5 6
[LSW1-GigabitEthernet0/0/2] quit

[LSW1] interface GigabitEthernet 0/0/3
[LSW1-GigabitEthernet0/0/3] clear configuration this
[LSW1-GigabitEthernet0/0/3] undo shutdown
[LSW1-GigabitEthernet0/0/3] port link-type access  # 满足条件1：Access接口
[LSW1-GigabitEthernet0/0/3] port default vlan 2
[LSW1-GigabitEthernet0/0/3] quit

[LSW1] interface GigabitEthernet 0/0/4
[LSW1-GigabitEthernet0/0/4] clear configuration this
[LSW1-GigabitEthernet0/0/4] undo shutdown
[LSW1-GigabitEthernet0/0/4] port link-type hybrid
[LSW1-GigabitEthernet0/0/4] port hybrid untagged vlan 3
[LSW1-GigabitEthernet0/0/4] port hybrid pvid vlan 3
[LSW1-GigabitEthernet0/0/4] undo port hybrid untagged vlan 1
[LSW1-GigabitEthernet0/0/4] quit

[LSW1] ip route-static 0.0.0.0 0.0.0.0 192.168.1.1

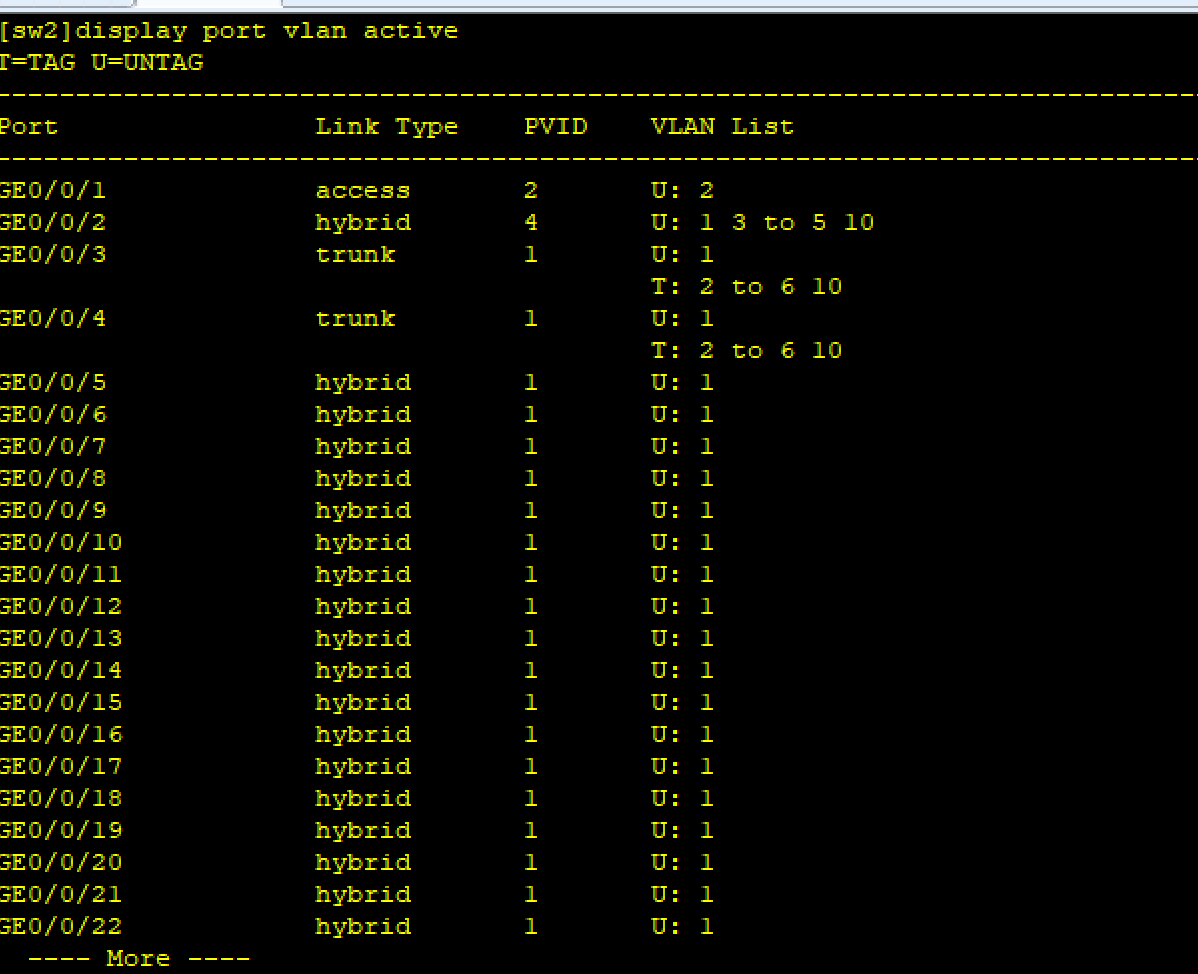

<Huawei> system-view
[Huawei] sysname LSW2
[LSW2] vlan batch 2 3 4 5 6

[LSW2] interface GigabitEthernet 0/0/1
[LSW2-GigabitEthernet0/0/1] port link-type trunk
[LSW2-GigabitEthernet0/0/1] port trunk allow-pass vlan 2 3 4 5 6
[LSW2-GigabitEthernet0/0/1] quit

[LSW2] interface GigabitEthernet 0/0/2
[LSW2-GigabitEthernet0/0/2] port link-type trunk
[LSW2-GigabitEthernet0/0/2] port trunk allow-pass vlan 2 3 4 5 6
[LSW2-GigabitEthernet0/0/2] quit

[LSW2] interface GigabitEthernet 0/0/3
[LSW2-GigabitEthernet0/0/3] port link-type access
[LSW2-GigabitEthernet0/0/3] port default vlan 2
[LSW2-GigabitEthernet0/0/3] quit

[LSW2] interface GigabitEthernet 0/0/4
[LSW2-GigabitEthernet0/0/4] port link-type hybrid
[LSW2-GigabitEthernet0/0/4] port hybrid untagged vlan 4
[LSW2-GigabitEthernet0/0/4] port hybrid pvid vlan 4
[LSW2-GigabitEthernet0/0/4] undo port hybrid untagged vlan 1
[LSW2-GigabitEthernet0/0/4] quit

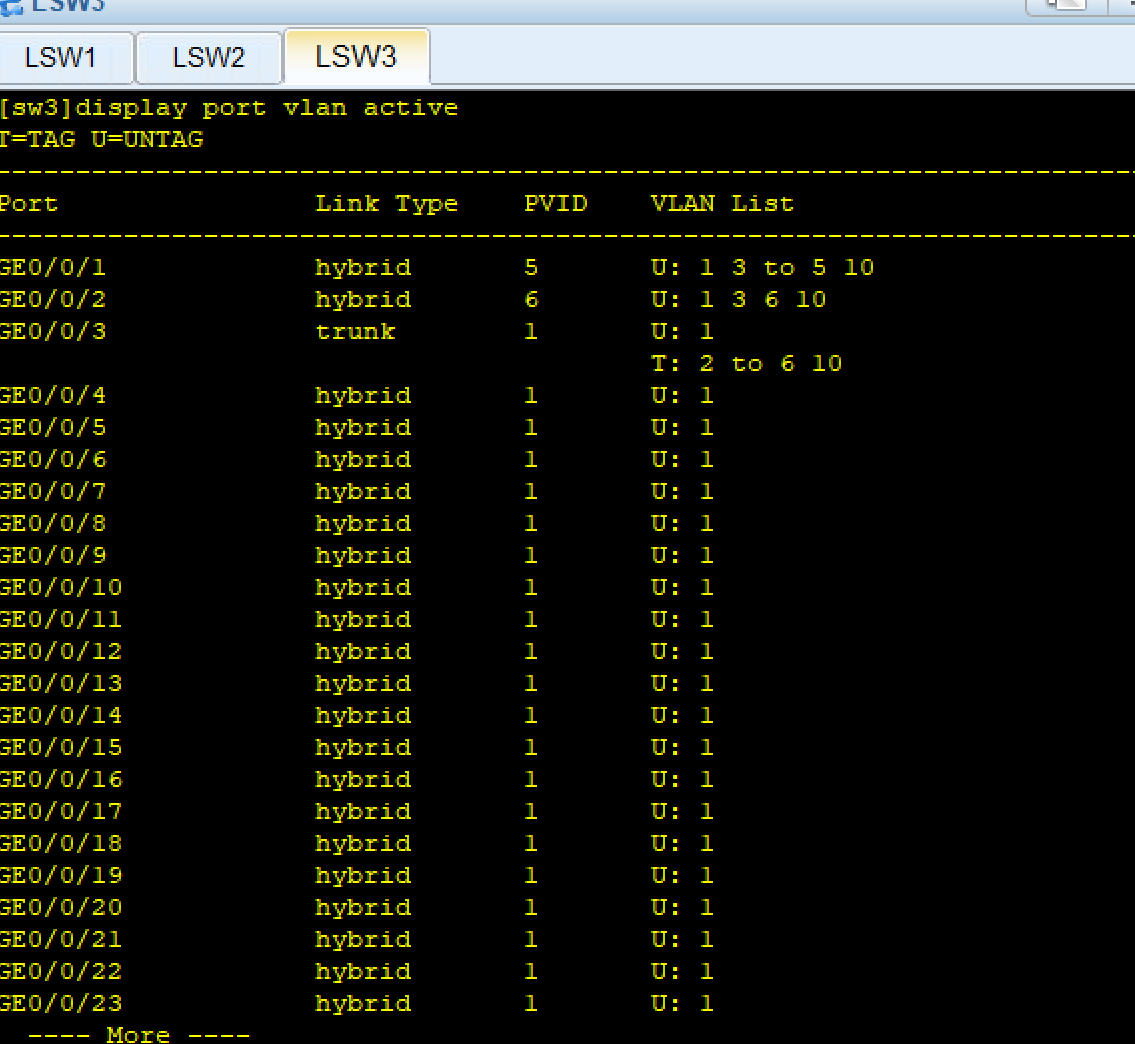

<Huawei> system-view
[Huawei] sysname LSW3
[LSW3] vlan batch 2 3 4 5 6


[LSW3] interface GigabitEthernet 0/0/1
[LSW3-GigabitEthernet0/0/1] port link-type trunk
[LSW3-GigabitEthernet0/0/1] port trunk allow-pass vlan 2 3 4 5 6
[LSW3-GigabitEthernet0/0/1] quit

[LSW3] interface GigabitEthernet 0/0/2

[LSW3-GigabitEthernet0/0/2] port link-type hybrid
[LSW3-GigabitEthernet0/0/2] port hybrid untagged vlan 5
[LSW3-GigabitEthernet0/0/2] port hybrid pvid vlan 5
[LSW3-GigabitEthernet0/0/2] undo port hybrid untagged vlan 1
[LSW3-GigabitEthernet0/0/2] quit

[LSW3] interface GigabitEthernet 0/0/3

[LSW3-GigabitEthernet0/0/3] port link-type hybrid
[LSW3-GigabitEthernet0/0/3] port hybrid untagged vlan 6
[LSW3-GigabitEthernet0/0/3] port hybrid pvid vlan 6
[LSW3-GigabitEthernet0/0/3] undo port hybrid untagged vlan 1
[LSW3-GigabitEthernet0/0/3] quit

老师我尽力了，但是我就是修改不出来，所以我找了豆包，但是豆包写的也有问题
