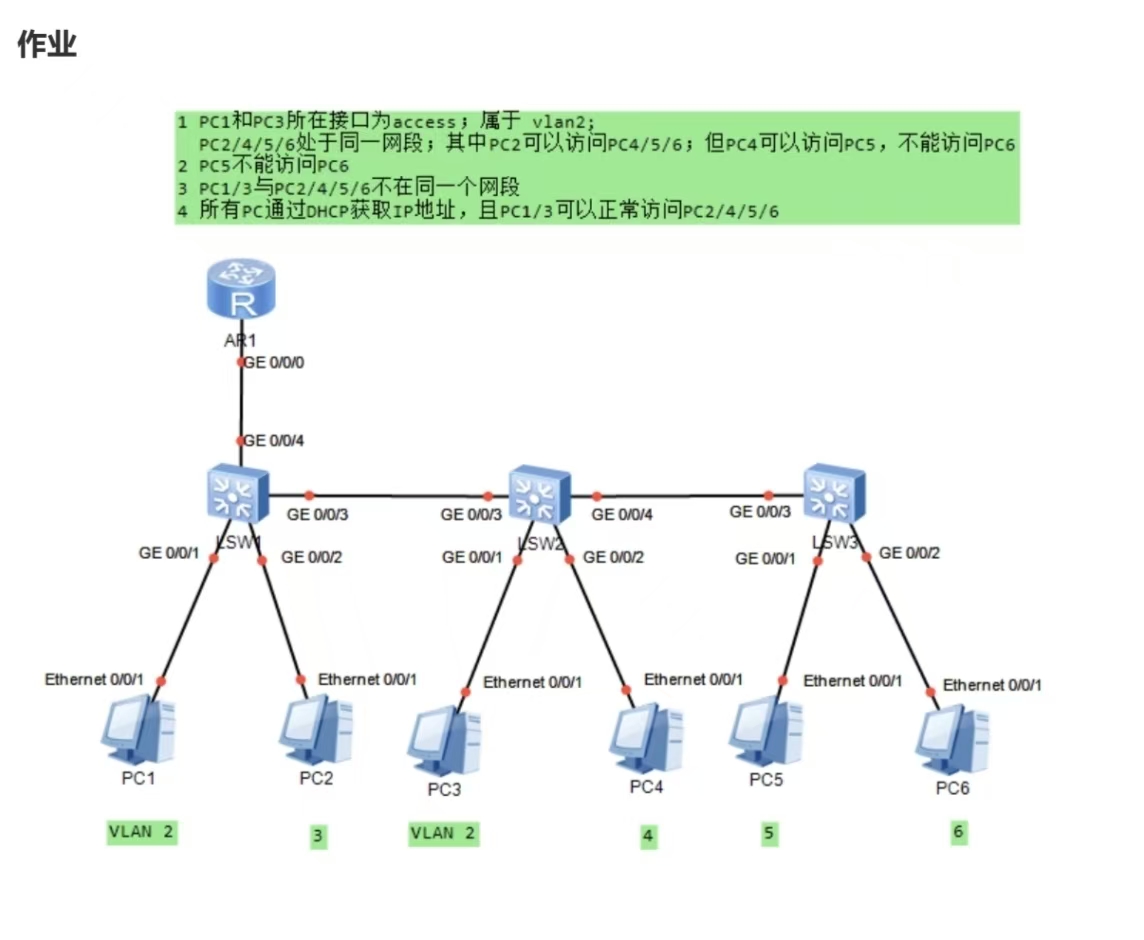

一、划分vlan
pc1/3属于vlan2 pc2/4/5/6分别属于vlan3，4，5，6且处于同一网段，无法使用就supervlan来实现、于是需要利用路由器来直接分发ip，但是不同的vlan不能使用同一个接口，于是将物理接口给vlan 3 4 5 6因为他们虽然不属于同一vlan但是属于同一个网段，子接口就给vlan2。
二、划分T,U
根据要求pc1可以连通pc2 4 5 6 则U应为2 3 4 5 6
pc2连通pc1 3 4 5 6则U为2 3 4 5 6
pc3连通pc2 4 5 6则U为2 3 4 5 6
pc4连通pc1 2 3 5但没有pc6则U为2 3 4 5
pc5连通pc 1 2 3 4则U为2 3 4 5
pc6连通1 2 3则U为 2 3 4
三、开始大概的编写 里lsw1

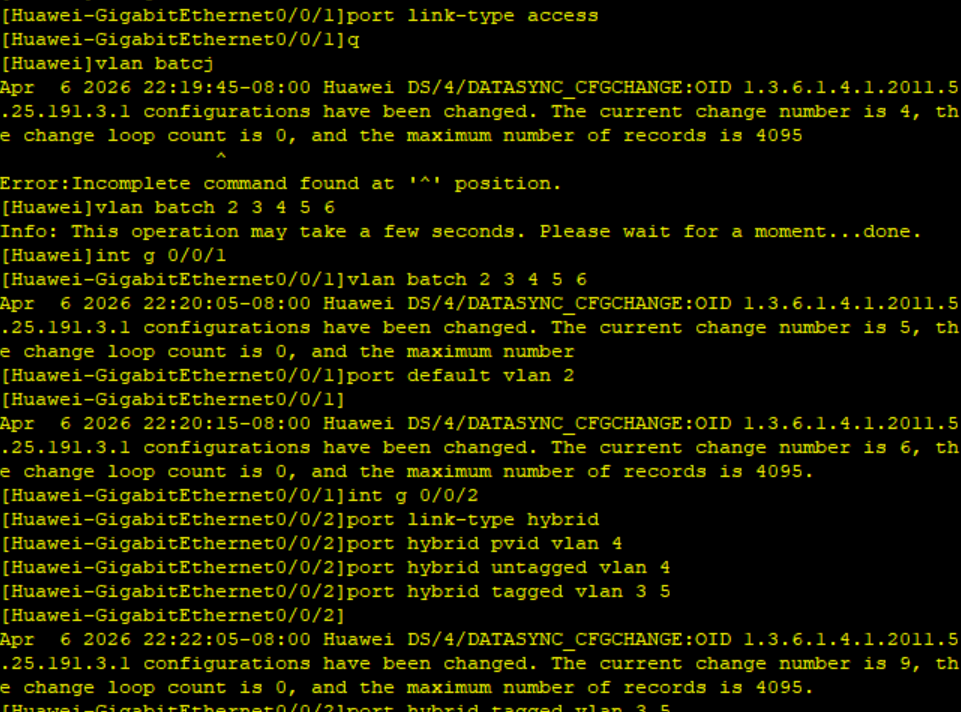

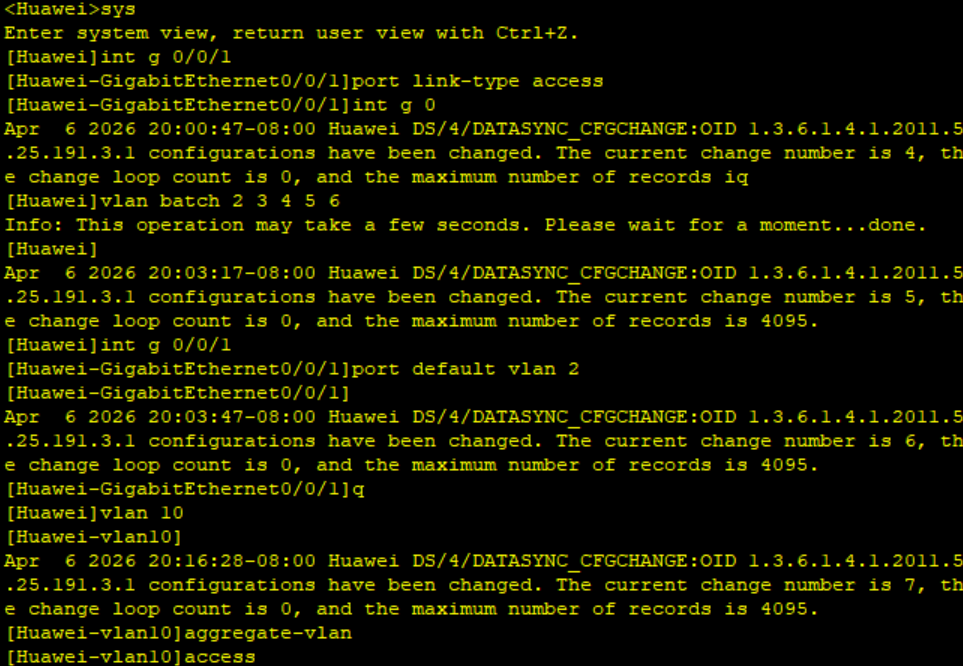

按照要求将pc1 3 化为acces
将交换机和路由器的接口放行
Huawei-GigabitEthernet0/0/4\]port link-type trunk \[Huawei-GigabitEthernet0/0/4\]port link-type hybrid port hybrid \[Huawei-GigabitEthernet0/0/4\]tagged vlan 2 \[Huawei-GigabitEthernet0/0/4\]port hybrid untagged vlan 3 4 5 6 \[Huawei-GigabitEthernet0/0/4\]port hybrid pvid vlan 3 \[Huawei-GigabitEthernet0/0/4\]undo shutdown
LSW2

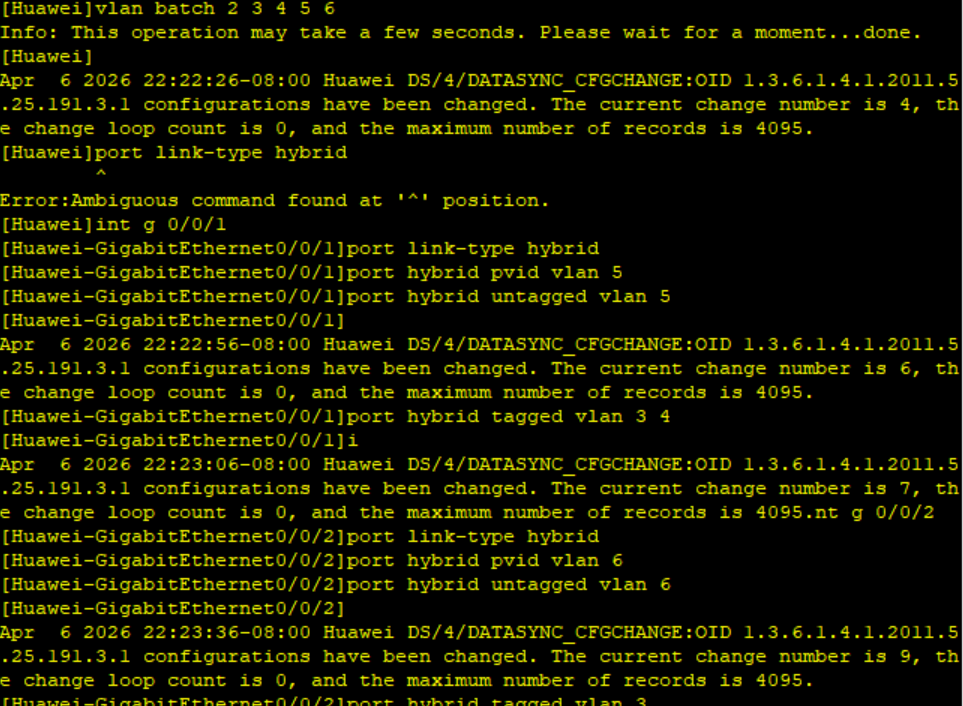

LSW3
在路由器上创建地址池分为两部分分给两个网段
Huawei\]int g 0/0/0 \[Huawei-GigabitEthernet0/0/0\]undo shutdown Info: Interface GigabitEthernet0/0/0 is not shutdown. \[Huawei-GigabitEthernet0/0/0\]int g 0/0/0.1 \[Huawei-GigabitEthernet0/0/0.1
Huawei-GigabitEthernet0/0/0.1\]dot1q termination vid 2 \[Huawei-GigabitEthernet0/0/0.1\]ip address 192.168.2.1 255.255.255.0 Apr 6 2026 22:25:46-08:00 Huawei %%01IFNET/4/LINK_STATE(l)\[0\]:The line protocol IP on the interface GigabitEthernet0/0/0.1 has entered the UP state. \[Huawei-GigabitEthernet0/0/0.1\]arp broadcast enable \[Huawei-GigabitEthernet0/0/0.1
Huawei-GigabitEthernet0/0/0.1
Huawei-GigabitEthernet0/0/0.1\]q \[Huawei\]dhcp enable Info: The operation may take a few seconds. Please wait for a moment.done. \[Huawei-GigabitEthernet0/0/0\]shutdown Apr 6 2026 22:34:36-08:00 Huawei %%01IFPDT/4/IF_STATE(l)\[1\]:Interface GigabitEt hernet0/0/0 has turned into DOWN state. \[Huawei-GigabitEthernet0/0/0
Huawei-GigabitEthernet0/0/0
Apr 6 2026 22:34:36-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[2]:The line protocol
IP on the interface GigabitEthernet0/0/0.1 has entered the DOWN state.
Huawei-GigabitEthernet0/0/0
Huawei-GigabitEthernet0/0/0\]ip address 192.168.3.1 255.255.255.0 \[Huawei-GigabitEthernet0/0/0\]dhcp select global \[Huawei-GigabitEthernet0/0/0\]undo shutdown \[Huawei-GigabitEthernet0/0/0
Apr 6 2026 22:38:37-08:00 Huawei %%01IFPDT/4/IF_STATE(l)[3]:Interface GigabitEt
hernet0/0/0 has turned into UP state.
Huawei-GigabitEthernet0/0/0
Apr 6 2026 22:38:37-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[4]:The line protocol
IP on the interface GigabitEthernet0/0/0 has entered the UP state.
Huawei-GigabitEthernet0/0/0
Apr 6 2026 22:38:37-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[5]:The line protocol
IP on the interface GigabitEthernet0/0/0.1 has entered the UP state.
Huawei-GigabitEthernet0/0/0\]interface GigabitEthernet0/0/0.2 \[Huawei-GigabitEthernet0/0/0.2\]dot1q termination vid 2 Error: Failed to configure the interface because the VLAN has been configured on interface GigabitEthernet0/0/0.1. \[Huawei-GigabitEthernet0/0/0.2\]int g 0/0/0.1 \[Huawei-GigabitEthernet0/0/0.1\]ip address 192.168.2.1 255.255.255.0 Error: The address already exists. \[Huawei-GigabitEthernet0/0/0.1\]arp broadcast enable Info: This interface has already been configured with ARP broadcast. \[Huawei-GigabitEthernet0/0/0.1\]dhcp select global \[Huawei-GigabitEthernet0/0/0.1\]q \[Huawei\]ip pool vlan2 Info: It's successful to create an IP address pool. \[Huawei-ip-pool-vlan2\]gateway-list 192.168.2.1 \[Huawei-ip-pool-vlan2\]network 192.168.2.0 mask 255.255.255.0 \[Huawei-ip-pool-vlan2\]dns-list 114.114.114.114 \[Huawei-ip-pool-vlan2\]ip pool vlan3456 Info: It's successful to create an IP address pool. \[Huawei-ip-pool-vlan3456\]gateway-list 192.168.3.1 \[Huawei-ip-pool-vlan3456\]network 192.168.3.0 mask 255.255.255.0 \[Huawei-ip-pool-vlan3456\]dns-list 114.114.114.114

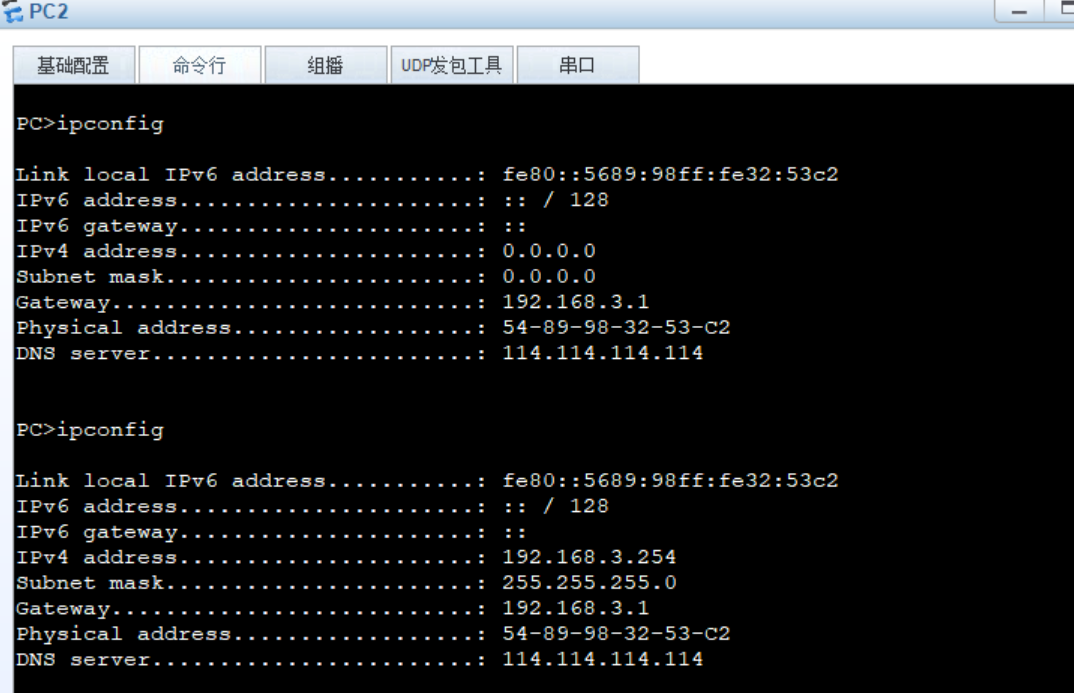

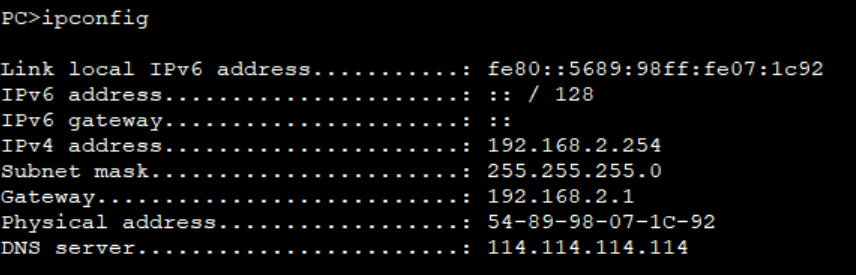

PC2获取IP

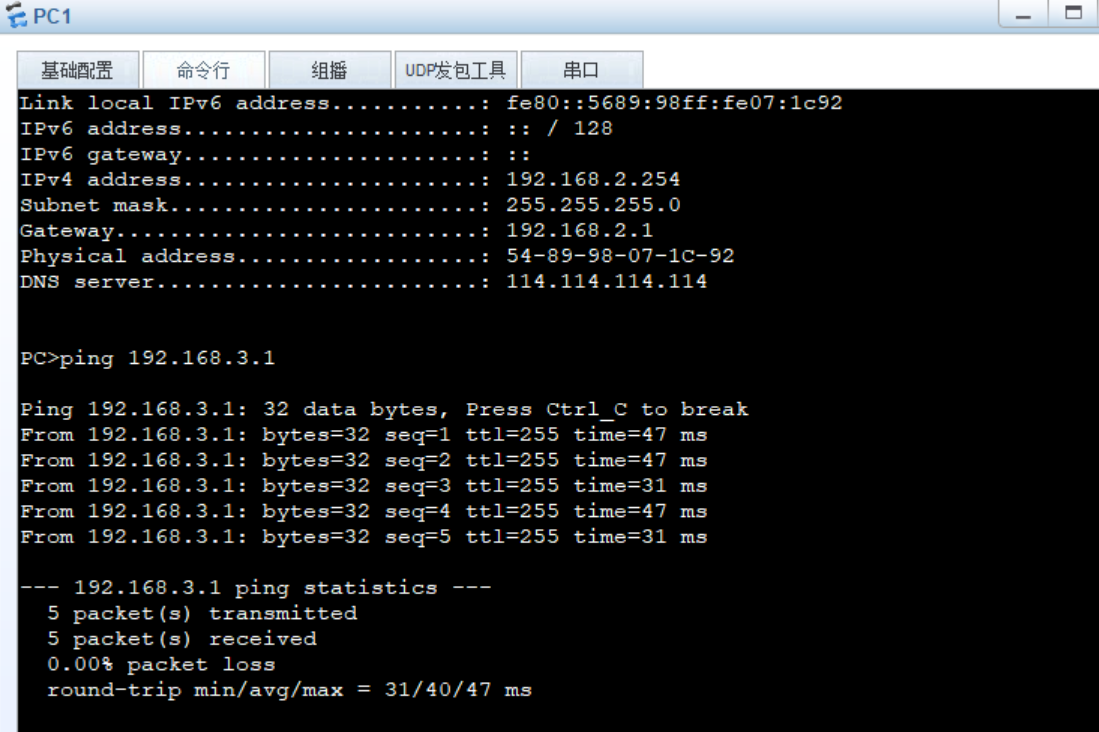

PC1访问PC2
