【ROS一键编译脚本】基于colcon与catkin的辅助一键懒人脚本

前言

最近在项目中反复运用到colcon build编译指令，为了方便，这里分享一个编写的一键编译脚本。

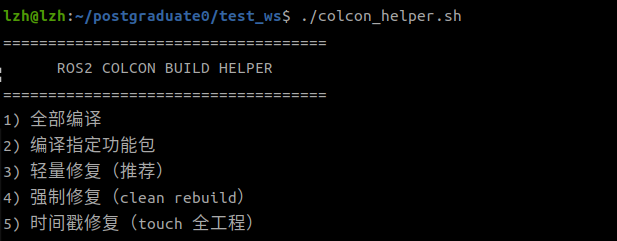

最终效果如下：

完整代码实现

老规矩先看全部代码

bash 复制代码

#!/bin/bash

WS_DIR=$(pwd)
SRC_DIR="$WS_DIR/src"
BUILD_DIR="$WS_DIR/build"
INSTALL_DIR="$WS_DIR/install"
LOG_DIR="$WS_DIR/log"

COLCON_BASE_CMD="colcon build --event-handlers console_direct+ --parallel-workers 4"

echo "===================================="
echo "      ROS2 COLCON BUILD HELPER      "
echo "===================================="
echo "1) 全部编译"
echo "2) 编译指定功能包"
echo "3) 轻量修复（推荐）"
echo "4) 强制修复（clean rebuild）"
echo "5) 时间戳修复（touch 全工程）"
echo "===================================="
read -p "请选择操作: " main_choice

# =========================
# 获取 package 列表
# =========================
get_packages() {
    packages=()
    index=1

    for pkg in $(colcon list --names-only); do
        packages+=("$pkg")
        echo "$index) $pkg"
        index=$((index + 1))
    done
}

# =========================
# 全部编译
# =========================
build_all() {
    echo "全部编译..."
    $COLCON_BASE_CMD
}

# =========================
# 指定包编译
# =========================
build_selected() {
    echo "扫描功能包..."
    get_packages

    echo ""
    read -p "输入编号（如 1 2 3，空格隔开）: " pkg_indexes

    selected_packages=""
    for i in $pkg_indexes; do
        pkg_name="${packages[$((i-1))]}"
        selected_packages="$selected_packages $pkg_name"
    done

    echo "编译: $selected_packages"

    $COLCON_BASE_CMD --packages-select $selected_packages
}

# =========================
# 轻量修复（推荐）
# =========================
light_fix() {
    echo "===================================="
    echo "1) 修复全部包（轻量）"
    echo "2) 修复指定包（轻量）"
    echo "===================================="
    read -p "请选择: " fix_choice

    if [ "$fix_choice" == "1" ]; then
        echo "轻量修复：clean cache + force configure"
        $COLCON_BASE_CMD --cmake-clean-cache

    elif [ "$fix_choice" == "2" ]; then
        echo "扫描功能包..."
        get_packages

        read -p "输入编号（如 1 2 3，空格隔开） " pkg_indexes

        selected_packages=""
        for i in $pkg_indexes; do
            pkg_name="${packages[$((i-1))]}"
            selected_packages="$selected_packages $pkg_name"
        done

        echo "轻量修复包: $selected_packages"

        $COLCON_BASE_CMD \
            --packages-select $selected_packages \
            --cmake-force-configure
    else
        echo "无效"
    fi
}

# =========================
# 强制修复（最干净）
# =========================
hard_fix() {
    echo "===================================="
    echo "1) 修复全部（删除重建）"
    echo "2) 修复指定包（删除重建）"
    echo "===================================="
    read -p "请选择: " fix_choice

    if [ "$fix_choice" == "1" ]; then
        echo "删除全部 build/install/log"
        rm -rf "$BUILD_DIR" "$INSTALL_DIR" "$LOG_DIR"

        echo "重新全量编译"
        $COLCON_BASE_CMD

    elif [ "$fix_choice" == "2" ]; then
        echo "扫描功能包..."
        get_packages

        read -p "输入编号（如 1 2 3，空格隔开）" pkg_indexes

        selected_packages=""
        for i in $pkg_indexes; do
            pkg_name="${packages[$((i-1))]}"
            selected_packages="$selected_packages $pkg_name"
        done

        echo "删除指定包 build/install/log"

        for pkg in $selected_packages; do
            rm -rf "$BUILD_DIR/$pkg"
            rm -rf "$INSTALL_DIR/$pkg"
            rm -rf "$LOG_DIR/$pkg"
        done

        echo "重新编译: $selected_packages"
        $COLCON_BASE_CMD --packages-select $selected_packages
    else
        echo "无效"
    fi
}
# =========================
# 时间戳修复（touch 全工程）
# =========================
time_fix() {
    echo "===================================="
    echo "时间戳修复（Clock Skew Fix）"
    echo "===================================="

    echo "执行 find . -exec touch {} +"

    find "$WS_DIR" -exec touch {} + 2>/dev/null

    echo "✔workspace 时间戳已刷新"

}
# =========================
# 主入口
# =========================
case $main_choice in
    1)
        build_all
        ;;
    2)
        build_selected
        ;;
    3)
        light_fix
        ;;
    4)
        hard_fix
        ;;
    5)
        time_fix
        ;;
    *)
        echo "无效选择"
        ;;

esac

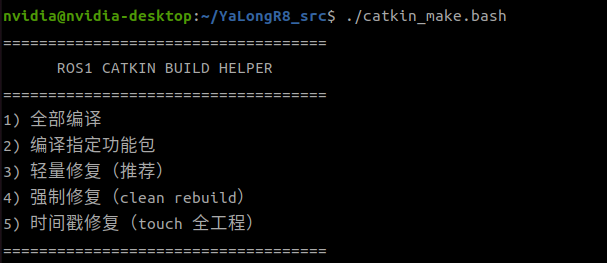

这里也提供一个ros1的实现

bash 复制代码

#!/bin/bash

WS_DIR=$(pwd)
SRC_DIR="$WS_DIR/src"
BUILD_DIR="$WS_DIR/build"
DEVEL_DIR="$WS_DIR/devel"
LOG_DIR="$WS_DIR/log"

CATKIN_BASE_CMD="catkin_make -j4"

echo "===================================="
echo "      ROS1 CATKIN BUILD HELPER      "
echo "===================================="
echo "1) 全部编译"
echo "2) 编译指定功能包"
echo "3) 轻量修复（推荐）"
echo "4) 强制修复（clean rebuild）"
echo "5) 时间戳修复（touch 全工程）"
echo "===================================="

read -p "请选择操作: " main_choice

# =========================
# 获取 package 列表
# =========================
get_packages() {
    packages=()
    index=1

    for pkg in $(catkin_topological_order "$SRC_DIR" 2>/dev/null); do
        pkg_name=$(basename "$pkg")

        packages+=("$pkg_name")

        echo "$index) $pkg_name"

        index=$((index + 1))
    done
}

# =========================
# 全部编译
# =========================
build_all() {
    echo "全部编译..."
    $CATKIN_BASE_CMD
}

# =========================
# 编译指定包
# =========================
build_selected() {
    echo "扫描功能包..."
    get_packages

    echo ""

    read -p "输入编号（如 1 2 3，空格隔开）: " pkg_indexes

    selected_packages=""

    for i in $pkg_indexes; do
        pkg_name="${packages[$((i-1))]}"
        selected_packages="$selected_packages $pkg_name"
    done

    echo "编译:$selected_packages"

    catkin_make --pkg $selected_packages -j4
}

# =========================
# 轻量修复
# =========================
light_fix() {
    echo "===================================="
    echo "1) 修复全部包（轻量）"
    echo "2) 修复指定包（轻量）"
    echo "===================================="

    read -p "请选择: " fix_choice

    if [ "$fix_choice" == "1" ]; then

        echo "轻量修复：删除 CMakeCache"

        rm -f "$BUILD_DIR/CMakeCache.txt"

        $CATKIN_BASE_CMD

    elif [ "$fix_choice" == "2" ]; then

        echo "扫描功能包..."
        get_packages

        read -p "输入编号（如 1 2 3，空格隔开）: " pkg_indexes

        selected_packages=""

        for i in $pkg_indexes; do
            pkg_name="${packages[$((i-1))]}"
            selected_packages="$selected_packages $pkg_name"
        done

        echo "轻量修复:$selected_packages"

        catkin_make --pkg $selected_packages -j4

    else
        echo "无效"
    fi
}

# =========================
# 强制修复
# =========================
hard_fix() {
    echo "===================================="
    echo "1) 修复全部（删除重建）"
    echo "2) 修复指定包（删除重建）"
    echo "===================================="

    read -p "请选择: " fix_choice

    if [ "$fix_choice" == "1" ]; then

        echo "删除 build/devel/log"

        rm -rf "$BUILD_DIR"
        rm -rf "$DEVEL_DIR"
        rm -rf "$LOG_DIR"

        echo "重新全量编译"

        $CATKIN_BASE_CMD

    elif [ "$fix_choice" == "2" ]; then

        echo "扫描功能包..."
        get_packages

        read -p "输入编号（如 1 2 3，空格隔开）: " pkg_indexes

        selected_packages=""

        for i in $pkg_indexes; do
            pkg_name="${packages[$((i-1))]}"
            selected_packages="$selected_packages $pkg_name"
        done

        echo "删除指定包 build"

        for pkg in $selected_packages; do
            rm -rf "$BUILD_DIR/$pkg"
        done

        echo "重新编译:$selected_packages"

        catkin_make --pkg $selected_packages -j4

    else
        echo "无效"
    fi
}

# =========================
# 时间戳修复
# =========================
time_fix() {
    echo "===================================="
    echo "时间戳修复（Clock Skew Fix）"
    echo "===================================="

    echo "执行 find . -exec touch {} +"

    find "$WS_DIR" -exec touch {} + 2>/dev/null

    echo "✔ workspace 时间戳已刷新"
}

# =========================
# 主入口
# =========================
case $main_choice in
    1)
        build_all
        ;;
    2)
        build_selected
        ;;
    3)
        light_fix
        ;;
    4)
        hard_fix
        ;;
    5)
        time_fix
        ;;
    *)
        echo "无效选择"
        ;;
esac

下面我们分模块解析实现

1-1 基础参数

bash 复制代码

WS_DIR=$(pwd)
SRC_DIR="$WS_DIR/src"
BUILD_DIR="$WS_DIR/build"
INSTALL_DIR="$WS_DIR/install"
LOG_DIR="$WS_DIR/log"

COLCON_BASE_CMD="colcon build --event-handlers console_direct+ --parallel-workers 4"

这里获取了当前的工作空间$(pwd)，同时获取了功能包应该存在的src和编译后的三大输出目录：
- build：编译中间文件
- install：最终安装结果
- log：编译日志
COLCON_BASE_CMD="colcon build --event-handlers console_direct+ --parallel-workers 4"
- --event-handlers console_direct+：实时输出编译日志（不缓存）
- --parallel-workers 4：并行编译 4 个 package

1-2 读取用户选择

bash 复制代码

echo "===================================="
echo "      ROS2 COLCON BUILD HELPER      "
echo "===================================="
echo "1) 全部编译"
echo "2) 编译指定功能包"
echo "3) 轻量修复（推荐）"
echo "4) 强制修复（clean rebuild）"
echo "5) 时间戳修复（touch 全工程）"
echo "===================================="
read -p "请选择操作: " main_choice

读取用户输入然后赋值给main_choice

1-3 获取 package 列表

bash 复制代码

get_packages() {
    packages=()
    index=1

    for pkg in $(colcon list --names-only); do
        packages+=("$pkg")
        echo "$index) $pkg"
        index=$((index + 1))
    done
}

区别于直接搜寻src下的全部目录，这里借助colcon list获取 package，避免了src还存在其他非ros2的目录影响判断
packages+=("$pkg")：数组，保存所有 package 名称

1-4 指定包编译

bash 复制代码

build_all() {
    echo "全部编译..."
    $COLCON_BASE_CMD
}
build_selected() {
    echo "扫描功能包..."
    get_packages

    echo ""
    read -p "输入编号（如 1 2 3，空格隔开）: " pkg_indexes

    selected_packages=""
    for i in $pkg_indexes; do
        pkg_name="${packages[$((i-1))]}"
        selected_packages="$selected_packages $pkg_name"
    done

    echo "编译: $selected_packages"

    $COLCON_BASE_CMD --packages-select $selected_packages
}

调用get_packages更新全部包的数组packages
读取用户输入的编号，然后便利存储有全部包的数组packages
- pkg_name="${packages[$((i-1))]}"：把编号转换为对应的包名
- selected_packages="$selected_packages $pkg_name"拼接字符串，变成pkgA pkgB pkgC
最后执行编译

1-5 轻量修复

bash 复制代码

light_fix() {
    echo "===================================="
    echo "1) 修复全部包（轻量）"
    echo "2) 修复指定包（轻量）"
    echo "===================================="
    read -p "请选择: " fix_choice

    if [ "$fix_choice" == "1" ]; then
        echo "轻量修复：clean cache + force configure"
        $COLCON_BASE_CMD --cmake-clean-cache

    elif [ "$fix_choice" == "2" ]; then
        echo "扫描功能包..."
        get_packages

        read -p "输入编号（如 1 2 3，空格隔开） " pkg_indexes

        selected_packages=""
        for i in $pkg_indexes; do
            pkg_name="${packages[$((i-1))]}"
            selected_packages="$selected_packages $pkg_name"
        done

        echo "轻量修复包: $selected_packages"

        $COLCON_BASE_CMD \
            --packages-select $selected_packages \
            --cmake-force-configure
    else
        echo "无效"
    fi
}

轻量修复主要用于如下情况：
- CMakeLists改了
- find_package失败
- dependency变化
核心主要依赖于
- --cmake-clean-cache：删除 CMakeCache.txt，重新 configure
- --cmake-force-configure：--cmake-force-configure

1-6 强制修复

bash 复制代码

hard_fix() {
    echo "===================================="
    echo "1) 修复全部（删除重建）"
    echo "2) 修复指定包（删除重建）"
    echo "===================================="
    read -p "请选择: " fix_choice

    if [ "$fix_choice" == "1" ]; then
        echo "删除全部 build/install/log"
        rm -rf "$BUILD_DIR" "$INSTALL_DIR" "$LOG_DIR"

        echo "重新全量编译"
        $COLCON_BASE_CMD

    elif [ "$fix_choice" == "2" ]; then
        echo "扫描功能包..."
        get_packages

        read -p "输入编号（如 1 2 3，空格隔开）" pkg_indexes

        selected_packages=""
        for i in $pkg_indexes; do
            pkg_name="${packages[$((i-1))]}"
            selected_packages="$selected_packages $pkg_name"
        done

        echo "删除指定包 build/install/log"

        for pkg in $selected_packages; do
            rm -rf "$BUILD_DIR/$pkg"
            rm -rf "$INSTALL_DIR/$pkg"
            rm -rf "$LOG_DIR/$pkg"
        done

        echo "重新编译: $selected_packages"
        $COLCON_BASE_CMD --packages-select $selected_packages
    else
        echo "无效"
    fi
}

强制修复是最暴力的方式，核心原理就是：

bash 复制代码

rm -rf build install log

彻底清空 colcon 产物，然后重新编译

1-7 时间戳修复

bash 复制代码

time_fix() {
    echo "===================================="
    echo "时间戳修复（Clock Skew Fix）"
    echo "===================================="

    echo "执行 find . -exec touch {} +"

    find "$WS_DIR" -exec touch {} + 2>/dev/null

    echo "✔workspace 时间戳已刷新"

}

参考文章：【ROS编译未来时间戳报错修正】一种无需重零编译的文件时间戳更新方法分享
强制所有文件时间 = 当前时间，主要修复

bash 复制代码

Clock skew detected. Your build may be incomplete

1-8 主入口

bash 复制代码

case $main_choice in
    1)
        build_all
        ;;
    2)
        build_selected
        ;;
    3)
        light_fix
        ;;
    4)
        hard_fix
        ;;
    5)
        time_fix
        ;;
    *)
        echo "无效选择"
        ;;

esac

switch结构，没了

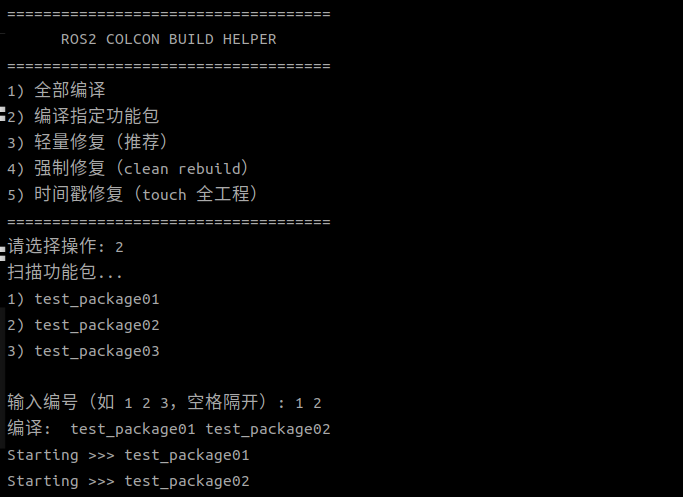

测试

我们搭建如下测试

bash 复制代码

.
├── build
├── colcon_helper.sh
├── install
├── log
└── src
    ├── test01
    ├── test_package01
    │   ├── CMakeLists.txt
    │   ├── include
    │   ├── package.xml
    │   └── src
    ├── test_package02
    │   ├── CMakeLists.txt
    │   ├── include
    │   ├── package.xml
    │   └── src
    └── test_package03
        ├── CMakeLists.txt
        ├── include
        ├── package.xml
        └── src

其中test_package01，test_package02，test_package03均为ros2功能包，test01只是普通目录
colcon_helper.sh放在工作空间下即可

总结

本文实现了一个基于 colcon 的 ROS2 一键编译与分级修复管理脚本，支持 package 选择编译、轻量修复、强制重建以及时间戳修复，用于提升工作空间编译效率与稳定性。
如有错误！欢迎指出！
感谢支持！
