【Jack实战】如何用 AR Engine Kit 做微表情辅助照片浏览

大家好，我是鸿蒙Jack。本期以我的《时光旅记》APP 为例，聊一下我怎么把 AR Engine Kit 接到照片预览里，用前置摄像头识别人脸表情和头部姿态，再把它变成"下一张、上一张、退出全屏"这些照片浏览操作。

《时光旅记》中使用Face AR的场景是：用户在"瞬间"里翻看旅行照片时，手可能正在拿咖啡、扶行李箱、或者手机放在桌面上看图。这时候用挑眉、皱眉、转头这类轻动作切照片，比再去点屏幕更顺手。

我在《时光旅记》里的使用场景

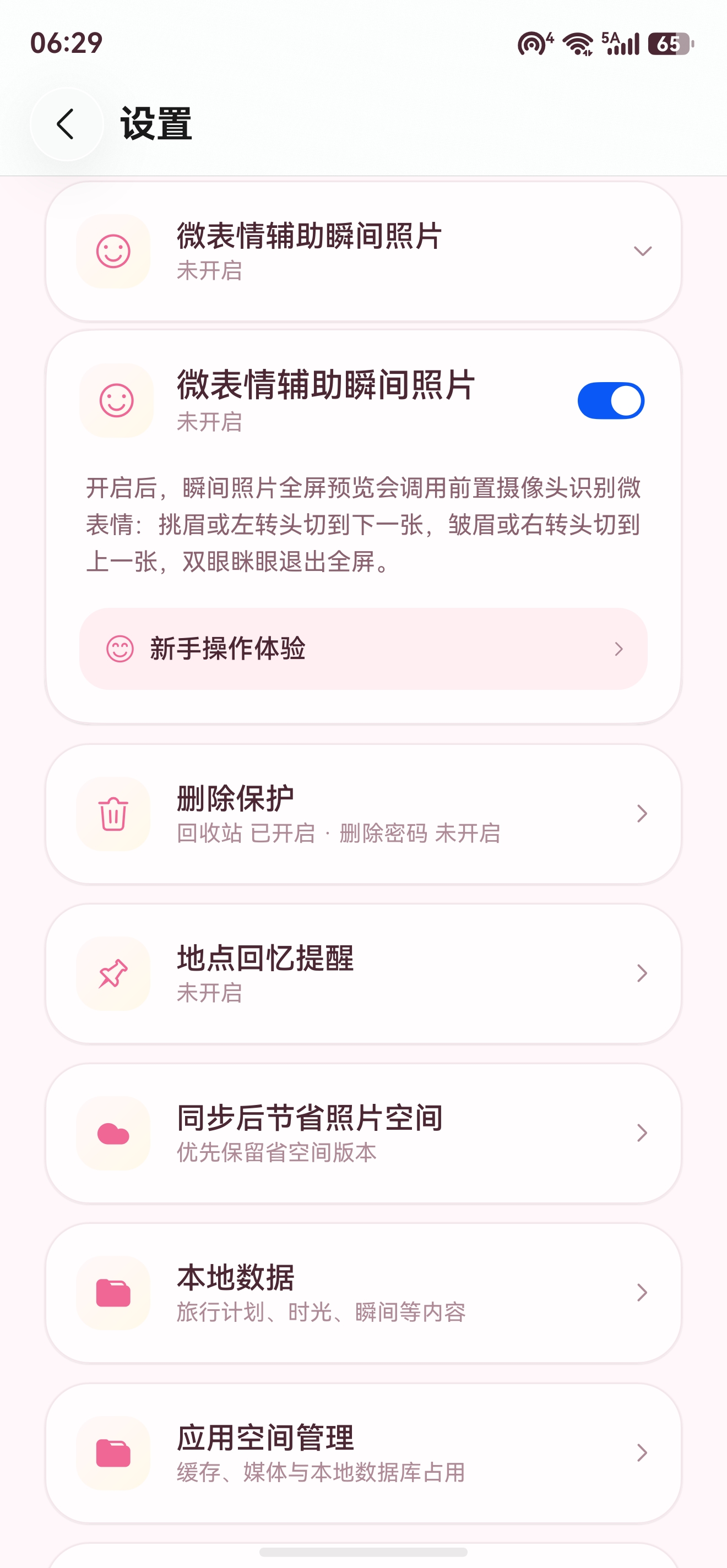

《时光旅记》里照片不是独立存在的，它们和瞬间、地点、旅行计划、环境声音放在一起。用户点开照片后，会进入全屏预览；如果设置里开启了"微表情辅助瞬间照片"，这个预览层会在背后启动一个非常低透明度的 ARView，调用前置摄像头做人脸跟踪。

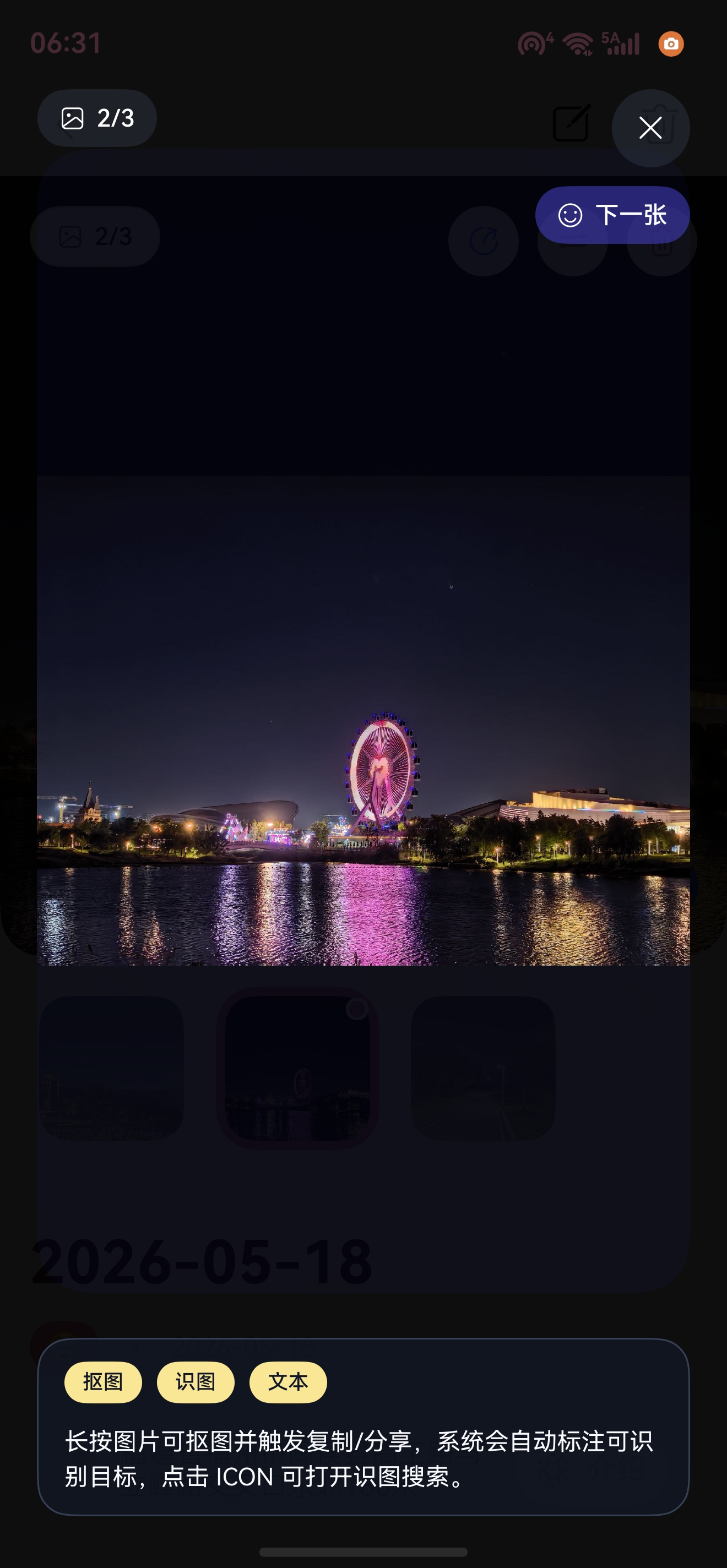

这里我刻意没有把摄像头预览盖在照片上。照片浏览仍然是主体验，AR Engine 只是隐藏在后面的输入通道。用户能看到的只有右上角一个"微表情辅助"的状态胶囊，以及识别成功后的"下一张""上一张""退出全屏"反馈。

动作映射我做得比较保守：

用户动作	AR Engine 数据	《时光旅记》里的命令
挑眉，或轻轻向左转头	`BROW_INNER_UP` 或 `yaw < -0.18`	下一张
皱眉，或轻轻向右转头	`BROW_DOWN_LEFT` + `BROW_DOWN_RIGHT` 或 `yaw > 0.18`	上一张
双眼眯眼	`EYE_SQUINT_LEFT` + `EYE_SQUINT_RIGHT`	退出全屏

这里有两个细节很关键。第一，识别到一个命令后要进入冷却时间，不然连续帧会把一张照片直接翻到最后。第二，动作释放以后才能识别下一次命令，所以代码里有一组比触发阈值更低的 release 阈值，用来判断用户是否回到自然表情。

整体结构

我把 AR Engine 和业务层隔开了。AR Engine 只负责给我 ARFace、ARBlendShapes、ARPose；至于挑眉代表下一张，皱眉代表上一张，这是《时光旅记》的业务规则，放在 ExpressionPhotoController 里。
#mermaid-svg-p7ZO343jJmDOKStQ{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-p7ZO343jJmDOKStQ .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-p7ZO343jJmDOKStQ .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-p7ZO343jJmDOKStQ .error-icon{fill:#552222;}#mermaid-svg-p7ZO343jJmDOKStQ .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-p7ZO343jJmDOKStQ .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-p7ZO343jJmDOKStQ .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-p7ZO343jJmDOKStQ .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-p7ZO343jJmDOKStQ .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-p7ZO343jJmDOKStQ .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-p7ZO343jJmDOKStQ .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-p7ZO343jJmDOKStQ .marker{fill:#333333;stroke:#333333;}#mermaid-svg-p7ZO343jJmDOKStQ .marker.cross{stroke:#333333;}#mermaid-svg-p7ZO343jJmDOKStQ svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-p7ZO343jJmDOKStQ p{margin:0;}#mermaid-svg-p7ZO343jJmDOKStQ .label{font-family:"trebuchet ms",verdana,arial,sans-serif;color:#333;}#mermaid-svg-p7ZO343jJmDOKStQ .cluster-label text{fill:#333;}#mermaid-svg-p7ZO343jJmDOKStQ .cluster-label span{color:#333;}#mermaid-svg-p7ZO343jJmDOKStQ .cluster-label span p{background-color:transparent;}#mermaid-svg-p7ZO343jJmDOKStQ .label text,#mermaid-svg-p7ZO343jJmDOKStQ span{fill:#333;color:#333;}#mermaid-svg-p7ZO343jJmDOKStQ .node rect,#mermaid-svg-p7ZO343jJmDOKStQ .node circle,#mermaid-svg-p7ZO343jJmDOKStQ .node ellipse,#mermaid-svg-p7ZO343jJmDOKStQ .node polygon,#mermaid-svg-p7ZO343jJmDOKStQ .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-p7ZO343jJmDOKStQ .rough-node .label text,#mermaid-svg-p7ZO343jJmDOKStQ .node .label text,#mermaid-svg-p7ZO343jJmDOKStQ .image-shape .label,#mermaid-svg-p7ZO343jJmDOKStQ .icon-shape .label{text-anchor:middle;}#mermaid-svg-p7ZO343jJmDOKStQ .node .katex path{fill:#000;stroke:#000;stroke-width:1px;}#mermaid-svg-p7ZO343jJmDOKStQ .rough-node .label,#mermaid-svg-p7ZO343jJmDOKStQ .node .label,#mermaid-svg-p7ZO343jJmDOKStQ .image-shape .label,#mermaid-svg-p7ZO343jJmDOKStQ .icon-shape .label{text-align:center;}#mermaid-svg-p7ZO343jJmDOKStQ .node.clickable{cursor:pointer;}#mermaid-svg-p7ZO343jJmDOKStQ .root .anchor path{fill:#333333!important;stroke-width:0;stroke:#333333;}#mermaid-svg-p7ZO343jJmDOKStQ .arrowheadPath{fill:#333333;}#mermaid-svg-p7ZO343jJmDOKStQ .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-p7ZO343jJmDOKStQ .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-p7ZO343jJmDOKStQ .edgeLabel{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-p7ZO343jJmDOKStQ .edgeLabel p{background-color:rgba(232,232,232, 0.8);}#mermaid-svg-p7ZO343jJmDOKStQ .edgeLabel rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-p7ZO343jJmDOKStQ .labelBkg{background-color:rgba(232, 232, 232, 0.5);}#mermaid-svg-p7ZO343jJmDOKStQ .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-p7ZO343jJmDOKStQ .cluster text{fill:#333;}#mermaid-svg-p7ZO343jJmDOKStQ .cluster span{color:#333;}#mermaid-svg-p7ZO343jJmDOKStQ div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-p7ZO343jJmDOKStQ .flowchartTitleText{text-anchor:middle;font-size:18px;fill:#333;}#mermaid-svg-p7ZO343jJmDOKStQ rect.text{fill:none;stroke-width:0;}#mermaid-svg-p7ZO343jJmDOKStQ .icon-shape,#mermaid-svg-p7ZO343jJmDOKStQ .image-shape{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-p7ZO343jJmDOKStQ .icon-shape p,#mermaid-svg-p7ZO343jJmDOKStQ .image-shape p{background-color:rgba(232,232,232, 0.8);padding:2px;}#mermaid-svg-p7ZO343jJmDOKStQ .icon-shape .label rect,#mermaid-svg-p7ZO343jJmDOKStQ .image-shape .label rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-p7ZO343jJmDOKStQ .label-icon{display:inline-block;height:1em;overflow:visible;vertical-align:-0.125em;}#mermaid-svg-p7ZO343jJmDOKStQ .node .label-icon path{fill:currentColor;stroke:revert;stroke-width:revert;}#mermaid-svg-p7ZO343jJmDOKStQ :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} NEXT
PREV
FULLSCREEN
SettingsPage 开启微表情辅助
ImagePreviewDialog 全屏照片预览
ExpressionPhotoPracticePage 新手体验
ensurePermissionsGranted 申请相机和运动传感器权限
ARViewContext
Scene.load
ARConfig type FACE front camera
ExpressionPhotoArCallback
ARSession.getFrame
frame.getUpdatedTrackables FACE
ARFace.getBlendShapes / getPose
ExpressionPhotoController
解析命令
切到下一张
切到上一张
退出全屏

页面调用时序是这样：
ExpressionPhotoController ExpressionPhotoArCallback ARViewContext 权限工具 ImagePreviewDialog 用户 ExpressionPhotoController ExpressionPhotoArCallback ARViewContext 权限工具 ImagePreviewDialog 用户 #mermaid-svg-RhcVFq1svj7myTML{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-RhcVFq1svj7myTML .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-RhcVFq1svj7myTML .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-RhcVFq1svj7myTML .error-icon{fill:#552222;}#mermaid-svg-RhcVFq1svj7myTML .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-RhcVFq1svj7myTML .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-RhcVFq1svj7myTML .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-RhcVFq1svj7myTML .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-RhcVFq1svj7myTML .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-RhcVFq1svj7myTML .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-RhcVFq1svj7myTML .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-RhcVFq1svj7myTML .marker{fill:#333333;stroke:#333333;}#mermaid-svg-RhcVFq1svj7myTML .marker.cross{stroke:#333333;}#mermaid-svg-RhcVFq1svj7myTML svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-RhcVFq1svj7myTML p{margin:0;}#mermaid-svg-RhcVFq1svj7myTML .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-RhcVFq1svj7myTML text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-RhcVFq1svj7myTML .actor-line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-RhcVFq1svj7myTML .innerArc{stroke-width:1.5;stroke-dasharray:none;}#mermaid-svg-RhcVFq1svj7myTML .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-RhcVFq1svj7myTML .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-RhcVFq1svj7myTML #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-RhcVFq1svj7myTML .sequenceNumber{fill:white;}#mermaid-svg-RhcVFq1svj7myTML #sequencenumber{fill:#333;}#mermaid-svg-RhcVFq1svj7myTML #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-RhcVFq1svj7myTML .messageText{fill:#333;stroke:none;}#mermaid-svg-RhcVFq1svj7myTML .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-RhcVFq1svj7myTML .labelText,#mermaid-svg-RhcVFq1svj7myTML .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-RhcVFq1svj7myTML .loopText,#mermaid-svg-RhcVFq1svj7myTML .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-RhcVFq1svj7myTML .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-RhcVFq1svj7myTML .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-RhcVFq1svj7myTML .noteText,#mermaid-svg-RhcVFq1svj7myTML .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-RhcVFq1svj7myTML .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-RhcVFq1svj7myTML .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-RhcVFq1svj7myTML .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-RhcVFq1svj7myTML .actorPopupMenu{position:absolute;}#mermaid-svg-RhcVFq1svj7myTML .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-RhcVFq1svj7myTML .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-RhcVFq1svj7myTML .actor-man circle,#mermaid-svg-RhcVFq1svj7myTML line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-RhcVFq1svj7myTML :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} 打开瞬间照片全屏预览setCommandHandler(...)ensurePermissionsGranted(CAMERA/GYROSCOPE/ACCELEROMETER)已授权new ARViewContext()scene = await Scene.load()config = ARType.FACE + FRONTcallback = ExpressionPhotoArCallbackinit()初始化完成onFrameUpdate(ctx)ctx.session.getFrame()读取 FACE trackables读取 blendShapes 和 yawhandleFace(expressionFace)NEXT / PREV / FULLSCREEN切图或关闭预览退出预览pause()destroy()

接入 AR Engine Kit 的关键点

AR Engine 在 ArkTS 侧主要靠 ARViewContext 管理会话。它比直接操作 ARSession 更适合页面开发，因为它同时封装了 AR 会话、场景、配置和回调。官方接口里也明确要求 ARViewContext.init() 前要准备好 scene、config、callback，并且需要相机、陀螺仪、加速度传感器权限。

在《时光旅记》这个场景里，配置项要尽量轻：

ts 复制代码

const arConfig: arEngine.ARConfig = {
  type: arEngine.ARType.FACE,
  planeFindingMode: arEngine.ARPlaneFindingMode.DISABLED,
  semanticMode: arEngine.ARSemanticMode.NONE,
  meshMode: arEngine.ARMeshMode.DISABLED,
  focusMode: arEngine.ARFocusMode.AUTO,
  cameraLensFacing: arEngine.ARCameraLensFacing.FRONT,
  multiFaceMode: arEngine.ARMultiFaceMode.MULTIFACE_DISABLE
};

type 必须是 ARType.FACE，因为我要做人脸跟踪。摄像头用 FRONT。平面检测、语义、网格这些能力都关掉，因为翻照片不需要识别桌面、墙面或空间网格。多人脸也关掉，只跟踪当前使用手机的人，避免旁边的人影响照片切换。

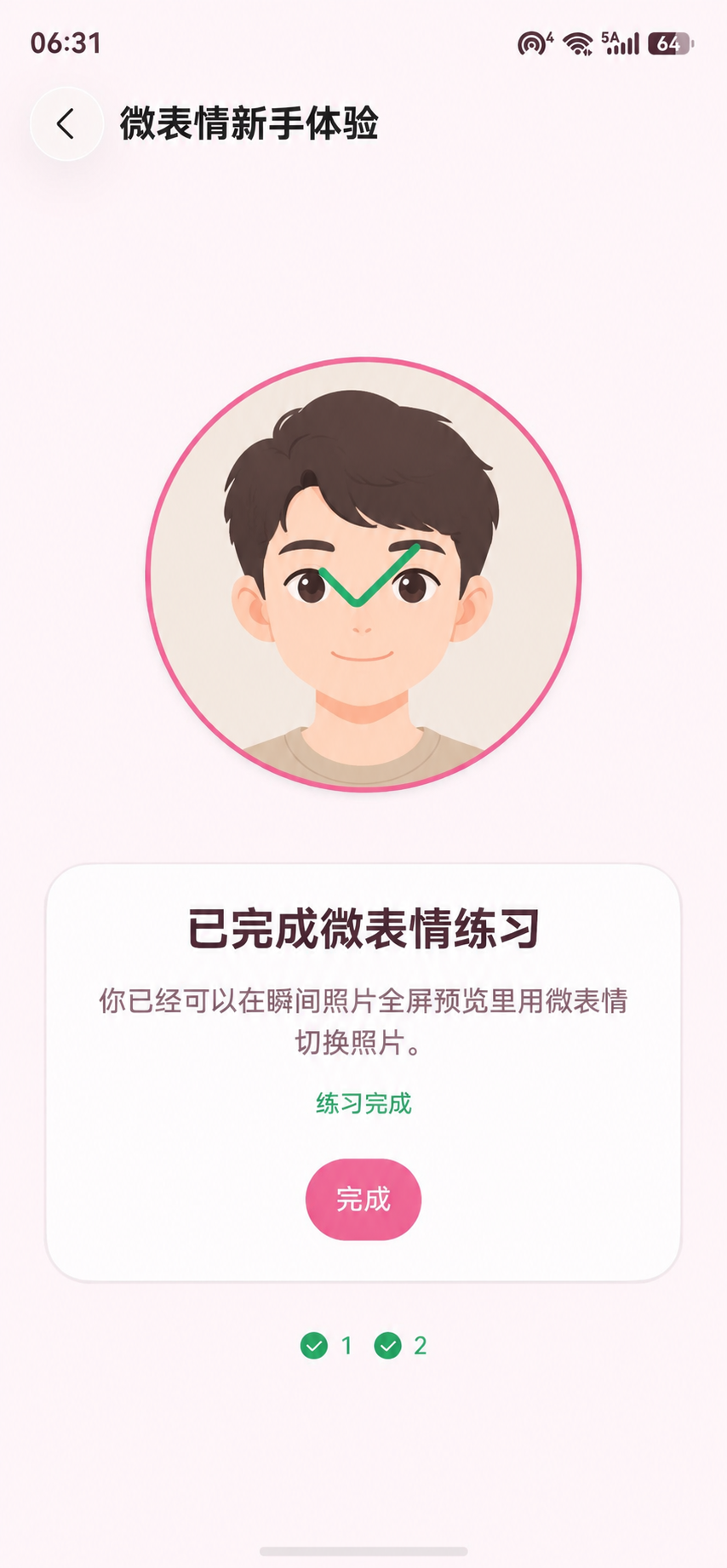

UI 上有两种做法。练习页可以直接展示一个圆形 ARView，让用户知道脸有没有在识别区域里。照片预览页则把 ARView 放到后层，透明度设得很低，避免打扰图片本身：

ts 复制代码

if (this.expressionArContext !== undefined) {
  ARView({ context: this.expressionArContext })
    .width('100%')
    .height('100%')
    .opacity(0.01)
    .enabled(false)
    .hitTestBehavior(HitTestMode.None)
    .position({ left: 0, top: 0 })
    .zIndex(-1)
}

为什么要自己做一层 Bridge

ARViewCallback.onFrameUpdate() 每帧都会被触发。如果我在页面里直接写人脸解析，页面很快会变成一堆 AR 细节：拿 session、拿 frame、查 FACE trackable、释放 frame、释放 blendShapes、解析四元数、节流状态文案。

所以我单独做了 ExpressionPhotoArCallback。它继承 arViewController.ARViewCallback，只做三件事：

第一，从 ctx.session 取当前 ARFrame。

第二，找 ARTrackableType.FACE，只处理 ARTrackingState.TRACKING 的第一张人脸。

第三，把 ARFace 里的 BlendShape 和 Pose 转成自己的 ExpressionFaceLike，交给控制器。

这里一定要注意释放资源。session.getFrame() 拿到的 ARFrame 用完后要 release()，face.getBlendShapes() 拿到的 ARBlendShapes 用完后也要 release()，face.getPose() 拿到的 ARPose 同样要释放。照片预览是高频场景，不释放会很快出问题。

完整代码

下面这份代码按《时光旅记》当前实现整理出来，包含权限工具、AR 回调桥接、表情命令控制器、全屏预览接入和新手练习页。实际项目里 ImagePreviewDialog 还叠加了动态照片、AI 识图、缩放拖拽等能力，这里把和 AR Engine 相关的主链路保留下来，方便直接迁移。

`PermissionUtil.ets`

ts 复制代码

import { abilityAccessCtrl, bundleManager, Context, Permissions } from '@kit.AbilityKit';

let cachedAccessTokenId: number = -1;

async function getSelfAccessTokenId(): Promise<number> {
  if (cachedAccessTokenId > 0) {
    return cachedAccessTokenId;
  }
  const bundleInfo = await bundleManager.getBundleInfoForSelf(
    bundleManager.BundleFlag.GET_BUNDLE_INFO_WITH_APPLICATION
  );
  cachedAccessTokenId = bundleInfo.appInfo.accessTokenId;
  return cachedAccessTokenId;
}

export async function arePermissionsGranted(permissions: Array<Permissions>): Promise<boolean> {
  if (permissions.length === 0) {
    return true;
  }
  try {
    const atManager: abilityAccessCtrl.AtManager = abilityAccessCtrl.createAtManager();
    const accessTokenId: number = await getSelfAccessTokenId();
    for (let i: number = 0; i < permissions.length; i++) {
      const grantStatus: abilityAccessCtrl.GrantStatus =
        await atManager.checkAccessToken(accessTokenId, permissions[i]);
      if (grantStatus !== abilityAccessCtrl.GrantStatus.PERMISSION_GRANTED) {
        return false;
      }
    }
    return true;
  } catch (_error) {
    return false;
  }
}

export async function ensurePermissionsGranted(context: Context, permissions: Array<Permissions>): Promise<boolean> {
  if (await arePermissionsGranted(permissions)) {
    return true;
  }
  try {
    await abilityAccessCtrl.createAtManager().requestPermissionsFromUser(context, permissions);
  } catch (_error) {
  }
  return await arePermissionsGranted(permissions);
}

`ExpressionPhotoController.ets`

ts 复制代码

import { BusinessError } from '@kit.BasicServicesKit';
import { vibrator } from '@kit.SensorServiceKit';

export enum ExpressionPhotoCommand {
  NEXT = 'NEXT',
  PREV = 'PREV',
  FULLSCREEN = 'FULLSCREEN'
}

export interface ExpressionBlendShapes {
  browInnerUp?: number;
  browDownLeft?: number;
  browDownRight?: number;
  eyeSquintLeft?: number;
  eyeSquintRight?: number;
}

export interface ExpressionPoseLike {
  x?: number;
  y?: number;
  z?: number;
  yaw?: number;
  pitch?: number;
  roll?: number;
}

export interface ExpressionFaceLike {
  blendShapes?: ExpressionBlendShapes;
  pose?: ExpressionPoseLike;
  getBlendShapes?: () => ExpressionBlendShapes | undefined;
  getPose?: () => ExpressionPoseLike | undefined;
}

type ExpressionCommandHandler = (command: ExpressionPhotoCommand) => void;

export class ExpressionPhotoController {
  private static instance?: ExpressionPhotoController;
  private lastCommandTime: number = 0;
  private activeCommand: ExpressionPhotoCommand | null = null;
  private commandHandler?: ExpressionCommandHandler;
  private readonly cooldownMs: number = 800;
  private readonly browRaiseThreshold: number = 0.28;
  private readonly browFurrowThreshold: number = 0.24;
  private readonly eyeSquintThreshold: number = 0.28;
  private readonly headTurnThreshold: number = 0.18;
  private readonly browRaiseReleaseThreshold: number = 0.16;
  private readonly browFurrowReleaseThreshold: number = 0.14;
  private readonly eyeSquintReleaseThreshold: number = 0.16;
  private readonly headTurnReleaseThreshold: number = 0.08;

  static getInstance(): ExpressionPhotoController {
    if (ExpressionPhotoController.instance === undefined) {
      ExpressionPhotoController.instance = new ExpressionPhotoController();
    }
    return ExpressionPhotoController.instance;
  }

  setCommandHandler(handler?: ExpressionCommandHandler): void {
    this.commandHandler = handler;
  }

  reset(): void {
    this.lastCommandTime = 0;
    this.activeCommand = null;
  }

  handleFace(face: ExpressionFaceLike | undefined): ExpressionPhotoCommand | null {
    const command: ExpressionPhotoCommand | null = this.parseExpression(face);
    if (command !== null) {
      this.emitFeedback(command);
      if (this.commandHandler !== undefined) {
        this.commandHandler(command);
      }
    }
    return command;
  }

  parseExpression(face: ExpressionFaceLike | undefined): ExpressionPhotoCommand | null {
    const now: number = Date.now();
    if (face === undefined) {
      this.activeCommand = null;
      return null;
    }

    const blendShapes: ExpressionBlendShapes | undefined = this.resolveBlendShapes(face);
    const pose: ExpressionPoseLike | undefined = this.resolvePose(face);
    if (this.isNeutralExpression(blendShapes, pose)) {
      this.activeCommand = null;
      return null;
    }
    if (this.activeCommand !== null) {
      return null;
    }
    if (now - this.lastCommandTime < this.cooldownMs) {
      return null;
    }

    if (this.isBrowRaised(blendShapes) || this.isHeadTurnedLeft(pose)) {
      this.lastCommandTime = now;
      this.activeCommand = ExpressionPhotoCommand.NEXT;
      return ExpressionPhotoCommand.NEXT;
    }
    if (this.isBrowFurrowed(blendShapes) || this.isHeadTurnedRight(pose)) {
      this.lastCommandTime = now;
      this.activeCommand = ExpressionPhotoCommand.PREV;
      return ExpressionPhotoCommand.PREV;
    }
    if (this.isEyeSquint(blendShapes)) {
      this.lastCommandTime = now;
      this.activeCommand = ExpressionPhotoCommand.FULLSCREEN;
      return ExpressionPhotoCommand.FULLSCREEN;
    }
    return null;
  }

  private resolveBlendShapes(face: ExpressionFaceLike): ExpressionBlendShapes | undefined {
    if (face.blendShapes !== undefined) {
      return face.blendShapes;
    }
    if (face.getBlendShapes !== undefined) {
      return face.getBlendShapes();
    }
    return undefined;
  }

  private resolvePose(face: ExpressionFaceLike): ExpressionPoseLike | undefined {
    if (face.pose !== undefined) {
      return face.pose;
    }
    if (face.getPose !== undefined) {
      return face.getPose();
    }
    return undefined;
  }

  private isBrowRaised(blendShapes: ExpressionBlendShapes | undefined): boolean {
    return (blendShapes?.browInnerUp ?? 0) > this.browRaiseThreshold;
  }

  private isBrowFurrowed(blendShapes: ExpressionBlendShapes | undefined): boolean {
    return (blendShapes?.browDownLeft ?? 0) > this.browFurrowThreshold &&
      (blendShapes?.browDownRight ?? 0) > this.browFurrowThreshold;
  }

  private isEyeSquint(blendShapes: ExpressionBlendShapes | undefined): boolean {
    return (blendShapes?.eyeSquintLeft ?? 0) > this.eyeSquintThreshold &&
      (blendShapes?.eyeSquintRight ?? 0) > this.eyeSquintThreshold;
  }

  private isNeutralExpression(
    blendShapes: ExpressionBlendShapes | undefined,
    pose: ExpressionPoseLike | undefined
  ): boolean {
    return (blendShapes?.browInnerUp ?? 0) < this.browRaiseReleaseThreshold &&
      (blendShapes?.browDownLeft ?? 0) < this.browFurrowReleaseThreshold &&
      (blendShapes?.browDownRight ?? 0) < this.browFurrowReleaseThreshold &&
      (blendShapes?.eyeSquintLeft ?? 0) < this.eyeSquintReleaseThreshold &&
      (blendShapes?.eyeSquintRight ?? 0) < this.eyeSquintReleaseThreshold &&
      Math.abs(this.getHeadYaw(pose)) < this.headTurnReleaseThreshold;
  }

  private getHeadYaw(pose: ExpressionPoseLike | undefined): number {
    if (pose === undefined) {
      return 0;
    }
    if (pose.yaw !== undefined) {
      return pose.yaw;
    }
    return pose.y ?? 0;
  }

  private isHeadTurnedLeft(pose: ExpressionPoseLike | undefined): boolean {
    return this.getHeadYaw(pose) < -this.headTurnThreshold;
  }

  private isHeadTurnedRight(pose: ExpressionPoseLike | undefined): boolean {
    return this.getHeadYaw(pose) > this.headTurnThreshold;
  }

  private emitFeedback(command: ExpressionPhotoCommand): void {
    try {
      vibrator.startVibration({
        type: 'time',
        duration: command === ExpressionPhotoCommand.FULLSCREEN ? 60 : 30
      }, {
        id: 0,
        usage: 'touch'
      }, (error: BusinessError) => {
        if (error) {
          console.warn(`Expression haptic failed. code=${error.code}, message=${error.message}`);
        }
      });
    } catch (error) {
      const businessError: BusinessError = error as BusinessError;
      console.warn(`Expression haptic unavailable. code=${businessError.code}, message=${businessError.message}`);
    }
  }
}

`ExpressionPhotoArBridge.ets`

ts 复制代码

import { arEngine, arViewController } from '@kit.AREngine';
import { Node } from '@ohos.graphics.scene';
import {
  ExpressionBlendShapes,
  ExpressionFaceLike,
  ExpressionPhotoController,
  ExpressionPoseLike
} from './ExpressionPhotoController';

type ExpressionArStatusHandler = (status: string) => void;

export class ExpressionPhotoArCallback extends arViewController.ARViewCallback {
  private readonly controller: ExpressionPhotoController = ExpressionPhotoController.getInstance();
  private statusHandler?: ExpressionArStatusHandler;
  private lastStatusUpdateTime: number = 0;
  private frameUpdateCount: number = 0;
  private anchorUpdateCount: number = 0;
  private pollUpdateCount: number = 0;
  private pollTimer: number = -1;
  private pollContext?: arViewController.ARViewContext;
  private lastRawBlendShapeSummary: string = '';

  setStatusHandler(handler?: ExpressionArStatusHandler): void {
    this.statusHandler = handler;
    if (handler === undefined) {
      this.stopPolling();
    }
  }

  onFrameUpdate(ctx: arViewController.ARViewContext, _sysBootTs: number): void {
    this.frameUpdateCount += 1;
    this.ensurePolling(ctx);
    const session: arEngine.ARSession | undefined = ctx.session;
    if (session === undefined) {
      return;
    }
    const frame: arEngine.ARFrame | undefined = session.getFrame();
    if (frame === undefined) {
      return;
    }
    try {
      const trackables: Array<arEngine.ARTrackable> =
        frame.getUpdatedTrackables(arEngine.ARTrackableType.FACE);
      if (trackables.length === 0) {
        return;
      }
      let hasTrackingFace: boolean = false;
      for (let i: number = 0; i < trackables.length; i++) {
        const trackable: arEngine.ARTrackable = trackables[i];
        if (trackable.state !== arEngine.ARTrackingState.TRACKING) {
          continue;
        }
        hasTrackingFace = true;
        this.processFace(trackable as arEngine.ARFace, 'f');
        break;
      }
      if (!hasTrackingFace) {
        return;
      }
    } catch (error) {
      console.warn(`[ExpressionPhotoAr] frame parse failed error=${JSON.stringify(error)}`);
    } finally {
      void frame.release();
    }
  }

  private ensurePolling(ctx: arViewController.ARViewContext): void {
    this.pollContext = ctx;
    if (this.pollTimer >= 0) {
      return;
    }
    this.pollTimer = setInterval(() => {
      this.pollLatestFace();
    }, 80);
  }

  private stopPolling(): void {
    if (this.pollTimer < 0) {
      return;
    }
    clearInterval(this.pollTimer);
    this.pollTimer = -1;
    this.pollContext = undefined;
  }

  private pollLatestFace(): void {
    this.pollUpdateCount += 1;
    const ctx: arViewController.ARViewContext | undefined = this.pollContext;
    const session: arEngine.ARSession | undefined = ctx?.session;
    if (session === undefined) {
      return;
    }
    let frame: arEngine.ARFrame | undefined = undefined;
    try {
      frame = session.getFrame();
      const trackables: Array<arEngine.ARTrackable> =
        session.getAllTrackables(arEngine.ARTrackableType.FACE);
      if (trackables.length === 0) {
        this.controller.handleFace(undefined);
        this.emitStatus(`p${this.pollUpdateCount} 等待人脸`);
        return;
      }
      let hasTrackingFace: boolean = false;
      for (let i: number = 0; i < trackables.length; i++) {
        const trackable: arEngine.ARTrackable = trackables[i];
        if (trackable.state !== arEngine.ARTrackingState.TRACKING) {
          continue;
        }
        hasTrackingFace = true;
        this.processFace(trackable as arEngine.ARFace, 'p');
        break;
      }
      if (!hasTrackingFace) {
        this.controller.handleFace(undefined);
        this.emitStatus(`p${this.pollUpdateCount} 人脸暂停`);
      }
    } catch (error) {
      console.warn(`[ExpressionPhotoAr] poll parse failed error=${JSON.stringify(error)}`);
    } finally {
      if (frame !== undefined) {
        void frame.release();
      }
    }
  }

  private emitStatus(status: string): void {
    const now: number = Date.now();
    if (now - this.lastStatusUpdateTime < 180) {
      return;
    }
    this.lastStatusUpdateTime = now;
    if (this.statusHandler !== undefined) {
      this.statusHandler(status);
    }
  }

  onAnchorAdd(_ctx: arViewController.ARViewContext, _node: Node, _anchor: arEngine.ARAnchor): void {
  }

  onAnchorUpdate(ctx: arViewController.ARViewContext, node: Node, anchor: arEngine.ARAnchor): void {
    this.anchorUpdateCount += 1;
    if (anchor.trackingState !== arEngine.ARTrackingState.TRACKING) {
      return;
    }
    try {
      const faceAnchor: arEngine.ARFaceAnchor = anchor as arEngine.ARFaceAnchor;
      this.processAnchorFace(ctx, node, faceAnchor);
    } catch (error) {
      console.warn(`[ExpressionPhotoAr] anchor parse failed error=${JSON.stringify(error)}`);
    }
  }

  private processAnchorFace(
    ctx: arViewController.ARViewContext,
    node: Node,
    faceAnchor: arEngine.ARFaceAnchor
  ): void {
    const expressionFace: ExpressionFaceLike = {};
    const nodeBlendShapes: ExpressionBlendShapes | undefined = this.readNodeBlendShapes(ctx, node);
    expressionFace.blendShapes = nodeBlendShapes ?? this.readBlendShapes(faceAnchor.getFace());
    expressionFace.pose = this.readAnchorPose(faceAnchor);
    this.emitStatus(this.describeExpressionFace(expressionFace, 'a'));
    this.controller.handleFace(expressionFace);
  }

  private processFace(face: arEngine.ARFace, source: string): void {
    const expressionFace: ExpressionFaceLike = this.toExpressionFace(face);
    this.emitStatus(this.describeExpressionFace(expressionFace, source));
    this.controller.handleFace(expressionFace);
  }

  private toExpressionFace(face: arEngine.ARFace): ExpressionFaceLike {
    const expressionFace: ExpressionFaceLike = {};
    expressionFace.blendShapes = this.readBlendShapes(face);
    expressionFace.pose = this.readPose(face);
    return expressionFace;
  }

  private readBlendShapes(face: arEngine.ARFace): ExpressionBlendShapes {
    const result: ExpressionBlendShapes = {};
    let blendShapes: arEngine.ARBlendShapes | undefined = undefined;
    try {
      blendShapes = face.getBlendShapes();
      const types: Array<arEngine.ARBlendShapeType> = blendShapes.getTypes();
      const values: Float32Array = new Float32Array(blendShapes.getData());
      const count: number = Math.min(types.length, values.length);
      this.lastRawBlendShapeSummary = this.describeRawBlendShapes(values, count);
      for (let i: number = 0; i < count; i++) {
        this.assignBlendShapeValue(result, types[i], values[i]);
      }
    } catch (error) {
      console.warn(`[ExpressionPhotoAr] blendshape parse failed error=${JSON.stringify(error)}`);
    } finally {
      if (blendShapes !== undefined) {
        void blendShapes.release();
      }
    }
    return result;
  }

  private readNodeBlendShapes(ctx: arViewController.ARViewContext, node: Node): ExpressionBlendShapes | undefined {
    const result: ExpressionBlendShapes = {};
    let hasValue: boolean = false;
    hasValue = this.assignNodeBlendShapeValue(ctx, node, result, arEngine.ARBlendShapeType.BROW_INNER_UP) || hasValue;
    hasValue = this.assignNodeBlendShapeValue(ctx, node, result, arEngine.ARBlendShapeType.BROW_DOWN_LEFT) || hasValue;
    hasValue = this.assignNodeBlendShapeValue(ctx, node, result, arEngine.ARBlendShapeType.BROW_DOWN_RIGHT) || hasValue;
    hasValue = this.assignNodeBlendShapeValue(ctx, node, result, arEngine.ARBlendShapeType.EYE_SQUINT_LEFT) || hasValue;
    hasValue = this.assignNodeBlendShapeValue(ctx, node, result, arEngine.ARBlendShapeType.EYE_SQUINT_RIGHT) || hasValue;
    if (!hasValue) {
      return undefined;
    }
    this.lastRawBlendShapeSummary = 'node';
    return result;
  }

  private assignNodeBlendShapeValue(
    ctx: arViewController.ARViewContext,
    node: Node,
    target: ExpressionBlendShapes,
    type: arEngine.ARBlendShapeType
  ): boolean {
    try {
      const value: number | null = ctx.getBlendShapeWeight(node, type);
      if (value === null) {
        return false;
      }
      this.assignBlendShapeValue(target, type, value);
      return true;
    } catch (_error) {
      return false;
    }
  }

  private assignBlendShapeValue(
    target: ExpressionBlendShapes,
    type: arEngine.ARBlendShapeType,
    value: number
  ): void {
    if (type === arEngine.ARBlendShapeType.BROW_INNER_UP) {
      target.browInnerUp = value;
      return;
    }
    if (type === arEngine.ARBlendShapeType.BROW_DOWN_LEFT) {
      target.browDownLeft = value;
      return;
    }
    if (type === arEngine.ARBlendShapeType.BROW_DOWN_RIGHT) {
      target.browDownRight = value;
      return;
    }
    if (type === arEngine.ARBlendShapeType.EYE_SQUINT_LEFT) {
      target.eyeSquintLeft = value;
      return;
    }
    if (type === arEngine.ARBlendShapeType.EYE_SQUINT_RIGHT) {
      target.eyeSquintRight = value;
    }
  }

  private readPose(face: arEngine.ARFace): ExpressionPoseLike {
    let pose: arEngine.ARPose | undefined = undefined;
    try {
      pose = face.getPose();
      return this.poseToExpressionPose(pose);
    } catch (error) {
      console.warn(`[ExpressionPhotoAr] pose parse failed error=${JSON.stringify(error)}`);
      const result: ExpressionPoseLike = {};
      return result;
    } finally {
      if (pose !== undefined) {
        void pose.release();
      }
    }
  }

  private readAnchorPose(anchor: arEngine.ARAnchor): ExpressionPoseLike {
    let pose: arEngine.ARPose | undefined = undefined;
    try {
      pose = anchor.getPose();
      return this.poseToExpressionPose(pose);
    } catch (error) {
      console.warn(`[ExpressionPhotoAr] anchor pose parse failed error=${JSON.stringify(error)}`);
      const result: ExpressionPoseLike = {};
      return result;
    } finally {
      if (pose !== undefined) {
        void pose.release();
      }
    }
  }

  private poseToExpressionPose(pose: arEngine.ARPose): ExpressionPoseLike {
    const rotation = pose.rotation;
    const yaw: number = Math.atan2(
      2 * (rotation.w * rotation.y + rotation.z * rotation.x),
      1 - 2 * (rotation.y * rotation.y + rotation.x * rotation.x)
    );
    const result: ExpressionPoseLike = {};
    result.yaw = yaw;
    return result;
  }

  private describeExpressionFace(face: ExpressionFaceLike, source: string): string {
    const blendShapes: ExpressionBlendShapes | undefined = face.blendShapes;
    const pose: ExpressionPoseLike | undefined = face.pose;
    const sourceLabel: string = this.getSourceLabel(source);
    return `r${this.lastRawBlendShapeSummary} ${sourceLabel} y${this.formatMetric(pose?.yaw ?? 0)} ` +
      `眉${this.formatMetric(blendShapes?.browInnerUp ?? 0)} ` +
      `皱${this.formatMetric(Math.max(blendShapes?.browDownLeft ?? 0, blendShapes?.browDownRight ?? 0))} ` +
      `眯${this.formatMetric(Math.max(blendShapes?.eyeSquintLeft ?? 0, blendShapes?.eyeSquintRight ?? 0))}`;
  }

  private getSourceLabel(source: string): string {
    if (source === 'a') {
      return `a${this.anchorUpdateCount}`;
    }
    if (source === 'p') {
      return `p${this.pollUpdateCount}`;
    }
    return `f${this.frameUpdateCount}`;
  }

  private formatMetric(value: number): string {
    return value.toFixed(2);
  }

  private describeRawBlendShapes(values: Float32Array, count: number): string {
    if (count <= 0) {
      return '0';
    }
    let maxValue: number = 0;
    let maxIndex: number = 0;
    let sum: number = 0;
    for (let i: number = 0; i < count; i++) {
      const value: number = values[i];
      sum += value;
      if (value > maxValue) {
        maxValue = value;
        maxIndex = i;
      }
    }
    return `${count}:${maxIndex},${this.formatMetric(maxValue)},${this.formatMetric(sum)}`;
  }
}

`ExpressionImagePreviewDialog.ets`

ts 复制代码

import { Context, Permissions } from '@kit.AbilityKit';
import { arEngine, ARView, arViewController } from '@kit.AREngine';
import { promptAction } from '@kit.ArkUI';
import { Scene } from '@ohos.graphics.scene';
import { ExpressionPhotoCommand, ExpressionPhotoController } from '../utils/ExpressionPhotoController';
import { ExpressionPhotoArCallback } from '../utils/ExpressionPhotoArBridge';
import { ensurePermissionsGranted } from '../utils/PermissionUtil';

@Component
export struct ExpressionImagePreviewDialog {
  @Link imageUri: string;
  @Link imageIndex: number;
  imageUris: Array<string> = [];
  expressionAssistEnabled: boolean = false;
  onClose?: () => void;
  onImageChange?: (index: number, uri: string) => void;

  @State private expressionFeedbackLabel: string = '';
  @State private expressionArActive: boolean = false;
  @State private expressionArStatus: string = '';
  @State private expressionArContext: arViewController.ARViewContext | undefined = undefined;

  private readonly expressionArCallback: ExpressionPhotoArCallback = new ExpressionPhotoArCallback();
  private readonly expressionArPermissions: Array<Permissions> = [
    'ohos.permission.CAMERA',
    'ohos.permission.GYROSCOPE',
    'ohos.permission.ACCELEROMETER'
  ];
  private expressionFeedbackTimer: number = -1;
  private expressionArStartTimer: number = -1;

  aboutToAppear(): void {
    this.normalizePreviewIndex();
    this.syncExpressionAssistHandler();
    void this.prepareExpressionAr();
  }

  aboutToDisappear(): void {
    this.clearExpressionFeedbackTimer();
    ExpressionPhotoController.getInstance().setCommandHandler(undefined);
    void this.destroyExpressionAr();
  }

  build(): void {
    Stack({ alignContent: Alignment.TopStart }) {
      if (this.expressionArContext !== undefined) {
        ARView({ context: this.expressionArContext })
          .width('100%')
          .height('100%')
          .opacity(0.01)
          .enabled(false)
          .hitTestBehavior(HitTestMode.None)
          .position({ left: 0, top: 0 })
          .zIndex(-1)
      }

      Column()
        .width('100%')
        .height('100%')
        .backgroundColor('#F0000000')
        .onClick(() => {
          if (this.onClose !== undefined) {
            this.onClose();
          }
        })

      Column() {
        Image(this.imageUri)
          .width('100%')
          .height('100%')
          .objectFit(ImageFit.Contain)
      }
      .width('100%')
      .height('100%')
      .padding({ left: 20, right: 20, top: 80, bottom: 148 })

      if (this.getPreviewUris().length > 1) {
        Text(`${this.getSafePreviewIndex() + 1}/${this.getPreviewUris().length}`)
          .fontSize(13)
          .fontWeight(FontWeight.Medium)
          .fontColor(Color.White)
          .padding({ left: 12, right: 12, top: 8, bottom: 8 })
          .backgroundColor('#66323E50')
          .borderRadius(18)
          .position({ left: 20, top: 48 })
      }

      Button('关闭')
        .height(42)
        .padding({ left: 16, right: 16 })
        .borderRadius(21)
        .fontColor(Color.White)
        .backgroundColor('#66323E50')
        .position({ right: 20, top: 48 })
        .onClick(() => {
          if (this.onClose !== undefined) {
            this.onClose();
          }
        })

      if (this.expressionAssistEnabled) {
        Text(this.getExpressionAssistBadgeText())
          .fontSize(13)
          .fontWeight(FontWeight.Medium)
          .fontColor(Color.White)
          .maxLines(1)
          .textOverflow({ overflow: TextOverflow.Ellipsis })
          .constraintSize({ maxWidth: '80%' })
          .padding({ left: 12, right: 12, top: 8, bottom: 8 })
          .backgroundColor(this.expressionFeedbackLabel.length > 0 ? '#804F46E5' : '#66323E50')
          .borderRadius(18)
          .position({ right: 20, top: 100 })
          .zIndex(2)
      }
    }
    .width('100%')
    .height('100%')
  }

  private getPreviewUris(): Array<string> {
    let result: Array<string> = [];
    for (let i: number = 0; i < this.imageUris.length; i++) {
      if (this.imageUris[i].length === 0 || result.indexOf(this.imageUris[i]) >= 0) {
        continue;
      }
      result.push(this.imageUris[i]);
    }
    if (result.length === 0 && this.imageUri.length > 0) {
      result.push(this.imageUri);
    }
    return result;
  }

  private getSafePreviewIndex(): number {
    const previewUris: Array<string> = this.getPreviewUris();
    if (previewUris.length === 0) {
      return 0;
    }
    if (this.imageIndex >= 0 && this.imageIndex < previewUris.length) {
      return this.imageIndex;
    }
    const matchedIndex: number = previewUris.indexOf(this.imageUri);
    if (matchedIndex >= 0) {
      return matchedIndex;
    }
    return 0;
  }

  private normalizePreviewIndex(): void {
    const previewUris: Array<string> = this.getPreviewUris();
    if (previewUris.length === 0) {
      this.imageIndex = 0;
      return;
    }
    const safeIndex: number = this.getSafePreviewIndex();
    this.imageIndex = safeIndex;
    this.imageUri = previewUris[safeIndex];
  }

  private handlePreviewIndexChange(index: number): void {
    const previewUris: Array<string> = this.getPreviewUris();
    if (index < 0 || index >= previewUris.length) {
      return;
    }
    this.imageIndex = index;
    this.imageUri = previewUris[index];
    if (this.onImageChange !== undefined) {
      this.onImageChange(index, previewUris[index]);
    }
  }

  private syncExpressionAssistHandler(): void {
    if (!this.expressionAssistEnabled) {
      ExpressionPhotoController.getInstance().setCommandHandler(undefined);
      return;
    }
    ExpressionPhotoController.getInstance().setCommandHandler((command: ExpressionPhotoCommand): void => {
      this.handleExpressionPhotoCommand(command);
    });
  }

  private async prepareExpressionAr(): Promise<void> {
    if (!this.expressionAssistEnabled) {
      return;
    }
    const hostContext: Context | undefined = this.getUIContext().getHostContext();
    if (hostContext === undefined) {
      this.expressionArStatus = '无法获取应用上下文';
      return;
    }
    const hasPermission: boolean = await ensurePermissionsGranted(hostContext, this.expressionArPermissions);
    if (!hasPermission) {
      this.expressionArStatus = '微表情辅助需要相机与运动传感器权限';
      return;
    }
    this.expressionArActive = true;
    this.clearExpressionArStartTimer();
    this.expressionArStartTimer = setTimeout(() => {
      this.expressionArStartTimer = -1;
      void this.startExpressionAr();
    }, 80);
  }

  private async startExpressionAr(): Promise<void> {
    if (!this.expressionAssistEnabled || !this.expressionArActive) {
      return;
    }
    let viewContext: arViewController.ARViewContext | undefined = undefined;
    try {
      viewContext = new arViewController.ARViewContext();
      this.expressionArCallback.setStatusHandler((status: string): void => {
        this.expressionArStatus = status;
      });
      const arConfig: arEngine.ARConfig = {
        type: arEngine.ARType.FACE,
        planeFindingMode: arEngine.ARPlaneFindingMode.DISABLED,
        semanticMode: arEngine.ARSemanticMode.NONE,
        meshMode: arEngine.ARMeshMode.DISABLED,
        focusMode: arEngine.ARFocusMode.AUTO,
        cameraLensFacing: arEngine.ARCameraLensFacing.FRONT,
        multiFaceMode: arEngine.ARMultiFaceMode.MULTIFACE_DISABLE
      };
      viewContext.scene = await Scene.load();
      viewContext.callback = this.expressionArCallback;
      viewContext.config = arConfig;
      await viewContext.init();
      if (!this.expressionAssistEnabled || !this.expressionArActive) {
        await viewContext.destroy();
        return;
      }
      this.expressionArContext = viewContext;
      this.expressionArStatus = '';
    } catch (error) {
      this.expressionArActive = false;
      this.expressionArContext = undefined;
      this.expressionArCallback.setStatusHandler(undefined);
      if (viewContext !== undefined) {
        try {
          await viewContext.destroy();
        } catch (_destroyError) {
        }
      }
      this.expressionArStatus = '当前设备暂时无法启动微表情辅助';
      console.warn(`[ExpressionPhotoAr] init failed error=${JSON.stringify(error)}`);
    }
  }

  private async destroyExpressionAr(): Promise<void> {
    this.clearExpressionArStartTimer();
    if (!this.expressionArActive) {
      return;
    }
    const viewContext: arViewController.ARViewContext | undefined = this.expressionArContext;
    this.expressionArActive = false;
    this.expressionArContext = undefined;
    this.expressionArCallback.setStatusHandler(undefined);
    if (viewContext === undefined) {
      return;
    }
    try {
      viewContext.pause();
    } catch (_error) {
    }
    try {
      await viewContext.destroy();
    } catch (error) {
      console.warn(`[ExpressionPhotoAr] destroy failed error=${JSON.stringify(error)}`);
    }
  }

  private clearExpressionArStartTimer(): void {
    if (this.expressionArStartTimer < 0) {
      return;
    }
    clearTimeout(this.expressionArStartTimer);
    this.expressionArStartTimer = -1;
  }

  private getExpressionAssistBadgeText(): string {
    if (this.expressionFeedbackLabel.length > 0) {
      return this.expressionFeedbackLabel;
    }
    if (this.isExpressionArUserFacingStatus(this.expressionArStatus)) {
      return this.expressionArStatus;
    }
    return '微表情辅助';
  }

  private isExpressionArUserFacingStatus(status: string): boolean {
    if (status.length === 0) {
      return false;
    }
    return status.indexOf('无法') >= 0 ||
      status.indexOf('需要') >= 0 ||
      status.indexOf('暂时') >= 0;
  }

  private handleExpressionPhotoCommand(command: ExpressionPhotoCommand): void {
    if (!this.expressionAssistEnabled) {
      return;
    }
    if (command === ExpressionPhotoCommand.NEXT) {
      this.movePreviewByExpression(1);
      this.showExpressionFeedback('下一张');
      return;
    }
    if (command === ExpressionPhotoCommand.PREV) {
      this.movePreviewByExpression(-1);
      this.showExpressionFeedback('上一张');
      return;
    }
    if (command === ExpressionPhotoCommand.FULLSCREEN) {
      this.showExpressionFeedback('退出全屏');
      if (this.onClose !== undefined) {
        this.onClose();
      }
    }
  }

  private movePreviewByExpression(delta: number): void {
    const previewUris: Array<string> = this.getPreviewUris();
    if (previewUris.length <= 1) {
      return;
    }
    const nextIndex: number = Math.min(
      previewUris.length - 1,
      Math.max(0, this.getSafePreviewIndex() + delta)
    );
    if (nextIndex === this.getSafePreviewIndex()) {
      return;
    }
    this.handlePreviewIndexChange(nextIndex);
  }

  private showExpressionFeedback(label: string): void {
    this.expressionFeedbackLabel = label;
    this.clearExpressionFeedbackTimer();
    this.expressionFeedbackTimer = setTimeout(() => {
      this.expressionFeedbackLabel = '';
      this.expressionFeedbackTimer = -1;
    }, 900);
  }

  private clearExpressionFeedbackTimer(): void {
    if (this.expressionFeedbackTimer < 0) {
      return;
    }
    clearTimeout(this.expressionFeedbackTimer);
    this.expressionFeedbackTimer = -1;
  }
}

`ExpressionPhotoPracticePage.ets`

ts 复制代码

import { Context, Permissions } from '@kit.AbilityKit';
import { arEngine, ARView, arViewController } from '@kit.AREngine';
import { router } from '@kit.ArkUI';
import { BusinessError } from '@kit.BasicServicesKit';
import { Scene } from '@ohos.graphics.scene';
import { ExpressionPhotoArCallback } from '../../utils/ExpressionPhotoArBridge';
import { ExpressionPhotoCommand, ExpressionPhotoController } from '../../utils/ExpressionPhotoController';
import { ensurePermissionsGranted } from '../../utils/PermissionUtil';

interface ExpressionPracticeStep {
  title: string;
  hint: string;
  command: ExpressionPhotoCommand;
  successLabel: string;
}

const EXPRESSION_PRACTICE_STEPS: Array<ExpressionPracticeStep> = [
  {
    title: '切到下一张',
    hint: '挑眉，或轻轻向左转头',
    command: ExpressionPhotoCommand.NEXT,
    successLabel: '已成功识别下一张'
  },
  {
    title: '切到上一张',
    hint: '皱眉，或轻轻向右转头',
    command: ExpressionPhotoCommand.PREV,
    successLabel: '已成功识别上一张'
  }
];

@Entry
@Component
export struct ExpressionPhotoPracticePage {
  @State private arContext: arViewController.ARViewContext | undefined = undefined;
  @State private arStatus: string = '正在准备微表情识别';
  @State private activeStepIndex: number = 0;
  @State private completedStepCount: number = 0;
  @State private feedbackText: string = '';
  @State private isFinished: boolean = false;
  @State private isStarting: boolean = false;

  private readonly arCallback: ExpressionPhotoArCallback = new ExpressionPhotoArCallback();
  private readonly arPermissions: Array<Permissions> = [
    'ohos.permission.CAMERA',
    'ohos.permission.GYROSCOPE',
    'ohos.permission.ACCELEROMETER'
  ];
  private advanceTimer: number = -1;

  aboutToAppear(): void {
    const controller: ExpressionPhotoController = ExpressionPhotoController.getInstance();
    controller.reset();
    controller.setCommandHandler((command: ExpressionPhotoCommand): void => {
      this.handlePracticeCommand(command);
    });
    void this.startARView();
  }

  aboutToDisappear(): void {
    this.clearAdvanceTimer();
    const controller: ExpressionPhotoController = ExpressionPhotoController.getInstance();
    controller.setCommandHandler(undefined);
    controller.reset();
    void this.stopARView();
  }

  onBackPress(): boolean {
    router.back();
    return true;
  }

  build(): void {
    Stack({ alignContent: Alignment.Center }) {
      Column({ space: 26 }) {
        this.buildFaceGuide()
        this.buildPracticePanel()
        this.buildStepProgress()
      }
      .width('100%')
      .height('100%')
      .justifyContent(FlexAlign.Center)
      .padding({ left: 24, right: 24, bottom: 28 })
    }
    .width('100%')
    .height('100%')
    .backgroundColor('#F7F8FA')
  }

  @Builder
  private buildFaceGuide(): void {
    Stack({ alignContent: Alignment.Center }) {
      Stack() {
        if (this.arContext !== undefined) {
          ARView({ context: this.arContext })
            .width(232)
            .height(232)
            .enabled(false)
            .hitTestBehavior(HitTestMode.None)
        } else {
          Column()
            .width(232)
            .height(232)
            .backgroundColor('#E7EAF0')
        }
      }
      .width(232)
      .height(232)
      .borderRadius(116)
      .clip(true)
      .shadow({ radius: 18, color: '#1F000000', offsetY: 8 })

      Circle()
        .width(232)
        .height(232)
        .fill('#33000000')

      Circle()
        .width(232)
        .height(232)
        .fill(Color.Transparent)
        .stroke('#4F46E5')
        .strokeWidth(3)
    }
    .width('100%')
    .height(260)
  }

  @Builder
  private buildPracticePanel(): void {
    Column({ space: 12 }) {
      Text(this.getPracticeTitle())
        .fontSize(24)
        .fontWeight(FontWeight.Bold)
        .fontColor('#111827')
        .textAlign(TextAlign.Center)

      Text(this.getPracticeHint())
        .fontSize(15)
        .lineHeight(22)
        .fontColor('#6B7280')
        .textAlign(TextAlign.Center)

      Text(this.getPracticeStatusText())
        .fontSize(13)
        .fontColor(this.getPracticeStatusColor())
        .textAlign(TextAlign.Center)
        .margin({ top: 4 })

      if (this.isFinished) {
        Button('完成')
          .height(44)
          .borderRadius(22)
          .backgroundColor('#4F46E5')
          .fontColor(Color.White)
          .fontSize(15)
          .fontWeight(FontWeight.Medium)
          .margin({ top: 10 })
          .onClick(() => {
            router.back();
          })
      }
    }
    .width('100%')
    .padding(22)
    .backgroundColor(Color.White)
    .borderRadius(24)
    .border({ width: 1, color: '#11000000' })
  }

  @Builder
  private buildStepProgress(): void {
    Row({ space: 10 }) {
      ForEach(EXPRESSION_PRACTICE_STEPS, (_step: ExpressionPracticeStep, index: number) => {
        Text(`${index + 1}`)
          .fontSize(13)
          .fontColor(index < this.completedStepCount ? '#20A464' : '#9CA3AF')
          .width(24)
          .height(24)
          .textAlign(TextAlign.Center)
          .borderRadius(12)
          .backgroundColor(index < this.completedStepCount ? '#1A20A464' : '#FFE5E7EB')
      })
    }
    .justifyContent(FlexAlign.Center)
  }

  private async startARView(): Promise<void> {
    if (this.isStarting || this.arContext !== undefined) {
      return;
    }
    this.isStarting = true;
    const hostContext: Context | undefined = this.getUIContext().getHostContext();
    if (hostContext === undefined) {
      this.arStatus = '无法获取应用上下文';
      this.isStarting = false;
      return;
    }
    const granted: boolean = await ensurePermissionsGranted(hostContext, this.arPermissions);
    if (!granted) {
      this.arStatus = '需要相机与运动传感器权限';
      this.isStarting = false;
      return;
    }

    let viewContext: arViewController.ARViewContext | undefined = undefined;
    try {
      viewContext = new arViewController.ARViewContext();
      this.arCallback.setStatusHandler((_status: string): void => {
        if (!this.isFinished && this.feedbackText.length === 0) {
          this.arStatus = '请看向屏幕，保持面部在圆圈中';
        }
      });
      const arConfig: arEngine.ARConfig = {
        type: arEngine.ARType.FACE,
        planeFindingMode: arEngine.ARPlaneFindingMode.DISABLED,
        semanticMode: arEngine.ARSemanticMode.NONE,
        meshMode: arEngine.ARMeshMode.DISABLED,
        focusMode: arEngine.ARFocusMode.AUTO,
        cameraLensFacing: arEngine.ARCameraLensFacing.FRONT,
        multiFaceMode: arEngine.ARMultiFaceMode.MULTIFACE_DISABLE
      };
      viewContext.scene = await Scene.load();
      viewContext.callback = this.arCallback;
      viewContext.config = arConfig;
      await viewContext.init();
      this.arContext = viewContext;
      this.arStatus = '请看向屏幕，保持面部在圆圈中';
    } catch (error) {
      const businessError: BusinessError = error as BusinessError;
      this.arStatus = `微表情识别启动失败：${businessError.message}`;
      if (viewContext !== undefined) {
        try {
          await viewContext.destroy();
        } catch (_destroyError) {
        }
      }
    }
    this.isStarting = false;
  }

  private async stopARView(): Promise<void> {
    const viewContext: arViewController.ARViewContext | undefined = this.arContext;
    this.arContext = undefined;
    this.arCallback.setStatusHandler(undefined);
    if (viewContext === undefined) {
      return;
    }
    try {
      viewContext.pause();
    } catch (_error) {
    }
    try {
      await viewContext.destroy();
    } catch (error) {
      console.warn(`[ExpressionPhotoPractice] destroy failed error=${JSON.stringify(error)}`);
    }
  }

  private handlePracticeCommand(command: ExpressionPhotoCommand): void {
    if (this.isFinished) {
      return;
    }
    const step: ExpressionPracticeStep = EXPRESSION_PRACTICE_STEPS[this.activeStepIndex];
    if (command !== step.command) {
      return;
    }
    this.feedbackText = step.successLabel;
    this.completedStepCount = Math.max(this.completedStepCount, this.activeStepIndex + 1);
    this.clearAdvanceTimer();
    this.advanceTimer = setTimeout(() => {
      this.advanceTimer = -1;
      if (this.activeStepIndex >= EXPRESSION_PRACTICE_STEPS.length - 1) {
        this.isFinished = true;
        this.feedbackText = '已完成微表情练习';
        this.arStatus = '你已经可以在瞬间照片全屏预览里用微表情切换照片。';
        return;
      }
      this.activeStepIndex += 1;
      this.feedbackText = '';
      this.arStatus = '请看向屏幕，保持面部在圆圈中';
      ExpressionPhotoController.getInstance().reset();
    }, 900);
  }

  private clearAdvanceTimer(): void {
    if (this.advanceTimer < 0) {
      return;
    }
    clearTimeout(this.advanceTimer);
    this.advanceTimer = -1;
  }

  private getPracticeTitle(): string {
    if (this.isFinished) {
      return '练习完成';
    }
    return EXPRESSION_PRACTICE_STEPS[this.activeStepIndex].title;
  }

  private getPracticeHint(): string {
    if (this.isFinished) {
      return '你已经可以在瞬间照片全屏预览里使用微表情辅助。';
    }
    return EXPRESSION_PRACTICE_STEPS[this.activeStepIndex].hint;
  }

  private getPracticeStatusText(): string {
    if (this.feedbackText.length > 0) {
      return this.feedbackText;
    }
    return this.arStatus;
  }

  private getPracticeStatusColor(): ResourceColor {
    if (this.feedbackText.length > 0 || this.isFinished) {
      return '#20A464';
    }
    if (this.arStatus.indexOf('失败') >= 0 || this.arStatus.indexOf('需要') >= 0) {
      return '#D14343';
    }
    return '#6B7280';
  }
}

`module.json5` 权限声明

json5 复制代码

{
  "module": {
    "requestPermissions": [
      {
        "name": "ohos.permission.CAMERA",
        "reason": "$string:permission_camera_reason",
        "usedScene": {
          "abilities": [
            "EntryAbility"
          ],
          "when": "inuse"
        }
      },
      {
        "name": "ohos.permission.GYROSCOPE"
      },
      {
        "name": "ohos.permission.ACCELEROMETER"
      },
      {
        "name": "ohos.permission.VIBRATE"
      }
    ]
  }
}

CAMERA 是 AR 会话初始化必须要的权限；GYROSCOPE 和 ACCELEROMETER 对 AR 跟踪也很关键；VIBRATE 不是 AR Engine 必需，但我在识别成功后做了轻微震动反馈，所以一起声明。

调试时我遇到的几个点

微表情这种能力最怕"看起来能跑，但用户一用就误触"。我在项目里主要做了几层保护。

首先是只在用户主动开启后启动 AR。设置页默认不开，用户开启后才会在全屏预览里申请相机和传感器权限。

其次是照片预览页关闭时必须销毁 ARViewContext。我的顺序是先清 timer，再把 expressionArActive 置 false，然后 pause()，最后 destroy()。这样页面退出后不会继续占用相机。

再就是阈值不要太激进。比如挑眉触发阈值是 0.28，释放阈值是 0.16；头部 yaw 触发阈值是 0.18，释放阈值是 0.08。触发和释放分开以后，连续帧抖动会少很多。

最后是不要把底层调试状态直接展示给用户。ExpressionPhotoArCallback 里会生成类似 眉0.32 皱0.02 眯0.01 的状态，这些对调试有用，但普通用户只需要看到"微表情辅助""需要相机与运动传感器权限""当前设备暂时无法启动微表情辅助"这类信息。

小结

这次接入 AR Engine Kit，我更像是把它当成一个新的输入方式：摄像头负责捕捉人脸，AR Engine 负责人脸跟踪和 BlendShape，业务层再把这些连续数据翻译成照片浏览命令。

如果你的应用也有照片浏览、阅读、演示、无障碍辅助这类场景，不一定非要做复杂的 AR 视觉效果。把 AR Engine 的人脸跟踪能力拿来做轻交互，也能让应用体验多一个很自然的入口。

【Jack实战】如何用 AR Engine Kit 做微表情辅助照片浏览

我在《时光旅记》里的使用场景

整体结构

接入 AR Engine Kit 的关键点

为什么要自己做一层 Bridge

完整代码

PermissionUtil.ets

ExpressionPhotoController.ets

ExpressionPhotoArBridge.ets

ExpressionImagePreviewDialog.ets

ExpressionPhotoPracticePage.ets

module.json5 权限声明

调试时我遇到的几个点

小结

`PermissionUtil.ets`

`ExpressionPhotoController.ets`

`ExpressionPhotoArBridge.ets`

`ExpressionImagePreviewDialog.ets`

`ExpressionPhotoPracticePage.ets`

`module.json5` 权限声明
