SpringCloud整合skywalking实现链路追踪和日志采集

1.部署skywalking

blog.csdn.net/qq_40942490...

2.添加依赖

        <!-- 日志采集 -->
        <dependency>
            <groupId>org.apache.skywalking</groupId>
            <artifactId>apm-toolkit-logback-1.x</artifactId>
            <version>9.3.0</version>
        </dependency>
        <!-- 自定义链路追踪 《如果不需要就会用默认的》 -->
        <dependency>
            <groupId>org.apache.skywalking</groupId>
            <artifactId>apm-toolkit-trace</artifactId>
            <version>9.3.0</version>
        </dependency>

3.增加日志配置文件

增加logback-spring.xml文件：

文件内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<configuration scan="false" scanPeriod="10 seconds">
    <contextName>logback</contextName>

    <property name="log.path" value="./log/bztc-study01"/>


    <!--1. 输出到控制台-->
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
            <layout class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.TraceIdPatternLogbackLayout">
                <Pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%tid] [%thread] %-5level %logger{36} -%msg%n</Pattern>
            </layout>
        </encoder>
    </appender>

    <root level="info">
        <appender-ref ref="STDOUT"/>
    </root>
</configuration>

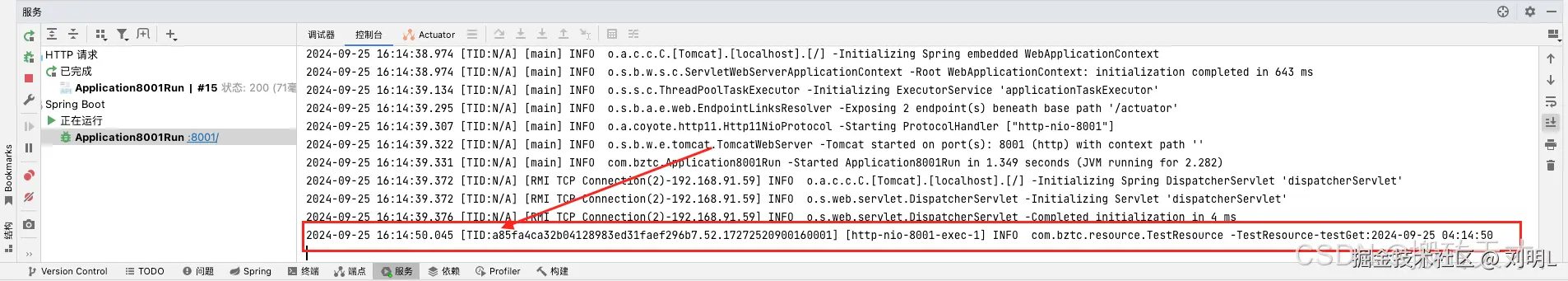

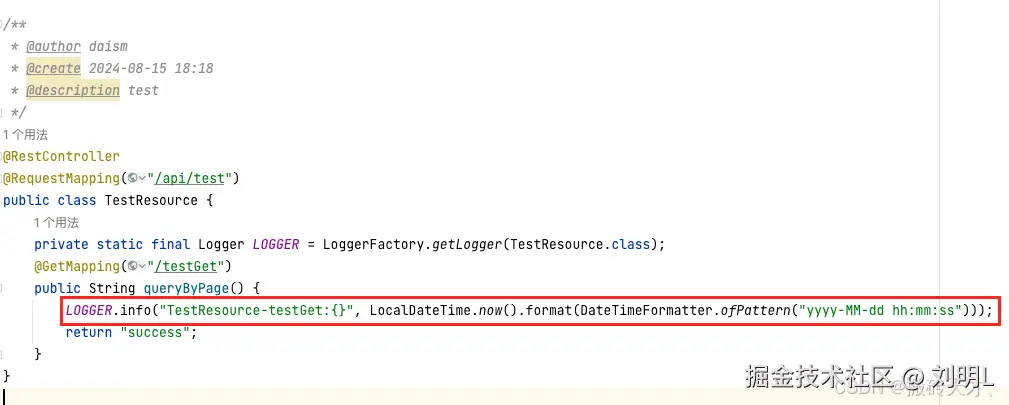

4.打印日志

其中，TID需要打印出来

5. windos环境--在IDEA中配置SkyWalking

下载地址 https://skywalking.apache.org/downloads/

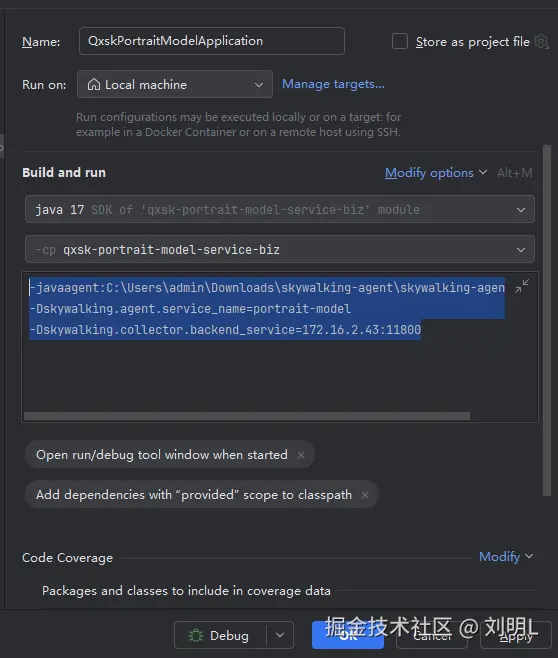

在运行的程序配置jvm参数，如下图所示：

-javaagent:C:\Users\admin\Downloads\skywalking-agent\skywalking-agent.jar
-Dskywalking.agent.service_name=portrait-model
-Dskywalking.collector.backend_service=172.16.2.43:11800

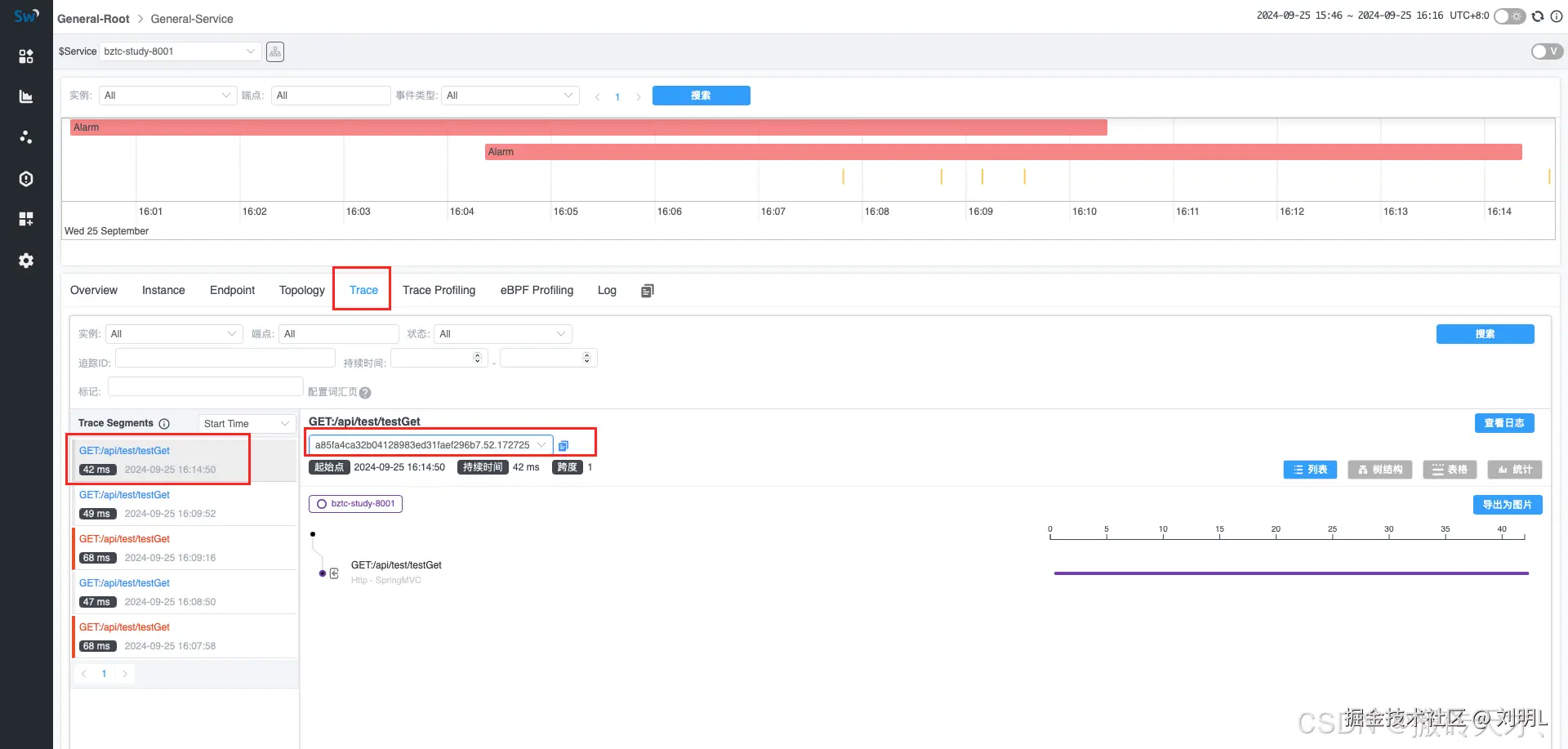

6.skywalking网页查询链路

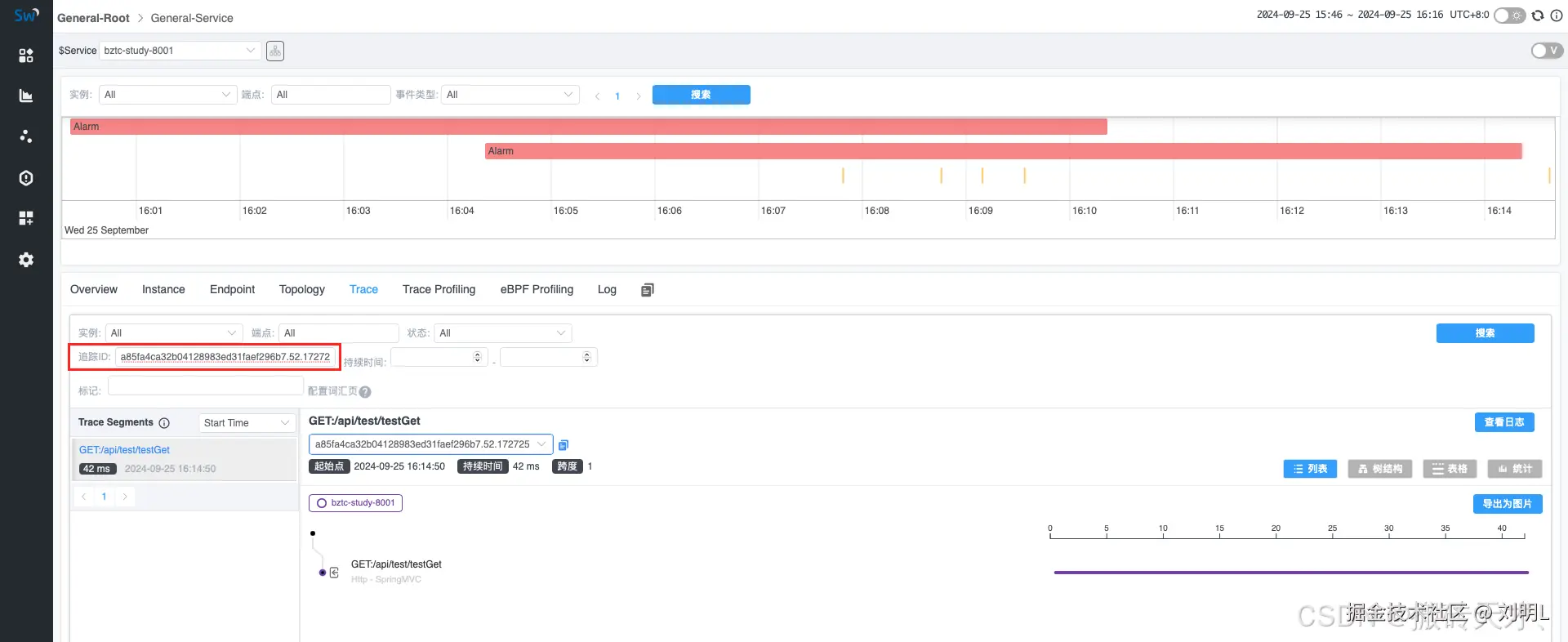

在搜索框中查询TID：

7.自定义链路追踪

7.1代码中使用traceId

@RequestMapping("/list")
public List<User> list(){

    //TraceContext可以绑定key-value
    TraceContext.putCorrelation("name", "fox");
    Optional<String> op = TraceContext.getCorrelation("name");
    log.info("name = {} ", op.get());
    //获取跟踪的traceId
    String traceId = TraceContext.traceId();
    log.info("traceId = {} ", traceId);
    return userService.list();
}

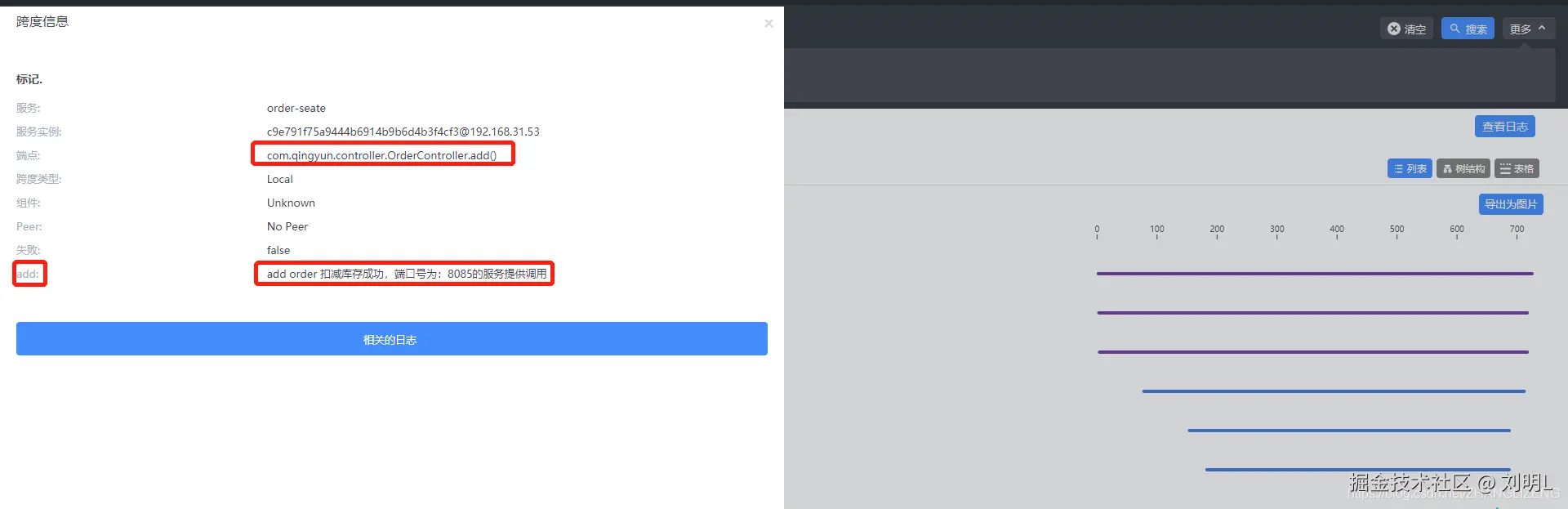

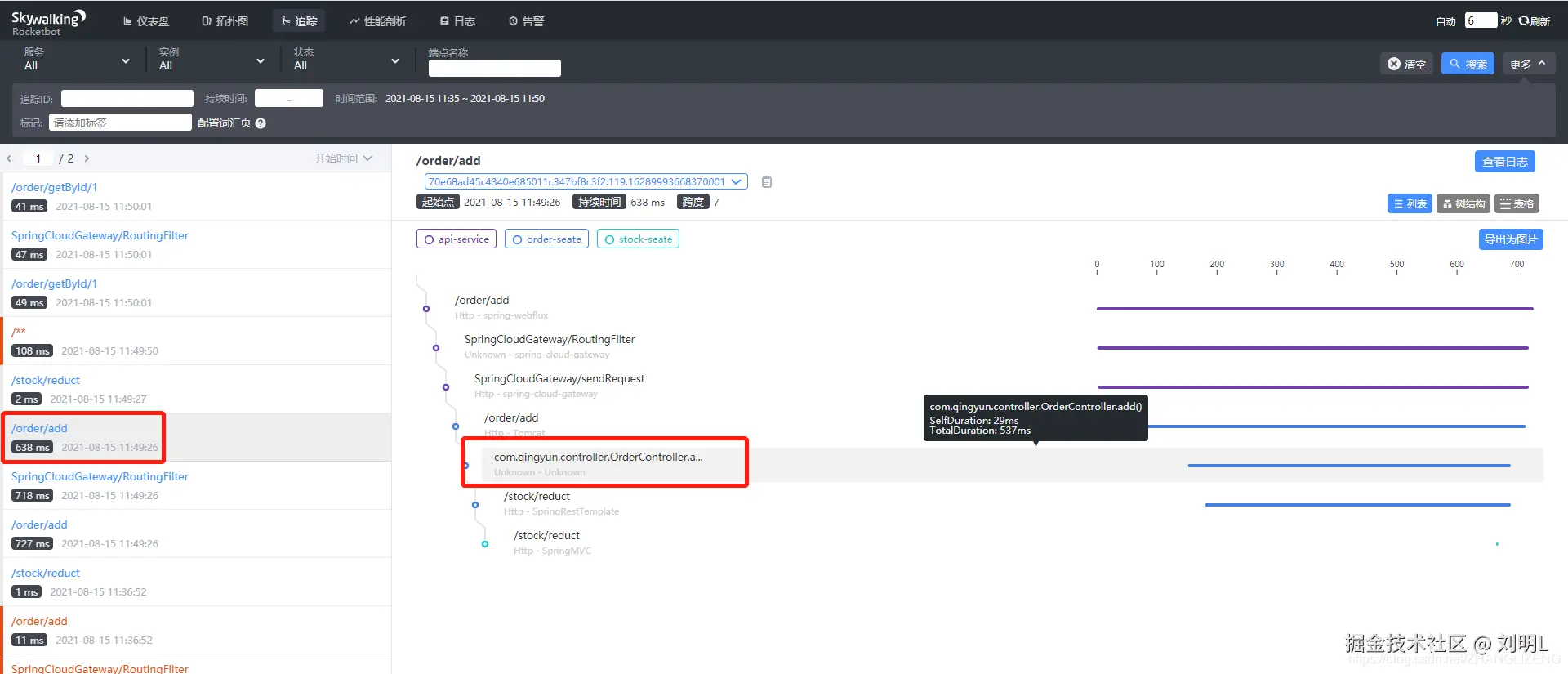

7.2@Trace 将方法加入追踪链路

调用链路中显示返回值，以及参数值信息，使用@Tag或者@Tags @Tag注解中key=方法名 value=returnedObj 返回值 agr0 参数 param标识参数，returnedObj标识返回值

    @RequestMapping("/add")
    @Trace
    @Tag(key = "add",value ="returnedObj")
    public String add() {
        System.out.println("下单成功");
        // String forObject = restTemplate.getForObject("http://localhost:8083/stock/reduct", String.class);
        String forObject = restTemplate.getForObject("http://stock-service/stock/reduct", String.class);
        //int a= 1/0;
        return "add order " + forObject;
    }

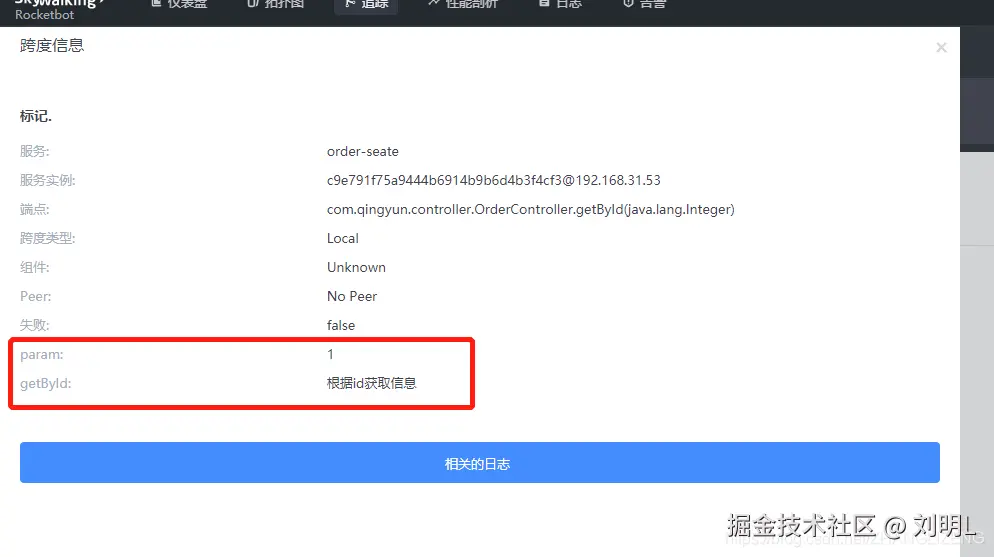

    @RequestMapping("/getById/{id}")
    @Trace
    @Tags({@Tag(key = "getById",value ="returnedObj"),
          @Tag(key="param",value = "arg[0]")
    })
    public String getById(@PathVariable("id") Integer id) {
        return "根据id获取信息";
    }

8.日志收集

<?xml version="1.0" encoding="UTF-8"?>
<configuration scan="false" scanPeriod="10 seconds">
    <contextName>logback</contextName>

    <property name="log.path" value="./log/bztc-study01"/>


    <!--1. 输出到控制台-->
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
            <layout class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.TraceIdPatternLogbackLayout">
                <Pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%tid] [%thread] %-5level %logger{36} -%msg%n</Pattern>
            </layout>
        </encoder>
    </appender>
    <!--2. 日志收集-->
    <appender name="grpc-log" class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.log.GRPCLogClientAppender">
        <encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
            <layout class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.mdc.TraceIdMDCPatternLogbackLayout">
                <Pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%X{tid}] [%thread] %-5level %logger{36} -%msg%n</Pattern>
            </layout>
        </encoder>
    </appender>
    <root level="info">
        <appender-ref ref="STDOUT"/>
        <appender-ref ref="grpc-log"/>
    </root>
</configuration>

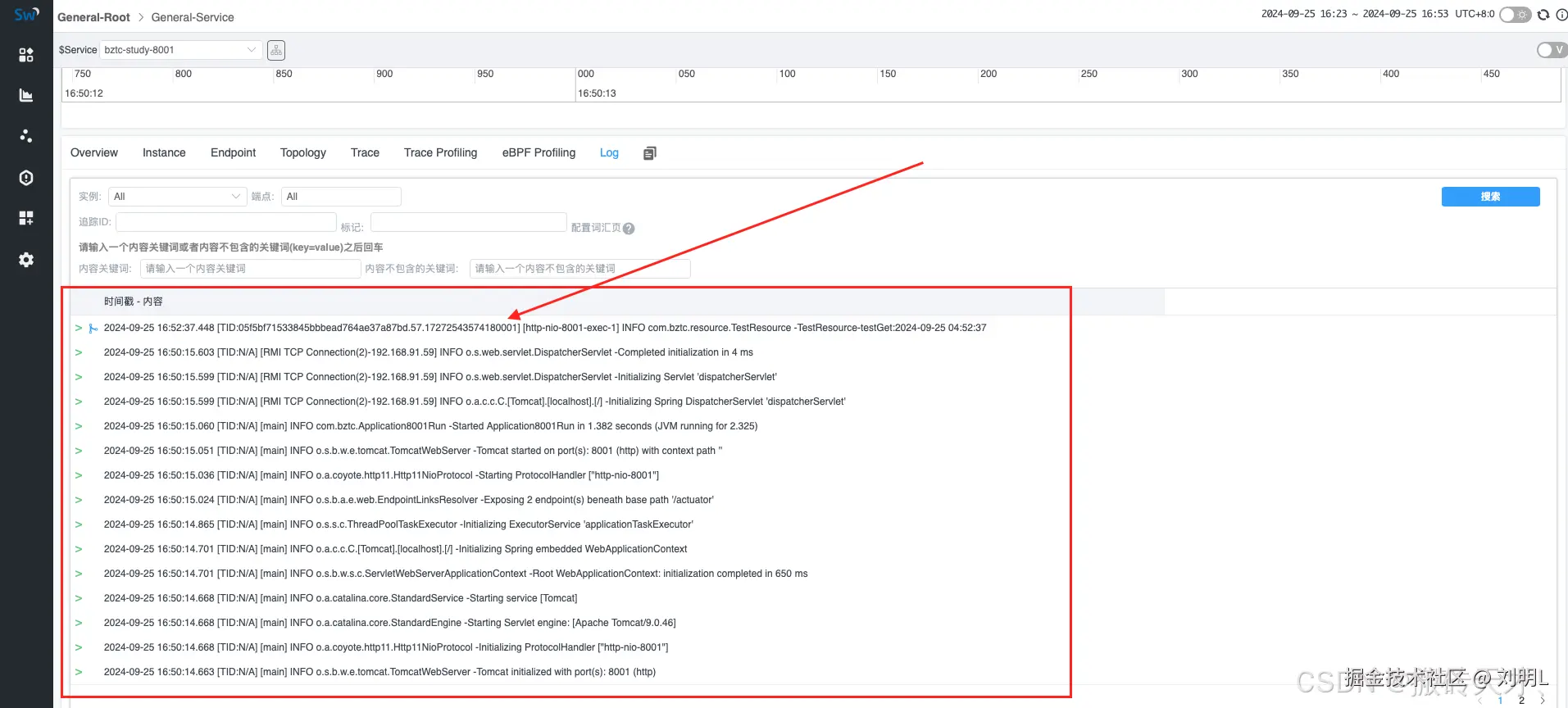

9.重新启动服务 然后查看skywalking网页的Log
