华为supervlan+sub address组网模拟与sub vlan互通方法

一 组网说明

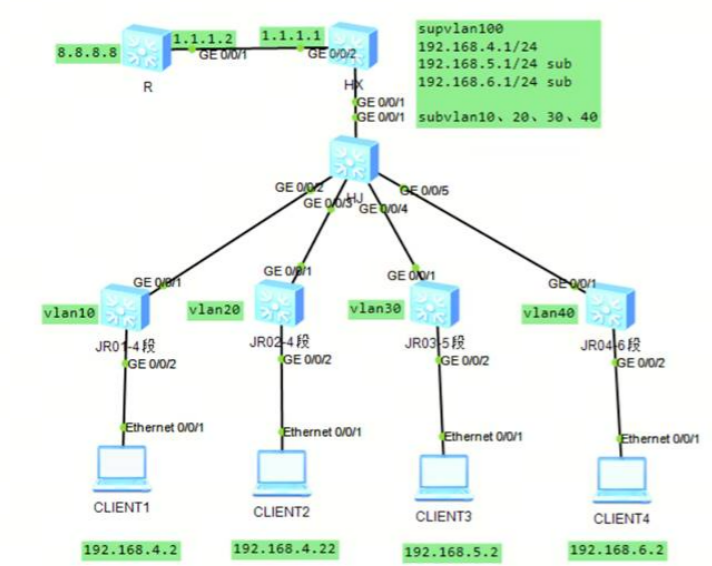

Supervlan100,里面有多个sub地址段

二 设备配置

2.1 HX配置

sysname HX

vlan batch 10 20 30 40 100 1000

vlan 10

description subvlan

vlan 20

description subvlan

vlan 30

description subvlan

vlan 40

description subvlan

vlan 100

description supervlan

aggregate-vlan

access-vlan 10 20 30 40

vlan 1000

description TO-R

interface Vlanif100

description supervlan

ipaddress 192.168.4.1 255.255.255.0

ipaddress 192.168.5.1 255.255.255.0 sub

ipaddress 192.168.6.1 255.255.255.0 sub

interface Vlanif1000

description TO-R

ipaddress 1.1.1.1 255.255.255.0

interface GigabitEthernet0/0/1

portlink-type trunk

porttrunk allow-pass vlan 10 20 30 40

interface GigabitEthernet0/0/2

portlink-type access

portdefault vlan 1000

interface LoopBack0

ipaddress 8.8.8.8 255.255.255.255

ip route-static 8.8.8.8 255.255.255.2551.1.1.2

2.2 HJ配置

sysname HJ

vlan batch 10 20 30 40

vlan 10

description subvlan

vlan 20

description subvlan

vlan 30

description subvlan

vlan 40

description subvlan

interface GigabitEthernet0/0/1

portlink-type trunk

porttrunk allow-pass vlan 10 20 30 40

interface GigabitEthernet0/0/2

portlink-type trunk

porttrunk allow-pass vlan 10

interface GigabitEthernet0/0/3

portlink-type trunk

porttrunk allow-pass vlan 20

interface GigabitEthernet0/0/4

portlink-type trunk

porttrunk allow-pass vlan 30

interface GigabitEthernet0/0/5

portlink-type trunk

porttrunk allow-pass vlan 40

2.3 JR01-4段配置

sysname JR01-4

vlan batch 10

interface GigabitEthernet0/0/1

portlink-type trunk

porttrunk allow-pass vlan 10

interface GigabitEthernet0/0/2

portlink-type access

portdefault vlan 10

2.4 JR02-4段配置

sysname JR01-4

vlan batch 20

interface GigabitEthernet0/0/1

portlink-type trunk

porttrunk allow-pass vlan 20

interface GigabitEthernet0/0/2

portlink-type access

portdefault vlan 20

2.5 JR03-5段配置

sysname JR01-4

vlan batch 30

interface GigabitEthernet0/0/1

portlink-type trunk

porttrunk allow-pass vlan 30

interface GigabitEthernet0/0/2

portlink-type access

portdefault vlan 30

2.6 JR04-6段配置

sysname JR01-4

vlan batch 40

interface GigabitEthernet0/0/1

portlink-type trunk

porttrunk allow-pass vlan 40

interface GigabitEthernet0/0/2

portlink-type access

portdefault vlan 40

2.6 R配置

sysname R

vlan batch 1000

interface Vlanif1000

ipaddress 1.1.1.2 255.255.255.0

interface GigabitEthernet0/0/1

portlink-type access

portdefault vlan 1000

ip route-static 192.168.0.0 255.255.0.01.1.1.1

三 业务测试

3.1 PC1测试

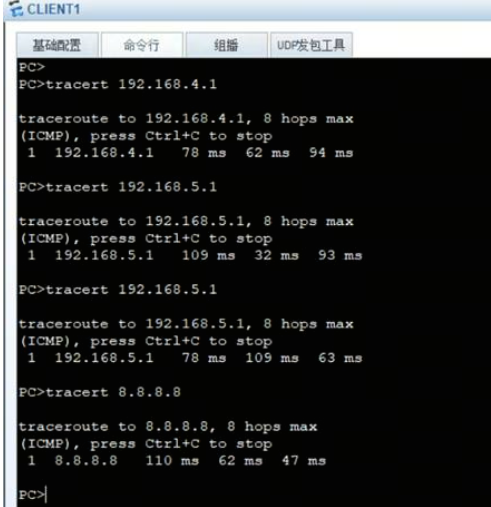

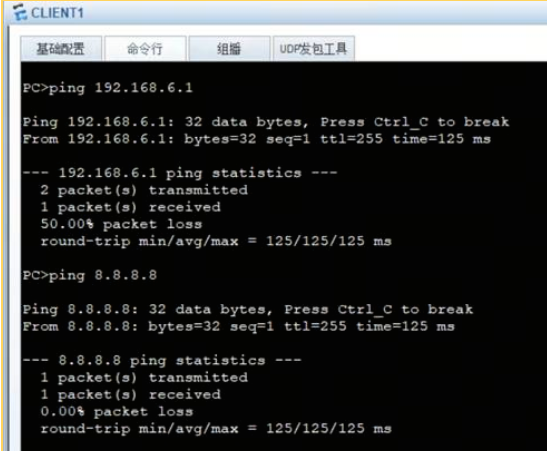

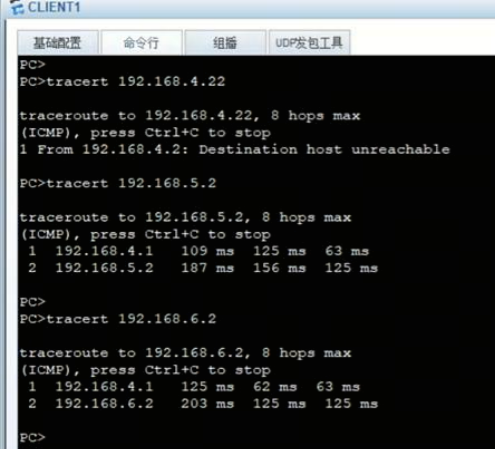

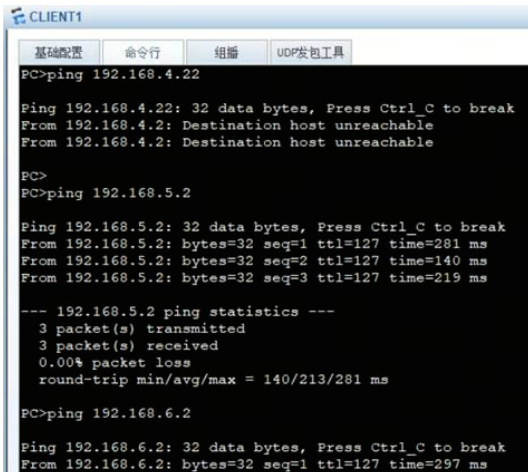

Subvlan的相同网段地址不通

3.2 PC2测试

类似PC1

3.2 PC3测试

类似PC1

3.4 PC4测试

类似PC1

四 supervlan虚接口下配置arp代理

4.1 supervlan虚接口下配置

HX-Vlanif100arp-proxy ?

enable Enable proxyARP(Address Resolve Protocol)

inner-sub-vlan-proxy Proxy ARPwithin a VLAN

inter-sub-vlan-proxy Proxy ARPbetween VLANs

HX-Vlanif100arp-proxy

最终配置

interface Vlanif100

description supervlan

ipaddress 192.168.4.1 255.255.255.0

ipaddress 192.168.5.1 255.255.255.0 sub

ipaddress 192.168.6.1 255.255.255.0 sub

arp-proxy inter-sub-vlan-proxy enable //不同vlan之间的相同网段地址

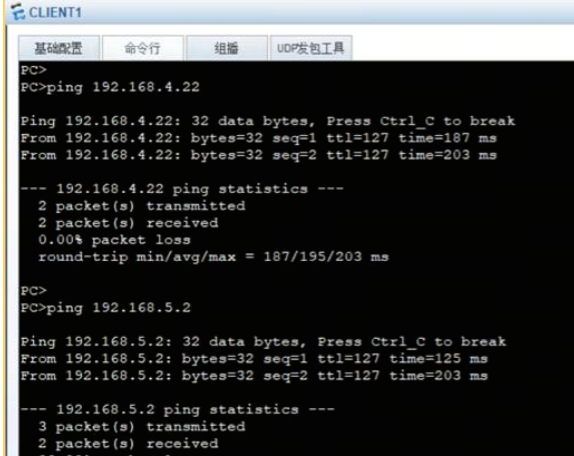

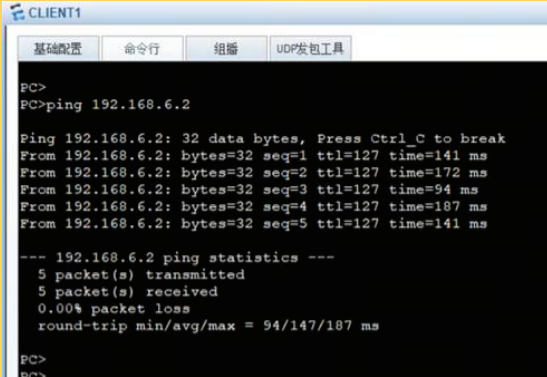

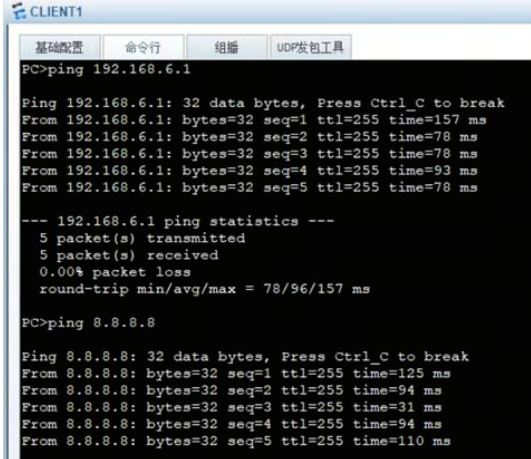

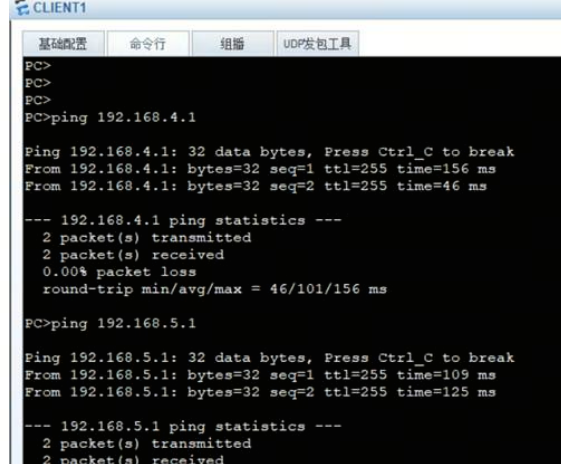

4.2 PC1测试全通
