IDEA 创建 Java 项目 手动整合 SSM 框架

IDEA 创建 Java 项目 手动整合 SSM 框架

一、准备环境

• Tomcat 7
• JDK 8
• Maven 3.6.3
• MySQL 5.7
• MySQL 5.7 安装教程
• Maven 配置教程

二、创建工程

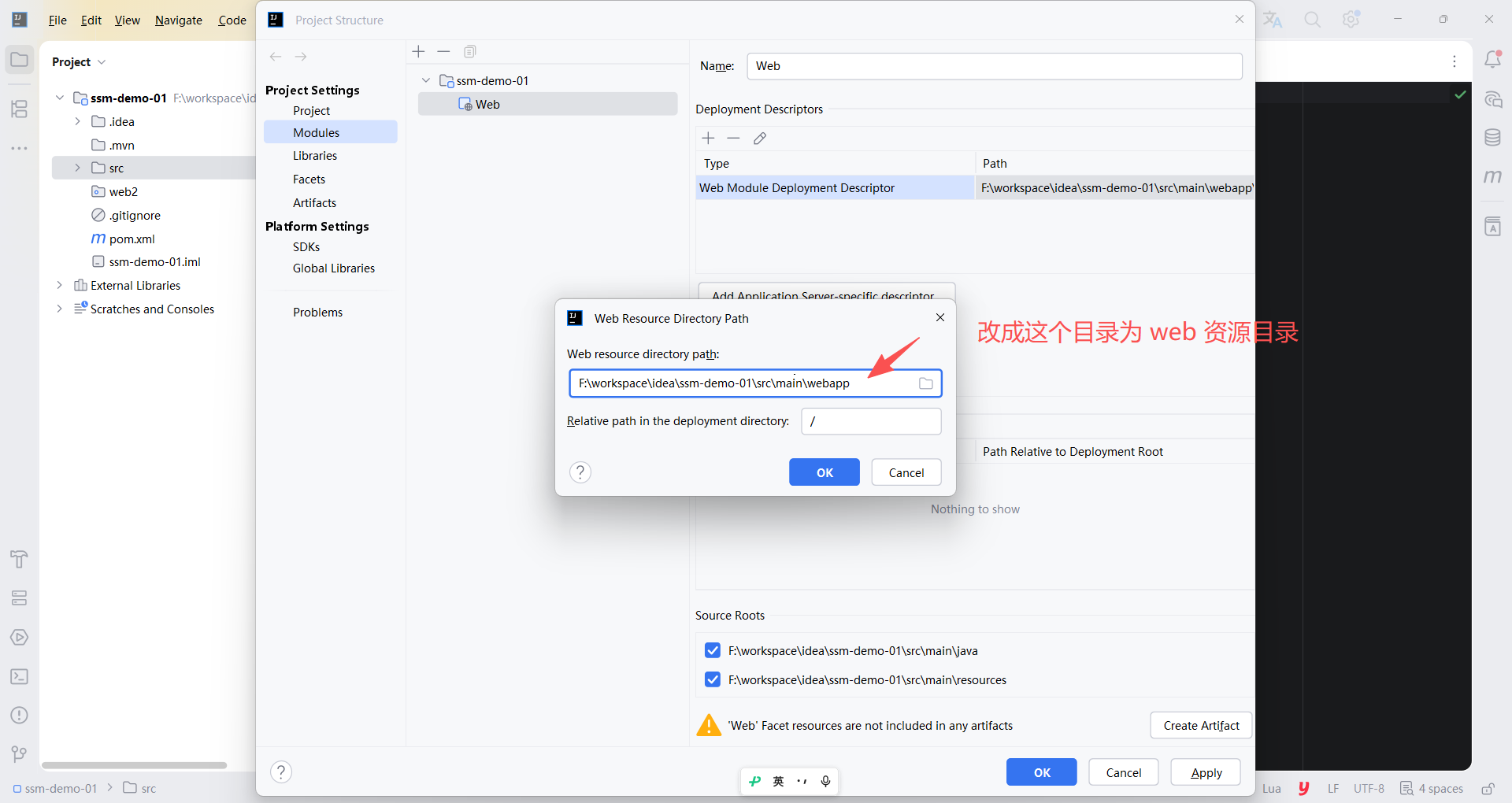

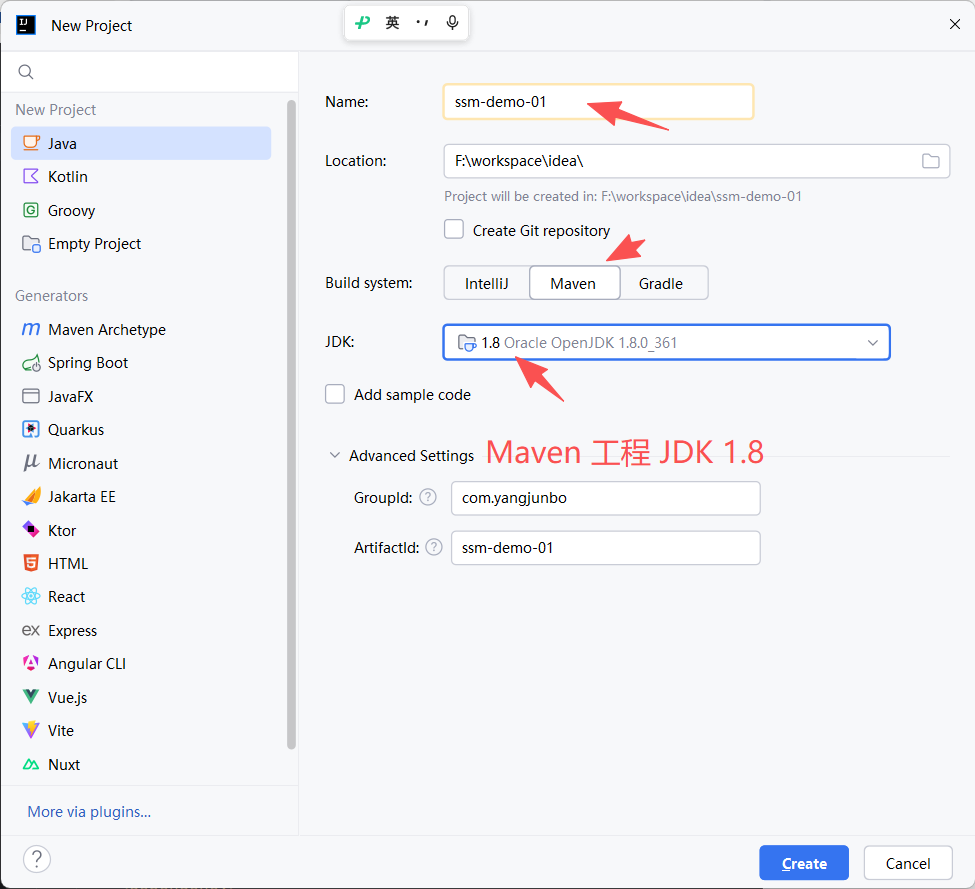

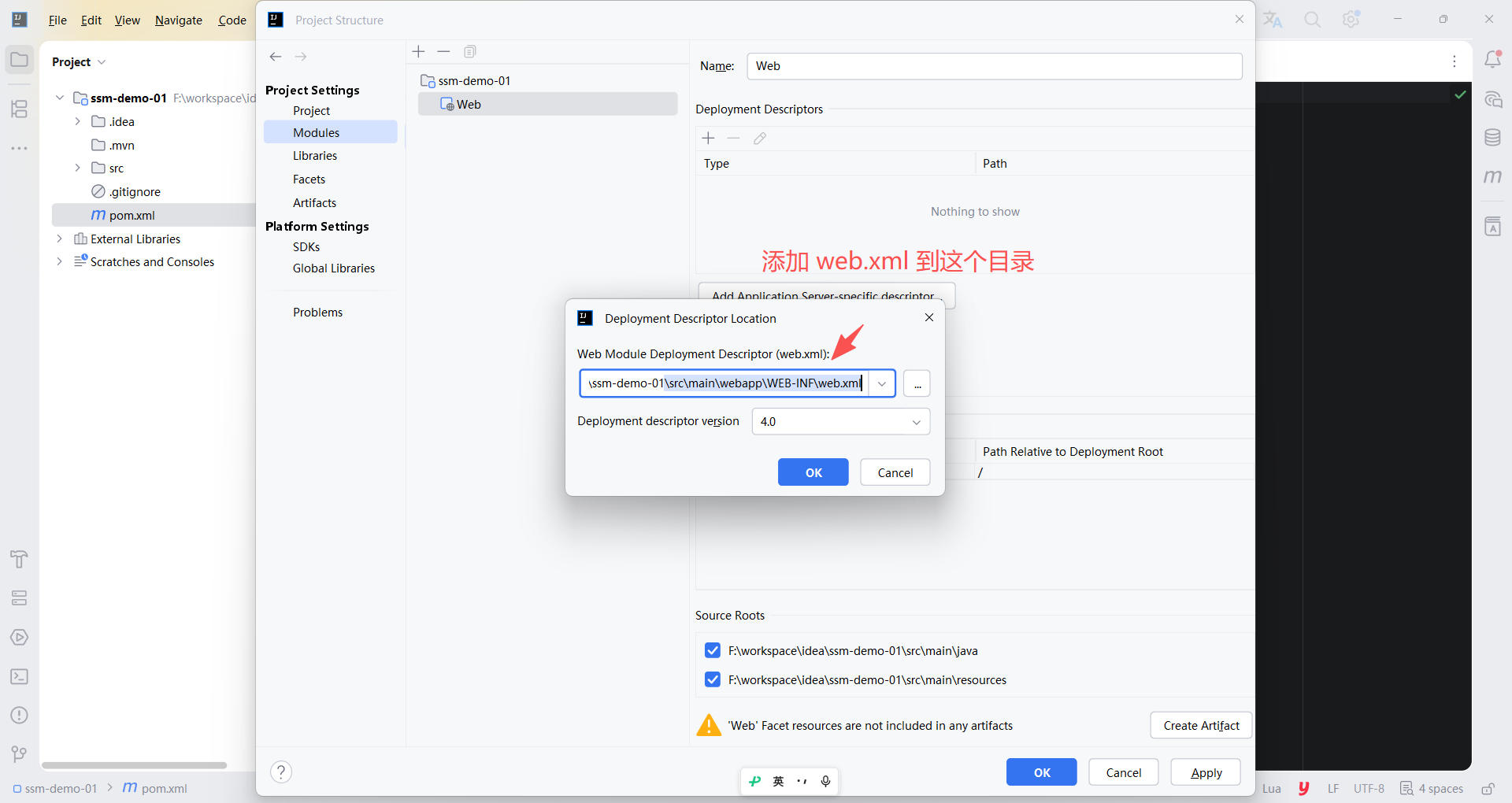

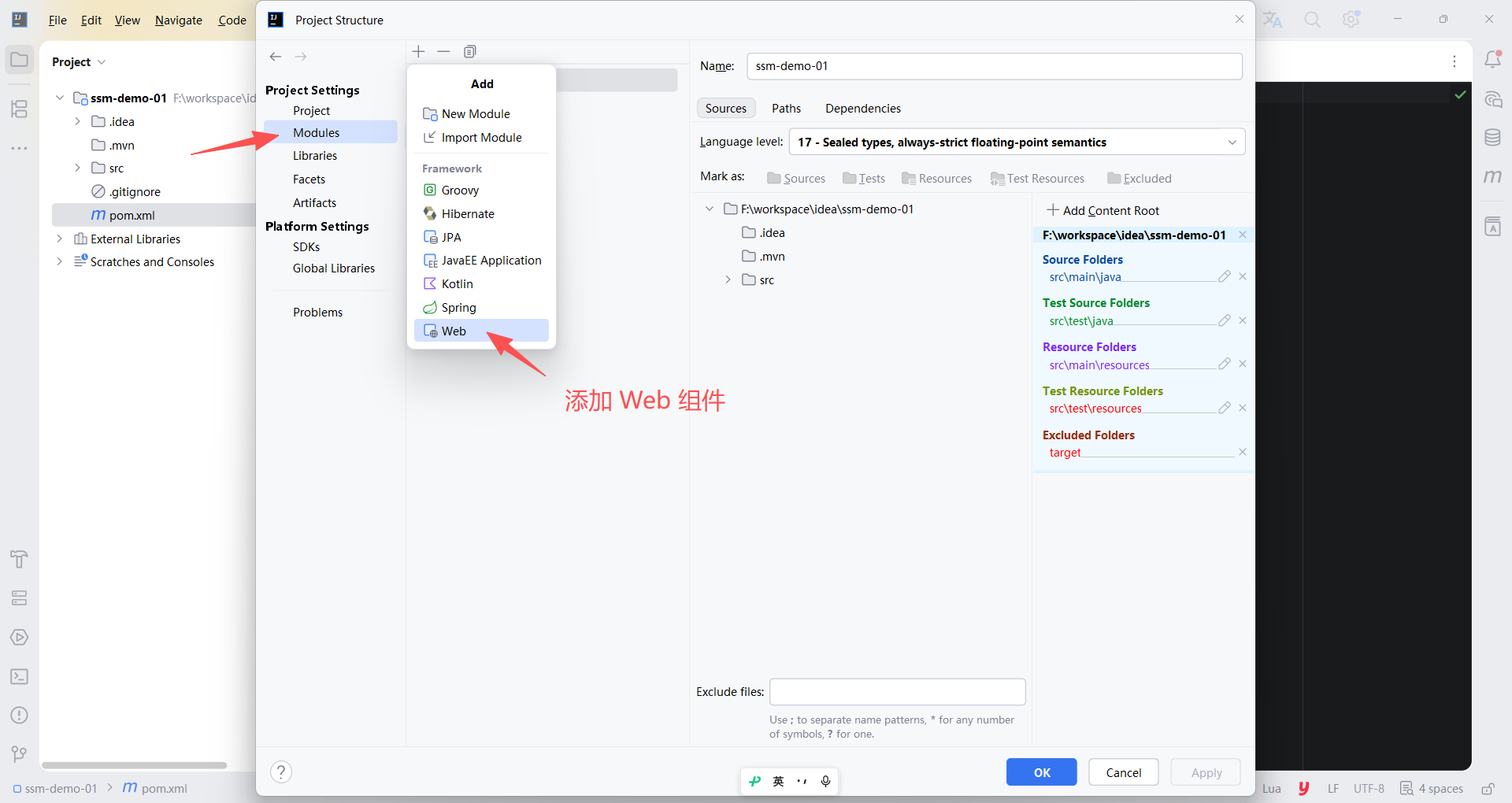

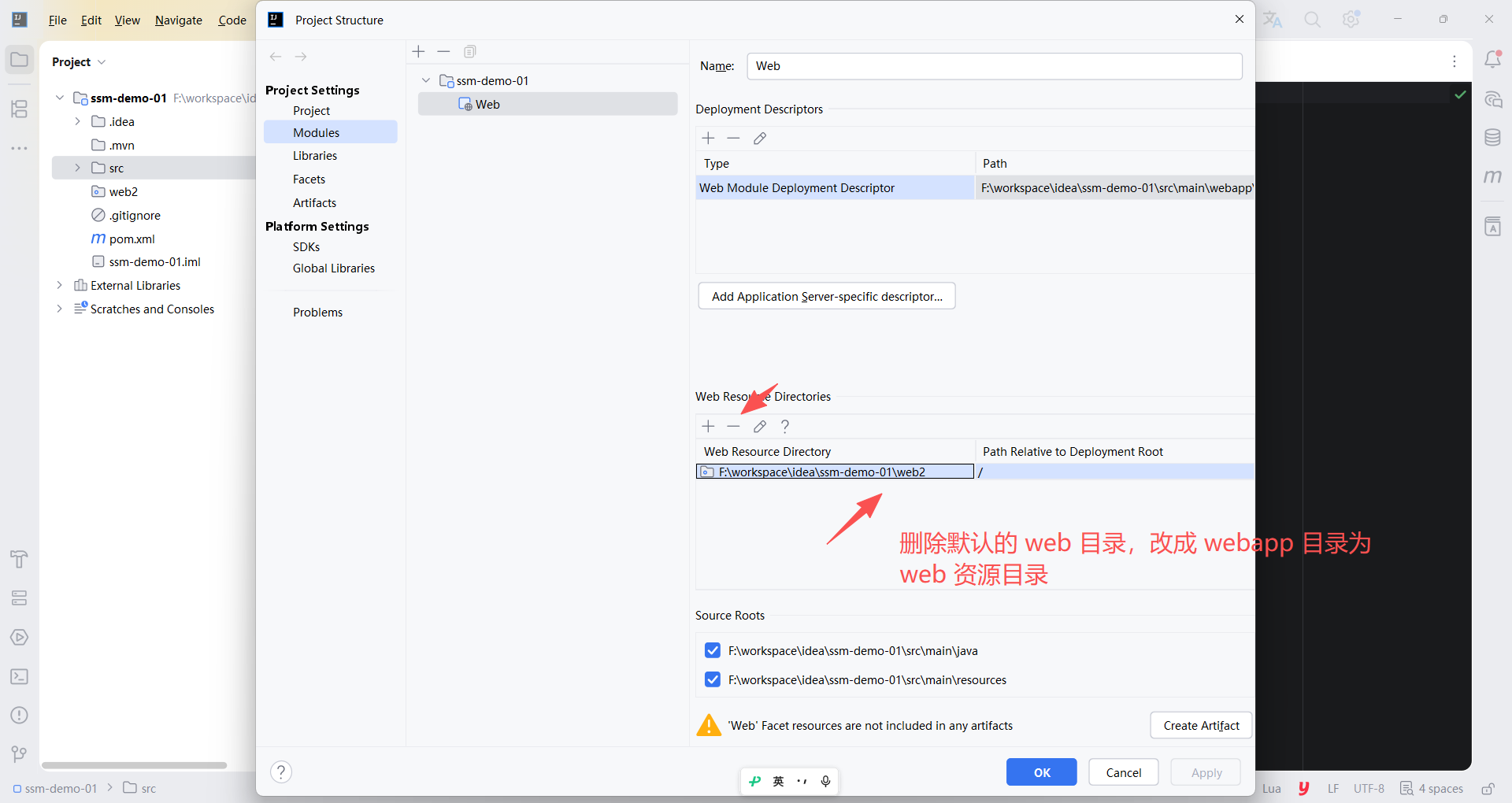

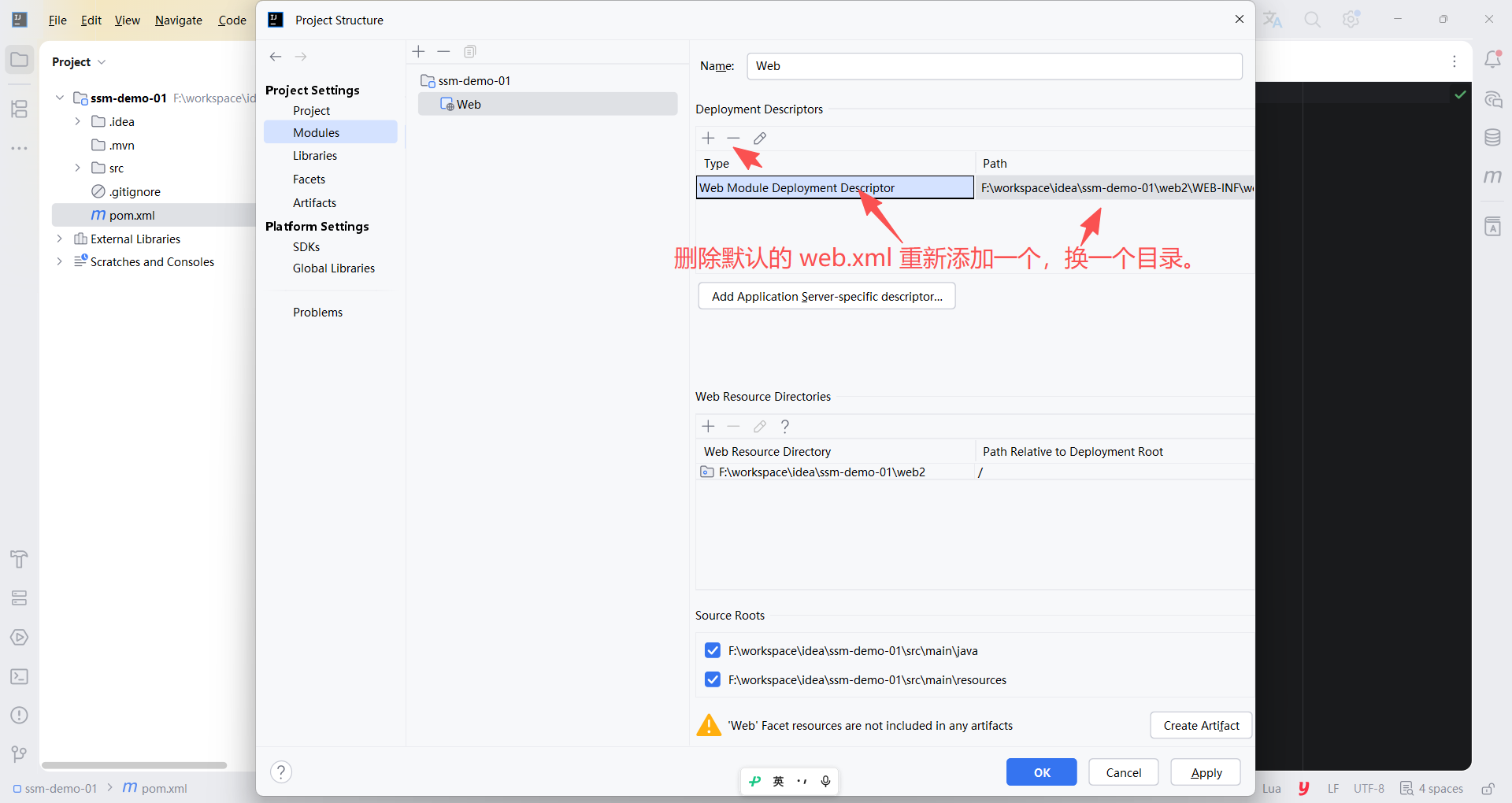

2.1、创建 JavaWeb 工程

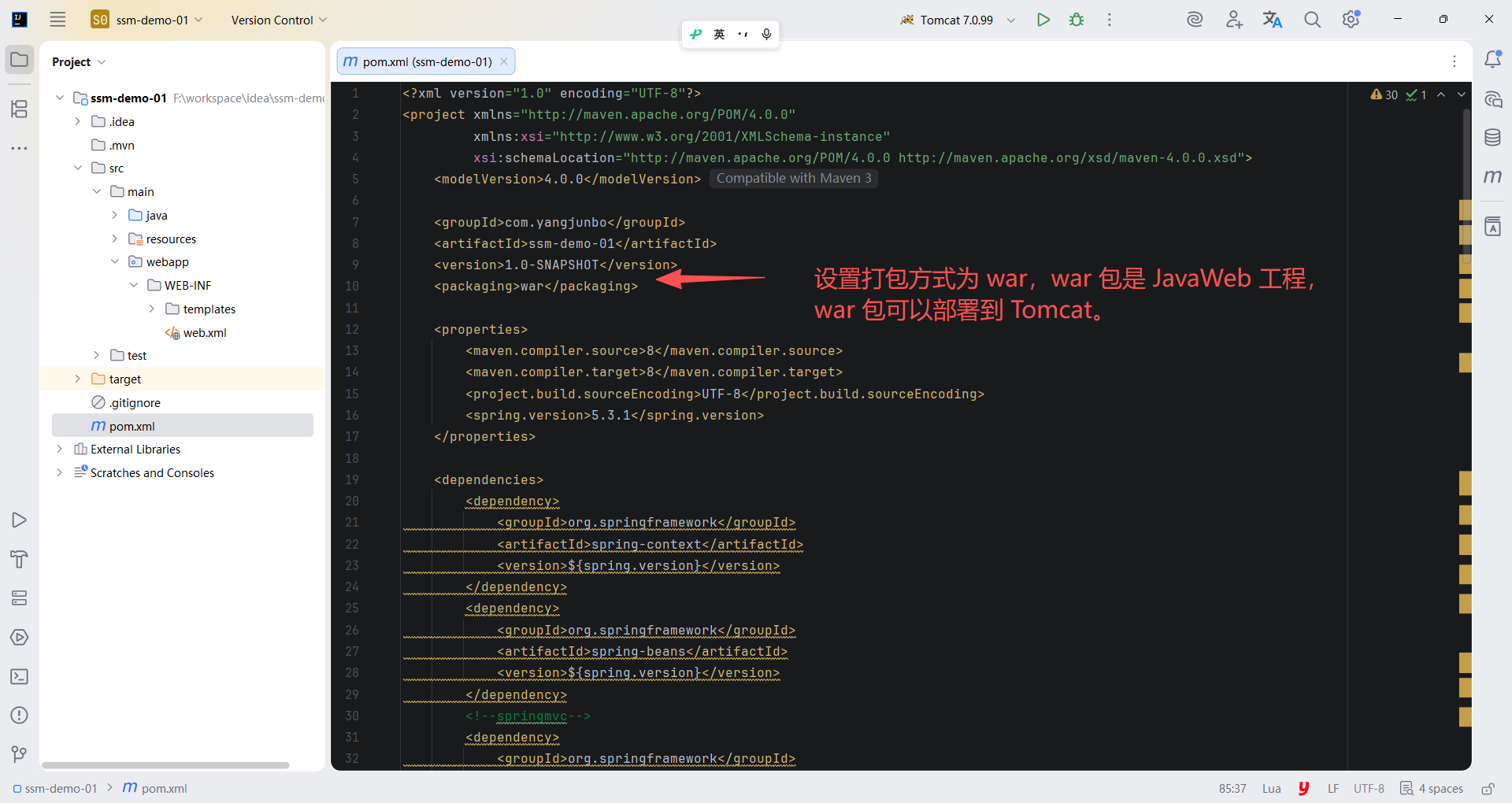

2.2、引入 Maven 依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.yangjunbo</groupId>
    <artifactId>ssm-demo-01</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <spring.version>5.3.1</spring.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!--springmvc-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!-- Mybatis核心 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.7</version>
        </dependency>
        <!--mybatis和spring的整合包-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.6</version>
        </dependency>
        <!-- 连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.0.9</version>
        </dependency>
        <!-- junit测试 -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>
        <!-- MySQL驱动 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.3</version>
        </dependency>
        <!-- log4j日志 -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/com.github.pagehelper/pagehelper -->
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>5.2.0</version>
        </dependency>
        <!-- 日志 -->
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.2.3</version>
        </dependency>
        <!-- ServletAPI -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.12.1</version>
        </dependency>
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>
        <!-- Spring5和Thymeleaf整合包 -->
        <dependency>
            <groupId>org.thymeleaf</groupId>
            <artifactId>thymeleaf-spring5</artifactId>
            <version>3.0.12.RELEASE</version>
        </dependency>
    </dependencies>

</project>

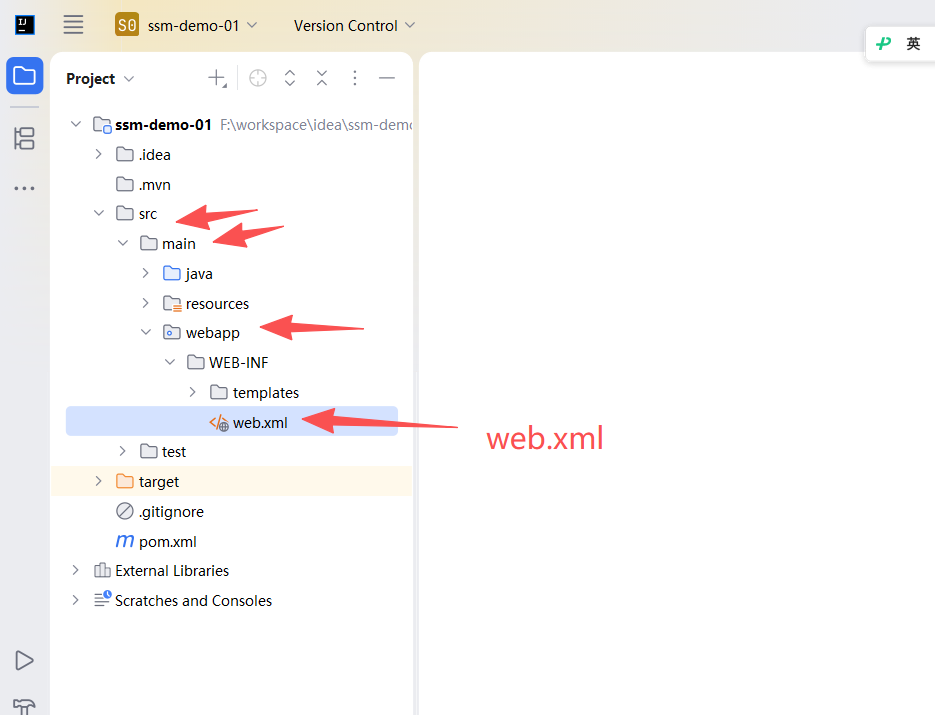

2.3、配置 web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
    <!--配置Spring的编码过滤器-->
    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--配置处理请求方式的过滤器-->
    <filter>
        <filter-name>HiddenHttpMethodFilter</filter-name>
        <filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>HiddenHttpMethodFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--配置SpringMVC的前端控制器DispatcherServlet-->
    <servlet>
        <servlet-name>SpringMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!--设置SpringMVC配置文件自定义的位置和名称-->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:springmvc.xml</param-value>
        </init-param>
        <!--将DispatcherServlet的初始化时间提前到服务器启动时-->
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringMVC</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--配置Spring的监听器，在服务器启动时加载Spring的配置文件-->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!--设置Spring配置文件自定义的位置和名称-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring.xml</param-value>
    </context-param>
</web-app>

2.4、配置 SpringMVC

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!--扫描控制层组件-->
    <context:component-scan base-package="yang.junbo.ssm.controller"></context:component-scan>

    <!--配置视图解析器-->
    <bean id="viewResolver" class="org.thymeleaf.spring5.view.ThymeleafViewResolver">
        <property name="order" value="1"/>
        <property name="characterEncoding" value="UTF-8"/>
        <property name="templateEngine">
            <bean class="org.thymeleaf.spring5.SpringTemplateEngine">
                <property name="templateResolver">
                    <bean class="org.thymeleaf.spring5.templateresolver.SpringResourceTemplateResolver">
                        <!-- 视图前缀 -->
                        <property name="prefix" value="/WEB-INF/templates/"/>
                        <!-- 视图后缀 -->
                        <property name="suffix" value=".html"/>
                        <property name="templateMode" value="HTML5"/>
                        <property name="characterEncoding" value="UTF-8" />
                    </bean>
                </property>
            </bean>
        </property>
    </bean>

    <!--配置默认的servlet处理静态资源-->
    <mvc:default-servlet-handler />

    <!--开启mvc的注解驱动-->
    <mvc:annotation-driven />

    <!--配置视图控制器-->
    <mvc:view-controller path="/" view-name="index"></mvc:view-controller>

    <!--配置文件上传解析器-->
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver"></bean>

</beans>

2.5、配置 Spring

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!--扫描组件（除控制层）-->
    <context:component-scan base-package="yang.junbo.ssm">
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <!--引入jdbc.properties-->
    <context:property-placeholder location="classpath:jdbc.properties"></context:property-placeholder>

    <!--配置数据源-->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driver}"></property>
        <property name="url" value="${jdbc.url}"></property>
        <property name="username" value="${jdbc.username}"></property>
        <property name="password" value="${jdbc.password}"></property>
    </bean>

    <!--配置事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"></property>
    </bean>

    <!--
        开启事务的注解驱动
        将使用注解@Transactional标识的方法或类中所有的方法进行事务管理
    -->
    <tx:annotation-driven transaction-manager="transactionManager" />

    <!--配置SqlSessionFactoryBean，可以直接在Spring的IOC中获取SqlSessionFactory-->
    <bean class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--设置MyBatis的核心配置文件的路径-->
        <property name="configLocation" value="classpath:mybatis-config.xml"></property>
        <!--设置数据源-->
        <property name="dataSource" ref="dataSource"></property>
        <!--设置类型别名所对应的包-->
        <property name="typeAliasesPackage" value="yang.junbo.ssm.pojo"></property>
        <!--设置映射文件的路径，只有映射文件的包和mapper接口的包不一致时需要设置-->
        <!--<property name="mapperLocations" value="classpath:mappers/*.xml"></property>-->
    </bean>

    <!--
        配置mapper接口的扫描，可以将指定包下所有的mapper接口
        通过SqlSession创建代理实现类对象，并将这些对象交给IOC容器管理
    -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="yang.junbo.ssm.mapper"></property>
    </bean>

</beans>

2.6、配置 MyBatis

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>

    <!--
        MyBatis核心配置文件中的标签必须要按照指定的顺序配置：
        properties?,settings?,typeAliases?,typeHandlers?,
        objectFactory?,objectWrapperFactory?,reflectorFactory?,
        plugins?,environments?,databaseIdProvider?,mappers?
    -->

    <settings>
        <!--将下划线映射为驼峰-->
        <setting name="mapUnderscoreToCamelCase" value="true"/>
    </settings>

    <plugins>
        <!--配置分页插件-->
        <plugin interceptor="com.github.pagehelper.PageInterceptor"></plugin>
    </plugins>

</configuration>

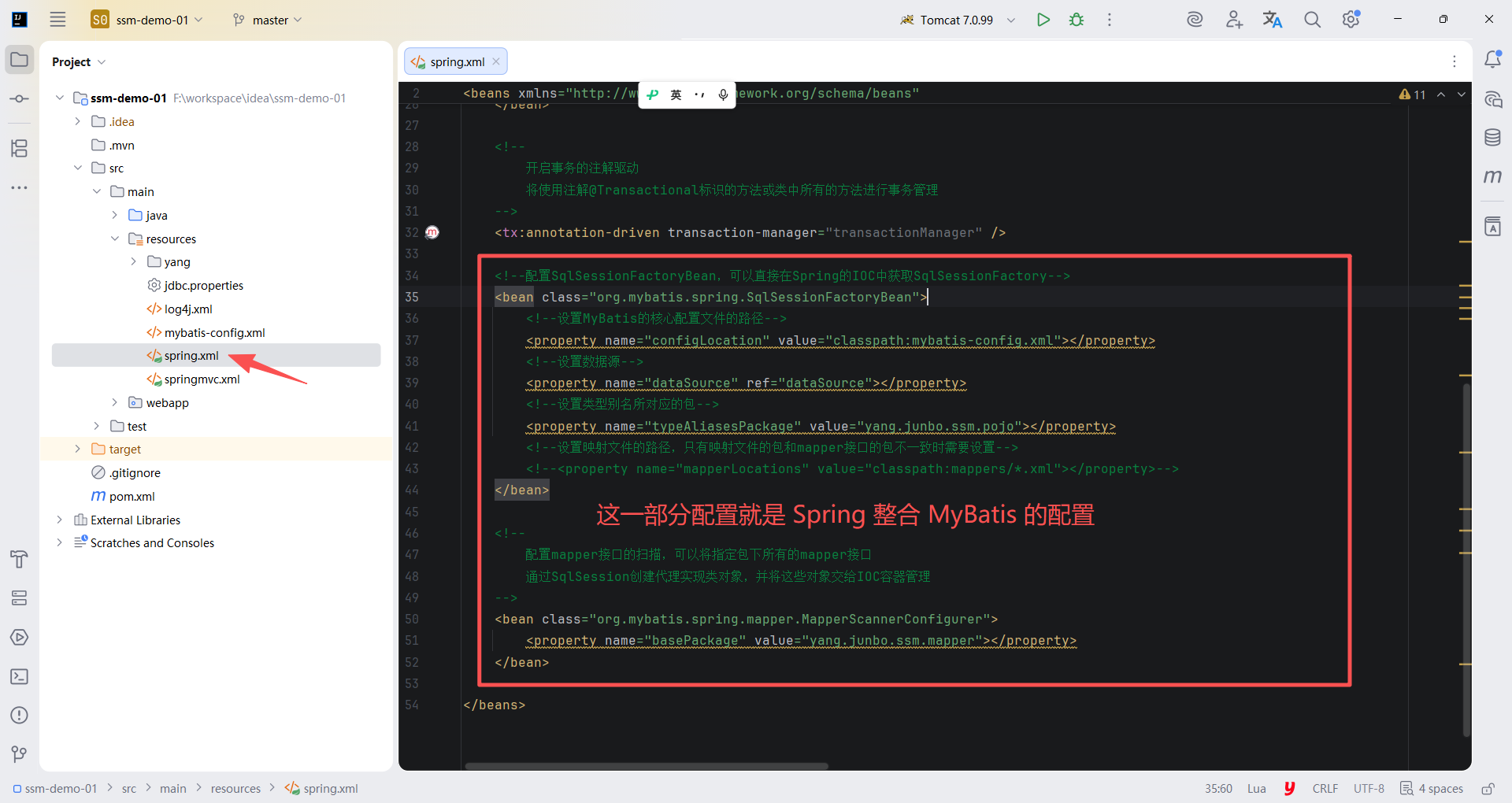

2.7、配置 Spring 整合 MyBatis

2.8、配置 Log4j 日志

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE log4j:configuration SYSTEM "log4j.dtd">

<log4j:configuration xmlns:log4j="http://jakarta.apache.org/log4j/">

    <appender name="STDOUT" class="org.apache.log4j.ConsoleAppender">
        <param name="Encoding" value="UTF-8" />
        <layout class="org.apache.log4j.PatternLayout">
            <param name="ConversionPattern" value="%-5p %d{MM-dd HH:mm:ss,SSS} %m  (%F:%L) \n" />
        </layout>
    </appender>
    <logger name="java.sql">
        <level value="debug" />
    </logger>
    <logger name="org.apache.ibatis">
        <level value="info" />
    </logger>
    <root>
        <level value="debug" />
        <appender-ref ref="STDOUT" />
    </root>
</log4j:configuration>

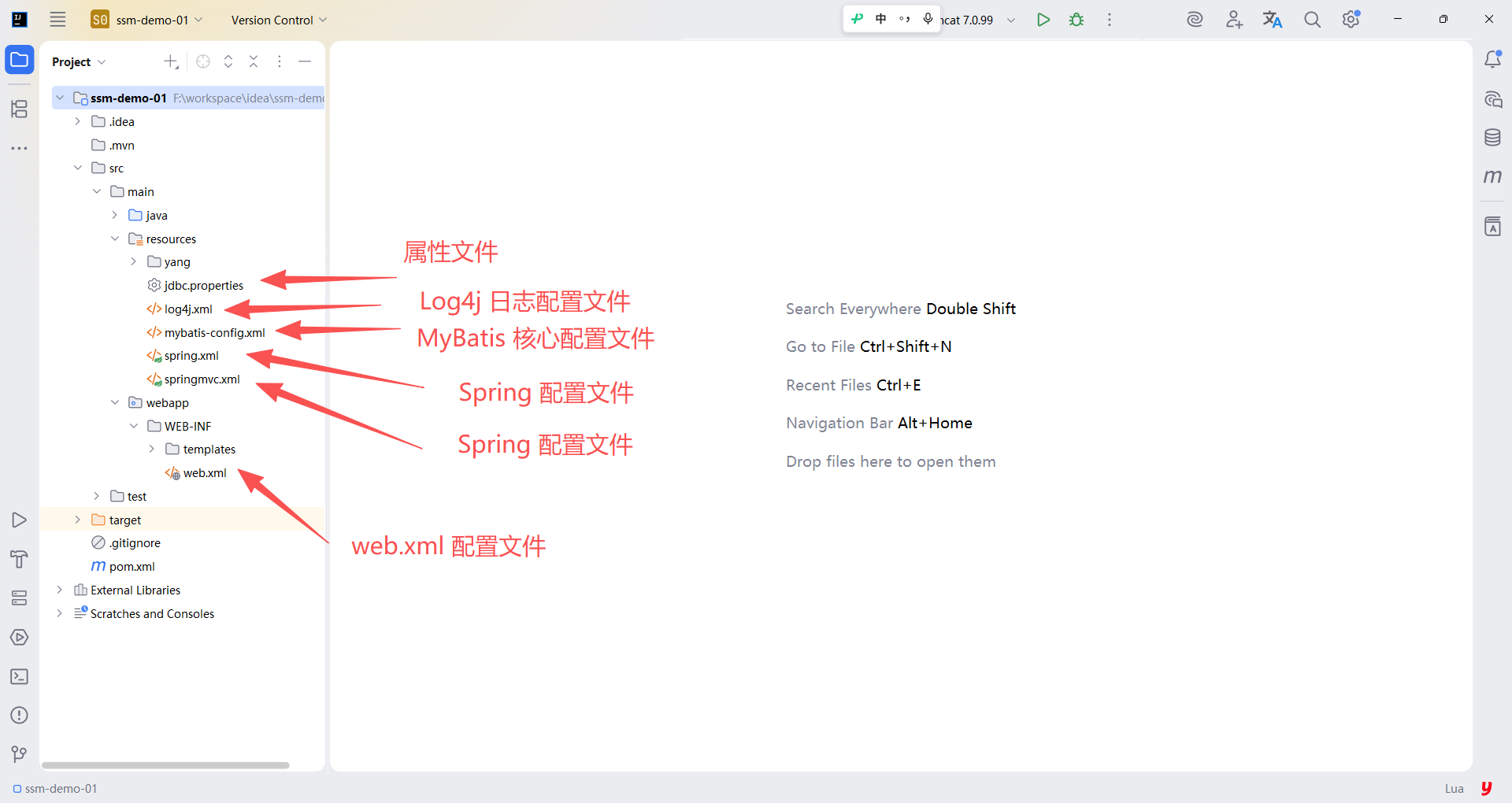

2.9、配置属性文件

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://192.168.19.151:3306/mybatis
jdbc.username=root
jdbc.password=yyy123456.

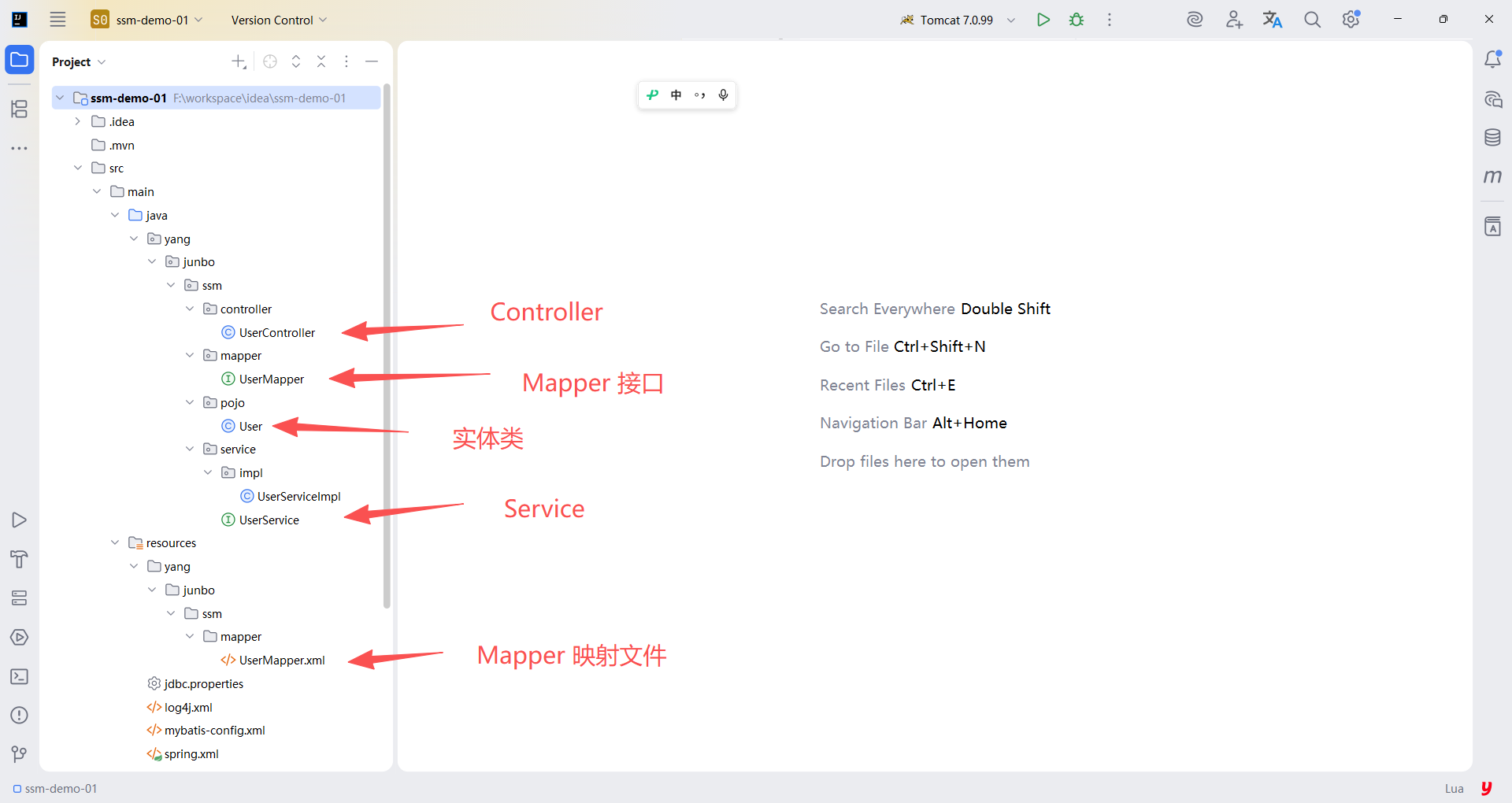

三、开发业务功能

3.1、创建实体类

package yang.junbo.ssm.pojo;

/**
 * ClassName: User
 * Package: yang.junbo.mybatis.pojo
 * Description:
 *
 * @Author 杨钧博
 * @Create 2026/6/15 21:50
 * @Version 1.0
 */
public class User {
    private Integer id;
    private String username;
    private String password;
    private Integer age;
    private String gender;
    private String email;

    public User(Integer id, String username, String password, Integer age, String gender, String email) {
        this.id = id;
        this.username = username;
        this.password = password;
        this.age = age;
        this.gender = gender;
        this.email = email;
    }

    public User() {
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public String getGender() {
        return gender;
    }

    public void setGender(String gender) {
        this.gender = gender;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", username='" + username + '\'' +
                ", password='" + password + '\'' +
                ", age=" + age +
                ", gender='" + gender + '\'' +
                ", email='" + email + '\'' +
                '}';
    }
}

3.2、创建 Mapper 接口和映射文件

package yang.junbo.ssm.mapper;

import org.apache.ibatis.annotations.Param;
import yang.junbo.ssm.pojo.User;

/**
 * ClassName: UserMapper
 * Package: yang.junbo.ssm.mapper
 * Description:
 *
 * @Author 杨钧博
 * @Create 2026/6/16 12:07
 * @Version 1.0
 */
public interface UserMapper {

    /**
     * 根据 id 查询用户信息
     * @param id
     * @return
     */
    User getUserById(@Param("id") Integer id);
}

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="yang.junbo.ssm.mapper.UserMapper">

    <!--User getUserById(@Param("id") Integer id);-->
    <select id="getUserById" resultType="User">
        select * from t_user where id = #{id}
    </select>

</mapper>

3.3、创建 Controller

package yang.junbo.ssm.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;
import yang.junbo.ssm.pojo.User;
import yang.junbo.ssm.service.UserService;

/**
 * ClassName: UserController
 * Package: yang.junbo.ssm.controller
 * Description:
 *
 * @Author 杨钧博
 * @Create 2026/6/16 12:06
 * @Version 1.0
 */
@Controller()
@RequestMapping("/user")
public class UserController {
    @Autowired
    private UserService userService;

    @RequestMapping("/getbyid")
    @ResponseBody
    public User getUserById(Integer id){
        return userService.getUserById(id);
    }

}

3.4、创建 Service

package yang.junbo.ssm.service;

import yang.junbo.ssm.pojo.User;

/**
 * ClassName: UserService
 * Package: yang.junbo.ssm.service
 * Description:
 *
 * @Author 杨钧博
 * @Create 2026/6/16 12:06
 * @Version 1.0
 */
public interface UserService {
    /**
     * 根据 id 获取用户信息
     * @param id
     * @return
     */
    User getUserById(Integer id);
}

package yang.junbo.ssm.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import yang.junbo.ssm.mapper.UserMapper;
import yang.junbo.ssm.pojo.User;
import yang.junbo.ssm.service.UserService;

/**
 * ClassName: UserServiceImpl
 * Package: yang.junbo.ssm.service.impl
 * Description:
 *
 * @Author 杨钧博
 * @Create 2026/6/16 12:06
 * @Version 1.0
 */
@Service
public class UserServiceImpl implements UserService {
    @Autowired
    private UserMapper userMapper;
    /**
     * 根据 id 获取用户信息
     * @param id
     * @return
     */
    @Override
    public User getUserById(Integer id) {
        return userMapper.getUserById(id);
    }
}

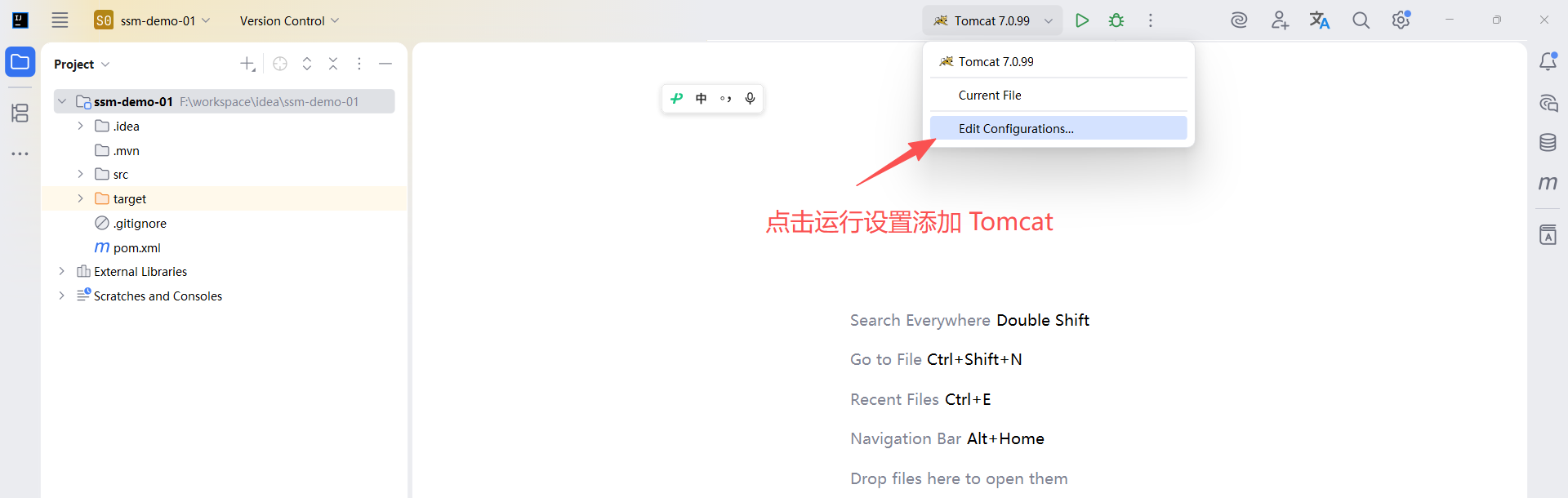

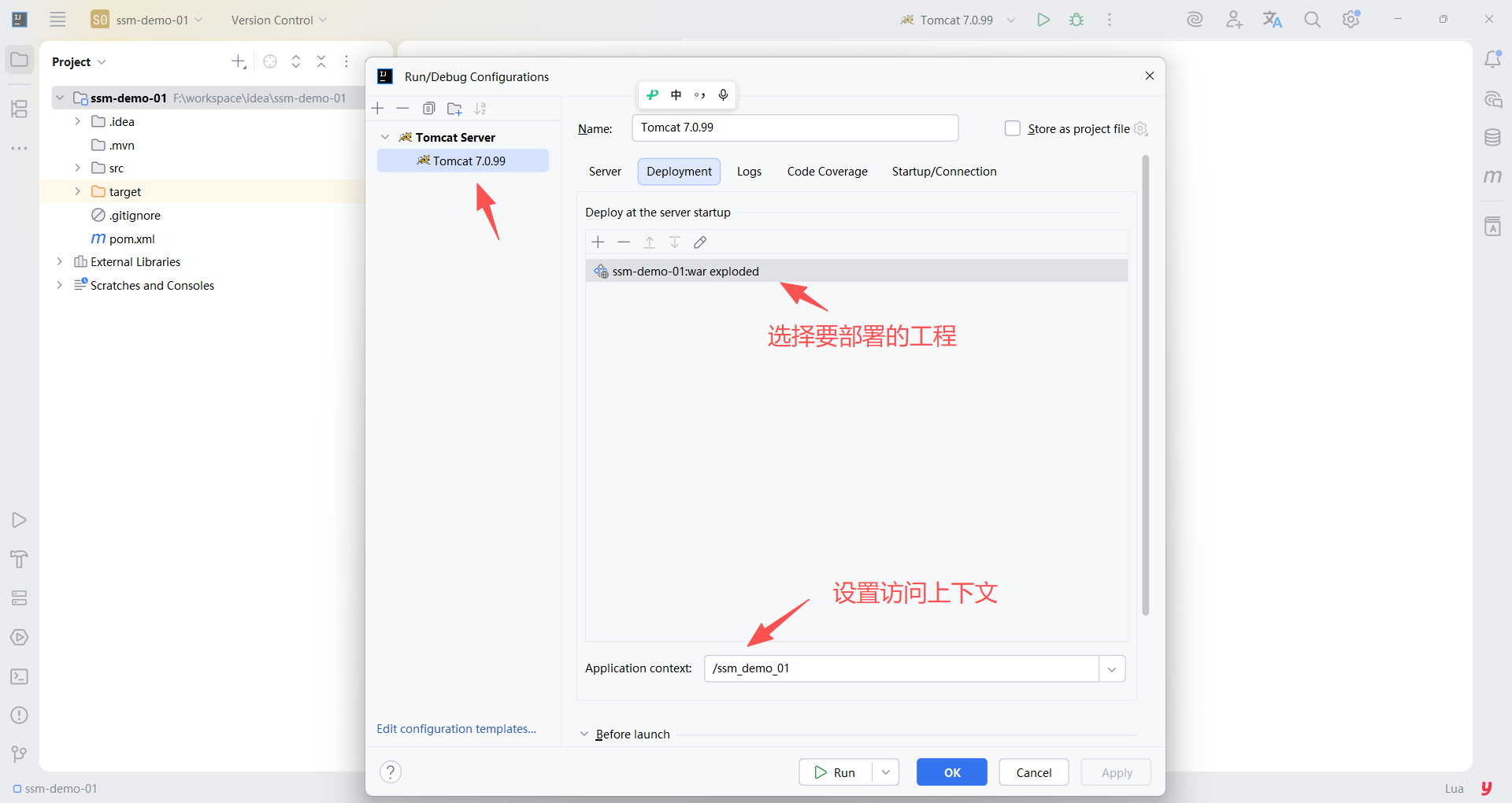

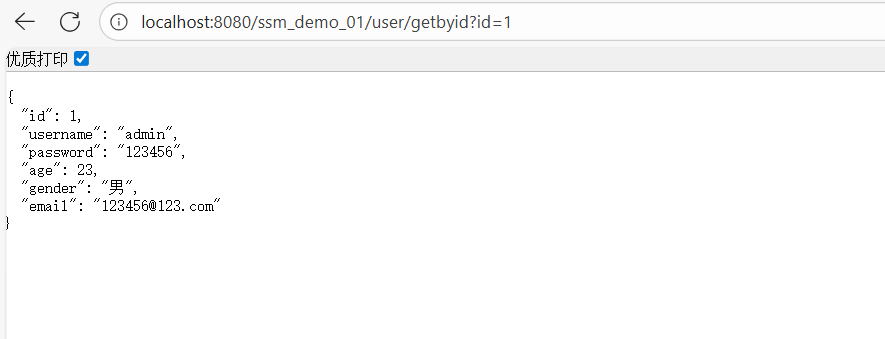

四、部署测试
