【Jack实战】如何在鸿蒙 APP 里用 Core Speech Kit 做语音速记

大家好，我是鸿蒙Jack。本期以我的《时光旅记》APP 为例，聊一下我怎么把 Core Speech Kit 的语音识别能力接到真实记录场景里。

《时光旅记》的核心不是"做一个语音 Demo"，而是让用户在写瞬间、写时光简介、补行程描述，甚至从桌面卡片进入时，都能尽快把嘴里说的话变成可编辑的文字。这个能力背后用到的是 @kit.CoreSpeechKit 的 speechRecognizer，同时配合 ArkUI 组件状态、麦克风权限、AudioKit 采集音频流、CoreFileKit 保存录音文件和 Form Kit 桌面卡片入口。

官方语音识别能力当前支持中文普通话，支持离线模型。短语音模式不超过 60 秒，长语音模式最长可到 8 小时。我的项目里正好用了两种路径：普通输入框用短语音实时录音识别；桌面"此刻速记"用 AudioKit 采集 PCM 音频流，再通过 writeAudio 喂给 Core Speech Kit 的长语音识别，同时保存一份录音文件。

官方文档入口：speechRecognizer（语音识别）。

项目里实际用到的技术栈

先把扫描结果讲清楚。项目里直接使用 Core Speech Kit 的位置有两个：

entry/src/main/ets/components/SharedComponents.ets 里封装了 VoiceInputButton。它用于普通输入框语音输入，当前被这些场景复用：瞬间正文、时光简介、旅行子行程描述。它创建 SpeechRecognitionEngine 后直接调用 startListening，让系统从麦克风实时录音并返回识别结果。

entry/src/main/ets/pages/shell/MainPage.ets 里还有一套 QuickVoiceMomentRecorder。它是桌面卡片"此刻速记"的主链路，先用 Form Kit 卡片拉起 APP 内页面，再用 AudioKit 的 AudioCapturer 采集 16000Hz、单声道、16bit PCM。采集到的音频一边写入沙箱 WAV 文件，一边按 1280 字节分片调用 speechRecognizer.writeAudio 做长语音识别。

这两套业务都依赖 ohos.permission.MICROPHONE。权限声明在 entry/src/main/module.json5，动态授权封装在 entry/src/main/ets/utils/PermissionUtil.ets。提示语放在 entry/src/main/resources/base/element/string.json，比如"用于将语音识别成时光描述和瞬间内容""没有拿到麦克风权限""语音内容已添加到输入框"。

如果按文件看，本文涉及的项目代码主要是这些：

• entry/src/main/ets/components/SharedComponents.ets
• entry/src/main/ets/components/MomentComposerDialog.ets
• entry/src/main/ets/components/NotebookComposerDialog.ets
• entry/src/main/ets/pages/travel/SubPlanDialog.ets
• entry/src/main/ets/pages/shell/MainPage.ets
• entry/src/main/ets/widget/pages/forms/QuickVoiceMomentForm.ets
• entry/src/main/ets/utils/PermissionUtil.ets
• entry/src/main/module.json5
• entry/src/main/resources/base/element/string.json

整体架构是这样：
#mermaid-svg-icJMoVcsP7Odoqae{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-icJMoVcsP7Odoqae .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-icJMoVcsP7Odoqae .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-icJMoVcsP7Odoqae .error-icon{fill:#552222;}#mermaid-svg-icJMoVcsP7Odoqae .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-icJMoVcsP7Odoqae .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-icJMoVcsP7Odoqae .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-icJMoVcsP7Odoqae .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-icJMoVcsP7Odoqae .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-icJMoVcsP7Odoqae .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-icJMoVcsP7Odoqae .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-icJMoVcsP7Odoqae .marker{fill:#333333;stroke:#333333;}#mermaid-svg-icJMoVcsP7Odoqae .marker.cross{stroke:#333333;}#mermaid-svg-icJMoVcsP7Odoqae svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-icJMoVcsP7Odoqae p{margin:0;}#mermaid-svg-icJMoVcsP7Odoqae .label{font-family:"trebuchet ms",verdana,arial,sans-serif;color:#333;}#mermaid-svg-icJMoVcsP7Odoqae .cluster-label text{fill:#333;}#mermaid-svg-icJMoVcsP7Odoqae .cluster-label span{color:#333;}#mermaid-svg-icJMoVcsP7Odoqae .cluster-label span p{background-color:transparent;}#mermaid-svg-icJMoVcsP7Odoqae .label text,#mermaid-svg-icJMoVcsP7Odoqae span{fill:#333;color:#333;}#mermaid-svg-icJMoVcsP7Odoqae .node rect,#mermaid-svg-icJMoVcsP7Odoqae .node circle,#mermaid-svg-icJMoVcsP7Odoqae .node ellipse,#mermaid-svg-icJMoVcsP7Odoqae .node polygon,#mermaid-svg-icJMoVcsP7Odoqae .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-icJMoVcsP7Odoqae .rough-node .label text,#mermaid-svg-icJMoVcsP7Odoqae .node .label text,#mermaid-svg-icJMoVcsP7Odoqae .image-shape .label,#mermaid-svg-icJMoVcsP7Odoqae .icon-shape .label{text-anchor:middle;}#mermaid-svg-icJMoVcsP7Odoqae .node .katex path{fill:#000;stroke:#000;stroke-width:1px;}#mermaid-svg-icJMoVcsP7Odoqae .rough-node .label,#mermaid-svg-icJMoVcsP7Odoqae .node .label,#mermaid-svg-icJMoVcsP7Odoqae .image-shape .label,#mermaid-svg-icJMoVcsP7Odoqae .icon-shape .label{text-align:center;}#mermaid-svg-icJMoVcsP7Odoqae .node.clickable{cursor:pointer;}#mermaid-svg-icJMoVcsP7Odoqae .root .anchor path{fill:#333333!important;stroke-width:0;stroke:#333333;}#mermaid-svg-icJMoVcsP7Odoqae .arrowheadPath{fill:#333333;}#mermaid-svg-icJMoVcsP7Odoqae .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-icJMoVcsP7Odoqae .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-icJMoVcsP7Odoqae .edgeLabel{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-icJMoVcsP7Odoqae .edgeLabel p{background-color:rgba(232,232,232, 0.8);}#mermaid-svg-icJMoVcsP7Odoqae .edgeLabel rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-icJMoVcsP7Odoqae .labelBkg{background-color:rgba(232, 232, 232, 0.5);}#mermaid-svg-icJMoVcsP7Odoqae .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-icJMoVcsP7Odoqae .cluster text{fill:#333;}#mermaid-svg-icJMoVcsP7Odoqae .cluster span{color:#333;}#mermaid-svg-icJMoVcsP7Odoqae div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-icJMoVcsP7Odoqae .flowchartTitleText{text-anchor:middle;font-size:18px;fill:#333;}#mermaid-svg-icJMoVcsP7Odoqae rect.text{fill:none;stroke-width:0;}#mermaid-svg-icJMoVcsP7Odoqae .icon-shape,#mermaid-svg-icJMoVcsP7Odoqae .image-shape{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-icJMoVcsP7Odoqae .icon-shape p,#mermaid-svg-icJMoVcsP7Odoqae .image-shape p{background-color:rgba(232,232,232, 0.8);padding:2px;}#mermaid-svg-icJMoVcsP7Odoqae .icon-shape .label rect,#mermaid-svg-icJMoVcsP7Odoqae .image-shape .label rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-icJMoVcsP7Odoqae .label-icon{display:inline-block;height:1em;overflow:visible;vertical-align:-0.125em;}#mermaid-svg-icJMoVcsP7Odoqae .node .label-icon path{fill:currentColor;stroke:revert;stroke-width:revert;}#mermaid-svg-icJMoVcsP7Odoqae :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} 瞬间正文/时光简介/行程描述
桌面此刻速记卡片
用户输入场景
入口类型
VoiceInputButton
QuickVoiceMomentForm
MainPage 打开 QuickVoiceMomentPage
PermissionUtil 申请麦克风权限
Core Speech Kit createEngine short
startListening recognitionMode 0
onResult 实时预览文本
onComplete 回填输入框
PermissionUtil 申请麦克风权限
AudioKit AudioCapturer 采集 PCM
CoreFileKit 写入 WAV
Core Speech Kit createEngine long
writeAudio 分片送入识别引擎
onResult 预览识别文本
保存为瞬间正文和环境声音

普通输入框为什么用 short 模式

普通输入框的目标很明确：用户点一下麦克风，说一句话，再点一下结束，把识别出来的内容追加到当前输入框。它不需要长时间录音，也不需要把音频文件保存下来。

所以我在 VoiceInputButton 里使用的是：

const createParams: speechRecognizer.CreateEngineParams = {
  language: 'zh-CN',
  online: 1,
  extraParams: {
    locate: 'CN',
    recognizerMode: 'short'
  } as VoiceCreateEngineExtraParams
};

这里的 online: 1 对应离线模式，recognizerMode: 'short' 对应短语音。启动识别时，我没有自己采集音频流，而是让 Core Speech Kit 直接录音：

const extraParams: VoiceStartRecognitionExtraParams = {
  recognitionMode: 0,
  vadBegin: 2000,
  vadEnd: 1200,
  maxAudioDuration: 60000
};

recognitionMode: 0 表示实时录音识别，这时必须先拿到麦克风权限。vadBegin 和 vadEnd 是前后端点检测，控制用户开口和停顿后的识别行为。maxAudioDuration: 60000 正好卡住短语音上限，不让一个输入框语音输入无限录下去。

我在业务层做了一个细节：识别过程中不等最终完成才更新输入框，而是 onResult 一来就把当前识别文本和原输入内容拼起来做预览。用户正在说话时，输入框里能看到内容变化；onComplete 后再真正提交。

普通输入框的时序如下：
业务输入框 SpeechRecognitionEngine PermissionUtil VoiceInputButton 用户 业务输入框 SpeechRecognitionEngine PermissionUtil VoiceInputButton 用户 #mermaid-svg-lRQf3AkIp5ESt7ig{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-lRQf3AkIp5ESt7ig .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-lRQf3AkIp5ESt7ig .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-lRQf3AkIp5ESt7ig .error-icon{fill:#552222;}#mermaid-svg-lRQf3AkIp5ESt7ig .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-lRQf3AkIp5ESt7ig .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-lRQf3AkIp5ESt7ig .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-lRQf3AkIp5ESt7ig .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-lRQf3AkIp5ESt7ig .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-lRQf3AkIp5ESt7ig .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-lRQf3AkIp5ESt7ig .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-lRQf3AkIp5ESt7ig .marker{fill:#333333;stroke:#333333;}#mermaid-svg-lRQf3AkIp5ESt7ig .marker.cross{stroke:#333333;}#mermaid-svg-lRQf3AkIp5ESt7ig svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-lRQf3AkIp5ESt7ig p{margin:0;}#mermaid-svg-lRQf3AkIp5ESt7ig .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-lRQf3AkIp5ESt7ig text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-lRQf3AkIp5ESt7ig .actor-line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-lRQf3AkIp5ESt7ig .innerArc{stroke-width:1.5;stroke-dasharray:none;}#mermaid-svg-lRQf3AkIp5ESt7ig .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-lRQf3AkIp5ESt7ig .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-lRQf3AkIp5ESt7ig #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-lRQf3AkIp5ESt7ig .sequenceNumber{fill:white;}#mermaid-svg-lRQf3AkIp5ESt7ig #sequencenumber{fill:#333;}#mermaid-svg-lRQf3AkIp5ESt7ig #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-lRQf3AkIp5ESt7ig .messageText{fill:#333;stroke:none;}#mermaid-svg-lRQf3AkIp5ESt7ig .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-lRQf3AkIp5ESt7ig .labelText,#mermaid-svg-lRQf3AkIp5ESt7ig .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-lRQf3AkIp5ESt7ig .loopText,#mermaid-svg-lRQf3AkIp5ESt7ig .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-lRQf3AkIp5ESt7ig .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-lRQf3AkIp5ESt7ig .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-lRQf3AkIp5ESt7ig .noteText,#mermaid-svg-lRQf3AkIp5ESt7ig .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-lRQf3AkIp5ESt7ig .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-lRQf3AkIp5ESt7ig .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-lRQf3AkIp5ESt7ig .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-lRQf3AkIp5ESt7ig .actorPopupMenu{position:absolute;}#mermaid-svg-lRQf3AkIp5ESt7ig .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-lRQf3AkIp5ESt7ig .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-lRQf3AkIp5ESt7ig .actor-man circle,#mermaid-svg-lRQf3AkIp5ESt7ig line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-lRQf3AkIp5ESt7ig :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} 点击麦克风 ensurePermissionsGranted(MICROPHONE) 已授权 createEngine(zh-CN, short) setListener(...) isBusy() startListening(sessionId, pcm 16k, recognitionMode 0) onResult(result) onPreviewTextChange(baseText + result) 再次点击结束 finish(sessionId) onComplete(sessionId) onRecognized(finalText) shutdown()

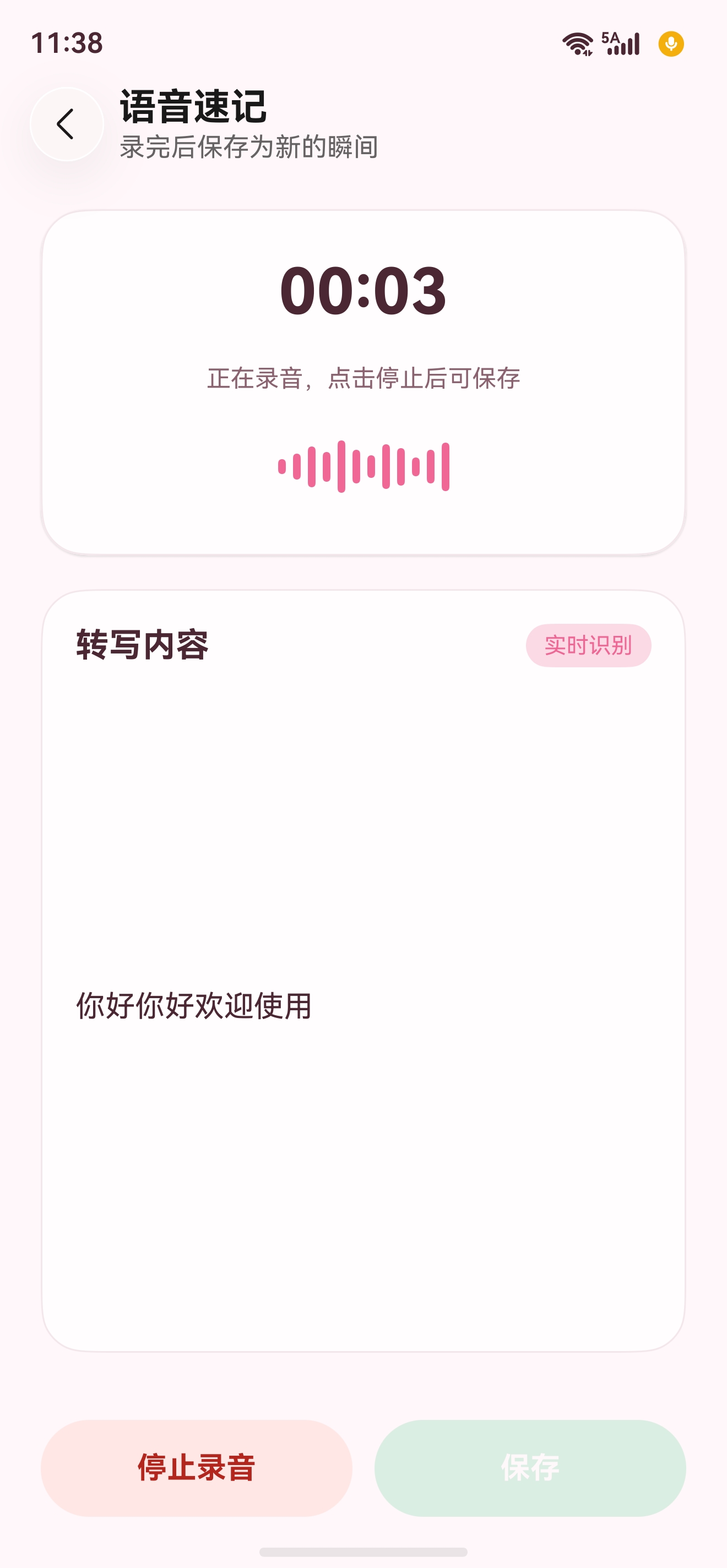

桌面"此刻速记"为什么用 long 模式

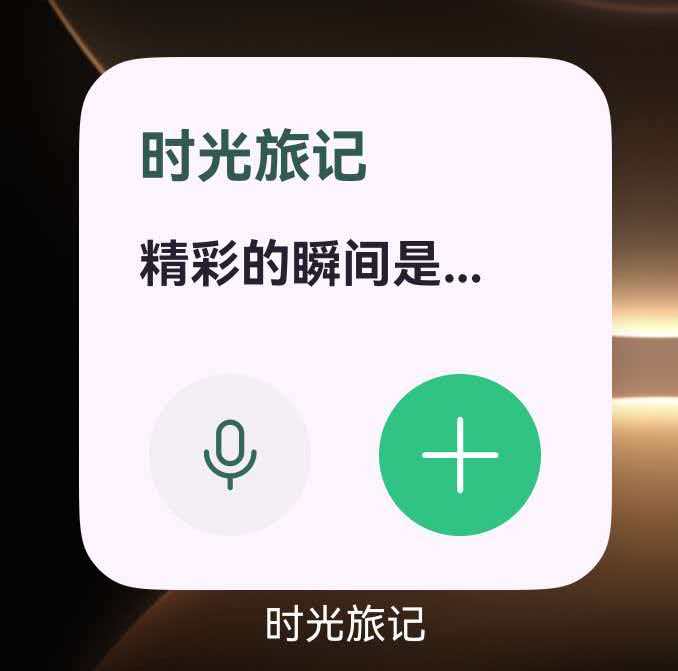

桌面卡片入口和普通输入框不一样。用户从桌面点"此刻速记"，常见场景是走路、旅行途中、突然想到一句话，想把当下的声音和文字一起留下来。

这里我选择长语音链路，原因有两个。第一，速记页要自己画录音波形、计时和整理状态，AudioKit 采集音频更可控。第二，录音本身也是《时光旅记》的内容资产，识别文字只是其中一部分，所以我一边保存 WAV，一边把 PCM 分片送给 Core Speech Kit。

这条链路里用到的技术栈更多：

Form Kit 负责桌面卡片和目标拉起；ArkUI 负责速记页状态、波形和保存按钮；AbilityKit 负责上下文和麦克风权限；AudioKit 负责 AudioCapturer 采集麦克风 PCM；CoreSpeechKit 负责 createEngine、setListener、startListening、writeAudio、finish、shutdown；CoreFileKit 负责把录音写入沙箱 WAV 文件；项目自己的 TimeImprintService 负责准备沙箱路径、创建瞬间和持久化。

关键点是 writeAudio 对音频块大小有要求，当前只支持 640 字节或 1280 字节。我的项目里用 PcmChunkQueue 把 AudioCapturer 回来的不定长 buffer 整理成 1280 字节块，每 40ms 泵一次：
TimeImprintStore 沙箱 WAV 文件 Core Speech Kit PcmChunkQueue AudioKit AudioCapturer QuickVoiceMomentPage 桌面卡片 TimeImprintStore 沙箱 WAV 文件 Core Speech Kit PcmChunkQueue AudioKit AudioCapturer QuickVoiceMomentPage 桌面卡片 #mermaid-svg-fnR0sPXp9CKzfiaZ{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-fnR0sPXp9CKzfiaZ .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-fnR0sPXp9CKzfiaZ .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-fnR0sPXp9CKzfiaZ .error-icon{fill:#552222;}#mermaid-svg-fnR0sPXp9CKzfiaZ .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-fnR0sPXp9CKzfiaZ .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-fnR0sPXp9CKzfiaZ .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-fnR0sPXp9CKzfiaZ .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-fnR0sPXp9CKzfiaZ .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-fnR0sPXp9CKzfiaZ .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-fnR0sPXp9CKzfiaZ .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-fnR0sPXp9CKzfiaZ .marker{fill:#333333;stroke:#333333;}#mermaid-svg-fnR0sPXp9CKzfiaZ .marker.cross{stroke:#333333;}#mermaid-svg-fnR0sPXp9CKzfiaZ svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-fnR0sPXp9CKzfiaZ p{margin:0;}#mermaid-svg-fnR0sPXp9CKzfiaZ .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-fnR0sPXp9CKzfiaZ text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-fnR0sPXp9CKzfiaZ .actor-line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-fnR0sPXp9CKzfiaZ .innerArc{stroke-width:1.5;stroke-dasharray:none;}#mermaid-svg-fnR0sPXp9CKzfiaZ .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-fnR0sPXp9CKzfiaZ .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-fnR0sPXp9CKzfiaZ #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-fnR0sPXp9CKzfiaZ .sequenceNumber{fill:white;}#mermaid-svg-fnR0sPXp9CKzfiaZ #sequencenumber{fill:#333;}#mermaid-svg-fnR0sPXp9CKzfiaZ #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-fnR0sPXp9CKzfiaZ .messageText{fill:#333;stroke:none;}#mermaid-svg-fnR0sPXp9CKzfiaZ .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-fnR0sPXp9CKzfiaZ .labelText,#mermaid-svg-fnR0sPXp9CKzfiaZ .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-fnR0sPXp9CKzfiaZ .loopText,#mermaid-svg-fnR0sPXp9CKzfiaZ .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-fnR0sPXp9CKzfiaZ .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-fnR0sPXp9CKzfiaZ .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-fnR0sPXp9CKzfiaZ .noteText,#mermaid-svg-fnR0sPXp9CKzfiaZ .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-fnR0sPXp9CKzfiaZ .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-fnR0sPXp9CKzfiaZ .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-fnR0sPXp9CKzfiaZ .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-fnR0sPXp9CKzfiaZ .actorPopupMenu{position:absolute;}#mermaid-svg-fnR0sPXp9CKzfiaZ .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-fnR0sPXp9CKzfiaZ .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-fnR0sPXp9CKzfiaZ .actor-man circle,#mermaid-svg-fnR0sPXp9CKzfiaZ line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-fnR0sPXp9CKzfiaZ :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} openTarget quick_voice_moment createEngine(zh-CN, long) startListening(sessionId, recognitionMode 0) start() readData(ArrayBuffer) 写入 WAV 数据区 整理为 1280 字节 PCM 块 pending chunks writeAudio(sessionId, chunk) onResult(final/partial) 更新识别预览 stop() finish(sessionId) onComplete 回写 WAV header 保存瞬间文字和环境声音

权限配置

先在 module.json5 声明麦克风权限。我的项目把理由写成资源字符串，方便统一管理。

{
  "module": {
    "requestPermissions": [
      {
        "name": "ohos.permission.MICROPHONE",
        "reason": "$string:permission_microphone_reason",
        "usedScene": {
          "abilities": [
            "EntryAbility"
          ],
          "when": "inuse"
        }
      }
    ]
  }
}

资源文案如下：

{
  "string": [
    {
      "name": "permission_microphone_reason",
      "value": "用于将语音识别成时光描述和瞬间内容"
    },
    {
      "name": "toast_microphone_permission_denied",
      "value": "没有拿到麦克风权限"
    },
    {
      "name": "toast_voice_engine_failed",
      "value": "语音识别初始化失败，请稍后重试"
    },
    {
      "name": "toast_voice_busy",
      "value": "语音识别服务正忙，请稍后再试"
    },
    {
      "name": "toast_voice_empty",
      "value": "没有识别到可用内容"
    },
    {
      "name": "toast_voice_added",
      "value": "语音内容已添加到输入框"
    }
  ]
}

动态授权我单独封装成工具函数。业务组件不直接关心 AtManager，只调用 ensurePermissionsGranted。

import { abilityAccessCtrl, bundleManager, Context, Permissions } from '@kit.AbilityKit';

let cachedAccessTokenId: number = -1;

async function getSelfAccessTokenId(): Promise<number> {
  if (cachedAccessTokenId > 0) {
    return cachedAccessTokenId;
  }
  const bundleInfo = await bundleManager.getBundleInfoForSelf(
    bundleManager.BundleFlag.GET_BUNDLE_INFO_WITH_APPLICATION
  );
  cachedAccessTokenId = bundleInfo.appInfo.accessTokenId;
  return cachedAccessTokenId;
}

export async function arePermissionsGranted(permissions: Array<Permissions>): Promise<boolean> {
  if (permissions.length === 0) {
    return true;
  }
  try {
    const atManager: abilityAccessCtrl.AtManager = abilityAccessCtrl.createAtManager();
    const accessTokenId: number = await getSelfAccessTokenId();
    for (let i: number = 0; i < permissions.length; i++) {
      const grantStatus: abilityAccessCtrl.GrantStatus =
        await atManager.checkAccessToken(accessTokenId, permissions[i]);
      if (grantStatus !== abilityAccessCtrl.GrantStatus.PERMISSION_GRANTED) {
        return false;
      }
    }
    return true;
  } catch (_error) {
    return false;
  }
}

export async function ensurePermissionsGranted(context: Context, permissions: Array<Permissions>): Promise<boolean> {
  if (await arePermissionsGranted(permissions)) {
    return true;
  }
  try {
    await abilityAccessCtrl.createAtManager().requestPermissionsFromUser(context, permissions);
  } catch (_error) {
  }
  return await arePermissionsGranted(permissions);
}

完整代码一：输入框语音按钮

这份代码来自《时光旅记》的 VoiceInputButton 主链路，适合正文、简介、备注、行程描述这类输入框。它把 Core Speech Kit 的生命周期包在一个 ArkUI 组件里，外层页面只需要传入当前文本和两个回调。

import { Context, Permissions } from '@kit.AbilityKit';
import { promptAction } from '@kit.ArkUI';
import { BusinessError } from '@kit.BasicServicesKit';
import { speechRecognizer } from '@kit.CoreSpeechKit';
import { ensurePermissionsGranted } from '../utils/PermissionUtil';

interface VoiceCreateEngineExtraParams extends Record<string, Object> {
  locate: string;
  recognizerMode: string;
}

interface VoiceStartRecognitionExtraParams extends Record<string, Object> {
  recognitionMode: number;
  vadBegin: number;
  vadEnd: number;
  maxAudioDuration: number;
}

@Component
export struct VoiceInputButton {
  isEnabled: boolean = true;
  textValue: string = '';
  accessibilityLabel: string = '语音输入';
  onRecognized?: (text: string) => void;
  onPreviewTextChange?: (text: string) => void;
  onListeningChange?: (isListening: boolean) => void;

  @State private isPreparing: boolean = false;
  @State private isListening: boolean = false;
  @State private latestRecognizedText: string = '';
  private asrEngine?: speechRecognizer.SpeechRecognitionEngine;
  private currentSessionId: string = '';
  private sessionBaseText: string = '';

  build() {
    Button({ type: ButtonType.Circle, stateEffect: true }) {
      SymbolGlyph(this.isListening ? $r('sys.symbol.mic_slash') : $r('sys.symbol.mic'))
        .fontSize(18)
        .fontColor([this.isListening ? '#C93C32' : '#31C383'])
    }
    .width(36)
    .height(36)
    .backgroundColor(this.isListening ? '#FFE7E5' : '#F3F4F6')
    .enabled(this.isEnabled && !this.isPreparing)
    .opacity(this.isEnabled ? 1 : 0.45)
    .accessibilityText(this.accessibilityLabel)
    .accessibilityDescription(this.getVoiceAccessibilityDescription())
    .onClick(() => {
      void this.handleActionClick();
    })
  }

  aboutToDisappear(): void {
    this.releaseEngine();
  }

  private getVoiceAccessibilityDescription(): string {
    if (!this.isEnabled) {
      return '当前不可用';
    }
    if (this.isPreparing) {
      return '正在准备语音识别';
    }
    if (this.isListening) {
      return '正在录音，再次双击结束语音输入';
    }
    return '双击开始语音输入';
  }

  private async handleActionClick(): Promise<void> {
    if (!this.isEnabled || this.isPreparing) {
      return;
    }
    if (this.isListening) {
      this.finishRecognition();
      return;
    }
    await this.startRecognition();
  }

  private async startRecognition(): Promise<void> {
    const hostContext: Context | undefined = this.getUIContext().getHostContext();
    if (hostContext === undefined) {
      this.showToast('当前无法获取页面上下文');
      return;
    }

    const granted: boolean = await this.requestPermissionList(hostContext, ['ohos.permission.MICROPHONE']);
    if (!granted) {
      this.showToast($r('app.string.toast_microphone_permission_denied'));
      return;
    }

    const engineReady: boolean = await this.ensureEngine();
    if (!engineReady || this.asrEngine === undefined) {
      return;
    }

    try {
      if (this.asrEngine.isBusy()) {
        this.showToast($r('app.string.toast_voice_busy'));
        return;
      }
    } catch (error) {
      this.showToast(this.resolveSpeechErrorMessage(error as BusinessError));
      return;
    }

    this.latestRecognizedText = '';
    this.sessionBaseText = this.textValue;
    this.currentSessionId = this.createSessionId();
    this.isListening = true;
    this.notifyListeningChange(true);

    const audioInfo: speechRecognizer.AudioInfo = {
      audioType: 'pcm',
      sampleRate: 16000,
      soundChannel: 1,
      sampleBit: 16
    };

    const extraParams: VoiceStartRecognitionExtraParams = {
      recognitionMode: 0,
      vadBegin: 2000,
      vadEnd: 1200,
      maxAudioDuration: 60000
    };

    const startParams: speechRecognizer.StartParams = {
      sessionId: this.currentSessionId,
      audioInfo: audioInfo,
      extraParams: extraParams
    };

    try {
      this.asrEngine.startListening(startParams);
    } catch (error) {
      this.isListening = false;
      this.notifyListeningChange(false);
      this.showToast(this.resolveSpeechErrorMessage(error as BusinessError));
    }
  }

  private finishRecognition(): void {
    if (!this.isListening || this.asrEngine === undefined || this.currentSessionId.length === 0) {
      return;
    }
    try {
      this.asrEngine.finish(this.currentSessionId);
    } catch (error) {
      this.isListening = false;
      this.notifyListeningChange(false);
      this.showToast(this.resolveSpeechErrorMessage(error as BusinessError));
    }
  }

  private async ensureEngine(): Promise<boolean> {
    if (this.asrEngine !== undefined) {
      return true;
    }
    this.isPreparing = true;
    try {
      const createParams: speechRecognizer.CreateEngineParams = {
        language: 'zh-CN',
        online: 1,
        extraParams: {
          locate: 'CN',
          recognizerMode: 'short'
        } as VoiceCreateEngineExtraParams
      };

      this.asrEngine = await speechRecognizer.createEngine(createParams);
      this.asrEngine.setListener({
        onStart: (_sessionId: string, _eventMessage: string): void => {
        },
        onEvent: (_sessionId: string, _eventCode: number, _eventMessage: string): void => {
        },
        onResult: (sessionId: string, result: speechRecognizer.SpeechRecognitionResult): void => {
          if (sessionId !== this.currentSessionId || result.result.trim().length === 0) {
            return;
          }
          this.latestRecognizedText = result.result.trim();
          this.emitPreviewText(this.latestRecognizedText);
        },
        onComplete: (sessionId: string, _eventMessage: string): void => {
          if (sessionId !== this.currentSessionId) {
            return;
          }
          this.isListening = false;
          this.notifyListeningChange(false);
          this.commitRecognizedText();
        },
        onError: (sessionId: string, errorCode: number, errorMessage: string): void => {
          if (sessionId !== this.currentSessionId) {
            return;
          }
          this.isListening = false;
          this.notifyListeningChange(false);
          this.currentSessionId = '';
          this.latestRecognizedText = '';
          this.sessionBaseText = '';
          this.showToast(this.resolveSpeechErrorCodeMessage(errorCode, errorMessage));
        }
      });
      return true;
    } catch (error) {
      this.showToast(this.resolveSpeechErrorMessage(error as BusinessError));
      return false;
    } finally {
      this.isPreparing = false;
    }
  }

  private commitRecognizedText(): void {
    const nextText: string = this.latestRecognizedText.trim();
    this.currentSessionId = '';
    this.latestRecognizedText = '';
    this.sessionBaseText = '';
    if (nextText.length === 0) {
      this.showToast($r('app.string.toast_voice_empty'));
      return;
    }
    if (this.onRecognized !== undefined) {
      this.onRecognized(nextText);
    }
    this.showToast($r('app.string.toast_voice_added'));
  }

  private releaseEngine(): void {
    if (this.asrEngine === undefined) {
      return;
    }
    const activeSessionId: string = this.currentSessionId;
    this.currentSessionId = '';
    this.latestRecognizedText = '';
    this.sessionBaseText = '';
    if (this.isListening && activeSessionId.length > 0) {
      try {
        this.asrEngine.cancel(activeSessionId);
      } catch (_error) {
      }
    }
    try {
      this.asrEngine.shutdown();
    } catch (_error) {
    }
    this.asrEngine = undefined;
    this.isPreparing = false;
    this.isListening = false;
    this.notifyListeningChange(false);
  }

  private async requestPermissionList(context: Context, permissions: Array<Permissions>): Promise<boolean> {
    return ensurePermissionsGranted(context, permissions);
  }

  private createSessionId(): string {
    return 'voice_' + Date.now().toString() + '_' + Math.floor(Math.random() * 100000).toString();
  }

  private resolveSpeechErrorMessage(error: BusinessError): string | Resource {
    return this.resolveSpeechErrorCodeMessage(Number(error.code), error.message);
  }

  private resolveSpeechErrorCodeMessage(errorCode: number, errorMessage: string): string | Resource {
    if (errorCode === 1002200006) {
      return $r('app.string.toast_voice_busy');
    }
    if (errorCode === 1002200012) {
      return $r('app.string.toast_microphone_permission_denied');
    }
    if (errorCode === 1002200001 || errorCode === 1002200007 ||
      errorCode === 1002200008 || errorCode === 1002200009) {
      return $r('app.string.toast_voice_engine_failed');
    }
    if (errorCode === 1002200002) {
      return '语音识别已在进行中，请稍候。';
    }
    if (errorCode === 1002200004) {
      return '结束语音识别失败，请重试。';
    }
    if (errorCode === 1002200005) {
      return '取消语音识别失败，请重试。';
    }
    if (errorMessage.length > 0) {
      return errorMessage;
    }
    return '语音识别暂时不可用，请稍后再试。';
  }

  private emitPreviewText(recognizedText: string): void {
    if (this.onPreviewTextChange === undefined) {
      return;
    }
    this.onPreviewTextChange(this.composeRecognizedText(this.sessionBaseText, recognizedText));
  }

  private composeRecognizedText(baseText: string, recognizedText: string): string {
    const normalizedRecognizedText: string = recognizedText.trim();
    if (normalizedRecognizedText.length === 0) {
      return baseText;
    }
    const normalizedBaseText: string = baseText.trim();
    if (normalizedBaseText.length === 0) {
      return normalizedRecognizedText;
    }
    return normalizedBaseText + '\n' + normalizedRecognizedText;
  }

  private notifyListeningChange(isListening: boolean): void {
    if (this.onListeningChange !== undefined) {
      this.onListeningChange(isListening);
    }
  }

  private showToast(message: string | Resource): void {
    promptAction.showToast({
      message: message,
      duration: 1800
    });
  }
}

业务页面使用时很轻。以瞬间正文为例，onPreviewTextChange 负责边说边预览，onListeningChange 负责显示"语音输入中..."。

Stack({ alignContent: Alignment.TopEnd }) {
  TextArea({
    text: this.momentNoteInput,
    placeholder: '记录此刻发生的事'
  })
  .height(120)
  .padding({ left: 14, right: 58, top: 14, bottom: 14 })
  .onChange((value: string) => {
    this.momentNoteInput = value;
  })

  VoiceInputButton({
    isEnabled: !this.isBusy,
    textValue: this.momentNoteInput,
    accessibilityLabel: '瞬间内容语音输入',
    onPreviewTextChange: (text: string) => {
      this.momentNoteInput = text;
    },
    onListeningChange: (isListening: boolean) => {
      this.isMomentNoteVoiceInputting = isListening;
    }
  })
  .margin({ top: 10, right: 10 })
}

完整代码二：此刻速记录音加识别

下面这份是桌面"此刻速记"的核心录音识别代码。为了让文章聚焦，我保留了 AudioCapturer + writeAudio + WAV 保存 的主链路，页面保存瞬间的逻辑可以接到自己的数据层。

import { Context } from '@kit.AbilityKit';
import { audio } from '@kit.AudioKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { fileIo } from '@kit.CoreFileKit';
import { speechRecognizer } from '@kit.CoreSpeechKit';
import { MediaKind, SandboxFileTarget } from '../../model/TimeImprintModels';
import { prepareSandboxFile } from '../../utils/TimeImprintService';

const QUICK_VOICE_CHUNK_BYTES: number = 1280;
const QUICK_VOICE_MAX_AUDIO_DURATION_MS: number = 8 * 60 * 60 * 1000;

interface QuickVoiceCreateEngineExtraParams extends Record<string, Object> {
  locate: string;
  recognizerMode: string;
}

interface QuickVoiceStartExtraParams extends Record<string, Object> {
  recognitionMode: number;
  vadBegin: number;
  vadEnd: number;
  maxAudioDuration: number;
}

class QuickVoiceCaptureResult {
  recognizedText: string = '';
  audioTarget: SandboxFileTarget = new SandboxFileTarget();
  hasAudio: boolean = false;
}

class FileWriteOptions {
  offset?: number;
  length?: number;
}

class PcmChunkQueue {
  private pending: Uint8Array = new Uint8Array(0);

  push(buffer: ArrayBuffer): Array<Uint8Array> {
    const incoming: Uint8Array = new Uint8Array(buffer);
    const combined: Uint8Array = new Uint8Array(this.pending.length + incoming.length);
    combined.set(this.pending, 0);
    combined.set(incoming, this.pending.length);

    const chunks: Array<Uint8Array> = [];
    let offset: number = 0;
    while (combined.length - offset >= QUICK_VOICE_CHUNK_BYTES) {
      chunks.push(combined.slice(offset, offset + QUICK_VOICE_CHUNK_BYTES));
      offset = offset + QUICK_VOICE_CHUNK_BYTES;
    }
    this.pending = combined.slice(offset);
    return chunks;
  }

  drain(): Uint8Array | undefined {
    if (this.pending.length === 0) {
      return undefined;
    }
    if (this.pending.length > 640) {
      const paddedLarge: Uint8Array = new Uint8Array(QUICK_VOICE_CHUNK_BYTES);
      paddedLarge.set(this.pending.slice(0, Math.min(this.pending.length, QUICK_VOICE_CHUNK_BYTES)), 0);
      this.pending = new Uint8Array(0);
      return paddedLarge;
    }
    const paddedSmall: Uint8Array = new Uint8Array(640);
    paddedSmall.set(this.pending, 0);
    this.pending = new Uint8Array(0);
    return paddedSmall;
  }
}

export class QuickVoiceMomentRecorder {
  private context: Context;
  private notebookId: string;
  private asrEngine?: speechRecognizer.SpeechRecognitionEngine;
  private audioCapturer?: audio.AudioCapturer;
  private audioFile?: fileIo.File;
  private target: SandboxFileTarget = new SandboxFileTarget();
  private sessionId: string = '';
  private audioWriteOffset: number = 0;
  private audioBytes: number = 0;
  private recognitionResult: string = '';
  private generatedText: string = '';
  private chunks: PcmChunkQueue = new PcmChunkQueue();
  private pendingAsrChunks: Array<Uint8Array> = [];
  private asrPumpTimer: number = -1;
  private completionFallbackTimer: number = -1;
  private finishing: boolean = false;
  private completed: boolean = false;
  private resolveCapture?: (result: QuickVoiceCaptureResult) => void;
  private rejectCapture?: (error: Error) => void;
  private onPreview: (text: string) => void;

  constructor(context: Context, notebookId: string, onPreview: (text: string) => void) {
    this.context = context;
    this.notebookId = notebookId;
    this.onPreview = onPreview;
  }

  async capture(): Promise<QuickVoiceCaptureResult> {
    return new Promise<QuickVoiceCaptureResult>((resolve, reject) => {
      this.resolveCapture = resolve;
      this.rejectCapture = reject;
      void this.startCapture();
    });
  }

  cancel(): void {
    this.finishCapture();
  }

  private async startCapture(): Promise<void> {
    try {
      this.target = await prepareSandboxFile(
        this.context,
        this.notebookId,
        MediaKind.AUDIO,
        'quick_voice_moment.wav',
        'wav'
      );
      this.audioFile = fileIo.openSync(
        this.target.filePath,
        fileIo.OpenMode.CREATE | fileIo.OpenMode.READ_WRITE | fileIo.OpenMode.TRUNC
      );
      this.writeWavHeader(0);
      this.audioWriteOffset = 44;
      this.sessionId = this.createSessionId();

      this.asrEngine = await this.createAsrEngine();
      this.asrEngine.setListener(this.createRecognitionListener());
      this.asrEngine.startListening({
        sessionId: this.sessionId,
        audioInfo: {
          audioType: 'pcm',
          sampleRate: 16000,
          soundChannel: 1,
          sampleBit: 16
        },
        extraParams: {
          recognitionMode: 0,
          vadBegin: 500,
          vadEnd: 10000,
          maxAudioDuration: QUICK_VOICE_MAX_AUDIO_DURATION_MS
        } as QuickVoiceStartExtraParams
      });

      this.audioCapturer = await this.createAudioCapturer();
      this.audioCapturer.on('readData', (buffer: ArrayBuffer): void => {
        this.handleAudioBuffer(buffer);
      });
      this.startAsrPump();
      await this.startAudioCapturer();
    } catch (error) {
      this.failCapture(error);
    }
  }

  private async createAsrEngine(): Promise<speechRecognizer.SpeechRecognitionEngine> {
    return speechRecognizer.createEngine({
      language: 'zh-CN',
      online: 1,
      extraParams: {
        locate: 'CN',
        recognizerMode: 'long'
      } as QuickVoiceCreateEngineExtraParams
    });
  }

  private createRecognitionListener(): speechRecognizer.RecognitionListener {
    return {
      onStart: (_sessionId: string, _eventMessage: string): void => {
      },
      onEvent: (_sessionId: string, _eventCode: number, _eventMessage: string): void => {
      },
      onResult: (sessionId: string, result: speechRecognizer.SpeechRecognitionResult): void => {
        if (sessionId !== this.sessionId || result.result.trim().length === 0) {
          return;
        }
        if (result.isFinal) {
          this.recognitionResult = this.recognitionResult + result.result.trim();
          this.generatedText = '';
        } else {
          this.generatedText = result.result.trim();
        }
        this.onPreview(this.resolveRecognizedText());
      },
      onComplete: (sessionId: string, _eventMessage: string): void => {
        if (sessionId === this.sessionId && this.finishing) {
          this.completeCapture();
        }
      },
      onError: (sessionId: string, errorCode: number, errorMessage: string): void => {
        if (sessionId !== this.sessionId) {
          return;
        }
        const message: string = errorMessage.length > 0 ? errorMessage : errorCode.toString();
        this.failCapture(new Error(message));
      }
    };
  }

  private async createAudioCapturer(): Promise<audio.AudioCapturer> {
    const options: audio.AudioCapturerOptions = {
      streamInfo: {
        samplingRate: audio.AudioSamplingRate.SAMPLE_RATE_16000,
        channels: audio.AudioChannel.CHANNEL_1,
        sampleFormat: audio.AudioSampleFormat.SAMPLE_FORMAT_S16LE,
        encodingType: audio.AudioEncodingType.ENCODING_TYPE_RAW
      },
      capturerInfo: {
        source: audio.SourceType.SOURCE_TYPE_MIC,
        capturerFlags: 0
      }
    };
    return new Promise<audio.AudioCapturer>((resolve, reject) => {
      audio.createAudioCapturer(options, (error: BusinessError, capturer: audio.AudioCapturer) => {
        if (error) {
          reject(new Error(error.message));
          return;
        }
        resolve(capturer);
      });
    });
  }

  private async startAudioCapturer(): Promise<void> {
    if (this.audioCapturer === undefined) {
      return;
    }
    await new Promise<void>((resolve, reject) => {
      this.audioCapturer?.start((error: BusinessError) => {
        if (error) {
          reject(new Error(error.message));
          return;
        }
        resolve();
      });
    });
  }

  private handleAudioBuffer(buffer: ArrayBuffer): void {
    if (this.completed) {
      return;
    }
    this.writeAudioBuffer(buffer);
    const chunks: Array<Uint8Array> = this.chunks.push(buffer);
    for (let i: number = 0; i < chunks.length; i++) {
      this.pendingAsrChunks.push(chunks[i]);
    }
  }

  private writeAudioBuffer(buffer: ArrayBuffer): void {
    if (this.audioFile === undefined || buffer.byteLength === 0) {
      return;
    }
    const options: FileWriteOptions = new FileWriteOptions();
    options.offset = this.audioWriteOffset;
    options.length = buffer.byteLength;
    fileIo.writeSync(this.audioFile.fd, buffer, options);
    this.audioWriteOffset = this.audioWriteOffset + buffer.byteLength;
    this.audioBytes = this.audioBytes + buffer.byteLength;
  }

  private startAsrPump(): void {
    if (this.asrPumpTimer >= 0) {
      return;
    }
    this.asrPumpTimer = setInterval(() => {
      if (this.asrEngine !== undefined && this.pendingAsrChunks.length > 0 && this.sessionId.length > 0) {
        const chunk: Uint8Array | undefined = this.pendingAsrChunks.shift();
        if (chunk !== undefined) {
          try {
            this.asrEngine.writeAudio(this.sessionId, chunk);
          } catch (error) {
            this.failCapture(error);
          }
        }
        return;
      }
      if (this.finishing && this.pendingAsrChunks.length === 0) {
        this.finishAsrEngine();
      }
    }, 40);
  }

  private finishCapture(): void {
    if (this.finishing || this.completed) {
      return;
    }
    this.finishing = true;
    this.stopAudioCapturer();
    const finalChunk: Uint8Array | undefined = this.chunks.drain();
    if (finalChunk !== undefined) {
      this.pendingAsrChunks.push(finalChunk);
    }
    if (this.pendingAsrChunks.length === 0) {
      this.finishAsrEngine();
    }
  }

  private finishAsrEngine(): void {
    if (!this.finishing || this.completed || this.asrEngine === undefined || this.sessionId.length === 0) {
      return;
    }
    try {
      this.asrEngine.finish(this.sessionId);
    } catch (_error) {
      this.completeCapture();
      return;
    }
    if (this.completionFallbackTimer < 0) {
      this.completionFallbackTimer = setTimeout(() => {
        this.completeCapture();
      }, 2200);
    }
  }

  private stopAudioCapturer(): void {
    const capturer: audio.AudioCapturer | undefined = this.audioCapturer;
    if (capturer === undefined) {
      return;
    }
    try {
      if (capturer.state.valueOf() === audio.AudioState.STATE_RUNNING) {
        capturer.stop(() => {
        });
      }
    } catch (_error) {
    }
  }

  private completeCapture(): void {
    if (this.completed) {
      return;
    }
    this.completed = true;
    this.cleanup();

    const result: QuickVoiceCaptureResult = new QuickVoiceCaptureResult();
    result.recognizedText = this.resolveRecognizedText();
    result.audioTarget = this.target;
    result.hasAudio = this.audioBytes > 0;

    const resolveCapture: ((result: QuickVoiceCaptureResult) => void) | undefined = this.resolveCapture;
    if (resolveCapture !== undefined) {
      resolveCapture(result);
    }
  }

  private failCapture(error: Object): void {
    if (this.completed) {
      return;
    }
    this.completed = true;
    this.cleanup();

    const rejectCapture: ((error: Error) => void) | undefined = this.rejectCapture;
    if (rejectCapture !== undefined) {
      rejectCapture(error instanceof Error ? error : new Error(JSON.stringify(error)));
    }
  }

  private cleanup(): void {
    if (this.asrPumpTimer >= 0) {
      clearInterval(this.asrPumpTimer);
      this.asrPumpTimer = -1;
    }
    if (this.completionFallbackTimer >= 0) {
      clearTimeout(this.completionFallbackTimer);
      this.completionFallbackTimer = -1;
    }
    this.stopAudioCapturer();
    try {
      this.audioCapturer?.release(() => {
      });
    } catch (_error) {
    }
    try {
      this.asrEngine?.shutdown();
    } catch (_error) {
    }
    if (this.audioFile !== undefined) {
      try {
        this.writeWavHeader(this.audioBytes);
      } catch (_error) {
      }
      fileIo.closeSync(this.audioFile);
      this.audioFile = undefined;
    }
    this.audioCapturer = undefined;
    this.asrEngine = undefined;
  }

  private resolveRecognizedText(): string {
    const finalText: string = this.recognitionResult.trim();
    if (finalText.length > 0) {
      return finalText;
    }
    return this.generatedText.trim();
  }

  private writeWavHeader(pcmBytes: number): void {
    if (this.audioFile === undefined) {
      return;
    }
    const header: ArrayBuffer = new ArrayBuffer(44);
    const view: DataView = new DataView(header);
    this.writeAscii(view, 0, 'RIFF');
    view.setUint32(4, 36 + pcmBytes, true);
    this.writeAscii(view, 8, 'WAVE');
    this.writeAscii(view, 12, 'fmt ');
    view.setUint32(16, 16, true);
    view.setUint16(20, 1, true);
    view.setUint16(22, 1, true);
    view.setUint32(24, 16000, true);
    view.setUint32(28, 16000 * 2, true);
    view.setUint16(32, 2, true);
    view.setUint16(34, 16, true);
    this.writeAscii(view, 36, 'data');
    view.setUint32(40, pcmBytes, true);

    const options: FileWriteOptions = new FileWriteOptions();
    options.offset = 0;
    options.length = 44;
    fileIo.writeSync(this.audioFile.fd, header, options);
  }

  private writeAscii(view: DataView, offset: number, value: string): void {
    for (let i: number = 0; i < value.length; i++) {
      view.setUint8(offset + i, value.charCodeAt(i));
    }
  }

  private createSessionId(): string {
    return 'quick_voice_' + Date.now().toString() + '_' + Math.floor(Math.random() * 100000).toString();
  }
}

速记页调用时，先申请麦克风权限，再创建 recorder。停止录音不是直接丢弃，而是让 recorder 把队列里剩余 PCM 送完，最后 finish ASR 引擎。

private async startRecording(): Promise<void> {
  const hostContext: Context | undefined = this.getUIContext().getHostContext();
  if (hostContext === undefined || this.notebookId.length === 0) {
    this.showToast('当前无法录音');
    return;
  }

  this.isPreparing = true;
  const granted: boolean = await ensurePermissionsGranted(hostContext, ['ohos.permission.MICROPHONE']);
  if (!granted) {
    this.isPreparing = false;
    this.showToast($r('app.string.toast_microphone_permission_denied'));
    return;
  }

  this.elapsedSeconds = 0;
  this.hasAudio = false;
  this.recognizedText = '';
  this.statusText = '正在录音，点击停止后可保存';

  const recorder: QuickVoiceMomentRecorder =
    new QuickVoiceMomentRecorder(hostContext, this.notebookId, (previewText: string) => {
      if (!this.isDisposed) {
        this.recognizedText = previewText;
      }
    });

  this.recorder = recorder;
  this.isRecording = true;
  this.isPreparing = false;
  this.startTimers();

  try {
    const result: QuickVoiceCaptureResult = await recorder.capture();
    if (this.isDisposed || this.recorder !== recorder) {
      return;
    }
    this.recorder = undefined;
    this.isRecording = false;
    this.clearTimers();
    this.hasAudio = result.hasAudio;
    this.captureTarget = result.audioTarget;
    this.recognizedText = result.recognizedText;
    this.statusText = result.hasAudio ? '录音完成，可以保存为瞬间' : '没有录到可用声音';
  } catch (error) {
    if (this.isDisposed || this.recorder !== recorder) {
      return;
    }
    this.recorder = undefined;
    this.isRecording = false;
    this.clearTimers();
    this.statusText = '录音失败，请重新录制';
    this.showToast(this.resolveQuickVoiceErrorMessage(error as Object));
  }
}

private stopRecording(): void {
  this.statusText = '正在整理录音和文字...';
  this.recorder?.cancel();
}

我在项目里踩出来的几个关键点

第一，普通语音输入不需要自己采集音频流。recognitionMode: 0 加 startListening 就能让 Core Speech Kit 从麦克风实时录音，这种方式代码最少，适合输入框。

第二，只有需要保存录音或控制音频流时，才走 AudioCapturer + writeAudio。一旦走这条路，就要严格处理 640/1280 字节分片，否则 writeAudio 很容易失败。

第三，每一次识别都要有独立 sessionId。回调里我都会判断 sessionId !== this.currentSessionId 直接返回，避免上一轮识别的回调污染当前输入框。

第四，离开页面必须释放资源。输入框组件在 aboutToDisappear 里会 cancel 当前会话并 shutdown 引擎；速记录音在 cleanup 里会停止计时器、释放 AudioCapturer、关闭 ASR 引擎、回写 WAV header 并关闭文件。

第五，错误码要转成用户能理解的话。比如 1002200006 是服务忙，1002200012 是麦克风权限问题，1002200001/0007/0008/0009 更适合统一提示"语音识别初始化失败"。

最后

Core Speech Kit 接入本身不复杂，真正要处理的是业务边界。短语音按钮要像输入法一样轻，点一下说话，再点一下结束；桌面速记要像录音笔一样稳，既要有识别文本，也要保住原始声音。

在《时光旅记》里，我最后形成了两套固定写法：输入框使用 VoiceInputButton + short + startListening，桌面速记使用 AudioCapturer + long + writeAudio。这样用户在不同入口得到的是同一个能力，但代码职责不会混在一起，后续要扩展热词、长语音整理、旅行场景词库，也有清晰的位置可以接。
