python: Push & Pull Pattern

geovindu2026-06-26 15:52

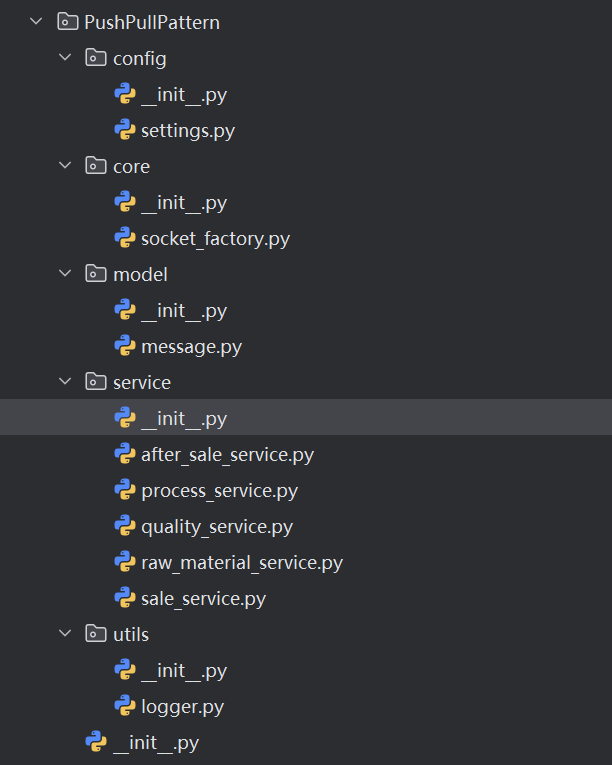

项目结构：

模拟5 个核心业务环节，组成流水线：

Push1：原料采购部（推送原料订单）

Pull-Push：加工车间（拉取原料 → 推送加工完成的珠宝）

Pull-Push：质检中心（拉取成品 → 推送质检分级结果）

Pull-Push：门店销售部（拉取质检成品 → 推送销售数据）

Pull：售后维保部（拉取销售数据 → 提供维保服务）

python 复制代码
# encoding: utf-8
# 版权所有  2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Push & Pull  Pattern（推 - 拉）模式
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : PyCharm 2024.3.6 python 3.11
# os        : windows 10
# database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
# Datetime  : 2026/6/25 20:38
# User      :  geovindu
# Product   : PyCharm
# Project   : pydesginpattern
# File      : settings.py
"""全局配置：端口、超时、珠宝行业固定常量、消息分隔符"""
# ZMQ 通信端口定义
PORT_RAW_MATERIAL = 5555
PORT_PROCESS = 5556
PORT_QUALITY = 5557
PORT_SALE = 5558

# 通信超时(ms)
ZMQ_SOCKET_TIMEOUT = 3000

# 珠宝行业基础枚举常量
JEWELRY_CATEGORY = [
    "钻石戒指", "黄金项链", "翡翠手镯", "铂金耳钉", "彩宝吊坠"
]
QUALITY_GRADE = [
    "S级(收藏)", "A级(精品)", "B级(常规)", "C级(特价)"
]

# 消息分隔符，统一解析格式
MSG_SEP = "|"
KV_SEP = ":"

# 本地连接地址
LOCAL_TCP_ADDR = "tcp://localhost"
BIND_ADDR = "tcp://*"



# encoding: utf-8
# 版权所有  2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Push & Pull  Pattern（推 - 拉）模式
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : PyCharm 2024.3.6 python 3.11
# os        : windows 10
# database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
# Datetime  : 2026/6/25 20:39
# User      :  geovindu
# Product   : PyCharm
# Project   : pydesginpattern
# File      : logger.py
import logging
import sys
from PushPullPattern.config.settings import ZMQ_SOCKET_TIMEOUT

def get_module_logger(module_name: str) -> logging.Logger:
    """
    获取模块独立日志器，区分业务模块输出
    :param module_name:
    :return:
    """
    logger = logging.getLogger(module_name)
    logger.setLevel(logging.INFO)
    if not logger.handlers:
        formatter = logging.Formatter(
            fmt="%(asctime)s [%(name)s] %(levelname)s: %(message)s",
            datefmt="%Y-%m-%d %H:%M:%S"
        )
        stream_handler = logging.StreamHandler(sys.stdout)
        stream_handler.setFormatter(formatter)
        logger.addHandler(stream_handler)
    return logger

# encoding: utf-8
# 版权所有  2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Push & Pull  Pattern（推 - 拉）模式
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : PyCharm 2024.3.6 python 3.11
# os        : windows 10
# database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
# Datetime  : 2026/6/25 20:41
# User      :  geovindu
# Product   : PyCharm
# Project   : pydesginpattern
# File      : message.py
"""统一消息封装：所有业务消息标准化序列化、解析"""
from typing import Dict
from PushPullPattern.config.settings import MSG_SEP, KV_SEP

class BaseMessage:
    """
    消息基类，统一打包/解包逻辑
    """
    @staticmethod
    def pack(data: Dict[str, str]) -> str:
        """
        字典转消息字符串
        :param data:
        :return:
        """
        parts = []
        for k, v in data.items():
            parts.append(f"{k}{KV_SEP}{v}")
        return MSG_SEP.join(parts)

    @staticmethod
    def unpack(raw_msg: str) -> Dict[str, str]:
        """
        消息字符串转回字典
        :param raw_msg:
        :return:
        """
        result = {}
        items = raw_msg.split(MSG_SEP)
        for item in items:
            if KV_SEP in item:
                k, v = item.split(KV_SEP, maxsplit=1)
                result[k] = v
        return result



# encoding: utf-8
# 版权所有  2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Push & Pull  Pattern（推 - 拉）模式   pip install zmq
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : PyCharm 2024.3.6 python 3.11
# os        : windows 10
# database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
# Datetime  : 2026/6/25 20:43
# User      :  geovindu
# Product   : PyCharm
# Project   : pydesginpattern
# File      : socket_factory.py
import zmq
from PushPullPattern.config.settings import ZMQ_SOCKET_TIMEOUT
from PushPullPattern.utils.logger import get_module_logger

logger = get_module_logger("SocketFactory")

class ZmqSocketFactory:
    """
    统一创建Push/Pull套接字，资源统一管理，职责单一
    """
    _context = zmq.Context()

    @classmethod
    def create_push_bind(cls, port: int) -> zmq.Socket:
        """
        创建Push生产者，绑定端口对外提供服务
        :param port:
        :return:
        """
        sock = cls._context.socket(zmq.PUSH)
        sock.setsockopt(zmq.RCVTIMEO, ZMQ_SOCKET_TIMEOUT)
        sock.setsockopt(zmq.SNDTIMEO, ZMQ_SOCKET_TIMEOUT)
        bind_url = f"tcp://*:{port}"
        sock.bind(bind_url)
        logger.info(f"Push Socket bind success: {bind_url}")
        return sock

    @classmethod
    def create_pull_connect(cls, port: int) -> zmq.Socket:
        """
        创建Pull消费者，连接上游Push端口
        :param port:
        :return:
        """
        sock = cls._context.socket(zmq.PULL)
        sock.setsockopt(zmq.RCVTIMEO, ZMQ_SOCKET_TIMEOUT)
        sock.setsockopt(zmq.SNDTIMEO, ZMQ_SOCKET_TIMEOUT)
        connect_url = f"tcp://localhost:{port}"
        sock.connect(connect_url)
        logger.info(f"Pull Socket connect success: {connect_url}")
        return sock

    @classmethod
    def close_context(cls):
        """
        程序退出统一释放ZMQ资源
        :return:
        """
        cls._context.term()
        logger.info("ZMQ Context resource released")
python 复制代码
# encoding: utf-8
# 版权所有  2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Push & Pull  Pattern（推 - 拉）模式
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : PyCharm 2024.3.6 python 3.11
# os        : windows 10
# database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
# Datetime  : 2026/6/25 20:45
# User      :  geovindu
# Product   : PyCharm
# Project   : pydesginpattern
# File      : raw_material_service.py
import time
import random
from PushPullPattern.core.socket_factory import ZmqSocketFactory
from PushPullPattern.model.message import BaseMessage
from PushPullPattern.config.settings import PORT_RAW_MATERIAL, JEWELRY_CATEGORY
from PushPullPattern.utils.logger import get_module_logger

logger = get_module_logger("RawMaterialService")

class RawMaterialService:
    """
    原料采购（纯 Push 生产者）
    业务职责：珠宝原料采购，仅推送原料订单消息
    """
    def __init__(self):
        self.push_sock = ZmqSocketFactory.create_push_bind(PORT_RAW_MATERIAL)

    def run_produce(self, total_count: int = 10):
        """

        :param total_count:
        :return:
        """
        logger.info("原料采购服务启动，开始生成原料订单")
        for seq in range(1, total_count + 1):
            cat = random.choice(JEWELRY_CATEGORY)
            order_id = f"RAW_{seq:03d}"
            msg_data = {
                "type": "原料订单",
                "order_id": order_id,
                "category": cat,
                "status": "已采购待加工"
            }
            msg_str = BaseMessage.pack(msg_data)
            self.push_sock.send_string(msg_str)
            logger.info(f"推送原料消息: {msg_str}")
            time.sleep(2)
        logger.info("全部原料订单推送完成")



# encoding: utf-8
# 版权所有  2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Push & Pull  Pattern（推 - 拉）模式
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : PyCharm 2024.3.6 python 3.11
# os        : windows 10
# database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
# Datetime  : 2026/6/25 20:47
# User      :  geovindu
# Product   : PyCharm
# Project   : pydesginpattern
# File      : process_service.py
import time
import random
import zmq
from PushPullPattern.core.socket_factory import ZmqSocketFactory
from PushPullPattern.model.message import BaseMessage
from PushPullPattern.config.settings import PORT_RAW_MATERIAL, PORT_PROCESS
from PushPullPattern.utils.logger import get_module_logger

logger = get_module_logger("ProcessService")

class ProcessService:
    """
    加工车间（Pull+Push 中转）
    业务职责：拉取原料，加工生成成品，向下游推送
    """

    def __init__(self):
        self.pull_sock = ZmqSocketFactory.create_pull_connect(PORT_RAW_MATERIAL)
        self.push_sock = ZmqSocketFactory.create_push_bind(PORT_PROCESS)

    def run_pipeline(self):
        logger.info("珠宝加工车间服务启动，等待上游原料")
        while True:
            try:
                # 非阻塞拉取，避免卡死
                raw_msg = self.pull_sock.recv_string(flags=zmq.NOBLOCK)
                data = BaseMessage.unpack(raw_msg)
                logger.info(f"接收原料消息: {raw_msg}")

                # 模拟加工耗时
                time.sleep(random.uniform(1, 3))

                raw_order = data["order_id"]
                finish_order = raw_order.replace("RAW", "FIN")
                msg_data = {
                    "type": "成品珠宝",
                    "order_id": finish_order,
                    "category": data["category"],
                    "status": "已加工待质检"
                }
                send_msg = BaseMessage.pack(msg_data)
                self.push_sock.send_string(send_msg)
                logger.info(f"加工完成推送: {send_msg}\n")

            except zmq.Again:
                # 无消息时短暂休眠，降低CPU占用
                time.sleep(0.1)
                continue



# encoding: utf-8
# 版权所有  2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Push & Pull  Pattern（推 - 拉）模式
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : PyCharm 2024.3.6 python 3.11
# os        : windows 10
# database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
# Datetime  : 2026/6/25 20:49
# User      :  geovindu
# Product   : PyCharm
# Project   : pydesginpattern
# File      : quality_service.py
import random
import time
import zmq
from PushPullPattern.core.socket_factory import ZmqSocketFactory
from PushPullPattern.model.message import BaseMessage
from PushPullPattern.config.settings import PORT_PROCESS, PORT_QUALITY, QUALITY_GRADE
from PushPullPattern.utils.logger import get_module_logger

logger = get_module_logger("QualityService")

class QualityService:
    """
    质检中心（Pull+Push 中转）
    业务职责：拉取加工成品，质检分级，推送可销售货品
    """
    def __init__(self):
        self.pull_sock = ZmqSocketFactory.create_pull_connect(PORT_PROCESS)
        self.push_sock = ZmqSocketFactory.create_push_bind(PORT_QUALITY)

    def run_pipeline(self):
        logger.info("质检中心服务启动，等待加工成品")
        while True:
            try:
                raw_msg = self.pull_sock.recv_string(flags=zmq.NOBLOCK)
                data = BaseMessage.unpack(raw_msg)
                logger.info(f"接收成品消息: {raw_msg}")

                time.sleep(random.uniform(0.5, 2))
                grade = random.choice(QUALITY_GRADE)
                msg_data = {
                    "type": "质检成品",
                    "order_id": data["order_id"],
                    "category": data["category"],
                    "grade": grade,
                    "status": "可销售"
                }
                send_msg = BaseMessage.pack(msg_data)
                self.push_sock.send_string(send_msg)
                logger.info(f"质检完成推送: {send_msg}\n")

            except zmq.Again:
                time.sleep(0.1)
                continue


# encoding: utf-8
# 版权所有  2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Push & Pull  Pattern（推 - 拉）模式
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : PyCharm 2024.3.6 python 3.11
# os        : windows 10
# database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
# Datetime  : 2026/6/25 20:52
# User      :  geovindu
# Product   : PyCharm
# Project   : pydesginpattern
# File      : sale_service.py
import time
import zmq
import random
from PushPullPattern.core.socket_factory import ZmqSocketFactory
from PushPullPattern.model.message import BaseMessage
from PushPullPattern.config.settings import PORT_QUALITY, PORT_SALE
from PushPullPattern.utils.logger import get_module_logger

logger = get_module_logger("SaleService")

class SaleService:
    """
    门店销售（Pull+Push 中转）
    业务职责：拉取质检货品，模拟销售，推送销售单据给售后
    """

    def __init__(self):
        self.pull_sock = ZmqSocketFactory.create_pull_connect(PORT_QUALITY)
        self.push_sock = ZmqSocketFactory.create_push_bind(PORT_SALE)

    def run_pipeline(self):
        logger.info("门店销售服务启动，等待质检货品")
        while True:
            try:
                raw_msg = self.pull_sock.recv_string(flags=zmq.NOBLOCK)
                data = BaseMessage.unpack(raw_msg)
                logger.info(f"接收质检货品: {raw_msg}")

                time.sleep(random.uniform(1, 2.5))
                sale_order = data["order_id"].replace("FIN", "SALE")
                price = random.randint(1000, 50000)
                msg_data = {
                    "type": "销售完成",
                    "order_id": sale_order,
                    "category": data["category"],
                    "price": f"{price}元",
                    "status": "已售出"
                }
                send_msg = BaseMessage.pack(msg_data)
                self.push_sock.send_string(send_msg)
                logger.info(f"销售单据推送: {send_msg}\n")

            except zmq.Again:
                time.sleep(0.1)
                continue


# encoding: utf-8
# 版权所有  2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Push & Pull  Pattern（推 - 拉）模式
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : PyCharm 2024.3.6 python 3.11
# os        : windows 10
# database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
# Datetime  : 2026/6/25 20:53
# User      :  geovindu
# Product   : PyCharm
# Project   : pydesginpattern
# File      : after_sale_service.py

import time
import zmq
import random
from PushPullPattern.core.socket_factory import ZmqSocketFactory
from PushPullPattern.model.message import BaseMessage
from PushPullPattern.config.settings import PORT_SALE
from PushPullPattern.utils.logger import get_module_logger

logger = get_module_logger("AfterSaleService")

class AfterSaleService:
    """
    售后维保（纯 Pull 末端消费者）
    业务职责：接收销售单据，开通终身维保档案，流水线终点
    """

    def __init__(self):
        self.pull_sock = ZmqSocketFactory.create_pull_connect(PORT_SALE)

    def run_consumer(self):
        logger.info("售后维保服务启动，等待销售单据")
        while True:
            try:
                raw_msg = self.pull_sock.recv_string(flags=zmq.NOBLOCK)
                data = BaseMessage.unpack(raw_msg)
                logger.info(f"接收销售单据: {raw_msg}")
                logger.info(
                    f"维保档案创建成功 | 品类:{data['category']} "
                    f"订单:{data['order_id']} | 终身维保已生效\n"
                )

            except zmq.Again:
                time.sleep(0.1)
                continue

调用：

python 复制代码
# encoding: utf-8
# 版权所有  2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：Push & Pull  Pattern（推 - 拉）模式
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : PyCharm 2024.3.6 python 3.11
# os        : windows 10
# database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
# Datetime  : 2026/6/25 20:55
# User      :  geovindu
# Product   : PyCharm
# Project   : pydesginpattern
# File      : PushPullBll.py
import time
import threading
import atexit
from PushPullPattern.core.socket_factory import ZmqSocketFactory
from PushPullPattern.service import (
    RawMaterialService,
    ProcessService,
    QualityService,
    SaleService,
    AfterSaleService
)
from PushPullPattern.utils.logger import get_module_logger

class PushPullBll(object):
    """

    """


    logger = get_module_logger("PushPullBll")

    # 注册退出钩子，释放ZMQ资源
    @atexit.register
    def release_zmq(self):
        ZmqSocketFactory.close_context()
        self.logger.info("✅ ZMQ 资源已释放")

    def start_all_pipeline(self):
        """统一启动全链路多线程"""
        # 实例化服务
        raw_service = RawMaterialService()
        process_service = ProcessService()
        quality_service = QualityService()
        sale_service = SaleService()
        after_service = AfterSaleService()

        # 创建线程
        t_raw = threading.Thread(target=raw_service.run_produce, args=(10,), daemon=True)
        t_process = threading.Thread(target=process_service.run_pipeline, daemon=True)
        t_quality = threading.Thread(target=quality_service.run_pipeline, daemon=True)
        t_sale = threading.Thread(target=sale_service.run_pipeline, daemon=True)
        t_after = threading.Thread(target=after_service.run_consumer, daemon=True)

        # 启动
        t_raw.start()
        t_process.start()
        t_quality.start()
        t_sale.start()
        t_after.start()

        self.logger.info("🚀 珠宝全链路 Push-Pull 流水线启动完成")
        self.logger.info("流水线运行中，按 Ctrl + C 停止\n")

        # 主线程保持运行
        try:
            t_raw.join()
            while True:
                time.sleep(1)
        except KeyboardInterrupt:
            self.logger.info("🛑 程序正在退出...")


    def demo(self):
        """

        :return:
        """
        self.start_all_pipeline()

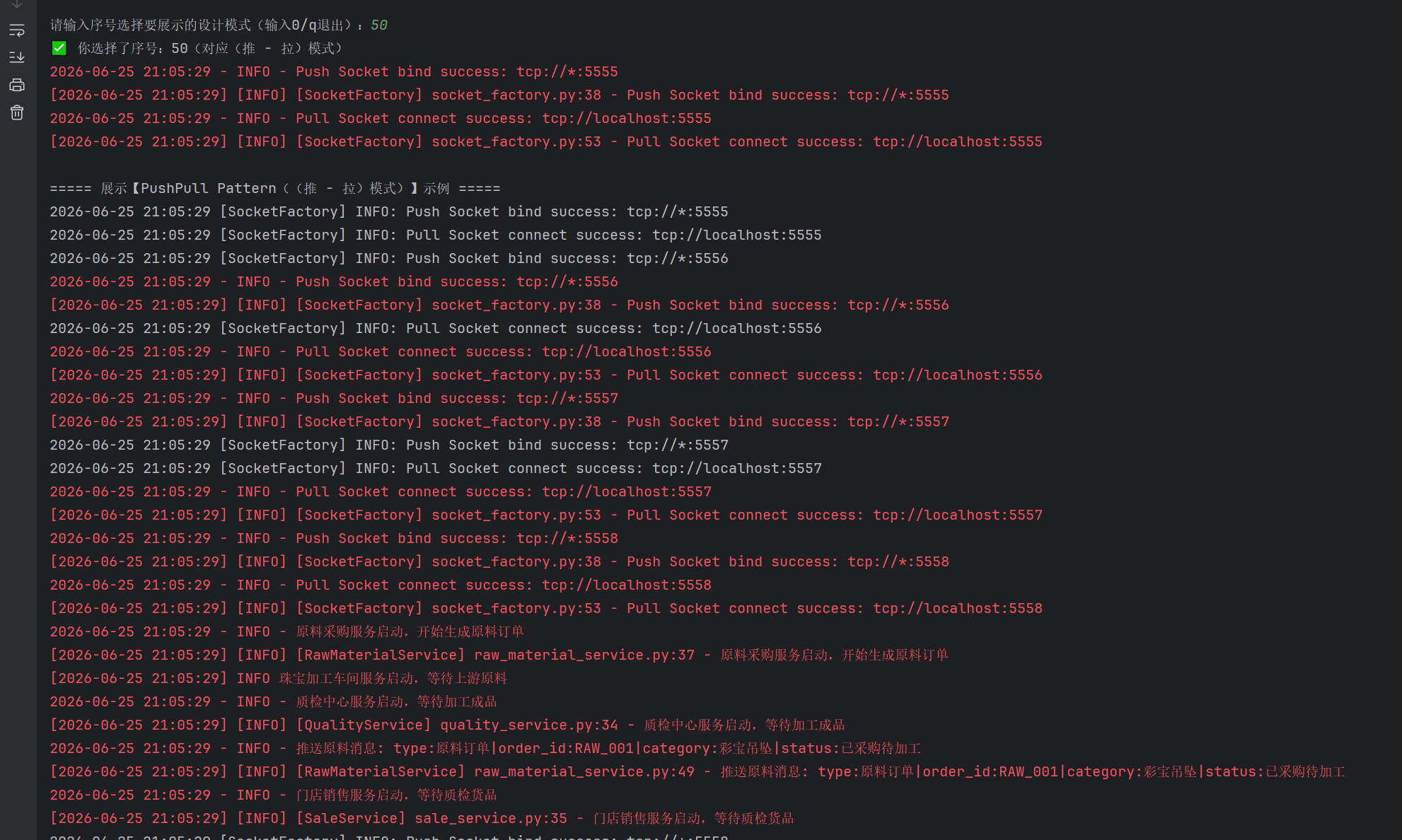

输出：

热门推荐
012026年6月AI大模型全景报告：GPT-5.6、Claude Opus 4.8、Gemini 3.5，中美AI三足鼎立谁主沉浮？022026年6月AI行业全景：从百模大战到Agent元年，这30天发生了什么？03飞书长连接_事件订阅（接收消息，审批任务状态变更）04Trae国际版与国内版深度测评：AI原生IDE的双生花052026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf06GitHub 镜像站点07【AI】2026 年具身智能模型和世界模型总结08Claude Code、Codex、Cursor三分天下：2026年AI编程Agent生态全景剖析092026年AI架构实战：彻底解决OpenAI接口超时与封号，Python调用GPT-5.2/Sora2企业级架构详解（附源码+压测报告）102026 AI 编程工具终极实战指南：Cursor vs Claude Code vs Copilot，开发者该怎么选？
