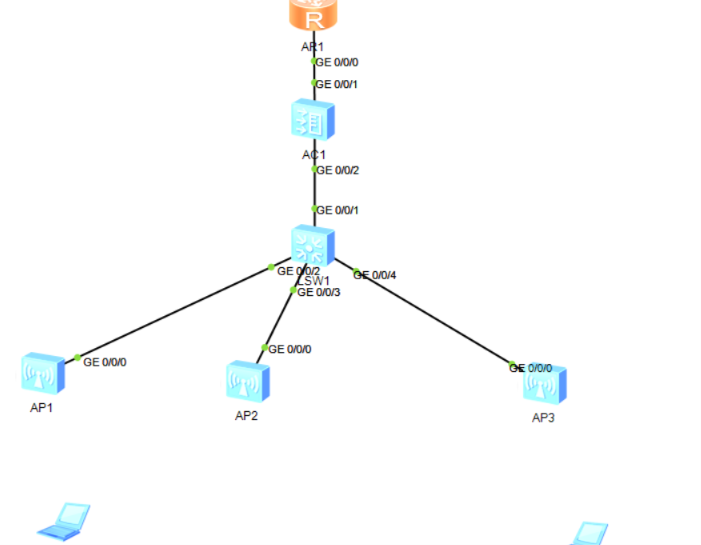

ar1
[AR1]interface GigabitEthernet 0/0/0
[AR1-GigabitEthernet0/0/0]q
[AR1]interface GigabitEthernet 0/0/0.100
[AR1-GigabitEthernet0/0/0.100] dot1q termination vid 100
[AR1-GigabitEthernet0/0/0.100] ip address 192.168.100.1 255.255.255.0
[AR1-GigabitEthernet0/0/0.100] arp broadcast enable
[AR1-GigabitEthernet0/0/0.100] dhcp select global
[AR1-GigabitEthernet0/0/0.100]
Jun 26 2026 14:03:34-08:00 AR1 %%01IFPDT/4/IF_STATE(l)[0]:Interface GigabitEther
net0/0/0 has turned into UP state.
[AR1-GigabitEthernet0/0/0.100]
Jun 26 2026 14:03:34-08:00 AR1 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/0.100 has entered the UP state.
[AR1-GigabitEthernet0/0/0.100]interface GigabitEthernet 0/0/0.10
[AR1-GigabitEthernet0/0/0.10] dot1q termination vid 10
[AR1-GigabitEthernet0/0/0.10] ip address 192.168.10.1 255.255.255.0
[AR1-GigabitEthernet0/0/0.10] arp
Jun 26 2026 14:03:39-08:00 AR1 %%01IFNET/4/LINK_STATE(l)[2]:The line protocol IP
on the interface GigabitEthernet0/0/0.10 has entered the UP state.
[AR1-GigabitEthernet0/0/0.10] arp broadcast enable
[AR1-GigabitEthernet0/0/0.10] dhcp select global
[AR1-GigabitEthernet0/0/0.10]interface GigabitEthernet 0/0/0.20
[AR1-GigabitEthernet0/0/0.20] dot1q termination vid 20
[AR1-GigabitEthernet0/0/0.20] ip address 192.168.20.1 255.255.255.0
[AR1-GigabitEthernet0/0/0.20] arp broadcast enable
[AR1-GigabitEthernet0/0/0.20] dhcp select global
Jun 26 2026 14:03:47-08:00 AR1 %%01IFNET/4/LINK_STATE(l)[3]:The line protocol IP
on the interface GigabitEthernet0/0/0.20 has entered the UP state.
[AR1-GigabitEthernet0/0/0.20] dhcp select global

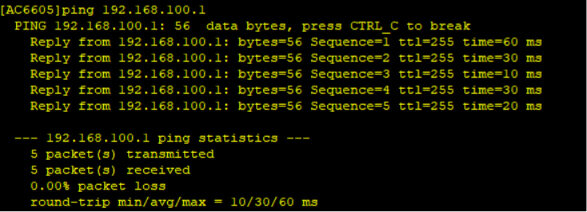

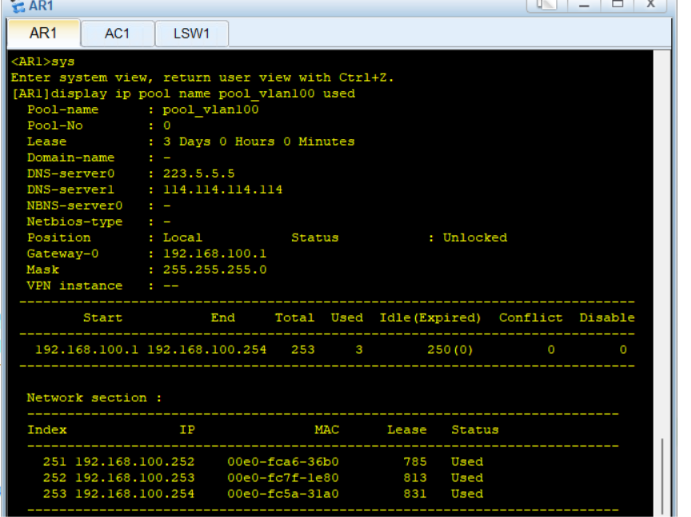

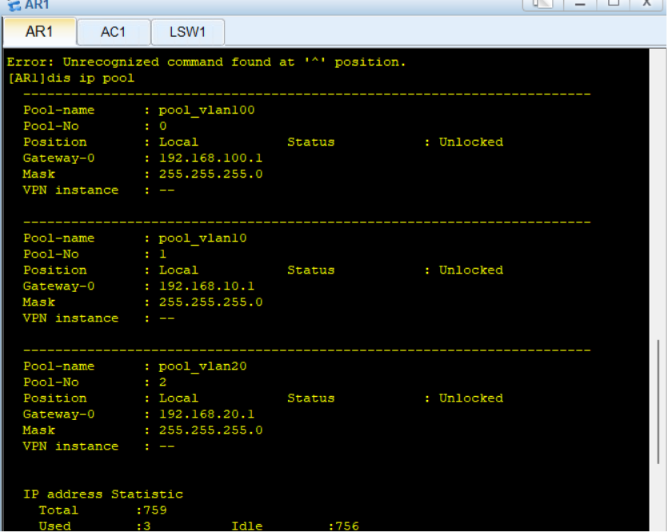

[AR1-GigabitEthernet0/0/0.20]ip pool pool_vlan100
Info: It's successful to create an IP address pool.
[AR1-ip-pool-pool_vlan100] gateway-list 192.168.100.1
[AR1-ip-pool-pool_vlan100] network 192.168.100.0 mask 255.255.255.0
[AR1-ip-pool-pool_vlan100] dns-list 223.5.5.5 114.114.114.114
[AR1-ip-pool-pool_vlan100] lease day 3
[AR1-ip-pool-pool_vlan100]
[AR1-ip-pool-pool_vlan100]ip pool pool_vlan10
Info: It's successful to create an IP address pool.
[AR1-ip-pool-pool_vlan10] gateway-list 192.168.10.1
[AR1-ip-pool-pool_vlan10] network 192.168.10.0 mask 255.255.255.0
[AR1-ip-pool-pool_vlan10] dns-list 223.5.5.5 114.114.114.114
[AR1-ip-pool-pool_vlan10] lease day 1
[AR1-ip-pool-pool_vlan10]
[AR1-ip-pool-pool_vlan10]ip pool pool_vlan20
Info: It's successful to create an IP address pool.
[AR1-ip-pool-pool_vlan20] gateway-list 192.168.20.1
[AR1-ip-pool-pool_vlan20] network 192.168.20.0 mask 255.255.255.0
[AR1-ip-pool-pool_vlan20] dns-list 223.5.5.5 114.114.114.114
[AR1-ip-pool-pool_vlan20] lease day 1
[AR1-ip-pool-pool_vlan20]q
[AR1]ip route-static 0.0.0.0 0 NULL 0lsw1
[lw1]
Jun 26 2026 14:09:34-08:00 lw1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 4, the c
hange loop count is 0, and the maximum number of records is 4095.
[lw1]vlan batch 10 20 100
Info: This operation may take a few seconds. Please wait for a moment...done.
[lw1]
Jun 26 2026 14:09:44-08:00 lw1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 5, the c
hange loop count is 0, and the maximum number of records is 4095.
[lw1]interface GigabitEthernet 0/0/1
[lw1-GigabitEthernet0/0/1] port link-type trunk
[lw1-GigabitEthernet0/0/1] port trunk allow-pass vlan 10 20 100
[lw1-GigabitEthernet0/0/1]
Jun 26 2026 14:09:54-08:00 lw1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 7, the c
hange loop count is 0, and the maximum number of records is 4095.
[lw1-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2
[lw1-GigabitEthernet0/0/2] port link-type trunk
[lw1-GigabitEthernet0/0/2] port trunk pvid vlan 100
[lw1-GigabitEthernet0/0/2] port trunk allow-pass vlan 10 100
[lw1-GigabitEthernet0/0/2]
Jun 26 2026 14:10:04-08:00 lw1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 10, the
change loop count is 0, and the maximum number of records is 4095.
[lw1-GigabitEthernet0/0/2]interface GigabitEthernet 0/0/3
[lw1-GigabitEthernet0/0/3] port link-type trunk
[lw1-GigabitEthernet0/0/3] port trunk pvid vlan 100
[lw1-GigabitEthernet0/0/3] port trunk allow-pass vlan 10 100
[lw1-GigabitEthernet0/0/3]
Jun 26 2026 14:10:14-08:00 lw1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 13, the
change loop count is 0, and the maximum number of records is 4095.
[lw1-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/4
[lw1-GigabitEthernet0/0/4] port link-type trunk
[lw1-GigabitEthernet0/0/4] port trunk pvid vlan 100
[lw1-GigabitEthernet0/0/4] port trunk allow-pass vlan 20 100
[lw1-GigabitEthernet0/0/4]
Jun 26 2026 14:10:24-08:00 lw1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 16, the
change loop count is 0, and the maximum number of records is 4095.
[lw1-GigabitEthernet0/0/4]q
[lw1]interface Vlanif 100
[lw1-Vlanif100] ip address 192.168.100.3 255.255.255.0
[lw1-Vlanif100]ip route-static 0.0.0.0 0 192.168.100.1ac：
[AC6605]interface GigabitEthernet 0/0/1
[AC6605-GigabitEthernet0/0/1] port link-type trunk
[AC6605-GigabitEthernet0/0/1] port trunk allow-pass vlan 10 20 100
[AC6605-GigabitEthernet0/0/1]
[AC6605-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2
[AC6605-GigabitEthernet0/0/2] port link-type trunk
[AC6605-GigabitEthernet0/0/2] port trunk allow-pass vlan 10 20 100
[AC6605-GigabitEthernet0/0/2]interface Vlanif 100
[AC6605-Vlanif100] ip address 192.168.100.2 255.255.255.0
[AC6605-Vlanif100]q
[AC6605]ip route-static 192.168.100.0 24 192.168.100.1
[AC6605]ip route-static 192.168.10.0 24 192.168.100.1
[AC6605]ip route-static 192.168.20.0 24 192.168.100.1
[AC6605]wlan
[AC6605-wlan-view]se
[AC6605-wlan-view]security-profile name aa
[AC6605-wlan-sec-prof-aa]security wpa2 psk pass-phrase admin123 aes
[AC6605-wlan-sec-prof-aa]q
[AC6605-wlan-view]ssid-p
[AC6605-wlan-view]ssid-profile name aa
[AC6605-wlan-ssid-prof-aa]ssid openlab-1
Info: This operation may take a few seconds, please wait.done.
[AC6605-wlan-ssid-prof-aa]q
[AC6605-wlan-view]vap
[AC6605-wlan-view]vap-profile name aa
[AC6605-wlan-vap-prof-aa]fo
[AC6605-wlan-vap-prof-aa]forward-mode t
[AC6605-wlan-vap-prof-aa]forward-mode tunnel
Info: This operation may take a few seconds, please wait.done.
[AC6605-wlan-vap-prof-aa]se
[AC6605-wlan-vap-prof-aa]security-profile
[AC6605-wlan-vap-prof-aa]service-mode
[AC6605-wlan-vap-prof-aa]service-vlan vlan-id 10
Info: This operation may take a few seconds, please wait.done.
[AC6605-wlan-vap-prof-aa]se
[AC6605-wlan-vap-prof-aa]security-profile aa
Info: This operation may take a few seconds, please wait.done.
[AC6605-wlan-vap-prof-aa]ssid
[AC6605-wlan-vap-prof-aa]ssid-profile aa
Info: This operation may take a few seconds, please wait.done.
[AC6605-wlan-vap-prof-aa]q
[AC6605-wlan-view]ap
[AC6605-wlan-view]ap-g
[AC6605-wlan-view]ap-group name aa
Info: This operation may take a few seconds. Please wait for a moment.done.
[AC6605-wlan-ap-group-aa]vap-p
[AC6605-wlan-ap-group-aa]vap-profile aa wlan 1 radio all
Info: This operation may take a few seconds, please wait...done.
[AC6605-wlan-ap-group-aa]dis th
#
radio 0
vap-profile aa wlan 1
radio 1
vap-profile aa wlan 1
radio 2
vap-profile aa wlan 1
#
return
[AC6605-wlan-ap-group-aa]q
[AC6605-wlan-view]dis th
#
wlan
traffic-profile name default
security-profile name aa
security wpa2 psk pass-phrase %^%#wH#K-s^Q3.Ijt*JPLLy713J2S/5Ae6Hf4x:Ur6l2%^%#
aes
security-profile name default
security-profile name default-wds
security-profile name default-mesh
ssid-profile name aa
ssid openlab-1
ssid-profile name default
vap-profile name aa
forward-mode tunnel
service-vlan vlan-id 10
ssid-profile aa
security-profile aa
vap-profile name default
wds-profile name default
mesh-handover-profile name default
mesh-profile name default
regulatory-domain-profile name default
air-scan-profile name default
rrm-profile name default
radio-2g-profile name default
radio-5g-profile name default
wids-spoof-profile name default
wids-profile name default
wireless-access-specification
ap-system-profile name default
port-link-profile name default
wired-port-profile name default
serial-profile name preset-enjoyor-toeap
ap-group name aa
radio 0
vap-profile aa wlan 1
radio 1
vap-profile aa wlan 1
radio 2
vap-profile aa wlan 1
ap-group name default
provision-ap
#
return
[AC6605-wlan-view]
[AC6605-wlan-view]
[AC6605-wlan-view]
[AC6605-wlan-view]
[AC6605-wlan-view]ssid-p
[AC6605-wlan-view]ssid-profile name bb
[AC6605-wlan-ssid-prof-bb]ssid openlab-2
Info: This operation may take a few seconds, please wait.done.
[AC6605-wlan-ssid-prof-bb]vap-p
[AC6605-wlan-ssid-prof-bb]q
[AC6605-wlan-view]vap
[AC6605-wlan-view]vap-profile name bb
[AC6605-wlan-vap-prof-bb]fo
[AC6605-wlan-vap-prof-bb]forward-mode t
[AC6605-wlan-vap-prof-bb]forward-mode tunnel
Info: This operation may take a few seconds, please wait.done.
[AC6605-wlan-vap-prof-bb]se
[AC6605-wlan-vap-prof-bb]security-profile
[AC6605-wlan-vap-prof-bb]service-mode
[AC6605-wlan-vap-prof-bb]service-vlan vlan-id 20
Info: This operation may take a few seconds, please wait.done.
[AC6605-wlan-vap-prof-bb]se
[AC6605-wlan-vap-prof-bb]security-profile aa
Info: This operation may take a few seconds, please wait.done.
[AC6605-wlan-vap-prof-bb]ss
[AC6605-wlan-vap-prof-bb]ssid-profile bb
Info: This operation may take a few seconds, please wait.done.
[AC6605-wlan-vap-prof-bb]q
[AC6605-wlan-view]ao-g
[AC6605-wlan-view]ap-g
[AC6605-wlan-view]ap-group name bb
Info: This operation may take a few seconds. Please wait for a moment.done.
[AC6605-wlan-ap-group-bb]vap-p
[AC6605-wlan-ap-group-bb]vap-profile bb wlan 1 radio all
