一、前言
在传统有限元仿真工作流中，存在两大痛点：
APDL 脚本参数修改依赖手动打开记事本修改数值，多工况批量仿真时重复工作量巨大，极易手输错误；
ANSYS GUI 交互式操作无法自动化批量计算、批量导出应力 / 位移 / 温度云图，仿真报告产出效率极低。
本文搭建一套完整离线自动化仿真链路：
FastAPI参数化服务（正则精准替换APDL）→ APDL仿真脚本 → Windows BAT批处理后台静默运行ANSYS → 自动输出PNG云图结果
同时对比两套参数替换方案：固定行号下标替换（简易版）、正则命令匹配替换（工业稳定版），适配批量工况仿真、多材料热应力耦合计算场景。
适用场景：结构热应力仿真、多垫片装配体批量参数迭代、离线无界面自动化仿真平台开发。
二、整体流程架构
整体执行链路分为三层，自上而下完整闭环：
上层：FastAPI Web 参数化服务
提供 HTTP 接口，两种参数绑定方案，自动修改 APDL 脚本内材料、压力、温度、尺寸等关键参数，持久化存储参数绑定规则。
中层：APDL 核心仿真脚本 dianpian.txt
实现 X_T 模型导入、多材料定义（含线膨胀系数热应力）、垫片几何建模、网格划分、温度场 + 压力载荷施加、约束设置、求解、后处理自动导出应力 / 位移 / 温度 PNG 云图。
底层：Windows BAT 批处理脚本
静默后台调用 ANSYS 241 batch 模式，无 GUI 运行仿真，输出运行日志 run.log，计算完成后窗口暂停查看报错。
流程执行顺序
调用 FastAPI 接口绑定 APDL 内需要迭代的参数（压力、温度、弹性模量等）；
更新参数值，一键覆盖原始 APDL 脚本；
双击 bat 批处理文件启动 ANSYS 批量求解；
求解结束自动生成各类云图 PNG 图片，用于仿真报告。
三、底层：Windows BAT 批处理启动 ANSYS 批量仿真
首先明确有两部分，一个是window脚本，一个是ansys脚本，使用bat脚本驱动ansys脚本实现生成相关文件（比如云图等）
windows脚本
bash
@echo off
cd /d "D:\Demo\ansysScriptChange"
"D:\Program Files\ANSYS Inc\v241\ansys\bin\winx64\ansys241.exe" -b -i dianpian.txt -o run.log
pauseansys脚本文件
bash
/batch
/FILNAME,file,0
~PARAIN,dianpian,X_T
/FACET,NORML
/REPLOT
!===== 自定义显示颜色 =====
/RGB,INDEX,100,100,100, 0
/RGB,INDEX, 80, 80, 80, 13
/RGB,INDEX, 60, 60, 60, 14
/RGB,INDEX, 0, 0, 0, 15
/REPLOT
/prep7
ET,1,SOLID187
!==================== 材料定义（新增线膨胀系数ALPX用于热应力计算） ====================
!材料1：原导入零件
MP,EX,1,110000
MP,PRXY,1,0.33
MP,DENS,1,0.000004540
MP,ALPX,1,8.6E-6 !线膨胀系数 1/℃
!材料2：垫片1 铝合金
MP,EX,2,70000
MP,PRXY,2,0.30
MP,DENS,2,0.000002710
MP,ALPX,2,23.0E-6
!材料3：垫片2 结构钢
MP,EX,3,210000
MP,PRXY,3,0.30
MP,DENS,3,0.000007850
MP,ALPX,3,11.5E-6
!材料4：垫片3 钛合金
MP,EX,4,95000
MP,PRXY,4,0.32
MP,DENS,4,0.000004430
MP,ALPX,4,9.4E-6
!原导入几何体赋材料1
VSEL, , , ,1
VATT,1,,1,0
VSEL,ALL
!==================== 创建3个圆形圆环垫片 ====================
!垫片1：内R10，外R20，厚度2，Z：0~2
CYL4,0,0,10,,20,,0,2
!垫片2：内R15，外R25，厚度1.5，Z：5~6.5
CYL4,0,0,15,,25,,5,6.5
!垫片3：内R8，外R18，厚度3，Z：10~13
!垫片1（体2）→材料2
VSEL,S,VOLU,,2
VATT,2,,1,0
VSEL,ALL
!垫片2（体3）→材料3
VSEL,S,VOLU,,3
VATT,3,,1,0
VSEL,ALL
!垫片3（体4）→材料4
VSEL,S,VOLU,,4
VATT,4,,1,0
VSEL,ALL
!==================== 网格划分 ====================
SMRT,7
MSHAPE,1,3D
MSHKEY,0
VMESH,all
FINISH
/SOL
ALLSEL
!========= 温度载荷设置 =========
TREF,25 !参考温度（无应力初始温度）25℃
!可全局统一环境温度
BF,ALL,TEMP,300
!若需要各部件不同环境温度，取消上面BF全局命令，用下面分段设置
!VSEL,S,MAT,,1
!BF,ALL,TEMP,75
!VSEL,S,MAT,,2
!BF,ALL,TEMP,90
!VSEL,S,MAT,,3
!BF,ALL,TEMP,60
!VSEL,S,MAT,,4
!BF,ALL,TEMP,85
!ALLSEL
!========= 原模型约束（保留你原有8号面全约束） =========
DA,8,ALL,
ALLSEL
!==================== 各垫片分别约束+施加不同压力 ====================
!===== 垫片1：Z=0~2，底面Z=0全约束，上表面施加压力 5MPa =====
ASEL,S,LOC,Z,0
DA,ALL,ALL
ASEL,S,LOC,Z,2
SFA,ALL,1,PRES,2000
ALLSEL
!===== 垫片2：Z=5~6.5，底面Z=5全约束，上表面施加压力 12MPa =====
ASEL,S,LOC,Z,5
DA,ALL,ALL
ASEL,S,LOC,Z,6.5
SFA,ALL,1,PRES,12
ALLSEL
!===== 垫片3：Z=10~13，底面Z=10全约束，上表面施加压力 8MPa =====
ASEL,S,LOC,Z,10
DA,ALL,ALL
ASEL,S,LOC,Z,13
SFA,ALL,1,PRES,8
ALLSEL
SAVE
/SOLU
/STATUS,SOLU
SOLVE
!==================== 后处理输出云图 ====================
/POST1
set,last
/VIEW,1,1,2,3
/ANG,1
/REP,FAST
/VIEW,1,1,1,1
/ANG,1
/REP,FAST
!等效应力云图
/GRAPHICS,POWER
/SHOW,PNG,,0
/DSCALE,ALL,1.0
/EFACET,1
PLNSOL,S,EQV
/SHOW,CLOSE
/DEVICE,VECTOR,0
/RENAME,FILE000,PNG,,EQV,PNG
!总位移云图
/GRAPHICS,POWER
/SHOW,PNG,,0
/DSCALE,ALL,1.0
/EFACET,1
PLNSOL,U,SUM
/SHOW,CLOSE
/DEVICE,VECTOR,0
/RENAME,FILE000,PNG,,USUM,PNG
!可选：输出温度分布云图
/GRAPHICS,POWER
/SHOW,PNG,,0
PLNSOL,TEMP
/SHOW,CLOSE
/RENAME,FILE000,PNG,,TEMP,PNG
/EXIT,ALLpython函数实现参数替换（基础版 按照行数和下标 标定数据）
bash
import json
import os
from typing import List, Dict, Any, Optional
from fastapi import FastAPI, Body
from pydantic import BaseModel
app = FastAPI(title="文本变量绑定替换服务")
BIND_CONFIG_PATH = "text_bind_config.json"
# 全局存储绑定实例
class TextVariableBinder:
def __init__(self, file_path: str):
self.target_file_path = file_path
self.bind_mapping: List[Dict[str, Any]] = self._load_bind_config()
def _load_bind_config(self) -> List[Dict[str, Any]]:
if not os.path.exists(BIND_CONFIG_PATH):
return []
with open(BIND_CONFIG_PATH, "r", encoding="utf-8") as f:
return json.load(f)
def _save_bind_config(self):
with open(BIND_CONFIG_PATH, "w", encoding="utf-8") as f:
json.dump(self.bind_mapping, f, ensure_ascii=False, indent=2)
def _get_file_lines(self) -> List[str]:
with open(self.target_file_path, "r", encoding="utf-8") as f:
return f.readlines()
def bind_variable(self, var_name: str, line_no: int, start_idx: int, end_idx: int, original_text: str) -> Dict[str, Any]:
for item in self.bind_mapping:
if item["var_name"] == var_name:
return {"code": 400, "msg": f"变量{var_name}已存在", "data": None}
lines = self._get_file_lines()
if line_no < 0 or line_no >= len(lines):
return {"code": 400, "msg": f"行号{line_no}超出范围", "data": None}
line_content = lines[line_no]
if start_idx < 0 or end_idx > len(line_content):
return {"code": 400, "msg": "下标超出该行文本范围", "data": None}
real_text = line_content[start_idx:end_idx]
if real_text != original_text:
return {"code": 400, "msg": f"原始文本不匹配，文件内实际：{real_text}", "data": None}
bind_item = {
"var_name": var_name,
"file_path": self.target_file_path,
"line_no": line_no,
"start_idx": start_idx,
"end_idx": end_idx,
"origin_text": original_text,
"current_value": original_text
}
self.bind_mapping.append(bind_item)
self._save_bind_config()
return {"code": 200, "msg": "绑定成功", "data": bind_item}
def update_variable_value(self, var_name: str, new_value: str) -> Dict[str, Any]:
target = None
for item in self.bind_mapping:
if item["var_name"] == var_name:
target = item
break
if not target:
return {"code": 404, "msg": f"变量{var_name}不存在", "data": None}
target["current_value"] = new_value
self._save_bind_config()
return {"code": 200, "msg": "变量更新成功", "data": {"var_name": var_name, "new_value": new_value}}
def get_all_bind_info(self) -> Dict[str, Any]:
return {"code": 200, "msg": "查询成功", "data": self.bind_mapping}
def read_target_file(self) -> Dict[str, Any]:
try:
lines = self._get_file_lines()
return {"code": 200, "msg": "读取成功", "data": {"line_count": len(lines), "lines": lines}}
except Exception as e:
return {"code": 500, "msg": f"读取失败：{str(e)}", "data": None}
def save_modified_file(self, output_path: str) -> Dict[str, Any]:
try:
lines = self._get_file_lines()
sorted_binds = sorted(self.bind_mapping, key=lambda x: x["line_no"], reverse=True)
for bind in sorted_binds:
ln = bind["line_no"]
s = bind["start_idx"]
e = bind["end_idx"]
val = bind["current_value"]
origin_line = lines[ln]
new_line = origin_line[:s] + val + origin_line[e:]
lines[ln] = new_line
with open(output_path, "w", encoding="utf-8") as f:
f.writelines(lines)
return {"code": 200, "msg": "文件保存完成", "data": {"save_path": output_path}}
except Exception as e:
return {"code": 500, "msg": f"保存失败：{str(e)}", "data": None}
def clear_all_bind(self) -> Dict[str, Any]:
self.bind_mapping = []
self._save_bind_config()
return {"code": 200, "msg": "全部绑定已清空", "data": None}
# 【修改】直接覆盖原始文件，不需要传入输出路径
def overwrite_origin_file(self) -> Dict[str, Any]:
try:
lines = self._get_file_lines()
# 行号倒序替换，防止下标偏移
sorted_binds = sorted(self.bind_mapping, key=lambda x: x["line_no"], reverse=True)
for bind in sorted_binds:
ln = bind["line_no"]
s = bind["start_idx"]
e = bind["end_idx"]
val = bind["current_value"]
origin_line = lines[ln]
new_line = origin_line[:s] + val + origin_line[e:]
lines[ln] = new_line
# 直接写入原文件，覆盖
with open(self.target_file_path, "w", encoding="utf-8") as f:
f.writelines(lines)
return {"code": 200, "msg": f"已直接覆盖原始文件：{self.target_file_path}", "data": {"origin_file": self.target_file_path}}
except Exception as e:
return {"code": 500, "msg": f"覆盖原文件失败：{str(e)}", "data": None}
# 全局工具实例（操作目标文件 test.txt）
binder = TextVariableBinder(file_path="dianpian.txt")
# 请求体模型
class BindReq(BaseModel):
var_name: str
line_no: int
start_idx: int
end_idx: int
original_text: str
class UpdateVarReq(BaseModel):
var_name: str
new_value: str
class SaveFileReq(BaseModel):
output_path: str
# 接口1：绑定变量
@app.post("/api/bind")
def bind_api(req: BindReq = Body()):
return binder.bind_variable(
var_name=req.var_name,
line_no=req.line_no,
start_idx=req.start_idx,
end_idx=req.end_idx,
original_text=req.original_text
)
# 接口2：更新变量值
@app.post("/api/update_var")
def update_var_api(req: UpdateVarReq = Body()):
return binder.update_variable_value(var_name=req.var_name, new_value=req.new_value)
# 接口3：查询所有绑定
@app.get("/api/all_bind")
def get_all_bind_api():
return binder.get_all_bind_info()
# 接口4：读取原始文件
@app.get("/api/read_file")
def read_file_api():
return binder.read_target_file()
# 接口5：导出替换后的文件
@app.post("/api/save_file")
def save_file_api(req: SaveFileReq = Body()):
return binder.save_modified_file(output_path=req.output_path)
# 【新增】覆盖原文件接口，无入参
@app.post("/api/overwrite_origin")
def overwrite_origin_api():
return binder.overwrite_origin_file()
# 接口6：清空所有绑定
@app.post("/api/clear_bind")
def clear_bind_api():
return binder.clear_all_bind()
if __name__ == "__main__":
import uvicorn
uvicorn.run(app="main:app", host="127.0.0.1", port=8000, reload=True)python函数实现参数替换（按照正则表达式精准匹配）
bash
import json
import os
import re
from typing import List, Dict, Any
from fastapi import FastAPI, Body
from pydantic import BaseModel
# 服务初始化
app = FastAPI(title="APDL脚本正则参数绑定工具", version="1.0")
CONFIG_FILE = "bind_config.json"
TARGET_APDL_FILE = "dianpian.txt"
# 绑定配置管理核心类
class APDLParamBinder:
def __init__(self):
self.bind_list: List[Dict] = self._load_config()
# 加载本地绑定配置
def _load_config(self) -> List[Dict]:
if not os.path.exists(CONFIG_FILE):
return []
with open(CONFIG_FILE, "r", encoding="utf-8") as f:
return json.load(f)
# 持久化保存配置
def _save_config(self):
with open(CONFIG_FILE, "w", encoding="utf-8") as f:
json.dump(self.bind_list, f, ensure_ascii=False, indent=2)
# 读取APDL文件所有行
def _read_apdl_lines(self) -> List[str]:
with open(TARGET_APDL_FILE, "r", encoding="utf-8") as f:
return f.readlines()

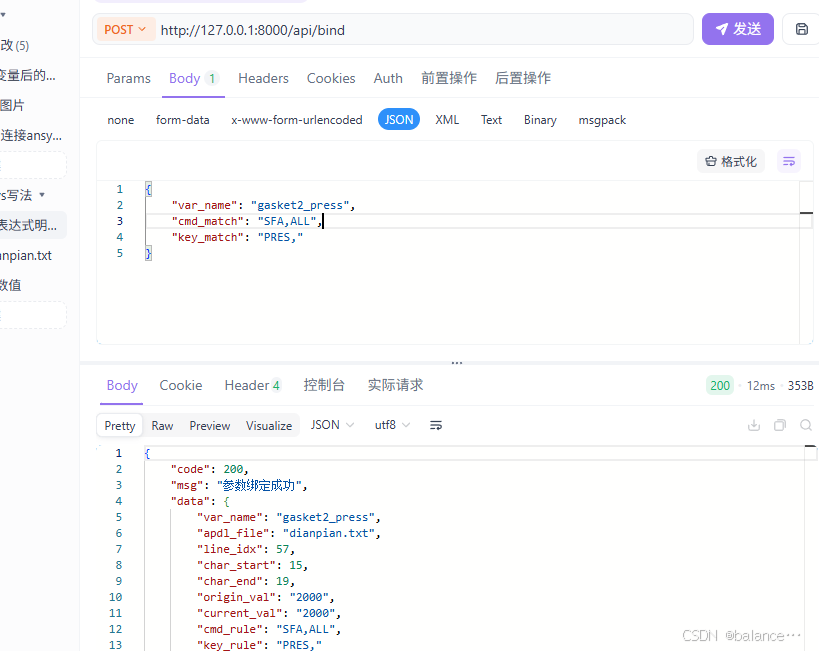

# 核心：正则绑定参数（完全独立，无任何旧行号下标逻辑）
def bind_param(self, var_name: str, cmd_match: str, key_match: str) -> Dict[str, Any]:
"""
:param var_name: 自定义变量名
:param cmd_match: 定位行的命令片段，如 SFA,ALL
:param key_match: 行内匹配关键字，如 PRES,
匹配规则：key_match后截取 逗号/空格/换行前的内容
"""
# 校验变量重复
for item in self.bind_list:
if item["var_name"] == var_name:
return {"code": 400, "msg": f"变量 {var_name} 已存在", "data": None}
lines = self._read_apdl_lines()
target_line = None
line_index = -1
# 1. 匹配包含cmd_match的行
for idx, line in enumerate(lines):
if cmd_match in line:
target_line = line
line_index = idx
break
if line_index == -1:
return {"code": 404, "msg": f"未找到包含 [{cmd_match}] 的脚本行", "data": None}
# 2. 正则精准捕获key后第一个参数，遇到逗号/空格立即停止
escape_key = re.escape(key_match)
pattern = re.compile(rf"{escape_key}([^, \t\r\n]+)")
match_result = pattern.search(target_line)
if not match_result:
return {"code": 400, "msg": f"当前行不存在 {key_match} 后参数", "data": None}
origin_value = match_result.group(1)
start_pos = match_result.start(1)
end_pos = match_result.end(1)
# 存入绑定列表（仅存储正则计算出的下标，外部无需手动传入）
bind_info = {
"var_name": var_name,
"apdl_file": TARGET_APDL_FILE,
"line_idx": line_index,
"char_start": start_pos,
"char_end": end_pos,
"origin_val": origin_value,
"current_val": origin_value,
"cmd_rule": cmd_match,
"key_rule": key_match
}
self.bind_list.append(bind_info)
self._save_config()
return {"code": 200, "msg": "参数绑定成功", "data": bind_info}
# 更新已绑定变量的值
def update_param(self, var_name: str, new_val: str) -> Dict[str, Any]:
target = None
for item in self.bind_list:
if item["var_name"] == var_name:
target = item
break
if not target:
return {"code": 404, "msg": f"变量 {var_name} 不存在", "data": None}
target["current_val"] = new_val.strip()
self._save_config()
return {"code": 200, "msg": "变量更新完成", "data": {"var": var_name, "new_value": new_val.strip()}}
# 生成修改后的APDL文件并覆盖原文件
def overwrite_apdl(self) -> Dict[str, Any]:
try:
lines = self._read_apdl_lines()
# 倒序替换，防止字符下标偏移
sorted_binds = sorted(self.bind_list, key=lambda x: x["line_idx"], reverse=True)
for bind in sorted_binds:
ln = bind["line_idx"]
s = bind["char_start"]
e = bind["char_end"]
new_text = bind["current_val"]
raw_line = lines[ln]
new_line = raw_line[:s] + new_text + raw_line[e:]
lines[ln] = new_line
# 覆盖原始文件
with open(TARGET_APDL_FILE, "w", encoding="utf-8") as f:
f.writelines(lines)
return {"code": 200, "msg": "已覆盖原始APDL文件", "data": {"file": TARGET_APDL_FILE}}
except Exception as err:
return {"code": 500, "msg": f"写入失败: {str(err)}", "data": None}
# 导出另存为新文件
def export_new_apdl(self, save_path: str) -> Dict[str, Any]:
try:
lines = self._read_apdl_lines()
sorted_binds = sorted(self.bind_list, key=lambda x: x["line_idx"], reverse=True)
for bind in sorted_binds:
ln = bind["line_idx"]
s = bind["char_start"]
e = bind["char_end"]
new_text = bind["current_val"]
raw_line = lines[ln]
new_line = raw_line[:s] + new_text + raw_line[e:]
lines[ln] = new_line
with open(save_path, "w", encoding="utf-8") as f:
f.writelines(lines)
return {"code": 200, "msg": "文件导出成功", "data": {"save_path": save_path}}
except Exception as err:
return {"code": 500, "msg": f"导出失败: {str(err)}", "data": None}
# 查询所有绑定规则
def get_all_binds(self) -> Dict[str, Any]:
return {"code": 200, "msg": "查询成功", "data": self.bind_list}
# 清空全部绑定配置
def clear_all_binds(self) -> Dict[str, Any]:
self.bind_list = []
self._save_config()
return {"code": 200, "msg": "所有绑定规则已清空", "data": None}
# 全局实例
binder = APDLParamBinder()
# ==================== 请求体模型 ====================
class BindRequest(BaseModel):
var_name: str
cmd_match: str
key_match: str
class UpdateRequest(BaseModel):
var_name: str
new_val: str
class ExportRequest(BaseModel):
save_path: str
# ==================== 接口定义 ====================
# 1. 正则绑定参数接口
@app.post("/api/bind")
def api_bind(req: BindRequest = Body()):
return binder.bind_param(req.var_name, req.cmd_match, req.key_match)
# 2. 更新变量值接口

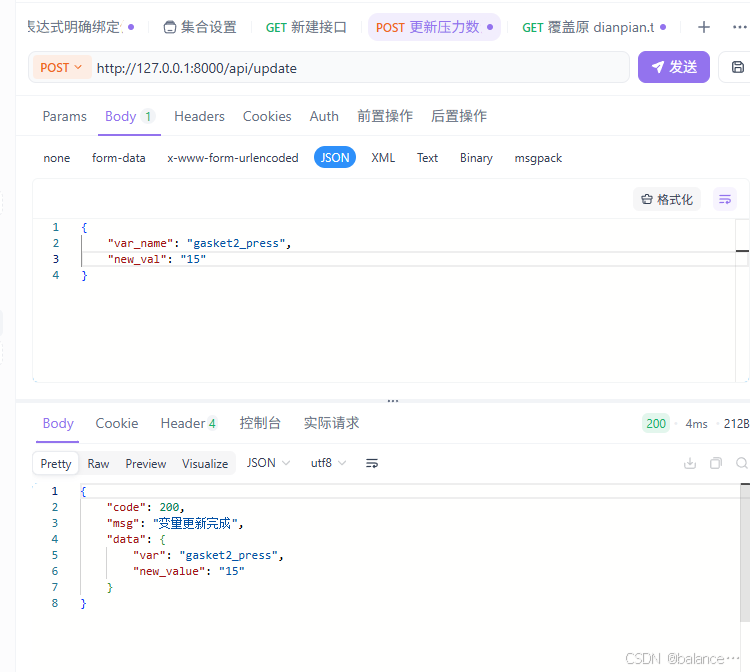

@app.post("/api/update")
def api_update(req: UpdateRequest = Body()):
return binder.update_param(req.var_name, req.new_val)
# 3. 查询全部绑定
@app.get("/api/list")
def api_list():
return binder.get_all_binds()
# 4. 覆盖原始APDL文件

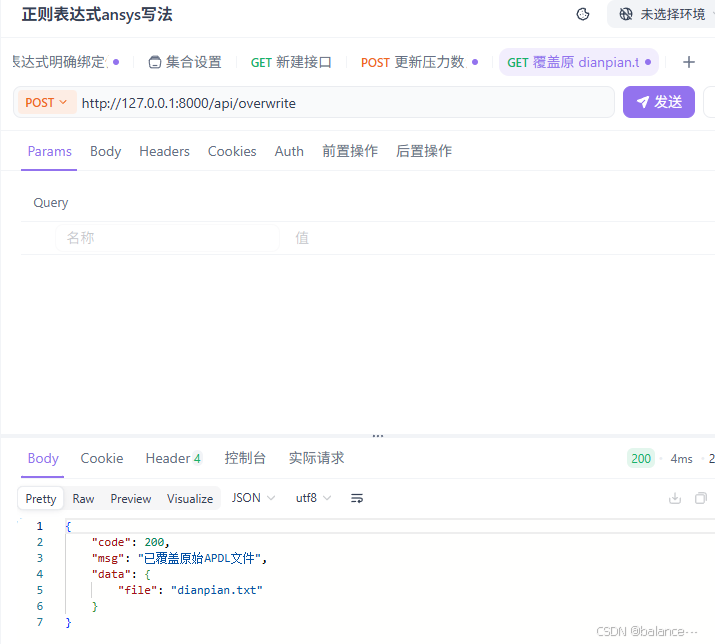

@app.post("/api/overwrite")
def api_overwrite():
return binder.overwrite_apdl()
# 5. 导出新文件
@app.post("/api/export")
def api_export(req: ExportRequest = Body()):
return binder.export_new_apdl(req.save_path)
# 6. 清空绑定配置
@app.post("/api/clear")
def api_clear():
return binder.clear_all_binds()
if __name__ == "__main__":
import uvicorn
uvicorn.run(app="main:app", host="127.0.0.1", port=8000)
出现更改两次把换行符替换掉，所以优化代码
bash
import json
import os
import re
from typing import List, Dict, Any
from fastapi import FastAPI, Body
from pydantic import BaseModel
app = FastAPI(title="APDL脚本正则参数绑定工具", version="1.0")
CONFIG_FILE = "bind_config.json"
TARGET_APDL_FILE = "dianpian.txt"
class APDLParamBinder:
def __init__(self):
self.bind_list: List[Dict] = self._load_config()
def _load_config(self) -> List[Dict]:
if not os.path.exists(CONFIG_FILE):
return []
with open(CONFIG_FILE, "r", encoding="utf-8") as f:
return json.load(f)
def _save_config(self):
with open(CONFIG_FILE, "w", encoding="utf-8") as f:
json.dump(self.bind_list, f, ensure_ascii=False, indent=2)
def _read_apdl_lines(self) -> List[str]:
with open(TARGET_APDL_FILE, "r", encoding="utf-8") as f:
return f.readlines()
# 内部工具：单次根据cmd+key实时匹配获取位置与原值
def _get_target_pos(self, lines: List[str], cmd_match: str, key_match: str):
line_index = -1
target_line = ""
for idx, line in enumerate(lines):
if cmd_match in line:
line_index = idx
target_line = line
break
if line_index == -1:
return None, None, None, None
esc_key = re.escape(key_match)
pat = re.compile(rf"{esc_key}([^, \t\r\n]+)")
m = pat.search(target_line)
if not m:
return None, None, None, None
val = m.group(1)
s = m.start(1)
e = m.end(1)
return line_index, s, e, val
def bind_param(self, var_name: str, cmd_match: str, key_match: str) -> Dict[str, Any]:
for item in self.bind_list:
if item["var_name"] == var_name:
return {"code": 400, "msg": f"变量 {var_name} 已存在", "data": None}
lines = self._read_apdl_lines()
line_idx, s, e, origin_val = self._get_target_pos(lines, cmd_match, key_match)
if line_idx is None:
return {"code": 404, "msg": f"未匹配 {cmd_match} + {key_match}", "data": None}
# 不再存储静态下标，只存匹配规则，彻底解决偏移问题
bind_info = {
"var_name": var_name,
"cmd_match": cmd_match,
"key_match": key_match,
"origin_val": origin_val,
"current_val": origin_val
}
self.bind_list.append(bind_info)
self._save_config()
return {"code": 200, "msg": "参数绑定成功", "data": bind_info}
def update_param(self, var_name: str, new_val: str) -> Dict[str, Any]:
target = None
for item in self.bind_list:
if item["var_name"] == var_name:
target = item
break
if not target:
return {"code": 404, "msg": f"变量 {var_name} 不存在", "data": None}
# 修复：去掉strip()，保留原始输入，不自动删换行空格
target["current_val"] = new_val
self._save_config()
return {"code": 200, "msg": "变量更新完成", "data": {"var": var_name, "new_value": new_val}}
def overwrite_apdl(self) -> Dict[str, Any]:
try:
lines = self._read_apdl_lines()
# 每次写入都实时重新正则定位，不依赖旧下标
for bind in self.bind_list:
ln, s, e, _ = self._get_target_pos(lines, bind["cmd_match"], bind["key_match"])
if ln is None or s is None or e is None:
continue
raw_line = lines[ln]
new_line = raw_line[:s] + bind["current_val"] + raw_line[e:]
lines[ln] = new_line
with open(TARGET_APDL_FILE, "w", encoding="utf-8") as f:
f.writelines(lines)
return {"code": 200, "msg": "已覆盖原始APDL文件", "data": {"file": TARGET_APDL_FILE}}
except Exception as err:
return {"code": 500, "msg": f"写入失败: {str(err)}", "data": None}
def export_new_apdl(self, save_path: str) -> Dict[str, Any]:
try:
lines = self._read_apdl_lines()
for bind in self.bind_list:
ln, s, e, _ = self._get_target_pos(lines, bind["cmd_match"], bind["key_match"])
if ln is None or s is None or e is None:
continue
raw_line = lines[ln]
new_line = raw_line[:s] + bind["current_val"] + raw_line[e:]
lines[ln] = new_line
with open(save_path, "w", encoding="utf-8") as f:
f.writelines(lines)
return {"code": 200, "msg": "文件导出成功", "data": {"save_path": save_path}}
except Exception as err:
return {"code": 500, "msg": f"导出失败: {str(err)}", "data": None}
def get_all_binds(self) -> Dict[str, Any]:
return {"code": 200, "msg": "查询成功", "data": self.bind_list}
def clear_all_binds(self) -> Dict[str, Any]:
self.bind_list = []
self._save_config()
return {"code": 200, "msg": "所有绑定规则已清空", "data": None}
binder = APDLParamBinder()
# 请求体
class BindRequest(BaseModel):
var_name: str
cmd_match: str
key_match: str
class UpdateRequest(BaseModel):
var_name: str
new_val: str
class ExportRequest(BaseModel):
save_path: str
# 接口
@app.post("/api/bind")
def api_bind(req: BindRequest = Body()):
return binder.bind_param(req.var_name, req.cmd_match, req.key_match)
@app.post("/api/update")
def api_update(req: UpdateRequest = Body()):
return binder.update_param(req.var_name, req.new_val)
@app.get("/api/list")
def api_list():
return binder.get_all_binds()
@app.post("/api/overwrite")
def api_overwrite():
return binder.overwrite_apdl()
@app.post("/api/export")
def api_export(req: ExportRequest = Body()):
return binder.export_new_apdl(req.save_path)
@app.post("/api/clear")
def api_clear():
return binder.clear_all_binds()
if __name__ == "__main__":
import uvicorn
uvicorn.run(app="main:app", host="127.0.0.1", port=8000)
