STM32学习笔记【29.IIC总线-OLED实验】

巴巴媛6662026-07-03 9:28

文章目录

  • 前言
  • 小实验：OLED实验
    • 实验1：OLED实验（通讯时序）
      • [1. 实验目的](#1. 实验目的)
      • [2. 硬件清单](#2. 硬件清单)
      • [3. 硬件接线](#3. 硬件接线)
      • [4. 构思环节](#4. 构思环节)
        • [1. 建立oled文件夹](#1. 建立oled文件夹)
        • [2. oled.c，先**搭建框架**](#2. oled.c，先搭建框架)
        • [**// 封装一个函数，根据oled通信协议写**](#// 封装一个函数，根据oled通信协议写)
        • [3. 先初始化GPIO](#3. 先初始化GPIO)
        • [4. 根据oled通信协议写时序代码](#4. 根据oled通信协议写时序代码)
        • [5. 发送数据和命令](#5. 发送数据和命令)
        • [6. 点亮OLED](#6. 点亮OLED)
        • [7. 主函数](#7. 主函数)
      • [5. 出现的问题](#5. 出现的问题)
      • [6. 代码展示](#6. 代码展示)
      • [7. 实验结果](#7. 实验结果)

前言

本次OLED实验，主要是通过I2C总线，驱动OLED屏幕，让屏幕显示字符、字符串、汉字以及图片内容。

小实验：OLED实验

实验1：OLED实验（通讯时序）

1. 实验目的

驱动OLED屏幕，显示点、线、字符、字符串、汉字、图片等内容

2. 硬件清单

  • OLED屏幕
  • 上官二号
  • ST-Link
  • USB转TTL

3. 硬件接线

STM32 OLED屏幕
PB6 SCL
PB7 SDA
3V3 VCC
GND GND

4. 构思环节

1. 建立oled文件夹
2. oled.c，先搭建框架
c 复制代码
// oled的gpio初始化
void oled_gpio_init(void)
{

}
// 封装一个函数，根据oled通信协议写

// 框架先搭建好

c 复制代码
// *1. start起始信号*
void oled_i2c_start(void)
{

}

// *2. stop信号*
void oled_i2c_stop(void)
{

}
// *3. 中间有ACK信号*
void oled_i2c_ack(void)
{

}
// *4.读写数据信号*
void oled_i2c_write_byte(uint8_t data)
{

}

// *发送data*
void oled_write_data(uint8_t data)
{

}
// *发送command*
void oled_write_command(uint8_t cmd)
{

}
// *oled初始化*
void oled_init(void)
{
oled_gpio_init();
}
3. 先初始化GPIO

oled.h

用两个IO口模拟IIC，对这两个IO口进行封装，后面拉高拉低或写成其他要求很方便移植

c 复制代码
#define OLED_I2C_SCL_CLK()   __HAL_RCC_GPIOB_CLK_ENABLE();
#define OLED_I2C_SCL_PORT    GPIOB
#define OLED_I2C_SCL_PIN     GPIO_PIN_6

#define OLED_I2C_SDA_CLK()   __HAL_RCC_GPIOB_SDA_ENABLE();
#define OLED_I2C_SDA_PORT    GPIOB
#define OLED_I2C_SDA_PIN     GPIO_PIN_7

#define OLED_SCL_RESET()  HAL_GPIO_WritePin(OLED_I2C_SCL_PORT , OLED_I2C_SCL_PIN, GPIO_PIN_RESET)// 拉低
#define OLED_SCL_SET()    HAL_GPIO_WritePin(OLED_I2C_SCL_PORT , OLED_I2C_SCL_PIN, GPIO_PIN_SET) // 拉高

#define OLED_SDA_RESET()  HAL_GPIO_WritePin(OLED_I2C_SDA_PORT, OLED_I2C_SDA_PIN, GPIO_PIN_RESET)// 拉低
#define OLED_SDA_SET()    HAL_GPIO_WritePin(OLED_I2C_SDA_PORT, OLED_I2C_SDA_PIN, GPIO_PIN_SET) // 拉高

oled.c

c 复制代码
// GPIO初始化
void oled_gpio_init(void)
{
// 对SCL和SDA进行初始化
// 一主一从模式，所以推挽和开漏输出都可以
}
4. 根据oled通信协议写时序代码
c 复制代码
//通信协议
// *1. start起始信号*【根据时序图写代码】
void oled_i2c_start(void)
{
// SCL高电平状态
OLED_SCL_SET();
//SDA高电平状态
// SDA低电平状态
// SCL低电平状态
}

// *2. 产生stop信号*
void oled_i2c_stop(void)
{
// SCL高电平状态
// SDA低电平状态
// SDA高电平状态
}

// *3. 中间有ACK信号*
void oled_i2c_ack(void)
{
// SCL高电平
// SCL低电平
}
// *4.读写数据信号*
SCL低电平期间，数据放到SDA线中；SCL高电平时保持不变，从机在高电平时读取SDA中的数据，依次循环8次，发完一个字节内容
void oled_i2c_write_byte(uint8_t data)
{
uint8_t i, tmp;
tmp = data; //修改tmp，不会对原来data产生修改

for(i = 0;i < 8; i++)
{
// 取出最高位，是否等于0x80，data第一位为1，SDA线拉高
     if()
     {
     }
      // 否则为0，拉低
     else
     {
     }
     // 左移1位
     tmp = tmp << 1;
     // SCL高电平状态
     // SCL低电平状态
}

}

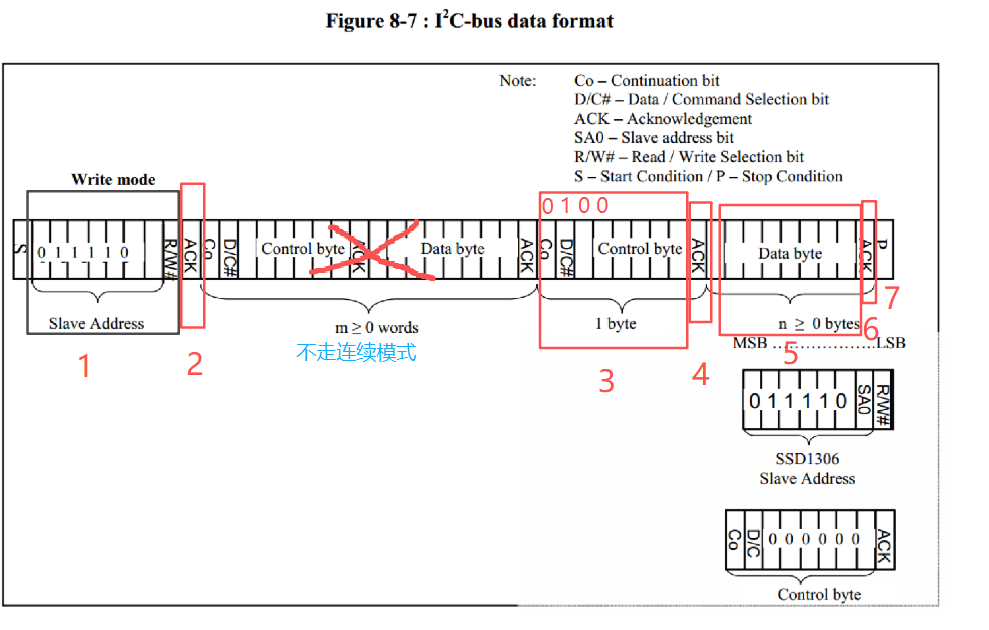

5. 发送数据和命令

// 发送data

按照上述图片写

c 复制代码
// 发送数据
void oled_write_data(uint8_t data)
{
oled_i2c_start();
oled_i2c_write_byte(0x78);
oled_i2c_ack();
oled_i2c_write_byte(0x40);
oled_i2c_ack();
oled_i2c_write_byte(data);
oled_i2c_ack();
oled_i2c_stop();
}
// *发送command*
void oled_write_command(uint8_t cmd)
{
oled_i2c_start();
oled_i2c_write_byte(0x78);
oled_i2c_ack();
oled_i2c_write_byte(0x00);
oled_i2c_ack();
oled_i2c_write_byte(cmd);
oled_i2c_ack();
oled_i2c_stop();
}
6. 点亮OLED
c 复制代码
void oled_init(void)
{
  oled_gpio_init();

  delay_ms(100);

  // 设置显示开启/关闭，0xAE关闭，0xAF开启
  oled_write_cmd(0xAE);

  // 设置显示时钟分频比/振荡器频率
  oled_write_cmd(0xD5);
  // 0x00~0xFF
  oled_write_cmd(0x80);

  // 设置多路复用率
  oled_write_cmd(0xA8);
  // 0x0E~0x3F
  oled_write_cmd(0x3F);

  // 设置显示偏移
  oled_write_cmd(0xD3);
  //  0x00~0x7F
  oled_write_cmd(0x00);

  // 设置显示开始行，   0x40~0x7F
  oled_write_cmd(0x40);

  // 设置左右方向，0xA1正常，0xA0左右反置
  oled_write_cmd(0xA1);

  //设置上下方向，0xC8正常，0xC0上下反置
  oled_write_cmd(0xC8);

  // 设置COM引脚硬件配置
  oled_write_cmd(0xDA);
  oled_write_cmd(0x12);

  // 设置对比度
  oled_write_cmd(0x81);
  // 0x00~0xFF
  oled_write_cmd(0xCF);

  // 设置预充电周期
  oled_write_cmd(0xD9);
  oled_write_cmd(0xF1);

  //设置VCOMH取消选择级别
  oled_write_cmd(0xDB);
  oled_write_cmd(0x30);

  // 设置整个显示打开/关闭
  oled_write_cmd(0xA4);

  // 设置正常/反色显示，0xA6正常，0xA7反色
  oled_write_cmd(0xA6);

  // 设置充电泵
  oled_write_cmd(0x8D);
  oled_write_cmd(0x14);

  // 开启显示
  oled_write_cmd(0xAF);
}
7. 主函数
c 复制代码
int main()
{
  oled_init();

  oled_write_cmd(0xB0); // 指定page
  oled_write_cmd(0x00);
  oled_write_cmd(0x10);

  oled_write_data(0x80);
}

oled.c

c 复制代码
// 封装指定坐标函数
void oled_set_cursor(uint8_t x, uint8_t y)
{
  oled_write_cmd(0xB0 + y);
  oled_write_cmd((x & 0x0F) | 0x00);
  oled_write_cmd(((x & 0xF0) >> 4) | 0x10);
}
// 封装清屏函数
void oled_fill(uint8_t data)
{
   uint8_t i, j;
   // 外层循环page
   for(i = 0; i< 8; i++)
   {
        oled_set_cursor(0, i);
        for(j = 0; j < 128; j++)
           oled_write_data(data);
   }
}

主函数中：

c 复制代码
oled_fill(0x00);
oled_set_cursor(0， 0); // 换成这个封装指定page函数


// 显示"点"和"线"
oled_write_data(0x80);
oled_write_data(0x80);
oled_write_data(0x80);
oled_write_data(0x80);
oled_write_data(0x80);

// 封装函数，显示字符

在"PCtoLCD2002完美版-字符模式"软件取模：

0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20./"A",0 /

对应大写字母"A"的数据

①在oled文件夹中创建font.h文件

②将ASCII的所有字符加入进去，利用取模

③封装函数，显示字符

size:指定的字符有多高

c 复制代码
void oled_show_char(uint8_t x, uint8_t y, uint8_t num, uint8_t size)
{
uint8_t i, j, page;
num = num - ' ';
page = size / 8;
if(size % 8 )
   page++;
      //外循环page
      for(j = 0; j < page; j++)
      {
      // 如何获取page
      oled_set_cursor(x, y + j);
   // 内循环每一列显示
    for(i = size / 2 * j; i < size / 2 * (j + 1); i++)
   {
   if(size == 12)
      oled_write_data(ascii_6X12[num][i]);
   else if(size == 16)
      oled_write_data(ascii_8X16[num][i]);
   else if (size == 24)
       oled_write_data(ascii_12X24[num][i]);
 }
      }
}

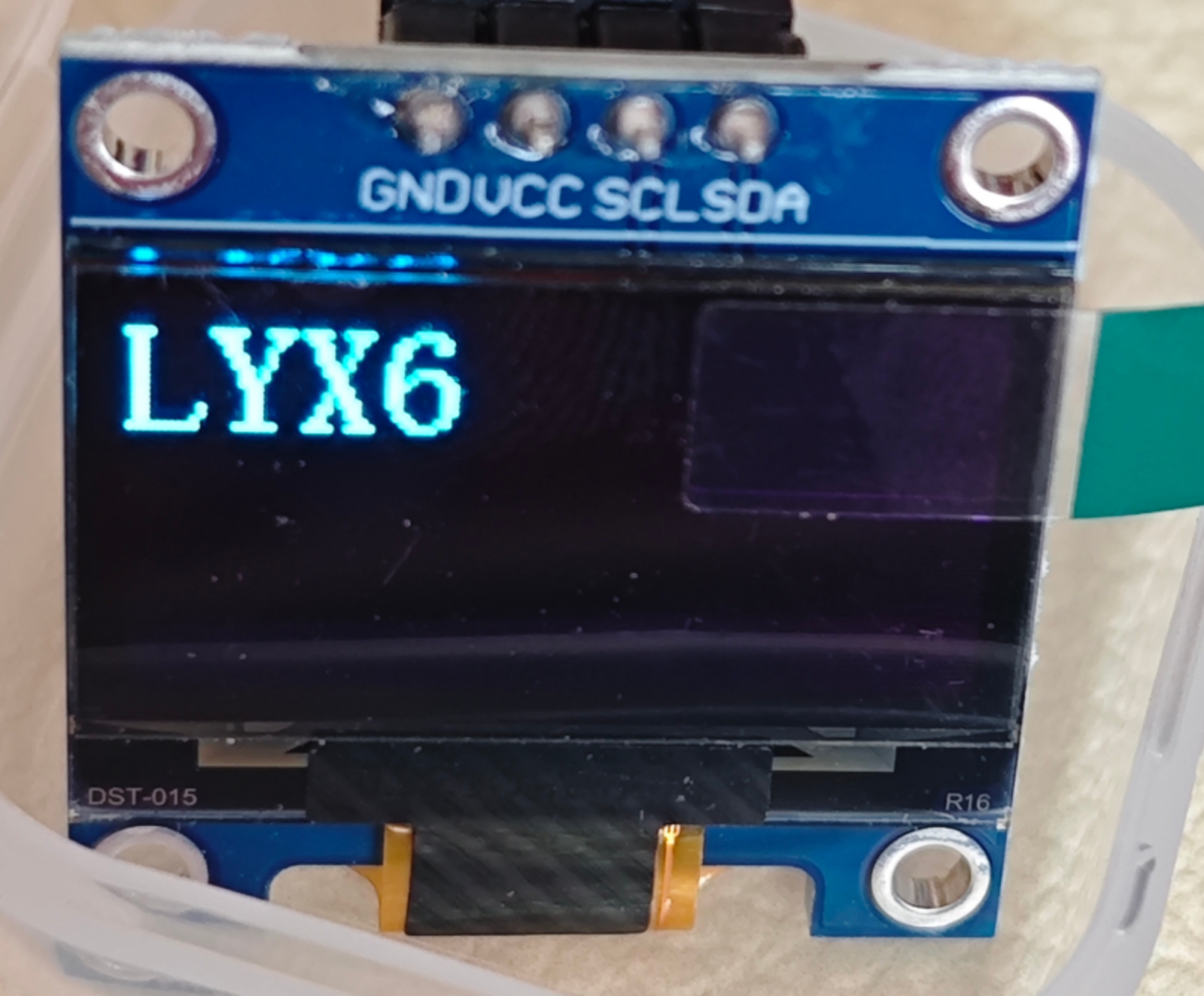

主函数中：【字符展示】

c 复制代码
oled_show_char(0, 0, 'L', 24);
oled_show_char(12, 0, 'Y', 24);
oled_show_char(24, 0, 'X', 24);
oled_show_char(36, 0, '6', 24);

// 封装函数，显示字符串

c 复制代码
 // *p放字符串，x和y是横纵坐标，size是尺寸
void oled_show_string(uint8_t x, uint8_t y, char *p, uint8_t size)
{
    while(*p != '\0')
    {
        oled_show_char(x, y, *p, size);
        x += size / 2;
        p++; // 显示下一个字符
    }
}

// 封装函数，显示汉字

取模封装函数

c 复制代码
const unsigned char chinese_16x16[][32] =
{
    0x00,0x00,0xFE,0x82,0x82,0x82,0x82,0xFE,0x82,0x82,0x82,0x82,0xFE,0x00,0x00,0x00,
    0x00,0x00,0x3F,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x41,0x40,0x78,0x00,/*"巴",0*/
    0x00,0x00,0xFE,0x82,0x82,0x82,0x82,0xFE,0x82,0x82,0x82,0x82,0xFE,0x00,0x00,0x00,
    0x00,0x00,0x3F,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x41,0x40,0x78,0x00,/*"巴",1*/
    0x10,0xF0,0x1F,0x10,0xF0,0x02,0x26,0x2A,0xE2,0x26,0x29,0x21,0x29,0x25,0x00,0x00,
    0x82,0x65,0x18,0x16,0x61,0x21,0x99,0x87,0x4D,0x55,0x25,0x55,0x4D,0x81,0x81,0x00,/*"媛",2*/
};

const unsigned char chinese_24x24[][72] =
{
    0x00,0x00,0x00,0x10,0xF0,0x10,0x10,0x10,0x10,0x10,0x10,0xF0,0x10,0x10,0x10,0x10,
    0x10,0x10,0xF0,0xF8,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x08,0x08,0x08,
    0x08,0x08,0x08,0x0F,0x08,0x08,0x08,0x08,0x08,0x08,0x1F,0x1F,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x3F,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,
    0x20,0x20,0x20,0x20,0x30,0x3C,0x10,0x00,/*"巴",0*/
    0x00,0x00,0x00,0x10,0xF0,0x10,0x10,0x10,0x10,0x10,0x10,0xF0,0x10,0x10,0x10,0x10,
    0x10,0x10,0xF0,0xF8,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x08,0x08,0x08,
    0x08,0x08,0x08,0x0F,0x08,0x08,0x08,0x08,0x08,0x08,0x1F,0x1F,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x3F,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,
    0x20,0x20,0x20,0x20,0x30,0x3C,0x10,0x00,/*"巴",1*/
    0x00,0x40,0x40,0x40,0xF8,0x4E,0x40,0x40,0xE0,0x40,0x98,0xA8,0xE4,0x84,0x94,0xE4,
    0x84,0x84,0xE4,0x9C,0xC6,0x84,0x00,0x00,0x00,0x00,0x70,0x9F,0x81,0x00,0xC0,0x3E,
    0x03,0x08,0x08,0x08,0xC8,0x7C,0xCF,0x48,0x48,0x48,0x48,0xC8,0x48,0x0C,0x08,0x00,
    0x00,0x40,0x20,0x10,0x08,0x07,0x01,0x02,0x26,0x10,0x0C,0x46,0x21,0x20,0x11,0x1A,
    0x0C,0x1E,0x13,0x30,0x60,0x60,0x00,0x00,/*"媛",2*/
};
c 复制代码
void oled_show_chinese(uint8_t x, uint8_t y, uint8_t N, uint8_t size)
{
    uint16_t i, j;
    for(j = 0; j < size / 8; j++)
    {
        oled_set_cursor(x, y + j);
        // 汉字不需要÷2
        for(i = size * j; i < size * (j + 1); i ++)
        {
            if (size == 16)
                oled_write_data(chinese_16x16[N][i]);
            else if (size == 24)
                oled_write_data(chinese_24x24[N][i]);

        }

    }
}

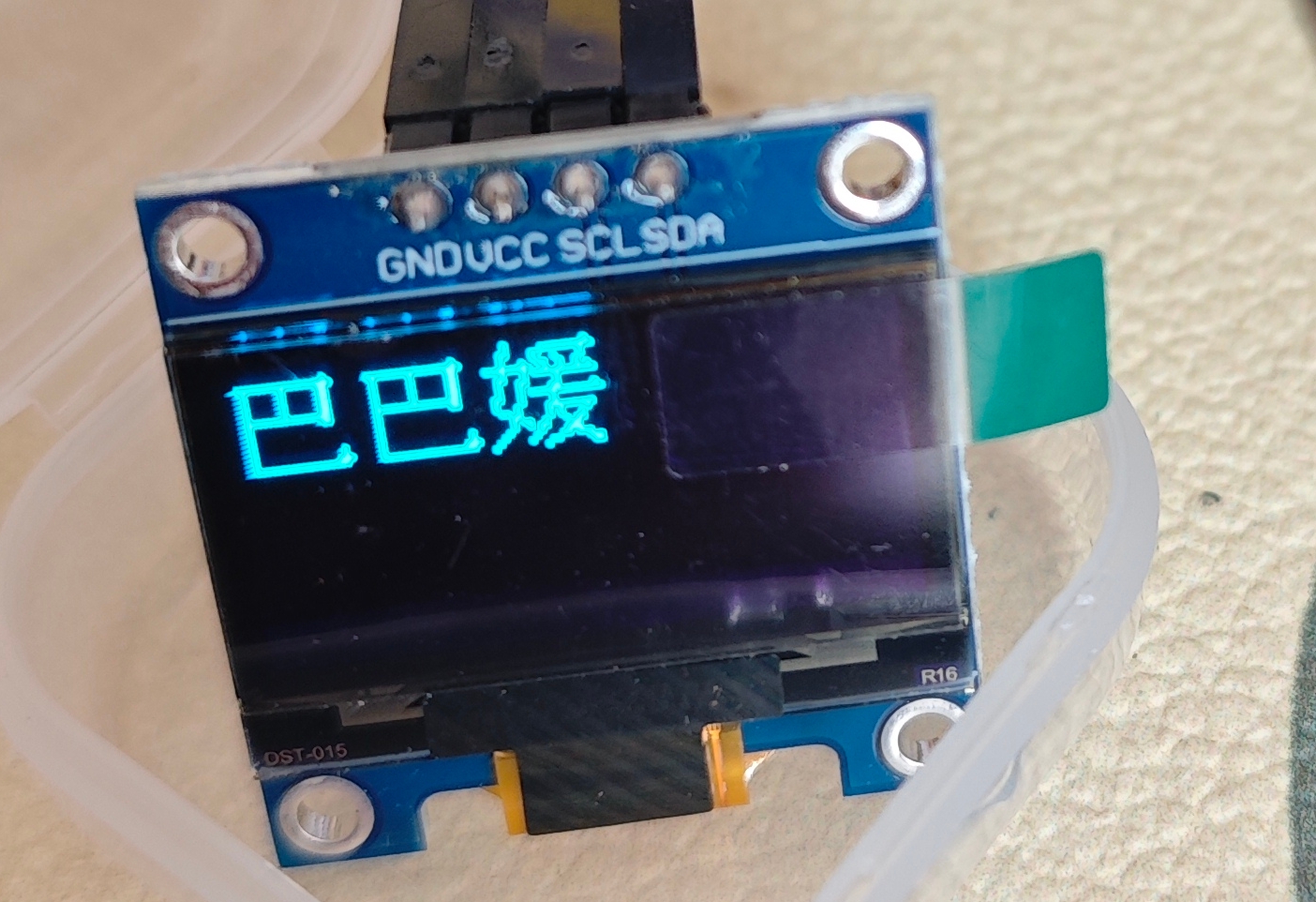

主函数：

c 复制代码
  uint8_t i;
  for(i = 0; i < 3; i++)
  {
      oled_show_chinese(i * 24, 0, i, 24);
  }

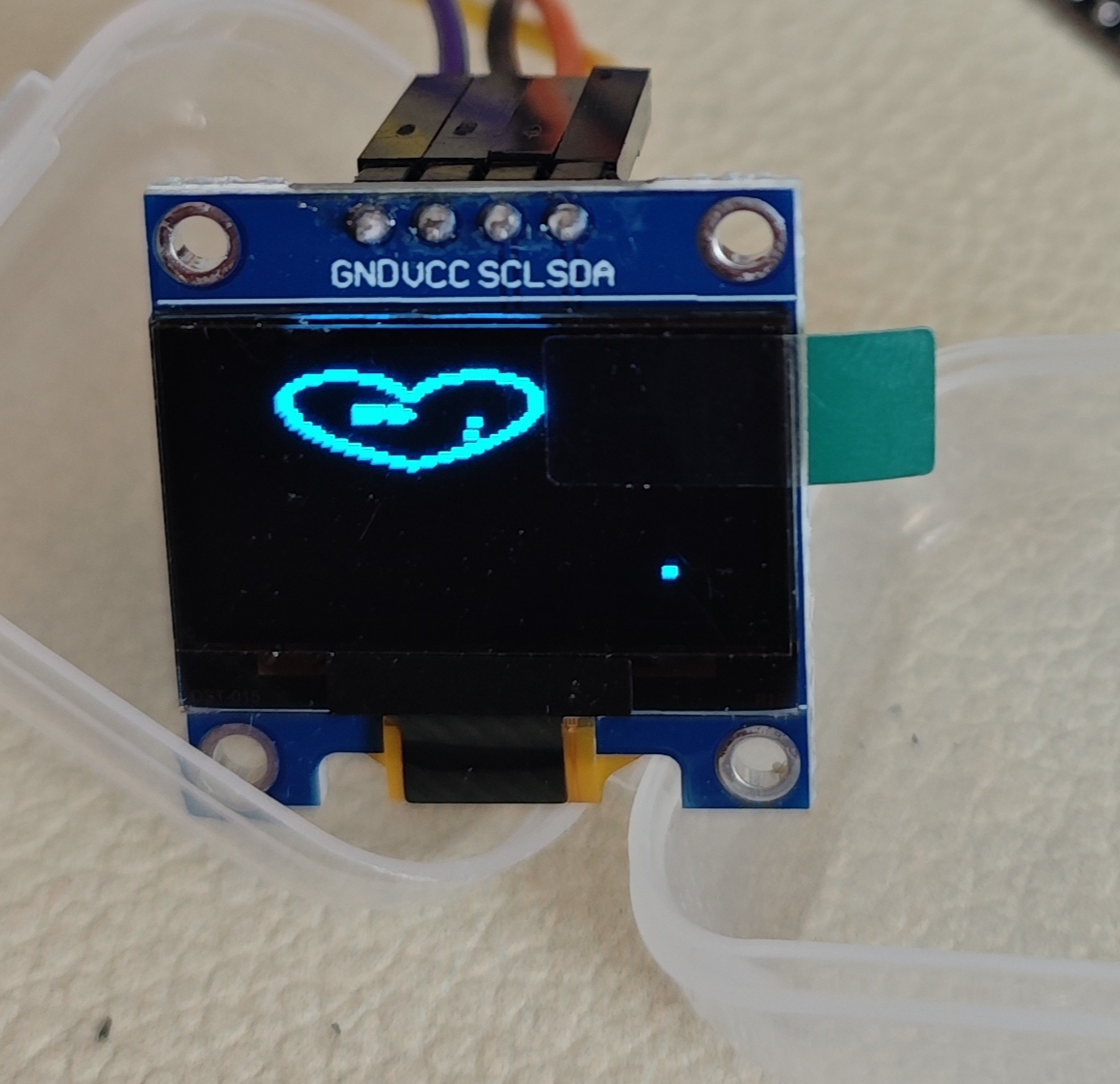

// 封装函数， 显示图片

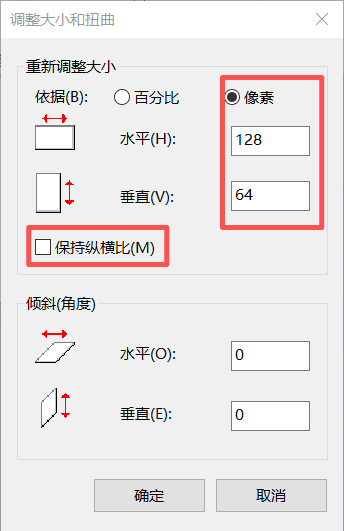

①建立一个图片

②取模

c 复制代码
const unsigned char love_data[] = {
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0xC0,
    0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0xC0,0xC0,
    0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x78,0xFC,0xFE,0x86,0x03,0x03,0x01,0x01,0x01,0x01,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0xC1,0xC1,0xC1,0xC1,0xC3,0x83,0xC7,0xC6,0xCE,
    0x9C,0x98,0x18,0x1C,0x0E,0x06,0x07,0x03,0x03,0x01,0x01,0x01,0x01,0x01,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x03,0x03,0x07,0xFE,0xFC,0xF8,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x07,0x07,0x0C,0x1C,0x18,0x38,0x30,0x60,0x60,
    0xC0,0xC0,0xC0,0x80,0x80,0x83,0x03,0x03,0x03,0x03,0x03,0x01,0x01,0x03,0x03,0x03,
    0x03,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xB0,0xB6,
    0xB6,0xC6,0xC0,0xC0,0x60,0x60,0x30,0x30,0x18,0x1C,0x0C,0x0E,0x07,0x03,0x01,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x01,0x01,0x01,0x03,0x03,0x03,0x06,0x06,0x06,0x04,0x0C,0x0C,0x0C,
    0x08,0x18,0x18,0x08,0x0C,0x0C,0x0C,0x04,0x06,0x06,0x06,0x03,0x03,0x03,0x03,0x01,
    0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x30,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"F:\STM32项目\项目合集\49. OLED实验\love.bmp",0*/
};

③ 封装函数

c 复制代码
void oled_show_image(uint8_t x, uint8_t y, uint8_t width, uint8_t height, uint8_t *bmp)
{
    uint8_t i, j;
    for(j = 0; j < height; j++)
    {
        oled_set_cursor(x, y + j);
        for(i = 0; i < width; i++)
          oled_write_data(bmp[width * j + i]);
    }

}

④主函数

c 复制代码
// 5. 显示图片
       oled_show_image(0, 0, 128, 8, (unsigned char *)love_data);

5. 出现的问题

  1. 实验结果字符"A"被截断，未输出整个"A"

    解决：

    oled_set_cursor(0, 0);

    在中间加上

    oled_set_cursor(0, 1);

  2. 显示图片时，图形的像素长宽要设置成128×64

6. 代码展示

oled.c

c 复制代码
#include "oled.h"
#include "delay.h"
#include "font.h"

// oled的gpio初始化
void oled_gpio_init(void)
{
    GPIO_InitTypeDef gpio_initstruct;

    OLED_I2C_SCL_CLK();
    OLED_I2C_SDA_CLK();

    // 调用SCL GPIO初始化函数
    gpio_initstruct.Pin = OLED_I2C_SCL_PIN;               // LED1对应的引脚
    gpio_initstruct.Mode = GPIO_MODE_OUTPUT_PP;                  // 推挽输出
    gpio_initstruct.Pull = GPIO_PULLUP;                          // 上拉
    gpio_initstruct.Speed = GPIO_SPEED_FREQ_HIGH;                // 高速
    HAL_GPIO_Init(OLED_I2C_SCL_PORT, &gpio_initstruct);

    // 调用SDA GPIO初始化函数
    gpio_initstruct.Pin = OLED_I2C_SDA_PIN;
    HAL_GPIO_Init(OLED_I2C_SDA_PORT, &gpio_initstruct);
}

// 根据oled通信协议，写时序
// 1. start起始信号
void oled_i2c_start(void)
{
    OLED_SCL_SET();
    OLED_SDA_SET();
    OLED_SDA_RESET();
    OLED_SCL_RESET();
}

// 2. stop停止信号
void oled_i2c_stop(void)
{
    OLED_SCL_SET();
    OLED_SDA_RESET();
    OLED_SDA_SET();
}

// 3.中间有ACK信号
void oled_i2c_ack(void)
{
    OLED_SCL_SET();
    OLED_SCL_RESET();
}

// 4. 读写数据信号
void oled_i2c_write_byte(uint8_t data)
{
    uint8_t i,tmp;
    tmp = data;// 修改tmp，不会对原来data产生修改

    for(i = 0; i< 8; i++)
    {
        // 取出最高位，是否等于0x80，data第一位为1，SDA拉高
        if((tmp & 0x80) == 0x80)
            OLED_SDA_SET();
        else
            OLED_SDA_RESET();
        // 左移1位
        tmp = tmp << 1;
        // SCL高电平状态
        OLED_SCL_SET();
        // SCL低电平状态
        OLED_SCL_RESET();
    }
}

// 发送命令command
void oled_write_cmd(uint8_t cmd)
{
    oled_i2c_start();
    oled_i2c_write_byte(0x78);
    oled_i2c_ack();
    oled_i2c_write_byte(0x00);
    oled_i2c_ack();
    oled_i2c_write_byte(cmd);
    oled_i2c_ack();
    oled_i2c_stop();
}

// 发送数据data
void oled_write_data(uint8_t data)
{
    oled_i2c_start();
    oled_i2c_write_byte(0x78);
    oled_i2c_ack();
    oled_i2c_write_byte(0x40);
    oled_i2c_ack();
    oled_i2c_write_byte(data);
    oled_i2c_ack();
    oled_i2c_stop();
}


// oled初始化
void oled_init(void)
{
    oled_gpio_init();

    delay_ms(100);

    // 设置显示开启/关闭，0xAE关闭，0xAF开启
    oled_write_cmd(0xAE);

    // 设置显示时钟分频比/振荡器频率
    oled_write_cmd(0xD5);
    // 0x00~0xFF
    oled_write_cmd(0x80);

    // 设置多路复用率
    oled_write_cmd(0xA8);
    // 0x0E~0x3F
    oled_write_cmd(0x3F);

    // 设置显示偏移
    oled_write_cmd(0xD3);
    //  0x00~0x7F
    oled_write_cmd(0x00);

    // 设置显示开始行，   0x40~0x7F
    oled_write_cmd(0x40);

    // 设置左右方向，0xA1正常，0xA0左右反置
    oled_write_cmd(0xA1);

    //设置上下方向，0xC8正常，0xC0上下反置
    oled_write_cmd(0xC8);

    // 设置COM引脚硬件配置
    oled_write_cmd(0xDA);
    oled_write_cmd(0x12);

    // 设置对比度
    oled_write_cmd(0x81);
    // 0x00~0xFF
    oled_write_cmd(0xCF);

    // 设置预充电周期
    oled_write_cmd(0xD9);
    oled_write_cmd(0xF1);

    //设置VCOMH取消选择级别
    oled_write_cmd(0xDB);
    oled_write_cmd(0x30);

    // 设置整个显示打开/关闭
    oled_write_cmd(0xA4);

    // 设置正常/反色显示，0xA6正常，0xA7反色
    oled_write_cmd(0xA6);

    // 设置充电泵
    oled_write_cmd(0x8D);
    oled_write_cmd(0x14);

    // 开启显示
    oled_write_cmd(0xAF);
}

// 封装指定坐标函数
void oled_set_cursor(uint8_t x, uint8_t y)
{
    // 指定page
    oled_write_cmd(0xB0 + y);
    // 指定横坐标：0~127 ，取出低位
    oled_write_cmd((x & 0x0F) | 0x00);
    // 指定横坐标：0~127 ，取出高位
    oled_write_cmd(((x & 0xF0) >> 4) | 0x10);
}

// 封装清屏函数
void oled_fill(uint8_t data)
{
    uint8_t i, j;
    // 外层循环page
    for(i = 0; i< 8; i++)
    {
        oled_set_cursor(0, i);
        for(j = 0; j < 128; j++)
            oled_write_data(data);
    }
}

// 封装函数，显示字符
void oled_show_char(uint8_t x, uint8_t y, uint8_t num, uint8_t size)
{
    uint8_t i, j, page;
    num = num - ' ';
    page = size / 8;
    if(size % 8)
        page++;
    //外循环page
    for(j = 0; j < page; j++)
    {
        oled_set_cursor(x, y + j);
        for(i= size / 2 * j; i < size / 2 * (j + 1); i++)
        {
            if(size == 12)
                oled_write_data(ascii_6X12[num][i]);
            else if(size == 16)
                oled_write_data(ascii_8X16[num][i]);
            else if(size == 24)
                oled_write_data(ascii_12X24[num][i]);
        }
    }
}

// 封装函数，显示字符串
// *p放字符串，x和y是横纵坐标，size是尺寸
void oled_show_string(uint8_t x, uint8_t y, char *p, uint8_t size)
{
    while(*p != '\0')
    {
        oled_show_char(x, y, *p, size);
        x += size / 2;
        p++; // 显示下一个字符
    }
}

// 封装函数，显示汉字
void oled_show_chinese(uint8_t x, uint8_t y, uint8_t N, uint8_t size)
{
    uint16_t i, j;
    for(j = 0; j < size / 8; j++)
    {
        oled_set_cursor(x, y + j);
        // 汉字不需要÷2
        for(i = size * j; i < size * (j + 1); i ++)
        {
            if (size == 16)
                oled_write_data(chinese_16x16[N][i]);
            else if (size == 24)
                oled_write_data(chinese_24x24[N][i]);

        }

    }
}

// 封装函数，显示图片
void oled_show_image(uint8_t x, uint8_t y, uint8_t width, uint8_t height, uint8_t *bmp)
{
    uint8_t i, j;
    for(j = 0; j < height; j++)
    {
        oled_set_cursor(x, y + j);
        for(i = 0; i < width; i++)
          oled_write_data(bmp[width * j + i]);
    }

}

oled.h

c 复制代码
#ifndef __OLED_H__
#define __OLED_H__

#include "sys.h"

#define OLED_I2C_SCL_CLK() __HAL_RCC_GPIOB_CLK_ENABLE()
#define OLED_I2C_SCL_PORT  GPIOB
#define OLED_I2C_SCL_PIN   GPIO_PIN_6

#define OLED_I2C_SDA_CLK() __HAL_RCC_GPIOB_CLK_ENABLE()
#define OLED_I2C_SDA_PORT  GPIOB
#define OLED_I2C_SDA_PIN   GPIO_PIN_7

#define OLED_SCL_RESET()   HAL_GPIO_WritePin(OLED_I2C_SCL_PORT, OLED_I2C_SCL_PIN, GPIO_PIN_RESET) // 拉低
#define OLED_SCL_SET()     HAL_GPIO_WritePin(OLED_I2C_SCL_PORT, OLED_I2C_SCL_PIN, GPIO_PIN_SET)   // 拉高

#define OLED_SDA_RESET()   HAL_GPIO_WritePin(OLED_I2C_SDA_PORT, OLED_I2C_SDA_PIN, GPIO_PIN_RESET)
#define OLED_SDA_SET()     HAL_GPIO_WritePin(OLED_I2C_SDA_PORT, OLED_I2C_SDA_PIN, GPIO_PIN_SET)

void oled_init(void);
void oled_write_cmd(uint8_t cmd);
void oled_write_data(uint8_t data);
void oled_set_cursor(uint8_t x, uint8_t y);
void oled_fill(uint8_t data);
void oled_show_char(uint8_t x, uint8_t y, uint8_t num, uint8_t size);
void oled_show_string(uint8_t x, uint8_t y, char *p, uint8_t size);
void oled_show_chinese(uint8_t x, uint8_t y, uint8_t N, uint8_t size);
void oled_show_image(uint8_t x, uint8_t y, uint8_t width, uint8_t height, uint8_t *bmp);

#endif

封装显示内容

font.h

c 复制代码
#ifndef __FONT_H__
#define __FONT_H__

const unsigned char chinese_16x16[][32] =
{
    0x00,0x00,0xFE,0x82,0x82,0x82,0x82,0xFE,0x82,0x82,0x82,0x82,0xFE,0x00,0x00,0x00,
    0x00,0x00,0x3F,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x41,0x40,0x78,0x00,/*"巴",0*/
    0x00,0x00,0xFE,0x82,0x82,0x82,0x82,0xFE,0x82,0x82,0x82,0x82,0xFE,0x00,0x00,0x00,
    0x00,0x00,0x3F,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x41,0x40,0x78,0x00,/*"巴",1*/
    0x10,0xF0,0x1F,0x10,0xF0,0x02,0x26,0x2A,0xE2,0x26,0x29,0x21,0x29,0x25,0x00,0x00,
    0x82,0x65,0x18,0x16,0x61,0x21,0x99,0x87,0x4D,0x55,0x25,0x55,0x4D,0x81,0x81,0x00,/*"媛",2*/
};

const unsigned char chinese_24x24[][72] =
{
    0x00,0x00,0x00,0x10,0xF0,0x10,0x10,0x10,0x10,0x10,0x10,0xF0,0x10,0x10,0x10,0x10,
    0x10,0x10,0xF0,0xF8,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x08,0x08,0x08,
    0x08,0x08,0x08,0x0F,0x08,0x08,0x08,0x08,0x08,0x08,0x1F,0x1F,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x3F,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,
    0x20,0x20,0x20,0x20,0x30,0x3C,0x10,0x00,/*"巴",0*/
    0x00,0x00,0x00,0x10,0xF0,0x10,0x10,0x10,0x10,0x10,0x10,0xF0,0x10,0x10,0x10,0x10,
    0x10,0x10,0xF0,0xF8,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x08,0x08,0x08,
    0x08,0x08,0x08,0x0F,0x08,0x08,0x08,0x08,0x08,0x08,0x1F,0x1F,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x3F,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,
    0x20,0x20,0x20,0x20,0x30,0x3C,0x10,0x00,/*"巴",1*/
    0x00,0x40,0x40,0x40,0xF8,0x4E,0x40,0x40,0xE0,0x40,0x98,0xA8,0xE4,0x84,0x94,0xE4,
    0x84,0x84,0xE4,0x9C,0xC6,0x84,0x00,0x00,0x00,0x00,0x70,0x9F,0x81,0x00,0xC0,0x3E,
    0x03,0x08,0x08,0x08,0xC8,0x7C,0xCF,0x48,0x48,0x48,0x48,0xC8,0x48,0x0C,0x08,0x00,
    0x00,0x40,0x20,0x10,0x08,0x07,0x01,0x02,0x26,0x10,0x0C,0x46,0x21,0x20,0x11,0x1A,
    0x0C,0x1E,0x13,0x30,0x60,0x60,0x00,0x00,/*"媛",2*/
};

const unsigned char ascii_6X12[][12]={
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",0*/
    0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,/*"!",1*/
    0x00,0x0C,0x02,0x0C,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*""",2*/
    0x90,0xD0,0xBC,0xD0,0xBC,0x90,0x00,0x03,0x00,0x03,0x00,0x00,/*"#",3*/
    0x18,0x24,0xFE,0x44,0x8C,0x00,0x03,0x02,0x07,0x02,0x01,0x00,/*"$",4*/
    0x18,0x24,0xD8,0xB0,0x4C,0x80,0x00,0x03,0x00,0x01,0x02,0x01,/*"%",5*/
    0xC0,0x38,0xE4,0x38,0xE0,0x00,0x01,0x02,0x02,0x01,0x02,0x02,/*"&",6*/
    0x08,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"'",7*/
    0x00,0x00,0x00,0xF8,0x04,0x02,0x00,0x00,0x00,0x01,0x02,0x04,/*"(",8*/
    0x00,0x02,0x04,0xF8,0x00,0x00,0x00,0x04,0x02,0x01,0x00,0x00,/*")",9*/
    0x90,0x60,0xF8,0x60,0x90,0x00,0x00,0x00,0x01,0x00,0x00,0x00,/*"*",10*/
    0x20,0x20,0xFC,0x20,0x20,0x00,0x00,0x00,0x01,0x00,0x00,0x00,/*"+",11*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x06,0x00,0x00,0x00,0x00,/*",",12*/
    0x20,0x20,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"-",13*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x00,/*".",14*/
    0x00,0x80,0x60,0x1C,0x02,0x00,0x04,0x03,0x00,0x00,0x00,0x00,/*"/",15*/
    0xF8,0x04,0x04,0x04,0xF8,0x00,0x01,0x02,0x02,0x02,0x01,0x00,/*"0",16*/
    0x00,0x08,0xFC,0x00,0x00,0x00,0x00,0x02,0x03,0x02,0x00,0x00,/*"1",17*/
    0x18,0x84,0x44,0x24,0x18,0x00,0x03,0x02,0x02,0x02,0x02,0x00,/*"2",18*/
    0x08,0x04,0x24,0x24,0xD8,0x00,0x01,0x02,0x02,0x02,0x01,0x00,/*"3",19*/
    0x40,0xB0,0x88,0xFC,0x80,0x00,0x00,0x00,0x00,0x03,0x02,0x00,/*"4",20*/
    0x3C,0x24,0x24,0x24,0xC4,0x00,0x01,0x02,0x02,0x02,0x01,0x00,/*"5",21*/
    0xF8,0x24,0x24,0x2C,0xC0,0x00,0x01,0x02,0x02,0x02,0x01,0x00,/*"6",22*/
    0x0C,0x04,0xE4,0x1C,0x04,0x00,0x00,0x00,0x03,0x00,0x00,0x00,/*"7",23*/
    0xD8,0x24,0x24,0x24,0xD8,0x00,0x01,0x02,0x02,0x02,0x01,0x00,/*"8",24*/
    0x38,0x44,0x44,0x44,0xF8,0x00,0x00,0x03,0x02,0x02,0x01,0x00,/*"9",25*/
    0x00,0x00,0x10,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,/*":",26*/
    0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x00,/*";",27*/
    0x00,0x20,0x50,0x88,0x04,0x02,0x00,0x00,0x00,0x00,0x01,0x02,/*"<",28*/
    0x90,0x90,0x90,0x90,0x90,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"=",29*/
    0x00,0x02,0x04,0x88,0x50,0x20,0x00,0x02,0x01,0x00,0x00,0x00,/*">",30*/
    0x18,0x04,0xC4,0x24,0x18,0x00,0x00,0x00,0x02,0x00,0x00,0x00,/*"?",31*/
    0xF8,0x04,0xE4,0x94,0xF8,0x00,0x01,0x02,0x02,0x02,0x02,0x00,/*"@",32*/
    0x00,0xE0,0x9C,0xF0,0x80,0x00,0x02,0x03,0x00,0x00,0x03,0x02,/*"A",33*/
    0x04,0xFC,0x24,0x24,0xD8,0x00,0x02,0x03,0x02,0x02,0x01,0x00,/*"B",34*/
    0xF8,0x04,0x04,0x04,0x0C,0x00,0x01,0x02,0x02,0x02,0x01,0x00,/*"C",35*/
    0x04,0xFC,0x04,0x04,0xF8,0x00,0x02,0x03,0x02,0x02,0x01,0x00,/*"D",36*/
    0x04,0xFC,0x24,0x74,0x0C,0x00,0x02,0x03,0x02,0x02,0x03,0x00,/*"E",37*/
    0x04,0xFC,0x24,0x74,0x0C,0x00,0x02,0x03,0x02,0x00,0x00,0x00,/*"F",38*/
    0xF0,0x08,0x04,0x44,0xCC,0x40,0x00,0x01,0x02,0x02,0x01,0x00,/*"G",39*/
    0x04,0xFC,0x20,0x20,0xFC,0x04,0x02,0x03,0x00,0x00,0x03,0x02,/*"H",40*/
    0x04,0x04,0xFC,0x04,0x04,0x00,0x02,0x02,0x03,0x02,0x02,0x00,/*"I",41*/
    0x00,0x04,0x04,0xFC,0x04,0x04,0x06,0x04,0x04,0x03,0x00,0x00,/*"J",42*/
    0x04,0xFC,0x24,0xD0,0x0C,0x04,0x02,0x03,0x02,0x00,0x03,0x02,/*"K",43*/
    0x04,0xFC,0x04,0x00,0x00,0x00,0x02,0x03,0x02,0x02,0x02,0x03,/*"L",44*/
    0xFC,0x3C,0xC0,0x3C,0xFC,0x00,0x03,0x00,0x03,0x00,0x03,0x00,/*"M",45*/
    0x04,0xFC,0x30,0xC4,0xFC,0x04,0x02,0x03,0x02,0x00,0x03,0x00,/*"N",46*/
    0xF8,0x04,0x04,0x04,0xF8,0x00,0x01,0x02,0x02,0x02,0x01,0x00,/*"O",47*/
    0x04,0xFC,0x24,0x24,0x18,0x00,0x02,0x03,0x02,0x00,0x00,0x00,/*"P",48*/
    0xF8,0x84,0x84,0x04,0xF8,0x00,0x01,0x02,0x02,0x07,0x05,0x00,/*"Q",49*/
    0x04,0xFC,0x24,0x64,0x98,0x00,0x02,0x03,0x02,0x00,0x03,0x02,/*"R",50*/
    0x18,0x24,0x24,0x44,0x8C,0x00,0x03,0x02,0x02,0x02,0x01,0x00,/*"S",51*/
    0x0C,0x04,0xFC,0x04,0x0C,0x00,0x00,0x02,0x03,0x02,0x00,0x00,/*"T",52*/
    0x04,0xFC,0x00,0x00,0xFC,0x04,0x00,0x01,0x02,0x02,0x01,0x00,/*"U",53*/
    0x04,0x7C,0x80,0xE0,0x1C,0x04,0x00,0x00,0x03,0x00,0x00,0x00,/*"V",54*/
    0x1C,0xE0,0x3C,0xE0,0x1C,0x00,0x00,0x03,0x00,0x03,0x00,0x00,/*"W",55*/
    0x04,0x9C,0x60,0x9C,0x04,0x00,0x02,0x03,0x00,0x03,0x02,0x00,/*"X",56*/
    0x04,0x1C,0xE0,0x1C,0x04,0x00,0x00,0x02,0x03,0x02,0x00,0x00,/*"Y",57*/
    0x0C,0x84,0x64,0x1C,0x04,0x00,0x02,0x03,0x02,0x02,0x03,0x00,/*"Z",58*/
    0x00,0x00,0xFE,0x02,0x02,0x00,0x00,0x00,0x07,0x04,0x04,0x00,/*"[",59*/
    0x00,0x0E,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x00,/*"\",60*/
    0x00,0x02,0x02,0xFE,0x00,0x00,0x00,0x04,0x04,0x07,0x00,0x00,/*"]",61*/
    0x00,0x04,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"^",62*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,/*"_",63*/
    0x00,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"`",64*/
    0x00,0x40,0xA0,0xA0,0xC0,0x00,0x00,0x01,0x02,0x02,0x03,0x02,/*"a",65*/
    0x04,0xFC,0x20,0x20,0xC0,0x00,0x00,0x03,0x02,0x02,0x01,0x00,/*"b",66*/
    0x00,0xC0,0x20,0x20,0x60,0x00,0x00,0x01,0x02,0x02,0x02,0x00,/*"c",67*/
    0x00,0xC0,0x20,0x24,0xFC,0x00,0x00,0x01,0x02,0x02,0x03,0x02,/*"d",68*/
    0x00,0xC0,0xA0,0xA0,0xC0,0x00,0x00,0x01,0x02,0x02,0x02,0x00,/*"e",69*/
    0x00,0x20,0xF8,0x24,0x24,0x04,0x00,0x02,0x03,0x02,0x02,0x00,/*"f",70*/
    0x00,0x40,0xA0,0xA0,0x60,0x20,0x00,0x07,0x0A,0x0A,0x0A,0x04,/*"g",71*/
    0x04,0xFC,0x20,0x20,0xC0,0x00,0x02,0x03,0x02,0x00,0x03,0x02,/*"h",72*/
    0x00,0x20,0xE4,0x00,0x00,0x00,0x00,0x02,0x03,0x02,0x00,0x00,/*"i",73*/
    0x00,0x00,0x20,0xE4,0x00,0x00,0x08,0x08,0x08,0x07,0x00,0x00,/*"j",74*/
    0x04,0xFC,0x80,0xE0,0x20,0x20,0x02,0x03,0x02,0x00,0x03,0x02,/*"k",75*/
    0x04,0x04,0xFC,0x00,0x00,0x00,0x02,0x02,0x03,0x02,0x02,0x00,/*"l",76*/
    0xE0,0x20,0xE0,0x20,0xC0,0x00,0x03,0x00,0x03,0x00,0x03,0x00,/*"m",77*/
    0x20,0xE0,0x20,0x20,0xC0,0x00,0x02,0x03,0x02,0x00,0x03,0x02,/*"n",78*/
    0x00,0xC0,0x20,0x20,0xC0,0x00,0x00,0x01,0x02,0x02,0x01,0x00,/*"o",79*/
    0x20,0xE0,0x20,0x20,0xC0,0x00,0x08,0x0F,0x0A,0x02,0x01,0x00,/*"p",80*/
    0x00,0xC0,0x20,0x20,0xE0,0x00,0x00,0x01,0x02,0x0A,0x0F,0x08,/*"q",81*/
    0x20,0xE0,0x40,0x20,0x20,0x00,0x02,0x03,0x02,0x00,0x00,0x00,/*"r",82*/
    0x00,0x60,0xA0,0xA0,0x20,0x00,0x00,0x02,0x02,0x02,0x03,0x00,/*"s",83*/
    0x00,0x20,0xF8,0x20,0x00,0x00,0x00,0x00,0x01,0x02,0x02,0x00,/*"t",84*/
    0x20,0xE0,0x00,0x20,0xE0,0x00,0x00,0x01,0x02,0x02,0x03,0x02,/*"u",85*/
    0x20,0xE0,0x20,0x80,0x60,0x20,0x00,0x00,0x03,0x01,0x00,0x00,/*"v",86*/
    0x60,0x80,0xE0,0x80,0x60,0x00,0x00,0x03,0x00,0x03,0x00,0x00,/*"w",87*/
    0x20,0x60,0x80,0x60,0x20,0x00,0x02,0x03,0x00,0x03,0x02,0x00,/*"x",88*/
    0x20,0xE0,0x20,0x80,0x60,0x20,0x08,0x08,0x07,0x01,0x00,0x00,/*"y",89*/
    0x00,0x20,0xA0,0x60,0x20,0x00,0x00,0x02,0x03,0x02,0x02,0x00,/*"z",90*/
    0x00,0x00,0x20,0xDE,0x02,0x00,0x00,0x00,0x00,0x07,0x04,0x00,/*"{",91*/
    0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x0F,0x00,0x00,/*"|",92*/
    0x00,0x02,0xDE,0x20,0x00,0x00,0x00,0x04,0x07,0x00,0x00,0x00,/*"}",93*/
    0x02,0x01,0x02,0x04,0x04,0x02,0x00,0x00,0x00,0x00,0x00,0x00,/*"~",94*/
};

//16*16 ASCII字符集点阵
const unsigned char ascii_8X16[][16]=
{
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
    0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
    0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
    0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
    0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
    0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
    0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
    0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
    0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
    0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
    0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
    0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
    0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
    0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
    0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
    0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
    0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
    0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
    0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
    0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
    0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
    0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
    0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
    0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
    0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
    0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
    0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
    0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
    0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
    0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
    0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
    0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
    0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
    0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
    0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
    0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
    0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
    0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
    0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
    0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
    0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
    0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
    0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
    0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
    0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
    0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
    0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
    0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
    0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
    0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
    0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
    0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
    0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
    0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
    0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
    0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
    0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
    0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
    0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
    0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
    0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
    0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
    0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
    0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
    0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
    0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
    0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
    0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
    0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
    0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
    0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
    0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
    0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
    0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
    0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
    0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
    0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
    0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
    0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
    0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
    0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
    0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
    0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
    0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
    0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
    0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
    0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
    0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
    0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
    0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
    0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};

//16*16 ASCII字符集点阵
const unsigned char ascii_12X24[][36]=
{
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",0*/
    0x00,0x00,0x00,0x00,0x00,0xF0,0xF0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x7F,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,/*"!",1*/
    0x00,0x00,0x80,0x60,0x30,0x1C,0x8C,0x60,0x30,0x1C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*""",2*/
    0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x86,0xE6,0x9F,0x86,0x86,0x86,0x86,0xE6,0x9F,0x86,0x00,0x00,0x01,0x1F,0x01,0x01,0x01,0x01,0x01,0x1F,0x01,0x01,0x00,/*"#",3*/
    0x00,0x00,0x80,0xC0,0x60,0x20,0xF8,0x20,0xE0,0xC0,0x00,0x00,0x00,0x00,0x03,0x07,0x0C,0x18,0xFF,0x70,0xE1,0x81,0x00,0x00,0x00,0x00,0x07,0x0F,0x10,0x10,0x7F,0x10,0x0F,0x07,0x00,0x00,/*"$",4*/
    0x80,0x60,0x20,0x60,0x80,0x00,0x00,0x00,0xE0,0x20,0x00,0x00,0x0F,0x30,0x20,0x30,0x9F,0x70,0xDC,0x37,0x10,0x30,0xC0,0x00,0x00,0x00,0x10,0x0E,0x03,0x00,0x07,0x18,0x10,0x18,0x07,0x00,/*"%",5*/
    0x00,0x00,0xC0,0x20,0x20,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0x1F,0x38,0xE8,0x87,0x03,0xC4,0x3C,0x04,0x00,0x00,0x07,0x0F,0x18,0x10,0x10,0x0B,0x07,0x0D,0x10,0x10,0x08,0x00,/*"&",6*/
    0x00,0x80,0x8C,0x4C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"'",7*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0x30,0x08,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x18,0x20,0x40,0x00,/*"(",8*/
    0x00,0x04,0x08,0x30,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x0F,0x03,0x00,0x00,0x00,0x00,0x00,0x00,/*")",9*/
    0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x42,0x66,0x66,0x3C,0x18,0xFF,0x18,0x3C,0x66,0x66,0x42,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00,/*"*",10*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00,/*"+",11*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x8C,0x4C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*",",12*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"-",13*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*".",14*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x38,0x0C,0x00,0x00,0x00,0x00,0x00,0x80,0x70,0x1C,0x03,0x00,0x00,0x00,0x00,0x00,0x60,0x38,0x0E,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"/",15*/
    0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x18,0x0E,0x07,0x01,0x00,/*"0",16*/
    0x00,0x00,0x80,0x80,0x80,0xC0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,/*"1",17*/
    0x00,0x80,0x40,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0x03,0x03,0x00,0x80,0x40,0x20,0x38,0x1F,0x07,0x00,0x00,0x00,0x1C,0x1A,0x19,0x18,0x18,0x18,0x18,0x18,0x1F,0x00,0x00,/*"2",18*/
    0x00,0x80,0xC0,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0x00,0x03,0x03,0x00,0x10,0x10,0x18,0x2F,0xE7,0x80,0x00,0x00,0x00,0x07,0x0F,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00,0x00,/*"3",19*/
    0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0xF0,0x00,0x00,0x00,0x00,0xC0,0xB0,0x88,0x86,0x81,0x80,0xFF,0xFF,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,/*"4",20*/
    0x00,0x00,0xE0,0x60,0x60,0x60,0x60,0x60,0x60,0x60,0x00,0x00,0x00,0x00,0x3F,0x10,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x00,0x07,0x0B,0x10,0x10,0x10,0x10,0x1C,0x0F,0x03,0x00,0x00,/*"5",21*/
    0x00,0x00,0x80,0xC0,0x40,0x20,0x20,0x20,0xE0,0xC0,0x00,0x00,0x00,0xFC,0xFF,0x21,0x10,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x01,0x07,0x0C,0x18,0x10,0x10,0x10,0x08,0x0F,0x03,0x00,/*"6",22*/
    0x00,0x00,0xC0,0xE0,0x60,0x60,0x60,0x60,0x60,0xE0,0x60,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0xE0,0x18,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x00,0x00,0x00,0x00,0x00,/*"7",23*/
    0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x87,0xEF,0x2C,0x18,0x18,0x30,0x30,0x68,0xCF,0x83,0x00,0x00,0x07,0x0F,0x08,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00,/*"8",24*/
    0x00,0x00,0xC0,0xC0,0x20,0x20,0x20,0x20,0xC0,0x80,0x00,0x00,0x00,0x1F,0x3F,0x60,0x40,0x40,0x40,0x20,0x10,0xFF,0xFE,0x00,0x00,0x00,0x0C,0x1C,0x10,0x10,0x10,0x08,0x0F,0x03,0x00,0x00,/*"9",25*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x0E,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,/*":",26*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x58,0x38,0x00,0x00,0x00,0x00,0x00,/*";",27*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x40,0x20,0x10,0x00,0x00,0x00,0x10,0x28,0x44,0x82,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x00,/*"<",28*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"=",29*/
    0x00,0x00,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x82,0x44,0x28,0x10,0x00,0x00,0x00,0x10,0x08,0x04,0x02,0x01,0x00,0x00,0x00,0x00,0x00,/*">",30*/
    0x00,0xC0,0x20,0x20,0x10,0x10,0x10,0x10,0x30,0xE0,0xC0,0x00,0x00,0x03,0x03,0x00,0x00,0xF0,0x10,0x08,0x0C,0x07,0x03,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00,/*"?",31*/
    0x00,0x00,0x00,0xC0,0x40,0x60,0x20,0x20,0x20,0x40,0xC0,0x00,0x00,0xFC,0xFF,0x01,0xF0,0x0E,0x03,0xC1,0xFE,0x03,0x80,0x7F,0x00,0x01,0x07,0x0E,0x08,0x11,0x11,0x10,0x11,0x09,0x04,0x02,/*"@",32*/
    0x00,0x00,0x00,0x00,0x80,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x7C,0x43,0x40,0x47,0x7F,0xF8,0x80,0x00,0x00,0x10,0x18,0x1F,0x10,0x00,0x00,0x00,0x00,0x13,0x1F,0x1C,0x10,/*"A",33*/
    0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x18,0x2F,0xE7,0x80,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00,/*"B",34*/
    0x00,0x00,0x80,0xC0,0x40,0x20,0x20,0x20,0x20,0x60,0xE0,0x00,0x00,0xFC,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x10,0x08,0x04,0x03,0x00,/*"C",35*/
    0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x40,0xC0,0x80,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x18,0x08,0x0E,0x07,0x01,0x00,/*"D",36*/
    0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0x60,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x06,0x00,/*"E",37*/
    0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0x60,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,0x01,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"F",38*/
    0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x40,0xE0,0x00,0x00,0x00,0xFC,0xFF,0x01,0x00,0x00,0x40,0x40,0xC0,0xC1,0x40,0x40,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x10,0x0F,0x0F,0x00,0x00,/*"G",39*/
    0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x20,0xE0,0xE0,0x20,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x10,0x10,0xFF,0xFF,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,/*"H",40*/
    0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,/*"I",41*/
    0x00,0x00,0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x60,0xE0,0x80,0x80,0x80,0xC0,0x7F,0x3F,0x00,0x00,0x00,/*"J",42*/
    0x20,0xE0,0xE0,0x20,0x00,0x00,0x20,0xA0,0x60,0x20,0x20,0x00,0x00,0xFF,0xFF,0x30,0x18,0x7C,0xE3,0xC0,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x01,0x13,0x1F,0x1C,0x18,0x10,/*"K",43*/
    0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x06,0x00,/*"L",44*/
    0x20,0xE0,0xE0,0xE0,0x00,0x00,0x00,0x00,0xE0,0xE0,0xE0,0x20,0x00,0xFF,0x01,0x3F,0xFE,0xC0,0xE0,0x1E,0x01,0xFF,0xFF,0x00,0x10,0x1F,0x10,0x00,0x03,0x1F,0x03,0x00,0x10,0x1F,0x1F,0x10,/*"M",45*/
    0x20,0xE0,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0x20,0x00,0xFF,0x00,0x03,0x07,0x1C,0x78,0xE0,0x80,0x00,0xFF,0x00,0x10,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x1F,0x00,/*"N",46*/
    0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x18,0x0C,0x07,0x01,0x00,/*"O",47*/
    0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0xFF,0xFF,0x20,0x20,0x20,0x20,0x20,0x30,0x1F,0x0F,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"P",48*/
    0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x11,0x11,0x13,0x3C,0x7C,0x67,0x21,0x00,/*"Q",49*/
    0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x30,0xF0,0xD0,0x08,0x0F,0x07,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x03,0x0F,0x1C,0x10,0x10,/*"R",50*/
    0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x20,0x40,0x40,0xE0,0x00,0x00,0x07,0x0F,0x0C,0x18,0x18,0x30,0x30,0x60,0xE0,0x81,0x00,0x00,0x1F,0x0C,0x08,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00,/*"S",51*/
    0x80,0x60,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x60,0x80,0x01,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,/*"T",52*/
    0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0x20,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x07,0x0F,0x18,0x10,0x10,0x10,0x10,0x10,0x08,0x07,0x00,/*"U",53*/
    0x20,0x60,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x07,0x7F,0xF8,0x80,0x00,0x80,0x7C,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x1F,0x1C,0x07,0x00,0x00,0x00,0x00,/*"V",54*/
    0x20,0xE0,0xE0,0x20,0x00,0xE0,0xE0,0x20,0x00,0x20,0xE0,0x20,0x00,0x07,0xFF,0xF8,0xE0,0x1F,0xFF,0xFC,0xE0,0x1F,0x00,0x00,0x00,0x00,0x03,0x1F,0x03,0x00,0x01,0x1F,0x03,0x00,0x00,0x00,/*"W",55*/
    0x00,0x20,0x60,0xE0,0xA0,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x00,0x00,0x03,0x8F,0x7C,0xF8,0xC6,0x01,0x00,0x00,0x00,0x00,0x10,0x18,0x1E,0x13,0x00,0x01,0x17,0x1F,0x18,0x10,0x00,/*"X",56*/
    0x20,0x60,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x01,0x07,0x3E,0xF8,0xE0,0x18,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00,/*"Y",57*/
    0x00,0x80,0x60,0x20,0x20,0x20,0x20,0xA0,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0xC0,0xF0,0x3E,0x0F,0x03,0x00,0x00,0x00,0x00,0x10,0x1C,0x1F,0x17,0x10,0x10,0x10,0x10,0x18,0x06,0x00,/*"Z",58*/
    0x00,0x00,0x00,0x00,0x00,0xFC,0x04,0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x40,0x40,0x00,/*"[",59*/
    0x00,0x00,0x10,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x1C,0x60,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0C,0x70,0x80,0x00,/*"\",60*/
    0x00,0x00,0x04,0x04,0x04,0x04,0x04,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,0x00,/*"]",61*/
    0x00,0x00,0x00,0x10,0x08,0x0C,0x04,0x0C,0x08,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"^",62*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,/*"_",63*/
    0x00,0x00,0x00,0x04,0x04,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"`",64*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x98,0xD8,0x44,0x64,0x24,0x24,0xFC,0xF8,0x00,0x00,0x00,0x0F,0x1F,0x18,0x10,0x10,0x10,0x08,0x1F,0x1F,0x10,0x18,/*"a",65*/
    0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x18,0x08,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,0x00,0x1F,0x0F,0x18,0x10,0x10,0x10,0x18,0x0F,0x03,0x00,/*"b",66*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x18,0x04,0x04,0x04,0x3C,0x38,0x00,0x00,0x00,0x00,0x03,0x0F,0x0C,0x10,0x10,0x10,0x10,0x08,0x06,0x00,0x00,/*"c",67*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0xE0,0xF8,0x1C,0x04,0x04,0x04,0x08,0xFF,0xFF,0x00,0x00,0x00,0x03,0x0F,0x18,0x10,0x10,0x10,0x08,0x1F,0x0F,0x08,0x00,/*"d",68*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x48,0x44,0x44,0x44,0x4C,0x78,0x70,0x00,0x00,0x00,0x03,0x0F,0x0C,0x18,0x10,0x10,0x10,0x08,0x04,0x00,/*"e",69*/
    0x00,0x00,0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0xE0,0xC0,0x00,0x00,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,0x00,/*"f",70*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0xF8,0x8C,0x04,0x04,0x8C,0xF8,0x74,0x04,0x0C,0x00,0x70,0x76,0xCF,0x8D,0x8D,0x8D,0x89,0xC8,0x78,0x70,0x00,/*"g",71*/
    0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x08,0x04,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,/*"h",72*/
    0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,/*"i",73*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0x80,0x80,0xC0,0x7F,0x3F,0x00,0x00,0x00,/*"j",74*/
    0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x80,0xC0,0xF4,0x1C,0x04,0x04,0x00,0x00,0x00,0x10,0x1F,0x1F,0x11,0x00,0x03,0x1F,0x1C,0x10,0x10,0x00,/*"k",75*/
    0x00,0x00,0x20,0x20,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,/*"l",76*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x04,0xFC,0xFC,0x08,0x04,0xFC,0xFC,0x00,0x10,0x1F,0x1F,0x10,0x00,0x1F,0x1F,0x10,0x00,0x1F,0x1F,0x10,/*"m",77*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x08,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,/*"n",78*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF0,0x18,0x0C,0x04,0x04,0x0C,0x18,0xF0,0xE0,0x00,0x00,0x03,0x0F,0x0C,0x10,0x10,0x10,0x10,0x0C,0x0F,0x03,0x00,/*"o",79*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x04,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,0x80,0xFF,0xFF,0x88,0x90,0x10,0x10,0x1C,0x0F,0x03,0x00,/*"p",80*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x1C,0x04,0x04,0x04,0x08,0xF8,0xFC,0x00,0x00,0x00,0x03,0x0F,0x18,0x10,0x10,0x90,0x88,0xFF,0xFF,0x80,0x00,/*"q",81*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x10,0x08,0x04,0x04,0x0C,0x0C,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,0x00,0x00,/*"r",82*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x78,0xCC,0xC4,0x84,0x84,0x84,0x0C,0x1C,0x00,0x00,0x00,0x1E,0x18,0x10,0x10,0x10,0x11,0x19,0x0F,0x06,0x00,/*"s",83*/
    0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x1F,0x10,0x10,0x10,0x0C,0x00,0x00,/*"t",84*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFE,0x00,0x00,0x00,0x04,0xFC,0xFE,0x00,0x00,0x00,0x00,0x0F,0x1F,0x18,0x10,0x10,0x08,0x1F,0x0F,0x08,0x00,/*"u",85*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x0C,0x3C,0xFC,0xC4,0x00,0x00,0xC4,0x3C,0x0C,0x04,0x00,0x00,0x00,0x00,0x01,0x0F,0x1E,0x0E,0x01,0x00,0x00,0x00,/*"v",86*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x3C,0xFC,0xC4,0x00,0xE4,0x7C,0xFC,0x84,0x80,0x7C,0x04,0x00,0x00,0x07,0x1F,0x07,0x00,0x00,0x07,0x1F,0x07,0x00,0x00,/*"w",87*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x1C,0x7C,0xE4,0xC0,0x34,0x1C,0x04,0x04,0x00,0x00,0x10,0x10,0x1C,0x16,0x01,0x13,0x1F,0x1C,0x18,0x10,0x00,/*"x",88*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x0C,0x3C,0xFC,0xC4,0x00,0xC4,0x3C,0x04,0x04,0x00,0x00,0x00,0xC0,0x80,0xC1,0x37,0x0E,0x01,0x00,0x00,0x00,0x00,/*"y",89*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x04,0x04,0xC4,0xF4,0x7C,0x1C,0x04,0x00,0x00,0x00,0x00,0x10,0x1C,0x1F,0x17,0x11,0x10,0x10,0x18,0x0E,0x00,/*"z",90*/
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x0C,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x28,0xEF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x60,0x40,0x00,0x00,/*"{",91*/
    0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,/*"|",92*/
    0x00,0x00,0x04,0x0C,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEF,0x28,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x60,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"}",93*/
    0x00,0x18,0x06,0x02,0x02,0x04,0x08,0x10,0x20,0x20,0x30,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"~",94*/
};

const unsigned char love_data[] = {
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0xC0,
    0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0xC0,0xC0,
    0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x78,0xFC,0xFE,0x86,0x03,0x03,0x01,0x01,0x01,0x01,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0xC1,0xC1,0xC1,0xC1,0xC3,0x83,0xC7,0xC6,0xCE,
    0x9C,0x98,0x18,0x1C,0x0E,0x06,0x07,0x03,0x03,0x01,0x01,0x01,0x01,0x01,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x03,0x03,0x07,0xFE,0xFC,0xF8,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x07,0x07,0x0C,0x1C,0x18,0x38,0x30,0x60,0x60,
    0xC0,0xC0,0xC0,0x80,0x80,0x83,0x03,0x03,0x03,0x03,0x03,0x01,0x01,0x03,0x03,0x03,
    0x03,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xB0,0xB6,
    0xB6,0xC6,0xC0,0xC0,0x60,0x60,0x30,0x30,0x18,0x1C,0x0C,0x0E,0x07,0x03,0x01,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x01,0x01,0x01,0x03,0x03,0x03,0x06,0x06,0x06,0x04,0x0C,0x0C,0x0C,
    0x08,0x18,0x18,0x08,0x0C,0x0C,0x0C,0x04,0x06,0x06,0x06,0x03,0x03,0x03,0x03,0x01,
    0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x30,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"F:\STM32项目\项目合集\49. OLED实验\love.bmp",0*/
};
#endif

main函数

c 复制代码
#include "sys.h"
#include "delay.h"
#include "led.h"
#include "uart1.h"
#include "oled.h"

uint8_t i = 0;

extern const unsigned char love_data[];

int main(void)
{
    HAL_Init();                         /* 初始化HAL库 */
    stm32_clock_init(RCC_PLL_MUL9); /* 设置时钟, 72Mhz */
    led_init();
    uart1_init(115200);
    oled_init();
    printf("hello world! \r\n");

    oled_fill(0x00);


    // 1. 一直往后偏移，显示"点"和"线"
//    oled_write_data(0x80);
//    oled_write_data(0x80);
//    oled_write_data(0x80);
//    oled_write_data(0x80);
//    oled_write_data(0x80);

    // 显示字符"A"
//    oled_set_cursor(0, 0);
//    oled_write_data(0x00);
//    oled_write_data(0x00);
//    oled_write_data(0xC0);
//    oled_write_data(0x38);
//    oled_write_data(0xE0);
//    oled_write_data(0x00);
//    oled_write_data(0x00);
//    oled_write_data(0x00);
//    oled_set_cursor(0, 1);
//    oled_write_data(0x20);
//    oled_write_data(0x3C);

//    oled_write_data(0x23);
//    oled_write_data(0x02);
//    oled_write_data(0x02);
//    oled_write_data(0x27);
//    oled_write_data(0x38);
//    oled_write_data(0x20);


//    oled_write_cmd(0xB0); // 指定page
//    oled_write_cmd(0x00);
//    oled_write_cmd(0x10);

    // 2. 显示字符
//    oled_show_char(0, 0, 'L', 24);
//    oled_show_char(12, 0, 'Y', 24);
//    oled_show_char(24, 0, 'X', 24);
//    oled_show_char(36, 0, '6', 24);

      // 3. 显示字符串
      //oled_show_string(0, 2, "liyuan xu", 24);

      // 4. 显示汉字
//      uint8_t i;
//      for(i = 0; i < 3; i++)
//      {
//          oled_show_chinese(i * 24, 0, i, 24);
//      }

       // 5. 显示图片
       oled_show_image(0, 0, 128, 8, (unsigned char *)love_data);


    while(1)
    {

    }
}

7. 实验结果

  1. 字符显示：
  2. 显示汉字
  3. 显示图片
热门推荐
012026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf02GitHub 镜像站点03【AI】2026 年具身智能模型和世界模型总结042026年6月AI大模型全景报告：GPT-5.6、Claude Opus 4.8、Gemini 3.5，中美AI三足鼎立谁主沉浮？052026 AI 编程工具终极实战指南：Cursor vs Claude Code vs Copilot，开发者该怎么选？06Claude Code、Codex、Cursor三分天下：2026年AI编程Agent生态全景剖析072026年6月AI行业全景：从百模大战到Agent元年，这30天发生了什么？082026 年 AI 大模型 & AI 编程工具实战全总结09Trae国际版与国内版深度测评：AI原生IDE的双生花10AI科技热点日报 | 2026年07月01日
