一、SpringBoot 整合 RabbitMQ

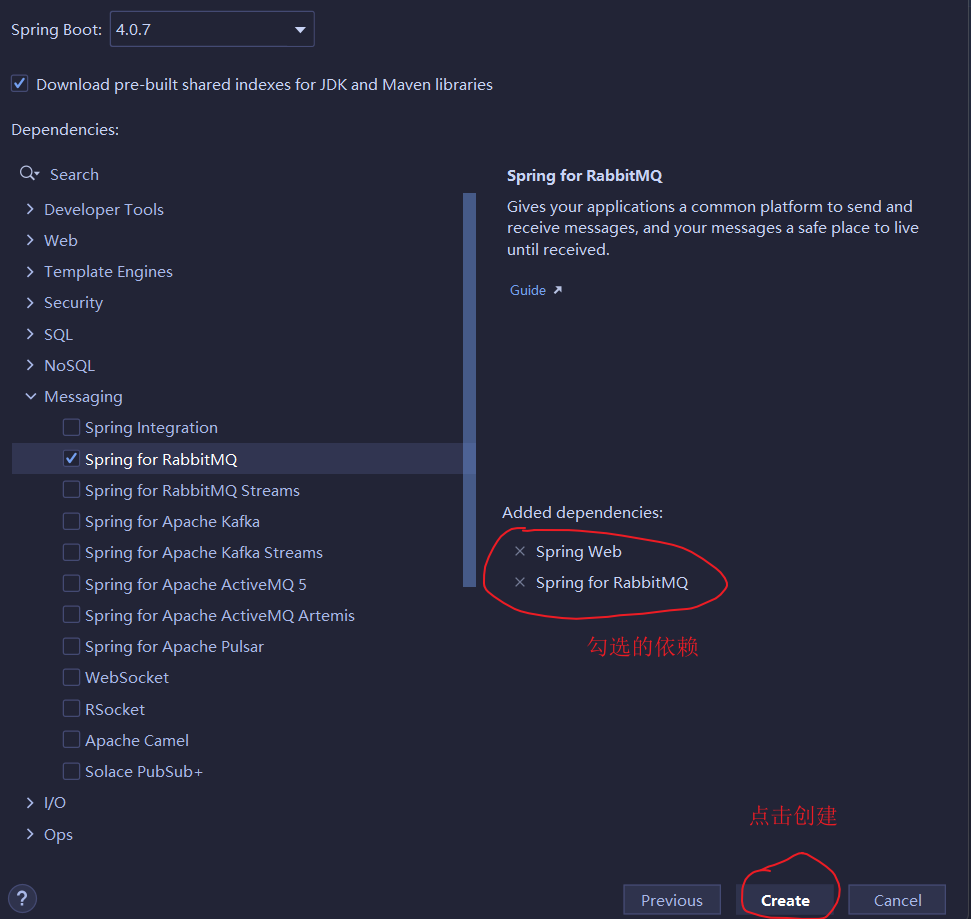

1.1. 环境准备

核心依赖：

<dependencies>
    <!-- RabbitMQ整合核心依赖 -->
	<dependency>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-amqp</artifactId>
	</dependency>
	<dependency>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-webmvc</artifactId>
	</dependency>

	<dependency>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-amqp-test</artifactId>
		<scope>test</scope>
	</dependency>
	<dependency>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-webmvc-test</artifactId>
		<scope>test</scope>
	</dependency>
</dependencies>

配置文件：

# 方式1：分字段配置
spring:
  rabbitmq:
    host: 公网 IP
    port: 5672
    username: yang
    password: study
    virtual-host: test

# 方式2：地址字符串简写
spring:
  rabbitmq:
    addresses: amqp://yang:study@公网 IP:5672/test

二、四大常用模式

2.1. Work Queue 工作队列模式

特点：同一个队列，多个消费者监听；一条消息只会被其中一个消费者消费，做任务分发。

• 配置类声明队列

package com.yang.rabbitmqspringboot.config;

import com.yang.rabbitmqspringboot.constants.Constants;
import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class RabbitMQConfig {
    @Bean("workQueue")
    public Queue workQueue() {
        // 构建持久化队列
        return QueueBuilder.durable(Constants.WORK_QUEUE).build();
    }
}

• 生产者（Controller 发送消息）

package com.yang.rabbitmqspringboot.controller;

import com.yang.rabbitmqspringboot.constants.Constants;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/producer")
public class ProducerController {
    @Autowired
    private RabbitTemplate rabbitTemplate;

    @RequestMapping("/work")
    public String work() {
        // 向默认交换机发送
        for (int i = 0; i < 10; i++) {
            rabbitTemplate.convertAndSend("", Constants.WORK_QUEUE, "hello spring amqp: work..." + i);
        }

        return "发送成功";
    }
}

• 消费者，两个方法监听同一个队列，形成竞争消费

package com.yang.rabbitmqspringboot.listener;

import com.rabbitmq.client.Channel;
import com.yang.rabbitmqspringboot.constants.Constants;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
public class WorkListener {
    @RabbitListener(queues = Constants.WORK_QUEUE)
    public void queueListener1(Message message, Channel channel) {
        System.out.println("Listener1 [" + Constants.WORK_QUEUE + "] 接收到消息" + message + ", channel: " + channel);
    }

    @RabbitListener(queues = Constants.WORK_QUEUE)
    public void queueListener2(Message message, Channel channel) {
        System.out.println("Listener2 [" + Constants.WORK_QUEUE + "] 接收到消息" + message + ", channel: " + channel);
    }
}

2.2. Publish/Subscribe 发布‑订阅

特点：fanout 交换机，忽略 routingKey；消息复制多份，所有绑定该交换机的队列全部收到一模一样的消息。

• Config 配置：声明 2 个队列 + Fanout 交换机 + 两个 Binding 绑定

@Bean("fanoutQueue1")
public Queue fanoutQueue1() {
    return QueueBuilder.durable(Constants.FANOUT_QUEUE1).build();
}

@Bean("fanoutQueue2")
public Queue fanoutQueue2() {
    return QueueBuilder.durable(Constants.FANOUT_QUEUE2).build();
}

@Bean("fanoutExchange")
public FanoutExchange fanoutExchange() {
    return ExchangeBuilder.fanoutExchange(Constants.FANOUT_EXCHANGE).durable(true).build();
}

@Bean("fanoutQueueBinding1")
public Binding fanoutQueueBinding1(@Qualifier("fanoutExchange") FanoutExchange fanoutExchange, @Qualifier("fanoutQueue1") Queue queue) {
    return BindingBuilder.bind(queue).to(fanoutExchange);
}

@Bean("fanoutQueueBinding2")
public Binding fanoutQueueBinding2(@Qualifier("fanoutExchange") FanoutExchange fanoutExchange, @Qualifier("fanoutQueue2") Queue queue) {
    return BindingBuilder.bind(queue).to(fanoutExchange);
}

• 生产者发送消息：routingKey 传空字符串

@RequestMapping("/fanout")
public String fanout() {
    rabbitTemplate.convertAndSend(Constants.FANOUT_EXCHANGE, "", "hello spring amqp: fanout...");
    return "发送成功";
}

• 消费者：分别监听两个队列

package com.yang.rabbitmqspringboot.listener;

import com.yang.rabbitmqspringboot.constants.Constants;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
public class FanoutListener {
    @RabbitListener(queues = Constants.FANOUT_QUEUE1)
    public void queueListener1(String message) {
        System.out.println("队列[" + Constants.FANOUT_QUEUE1 + "] 接收到消息:" + message);
    }

    @RabbitListener(queues = Constants.FANOUT_QUEUE2)
    public void queueListener2(String message) {
        System.out.println("队列[" + Constants.FANOUT_QUEUE2 + "] 接收到消息:" + message);
    }
}

2.3. Routing 路由模式

特点：direct交换机；routingKey 必须和 Binding 绑定的 key 完全相等，队列才接收消息。适合日志分级等定向分发。

• Config 配置

@Bean("directQueue1")
public Queue directQueue1() {
    return QueueBuilder.durable(Constants.DIRECT_QUEUE1).build();
}

@Bean("directQueue2")
public Queue directQueue2() {
    return QueueBuilder.durable(Constants.DIRECT_QUEUE2).build();
}

@Bean("directExchange")
public DirectExchange directExchange() {
    return ExchangeBuilder.directExchange(Constants.DIRECT_EXCHANGE).durable(true).build();
}

@Bean("directQueueBiding1")
public Binding directQueueBiding1(@Qualifier("directExchange") DirectExchange directExchange, @Qualifier("directQueue1") Queue queue) {
    return BindingBuilder.bind(queue).to(directExchange).with("orange");
}

@Bean("directQueueBiding2")
public Binding directQueueBiding2(@Qualifier("directExchange") DirectExchange directExchange, @Qualifier("directQueue2") Queue queue) {
    return BindingBuilder.bind(queue).to(directExchange).with("black");
}

@Bean("directQueueBiding3")
public Binding directQueueBiding3(@Qualifier("directExchange") DirectExchange directExchange, @Qualifier("directQueue2") Queue queue) {
    return BindingBuilder.bind(queue).to(directExchange).with("orange");
}

• 生产者，routingKey 动态传入

@RequestMapping("/direct/{routingKey}")
public String direct(@PathVariable("routingKey") String routingKey) {
    rabbitTemplate.convertAndSend(Constants.DIRECT_EXCHANGE, routingKey, "hello spring amqp: direct..." + routingKey);
    return "发送成功";
}

• 消费者监听两个队列

package com.yang.rabbitmqspringboot.listener;

import com.yang.rabbitmqspringboot.constants.Constants;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
public class DirectListener {
    @RabbitListener(queues = Constants.DIRECT_QUEUE1)
    public void queueListener1(String message) {
        System.out.println("队列[" + Constants.DIRECT_QUEUE1 + "] 接收到消息:" + message);
    }

    @RabbitListener(queues = Constants.DIRECT_QUEUE2)
    public void queueListener2(String message) {
        System.out.println("队列[" + Constants.DIRECT_QUEUE2 + "] 接收到消息:" + message);
    }
}

2.4. Topics 通配符模式

特点：topic交换机，支持通配符匹配。*：匹配一个单词（.分割）；#：匹配0 个或者多个单词。

• Config 配置

@Bean("topicQueue1")
public Queue topicQueue1() {
    return QueueBuilder.durable(Constants.TOPIC_QUEUE1).build();
}

@Bean("topicQueue2")
public Queue topicQueue2() {
    return QueueBuilder.durable(Constants.TOPIC_QUEUE2).build();
}

@Bean("topicExchange")
public TopicExchange topicExchange() {
    return ExchangeBuilder.topicExchange(Constants.TOPIC_EXCHANGE).durable(true).build();
}

@Bean("topicQueueBinding1")
public Binding topicQueueBinding1(@Qualifier("topicExchange") TopicExchange topicExchange, @Qualifier("topicQueue1") Queue queue) {
    return BindingBuilder.bind(queue).to(topicExchange).with("*.orange.*");
}

@Bean("topicQueueBinding2")
public Binding topicQueueBinding2(@Qualifier("topicExchange") TopicExchange topicExchange, @Qualifier("topicQueue2") Queue queue){
    return BindingBuilder.bind(queue).to(topicExchange).with("*.*.rabbit");
}

@Bean("topicQueueBinding3")
public Binding topicQueueBinding3(@Qualifier("topicExchange") TopicExchange topicExchange, @Qualifier("topicQueue2") Queue queue){
    return BindingBuilder.bind(queue).to(topicExchange).with("lazy.#");
}

• 生产者

@RequestMapping("/topic/{routingKey}")
public String topic(@PathVariable("routingKey") String routingKey) {
    rabbitTemplate.convertAndSend(Constants.TOPIC_EXCHANGE, routingKey, "hello spring amqp: topic..." + routingKey);
    return "发送成功";
}

• 消费者

package com.yang.rabbitmqspringboot.listener;

import com.yang.rabbitmqspringboot.constants.Constants;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
public class TopicListener {
    @RabbitListener(queues = Constants.TOPIC_QUEUE1)
    public void queueListener1(String message) {
        System.out.println("队列[" + Constants.TOPIC_QUEUE1 + "] 接收到消息:" + message);
    }

    @RabbitListener(queues = Constants.TOPIC_QUEUE2)
    public void queueListener2(String message) {
        System.out.println("队列[" + Constants.TOPIC_QUEUE2 + "] 接收到消息:" + message);
    }
}
