Linux驱动-RTC-RX8010集成-驱动开发-系统移植

文章目录

前言

RTC 作为一个Linux 子系统的基本子系统，就是一个实时时钟，最常见的就是保持时间不丢失，在系统断电后再重新上电能够保持时间同步不丢失。

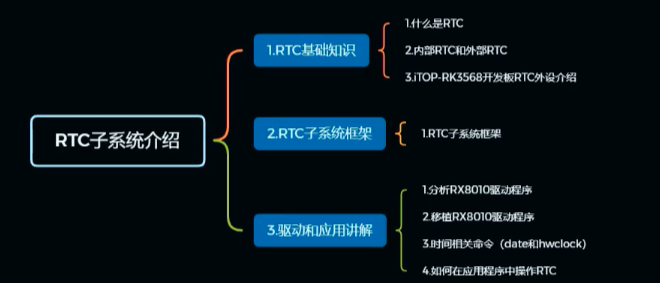

一、 基本知识点

  • 涉及到i2c 知识点-字符设备知识点，因为RX8010 时钟驱动 有字符设备提供外部接口，当然也有ioctl,proc 接口方式。
  • 涉及到会看外设RX8010 参考手册，会看了才能够懂得如何设置、保存、同步时间的原理。 同时RTC 地址 相关、通讯也有所了解了
  • 会移植驱动，听着很厉害样子但是移植驱动是最基本的操作

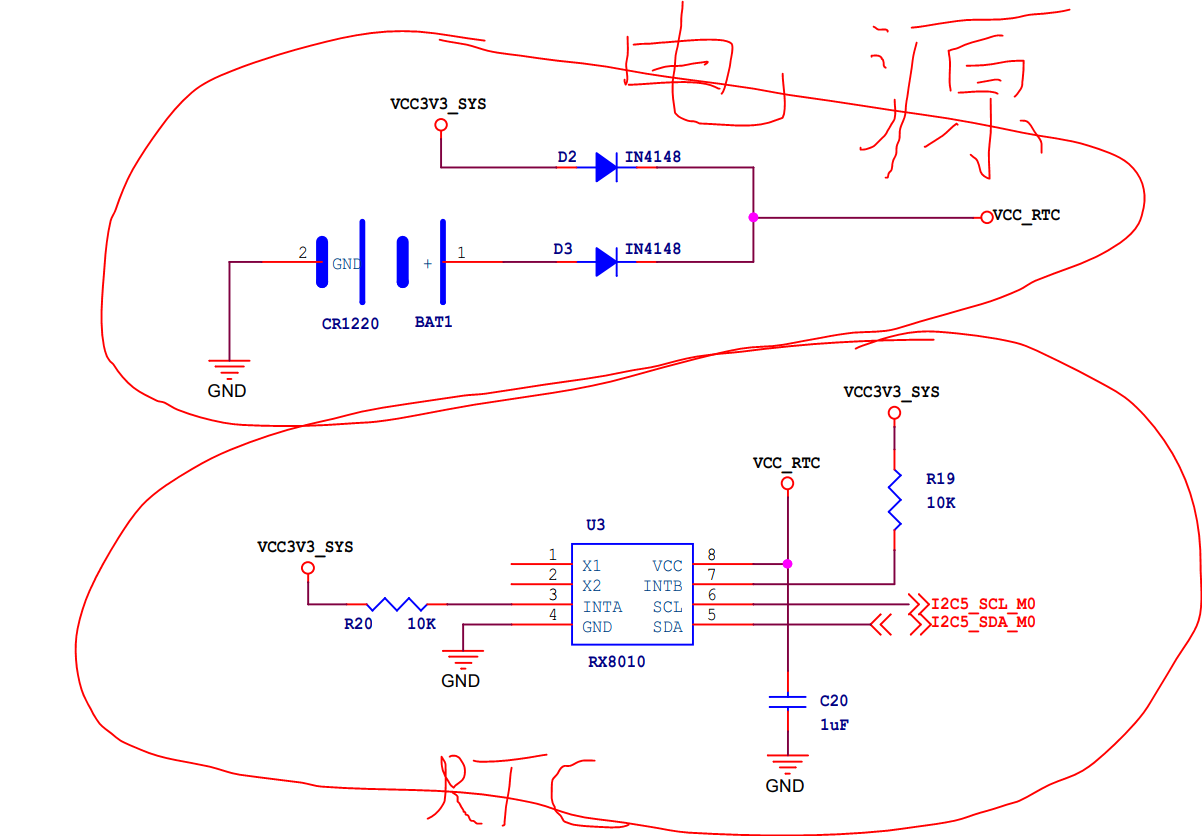

二、原理图分析

  • 电源部分如何实现一直有电，保持给VCC_RTC 网络标号引脚实时供电，这个硬件相关的可以了解一下。
  • RX8010 原理图来看：搞清楚是通过I2C5 来实现的，所以一定涉及到i2c 知识点。 那么配置设备树时候是不是一定要在i2c5 节点下配置外设的。

三、RTC-RX8010 驱动分析

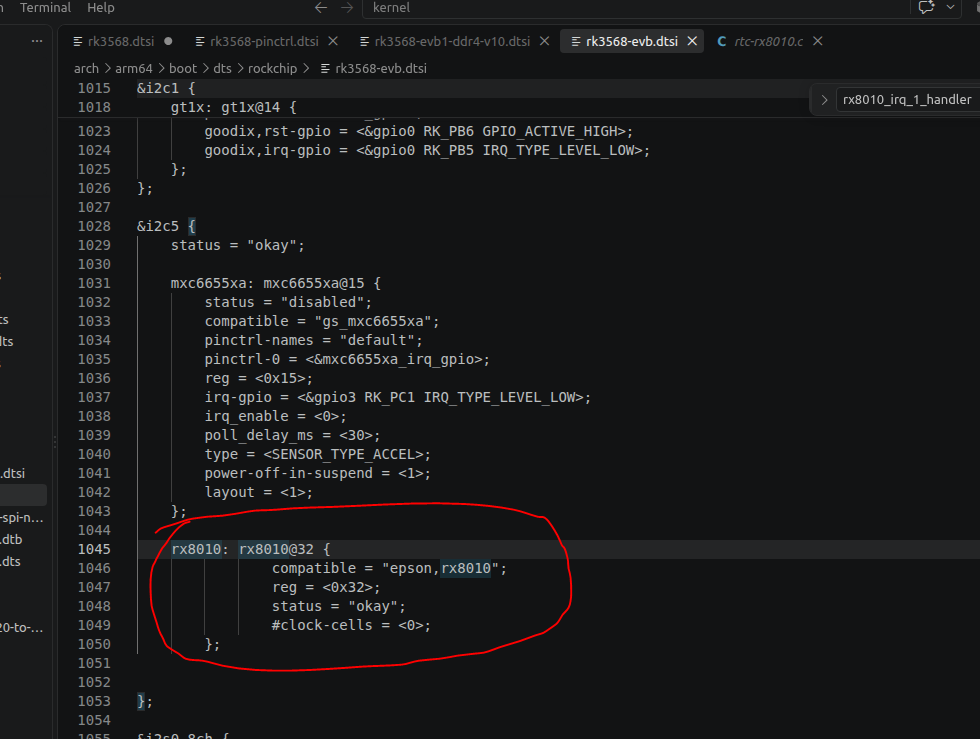

先看设备树，路径：kernel/arch/arm64/boot/dts/rockchip/rk3568-evb.dtsi

这个是RK 平台默认的，那么就去找epson,rx8010 ，如下：drivers/rtc/rtc-rx8010.c:62: { .compatible = "epson,rx8010" }

那么匹配的驱动路径：kernel/drivers/rtc/rtc-rx8010.c

源码如下：方便研究、了解 ：

java 复制代码
/*
 * Driver for the Epson RTC module RX-8010 SJ
 *
 * Copyright(C) Timesys Corporation 2015
 * Copyright(C) General Electric Company 2015
 *
 * This program is free software; you can redistribute it and/or modify
 * it under the terms of the GNU General Public License version 2 as
 * published by the Free Software Foundation.
 *
 */

#include <linux/bcd.h>
#include <linux/bitops.h>
#include <linux/i2c.h>
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/rtc.h>

#define RX8010_SEC     0x10
#define RX8010_MIN     0x11
#define RX8010_HOUR    0x12
#define RX8010_WDAY    0x13
#define RX8010_MDAY    0x14
#define RX8010_MONTH   0x15
#define RX8010_YEAR    0x16
#define RX8010_RESV17  0x17
#define RX8010_ALMIN   0x18
#define RX8010_ALHOUR  0x19
#define RX8010_ALWDAY  0x1A
#define RX8010_TCOUNT0 0x1B
#define RX8010_TCOUNT1 0x1C
#define RX8010_EXT     0x1D
#define RX8010_FLAG    0x1E
#define RX8010_CTRL    0x1F
/* 0x20 to 0x2F are user registers */
#define RX8010_RESV30  0x30
#define RX8010_RESV31  0x31
#define RX8010_IRQ     0x32

#define RX8010_EXT_WADA  BIT(3)

#define RX8010_FLAG_VLF  BIT(1)
#define RX8010_FLAG_AF   BIT(3)
#define RX8010_FLAG_TF   BIT(4)
#define RX8010_FLAG_UF   BIT(5)

#define RX8010_CTRL_AIE  BIT(3)
#define RX8010_CTRL_UIE  BIT(5)
#define RX8010_CTRL_STOP BIT(6)
#define RX8010_CTRL_TEST BIT(7)

#define RX8010_ALARM_AE  BIT(7)

static const struct i2c_device_id rx8010_id[] = {
	{ "rx8010", 0 },
	{ }
};
MODULE_DEVICE_TABLE(i2c, rx8010_id);

static const struct of_device_id rx8010_of_match[] = {
	{ .compatible = "epson,rx8010" },
	{ }
};
MODULE_DEVICE_TABLE(of, rx8010_of_match);

struct rx8010_data {
	struct i2c_client *client;
	struct rtc_device *rtc;
	u8 ctrlreg;
};

static irqreturn_t rx8010_irq_1_handler(int irq, void *dev_id)
{
	struct i2c_client *client = dev_id;
	struct rx8010_data *rx8010 = i2c_get_clientdata(client);
	int flagreg;

	mutex_lock(&rx8010->rtc->ops_lock);

	flagreg = i2c_smbus_read_byte_data(client, RX8010_FLAG);

	if (flagreg <= 0) {
		mutex_unlock(&rx8010->rtc->ops_lock);
		return IRQ_NONE;
	}

	if (flagreg & RX8010_FLAG_VLF)
		dev_warn(&client->dev, "Frequency stop detected\n");

	if (flagreg & RX8010_FLAG_TF) {
		flagreg &= ~RX8010_FLAG_TF;
		rtc_update_irq(rx8010->rtc, 1, RTC_PF | RTC_IRQF);
	}

	if (flagreg & RX8010_FLAG_AF) {
		flagreg &= ~RX8010_FLAG_AF;
		rtc_update_irq(rx8010->rtc, 1, RTC_AF | RTC_IRQF);
	}

	if (flagreg & RX8010_FLAG_UF) {
		flagreg &= ~RX8010_FLAG_UF;
		rtc_update_irq(rx8010->rtc, 1, RTC_UF | RTC_IRQF);
	}

	i2c_smbus_write_byte_data(client, RX8010_FLAG, flagreg);

	mutex_unlock(&rx8010->rtc->ops_lock);
	return IRQ_HANDLED;
}

static int rx8010_get_time(struct device *dev, struct rtc_time *dt)
{
	struct rx8010_data *rx8010 = dev_get_drvdata(dev);
	u8 date[7];
	int flagreg;
	int err;

	flagreg = i2c_smbus_read_byte_data(rx8010->client, RX8010_FLAG);
	if (flagreg < 0)
		return flagreg;

	if (flagreg & RX8010_FLAG_VLF) {
		dev_warn(dev, "Frequency stop detected\n");
		return -EINVAL;
	}

	err = i2c_smbus_read_i2c_block_data(rx8010->client, RX8010_SEC,
					    7, date);
	if (err != 7)
		return err < 0 ? err : -EIO;

	dt->tm_sec = bcd2bin(date[RX8010_SEC - RX8010_SEC] & 0x7f);
	dt->tm_min = bcd2bin(date[RX8010_MIN - RX8010_SEC] & 0x7f);
	dt->tm_hour = bcd2bin(date[RX8010_HOUR - RX8010_SEC] & 0x3f);
	dt->tm_mday = bcd2bin(date[RX8010_MDAY - RX8010_SEC] & 0x3f);
	dt->tm_mon = bcd2bin(date[RX8010_MONTH - RX8010_SEC] & 0x1f) - 1;
	dt->tm_year = bcd2bin(date[RX8010_YEAR - RX8010_SEC]) + 100;
	dt->tm_wday = ffs(date[RX8010_WDAY - RX8010_SEC] & 0x7f);

	return 0;
}

static int rx8010_set_time(struct device *dev, struct rtc_time *dt)
{
	struct rx8010_data *rx8010 = dev_get_drvdata(dev);
	u8 date[7];
	int ctrl, flagreg;
	int ret;

	if ((dt->tm_year < 100) || (dt->tm_year > 199))
		return -EINVAL;

	/* set STOP bit before changing clock/calendar */
	ctrl = i2c_smbus_read_byte_data(rx8010->client, RX8010_CTRL);
	if (ctrl < 0)
		return ctrl;
	rx8010->ctrlreg = ctrl | RX8010_CTRL_STOP;
	ret = i2c_smbus_write_byte_data(rx8010->client, RX8010_CTRL,
					rx8010->ctrlreg);
	if (ret < 0)
		return ret;

	date[RX8010_SEC - RX8010_SEC] = bin2bcd(dt->tm_sec);
	date[RX8010_MIN - RX8010_SEC] = bin2bcd(dt->tm_min);
	date[RX8010_HOUR - RX8010_SEC] = bin2bcd(dt->tm_hour);
	date[RX8010_MDAY - RX8010_SEC] = bin2bcd(dt->tm_mday);
	date[RX8010_MONTH - RX8010_SEC] = bin2bcd(dt->tm_mon + 1);
	date[RX8010_YEAR - RX8010_SEC] = bin2bcd(dt->tm_year - 100);
	date[RX8010_WDAY - RX8010_SEC] = bin2bcd(1 << dt->tm_wday);

	ret = i2c_smbus_write_i2c_block_data(rx8010->client,
					     RX8010_SEC, 7, date);
	if (ret < 0)
		return ret;

	/* clear STOP bit after changing clock/calendar */
	ctrl = i2c_smbus_read_byte_data(rx8010->client, RX8010_CTRL);
	if (ctrl < 0)
		return ctrl;
	rx8010->ctrlreg = ctrl & ~RX8010_CTRL_STOP;
	ret = i2c_smbus_write_byte_data(rx8010->client, RX8010_CTRL,
					rx8010->ctrlreg);
	if (ret < 0)
		return ret;

	flagreg = i2c_smbus_read_byte_data(rx8010->client, RX8010_FLAG);
	if (flagreg < 0) {
		return flagreg;
	}

	if (flagreg & RX8010_FLAG_VLF)
		ret = i2c_smbus_write_byte_data(rx8010->client, RX8010_FLAG,
						flagreg & ~RX8010_FLAG_VLF);

	return 0;
}

static int rx8010_init_client(struct i2c_client *client)
{
	struct rx8010_data *rx8010 = i2c_get_clientdata(client);
	u8 ctrl[2];
	int need_clear = 0, err = 0;

	u8 flag;
    flag = i2c_smbus_read_byte_data(client, RX8010_FLAG);
    if(err < 0)
        return err;

    flag &= ~(RX8010_FLAG_VLF);
        err = i2c_smbus_write_byte_data(client, RX8010_FLAG, flag);

	/* Initialize reserved registers as specified in datasheet */
	err = i2c_smbus_write_byte_data(client, RX8010_RESV17, 0xD8);
	if (err < 0)
		return err;

	err = i2c_smbus_write_byte_data(client, RX8010_RESV30, 0x00);
	if (err < 0)
		return err;

	err = i2c_smbus_write_byte_data(client, RX8010_RESV31, 0x08);
	if (err < 0)
		return err;

	err = i2c_smbus_write_byte_data(client, RX8010_IRQ, 0x00);
	if (err < 0)
		return err;

	err = i2c_smbus_read_i2c_block_data(rx8010->client, RX8010_FLAG,
					    2, ctrl);
	if (err != 2)
		return err < 0 ? err : -EIO;

	if (ctrl[0] & RX8010_FLAG_VLF)
		dev_warn(&client->dev, "Frequency stop was detected\n");

	if (ctrl[0] & RX8010_FLAG_AF) {
		dev_warn(&client->dev, "Alarm was detected\n");
		need_clear = 1;
	}

	if (ctrl[0] & RX8010_FLAG_TF)
		need_clear = 1;

	if (ctrl[0] & RX8010_FLAG_UF)
		need_clear = 1;

	if (need_clear) {
		ctrl[0] &= ~(RX8010_FLAG_AF | RX8010_FLAG_TF | RX8010_FLAG_UF);
		err = i2c_smbus_write_byte_data(client, RX8010_FLAG, ctrl[0]);
		if (err < 0)
			return err;
	}

	rx8010->ctrlreg = (ctrl[1] & ~RX8010_CTRL_TEST);

	return 0;
}

static int rx8010_read_alarm(struct device *dev, struct rtc_wkalrm *t)
{
	struct rx8010_data *rx8010 = dev_get_drvdata(dev);
	struct i2c_client *client = rx8010->client;
	u8 alarmvals[3];
	int flagreg;
	int err;

	err = i2c_smbus_read_i2c_block_data(client, RX8010_ALMIN, 3, alarmvals);
	if (err != 3)
		return err < 0 ? err : -EIO;

	flagreg = i2c_smbus_read_byte_data(client, RX8010_FLAG);
	if (flagreg < 0)
		return flagreg;

	t->time.tm_sec = 0;
	t->time.tm_min = bcd2bin(alarmvals[0] & 0x7f);
	t->time.tm_hour = bcd2bin(alarmvals[1] & 0x3f);

	if (!(alarmvals[2] & RX8010_ALARM_AE))
		t->time.tm_mday = bcd2bin(alarmvals[2] & 0x7f);

	t->enabled = !!(rx8010->ctrlreg & RX8010_CTRL_AIE);
	t->pending = (flagreg & RX8010_FLAG_AF) && t->enabled;

	return 0;
}

static int rx8010_set_alarm(struct device *dev, struct rtc_wkalrm *t)
{
	struct i2c_client *client = to_i2c_client(dev);
	struct rx8010_data *rx8010 = dev_get_drvdata(dev);
	u8 alarmvals[3];
	int extreg, flagreg;
	int err;

	flagreg = i2c_smbus_read_byte_data(client, RX8010_FLAG);
	if (flagreg < 0) {
		return flagreg;
	}

	if (rx8010->ctrlreg & (RX8010_CTRL_AIE | RX8010_CTRL_UIE)) {
		rx8010->ctrlreg &= ~(RX8010_CTRL_AIE | RX8010_CTRL_UIE);
		err = i2c_smbus_write_byte_data(rx8010->client, RX8010_CTRL,
						rx8010->ctrlreg);
		if (err < 0) {
			return err;
		}
	}

	flagreg &= ~RX8010_FLAG_AF;
	err = i2c_smbus_write_byte_data(rx8010->client, RX8010_FLAG, flagreg);
	if (err < 0)
		return err;

	alarmvals[0] = bin2bcd(t->time.tm_min);
	alarmvals[1] = bin2bcd(t->time.tm_hour);
	alarmvals[2] = bin2bcd(t->time.tm_mday);

	err = i2c_smbus_write_i2c_block_data(rx8010->client, RX8010_ALMIN,
					     2, alarmvals);
	if (err < 0)
		return err;

	extreg = i2c_smbus_read_byte_data(client, RX8010_EXT);
	if (extreg < 0)
		return extreg;

	extreg |= RX8010_EXT_WADA;
	err = i2c_smbus_write_byte_data(rx8010->client, RX8010_EXT, extreg);
	if (err < 0)
		return err;

	if (alarmvals[2] == 0)
		alarmvals[2] |= RX8010_ALARM_AE;

	err = i2c_smbus_write_byte_data(rx8010->client, RX8010_ALWDAY,
					alarmvals[2]);
	if (err < 0)
		return err;

	if (t->enabled) {
		if (rx8010->rtc->uie_rtctimer.enabled)
			rx8010->ctrlreg |= RX8010_CTRL_UIE;
		if (rx8010->rtc->aie_timer.enabled)
			rx8010->ctrlreg |=
				(RX8010_CTRL_AIE | RX8010_CTRL_UIE);

		err = i2c_smbus_write_byte_data(rx8010->client, RX8010_CTRL,
						rx8010->ctrlreg);
		if (err < 0)
			return err;
	}

	return 0;
}

static int rx8010_alarm_irq_enable(struct device *dev,
				   unsigned int enabled)
{
	struct i2c_client *client = to_i2c_client(dev);
	struct rx8010_data *rx8010 = dev_get_drvdata(dev);
	int flagreg;
	u8 ctrl;
	int err;

	ctrl = rx8010->ctrlreg;

	if (enabled) {
		if (rx8010->rtc->uie_rtctimer.enabled)
			ctrl |= RX8010_CTRL_UIE;
		if (rx8010->rtc->aie_timer.enabled)
			ctrl |= (RX8010_CTRL_AIE | RX8010_CTRL_UIE);
	} else {
		if (!rx8010->rtc->uie_rtctimer.enabled)
			ctrl &= ~RX8010_CTRL_UIE;
		if (!rx8010->rtc->aie_timer.enabled)
			ctrl &= ~RX8010_CTRL_AIE;
	}

	flagreg = i2c_smbus_read_byte_data(client, RX8010_FLAG);
	if (flagreg < 0)
		return flagreg;

	flagreg &= ~RX8010_FLAG_AF;
	err = i2c_smbus_write_byte_data(rx8010->client, RX8010_FLAG, flagreg);
	if (err < 0)
		return err;

	if (ctrl != rx8010->ctrlreg) {
		rx8010->ctrlreg = ctrl;
		err = i2c_smbus_write_byte_data(rx8010->client, RX8010_CTRL,
						rx8010->ctrlreg);
		if (err < 0)
			return err;
	}

	return 0;
}

static int rx8010_ioctl(struct device *dev, unsigned int cmd, unsigned long arg)
{
	struct i2c_client *client = to_i2c_client(dev);
	struct rx8010_data *rx8010 = dev_get_drvdata(dev);
	int ret, tmp;
	int flagreg;

	switch (cmd) {
	case RTC_VL_READ:
		flagreg = i2c_smbus_read_byte_data(rx8010->client, RX8010_FLAG);
		if (flagreg < 0)
			return flagreg;

		tmp = !!(flagreg & RX8010_FLAG_VLF);
		if (copy_to_user((void __user *)arg, &tmp, sizeof(int)))
			return -EFAULT;

		return 0;

	case RTC_VL_CLR:
		flagreg = i2c_smbus_read_byte_data(rx8010->client, RX8010_FLAG);
		if (flagreg < 0) {
			return flagreg;
		}

		flagreg &= ~RX8010_FLAG_VLF;
		ret = i2c_smbus_write_byte_data(client, RX8010_FLAG, flagreg);
		if (ret < 0)
			return ret;

		return 0;

	default:
		return -ENOIOCTLCMD;
	}
}

static const struct rtc_class_ops rx8010_rtc_ops_default = {
	.read_time = rx8010_get_time,
	.set_time = rx8010_set_time,
	.ioctl = rx8010_ioctl,
};

static const struct rtc_class_ops rx8010_rtc_ops_alarm = {
	.read_time = rx8010_get_time,
	.set_time = rx8010_set_time,
	.ioctl = rx8010_ioctl,
	.read_alarm = rx8010_read_alarm,
	.set_alarm = rx8010_set_alarm,
	.alarm_irq_enable = rx8010_alarm_irq_enable,
};

static int rx8010_probe(struct i2c_client *client,
			const struct i2c_device_id *id)
{
	struct i2c_adapter *adapter = to_i2c_adapter(client->dev.parent);
	const struct rtc_class_ops *rtc_ops;
	struct rx8010_data *rx8010;
	int err = 0;

	if (!i2c_check_functionality(adapter, I2C_FUNC_SMBUS_BYTE_DATA
		| I2C_FUNC_SMBUS_I2C_BLOCK)) {
		dev_err(&adapter->dev, "doesn't support required functionality\n");
		return -EIO;
	}

	rx8010 = devm_kzalloc(&client->dev, sizeof(struct rx8010_data),
			      GFP_KERNEL);
	if (!rx8010)
		return -ENOMEM;

	rx8010->client = client;
	i2c_set_clientdata(client, rx8010);

	err = rx8010_init_client(client);
	if (err)
		return err;

	if (client->irq > 0) {
		dev_info(&client->dev, "IRQ %d supplied\n", client->irq);
		err = devm_request_threaded_irq(&client->dev, client->irq, NULL,
						rx8010_irq_1_handler,
						IRQF_TRIGGER_LOW | IRQF_ONESHOT,
						"rx8010", client);

		if (err) {
			dev_err(&client->dev, "unable to request IRQ\n");
			return err;
		}

		rtc_ops = &rx8010_rtc_ops_alarm;
	} else {
		rtc_ops = &rx8010_rtc_ops_default;
	}

	rx8010->rtc = devm_rtc_device_register(&client->dev, client->name,
					       rtc_ops, THIS_MODULE);

	if (IS_ERR(rx8010->rtc)) {
		dev_err(&client->dev, "unable to register the class device\n");
		return PTR_ERR(rx8010->rtc);
	}

	rx8010->rtc->max_user_freq = 1;

	return err;
}

static struct i2c_driver rx8010_driver = {
	.driver = {
		.name = "rtc-rx8010",
		.of_match_table = of_match_ptr(rx8010_of_match),
	},
	.probe		= rx8010_probe,
	.id_table	= rx8010_id,
};

module_i2c_driver(rx8010_driver);

MODULE_AUTHOR("Akshay Bhat <akshay.bhat@timesys.com>");
MODULE_DESCRIPTION("Epson RX8010SJ RTC driver");
MODULE_LICENSE("GPL v2");

四、RTC-RX8010 系统移植

1、设备树配置

设备树基本配置

设备树基本配置如下：

java 复制代码
	rx8010: rx8010@32 {
                compatible = "epson,rx8010";
                reg = <0x32>;
                status = "okay";
                #clock-cells = <0>;
        };

reg 属性值来源-RX8080 使用手册基本分析

如上 参数节点： reg = <0x32>;，那么为什么这个地址配置为这个呢？

看外设RX8010 使用手册：

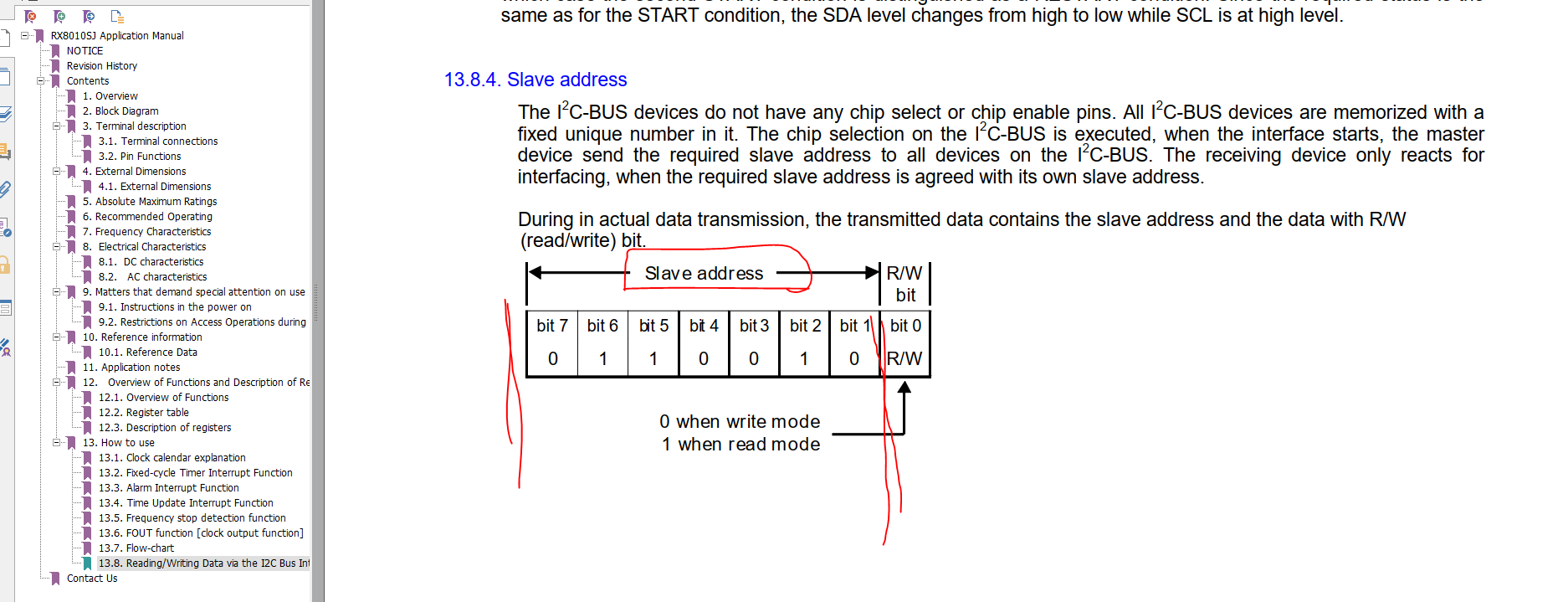

这个地方特别容易搞混：这个一个字节8位，其中bit7-bit1 是地址位，bit0 是读写位。 那么地址位不就是：0110010 嘛， 那么表示地址的只有七位怎么办，左边补零即可。 所以实际地址：00110010 即十六进制表示为：0x32

所以 reg = <0x32>;

2、RX8010 系统移植到内核

内核配置-menuconfig-启动与保存（基本操作）

进入内核配置模式：

java 复制代码
cd kernel/
make ARCH=arm64 rockchip_linux_defconfig
make ARCH=arm64 menuconfig

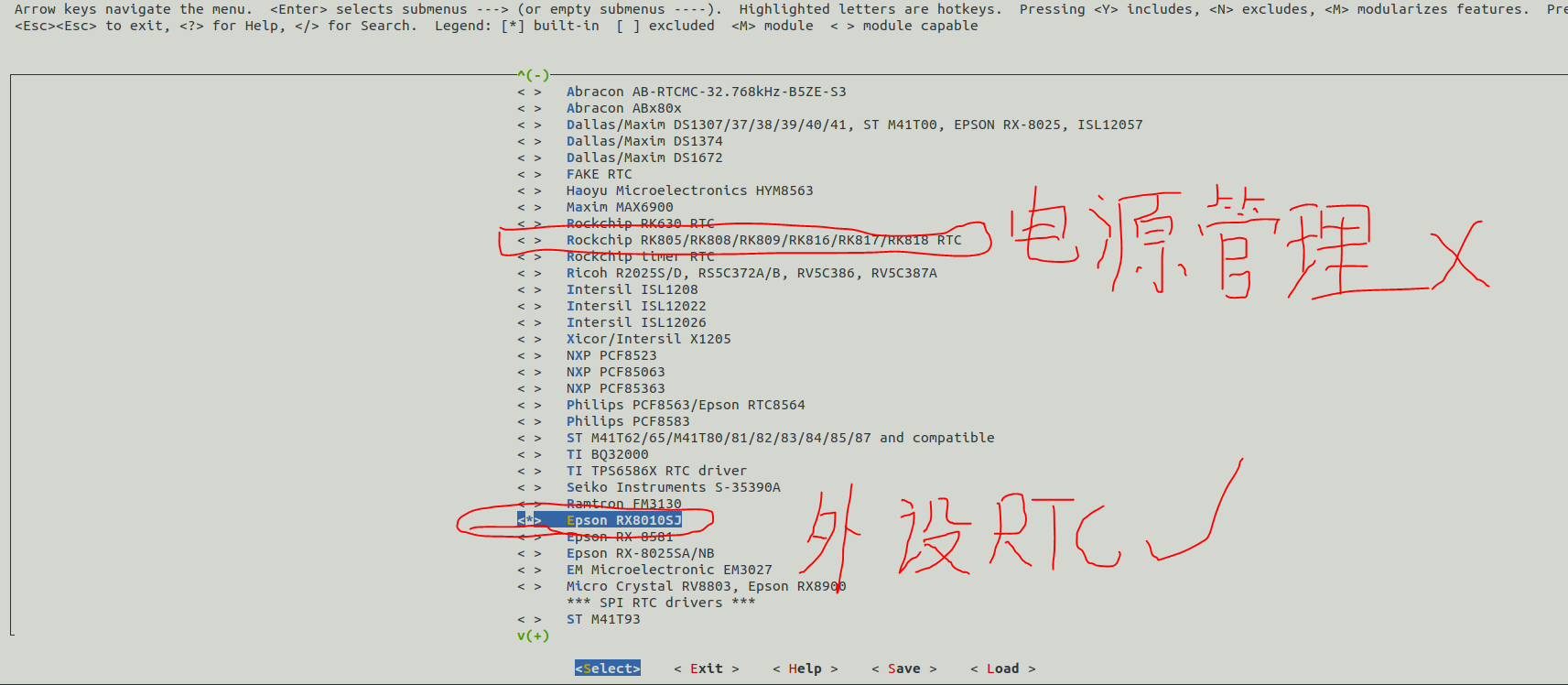

进入：Device Drivers > Real Time Clock

退出界面保存-然后替换menconfig 配置文件

java 复制代码
cp .config arch/arm64/configs/rockchip_linux_defconfig

总结

  • Linux驱动-RTC-RX8010集成-驱动开发-系统移植-移植RX8010驱动，这里讲解了RTC驱动相关知识点
  • 依托于当前基础知识点，在处理Linux RTC 实时时间问题时候可以自行参考解决实际问题，原理一样的
相关推荐
sukalot8 小时前
windows 驱动实例分析系列: HidHide驱动分析-HidHideClient 篇（中）
windows·驱动开发
HRTOS3 天前
HRTOS 4.0 驱动库：06_Storage 存储设备驱动——24C02 EEPROM与I²C驱动开发
c语言·驱动开发·嵌入式硬件·51单片机
KFCgrandpahhh3 天前
rk3576点灯
linux·驱动开发
HRTOS3 天前
HRTOS 4.0 正式发布：Driver Library 基础外设驱动模块介绍
驱动开发·单片机·嵌入式硬件·51单片机
HRTOS3 天前
HRTOS 4.0 Driver Library：03_Sensor 传感器驱动
驱动开发·单片机·嵌入式硬件·51单片机
Rsingstarzengjx3 天前
第二十六章 Linux 蜂鸣器实验笔记
linux·驱动开发·笔记·stm32·嵌入式硬件·stm32mp157
程序员无隅4 天前
从 Vibe Coding 到可控交付：用 Spec-Driven Development 驾驭 AI 编程 Agent
人工智能·驱动开发
小小工匠4 天前
半年之后，规格驱动开发（SDD）框架格局重排：从 +863% 到 +18% 的分化
驱动开发
kruptos4 天前
嵌入式 Linux 驱动开发：第一个内核模块怎么写？
linux·运维·驱动开发·嵌入式硬件
热门推荐
01如何新建文件夹？ 电脑新建文件夹的4种方法02国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）03GitHub 镜像站点04历年考研数学一、数学二、数学三真题试卷及答案PDF052026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？06蜘蛛磁力 搜索引擎大全，如何使用蜘蛛磁力查找磁力链接07微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新08ZCode 周末送额度活动开启：3 亿 Token 免费领取09Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费10AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路
